Optec TCF-S Focuser (3)

[ See also Previous notes TCF-S Focuser Notes 1 - 2008-02-19 ]
[ See also Previous notes TCF-S Focuser Notes 2 - 2008-03-12 ]

Back to Top


Temperature Coefficient - LX200 8"

Based on focus measurements from S285 combined with measurements made during earlier sessions (S267 to S275),  a revised temperature coefficient of -155.9 steps per deg C has been estimated by my LX200 telescope normal setup (LX200 8", f/10 - operating at f7.4 , focal length 1498mm) .  This is equivalent to a focus change of 0.013"/degC  or 0.34 mm/degC (based on TCF-S step size of 0.000085")


Back to Top


Focusing - Star Analyser 100

Star Spectra produced with under
a range of focus positions

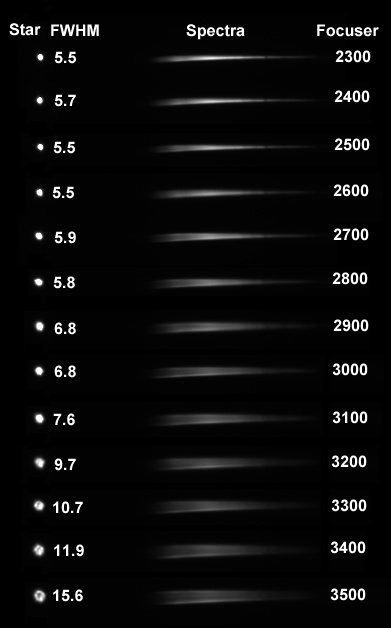

Procyon


Montage of CCD Spectra Images
0.3s
exposures, 1x1 binning, C Filter
2008-04-17 (#283007-52)

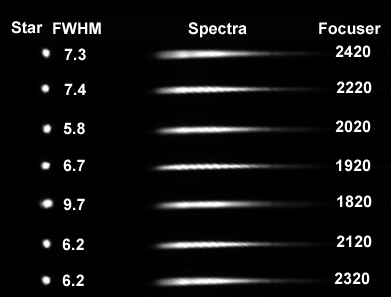

Regulus


Montage of CCD Spectra Images
2s
exposures, 1x1 binning, C Filter
2008-04-17(#283097-104)

Back to Top


Focus Offset - Star Analyser 100

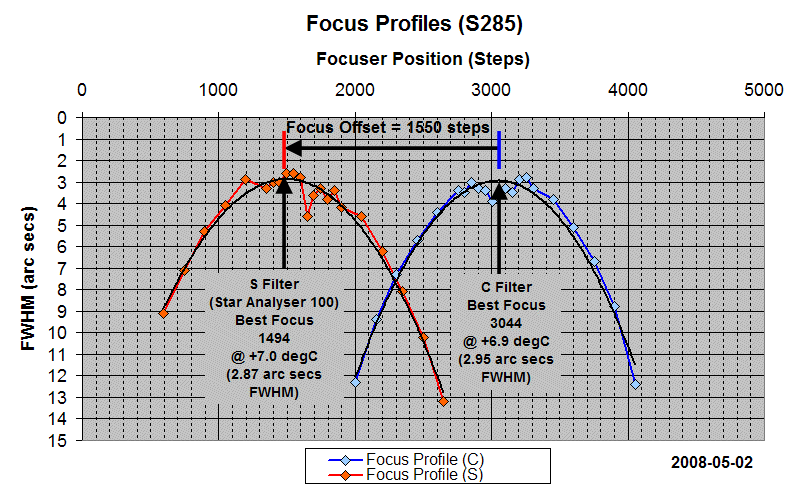

Focus profiles produced for a selected star confirmed a significant focus position offset between the Star Analyser 100 and normal C Filter (see Figure below).. The profiles established a focus offset of 1550 steps for the Star Analyser 100, equivalent to 0.13" or 3.35mm (based on TCF-S step size of 0.000085").

Focus Profiles - S Filter (Star Analyser 100) compared with C Filter


Back to Top


Autofocusing

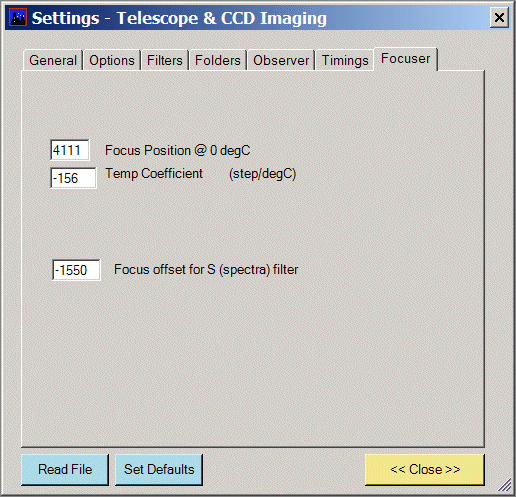

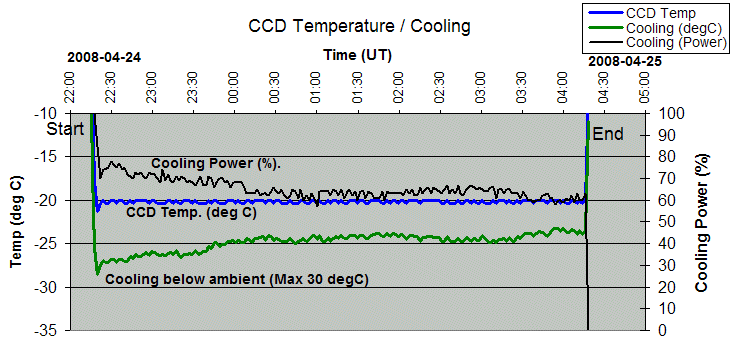

New software routines were used from Session 284 onwards to automatically adjust the TCF-S focus position, based on the established temperature coefficient , datum focus position and the filter being used.  Because the autofocusing calculation is performed external to the TCF-S box or TCF-S software, it is possible to capture telescope tube temperature as a near continuous graph throughout the session using a program thread.  The same thread also captures a near continuous reading of CCD temperature and cooling.

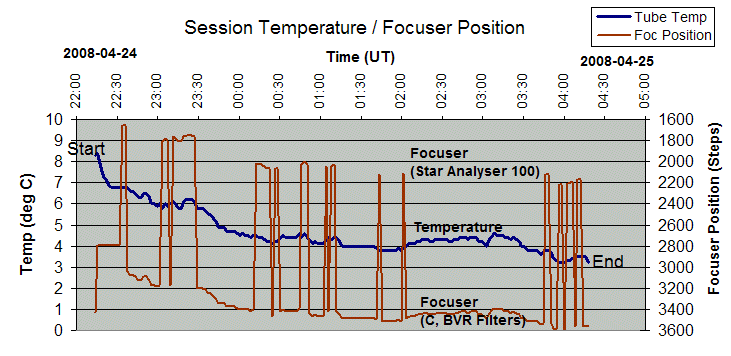

The following chart shows the telescope tube temperature for Session 284 (2008-04-24) and a provisional S filter offset. It shows the fall in ambient (tube) temperature from initial reading of +8 degC to a final temperature of +3.5 deg C.  Compensating changes in focuser position through the session are shown, along with larger changes in focus position related to autoselecting the S Filter (Star Analyser 100) with it specified focus offset.
