Notes - Session 648 (2019-01-20)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (2),  Minor Issues (6),  Continuous Improvement (3)

Bullet Autofocussing - FWHM & HFD Profiles
Bullet Investigation - Unexpected Disconnection of SBIG Camera
Bullet Pegasus PowerBox - Voltage Supply Issue
Bullet Dark Frames -25degC

Bullet Images from 2019-01-20  >>


Session Aims & Highlights (2019-01-20)

Main aims

  1. Targets. Acquire images of a range of targets (comets, variable stars, nearby stars and deep sky objects) during a night of expected very good weather conditions
  2. Software. Test operation of the v3.8 version of AstroMain (Observatory Control Program)  following introduction of several software changes and additions


Equipment & Software

Highlights

Summary Plots & Logs

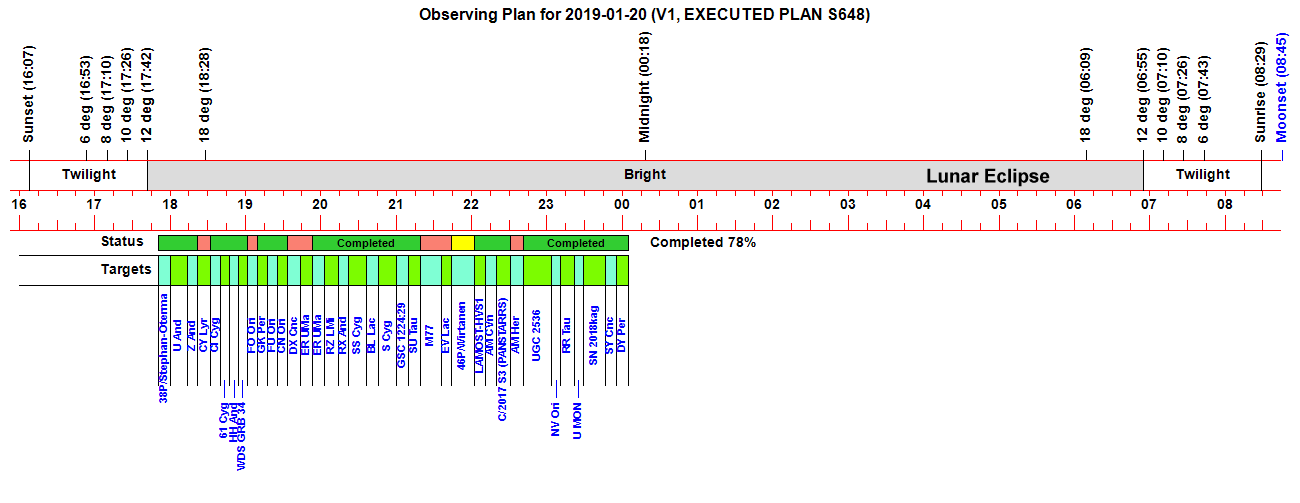

Observing Plan (2019-01-20, S648)

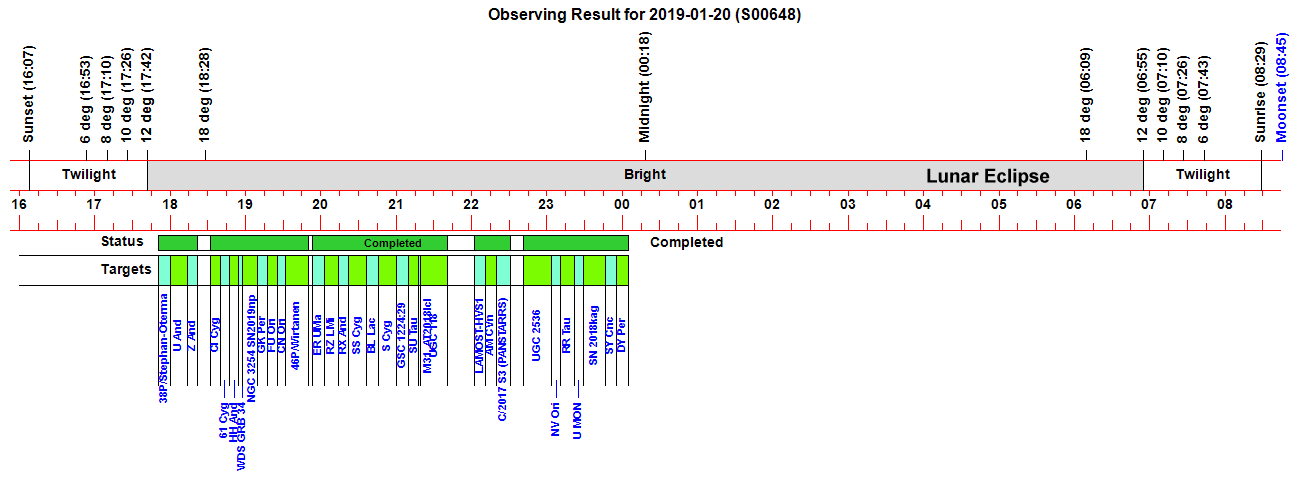

Observing Result (2019-01-20, S648)

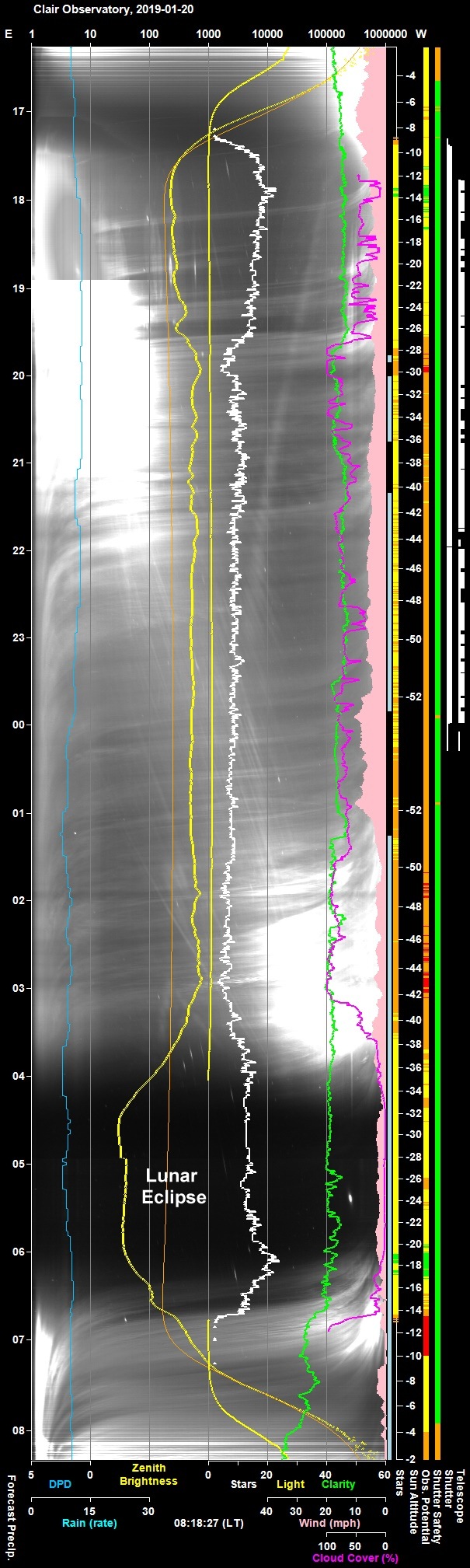

Night Sky Summary Plot - 2019-01-20, S648
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Session Event Log (2019-01-20, S649)
Time   Event Detail
17:17 Session Created Live Session Created (2019-01-20 S00648, ImageSaveNum: 648001)
17:18 Obs.Manager Started Obs.Manager started
17:18 Services Started Observatory Services started
17:21 Services Started Observatory Services started
17:22   Camera1 Connected SBIG Camera Connected (set point -25°C)
17:22   Telescope Connected Telescope Connected (TheSky6)
17:23 Shutter Opened Shutter opened (opening time 49s)
17:27 Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
17:31   Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:31 Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
17:34   Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
17:42 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:42 Session Pending Session pending (2019-01-20)
17:42   Plan Requested Observing Plan requested from AstroPlan ()
17:45   Plan Loaded Observing Plan loaded to queue (2019-01-20 V1 BEST PLAN, Plan ID: 252)
17:45   Camera1 Connected SBIG Camera Connected (set point -25°C)
17:45   Telescope Connected Telescope Connected (TheSky6)
17:45 Equilibration Started Dome Equilibration started
17:46 Equilibration Skipped Dome Equilibration skipped by user
17:46   Queue Started Observing Queue started (36 targets selected)
17:46     Target Started (1/36) Target started (1/36, 38P/Stephan-Oterma)
17:53     Target Completed Target completed (1/36, 38P/Stephan-Oterma)
17:55     Target Started (2/36) Target started (2/36, GCVS U And)
18:08     Target Completed Target completed (2/36, GCVS U And)
18:09     Target Started (3/36) Target started (3/36, GCVS Z And)
18:14     Target Completed Target completed (3/36, GCVS Z And)
18:17     Target Started (4/36) Target started (4/36, GCVS CY Lyr)
18:26     Target Started (5/36) Target started (5/36, GCVS CI Cyg)
18:33     Target Completed Target completed (5/36, GCVS CI Cyg)
18:34     Target Started (6/36) Target started (6/36, 61 Cyg)
18:38     Target Completed Target completed (6/36, 61 Cyg)
18:41     Target Started (7/36) Target started (7/36, GCVS HH And)
18:46     Target Completed Target completed (7/36, GCVS HH And)
18:49     Target Started (8/36) Target started (8/36, WDS GRB 34)
18:52     Target Completed Target completed (8/36, WDS GRB 34)
19:08     Target Aborted (9/37) Target aborted (9/37, NGC 3254 SN2019np) due to other condition
19:13     Target Completed Target completed (11/37, GCVS GK Per)
19:18     Target Completed Target completed (12/37, GCVS FU Ori)
19:20     Target Started (13/37) Target started (13/37, GCVS CN Ori)
19:26     Target Completed Target completed (13/37, GCVS CN Ori)
19:28     Target Started (14/37) Target started (14/37, GCVS DX Cnc)
19:31     Target Aborted (14/37) Target aborted (14/37, GCVS DX Cnc) due to other condition
19:50     Target Completed Target completed (15/38, 46P/Wirtanen)
19:58     Target Completed Target completed (17/38, GCVS ER UMa)
20:07     Target Completed Target completed (18/38, GCVS RZ LMi)
20:09     Target Started (19/38) Target started (19/38, GCVS RX And)
20:15     Target Completed Target completed (19/38, GCVS RX And)
20:16     Target Started (20/38) Target started (20/38, GCVS SS Cyg)
20:23     Target Completed Target completed (20/38, GCVS SS Cyg)
20:31     Target Started (21/38) Target started (21/38, GCVS BL Lac)
20:37     Target Completed Target completed (21/38, GCVS BL Lac)
20:40     Target Started (22/38) Target started (22/38, GCVS S Cyg)
20:43 Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
20:46   Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
20:56     Target Completed Target completed (22/38, GCVS S Cyg)
21:04     Target Completed Target completed (23/38, GSC 1224:29)
21:05     Target Started (24/38) Target started (24/38, GCVS SU Tau)
21:12     Target Completed Target completed (24/38, GCVS SU Tau)
21:27     Target Completed Target completed (25/39, M31_AT2018lcl)
21:44     Target Completed Target completed (26/40, UGC 118)
21:45 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:45 Session Pending Session pending (2019-01-20)
21:45   Plan Loaded Observing Plan loaded to queue (2019-01-20 V1 BEST PLAN, Plan ID: 252)
21:45   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:45   Telescope Connected Telescope Connected (TheSky6)
21:45 Equilibration Started Dome Equilibration started
21:45   Queue Started Observing Queue started (14 targets selected)
21:45     Target Missed (23/36) Target Missed (23/36, M77)
21:47     Target Completed Target partially completed (25/36, 46P/Wirtanen)
21:52 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:52 Session Pending Session pending (2019-01-20)
21:52   Plan Loaded Observing Plan loaded to queue (2019-01-20 V1 BEST PLAN, Plan ID: 252)
21:52   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:52   Telescope Connected Telescope Connected (TheSky6)
21:53 Equilibration Started Dome Equilibration started
21:53   Queue Started Observing Queue started (11 targets selected)
21:57 Session Resumed Live Session Resumed (2019-01-20 S00648, ImageSaveNum: 648240)
21:57   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:57 Obs.Manager Started Obs.Manager started
21:57 Services Started Observatory Services started
21:58   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:58   Telescope Connected Telescope Connected (TheSky6)
21:59 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:59 Session Pending Session pending (2019-01-20)
21:59   Plan Loaded Observing Plan loaded to queue (2019-01-20 V1 BEST PLAN, Plan ID: 252)
21:59   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:59   Telescope Connected Telescope Connected (TheSky6)
21:59 Equilibration Started Dome Equilibration started
21:59   Queue Started Observing Queue started (11 targets selected)
21:59     Target Started (26/36) Target started (26/36, LAMOST-HVS1)
22:06     Target Completed Target completed (26/36, LAMOST-HVS1)
22:12     Target Completed Target completed (27/36, GCVS AM CVn)
22:15     Target Started (28/36) Target started (28/36, C/2017 S3 (PANSTARRS))
22:26     Target Completed Target completed (28/36, C/2017 S3 (PANSTARRS))
22:36     Target Started (30/36) Target started (30/36, UGC 2536)
22:55     Target Completed Target completed (30/36, UGC 2536)
22:58     Target Started (31/36) Target started (31/36, GCVS NV Ori)
23:04     Target Completed Target completed (31/36, GCVS NV Ori)
23:06     Target Started (32/36) Target started (32/36, GCVS RR Tau)
23:14     Target Completed Target completed (32/36, GCVS RR Tau)
23:16     Target Started (33/36) Target started (33/36, GCVS U MON)
23:24     Target Completed Target completed (33/36, GCVS U MON)
23:24     Target Started (34/36) Target started (34/36, SN 2018kag)
23:39     Target Completed Target completed (34/36, SN 2018kag)
23:41     Target Started (35/36) Target started (35/36, GCVS SY Cnc)
23:48     Target Completed Target completed (35/36, GCVS SY Cnc)
23:50     Target Started (36/36) Target started (36/36, GCVS DY Per)
23:58     Target Completed Target completed (36/36, GCVS DY Per)
23:58 Queue Completed Job Queue completed
23:59 Session Closing Session closing
23:59 Shutter Closed Shutter closed (closing time 49s)
00:07 Session Finished Session Finished

Back to Top


Operational Issues (2019-01-20, S648)

[ Prev | Next ]

Critical Issues

Major Issues

Minor issues

Continuous Improvement

[ Prev | Next ]

Back to Top



Autofocussing / HFD Profiles

Three focus profiles created during the session (including HFD measurements).

Focus Profiles,  including new HFD measurements

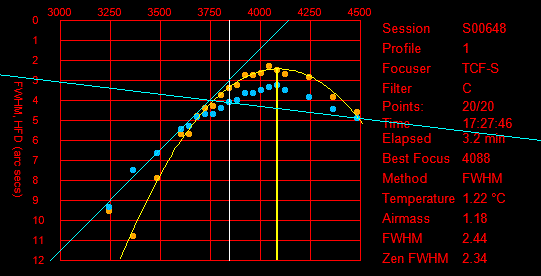

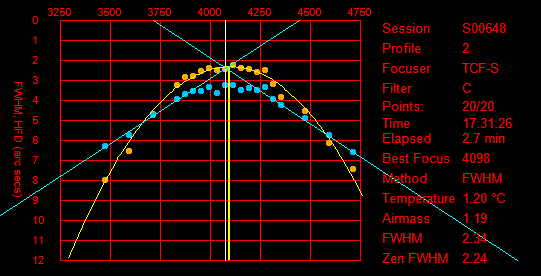

  Initial focusing run at start of Session

  Initial focusing run at start of Session
(profile re-run to get HFD data on both sides of best focus)

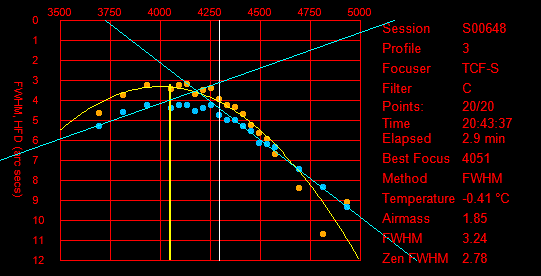

 Refocusing run part way through session
(focus has drifted with temperature changes)


Issues

Back to Top


Investigation - Unexpected Disconnection of SBIG Camera

After slewing to Comet 46P/Wirtanen at 21:45, attempts to take images to centre target and to make planned observations (45 x 15s exposure) failed and required the Job Queue to be aborted and the observatory then visited to try to resolve the problem.   This was done by power cycling the SBIG St-10XME Camera using the A/C Mains Scoket and then restarting the session & job queue.   This worked, but shortly after the AstroMain program frooze, which then had to be resolved by killing and restarting AstroMain and other obsrevatory software (CCDSoft & TheSky).

It seem likely that cable to TCF-S focuer and SBIG Camera had most-likely snagged on the front rightand arm of the wedge, and momentarily pulled a USB cable or Power cable from the SBIG Camera.   It is unlikely that the earlier accidental Job Abort was responsible in any way.    The drop out of the CCD Camera and its reconnection may have contributed to the AstroMain destabilising and freezing up.

Altogether around 15 mins of observing time was lost.

Time Event
21:27    Started Target 26/40, UGC 118 as a Target of Opportunity
21:41   Image quality poor due to cloud and altitude (26 deg).
21:43    - User decision to Abort Target
21:44 - User accidently hit the Abort Job button instead and accidently Ok'ed the warning
21:44 - Queue execution aborted and Control Mode passed back to Manual
21:45   User re-enaged Fully-Automated Mode
21:45   Obs. Executor reloaded and resumed the original Observing Plan (V1 BEST PLAN)
21:45   M77 & GCVS EV Lac Targets skipped due to Missed Start Times
21:45   Started Target 25/36, Comet 46P/Wirtanen
21:45   - Slewed to Target  (alt 62.3, Azim 66.4 deg)
21:46   - Locate Images all failed  (Error during TakeImage )
21:46   - Image frames all failed as well  (Error during TakeImage)
21:47   - User decision to Abort Job Queue
21:47 - Queue execution aborted and Control Mode passed back to Manual
21:51   Observatory visited
21:48   - Cables to TCF-S focuser and SBIG Camera noticed to be pulled somewhat tightly across the arm of the Wedge
( cable was moved from its position to a less critical / less tight position )
21:48   - SBIG USB Camera noticed to have dropped off the computer Device List (Device Manager)
21:51   - SBIG Camera power-cycled using A/C mains switch.
21:52   User re-enaged Fully-Automated Mode
21:52   SBIG Camera connected to as part of 'Session Starting' code (Connection OK)
21:53   Obs. Executor reloaded and resumed the original Observing Plan (V1 BEST PLAN)
21:53   Started Target 26/36, LAMOST-HVS1 (planned start 22:02)
21:54   - Target began wait loop.   User began looking at AllSky Image Picture (window overlying AstroMain program)
21:55   - AstroMain program was found to be non-responsive
21:56   - Killed AstroMain Program, Closed TheSky & CCDSoft, killed secondary instances of TheSky & CCDSoft
21:56   User Restarted TheSky, CCDSoft & AstroMain
21:57   User Resumed S648 Session
21:59   User re-enaged Fully-Automated Mode
21:59   Obs. Executor reloaded and resumed the original Observing Plan (V1 BEST PLAN)
21:59   Started Target 26/36, LAMOST-HVS1 (planned start 22:02)
22:06   Completed Target 26/36  (execution moved to next targer OK)
22:06   Began Targets 27 to 36 (execution ok)



Back to Top


Pegasus PowerBox - Voltage Supply Issue

After operating Dew Heater at around 50% level, the Dew Heaters were turned up at around 23:10 due to possible signs of condensation (seen as diminishing transparency from comparison of apparent star brightness against expected brightness from catalogue magnitudes). It was noticed that the UPB Software showed a red warning icon and a pop-up message "A short circuit (SC) detected or input voltage is out of limits". The input voltage was noticed to have dopped to 10.7v (compared to normal supply voltage of 12.1V, and working voltages of 11.6V and 11.3V with Dew Heaters at 0% and 50% respectively.

Having only recently moved to a Pegasus 12V 10A power supply from an older legacy 12v  3A supply I was surprised to start seeing a power issue given the relatively minor amount of connected equipment  (a LX200 scope, 2 dew heater bands (12" & 5") and a stepper motor for focusing a guidescope)

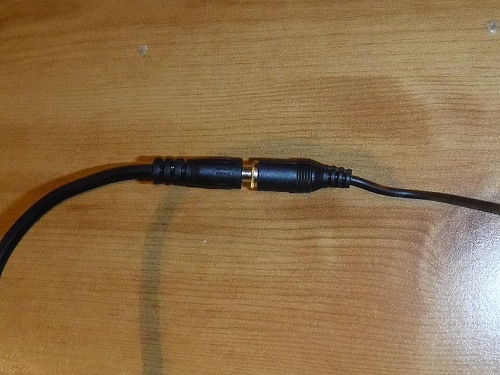

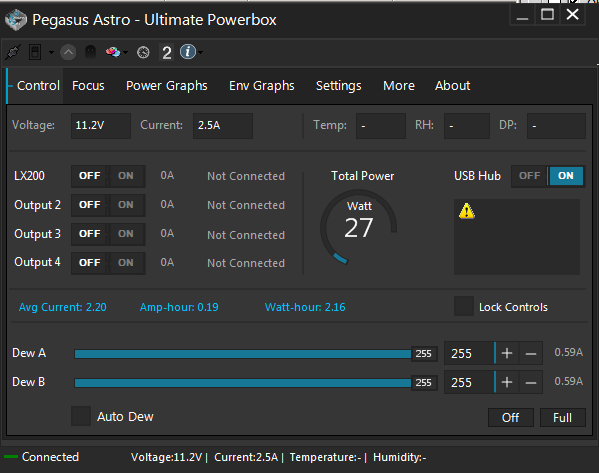

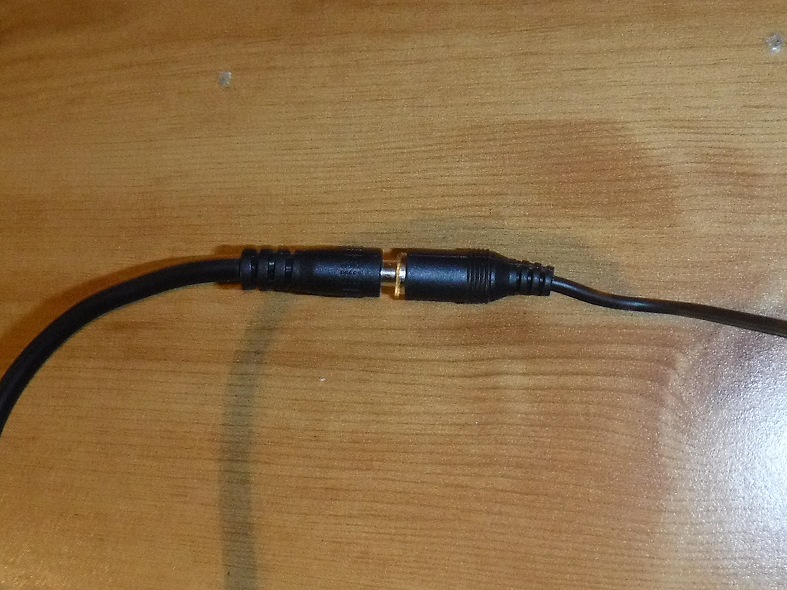

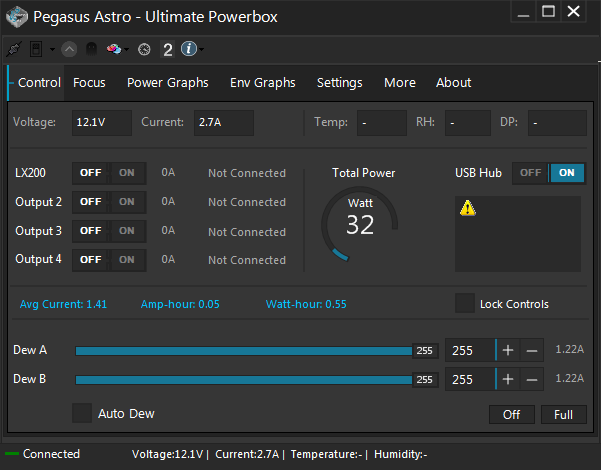

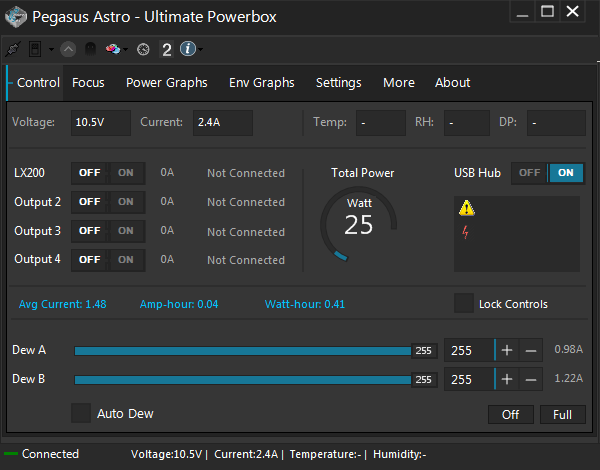

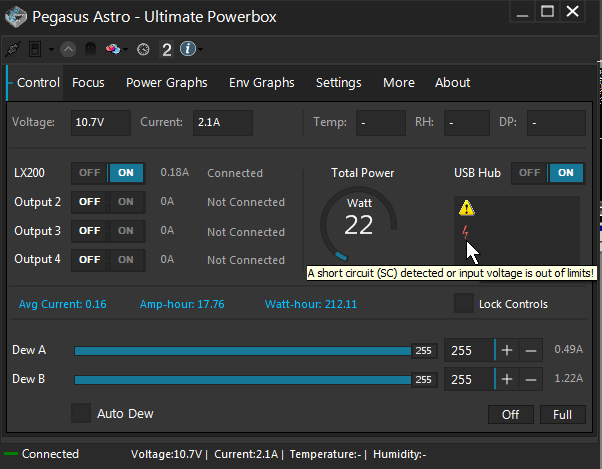

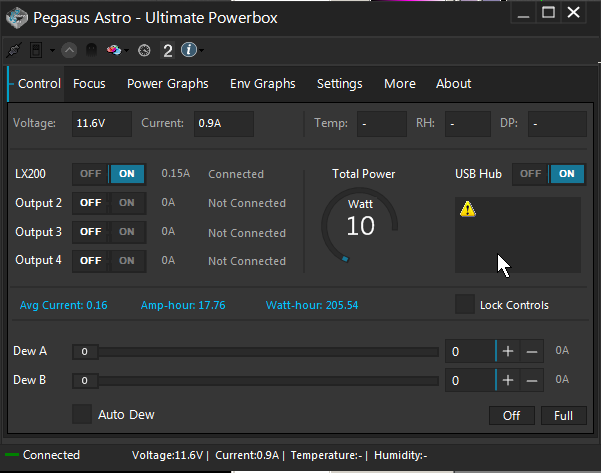

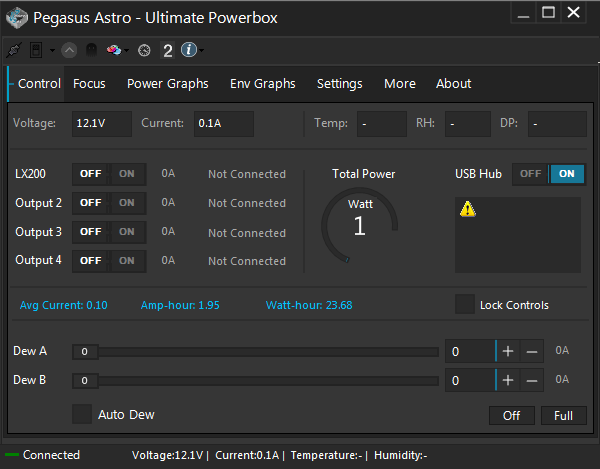

Pegasus UPB - Power Issue (2019-01-20, S648)
UPB Powered from 12V, 10A Adapter with a 3m DC extension cable
(using LX200,  1 x 12" Heater Band, 1 x 5" Heater Band )

  UPB Panel with Dew Heaters are full power.
Input Voltage 10.7V, Current 2.1A, Power 22W. Total Output Current 1.9A
(The yellow exclamation symbol simply warns that a Temperature/Humidity Sensor is not connected)

  UPB Panel with Dew Heaters are half power.
Input Voltage 11.3V, Current 1.3A,  Power 14W. Total Output Current 1.3A

  UPB Panel with Dew Heaters Off.
Input Voltage 11.6V, Current 0.9A, Power 10W, Total Output Current 0.2A

  UPB Panel with everything off (No Dew Heaters , No Scope)
Input Voltage 12.1V, Current 0.1A, Power 1W, Total Output Current 0.0A


The UPB is powered by a Pegasus Astro 12V 10A Supply which sits in the Observatory Bay.   The 1.5m long 12v cable from the Supply Adapter is too short to reach to firstly reach the bottom of the pier (1.2m away) and then up to the UPB mounted on the LX200 fork arm at a height 1.6m above the floor level. The cable length also needs to allow the fork to swing through +180/-180 degrees when scope is operating. An extension cable (2.5mm female barrel to 2.5mm male plug) of  2m minimal length is therefore required. (If the UPB was positioned in a 'conventional' position on top of the guidescope dovetails, it would be positioned at a height of 2.15m above the floor level and an even longer cable would be needed)

There was no indication of any short circuit ( the warning icon/message disappeared which ever device/output  was turned off or wasn't present when powering the UPB directly from the 12V supply rather than using an extension cable)

The issue was investigated further the following day but using 2x12" heater bands (instead of the items connected during the session the previous night). This  showed input voltage dropping as low as 10.5V (with a current draw of 2.4A) when the dew heaters were fully on.   Repeating the test with the Power Adapter connected directly to the UPB i.e. without the extension cable (not feasible for normal observatory use involving telescope slewing) showed the input voltage staying at 12.1V (with a current draw of 2.7A).  A test using an alternate DC extension cable (1.8m long) didn't produce the red warning icon or message, but delivered much lower output current to the dew heaters (only 0.59A each versus an expected value of 1.22A each).

Pegasus PowerBox - Daytime Power Investigations (2019-01-21)
(using 2 x 12" Heater Bands, -  LX200 not connected )

UPB Powered from 12V, 10A Adapter with 3m DC extension cable
  UPB Panel with Dew Heaters (2 x 12") at full power
Input Voltage 10.5V. Current 2.4A, Total Power 25W, Total Output Current 2.2A

  UPB Powered directly from 12V, 10A Adapter
UPB Panel with Dew Heaters (2 x 12") at full power
Input Voltage 12.1V. Current 2.7A, Total Power 32W, Total Output Current 2.4A

  UPB Powered from 12V, 10A Adapter with an alternate 1.8m DC extension cable
UPB Panel with Dew Heaters (2 x 12") at full power
Input Voltage 11.2V. Current 2.5A, Total Power 27W.  Total Output Current 1.2A


The extension cable is a regular extension cable (relatively thin wired) and it is evident that a heavier duty cable is required. Attempts to find a heavy duty cable online with the necessary male and female plug adapters (2.5mm/5.5mm) have so far failed .

Power Cable from 12V 10A supply (left),  Extension Cable to UPB (right)

Calculations suggest that to loose no more than 3% voltage over a 3m extension with 12V supply and 10A current draw I would need cable with 3.0mm^2 wires (ie 12 AWG)   (or 2.00 mm^2 , 14 AWG for a 2m extension)  https://www.12voltplanet.co.uk/cable-sizing-selection.html

To not loose more than 3% voltage over 3m with 12V supply and 4A current draw I would need cable with 1.5mm^2 wire (ie 15 AWG)
(or 1.00 mm^2 wire, ~17 AWG for a 2m extension)

I note the UPB manual mentions needing at least 18 AWG wire for custom power cables and to not exceed 3m. 18 AWG (0.82 mm^2) wire would produce over 4% drop in voltage for 4A current draw and a lot more drop for 10A current draw.

Follow-Up
Power supply issues were eventually resolved in April 2019, after the purchase and fitting of a 16 AWG Extension Cable bought from BixPower in USA
(see Pegasus UPB - 16 AWG Extension Cable, 2019-04-22)

Back to Top


Dark Frames, -25°C,  (2019-01-20)

A selection of 1x1 and 2x2 and 3x3 Dark Sets were acquired at -25 degC to infill the set of Master Frames for this temperature group.

Bin|Num|Exp |
1   15    0.12

2   15    0.12
2   15    0.2
2   15    0.3
2   15    1
2   15    2

3   15    3
3   15    4
3   17    300
3   15    0.3
3   15    0.4
3   15    1.5

Back to Top
