Notes - Session 668 (2019-02-25)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (2),  Continuous Improvement (1)

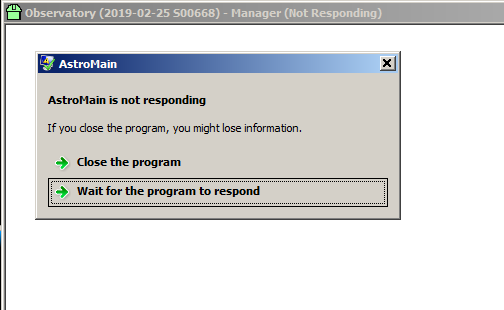

Bullet Investigation - AstroMain Program Suddenly Stopped (05:48)

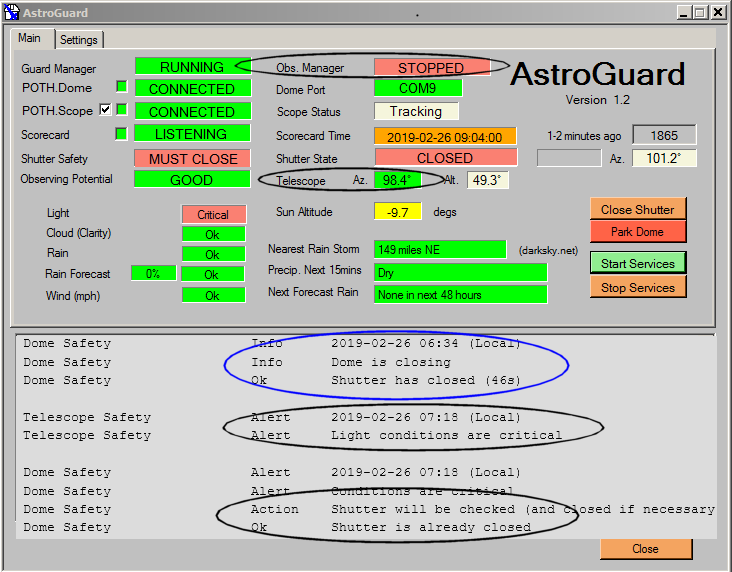

Bullet Evaluation - Observatory Protection following AstroMain Program Crash

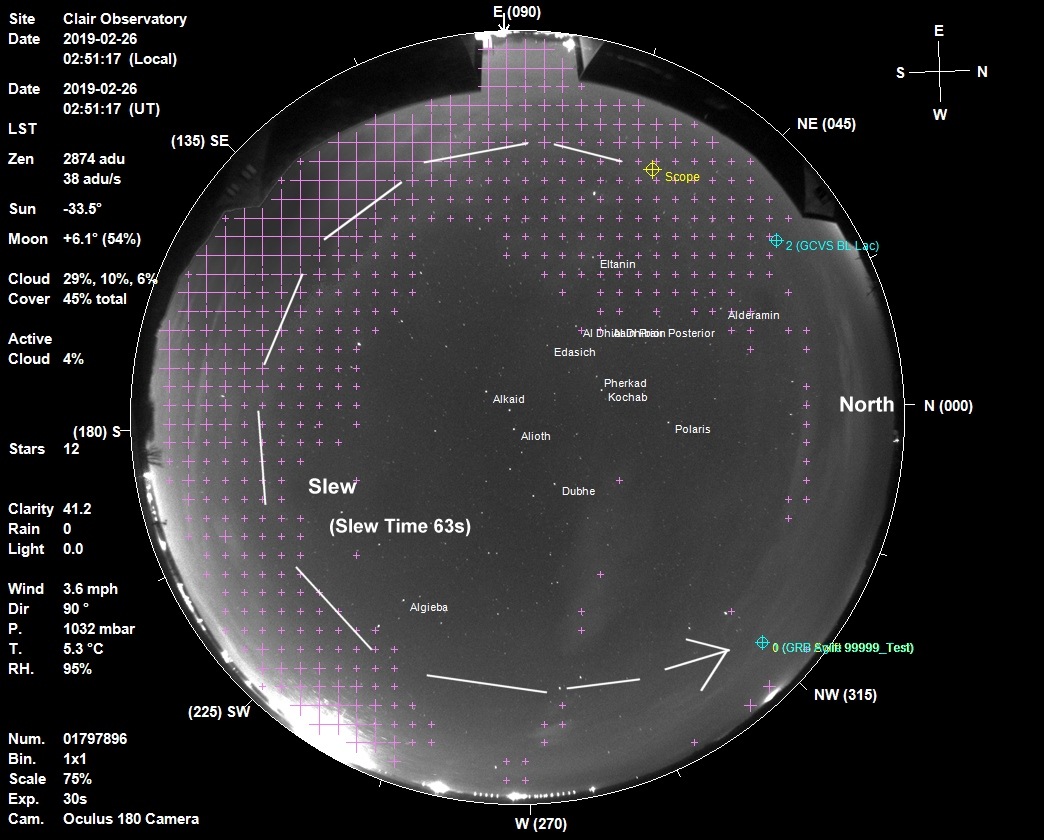

Bullet GRB Detection Project - First Live Test for new AstroVOE/AstroMain-FastReact
Bullet Images from 2019-02-25  >>


Session Aims & Highlights (2019-02-25)

Main aims

  1. Variable Stars Project - Continue acquire  light curve data from selected  variables over the course of a few hours with aim of detecting variation associated with eclipsing binary stars , RR Lyr stars and dwarf novae
  2. Software & Systems  - Check stability of software and presence of any side effects following changes to AstroMain/AstroPlan to avoid slewing beyond 340/342°.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

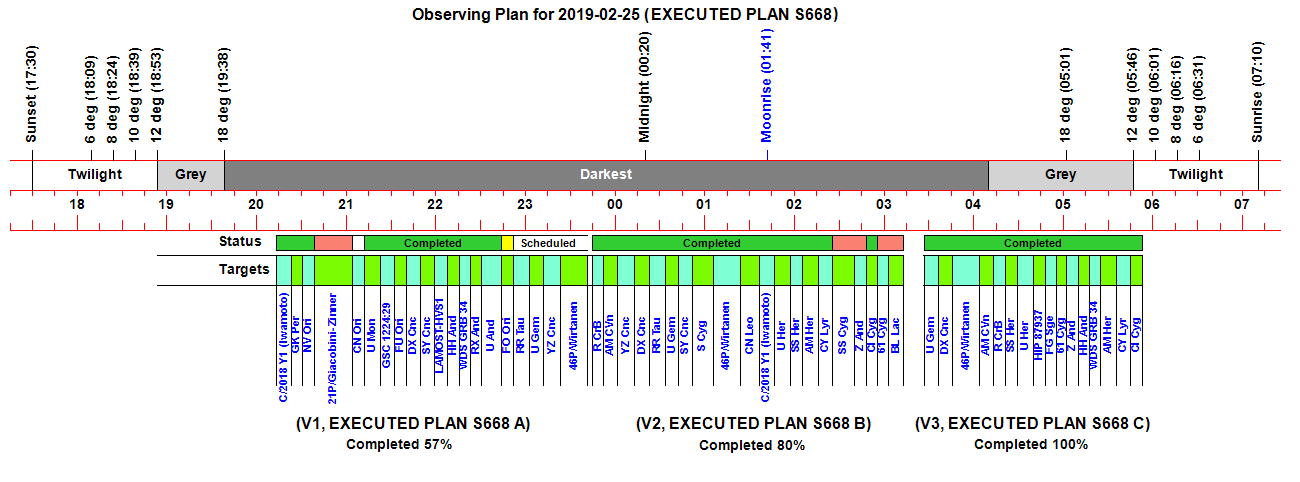

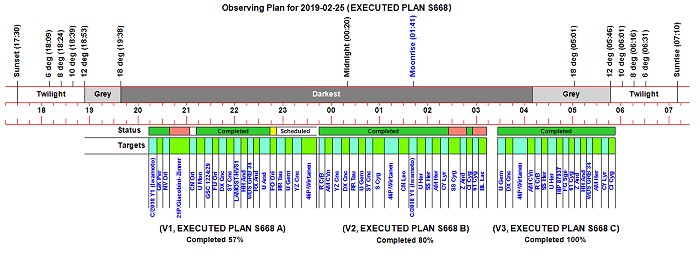

Observing Plan (2019-02-25, S668)

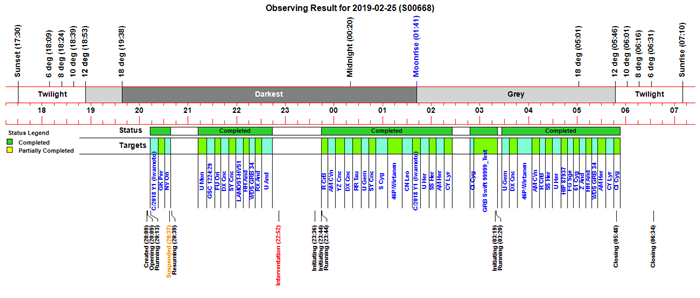

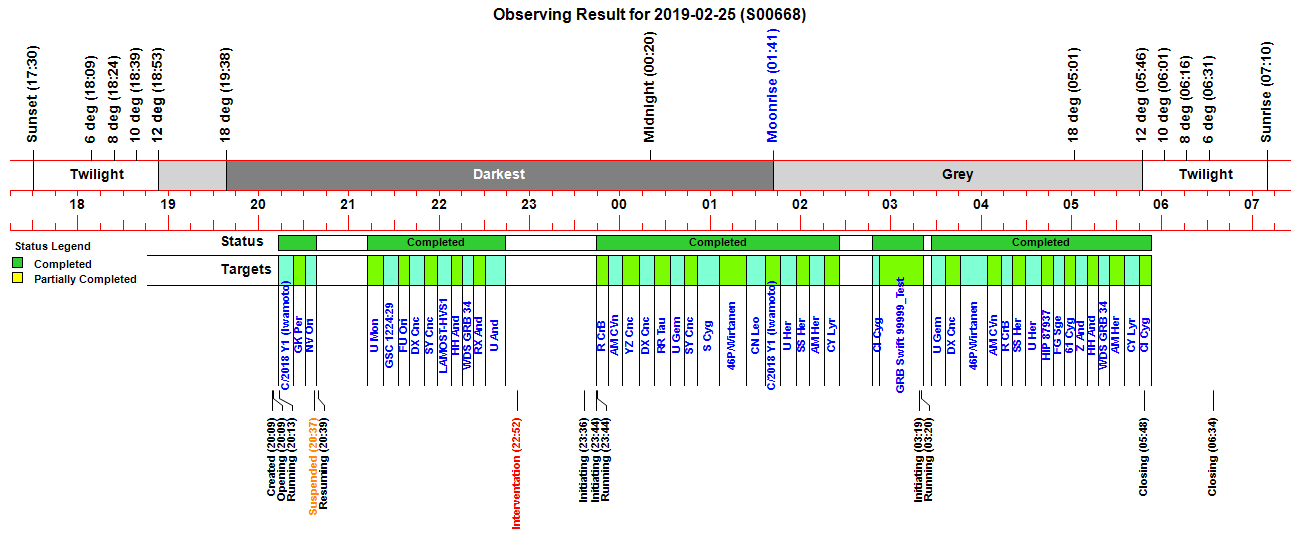

Observing Result (2019-02-25, S668)

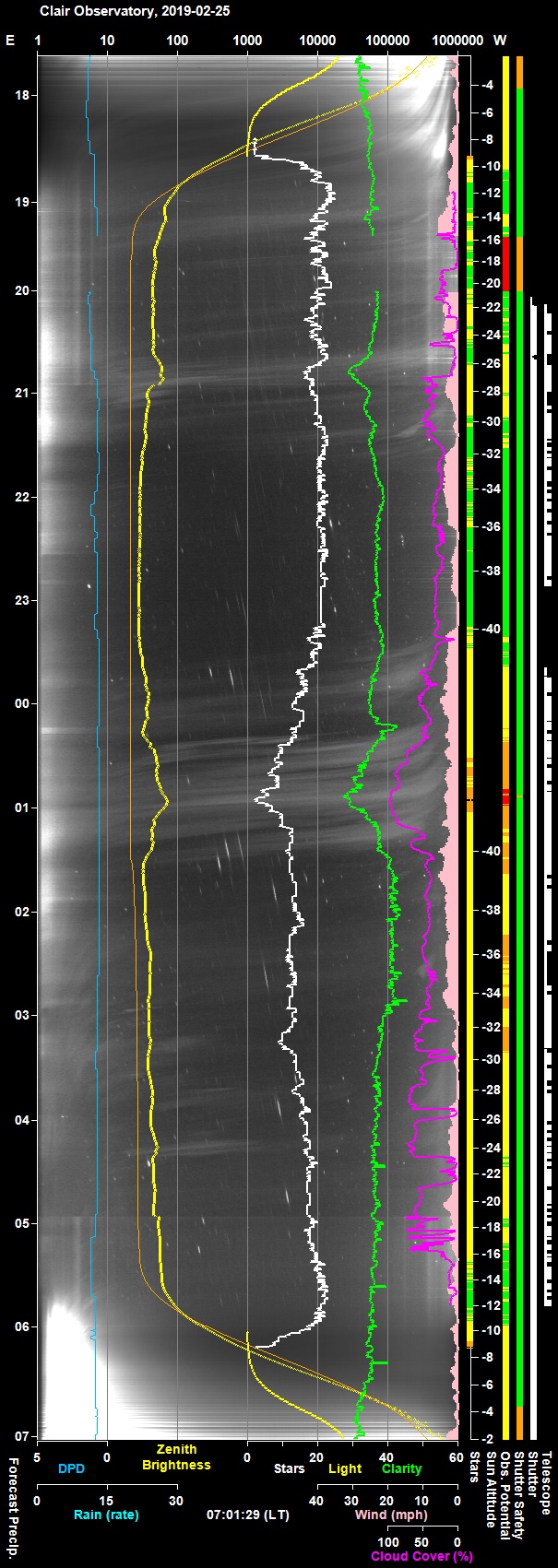

Night Sky Summary Plot - 2019-02-25, S668
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Session Event Log (2019-02-25, S668)
Time     Event Detail
20:09:04   Camera1 Connected SBIG Camera Connected (set point -20°C)
20:09:07 Session Created Live Session Created (2019-02-25 S00668, ImageSaveNum: 668001)
20:09:50   Shutter Opened Shutter opened (opening time 45s)
20:09:53   Equilibration Started Dome Equilibration started
20:13:50   Equilibration Ended Dome Equilibration ended (4.0 mins total)
20:13:52 Session Running Session running
20:13:54   Queue Started Observing Queue started (23 targets selected)
20:13:56     Target Started (1/23) Target started (1/23, C/2018 Y1 (Iwamoto))
20:20:37     Target Completed Target completed (1/23, C/2018 Y1 (Iwamoto))
20:20:39     Target Started (2/23) Target started (2/23, GCVS GK Per)
20:23:55       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
20:26:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
20:29:08     Target Completed Target completed (2/23, GCVS GK Per)
20:29:10     Target Started (3/23) Target started (3/23, GCVS NV Ori)
20:32:51       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
20:36:37     Target Completed Target completed (3/23, GCVS NV Ori)
20:36:39     Target Started (4/23) Target started (4/23, 21P/Giacobini-Zinner)
20:37:22 Critical Conditions Alert Critical Conditions Alert (Obs.Manager will close the Shutter
20:37:23     Target Aborted (4/23) Target aborted (4/23, 21P/Giacobini-Zinner) due to other condition
20:37:28 Session Suspended Session suspended
20:38:17   Shutter Closed Shutter closed (closing time 49s)
20:39:33 Session Resuming Session resuming
20:40:18   Shutter Opened Shutter opened (opening time 45s)
20:40:20   Queue Resumed Observing Queue resumed
20:43:29     Target Aborted (5/23) Target aborted (5/23, GCVS CN Ori) due to other condition
20:43:31     Target Started (6/24) Target started (6/24, NGC 3254 SN2019np)
20:46:45       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
20:59:32     Target Aborted (6/24) Target aborted (6/24, NGC 3254 SN2019np) due to other condition
21:07:34     Target Started (7/24) Target started (7/24, GCVS U Mon)
21:09:37       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:11:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
21:17:41     Target Completed Target completed (7/24, GCVS U Mon)
21:17:43     Target Started (8/24) Target started (8/24, GSC 1224:29)
21:21:19       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:26:50     Target Completed Target completed (8/24, GSC 1224:29)
21:27:39     Target Started (9/24) Target started (9/24, GCVS FU Ori)
21:28:51       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:31:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:33:52     Target Completed Target completed (9/24, GCVS FU Ori)
21:35:09     Target Started (10/24) Target started (10/24, GCVS DX Cnc)
21:37:37       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:42:23     Target Completed Target completed (10/24, GCVS DX Cnc)
21:45:01     Target Started (11/24) Target started (11/24, GCVS SY Cnc)
21:47:27       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:51:04     Target Completed Target completed (11/24, GCVS SY Cnc)
21:54:10     Target Started (12/24) Target started (12/24, LAMOST-HVS1)
21:55:54       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:58:16       Focusing Failed Foc1 Focus Result Not Accepted (Profile No 4)
22:01:31     Target Completed Target completed (12/24, LAMOST-HVS1)
22:03:06     Target Started (13/24) Target started (13/24, GCVS HH And)
22:06:57       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:09:14       Focusing Failed Foc1 Focusing Failed.
22:10:59     Target Completed Target completed (13/24, GCVS HH And)
22:11:01     Target Started (14/24) Target started (14/24, WDS GRB 34)
22:14:05       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:16:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
22:17:56     Target Completed Target completed (14/24, WDS GRB 34)
22:17:58     Target Started (15/24) Target started (15/24, GCVS RX And)
22:20:48       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:23:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
22:25:49     Target Completed Target completed (15/24, GCVS RX And)
22:25:51     Target Started (16/24) Target started (16/24, GCVS U And)
22:30:31       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:41:05     Target Completed Target completed (16/24, GCVS U And)
22:41:08     Target Started (17/24) Target started (17/24, GCVS FO Ori)
22:46:31       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:48:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
22:52:00   User Interventation User Interventation for re-focusing
22:52:18     Target Completed Target partially completed (17/24, GCVS FO Ori)
23:10:27       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:12:12       Focusing Aborted Foc1 Focusing Aborted
23:23:34       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:24:59       Focusing Aborted Foc1 Focusing Aborted
23:25:47       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:29:55       Focusing Failed Foc1 Focus Result Not Accepted (Profile No 11)
23:30:31       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:33:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
23:33:18       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:35:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
23:36:32 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:36:34 Session Pending Session pending (2019-02-25)
23:36:36 Session Initiating Session initiating (2019-02-25)
23:36:38   Plan Requested Observing Plan requested from AstroPlan ()
23:39:04   Plan Loaded Observing Plan loaded to queue (2019-02-25 V2 BEST PLAN, Plan ID: 293)
23:39:11   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:39:14   Telescope Connected Telescope Connected (TheSky6)
23:39:18   Equilibration Started Dome Equilibration started
23:43:29 Session Resumed Live Session Resumed (2019-02-25 S00668, ImageSaveNum: 668167)
23:43:44   Obs.Manager Started Obs.Manager started
23:43:47   Services Started Observatory Services started
23:44:11 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:44:17 Session Pending Session pending (2019-02-25)
23:44:19 Session Initiating Session initiating (2019-02-25)
23:44:21   Plan Loaded Observing Plan loaded to queue (2019-02-25 V2 BEST PLAN, Plan ID: 293)
23:44:30   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:44:32   Telescope Connected Telescope Connected (TheSky6)
23:44:38   Equilibration Started Dome Equilibration started
23:44:49   Equilibration Skipped Dome Equilibration skipped by user
23:44:51 Session Running Session running
23:44:53   Queue Started Observing Queue started (20 targets selected)
23:44:55     Target Started (1/20) Target started (1/20, GCVS R CrB)
23:51:21     Target Completed Target completed (1/20, GCVS R CrB)
23:51:23     Target Started (2/20) Target started (2/20, GCVS AM CVn)
23:54:19       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:56:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
23:59:29     Target Completed Target completed (2/20, GCVS AM CVn)
23:59:31     Target Started (3/20) Target started (3/20, GCVS YZ Cnc)
00:02:21       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:09:10     Target Completed Target completed (3/20, GCVS YZ Cnc)
00:09:12     Target Started (4/20) Target started (4/20, GCVS DX Cnc)
00:10:41       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:16:02     Target Completed Target completed (4/20, GCVS DX Cnc)
00:18:04     Target Started (5/20) Target started (5/20, GCVS RR Tau)
00:21:43       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:28:41     Target Completed Target completed (5/20, GCVS RR Tau)
00:28:43     Target Started (6/20) Target started (6/20, GCVS U Gem)
00:31:49       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:35:02     Target Completed Target completed (6/20, GCVS U Gem)
00:37:41     Target Started (7/20) Target started (7/20, GCVS SY Cnc)
00:41:03       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:44:50     Target Completed Target completed (7/20, GCVS SY Cnc)
00:46:50     Target Started (8/20) Target started (8/20, GCVS S Cyg)
00:50:55       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:01:13     Target Completed Target completed (8/20, GCVS S Cyg)
01:01:15     Target Started (9/20) Target started (9/20, 46P/Wirtanen)
01:05:25       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:20:30     Target Completed Target completed (9/20, 46P/Wirtanen)
01:20:32     Target Started (10/20) Target started (10/20, GCVS CN Leo)
01:23:51       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:31:22     Target Completed Target completed (10/20, GCVS CN Leo)
01:31:33     Target Started (11/20) Target started (11/20, C/2018 Y1 (Iwamoto))
01:34:03       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:39:19     Target Completed Target completed (11/20, C/2018 Y1 (Iwamoto))
01:41:39     Target Started (12/20) Target started (12/20, GCVS U Her)
01:45:17       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:47:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:55:22     Target Completed Target completed (12/20, GCVS U Her)
01:55:24     Target Started (13/20) Target started (13/20, GCVS SS Her)
01:58:53       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:02:16     Target Completed Target completed (13/20, GCVS SS Her)
02:02:18     Target Started (14/20) Target started (14/20, GCVS AM Her)
02:07:23       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:13:04     Target Completed Target completed (14/20, GCVS AM Her)
02:13:06     Target Started (15/20) Target started (15/20, GCVS CY Lyr)
02:16:47       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:19:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:23:17     Target Completed Target completed (15/20, GCVS CY Lyr)
02:23:19     Target Started (16/20) Target started (16/20, GCVS SS Cyg)
02:35:01     Target Started (17/20) Target started (17/20, GCVS Z And)
02:43:01     Target Started (18/20) Target started (18/20, GCVS CI Cyg)
02:45:39       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:47:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
02:51:41     Target Completed Target completed (18/20, GCVS CI Cyg)
02:51:43     Target Started (19/20) Target started (19/20, 61 Cyg)
02:51:45     Target Aborted (19/20) Target aborted (19/20, 61 Cyg) due to other condition
02:51:47     Target Started (20/21) Target started (20/21, GRB Swift 99999_Test)
03:19:05     Target Completed Target completed (20/21, GRB Swift 99999_Test)
03:19:07     Target Missed (21/22) Target Missed (21/22, GRB Agile 99999_Test)
03:19:09     Target Missed (22/22) Target Missed (22/22, GCVS BL Lac)
03:19:11   Queue Completed Job Queue completed
03:19:13 Session Initiating Session initiating (2019-02-25)
03:19:15   Plan Requested Observing Plan requested from AstroPlan ()
03:19:42   Plan Loaded Observing Plan loaded to queue (2019-02-25 V3 BEST PLAN, Plan ID: 294)
03:19:50   Camera1 Connected SBIG Camera Connected (set point -25°C)
03:19:53   Telescope Connected Telescope Connected (TheSky6)
03:19:57   Equilibration Started Dome Equilibration started
03:19:59   Equilibration Skipped Dome Equilibration skipped by user
03:20:01 Session Running Session running
03:20:03   Queue Started Observing Queue started (16 targets selected)
03:22:12     Target Started (1/16) Target started (1/16, GCVS U Gem)
03:25:40       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:29:05     Target Completed Target completed (1/16, GCVS U Gem)
03:31:15     Target Started (2/16) Target started (2/16, GCVS DX Cnc)
03:33:41       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:38:03     Target Completed Target completed (2/16, GCVS DX Cnc)
03:41:07     Target Started (3/16) Target started (3/16, 46P/Wirtanen)
03:43:13       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:45:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
03:59:21     Target Completed Target completed (3/16, 46P/Wirtanen)
03:59:23     Target Started (4/16) Target started (4/16, GCVS AM CVn)
04:01:11       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:03:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
04:06:28     Target Completed Target completed (4/16, GCVS AM CVn)
04:08:12     Target Started (5/16) Target started (5/16, GCVS R CrB)
04:10:31       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:12:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
04:15:31     Target Completed Target completed (5/16, GCVS R CrB)
04:16:03     Target Started (6/16) Target started (6/16, GCVS SS Her)
04:19:10       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:22:37     Target Completed Target completed (6/16, GCVS SS Her)
04:24:09     Target Started (7/16) Target started (7/16, GCVS U Her)
04:27:04       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:29:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
04:37:12     Target Completed Target completed (7/16, GCVS U Her)
04:37:14     Target Started (8/16) Target started (8/16, HIP 87937)
04:39:17       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:41:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:44:11     Target Completed Target completed (8/16, HIP 87937)
04:44:13     Target Started (9/16) Target started (9/16, GCVS FG Sge)
04:46:37       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:49:17     Target Completed Target completed (9/16, GCVS FG Sge)
04:50:18     Target Started (10/16) Target started (10/16, 61 Cyg)
04:52:15       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
04:54:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:55:52     Target Completed Target completed (10/16, 61 Cyg)
04:57:22     Target Started (11/16) Target started (11/16, GCVS Z And)
04:59:31       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:01:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
05:05:46     Target Completed Target completed (11/16, GCVS Z And)
05:05:48     Target Started (12/16) Target started (12/16, GCVS HH And)
05:08:01       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:09:46     Target Completed Target completed (12/16, GCVS HH And)
05:12:46     Target Started (13/16) Target started (13/16, WDS GRB 34)
05:15:51       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:18:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
05:19:38     Target Completed Target completed (13/16, WDS GRB 34)
05:20:11     Target Started (14/16) Target started (14/16, GCVS AM Her)
05:22:48       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:25:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
05:30:24     Target Completed Target completed (14/16, GCVS AM Her)
05:30:26     Target Started (15/16) Target started (15/16, GCVS CY Lyr)
05:32:40       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:34:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
05:38:34     Target Completed Target completed (15/16, GCVS CY Lyr)
05:40:10     Target Started (16/16) Target started (16/16, GCVS CI Cyg)
05:42:21       Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
05:44:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 28)
05:48:07     Target Completed Target completed (16/16, GCVS CI Cyg)
05:48:10   Queue Completed Job Queue completed
05:48:12 Session Closing Session closing
05:48:20 Program Hung Program Hung just after moving to Session Closing
06:34:00 Session Closing Session Closing (Astroguard), Shutter
07:47:27 Session Resumed Live Session Resumed (2019-02-25 S00668, ImageSaveNum: 668574)
07:47:45   Obs.Manager Started Obs.Manager started
07:47:48   Services Started Observatory Services started
07:48:08   Telescope Connected Telescope Connected (TheSky6)
07:48:20 Session Closing Session Closing (Manual), Telescope and Dome
07:48:45   Dome Parked Dome parked (parking time 21s)
07:48:47   Dome Parked Dome parked
07:49:25   Telescope Parked Telescope parked (parking time 40s)
07:50:02   Camera1 Disconnected SBIG Camera closed down & disconnected
07:52:16   Services Stopped Observatory Services stopped
07:52:18 Program Closed Program closed by User

Back to Top


Operational Issues (2019-02-25, S668)

[ Prev | Next ]

Critical Issues

Major Issues

Minor issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - AstroMain Program Failure (05:48)

After completion of Observing Plan and whilst running unattended the AstroMain program froze and stopping functioning immediately after the Session entered the 'Closing_State' at 05:48 in order to begin Observatory Shutdown.   It is unclear what caused the program to stop working.  Other times (eg session as recently as 2019-02-xx S0066x) the observatory shutdown has operated ok.  One one previous occasion (2019-02-xx S00065) the program crashed/stopped working at around this point.

There is nothing in the Report File or Log File to indicate why the Program stopped working.  Upon remote login to the computer there was nothing but blank program window and a message saying to stop. (see below) . There was a message in PHD2 window saying "PHD2 is not able to make sufficient corrections in RA... " but this may related to an earlier event is judged to be irrelevant to the issue under investigation)



Athough the critical functioning of the AstroMain (ie the Obs.Manger) had failed at 05:48 some functions of the program continued.  Obs.Monitor for example continued receiving and output sky and equipment data to (monitor).dat file.

Back to Top


Evaluation - Observatory Protection following AstroMain Program Failure

Although AstroMain program stopped working at 05:48 the critical momment after finishing the observaing session and just before observatory shutdown secondary and tertiary protection measures operated as per design.

AstroGuard program was running and monitoring the Telescope Position and was ready to intervene and move the scope to a safe position should it have tracked beyond the Az.Limit of 350 deg , designed to prevent the cables from wrapping around the mount if the telescope moved beyond the North position.

The program picked up that the AstroMain Obs.Manager had stopped and therefore wasn't in a position to look after the Observatory
(this is a new feature and at the moment AstroGuard doesn't do anything with this information).

When Light Conditions had passed a critical threshold at 07:18 an alert was raised and the Shutter Status was checked and the shutter would have been closed if it had been open. As it turned out the Shutter had already closed at 06:34.  This was at a time when light sensor was reading around 5.1 - 5.3 and is consistent with a direct relay controlled closing of the shutter when the CloudSensor registered unsafe conditions with a Light Level exceeding 5.0 (relay would have also operated if Clarity has dropped to 22 or below or Rain had reached a value of 1 or more)




Examining things in more detail the weather flag are sent to AstroGuard from AstroAllSky on a delay of up to 60s. AstroAllSky sets the  Light_Flag is to 'Critical' when light reading reach a level of 28 (or Sun Altitude is > 0°, ie daytime).

Flag is set to 'Warning'  when light readings reach a level of 15 (or Sun Altitude is > -6°, ie Civil Twilight).
In the event of no available Light Sensor Readings  the Light_Flag is deemed Critical if Sun Altitude is > -2°, otherwise it is set to 'Warning".

Due to switch over from night to daytime operating mode there is gap in the issuing of updated Scorecard information by AstroAllSky program around this time in the morning.    Last scorecard from the night session was at 07:02 when light reading  was at 27.5 (Sun Alt -2°), whereas the first scorecard from the day session was not till 07:17 when light reading as at a value of 30.5 (Sun Alt +0.1°).

AstroMain's Obs.Manager is designed to stop the observing queue and close the shutter and commence observatory shutdown if Light readings reach 15 or Sun Altitude rises above -6°, ie Civil Twilight, (unless DaytimeTesting_Flag is set)

Actions

Image >> AstroGuard should act to close shutter and park the telescope and the dome when light flag reaches Warning State (ie at Civil Twilight in the event that AstroMain has either stopped or hasn't acted after a 3 minute delay.
(There may be occasions where Dawn Flats are being taken, but these will need to be done under supervision, AstroGuard would be closed for occasional operations of this nature))

Image >> Review issue of Scorecard Data between at night/day time interface and whether AstroGuard should have acted as soon as ScoreCard data went down for its 15 minute gap

Back to Top


GRB Detection Project - First Live Test for new AstroVOE/AstroMain 'FastReact' Feature

I’ve recently begun a new project to try to detect the optical afterglow of a Gamma Ray Burster (GRB).

[ Gamma-ray bursts were first observed in the late 1960s by the U.S. Vela satellites, which were built to detect gamma radiation pulses emitted by nuclear weapons tested in space. From 1991 onwards their distribution was shown to be isotropic— i.e. not biased towards any particular direction in space, and therefore not part of the milky way, but are located in distant galaxies. An optical afterglow was first detected for one in 1997. Recently in 2017/2018 scientists are finding direct temporal relationships between some short-lived GRB’s and gravitational wave events associated with the merger of two neutron stars. ]

The aim is to pick up on GRB alert messages sent by observing spacecraft like Swift and then have my telescope automatically slew across to the location of the GRB and start taking pictures all within 90s of the burst event. Swift BAT detects around 100 events / year, of which may be 2 per year will be at night in the part of the sky that my telescope can reach and at a times when it is not cloudy and my telescope system is running.

A new application (AstroVOE) has been built that has a TCP/IP client with makes a direct socket connection to the Nasa’s GCN Network (https://gcn.gsfc.nasa.gov/) , a parser to read the various notices, a filter to extract the GRB alerts, an evaluator to see if the GRB is in the part of the sky that my scope can currently see here in Scotland and finally a fully-automated  target of opportunity (ToO ) process to enable the GRB to inserted into the observatory's observing queue.

In response to a Priority 1 ToO the Observatory Control Program (AstroMain)  program is able to immediately stop observations on the current target and immediately slew to the GRB target coordinates and begin observations (AstroMain-FastReact). In order to minimise the time to first observation, some shortcuts are taken over normal centering procedure and focus runs etc are purposedly skipped .

The system is still waiting for it's first live GRB at a time when my Observatory &  Scope are active, however one of the regular test GRB Alerts came through last night which provided a first full live test.

2019-02-26 02:37:24 GCN/SWIFT NOTICE   Type 82   Test SWIFT_BAT_GRB_POS_TEST     99999     GRB_ALERT
                    Submitting GRB Swift 99999_Test (ID: 627) to job queue to Execute Immediately
                    ToO submitted at 2019-02-02 02:37:25 (Trigger Num: 99999)

-----------------------------------------------------------------
TITLE:          GCN/SWIFT NOTICE
NOTICE_DATE:    2019-02-26T02:37:24
ROLE: Test
NOTICE_TYPE:    Swift-BAT GRB Position Test
PACKET_TYPE:    82
TRIGGER_NUM:    99999, Ser Num: 3
GRB IDENTIFIED: YES
CONSTELLATION:  Auriga (Aur)
GRB RA:         04 47 60.000 [J2000]
GRB DEC:        +35 00 00.00 [J2000]
ERROR_RADIUS:   3.0 [arc min]
COORD_SYSTEM:   UTC-FK5-GEO
EVENT_INTENSITY: []
BURST_TJD/SOD:  18540 [days], 9436.00 [sec]
BURST_DATE:     2019-02-26 (Tue)
BURST_TIME:     02:37:16.00 UT
BURST_INTENSITY: 1000 [cts]
BURST_PEAK:     500 [cts]
BKG_INTENSITY:  100 [cts]
BKG_DURATION:   12 [sec]
RATE_SIGNIF:    16.78 [sigma]
IMAGE_SIGNIF:   12.98 [sigma]
TRIGGER_INDEX:  12
IMPORTANCE:     0.90
INFERENCE PROB: 0.98
CONCEPT:        process.variation.burst;em.gamma
COMMENT:        Swift Satellite, BAT Instrument
IVORN:          ivo://nasa.gsfc.gcn/SWIFT#BAT_GRB_Test_Pos_2019-02-26T02:37:16.00-452
PACKET_NAME:    SWIFT_BAT_GRB_POS_TEST

AZIMUTH:           312.99 [deg]
ALTITUDE:          15.08 [deg]
MOON DISTANCE:     159.23 [deg]
MOON ILLUMINATION: 53.95 [%]
NEAR BRIGHT STAR:  NO
CAN REACT?:        YES
-----------------------------------------------------------------

Analysing the results of the test, found that whilst some things worked well (GRB filter & evaluator, ToO submission, ToO importing, and aborting of the target in progress once the ToO was queued) there was a failure to immediately move GRB target from the ToO list into the active job queue, and it was only moved when the target in progress had finished  leading to  a 14  minute delay in the process on this occasion.    The  timeline deduced from logs and other sources is as follows:

02:35     Started GCVS Z And
02:35     Aborted GCVS Z And (Failed airmass limit check)

02:35     Started GCVS CI Cyg
02:35     Began an 8 minute wait until 02:43 (5 min before Planned Start Time)

02:37:16  GRB Test Burst Time   (T=0)
02:37:24  GRB Notice Time       (T+8s) normally T+20 for a real GRB)
02:37:25  ToO Submitted         (T+9s) (just 1s for notice to get to UK and process it)
02:37:28  ToO “GRB Swift 99999_Test” (priority 1) imported and added to ToO list

02:43     Finished 8 minute wait
02:43     Slewed to GCVS CI Cyg
02:45:40  Started a Focus Run
02:51:41  Finished imaging GCVS CI Cyg

02:51:43  Started 61 Cyg
02:51:44  Target (GRB Swift 99999_Test, priority 1) inserted in job queue
02:51:45  Aborted 61 Cyg

02:51:45  Started ‘GRB Swift 99999_Test’  (T +14.5 mins)
02:52     Slewed from Az 59 to Az 316 (257 degrees, so a fairly long slew)
02:53:01  Started 10s locate frame        (T +15.6 mins , not good enough)
          (unable to link due to cloud, 2 further locate frames failed due to cloud)
02:55:16  Started first ‘Science’ frame   (T +17.7 mins)

On this occasion the telescope had to slew all the way round from Az 59 to Az 316 (ie 257 degrees of turn) in order to reach the GRB target.  Whilst the dome is able to take a shortcut across the north position, the telescope can't.   The slew was a fairly long one and took 63s to complete.     The target was only 15deg above the horizon and haze/cloud prevented any useful imaging on this occasion.


Digging deeper it was found the delay in getting the GRB Target into the job queue was due to a bug in the code, where an incorrect logic test was applied to test for a target in the ToO list. This has now been fixed ready for the next session.

Back to Top
