Notes - Session 672 (2019-03-09)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (1),  Major Issues (3),  Minor Issues (5),  Continuous Improvement (2)

Bullet Investigation - Shutter Fight at Dawn
Bullet Analysis - Reaction Times to GRB Alerts

Bullet Images from 2019-03-09  >>


Session Aims & Highlights (2019-03-09)

Main aims

  1. Mixed Targets - Image selection of targets including Variable Stars, Comets and Deep Sky Targets
  2. GRB Optical Afterglow Project - Check automated reaction of the observatory to a test GRB Alert Notice from GCN Network
  3. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

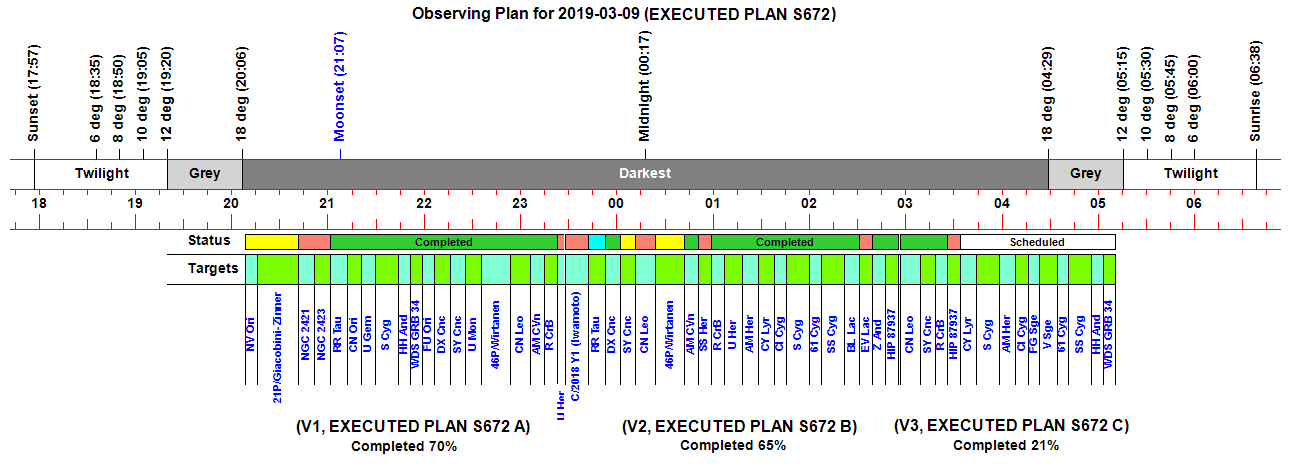

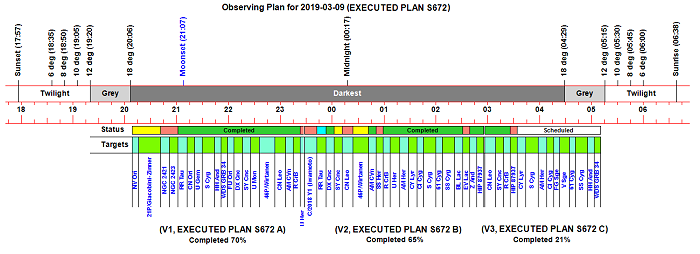

Observing Plan (2019-03-09, S672)

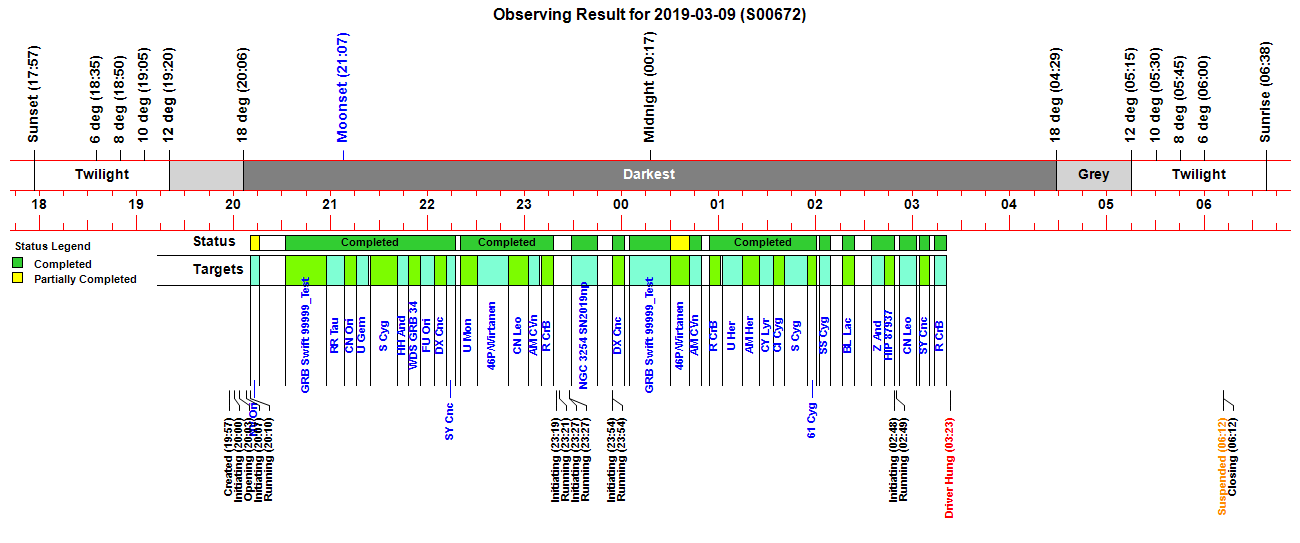

Observing Result (2019-03-09, S672)

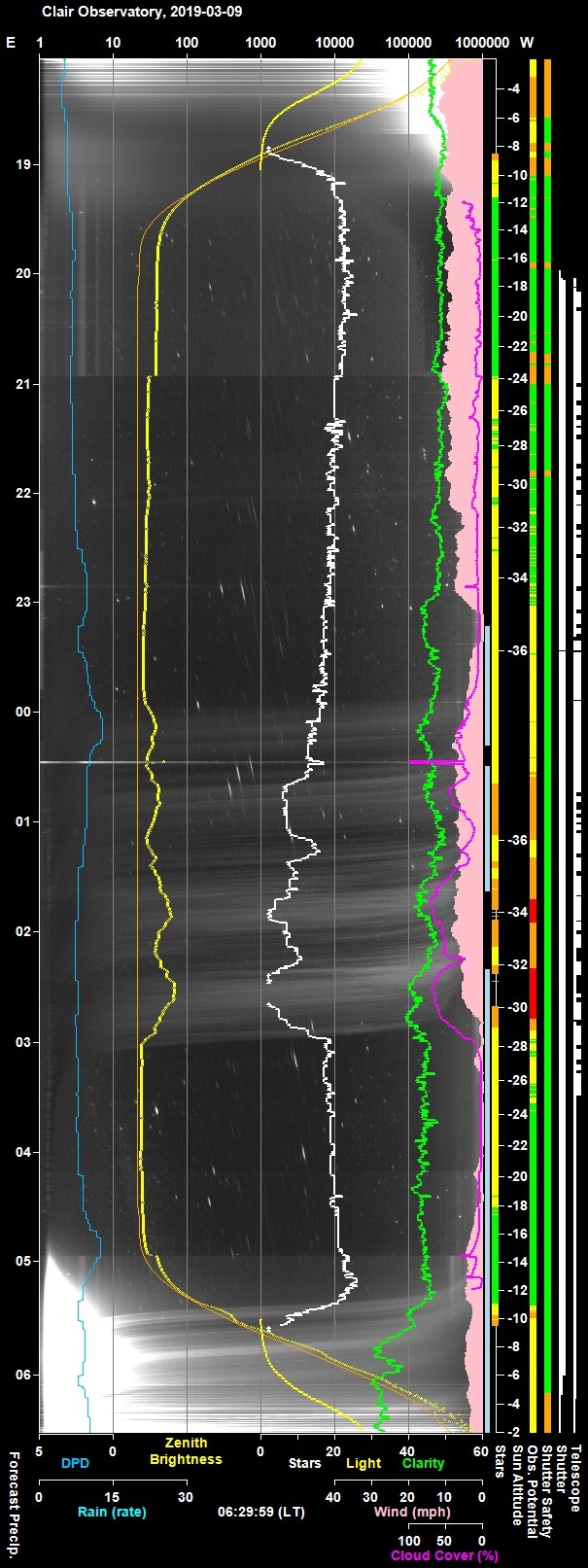

Night Sky Summary Plot - 2019-03-09, S672
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Session Event Log (2019-03-09, S672)
Time   Event Detail
19:57 Session Created Live Session Created (2019-03-09 S00672, ImageSaveNum: 672001)
19:58 Obs.Manager Started Obs.Manager started
19:58 Services Started Observatory Services started
20:00 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:00 Session Pending Session pending (2019-03-09)
20:00 Session Initiating Session initiating (2019-03-09)
20:00   Plan Requested Observing Plan requested from AstroPlan ()
20:02   Plan Loaded Observing Plan loaded to queue (2019-03-09 V1 BEST PLAN, Plan ID: 302)
20:02   Camera1 Connected SBIG Camera Connected (set point -25°C)
20:02   Telescope Connected Telescope Connected (TheSky6)
20:03 Shutter Opened Shutter opened (opening time 50s)
20:03 Equilibration Started Dome Equilibration started
20:07 Session Resumed Live Session Resumed (2019-03-09 S00672, ImageSaveNum: 672001)
20:07 Obs.Manager Started Obs.Manager started
20:07 Services Started Observatory Services started
20:07 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:07 Session Pending Session pending (2019-03-09)
20:07 Session Initiating Session initiating (2019-03-09)
20:07   Plan Loaded Observing Plan loaded to queue (2019-03-09 V1 BEST PLAN, Plan ID: 302)
20:07   Camera1 Connected SBIG Camera Connected (set point -25°C)
20:07   Telescope Connected Telescope Connected (TheSky6)
20:08 Equilibration Started Dome Equilibration started
20:10 Equilibration Skipped Dome Equilibration skipped by user
20:10 Session Running Session running
20:10   Queue Started Observing Queue started (20 targets selected)
20:10     Target Started (1/20) Target started (1/20, GCVS NV Ori)
20:16     Target Completed Target partially completed (1/20, GCVS NV Ori)
20:16     Target Started (2/20) Target started (2/20, 21P/Giacobini-Zinner)
20:18   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
20:20   Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
20:32     Target Aborted (2/20) Target aborted (2/20, 21P/Giacobini-Zinner) due to GRB Alert
20:32     Target Started (3/21) Target started (3/21, GRB Swift 99999_Test)
20:57     Target Completed Target completed (3/21, GRB Swift 99999_Test)
20:57     Target Missed (4/22) Target Missed (4/22, GRB Agile 99999_Test)
20:57     Target Missed (5/22) Target Missed (5/22, NGC 2421)
20:57     Target Missed (6/22) Target Missed (6/22, NGC 2423)
20:57     Target Started (7/22) Target started (7/22, GCVS RR Tau)
20:59   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:02   Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
21:08     Target Completed Target completed (7/22, GCVS RR Tau)
21:08     Target Started (8/22) Target started (8/22, GCVS CN Ori)
21:10   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:12   Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:16     Target Completed Target completed (8/22, GCVS CN Ori)
21:16     Target Started (9/22) Target started (9/22, GCVS U Gem)
21:18   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:20   Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
21:23     Target Completed Target completed (9/22, GCVS U Gem)
21:24     Target Started (10/22) Target started (10/22, GCVS S Cyg)
21:28   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:31   Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
21:41     Target Completed Target completed (10/22, GCVS S Cyg)
21:41     Target Started (11/22) Target started (11/22, GCVS HH And)
21:44   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:46   Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
21:48     Target Completed Target completed (11/22, GCVS HH And)
21:48     Target Started (12/22) Target started (12/22, WDS GRB 34)
21:51   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
21:53   Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
21:55     Target Completed Target completed (12/22, WDS GRB 34)
21:55     Target Started (13/22) Target started (13/22, GCVS FU Ori)
21:59   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:01   Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
22:04     Target Completed Target completed (13/22, GCVS FU Ori)
22:04     Target Started (14/22) Target started (14/22, GCVS DX Cnc)
22:06   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:11     Target Completed Target completed (14/22, GCVS DX Cnc)
22:11     Target Started (15/22) Target started (15/22, GCVS SY Cnc)
22:13   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:17     Target Completed Target completed (15/22, GCVS SY Cnc)
22:20     Target Started (16/22) Target started (16/22, GCVS U Mon)
22:23   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:25   Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
22:31     Target Completed Target completed (16/22, GCVS U Mon)
22:31     Target Started (17/22) Target started (17/22, 46P/Wirtanen)
22:34   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:36   Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
22:50     Target Completed Target completed (17/22, 46P/Wirtanen)
22:50     Target Started (18/22) Target started (18/22, GCVS CN Leo)
22:52   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
22:54   Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
23:02     Target Completed Target completed (18/22, GCVS CN Leo)
23:02     Target Started (19/22) Target started (19/22, GCVS AM CVn)
23:04   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:06   Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
23:09     Target Completed Target completed (19/22, GCVS AM CVn)
23:10     Target Started (20/22) Target started (20/22, GCVS R CrB)
23:12   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
23:14   Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
23:17     Target Completed Target completed (20/22, GCVS R CrB)
23:18     Target Started (21/22) Target started (21/22, GCVS U Her)
23:19     Target Aborted (22/22) Target aborted (22/22, GCVS AM Her) due to Prority 1 ToO Target
23:19 Queue Completed Job Queue completed
23:19 Session Initiating Session initiating (2019-03-09)
23:19   Plan Requested Observing Plan requested from AstroPlan ()
23:21   Plan Loaded Observing Plan loaded to queue (2019-03-09 V2 BEST PLAN, Plan ID: 303)
23:21   Camera1 Connected SBIG Camera Connected (set point -25°C)
23:21   Telescope Connected Telescope Connected (TheSky6)
23:21 Equilibration Started Dome Equilibration started
23:21 Equilibration Skipped Dome Equilibration skipped by user
23:21 Session Running Session running
23:21   Queue Started Observing Queue started (20 targets selected)
23:21     Target Aborted (1/20) Target aborted (1/20, C/2018 Y1 (Iwamoto)) due to Prority 1 ToO Target
23:21     Target Started (2/21) Target started (2/21, NGC 3254 SN2019np)
23:27 Session Resumed Live Session Resumed (2019-03-09 S00672, ImageSaveNum: 672214)
23:27 Obs.Manager Started Obs.Manager started
23:27 Services Started Observatory Services started
23:27 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:27 Session Pending Session pending (2019-03-09)
23:27 Session Initiating Session initiating (2019-03-09)
23:27   Plan Loaded Observing Plan loaded to queue (2019-03-09 V2 BEST PLAN, Plan ID: 303)
23:27   Camera1 Connected SBIG Camera Connected (set point -25°C)
23:27   Telescope Connected Telescope Connected (TheSky6)
23:27 Equilibration Started Dome Equilibration started
23:27 Equilibration Skipped Dome Equilibration skipped by user
23:27 Session Running Session running
23:28   Queue Started Observing Queue started (20 targets selected)
23:28     Target Started (1/20) Target started (1/20, C/2018 Y1 (Iwamoto))
23:29     Target Aborted (1/20) Target aborted (1/20, C/2018 Y1 (Iwamoto)) due to Prority 1 ToO Target
23:29     Target Started (2/21) Target started (2/21, NGC 3254 SN2019np)
23:44     Target Completed Target completed (2/21, NGC 3254 SN2019np)
23:44     Target Started (3/21) Target started (3/21, GCVS RR Tau)
23:53 Session Resumed Live Session Resumed (2019-03-09 S00672, ImageSaveNum: 672232)
23:53 Obs.Manager Started Obs.Manager started
23:53 Services Started Observatory Services started
23:53 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:54 Session Pending Session pending (2019-03-09)
23:54 Session Initiating Session initiating (2019-03-09)
23:54   Plan Loaded Observing Plan loaded to queue (2019-03-09 V2 BEST PLAN, Plan ID: 303)
23:54   Camera1 Connected SBIG Camera Connected (set point -25°C)
23:54   Telescope Connected Telescope Connected (TheSky6)
23:54 Equilibration Started Dome Equilibration started
23:54 Equilibration Skipped Dome Equilibration skipped by user
23:54 Session Running Session running
23:54   Queue Started Observing Queue started (18 targets selected)
23:54     Target Started (3/20) Target started (3/20, GCVS DX Cnc)
00:01     Target Completed Target completed (3/20, GCVS DX Cnc)
00:01     Target Started (4/20) Target started (4/20, GCVS SY Cnc)
00:03   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:04     Target Aborted (4/20) Target aborted (4/20, GCVS SY Cnc) due to GRB Alert
00:04     Target Started (5/21) Target started (5/21, GRB Swift 99999_Test)
00:30     Target Completed Target completed (5/21, GRB Swift 99999_Test)
00:30     Target Missed (6/22) Target Missed (6/22, GRB Agile 99999_Test)
00:30     Target Missed (7/22) Target Missed (7/22, GCVS CN Leo)
00:30     Target Started (8/22) Target started (8/22, 46P/Wirtanen)
00:41     Target Completed Target partially completed (8/22, 46P/Wirtanen)
00:42     Target Started (9/22) Target started (9/22, GCVS AM CVn)
00:44   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:46   Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
00:49     Target Completed Target completed (9/22, GCVS AM CVn)
00:49     Target Started (10/22) Target started (10/22, GCVS SS Her)
00:54     Target Started (11/22) Target started (11/22, GCVS R CrB)
00:56   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
00:57   Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:00     Target Completed Target completed (11/22, GCVS R CrB)
01:02     Target Started (12/22) Target started (12/22, GCVS U Her)
01:04   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:06   Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
01:14     Target Completed Target completed (12/22, GCVS U Her)
01:14     Target Started (13/22) Target started (13/22, GCVS AM Her)
01:17   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:19   Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
01:25     Target Completed Target completed (13/22, GCVS AM Her)
01:25     Target Started (14/22) Target started (14/22, GCVS CY Lyr)
01:27   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:29   Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
01:33     Target Completed Target completed (14/22, GCVS CY Lyr)
01:33     Target Started (15/22) Target started (15/22, GCVS CI Cyg)
01:36   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:40     Target Completed Target completed (15/22, GCVS CI Cyg)
01:40     Target Started (16/22) Target started (16/22, GCVS S Cyg)
01:44   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
01:54     Target Completed Target completed (16/22, GCVS S Cyg)
01:55     Target Started (17/22) Target started (17/22, 61 Cyg)
01:58   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:00     Target Completed Target completed (17/22, 61 Cyg)
02:02     Target Started (18/22) Target started (18/22, GCVS SS Cyg)
02:05   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:09     Target Completed Target completed (18/22, GCVS SS Cyg)
02:16     Target Started (19/22) Target started (19/22, GCVS BL Lac)
02:19   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:24     Target Completed Target completed (19/22, GCVS BL Lac)
02:26     Target Started (20/22) Target started (20/22, GCVS EV Lac)
02:34     Target Started (21/22) Target started (21/22, GCVS Z And)
02:36   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:38   Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
02:42     Target Completed Target completed (21/22, GCVS Z And)
02:42     Target Started (22/22) Target started (22/22, HIP 87937)
02:46   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
02:48     Target Completed Target completed (22/22, HIP 87937)
02:48 Queue Completed Job Queue completed
02:48 Session Initiating Session initiating (2019-03-09)
02:48   Plan Requested Observing Plan requested from AstroPlan ()
02:49   Plan Loaded Observing Plan loaded to queue (2019-03-09 V3 BEST PLAN, Plan ID: 304)
02:49   Camera1 Connected SBIG Camera Connected (set point -25°C)
02:49   Telescope Connected Telescope Connected (TheSky6)
02:49 Equilibration Started Dome Equilibration started
02:49 Equilibration Skipped Dome Equilibration skipped by user
02:49 Session Running Session running
02:49   Queue Started Observing Queue started (14 targets selected)
02:51     Target Started (1/14) Target started (1/14, GCVS CN Leo)
02:54   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:02     Target Completed Target completed (1/14, GCVS CN Leo)
03:04     Target Started (2/14) Target started (2/14, GCVS SY Cnc)
03:06   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:10     Target Completed Target completed (2/14, GCVS SY Cnc)
03:13     Target Started (3/14) Target started (3/14, GCVS R CrB)
03:16   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S)
03:18   Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
03:20     Target Completed Target completed (3/14, GCVS R CrB)
03:21     Target Started (4/14) Target started (4/14, HIP 87937)
06:01 Shutter Closed Shutter closed (closing time 45s)
06:02 Shutter Closed Shutter closed (closing time 30s)
06:03 Shutter Closed Shutter closed (closing time 30s)
06:05 Shutter Closed Shutter closed (closing time 30s)
06:06 Shutter Closed Shutter closed (closing time 35s)
06:07 Shutter Closed Shutter closed (closing time 35s)
06:08 Shutter Closed Shutter closed (closing time 35s)
06:09 Shutter Closed Shutter closed (closing time 35s)
06:10 Shutter Closed Shutter closed (closing time 30s)
06:12 Session Suspended Session suspended
06:12 Session Closing Session closing
06:12 Dome Parked Dome parked (parking time 37s)
06:13     Target Aborted (4/14) Target aborted (4/14, HIP 87937) due to Critical Conditions
06:13 Telescope Parked Telescope parked (parking time 10s)
06:41 Services Stopped Observatory Services stopped
06:41 Program Closed Program closed by User

Back to Top


Operational Issues (2019-03-09, S672)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation -  Shutter Fight at Dawn

Dome began to close 'unexpectedly' at 06:00.   This coincided with a Light sensor reading of 5.0 which is the Dark/Light Threshold for Unsafe Conditions in the CloudSensor's relay settings.  The unsafe relay condition was picked up by the Dome Controller which after a prescribed delay of 30s began to close the shutter (which took around 45-50s to close).

Conditions were good at the time, and not recognising the significance of the still frozen Job Queue (which had become frozen at around 03:22, some 2 hr 35m beforehand), the Obs.Manger proceeded to try open the Shutter.  After the prescribed delay of 30s, the Dome Manager then acted to again override the shutter closure and reopend the Shutter. This happened a further 7 times until 06:12 when Obs.Manger suspended the session.

The V3 plan End Time was 05:15 and whilst this might have once been used as a trigger to close the session, this may no longer act as a trigger.

The reason for suspending the session at 06:12 isn't specifically stated.   The aborting of Target 4/14 (HIP 87937) implies that it might have been aborted due to Critical Conditions of some kind, however as the job queue had been frozen for some time, this may not be a definate indicator to the reason.   At 6:12 the Light level has reached a reading of ~ 13° and Sun Altiude was around -4 or -4.5°.    (Sun Altitude had risen above -6 deg (cival twilight) somewhat earlier at 06:01).  Earlier at 06:09 the AllSky Light Level warning switched to a Warning state at 06:09 and the Shutter Safety Synopsis switched from 'Can Open' to 'Can Open with Caution'.

During Session Closing, the Obs.Manager confirmed that the Shutter was closed and then parked the Dome (taking 37s).  The Obs.Manger then attempted to proceeded to park the telescope.  It would seem that TheSky6 was unable to perform the design slewed to close to the Park Position, prior to final park using the objScope object.  (the normal message 'Scope moved to Park Location using TheSky6' is missing from the Report log).

The .Park command work as expoected with the Report log showing the telescope becoming parked after 10s and ObsViewer pictures showing that the Scope was moved from Az 165°/Alt 37° to the Park Position at Az 180°/Alt 0° at 06:13.

Job Queue was still stuck in the JogQSO routine since 03:22 as shown by the exception message generated when the thread was aborted or in response to the disconnected TheSky from the telescope (performed as part of the Park routine), or in response to the telescope being parked and no longer responsive.

Throughout the time that the JobQueue was frozen,  telescope tracking remained On and the dome continued to move in sync with the scope via Poth Hub's dome slaving routines.  At the time the job queue froze the scope lay at Az 119°/Alt 23° (Dec 5°)  and by the time the session was suspended it had tracked to Az 165° / Alt 37° (Dec 5°).

Timeline

Time   Event Detail
03:13 Target Started (3/14) Target started (3/14, GCVS R CrB)
03:20 Target Completed Target completed (3/14, GCVS R CrB)
03:21 Target Started (4/14) Target started (4/14, HIP 87937)
03:21    Slew To Target Slewed to target
03:22     Taking Locate Frame Took Locate Frame 10s
03:22     Linking Image Image Plate Solved, Pointing Error
03:22     Started JogN
03:22     Warning Telescope.Jog task in JogQSO/JogN is taking a long time?
03:22     Warning Telescope.Jog task in JogQSO/JogN is taking a very long time
03:22     Warning Job Queue appears to be frozon
06:01 Shutter Closed Shutter closed (closing time 45s)
06:02 Shutter Closed Shutter closed (closing time 30s)
06:03 Shutter Closed Shutter closed (closing time 30s)
06:05 Shutter Closed Shutter closed (closing time 30s)
06:06 Shutter Closed Shutter closed (closing time 35s)
06:07 Shutter Closed Shutter closed (closing time 35s)
06:08 Shutter Closed Shutter closed (closing time 35s)
06:09 Shutter Closed Shutter closed (closing time 35s)
06:10 Shutter Closed Shutter closed (closing time 30s)
06:12 Session Suspended Session suspended
06:12 Session Closing Session closing
06:12 Dome Parked Dome parked (parking time 37s)
06:13     Target Aborted (4/14) Target aborted (4/14, HIP 87937) due to Critical Conditions
06:13 Telescope Parked Telescope parked (parking time 10s)


  Park Telescope
  Park Telescope ...
  Turn On Tracking..          Ok        Telescope Tracking is ON
  Park Telescope ...
  Park Telescope ...          Ok        Parking Scope via POTH.Telescope command
Failed    Exception in JogQSO: No connection. Error code =  200 (0xc8).
Script Aborting ...
Script Aborting ...           Aborted   (Script aborted by user)
  Park Telescope ..           Ok        Telescope is Parked (10s)

Back to Top


Analysis - Reaction Times to GRB Alerts

During the session there were a number of GRB Alerts from the Gamma-ray Coordination Network  (GCN).   These were all Test Alerts but provide usual information on the ability of my Observatory system to react to a GRB Trigger and any learning, so that at some future point the system can react to detect optical afterglow from a real GRB or other important transient event.

Examining the 7 hour period when the Observatory was potentially able to react ( 2019-03-09 20:10 to 2019-03-10 03:20) there were 11 GRB Notices.  Of these 6 were submitted as ToO's and of these 2 were actually executed, both Swift-BAT GRB Position Tests.

20:32:13   Swift-BAT GRB Position Test,       ToO Submitted & Executed   (ID 657)
20:32:23    SuperAGILE_GRB_POS_TEST       ToO Submitted but not executed   (ID 658)
20:32:33    FERMI-GBM POS_TEST                   Rejected (Position Error ( 5.8°) is too large for telescope FOV)
20:32:43    FERMI-LAT GRB_POS_TEST          ToO Submitted  but not executed (ID 659)

00:04:44   Swift-BAT GRB Position Test,       ToO Submitted & Executed (ID 660)
00:05:44    SuperAGILE_GRB_POS_TEST       ToO Submitted but not executed   (ID 661)
00:06:44    FERMI-GBM POS_TEST                   Rejected (Position Error ( 5.8°) is too large for telescope FOV)
00:07:44    FERMI-LAT GRB_POS_TEST          ToO Submitted but not executed   (ID 662)

01:00:04    INTEGRAL WAKEUP (test)                Rejected (Target coords (Alt -30.1°) lie below horizon)
01:00:05    INTEGRAL REFINED (test)                Rejected (Target coords (Alt -30.1°) lie below horizon)
01:00:06    INTEGRAL OFFLINE (test)                 Rejected (Target coords (Alt -30.1°) lie below horizon)

Swift-BAT GRB Position Test (Notice 20:32:13)

20:32:05   T+0s   Burst Time
20:32:13   T+8s   GRB Notice
20:32:14   T+9s   ToO Submitted  (Target ID: 657
20:32:14   T+9s   ToO Loaded to Job Queue  (Recieving & Processing:  2s)
20:32:16   T+11s  Started Current Target Abort  (Aborting Current Target : 2s)
20:32:18   T+13s  Started Slew to GRB Target
20:33:08   T+63s  Finished Slew to GRB Target (Slewing: 54s,  11.7'  pointing error)
20:33:12   T+67s  Finsihed 4s post slew wait
20:33:22   T+84s  Started 10s Locate Frame
20:33:42   T+97s    Started Plate Solution
20:33:45   T+100s  Finished Plate Solution   (3s 11.7 arc min pointing error)
20:34:00                  Finished 8.06' W jog  (15s)
20:34:18                  Finished 8.53' N jog   (18s)
20:34:20   T+135s  Finished Centering (Centering:   68s)
20:34:20                  Initiate Autoguiding (Autoguiding Prep:  14s),    << too long ?
20:34:36   T+151s  Start focus adjustment (T. compensation)
20:34:37   T+152s  Started 1st Frame   (30s)
20:35:10   T+185s  Finished 1st Frame
20:55:00   T+23m   Finished Final Frame

Swift-BAT GRB Position Test (Notice 00:04:44)

00:04:36   T+0s   Burst Time
00:04:44   T+8s   GRB Notice
00:04:45   T+9s   ToO Submitted  (Target ID: 660)
00:04:45   T+9s   ToO Loaded to Job Queue  (Recieving & Processing:  2s)
00:04:48   T+12s  Aborting preceeding target 24s into a 45s image frame.  Current Target  (Aborting: 3s)
00:04:49   T+13s  Started Slew to GRB Target
00:05:35   T+59s  Finished Slew to GRB Target (Slewing: 46s,  87deg slew,  14.0'  pointing error)
00:05:40                Finished 4s post slew wait     ' << not needed ?
00:05:49                Finished 9s focus adjustment  (T. compensation)
00:06:10   T+94s  Finished 10s Locate Frame
00:06:13   T+97s  Finished Plate Solution  (3s)
00:06:27                  Finished 7.7' W jog  (14s)      ' << includes 2s wait, not needed ?
00:06:44                  Finished 11.7' N jog   (17s)    ' << includes 2s wait, not needed ?
00:06:44   T+128s  Finished Centering ( Centering: 67s)
00:06:47                  Initiate Autoguiding  (Autoguiding: 17s)    ' << too long  ?
00:07:04   T+148s  Start 8s focus adjustment (T. compensation)
00:07:12   T+156s  Started 1st Image Frame   (30s)
00:07:45   T+189s  Finished 1st Image Frame
00:30:00   T+25m   Finished  Image Set

ToO's submitted for SuperAGILE_GRB_POS_TEST alerts entered the queue directly affter the Swift_BAT_GRB_Position_Test Alerts but were not executed as their Start Times were deemed to have been missed after completion of the preceeding Swift BAT GRB ToOs .

ToO's submitted for FERMI-LAT GRB_POS_TEST alerts were imported but not added to the job queue

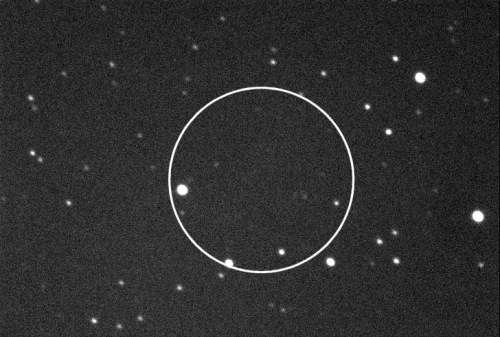

GRB Swift 99999_Test (Triangulum)
Test Notice for Burst at 2019-03-10 00:04:36 UT, Trigger: 99999

30s frame taken over time interval T+156s to T+186s (mag limit +15)
White circle is centered at Test GRB's coordinates and shows the
normal 3 arc min radius statistical positional error for Swift_BAT GRBs
CCD Image (70% size)
30s exposure (single frame), 3x3 binning, C Filter
2019-03-10 00:07 UT (#672253)
12" LX200R (at f/10.4) + ST-10XME
Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2

Back to Top
