Session Aims & Highlights (2019-10-24)

Main aims

1. SharpCap:  Execute the third live session test involving integrated SharpCap/AstroMain imaging, under better sky conditons
2. Targets: Acquire images of a selection of new targets and monitoring of previous variable stars, nearby stars and comets.


Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2

• AstroMain 3.15.4  Astroguard 1.2.8,   AstroPlan 1.12.8,  AstroShCap 1.2.4, AstroVOE 1.3.4, UPB 1.4.17  (AstroWeather 1.7.9, AstroAllSky 3.5)

Highlights

• AstroMain . Apart from 1 small incident the program performed well.
   - the one incident was that progress through Observatory Shutdown (Session State = 'Closing') stalled after parking scope and required intervention to enable the Session to finish)
• SharpCap. Integrated session including SharpCap imaging of targets using TS 80mm/f6 APO secondary scope and ZWO ASI 178MC camera again worked
   - Targets specified for SharpCap imaging in AstroPlan, where loaded to AstroMain as part of the session's observing plan
   - 'Sharpcap targets' were requested for imaging in SharpCap by the Job Queue via ShCap Server (AstroShCap)
   - Control of the ZWO ASI 178MC Camera was seeminglessly switched between SharpCap and PHD2 as required
   - LiveStack pictures were automatically uploaded and displayed on website

Lowlights

• SharpCap.  There were several issues
  - LiveStacking didn't seem to start with a good 'first' frame, which then prevented the alignment of following frames
  - There were some false aborts, where the TakeImageSet/LiveStacking seemed to abort itself
  - There were other false aborts where AstroMain job executor felt that the SharpCap job had finished, when in fact it hadn't
  - Only semi-useful frames where produced by manual interventation to restarting LiveStack in order to get a fresh first good frame
  - SharpCap file name templates on Observatory Computer were manually setup beforehand to use the new standards defined on Development Computer
    (leading to displaced files)

Summary Plots & Logs

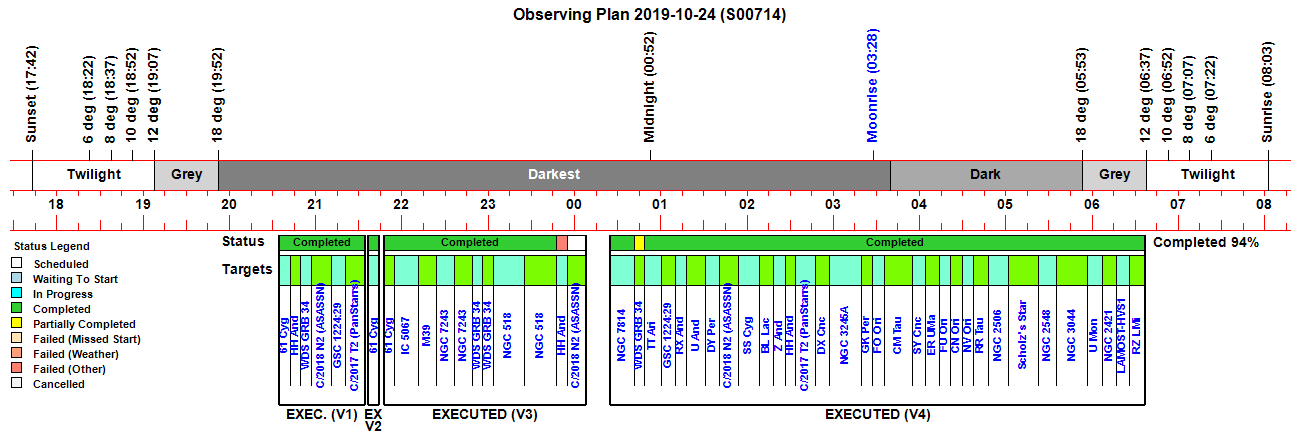

Observing Plan

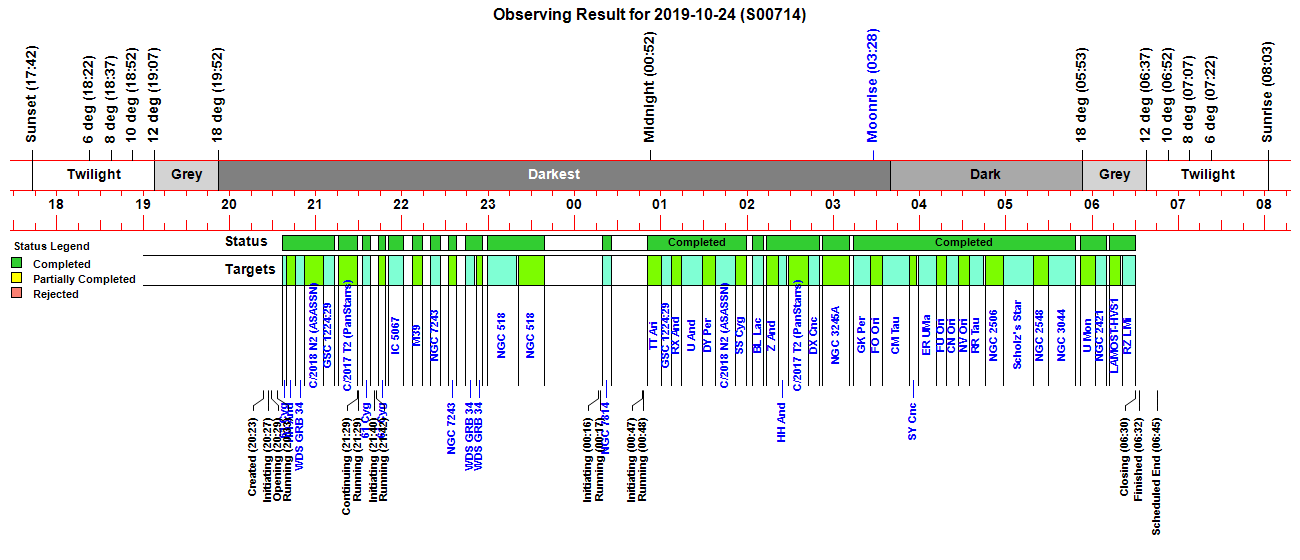

Observing Result

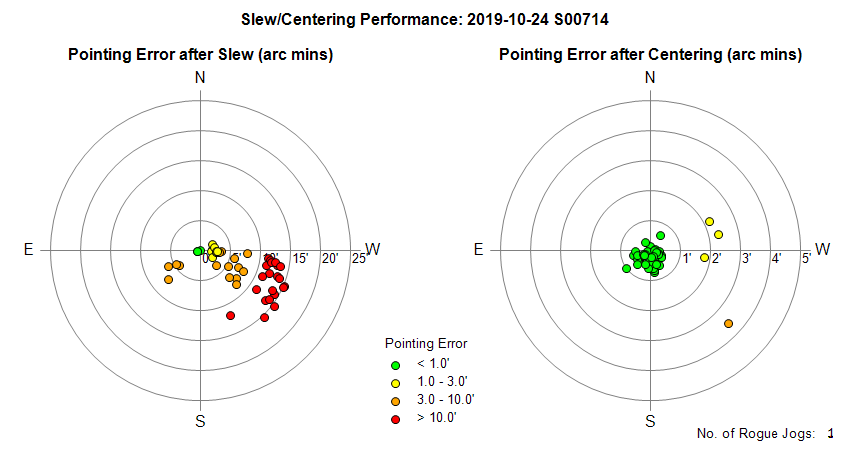

Slew/Centering Performance

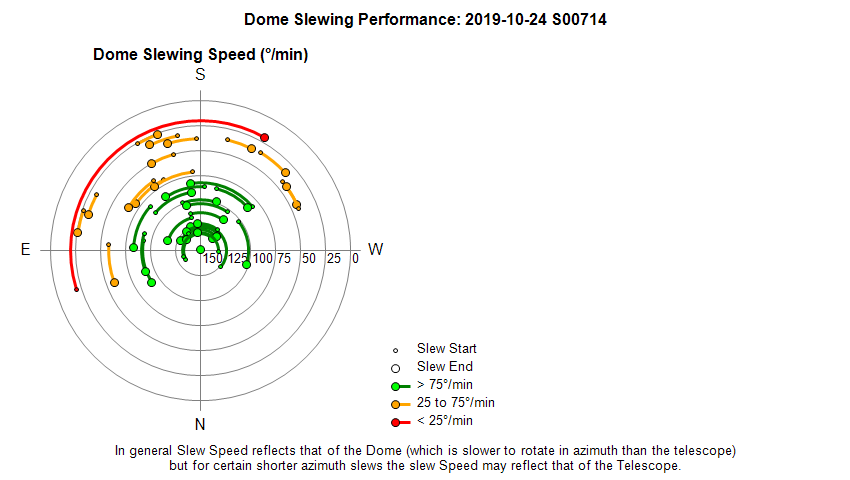

Dome Slewing Performance

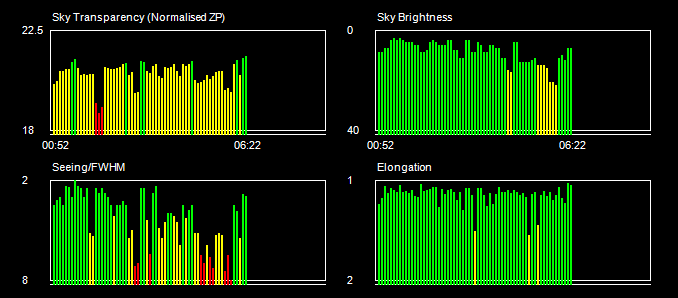

Sky Conditions (Locate Frames)

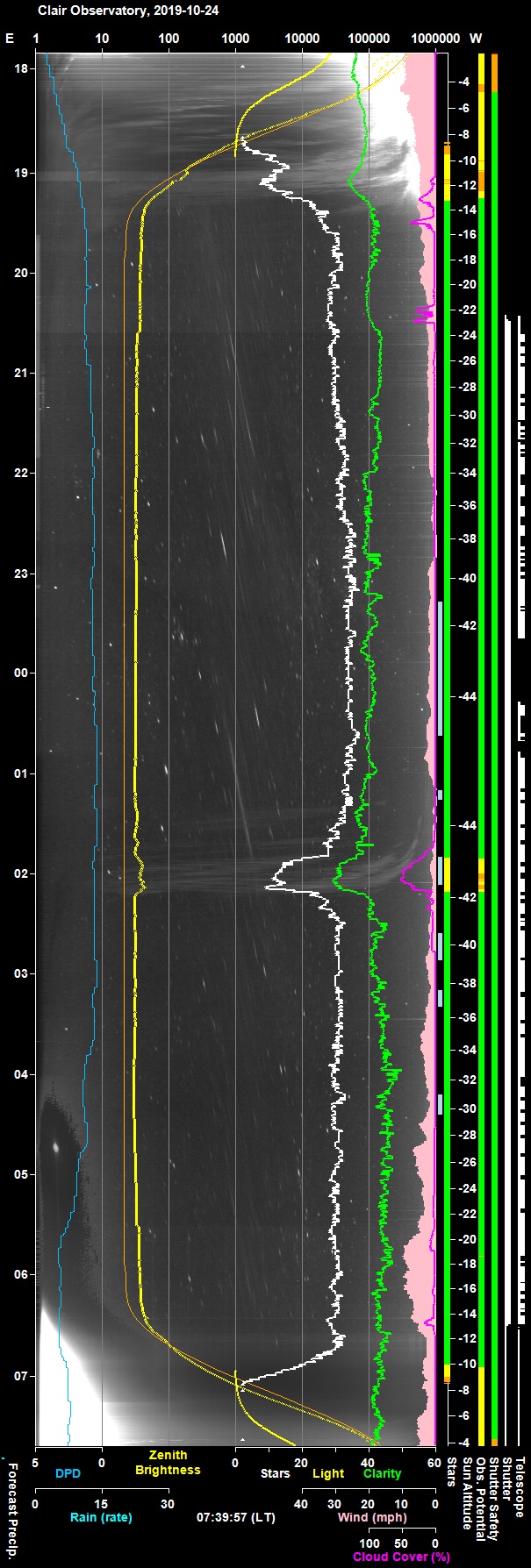

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

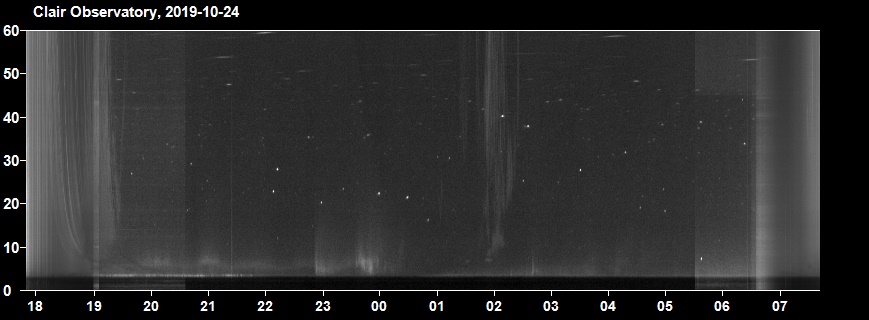

North Sky Sky Summary Plot Auroral Activity 19:30 to 00:30

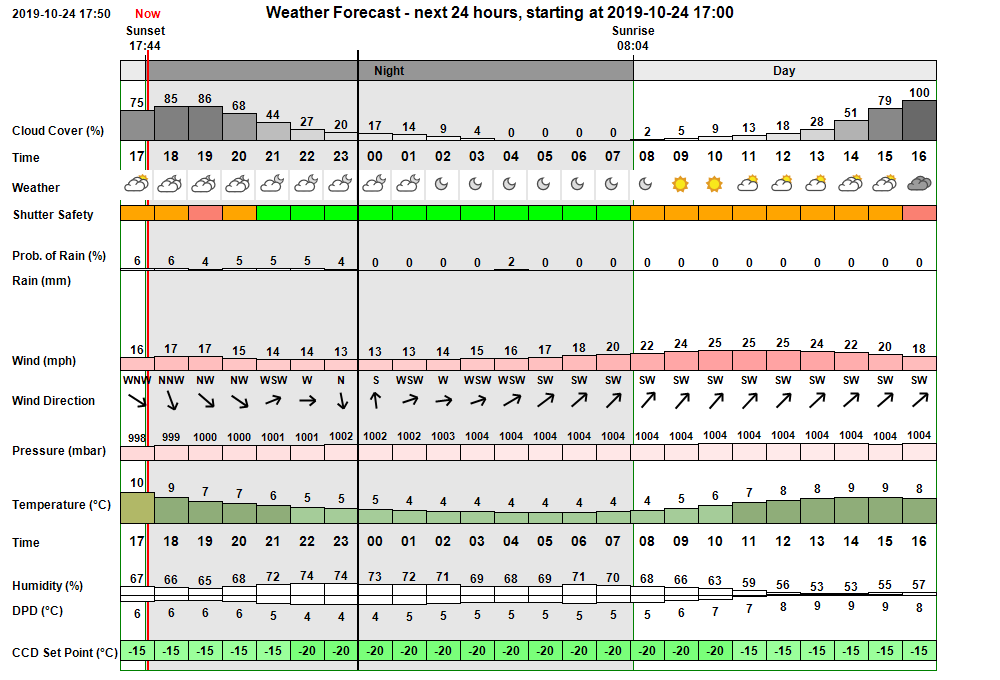

Pre-Session Weather Forecast (AstroWeather 1.7.8) Forecast showed patchy cloud up to 00:00 and then cloud thickeneing until total cloud cover at 04:00 In the event therre was a moderately clear interval between 23:00 and 00:45. Operations suspended at 23:42 and remained that way until the morning

Session Event Log

Time     Event Detail 20:23:57 Session Created Live Session Created (2019-10-24 S00714, ImageSaveNum: 714001) 20:24:12   Scope Switched On Scope Power has been switched on via UPB Powerbox. 20:25:47   Obs.Manager Started Obs.Manager started 20:25:49   Obs.Overseer Started Obs.Overseer started 20:25:54   Services Started Observatory Services started 20:26:59 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:27:04 Session Pending Session pending (2019-10-24) 20:27:06 Session Initiating Session initiating (2019-10-24) 20:27:08   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 20:27:54   Plan Loaded Observing Plan loaded to queue (2019-10-24 V1 BEST PLAN, Plan ID: 399) 20:28:07   Camera1 Connected SBIG Camera Connected (set point -20°C) 20:28:12   Telescope Connected Telescope Connected (TheSky6) 20:28:25 Session Equilibration Session ready for dome & camera equilibration 20:29:10   Shutter Opened Shutter opened (opening time 45s) 20:29:13   Equilibration Started Dome Equilibration started 20:33:11   Equilibration Ended Dome Equilibration ended (4.0 mins total) 20:33:13 Session Running Session running 20:33:15   Queue Started Observing Queue started (6 targets selected) 20:34:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:36:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:36:58     Target Started (1/6) Target started (1/6, 61 Cyg) 20:40:00     Target Completed Target completed (1/6, 61 Cyg) 20:40:02     Target Started (2/6) Target started (2/6, GCVS HH And) 20:42:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:44:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 20:46:03     Target Completed Target completed (2/6, GCVS HH And) 20:46:05     Target Started (3/6) Target started (3/6, WDS GRB 34) 20:48:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:50:34       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 20:52:20     Target Completed Target completed (3/6, WDS GRB 34) 20:52:22     Target Started (4/6) Target started (4/6, C/2018 N2 (ASASSN)) 20:55:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:56:54       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 21:05:38     Target Completed Target completed (4/6, C/2018 N2 (ASASSN)) 21:05:40     Target Started (5/6) Target started (5/6, GSC 1224:29) 21:08:17       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:13:25     Target Completed Target completed (5/6, GSC 1224:29) 21:15:35     Target Started (6/6) Target started (6/6, C/2017 T2 (PanStarrs)) 21:18:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:20:34       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 21:28:58     Target Completed Target completed (6/6, C/2017 T2 (PanStarrs)) 21:29:01   Queue Completed Job Queue completed 21:29:06 Session Continuing Session continuing 21:29:18   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 21:29:48   Plan Loaded Observing Plan loaded to queue (2019-10-24 V2 BEST PLAN, Plan ID: 400) 21:29:50 Session Running Session running 21:29:52   Queue Started Observing Queue started (6 targets selected) 21:32:18     Target Started (1/6) Target started (1/6, 61 Cyg) 21:34:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:36:25       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 21:37:58     Target Completed Target completed (1/6, 61 Cyg) 21:39:22     Target Started (2/6) Target started (2/6, GCVS HH And) 21:40:11     Target Failed Target failed due to aborted (2/6, GCVS HH And) 21:40:13   Queue Aborted Job Queue aborted 21:40:36 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:40:40 Session Pending Session pending (2019-10-24) 21:40:42 Session Initiating Session initiating (2019-10-24) 21:40:44   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 21:41:51   Plan Loaded Observing Plan loaded to queue (2019-10-24 V3 BEST PLAN, Plan ID: 401) 21:41:54   Camera1 Connected SBIG Camera Connected (set point -20°C) 21:41:58   Telescope Connected Telescope Connected (TheSky6) 21:42:11 Session Equilibration Session ready for dome & camera equilibration 21:42:14   Equilibration Started Dome Equilibration started 21:42:16   Equilibration Skipped Dome Equilibration skipped by user 21:42:18 Session Running Session running 21:42:20   Queue Started Observing Queue started (15 targets selected) 21:43:40     Target Started (1/15) Target started (1/15, 61 Cyg) 21:46:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:47:40       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 21:48:53     Target Completed Target completed (1/15, 61 Cyg) 21:50:44     Target Started (2/15) Target started (2/15, IC 5067). Using SharpCap 22:01:13     Target Completed Target completed (2/15, IC 5067) 22:07:26     Target Started (3/15) Target started (3/15, M39). Using SharpCap 22:14:23     Target Completed Target completed (3/15, M39) 22:19:48     Target Started (4/15) Target started (4/15, NGC 7243). Using SharpCap 22:26:41     Target Completed Target completed (4/15, NGC 7243) 22:32:10     Target Started (5/15) Target started (5/15, NGC 7243). Using SharpCap 22:38:03     Target Completed Target completed (5/15, NGC 7243) 22:44:32     Target Started (6/15) Target started (6/15, WDS GRB 34) 22:46:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:48:21       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 22:50:14     Target Completed Target completed (6/15, WDS GRB 34) 22:51:57     Target Started (7/15) Target started (7/15, WDS GRB 34) 22:53:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:54:33       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 22:56:18     Target Completed Target completed (7/15, WDS GRB 34) 22:59:22     Target Started (8/15) Target started (8/15, NGC 518) 23:01:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:03:30       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 23:19:47     Target Completed Target completed (8/15, NGC 518) 23:21:14     Target Started (9/15) Target started (9/15, NGC 518) 23:22:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:23:01       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic) 23:39:10     Target Completed Target completed (9/15, NGC 518) 23:39:28   Queue Aborted Job Queue aborted 23:39:48   Services Stopped Observatory Services stopped 23:40:13   Obs.Manager Started Obs.Manager started 23:40:15   Obs.Overseer Started Obs.Overseer started 23:40:20   Services Started Observatory Services started 23:42:02   Telescope Connected Telescope Connected (TheSky6) 00:12:24       Focusing Aborted Foc1 Focusing Aborted 00:12:26       Focusing Aborted Foc1 Focusing Aborted 00:15:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 00:16:38 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:16:42 Session Pending Session pending (2019-10-24) 00:16:44 Session Initiating Session initiating (2019-10-24) 00:16:46   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 00:17:17   Plan Loaded Observing Plan loaded to queue (2019-10-24 V4 BEST PLAN, Plan ID: 402) 00:17:21   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:17:25   Telescope Connected Telescope Connected (TheSky6) 00:17:38 Session Equilibration Session ready for dome & camera equilibration 00:17:41   Equilibration Started Dome Equilibration started 00:17:43   Equilibration Skipped Dome Equilibration skipped by user 00:17:45 Session Running Session running 00:17:47   Queue Started Observing Queue started (32 targets selected) 00:19:42     Target Started (1/32) Target started (1/32, NGC 7814). Using SharpCap 00:25:58     Target Completed Target completed (1/32, NGC 7814) 00:36:24     Target Started (2/32) Target started (2/32, WDS GRB 34) 00:38:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:40:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 00:40:59     Target Completed Target partially completed (2/32, WDS GRB 34) 00:41:01   Queue Aborted Job Queue aborted 00:42:07   Services Stopped Observatory Services stopped 00:42:25 Program Closed Program closed by User 00:45:30 Session Resumed Live Session Resumed (2019-10-24 S00714, ImageSaveNum: 714124) 00:45:40   Scope Switched On Scope Power has been switched on via UPB Powerbox. 00:46:59   Obs.Manager Started Obs.Manager started 00:47:01   Obs.Overseer Started Obs.Overseer started 00:47:06   Services Started Observatory Services started 00:47:26 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:47:31 Session Pending Session pending (2019-10-24) 00:47:33 Session Initiating Session initiating (2019-10-24) 00:47:35   Plan Loaded Observing Plan loaded to queue (2019-10-24 V4 ACTIVE PLAN S714, Plan ID: 402) 00:47:44   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:47:49   Telescope Connected Telescope Connected (TheSky6) 00:48:02 Session Equilibration Session ready for dome & camera equilibration 00:48:05   Equilibration Started Dome Equilibration started 00:48:07   Equilibration Skipped Dome Equilibration skipped by user 00:48:09 Session Running Session running 00:48:11   Queue Started Observing Queue started (30 targets selected) 00:49:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:51:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 00:51:08     Target Started (3/32) Target started (3/32, GCVS TT Ari) 01:00:17     Target Completed Target completed (3/32, GCVS TT Ari) 01:00:19     Target Started (4/32) Target started (4/32, GSC 1224:29) 01:02:55       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 01:07:29     Target Completed Target completed (4/32, GSC 1224:29) 01:07:31     Target Started (5/32) Target started (5/32, GCVS RX And) 01:09:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:11:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 01:14:14     Target Completed Target completed (5/32, GCVS RX And) 01:14:16     Target Started (6/32) Target started (6/32, GCVS U And) 01:16:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:18:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 01:28:41     Target Completed Target completed (6/32, GCVS U And) 01:28:44     Target Started (7/32) Target started (7/32, GCVS DY Per) 01:31:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:33:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 01:38:24     Target Completed Target completed (7/32, GCVS DY Per) 01:38:26     Target Started (8/32) Target started (8/32, C/2018 N2 (ASASSN)) 01:40:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:43:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 01:51:54     Target Completed Target completed (8/32, C/2018 N2 (ASASSN)) 01:51:56     Target Started (9/32) Target started (9/32, GCVS SS Cyg) 01:53:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:55:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 01:59:42     Target Completed Target completed (9/32, GCVS SS Cyg) 02:03:38     Target Started (10/32) Target started (10/32, GCVS BL Lac) 02:07:06       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 02:11:21     Target Completed Target completed (10/32, GCVS BL Lac) 02:13:26     Target Started (11/32) Target started (11/32, GCVS Z And) 02:15:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:17:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 02:21:51     Target Completed Target completed (11/32, GCVS Z And) 02:21:53     Target Started (12/32) Target started (12/32, GCVS HH And) 02:24:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:26:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 02:28:24     Target Completed Target completed (12/32, GCVS HH And) 02:28:50     Target Started (13/32) Target started (13/32, C/2017 T2 (PanStarrs)) 02:32:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:34:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 02:42:58     Target Completed Target completed (13/32, C/2017 T2 (PanStarrs)) 02:43:01     Target Started (14/32) Target started (14/32, GCVS DX Cnc) 02:45:25       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 02:50:19     Target Completed Target completed (14/32, GCVS DX Cnc) 02:52:27     Target Started (15/32) Target started (15/32, NGC 3245A) 02:55:05       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 03:11:24     Target Completed Target completed (15/32, NGC 3245A) 03:14:19     Target Started (16/32) Target started (16/32, GCVS GK Per) 03:25:43     Target Completed Target completed (16/32, GCVS GK Per) 03:25:45     Target Started (17/32) Target started (17/32, GCVS FO Ori) 03:28:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:29:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 03:34:02     Target Completed Target completed (17/32, GCVS FO Ori) 03:34:04     Target Started (18/32) Target started (18/32, GCVS CM Tau) 03:36:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:38:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 03:52:41     Target Completed Target completed (18/32, GCVS CM Tau) 03:52:43     Target Started (19/32) Target started (19/32, GCVS SY Cnc) 03:55:23       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 03:58:39     Target Completed Target completed (19/32, GCVS SY Cnc) 03:58:57     Target Started (20/32) Target started (20/32, GCVS ER UMa) 04:02:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:07:30       Focusing Failed Foc1 Focusing Failed - failed QC check (Range) 04:11:36     Target Completed Target completed (20/32, GCVS ER UMa) 04:11:38     Target Started (21/32) Target started (21/32, GCVS FU Ori) 04:14:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:16:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 04:18:56     Target Completed Target completed (21/32, GCVS FU Ori) 04:18:58     Target Started (22/32) Target started (22/32, GCVS CN Ori) 04:21:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:23:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 04:27:01     Target Completed Target completed (22/32, GCVS CN Ori) 04:27:03     Target Started (23/32) Target started (23/32, GCVS NV Ori) 04:29:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:31:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 04:34:42     Target Completed Target completed (23/32, GCVS NV Ori) 04:34:44     Target Started (24/32) Target started (24/32, GCVS RR Tau) 04:36:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:38:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 04:45:32     Target Completed Target completed (24/32, GCVS RR Tau) 04:45:34     Target Started (25/32) Target started (25/32, NGC 2506) 04:47:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:49:55       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic) 04:58:22     Target Completed Target completed (25/32, NGC 2506) 04:58:24     Target Started (26/32) Target started (26/32, Scholz's Star) 05:01:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:03:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 05:18:55     Target Completed Target completed (26/32, Scholz's Star) 05:18:57     Target Started (27/32) Target started (27/32, NGC 2548) 05:21:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:23:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 05:29:49     Target Completed Target completed (27/32, NGC 2548) 05:29:57     Target Started (28/32) Target started (28/32, NGC 3044) 05:32:13       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 05:48:34     Target Completed Target completed (28/32, NGC 3044) 05:51:49     Target Started (29/32) Target started (29/32, GCVS U Mon) 05:53:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:55:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 06:02:03     Target Completed Target completed (29/32, GCVS U Mon) 06:02:05     Target Started (30/32) Target started (30/32, NGC 2421) 06:05:16       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 06:10:04     Target Completed Target completed (30/32, NGC 2421) 06:12:08     Target Started (31/32) Target started (31/32, LAMOST-HVS1) 06:15:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:17:39       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic) 06:20:39     Target Completed Target completed (31/32, LAMOST-HVS1) 06:21:04     Target Started (32/32) Target started (32/32, GCVS RZ LMi) 06:22:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:24:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 35) 06:30:01     Target Completed Target completed (32/32, GCVS RZ LMi) 06:30:02   Queue Completed Job Queue completed 06:30:04 Session Closing Session closing 06:31:00   Shutter Closed Shutter closed (closing time 50s) 06:31:19   Dome Parked Dome parked (parking time 20s) 06:31:29   Telescope Parked Telescope parked (parking time 9s) 06:32:14 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 06:32:47 Session Finished Session Finished

Back to Top

Operational Issues (2019-10-24, S714)

• Critical Issues (0)
• Major Issues (2)
• Minor Issues (3)

• Continuous Improvement (3)

[ Prev | Next ]

Critical Issues

• None

Major Issues -

• Multiple Focus Profiles failing with message "Failed QC Check (Range)" . Problem noticed during remote monitoring. Looking at the Report Messages showed each profile has 3-6 steps with the message "Failed Outside allowed step range".  This was where the focuser was requested to go to positions beyond its hard limit of 7000 steps. Problem was caused by a combination of having the scope's primary mirror focus position set to far from the centre point  of the TCF-S' s center point (3500) and cold temperatures forcing the best focus towards the higher DRO positions.  The issue had to be resolved by visiting the observatory and adjusting the focus position (23:45 to 00:12). As always this is a difficult task because once the focus is adjusted the focus poistion is then changed when the locking the primary mirror (the operation isn't performed enough times to develop a optimised way of achieving this task)
  Resolved 2019-10-24 (Observatory)

• Reinforced rubber edge trim around the dome flange became totally detached  At some point during the session the edge trim became detached and then proceeded to peel itself off as the dome rotated. This was only noticed when the observatory was visited the next morning. No damage seems to have been done apart from some abrasion to the rubber strip as it was forced through one of the metal roof retaining clamps.  It is assumed that the incident happened at 03:14 when slew to GCVS GK Per took an anomalously long time (6.9 mins to complete a 137deg  azimuthal slew (i.e. a speed of only 20 deg/min).  The rubber strip was re-fitted to the flange taking care to press the reinforcement tighter in order to make it fit tighter to the dome flange especially at the the two ends.  This problem happened once before if I remember correctly.
  Resolved 2019-10-25 (Observatory)

Minor Issues

• TCF-S Focuser DRO and OTA temperature values lost at 23:05.  Monitor data shows that TCF-S data was lost at 23:05 but the first 'error' was not seen until 23:22 when Focus Profiling started to produce the error:   "TCF-S Focuser... Fail Exception: Operation cannot be completed. Device is not connected." .  The problem was resolved at 23:39 by aborting the job queue, stopping all observatory services and then restarting the session. TCF-S data resumed at 23:42.    It's unclear if the issue was in anyway associated with the TCF-S focuser going up to its hard limit of 7000 DRO. Restarting services may or may not have had a knock on effect of causing the ASCOM Scope Driver to be lost to AstroMain
  Resolved in session 2019-10-24 (Services restarted )

• ASCOM Scope lost to AstroMain program at 23:40.   Shortly after restarting Observatory Services at 23:40 , the Telescope was connected in TheSky, where the routine showed an issue with data from the objScope (POTH / ASCOM Scope) as Ra/Dec values where vcNull (-99)    vcNull were also shows at Telescope.Connect at 00:17. Just after this it was noticed that Eventually it was noticed  that report message started with "Scope (objScope) not found, e.g.   "Turn Off Tracking..              Fail       Scope (objScope) not found"
  The problem was resolved by parking the scope (using POTH) , closing down the entire Observatory Software suite, and then restarting the session again (this was done as it the proven / most definitive fix to the problem, though not necessarily the most optimal ).  It would seem that the objScope wasn't  attached when re-starting the observatory services at 23:30. The message  "POTH.Telescope (COM7):     Fail     Telescope Power State is unknown" is relevant.   Checking the ode of Scope.Connect show that if  Scope.PowerState = vcNull the routine is exited without creating objScope / without setting objScope.connected = True.     Problem only occurs when restarting Observatory Services and happens because the call to start the Scope Service comes too quickly after starting Observing Monitoiring and PowerBox Services.
  Fixed 2019-10-25 (AstroMain 3.16)

• Current Session WebPage showing previous session's NightSummaryPlot6 rather than the plot for the current night.   This is a re-occuring problem.   The 'near zero sized' flag file is not being uploaded to the website by AstroPlan's FTP File Uploader when a new session is started.  Fixed by reinitialising FTPQueue at start of NewSession , before ResetLiveFiles is called.
  Fixed 2019-10-25 (AstroPlan 1.12.9)

Continuous Improvement

• Need to make the image description produced by AstroShCap's TakeImageSet show smartened exposure times.  In VB.Net cstr(10.00) gives 10,   but in Python str(10.00) gives 10.0,   so the description has "50x10.0s" instead of intended 50x10s.  If exposure was 0.5s I still need to see 50x0.5s.
  Fixed 2019-10-25 (AstroShCap 1.2.5)

• The LiveStack image produced for xxxx was too green looking, sky background green.  How to modify either the camera settings or display settings to give a nice black sky background and 'true' looking star colours ?
  Find solution  (AstroShCap / SharpCap )

• With Ambient Temperature of 1 degC, CCD SetPoint could have been updated to -25degC instead of remaining at -20degC
  Revise ProposedSetPointTemperatures to point to -25deg when temperature falls below 2 degC
  Done (AstroMain 3.17.5). Small tweak made. Monitor over future sessions

[ Prev | Next ]

Back to Top

Detached Rubber Trim

At some point during the session on the night 2019-10-24 the Reinforced rubber edge trim that normally sits around the dome flange edge became detached and then proceeded to peel itself off as the dome rotated. This was only noticed when the observatory was visited the next morning. No damage seems to have been done apart from some abrasion to the rubber strip as it was forced through one of the metal roof retaining clamps.  It is assumed that the incident happened at 03:14 when one particular slew (to GCVS GK Per) took an anomalously long time taking 6.9 mins to complete a 137deg  azimuthal slew (i.e. a speed of only 20 deg/min).

The rubber strip was re-fitted to the flange taking care to press the reinforcement tighter in order to make it fit tighter to the dome flange especially at the the two ends.  I think this is the second time that this has happened.

Pictures showing the Reinforced Rubber Trim that had detached from dome roof flange during previous night's session
Re-securing Rubber Trim with Pair of Pliers (later picture)

Back to Top

SharpCap Notes

LiveStacking Tabs contain Filter on Brightness Checkbox (with Min Brightness limit) and Filter on FWHM checkbox (with Max FWHM limit). How to use and modify these in scripting ?
