2020-08-29 (Session 800)
Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (0),  Continuous Improvement (1)

Bullet AutoStart Results

Bullet Images from 2020-08-29 >>
Bullet Foc2 Auto-Focusing Results (2020-08-29 to 2020-08-31)


Session Aims & Highlights (2020-08-29)

Main aims

  1. Targets. Acquire images of a number of targets if conditions allow.
  2. AutoStart. Use AutoStart to completely automated the session and see how it goes without any form of remote monitoring or check-in.
  3. Foc2 Focusing with Focus Check. Conduct live test of autofocusing of Foc2 (Secondary Scope) system with new post-focusing Focus Check (this is the measurement of FWHM from 3 images taken after the focuser has been moved to Best Focus Position)

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

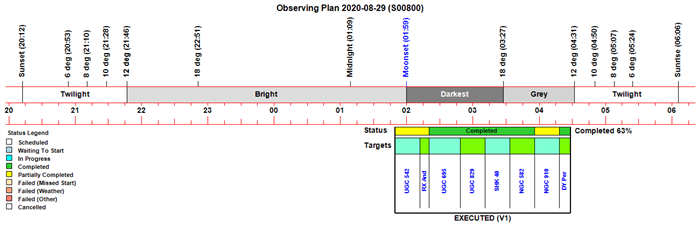

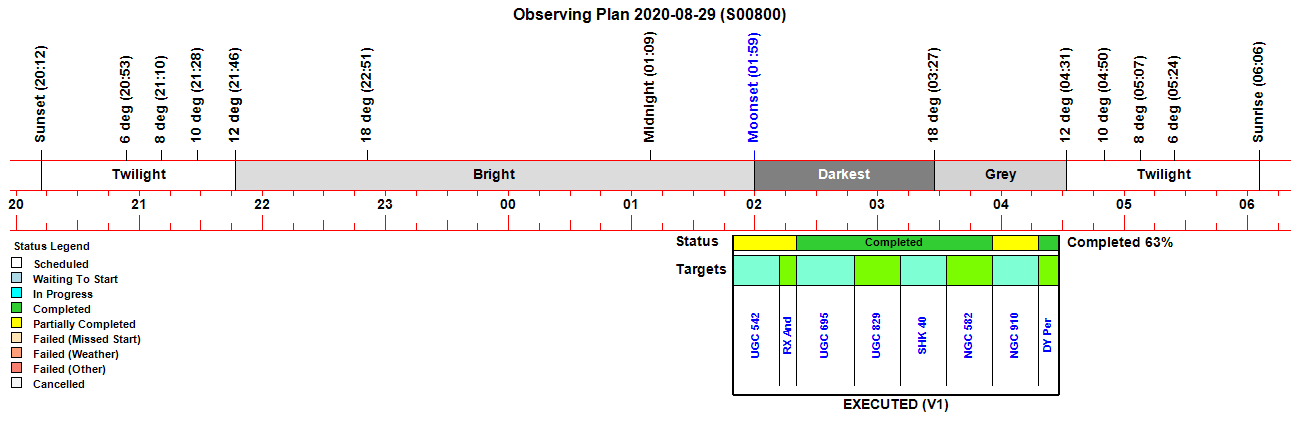

Observing Plan

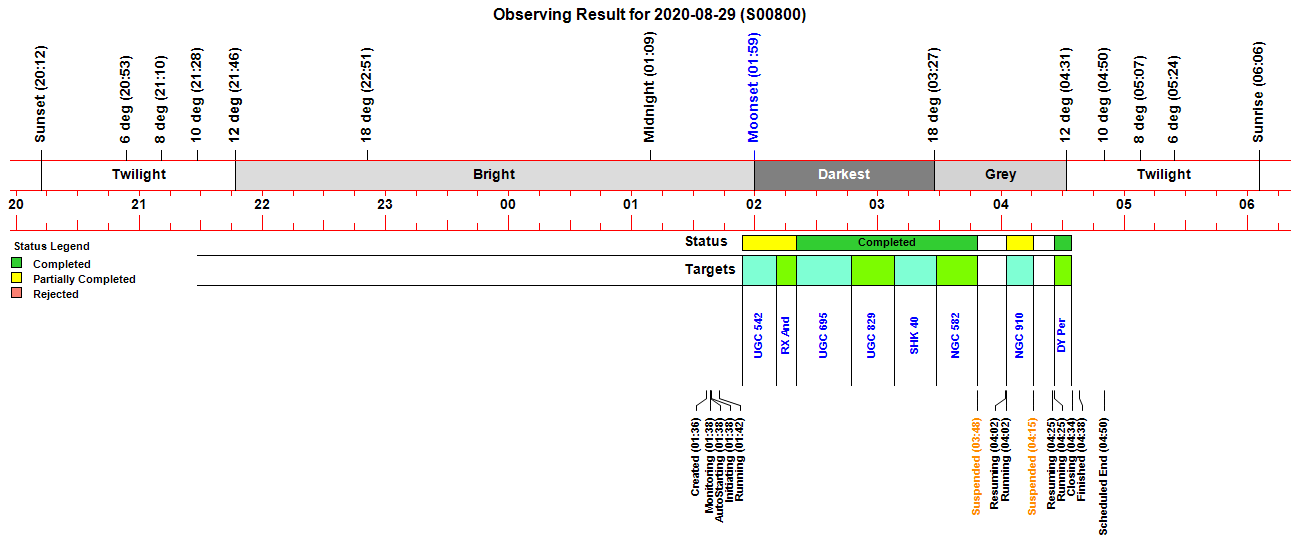

Observing Result

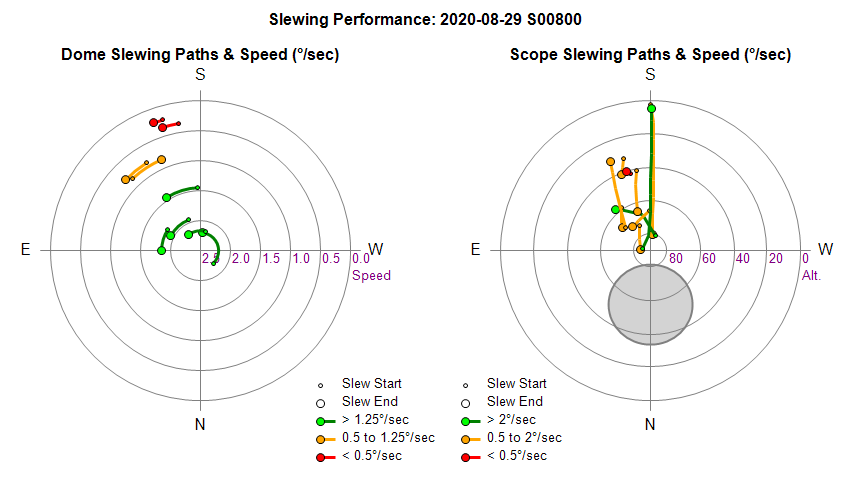

Dome & Scope Slewing Performance

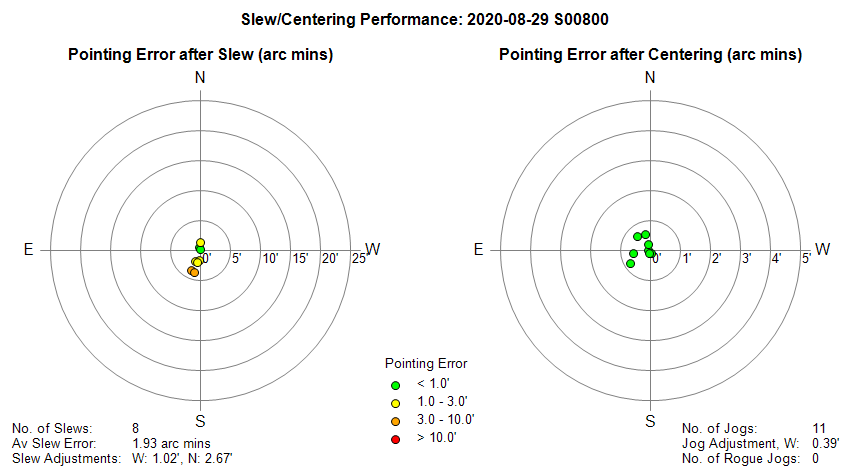

Slew/Centering Performance

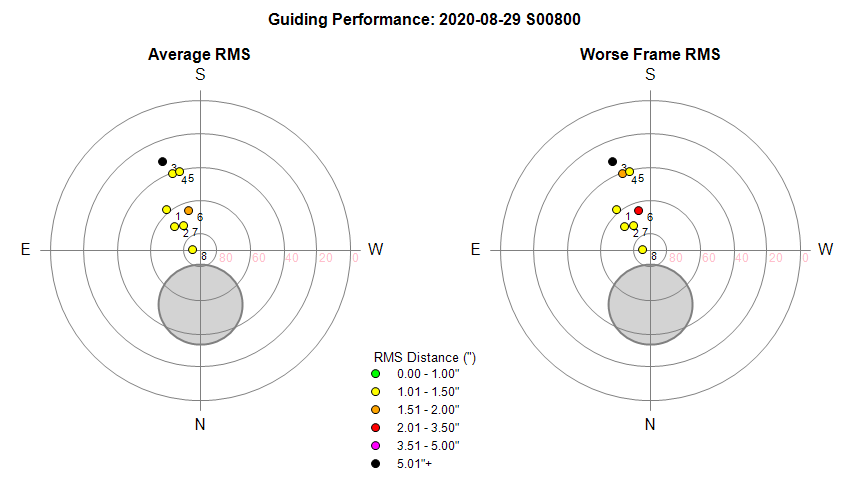

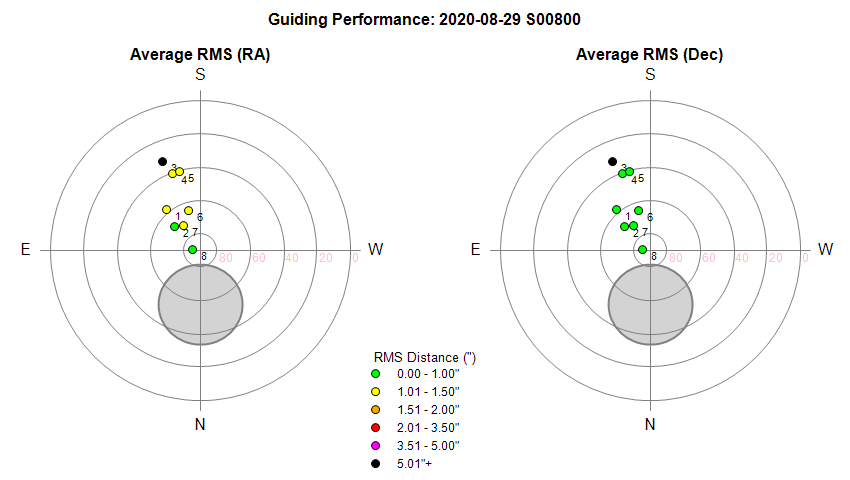

Guiding Performance

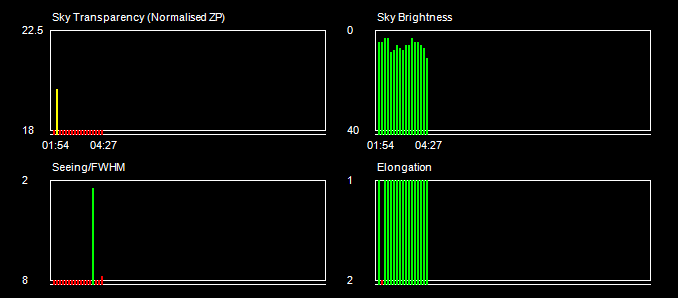

Sky Conditions (Locate Frames)

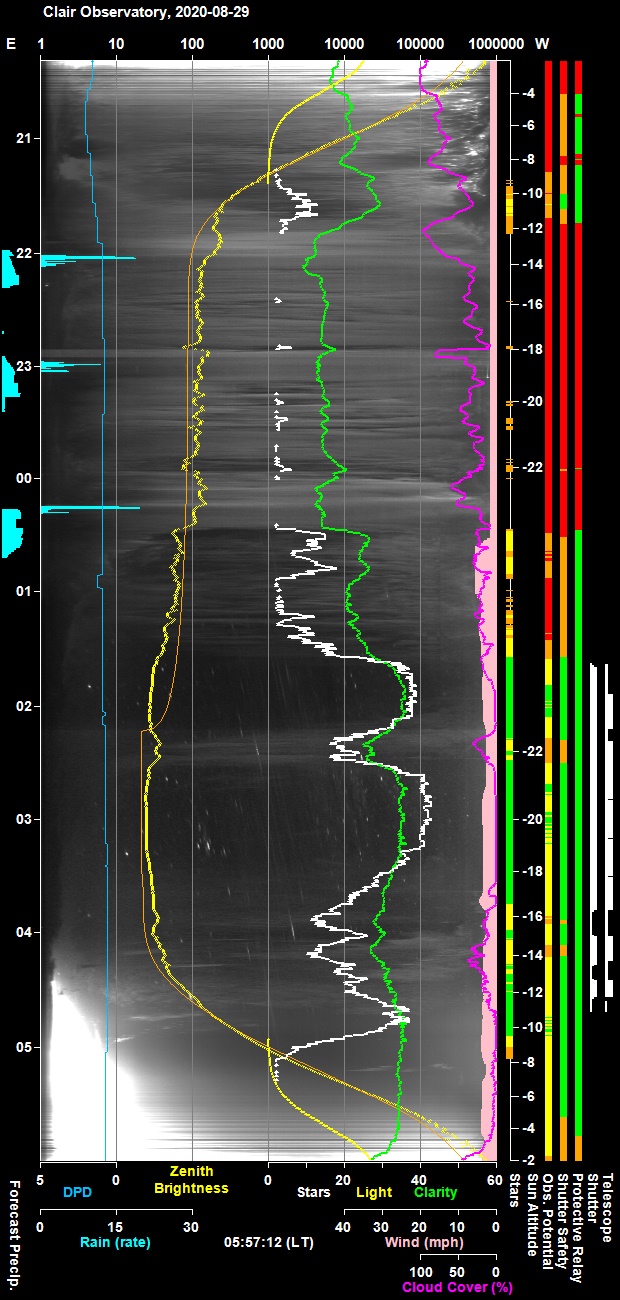

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

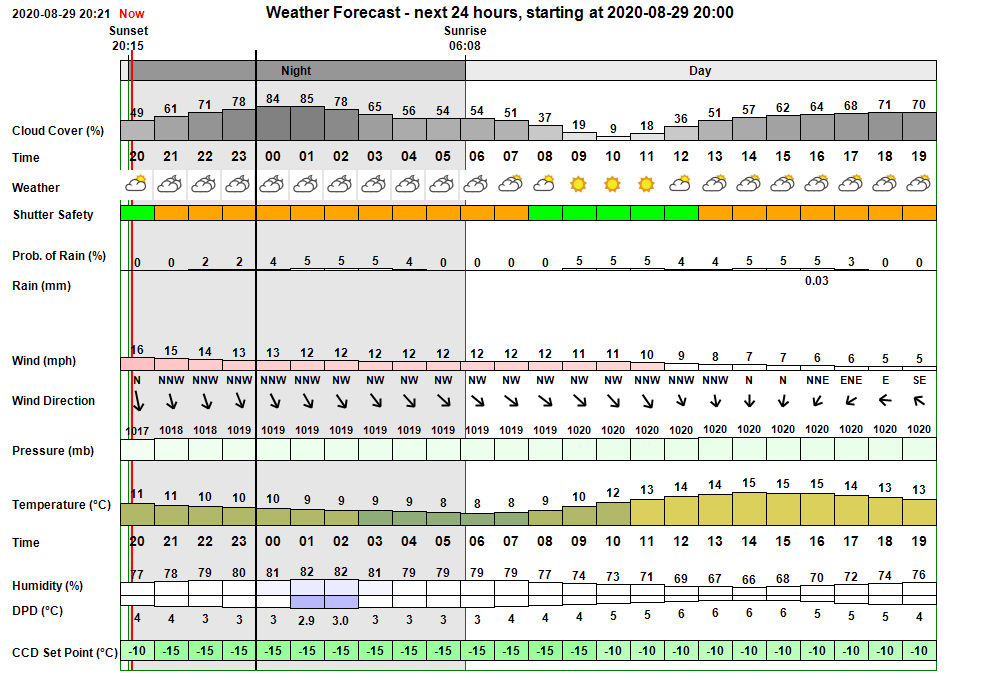

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed fairly clouy condition reaching 85% cloud cover, but potentially reducing to 54% cloud cover by dawn.
with moderate-light wind (15-12 mph), very low risk of rain <= 5% and a minimum temperature of 8-9°C.

In the event conditions were cloudy prior to midnight with light showers between 22:00 and 00:20 .  A separate weather forecast indicated potential of clear skies after midnight, so AutoStart was engaged before going to bed.  Skies cleared at 01:40 and remained fairly clear until dawn with cloud passing at 02:20 and 03:50 to 04:15.  Night was dry from 00:30 onwards with minimum outside temperature of 5.5°C

Session Event Log
Time     Event Detail
01:36:32   Camera1 Connected SBIG Camera Connected (set point -10°C)
01:36:34 Session Created Live Session Created (2020-08-29 S00800, ImageSaveNum: 800001)
01:36:36   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
01:38:23   Services Started Observatory Services started
01:38:32 Observatory (Auto) Observatory placed in Fully-Automated Mode
01:38:34 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 23:56 & 04:01
01:38:36   AutoStart Delayed Session delayed due to cloud
01:38:38 Session AutoStarting Session autostarting (01:35)
01:38:40 Session Pending Session pending (2020-08-29)
01:38:42 Session Initiating Session initiating (2020-08-29)
01:38:44   Plan Requested Observing Plan requested from AstroPlan (1.16)
01:38:50   Plan Loaded Observing Plan loaded to queue (2020-08-29 V1 BEST PLAN, Plan ID: 534)
01:38:53   Camera1 Connected SBIG Camera Connected (set point -15°C)
01:38:58   Telescope Connected Telescope Connected (TheSky6)
01:39:10 Session Equilibration Session ready for dome & camera equilibration
01:39:55   Dome Opened Dome opened (opening time 45s)
01:39:58   Equilibration Started Dome Equilibration started
01:42:36   Equilibration Ended Dome Equilibration ended (2.7 mins total)
01:42:38 Session Running Session running
01:42:40   Queue Started Observing Queue started (8 targets selected)
01:44:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:49:11       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
01:49:14       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
01:51:50       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
01:53:51       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
01:54:05       Focusing Checked Foc2 Focusing Check Succeeded
01:54:08     Target Started (1/8) Target started (1/8, UGC 542)
02:10:49     Target Completed Target partially completed (1/8, UGC 542)
02:10:51     Target Started (2/8) Target started (2/8, GCVS RX And)
02:13:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:19:19       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic)
02:20:12     Target Completed Target partially completed (2/8, GCVS RX And)
02:20:14     Target Started (3/8) Target started (3/8, UGC 695)
02:20:59   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:22:04   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
02:22:49       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
02:29:24   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:30:10   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
02:47:09     Target Completed Target completed (3/8, UGC 695)
02:47:11     Target Started (4/8) Target started (4/8, UGC 829)
02:50:20       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
03:08:10     Target Completed Target completed (4/8, UGC 829)
03:08:13     Target Started (5/8) Target started (5/8, SHK 40)
03:10:56       Focusing Failed Foc1 Focusing Failed - star is lost (TCF-S)
03:28:31     Target Completed Target completed (5/8, SHK 40)
03:28:33     Target Started (6/8) Target started (6/8, NGC 582)
03:30:51       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S)
03:47:57   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
03:48:28     Target Completed Target completed (6/8, NGC 582)
03:48:30   Queue Paused Queue paused for SoftSuspend
03:48:32 Session Suspended Session suspended
03:49:22   Dome Closed Dome closed (closing time 49s)
04:02:03 Session Resuming Session resuming
04:02:48   Dome Opened Dome opened (opening time 45s)
04:02:50 Session Running Session running
04:02:52   Queue Resumed Observing Queue resumed
04:02:54     Target Started (7/8) Target started (7/8, NGC 910)
04:08:13   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
04:15:52     Target Completed Target partially completed (7/8, NGC 910)
04:15:54   Queue Paused Queue paused for SoftSuspend
04:15:57 Session Suspended Session suspended
04:18:29   Dome Closed Dome closed (closing time 50s)
04:25:10 Session Resuming Session resuming
04:25:55   Dome Opened Dome opened (opening time 45s)
04:25:57 Session Running Session running
04:25:59   Queue Resumed Observing Queue resumed
04:26:01     Target Started (8/8) Target started (8/8, GCVS DY Per)
04:34:33     Target Completed Target completed (8/8, GCVS DY Per)
04:34:36   Queue Completed Job Queue completed
04:34:41 Session Closing Session closing
04:35:31   Dome Closed Dome closed (closing time 45s)
04:35:49   Dome Parked Dome parked (parking time 18s)
04:36:38   Telescope Parked Telescope parked (parking time 45s)
04:37:08   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
04:37:57   Services Stopped Night Services stopped
04:37:59 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:38:03 Session Finished Session Finished

Session Alerts
Time     Alert Detail
-- No Alerts                --

Back to Top


Operational Issues (2020-08-29, S800)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


AutoStart - Results

Result: Successful use of AstroStart. A Live Session was created and begun under complete automated control, without any remote monitoring.  The session ran 'successfully',  though an issue with regard to Foc1 autofocusing & use of wide option meant that images from the night were of practically no value.

AutoStart Mode was initiated from AstroMain 3.28.1 program at 23:56 (just before midnight). It's operational window was from 23:56 (straightaway)  until 04:01 (SunAlt -12 degs {ascending} minus 30 mins).  Conditions at 23:56 were unsuitable for observing due to cloud and AutoStart was deferred.  Finally at 01:35 conditions were deemed suitable and AutoStart ran, creating a new live session (S800), and beginning Observatory Night Services including powering up and connecting to the LX200 Telescope. The dome was opened at 01:39 and session began running at 01:42, starting with attempted autofocusing of Main Scope (Foc1 system) and GuideScope (Foc2 system).

A significant change in atmospheric conditions and temperature since the previous session meant that standard autofocusing of the Foc1 system couldn't find a position of best focus. Without use of a correct focus offset the session failed to deliver any in-focus images.   Whilst this issue could have been easily resolved using the wide focus search option it had unfortunately not been engaged by the user.   AutoStart needs to be modified so that it automatically engages wide focus search option before beginning a new live session.

Back to Top


Foc2 Auto-Focusing Results (2020-08-29 to 2020-08-31)

Foc2 Auto-Focusing was performed at start of session on a Near Zenith Star Field (Focus Field 21).   This incorporated a precursive 'wide' focusing during which the approximate position of best focus is determined first based on focus position with lowest FWHM value, followed by normal autofocusing in which position of best focus is determined by quadratic fit to set of focus points, across a smaller range centered on the approximate focus position produced by the 'wide' focusing.  Focusing performed using the recently increased backlash value of 3500.  The newly introduced post-focusing Focus Check executed as per design.

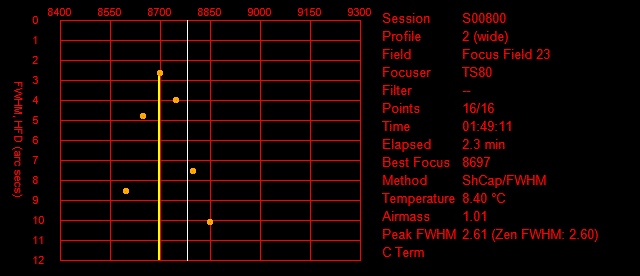

Initial Wide Profile for Focus Field 21
Focus Range :  9147 - 8397 (range: 710), centered of focus position used in last session
'Best Focus' at 8697, based on the focus point with FWHM of 2.61 arc sec.

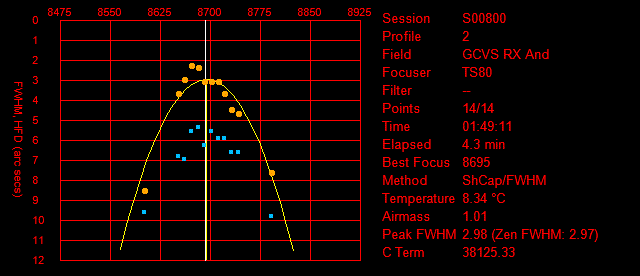

Detailed Focus Profile for Focus Field 21
Focus Range :  8842- 8552 (range: 290), centered on rough best focus from the 'Wide' Profile above
'Best Focus' at 8695, based on quadratic curve fit to the set of focus steps.
Peak FWHM estimated to be 2.98 arc sec.

  Post-Focusing Focus Check
3 images taken at 'Best Focus' (8695) had average FWHM of 3.69 arc sec (av. of  3.29, 3.65, 4.13)

Before starting the detailed profile above the focuser was first moved to 8842 + 3500
before moving back to 8842 to begin the profile

After completing the focus profile, the Focuser was moved to 8695 + 3500, before moving back to 8695
The Focus Check should have produced a FWHM values of around 3.0 arc sec (range 2.4 - 3.1),
 but the focus check produced a FWHM result of only 3.7 arc sec (range 3.3 to 4.1)

Whilst this was ok for autoguiding it is unclear if the FWHM diffference is
due to seeing conditions or a limitation of the focusing system.   The backlash value used (3500)
?should be higher enough to overcome backlash in the physical system.

Follow-up (2020-08-30)
In following session (S801) focus check at 'Best Focus' (8638) had average FWHM of 3.52 arc sec (av. of  2.96, 3.46, 4.15), which compares against a Peak FWHM of 2.69 from the Focus Profile (top values : 2.69, 2.88, 2.95, 3.74).  Allowing for the scatter in FWHM measurement due to seeing variations it would seem that focuser backlash is being correctly allowed for (i.e. Best Focus Position can be successfully returned to).

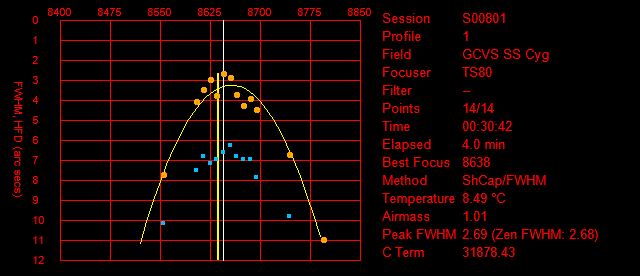

Detailed Focus Profile for Focus Field 22 (mis-labeled as GCVS SS Cyg), 2020-08-30
'Best Focus' at 8638, based on quadratic curve fit to the set of focus steps.
Peak FWHM at 2.69 arc sec from focus point at 8645.
(the Peak FWHM from curve fit appears to be at around 3.3 arc sec)

Follow-up (2020-08-31)
In session (S802) focus check at 'Best Focus' (8618) had average FWHM of 2.58 arc sec (av. of  2.36, 2.46, 2.93), which compares against a Peak FWHM of 2.77 from the Focus Profile (top values : 2.02, 2.22, 2.26). Allowing for scatter in FWHM measurement due to seeing variations it would seem that focuser backlash is being correctly allowed for (i.e. Best Focus Position can be successfully returned to).

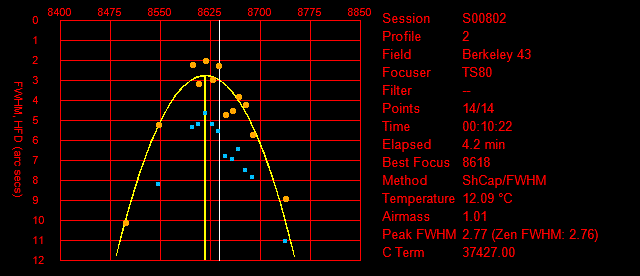

Detailed Focus Profile for Focus Field 22 , 2020-08-31
'Best Focus' at 8618, based on quadratic curve fit to the set of focus steps.
