Notes - Session 807 (2020-09-09)


2020-09-09 (Session 807)
Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (9),  Continuous Improvement (0)

Bullet Images from 2020-09-09 >>
2020-09-11
Bullet Dome Connection Issues


Session Aims & Highlights (2020-09-09)

Main aims

  1. Dome.ShutterStatusFromDome. Test modified routine that should access Shutter Status, Azimuth, slewing state  directly from the Pulsar ASCOM trace file, which contains Volatile records sent from the Dome Drive Unit that provides information about the status of the dome that is independant of DeviceHub.Dome where a bug occasionally appears whereby dome information stops updating,  causing uncertainty to open/closing of shutter and preventing slaved movements of dome according to the telescope position.
  2. KIC 9832227. Acquire base line images of close contact binary KIC 9832227 in Cygnus, which in 2017 was predicted to explode as a red nova in 2022. (reference ?)
  3. Targets. Acquire images of a number of targets if conditions allow.

Equipment & Software

Highlights



Lowlights

Summary Plots & Logs

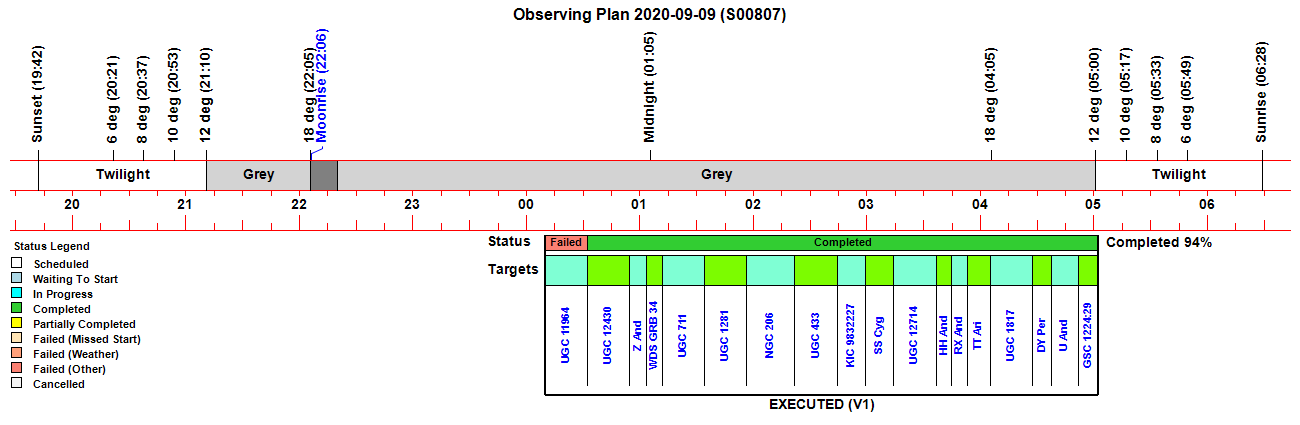

Observing Plan

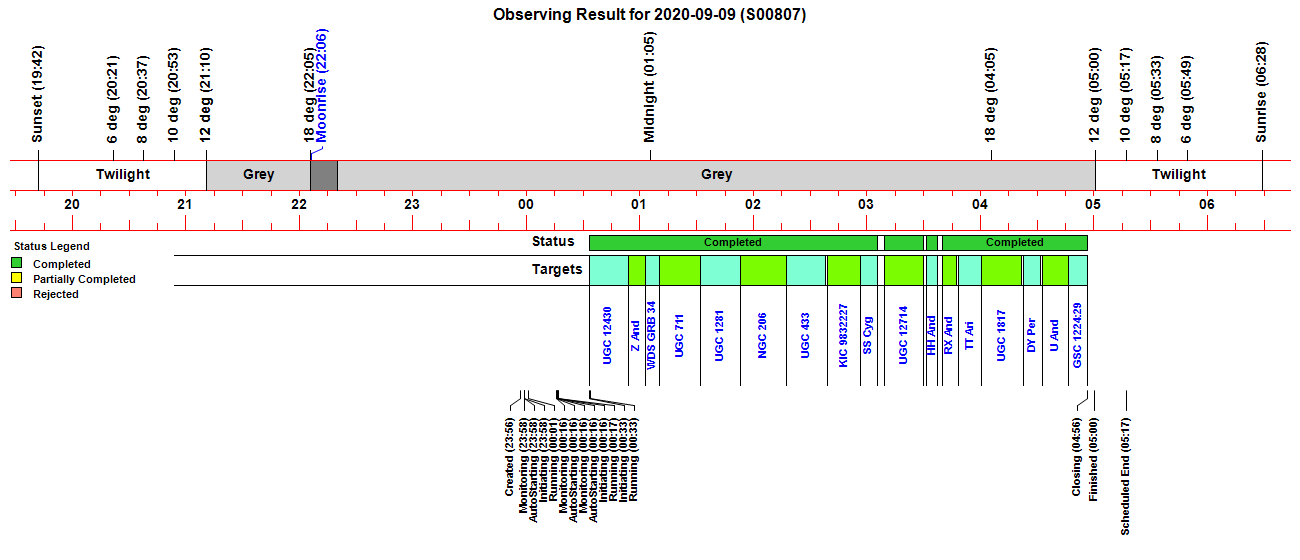

Observing Result

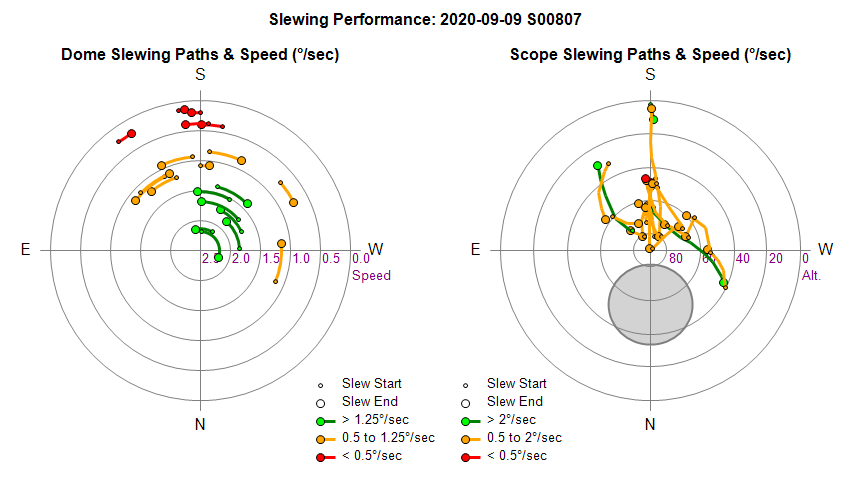

Dome & Scope Slewing Performance

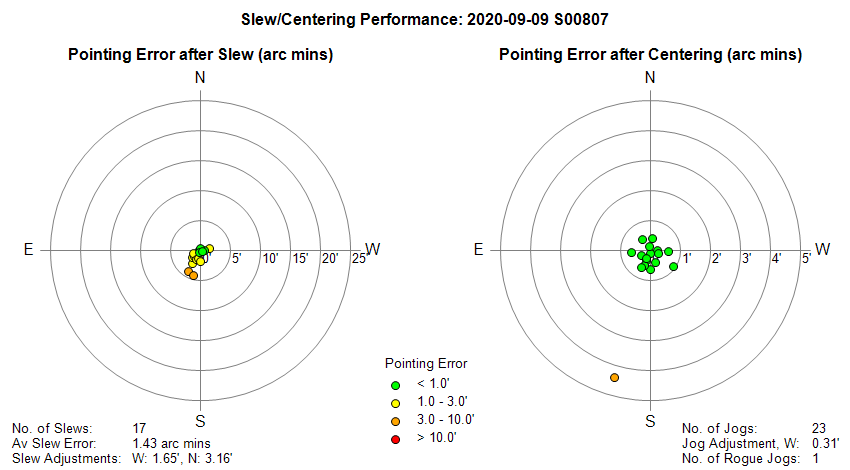

Slew/Centering Performance

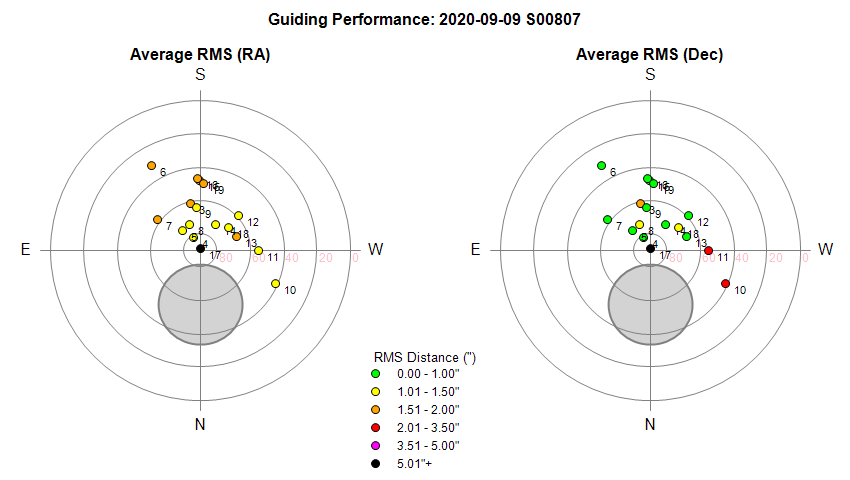

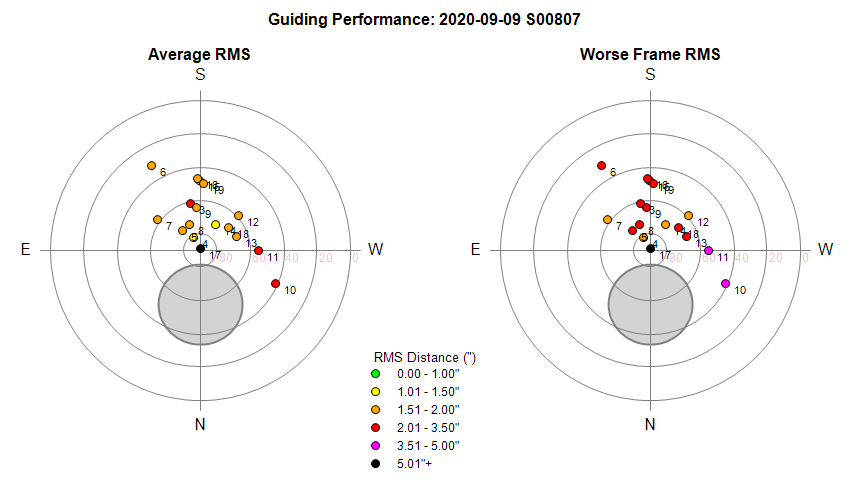

Guiding Performance

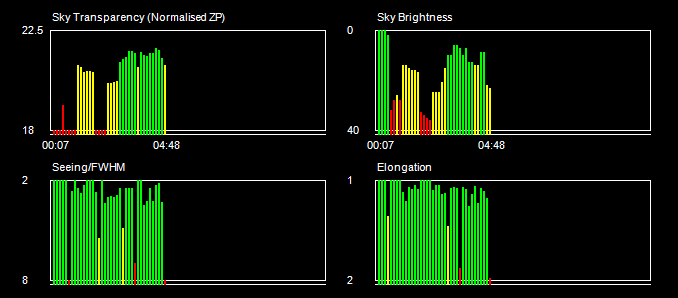

Sky Conditions (Locate Frames)

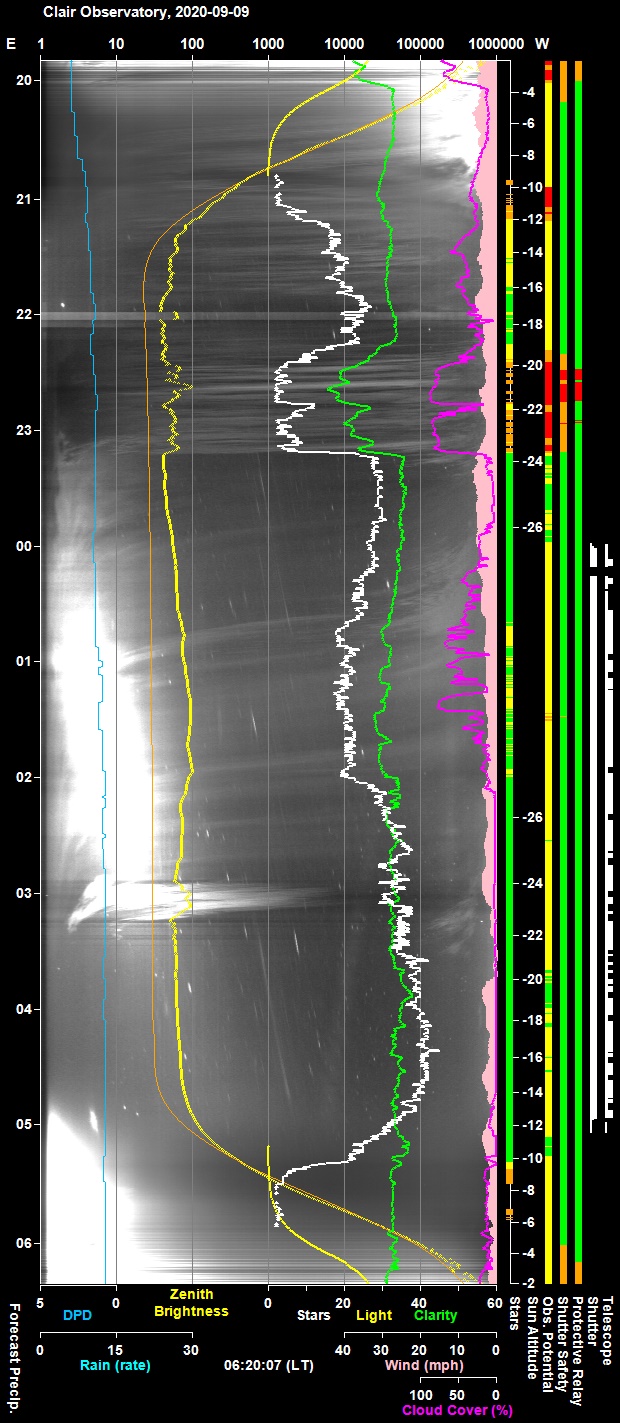

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

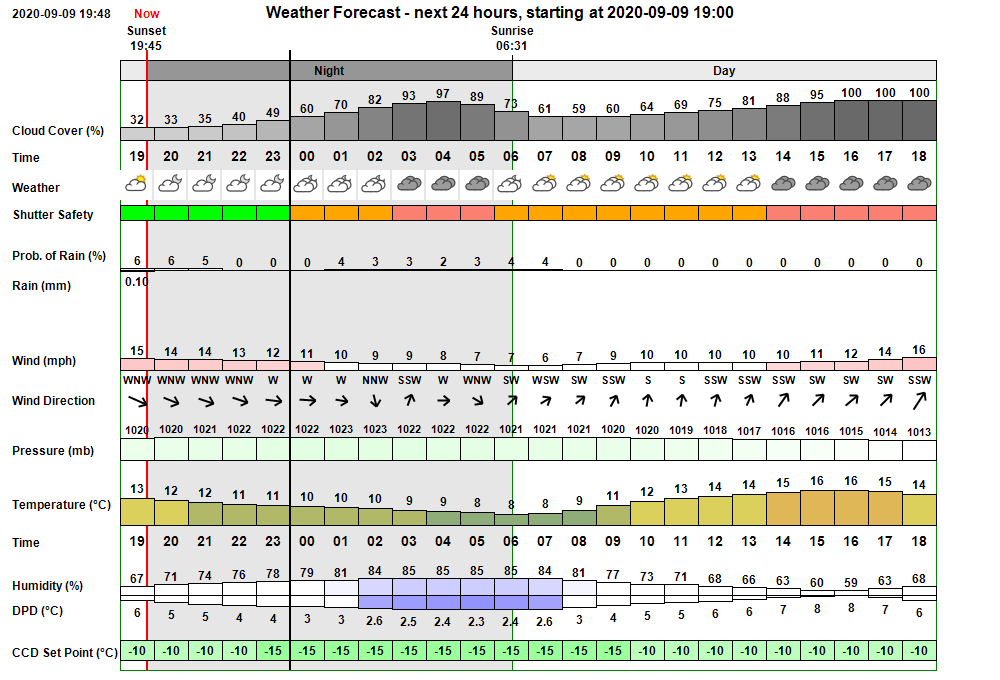

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed dry conditons for the night with minimum temperature of 13°C,  but fairly cloudy in first part of night (52 to 72% cloud cover) but gradually clearing towards dawn (37 - 4% cloud cover). Wind was forecast to be moderate (20 mph), and it was not expected that conditions would be suitable for an observing session.

In the event conditions were less windy that expected and after seeing sky clearing at 01:00 - 01:30 a session was initiated via AutoStart around 01:30.
Cloud unfortunately developed around 02:30 which persisted till Dawn. Minimum outside temperature was 13.5°C.

Session Event Log
Time     Event Detail
23:56:48   Camera1 Connected SBIG Camera Connected (set point -15°C)
23:56:50 Session Created Live Session Created (2020-09-09 S00807, ImageSaveNum: 807001)
23:56:52   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
23:58:40   Services Started Observatory Services started
23:58:49 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:58:51 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 23:56 & 04:30
23:58:53 Session AutoStarting Session autostarting (23:56)
23:58:55 Session Pending Session pending (2020-09-09)
23:58:57 Session Initiating Session initiating (2020-09-09)
23:58:59   Plan Requested Observing Plan requested from AstroPlan (1.16)
23:59:52   Plan Loaded Observing Plan loaded to queue (2020-09-09 V1 BEST PLAN, Plan ID: 541)
23:59:55   Camera1 Connected SBIG Camera Connected (set point -15°C)
00:00:00   Telescope Connected Telescope Connected (TheSky6)
00:00:11 Session Equilibration Session ready for dome & camera equilibration
00:00:57   Dome Opened Dome opened (opening time 45s)
00:01:00   Equilibration Started Dome Equilibration started
00:01:02   Equilibration Ended Dome Equilibration ended (0.0 mins total)
00:01:04 Session Running Session running
00:01:06   Queue Started Observing Queue started (18 targets selected)
00:01:34       Focusing Failed Foc1 Focusing Failed - star is lost (TCF-S)
00:01:37       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
00:04:20       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide)
00:06:30       Focusing Completed Foc2 AutoFocus Completed (Profile No 1)
00:06:53       Focusing Checked Foc2 Focusing Check Succeeded
00:06:55     Target Started (1/18) Target started (1/18, UGC 11964)
00:10:32     Target Failed Target failed due to aborted (1/18, UGC 11964)
00:10:34   Queue Aborted Job Queue aborted
00:15:33   Services Started Observatory Services started
00:16:02 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 00:16 & 04:30
00:16:04 Observatory (AutoStart) Observatory placed in Auto-Start Mode
00:16:06 Session AutoStarting Session autostarting (00:16)
00:16:25   Services Started Observatory Services started
00:16:33 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:16:35 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 00:16 & 04:30
00:16:37 Session AutoStarting Session autostarting (00:16)
00:16:39 Session Pending Session pending (2020-09-09)
00:16:41 Session Initiating Session initiating (2020-09-09)
00:16:43   Plan Loaded Observing Plan loaded to queue (2020-09-09 V1 ACTIVE PLAN S807, Plan ID: 541)
00:16:45   Camera1 Connected SBIG Camera Connected (set point -15°C)
00:16:47   Telescope Connected Telescope Connected (TheSky6)
00:16:54 Session Equilibration Session ready for dome & camera equilibration
00:16:57   Equilibration Started Dome Equilibration started
00:16:59   Equilibration Ended Dome Equilibration ended (0.0 mins total)
00:17:01 Session Running Session running
00:17:03   Queue Started Observing Queue started (18 targets selected)
00:17:05     Target Started (1/18) Target started (1/18, UGC 11964)
00:19:57       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
00:22:19     Target Aborted (1/18) Target aborted (1/18, UGC 11964) due to GRB Alert
00:22:28   Queue Aborted Job Queue aborted
00:23:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:29:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
00:32:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
00:33:06 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:33:11 Session Pending Session pending (2020-09-09)
00:33:13 Session Initiating Session initiating (2020-09-09)
00:33:15   Plan Loaded Observing Plan loaded to queue (2020-09-09 V1 ACTIVE PLAN S807, Plan ID: 541)
00:33:17   Camera1 Connected SBIG Camera Connected (set point -15°C)
00:33:19   Telescope Connected Telescope Connected (TheSky6)
00:33:32 Session Equilibration Session ready for dome & camera equilibration
00:33:35   Equilibration Started Dome Equilibration started
00:33:37   Equilibration Ended Dome Equilibration ended (0.0 mins total)
00:33:39 Session Running Session running
00:33:41   Queue Started Observing Queue started (17 targets selected)
00:33:43     Target Started (2/18) Target started (2/18, UGC 12430)
00:45:04   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
00:48:49   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
00:51:19   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
00:52:24   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
00:54:09     Target Completed Target completed (2/18, UGC 12430)
00:54:11     Target Started (3/18) Target started (3/18, GCVS Z And)
00:56:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:59:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
01:03:05     Target Completed Target completed (3/18, GCVS Z And)
01:03:07     Target Started (4/18) Target started (4/18, WDS GRB 34)
01:05:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:08:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
01:10:31     Target Completed Target completed (4/18, WDS GRB 34)
01:10:33     Target Started (5/18) Target started (5/18, UGC 711)
01:14:34       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
01:32:15     Target Completed Target completed (5/18, UGC 711)
01:32:17     Target Started (6/18) Target started (6/18, UGC 1281)
01:35:34       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S)
01:53:07     Target Completed Target completed (6/18, UGC 1281)
01:53:09     Target Started (7/18) Target started (7/18, NGC 206)
01:55:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:57:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
02:17:17     Target Completed Target completed (7/18, NGC 206)
02:17:20     Target Started (8/18) Target started (8/18, UGC 433)
02:19:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:22:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
02:38:19     Target Completed Target completed (8/18, UGC 433)
02:39:16     Target Started (9/18) Target started (9/18, KIC 9832227)
02:42:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:45:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
02:56:21     Target Completed Target completed (9/18, KIC 9832227)
02:56:23     Target Started (10/18) Target started (10/18, GCVS SS Cyg)
02:59:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:01:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
03:05:19     Target Completed Target completed (10/18, GCVS SS Cyg)
03:09:17     Target Started (11/18) Target started (11/18, UGC 12714)
03:10:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:14:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
03:29:47     Target Completed Target completed (11/18, UGC 12714)
03:31:39     Target Started (12/18) Target started (12/18, GCVS HH And)
03:32:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:35:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
03:37:25     Target Completed Target completed (12/18, GCVS HH And)
03:39:54     Target Started (13/18) Target started (13/18, GCVS RX And)
03:41:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:44:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
03:47:06     Target Completed Target completed (13/18, GCVS RX And)
03:48:14     Target Started (14/18) Target started (14/18, GCVS TT Ari)
03:51:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:54:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
04:00:28     Target Completed Target completed (14/18, GCVS TT Ari)
04:00:30     Target Started (15/18) Target started (15/18, UGC 1817)
04:03:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:06:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
04:22:24     Target Completed Target completed (15/18, UGC 1817)
04:22:32     Target Started (16/18) Target started (16/18, GCVS DY Per)
04:24:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:28:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
04:32:24     Target Completed Target completed (16/18, GCVS DY Per)
04:32:40     Target Started (17/18) Target started (17/18, GCVS U And)
04:34:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:36:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
04:46:28     Target Completed Target completed (17/18, GCVS U And)
04:46:46     Target Started (18/18) Target started (18/18, GSC 1224:29)
04:49:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:52:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
04:56:44     Target Completed Target completed (18/18, GSC 1224:29)
04:56:47   Queue Completed Job Queue completed
04:56:49 Session Closing Session closing
04:57:43   Dome Closed Dome closed (closing time 50s)
04:57:44   Dome Park Aborted Dome Park aborted (0s, Az=184.3degs)
04:58:30   Telescope Parked Telescope parked (parking time 39s)
04:59:00   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox.
04:59:49   Services Stopped Night Services stopped
04:59:51 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
05:00:02 Session Finished Session Finished

Session Alerts
Time     Alert Detail
23:58:52 Dome Alert DomeRecords have stopped updating
00:33:11 Dome Alert DomeRecords are not updating
01:03:15 Dome Alert DomeRecords are not updating
01:33:18 Dome Alert DomeRecords are not updating
02:03:21 Dome Alert DomeRecords are not updating
02:33:24 Dome Alert DomeRecords are not updating
03:03:27 Dome Alert DomeRecords are not updating
03:33:29 Dome Alert DomeRecords are not updating
04:03:32 Dome Alert DomeRecords are not updating
04:33:35 Dome Alert DomeRecords are not updating
04:57:45 Dome Failed To Park Parking aborted after 3 mins, Rotation Drive wheels are likely to be slipping (Dome at Az 184.3 degs)

Back to Top


Operational Issues (2020-09-09, S807)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


2020-09-11


Dome Connection Issues

Event 1
Obs.Manager monitoring picked up that Dome Port had changed from COM9 to COM14 at 2020-09-10 20:07:55.   DeviceHub Dome was automatically stopped and then successfully restarted

  Obs.Manager, DomePort:      Fail      Dome Port has changed at 2020-09-10 20:07:55
  Obs.Manager, DomePort:      Fail      Dome Port has changed from COM9 to COM14

  Obs.Manager, DomePort:      Info      An attempt will be made to restart the dome connection
  DeviceHub Dome:             Ok        Stopped
  DeviceHub Dome (COM14):     Ok        Started            (ASCOM.Pulsar_Observatories_Dome.Dome)

Restarting the dome connection saw the opening a new Pulsar ASCOM Trace log:

     ASCOM.Pulsar_Observatories_Dome.2008.554720.txt

ObsPics confirm the changing of COM Port from COM9 to COM14 at ~20:08.

Event 2
Obs.Manager monitoring picked up that Dome Port had been lost at  2020-09-11 00:18

     Obs.Manager, DomePort:      Fail      Dome Port lost at 2020-09-11 00:18:28

Pulsar Trace Log shows that Volatile messages from the dome stopped at 00:18:26. However the recording of groups of Get requests every 5s (from DeviceHub) shows that the Pulsar Driver was still active    Volatile records didn't resumed again until 13:19 when user intervention was made to manually stop and restart the DeviceHub.Dome.

ObsPics shows dome information (battery level, voltage etc) dropping out at 00:21:39, and remaining unavailable until the DeviceHub.Dome restart at 13:19.

Work Required

Event 3
Dome Record Information stopped refreshing at 2020-09-11 19:55:34.     No report / log messages or everts were generated.
The Pulsar Trace Log showed exception messages:

19:55:34.871 CommandString Exception System.IO.IOException: The I/O operation has been aborted because of either a thread exit or an application request.[0D][0A][0D][0A] at System.IO.Ports.InternalResources.WinIOError(Int32 errorCode, String str)[0D][0A] at System.IO.Ports.SerialStream.EndRead(IAsyncResult asyncResult)[0D][0A] at System.IO.Ports.SerialStream.Read(Byte[] array, Int32 offset, Int32 count, Int32 timeout)[0D][0A] at System.IO.Ports.SerialStream.Read(Byte[] array, Int32 offset, Int32 count)[0D][0A] at System.IO.Ports.SerialPort.InternalRead(Char[] buffer, Int32 offset, Int32 count, Int32 timeout, Boolean countMultiByteCharsAsOne)[0D][0A] at System.IO.Ports.SerialPort.ReadTo(String value)[0D][0A] at System.IO.Ports.SerialPort.ReadLine()[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandString(String command, Boolean raw)

19:55:34.871 Command<> Exception System.IO.IOException: The I/O operation has been aborted because of either a thread exit or an application request.[0D][0A][0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandString(String command, Boolean raw)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.Command[T](String command, Boolean raw)

19:55:34.871 Volatile Exception System.IO.IOException: The I/O operation has been aborted because of either a thread exit or an application request.[0D][0A][0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.Command[T](String command, Boolean raw)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandBool(String command, Boolean raw)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.UpdateAtPark()[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.Volatile()

As a test of residual dome operability in a situation where Volatile dome records weren't refreshing  an attempt was made to move the dome from 090 deg (Park Position) to 095 deg using Device Hub at 22:00 .   The dome didn't move and the ASCOM Trace Log showed exception messages indicating that the Port had closed.

22:00:45.233 CommandString Exception System.InvalidOperationException: The port is closed.[0D][0A] at System.IO.Ports.SerialPort.Write(String text)[0D][0A] at System.IO.Ports.SerialPort.WriteLine(String text)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandString(String command, Boolean raw)
22:00:45.233 SlewToAzimuth Exception System.InvalidOperationException: The port is closed.[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandString(String command, Boolean raw)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.CommandBlind(String command, Boolean raw)[0D][0A] at ASCOM.Pulsar_Observatories_Dome.Dome.SlewToAzimuth(Double Azimuth)

Event 4
Dome Record Information stopped refreshing at 2020-09-12 07:08:33.  No report / log messages or events were generated.
There were no exceptions reported in the Pulsar Trace Log.

What happening to DomeRecords stopped updating message ?





Back to Top
