Session Aims & Highlights (2020-10-28)

Main aims -

1. Cam1 Guiding. Test routines and settings for guiding using LX200/ST10 (main scope, north down images) whilst imaging with TS80/178MC (secondary scope)
2. Targets.  Acquire images of a selection of deep sky targets
3. Bug fixes.  Check that bugs discovered in last session in AstroMain 3.31.2 have been fixed, and that recent new features are working ok

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  DeviceHub 4.5.0.1, UPB 1.5
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.9

• AstroMain 3.31.3 / 3.31.4,  AstroGuard 1.4.6,   AstroPlan 1.16.9  AstroShCap 1.3.0, AstroVOE 1.4.4, AstroProtect 1.4.1
  (AstroWeather 1.10.13, AstroAllSky 3.6)

Highlights

• Dome Parking.  Data was collected about a issue that has affected the last two session  whereby false alerts are being generated by the observatory control program (AstroMain) during observatory shutdown saying that Dome Parking had failed when the dome had in fact successfuly moved to its park position, allowing a fix to be made to Dome.SlewToAzimuth (90) routine.   Fix to be tested over the course of next few sessions to make sure that it resolved the issue.
•   Cloud. Conditons deteriorated very shortly after starting the session and session suspended itself until dawn due to cloud.
  Cloud prevented testing routines and settings associated with Cam1 guiding (guiding using LX200/ST10 (main scope, north down images) whilst imaging with TS80/178MC (secondary scope)

  Above rows are likely a typographical duplicate from a previous session

Summary Plots & Logs

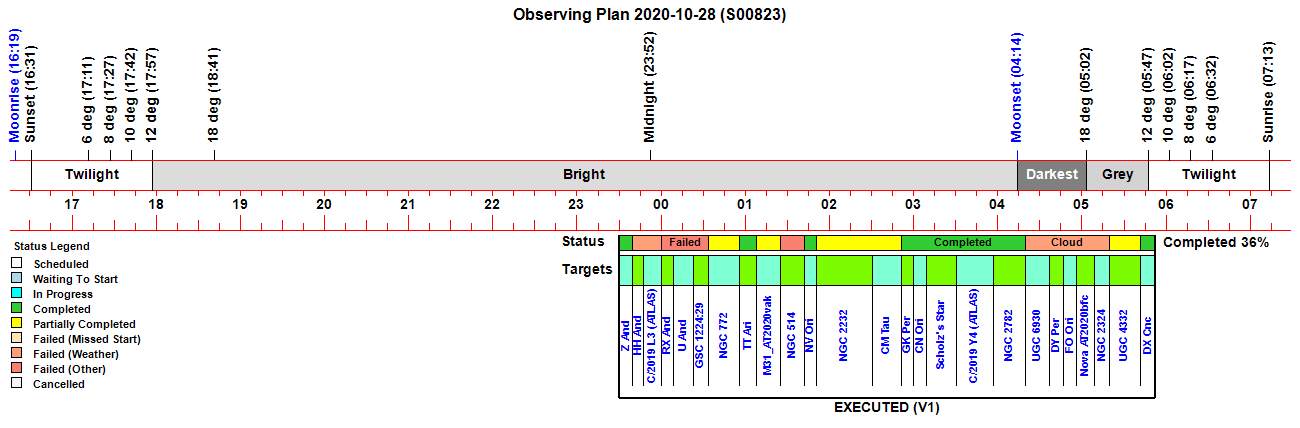

Observing Plan

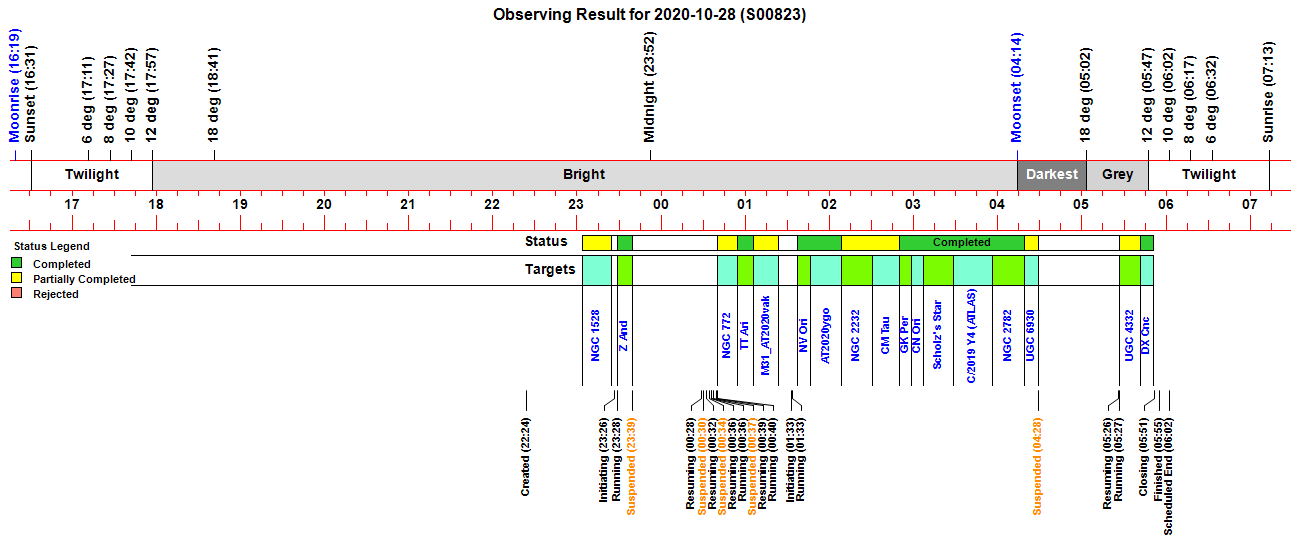

Observing Result

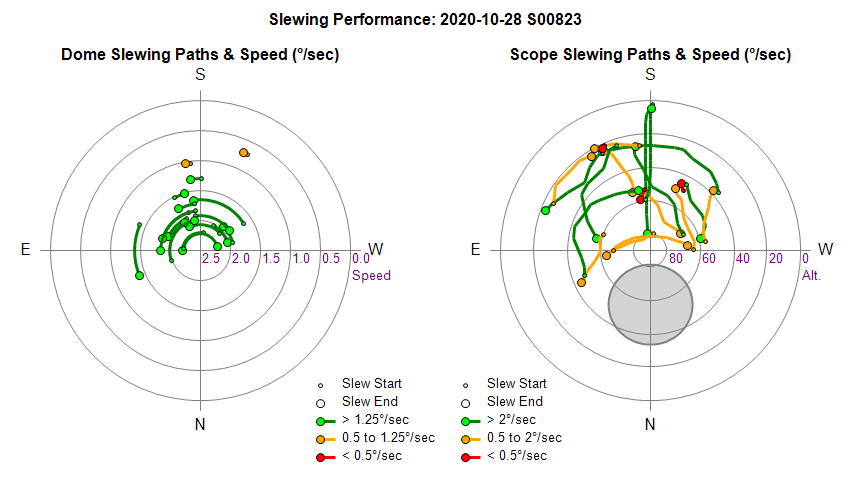

Dome & Scope Slewing Performance

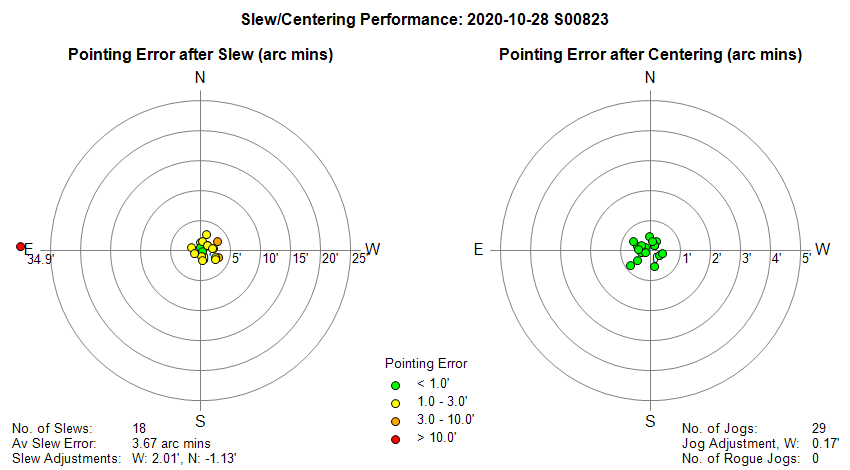

Slew/Centering Performance

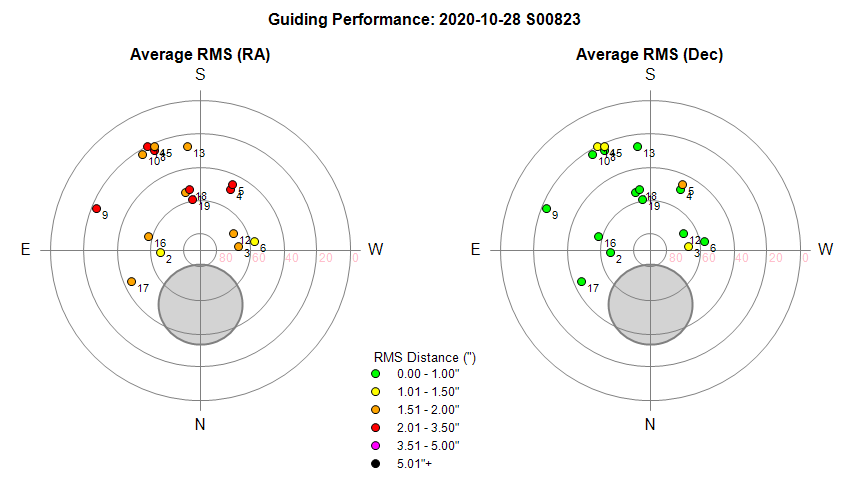

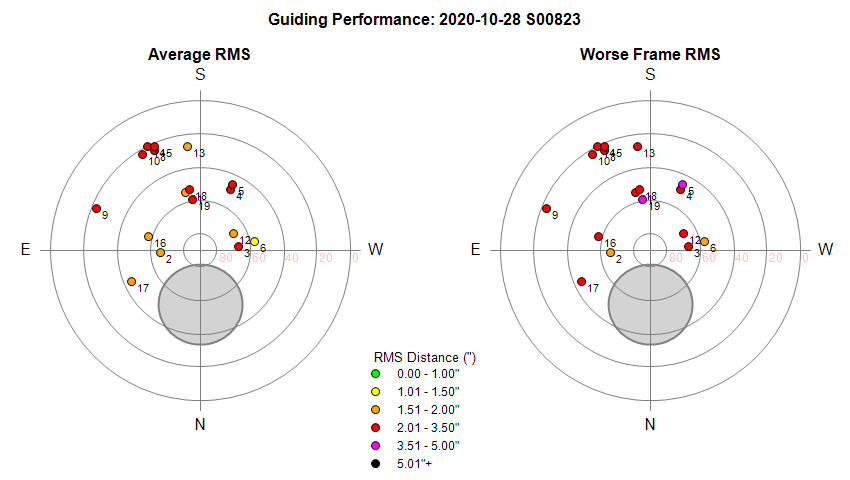

Guiding Performance

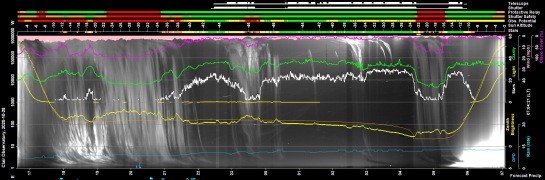

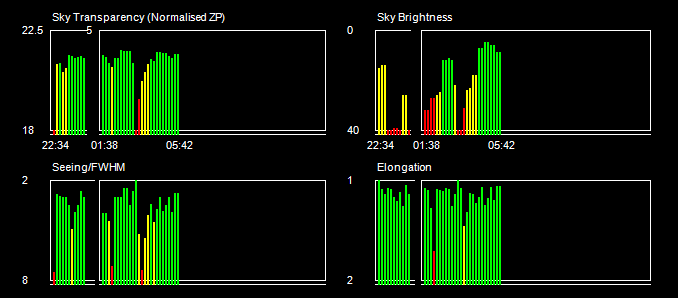

Sky Conditions (Locate Frames)

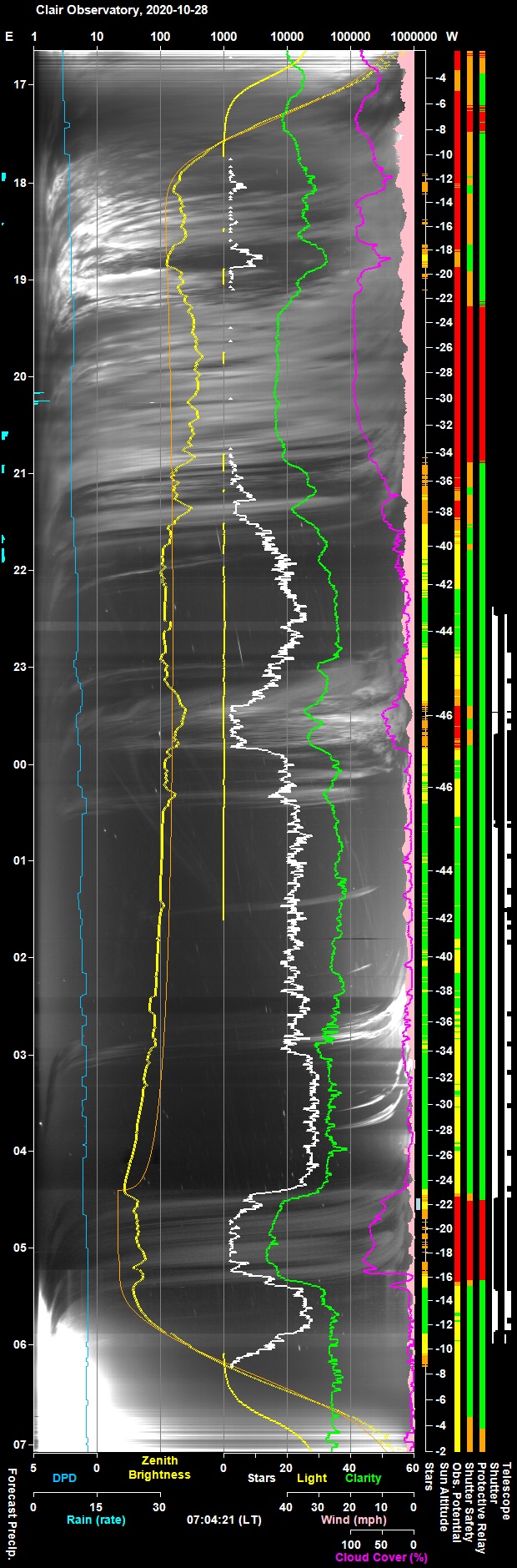

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (API data from darksky.net) Pre-Session Weather forecast was poor in first part of night (65-89% cloud cover with high probability of rain), but partially clear from 21:00 onwards (dry, light winds and 48 to 51% cloud cover).  Minimum temperature 7°C> In the event rain some rain around dusk quickly stopped and clear patches developed at around 20:30 and 22:30. A session was started but conditions rapidly cloud over and they were no further clear patches suitable for observing. Wind was fairly light and min temperature was .

Session Event Log

Time     Event Detail 22:24:06 Session Created Live Session Created (2020-10-28 S00823, ImageSaveNum: 823001) 22:25:44   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 22:27:33   Services Started Observatory Services started 22:28:37   Dome Opened Dome opened (opening time 43s) 22:29:58   Telescope Connected Telescope Connected (TheSky6) 22:30:20   Camera1 Connected SBIG Camera Connected (set point -15°C) 22:31:53       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:34:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:38:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:41:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:42:08       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:45:24       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:47:53       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:48:13       Focusing Checked Foc2 Focusing Check Succeeded 22:51:37     Target Started (1/1) Target started (1/1, NGC 1528). Using SharpCap 23:03:59     Target Started (1/1) Target started (1/1, NGC 1528). Using SharpCap 23:07:45       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 23:10:07       Focusing Completed Foc2 AutoFocus Completed (Profile No 3) 23:10:29       Focusing Checked Foc2 Focusing Check Succeeded 23:24:56     Target Completed Target partially completed (1/1, NGC 1528) 23:25:48   Camera1 Connected SBIG Camera Connected (set point -20°C) 23:26:32 Observatory (Auto) Observatory placed in Fully-Automated Mode 23:26:35 Session Pending Session pending (2020-10-28) 23:26:37 Session Initiating Session initiating (2020-10-28) 23:26:39   Plan Requested Observing Plan requested from AstroPlan (1.16.9) 23:27:26   Plan Loaded Observing Plan loaded to queue (2020-10-28 V1 BEST PLAN, Plan ID: 558) 23:27:29   Camera1 Connected SBIG Camera Connected (set point -20°C) 23:27:34   Telescope Connected Telescope Connected (TheSky6) 23:27:48 Session Equilibration Session ready for dome & camera equilibration 23:28:43 Session Running Session running 23:28:44   Queue Started Observing Queue started (25 targets selected) 23:28:46     Target Started (1/25) Target started (1/25, GCVS Z And) 23:28:48   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:32:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:35:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:39:24     Target Completed Target completed (1/25, GCVS Z And) 23:39:26   Queue Paused Queue paused for SoftSuspend 23:39:29 Session Suspended Session suspended 23:42:04   Dome Closed Dome closed (closing time 50s) 23:42:34     Target Cancelled Target cancelled (2/25, GCVS HH And) due to cloud 23:54:35     Target Cancelled Target cancelled (3/25, C/2019 L3 (ATLAS)) due to cloud 00:03:30     Target Cancelled Target cancelled (4/25, GCVS RX And) due to other condition 00:16:16     Target Cancelled Target cancelled (5/25, GCVS U And) due to other condition 00:28:18     Target Cancelled Target cancelled (6/25, GSC 1224:29) due to other condition 00:28:48 Session Resuming Session resuming 00:30:28 Session Suspended Session suspended 00:30:30   Dome Closed Dome already closed (closed at 23:42, closing time 50s) 00:32:29 Session Resuming Session resuming 00:34:09 Session Suspended Session suspended 00:34:11   Dome Closed Dome already closed (closed at 23:42, closing time 50s) 00:36:09 Session Resuming Session resuming 00:36:12 Session Running Session running 00:36:14     Target Started (7/25) Target started (7/25, NGC 772) 00:36:16   Queue Resumed Observing Queue resumed 00:36:59   Dome Closed Dome closed (closing time 45s) 00:37:20     Target Aborted (7/25) Target aborted (7/25, NGC 772) due to other condition 00:37:23   Queue Paused Queue pausing for HardSuspend 00:37:24 Session Suspended Session suspended 00:37:49   Dome Closed Dome closed (closing time 25s) 00:39:24 Session Resuming Session resuming 00:40:09   Dome Opened Dome opened (opening time 45s) 00:40:11 Session Running Session running 00:40:13   Queue Resumed Observing Queue resumed 00:40:15     Target Started (7/25) Target started (7/25, NGC 772) 00:40:48   Dome Running test to see Dome Driver is stalled 00:41:06   Dome Dome Driver/Dome Slaving found to be ok. 00:54:11     Target Completed Target partially completed (7/25, NGC 772) 00:54:14     Target Started (8/25) Target started (8/25, GCVS TT Ari) 00:56:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:59:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 01:05:43     Target Completed Target completed (8/25, GCVS TT Ari) 01:05:45     Target Started (9/25) Target started (9/25, M31_AT2020vak) 01:17:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:21:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 01:23:40     Target Completed Target partially completed (9/25, M31_AT2020vak) 01:23:43     Target Started (10/25) Target started (10/25, NGC 514) 01:29:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:29:29       Focusing Aborted Foc1 Focusing Aborted 01:29:31     Target Failed Target failed due to aborted (10/25, NGC 514) 01:29:33   Queue Aborted Job Queue aborted 01:29:43   Services Stopped Observatory Services stopped 01:29:47 Program Closed Program closed by User 01:29:49 Program Closed Program closed by User 01:31:00 Session Resumed Live Session Resumed (2020-10-28 S00823, ImageSaveNum: 823030) 01:32:22   Obs.Manager Started Obs.Manager started 01:32:24   Obs.Overseer Started Obs.Overseer started 01:32:29   Services Started Observatory Services started 01:32:41   Telescope Connected Telescope Connected (TheSky6) 01:32:56   Camera1 Connected SBIG Camera Connected (set point -20°C) 01:33:12 Observatory (Auto) Observatory placed in Fully-Automated Mode 01:33:14 Session Pending Session pending (2020-10-28) 01:33:16 Session Initiating Session initiating (2020-10-28) 01:33:16   Camera1 Connected SBIG Camera Connected (set point -20°C) 01:33:18   Plan Loaded Observing Plan loaded to queue (2020-10-28 V1 ACTIVE PLAN S823, Plan ID: 558) 01:33:21   Telescope Connected Telescope Connected (TheSky6) 01:33:32 Session Equilibration Session ready for dome & camera equilibration 01:33:34 Session Running Session running 01:33:36   Queue Started Observing Queue started (15 targets selected) 01:37:30     Target Started (11/25) Target started (11/25, GCVS NV Ori) 01:40:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:43:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 01:46:37     Target Completed Target completed (11/25, GCVS NV Ori) 01:46:39     Target Started (12/26) Target started (12/26, AT2020ygo, ToO) 01:49:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:52:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 02:08:32     Target Completed Target completed (12/26, AT2020ygo, ToO) 02:08:34     Target Started (13/26) Target started (13/26, NGC 2232) 02:30:28     Target Completed Target partially completed (13/26, NGC 2232) 02:30:30     Target Started (14/26) Target started (14/26, GCVS CM Tau) 02:34:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:37:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 02:49:55     Target Completed Target partially completed (14/26, GCVS CM Tau) 02:49:57     Target Started (15/26) Target started (15/26, GCVS GK Per) 02:52:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:54:19   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:54:24   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 02:55:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 02:58:25     Target Completed Target completed (15/26, GCVS GK Per) 02:58:27     Target Started (16/26) Target started (16/26, GCVS CN Ori) 03:02:02       Focusing Failed Foc1 Focusing Failed - star is lost (TCF-S) 03:07:13     Target Completed Target completed (16/26, GCVS CN Ori) 03:07:15     Target Started (17/26) Target started (17/26, Scholz's Star) 03:10:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:13:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 03:28:28     Target Completed Target completed (17/26, Scholz's Star) 03:28:30     Target Started (18/26) Target started (18/26, C/2019 Y4 (ATLAS)) 03:31:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:34:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 03:56:32     Target Completed Target completed (18/26, C/2019 Y4 (ATLAS)) 03:56:34     Target Started (19/26) Target started (19/26, NGC 2782) 03:59:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:03:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 04:19:17     Target Completed Target completed (19/26, NGC 2782) 04:19:19     Target Started (20/26) Target started (20/26, UGC 6930) 04:22:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:25:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 04:27:08   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 04:28:48 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 04:28:50   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 04:28:53     Target Aborted (20/26) Target aborted (20/26, UGC 6930) due to cloud 04:28:55   Queue Paused Queue paused for SoftSuspend 04:28:57 Session Suspended Session suspended 04:28:59   Queue Paused Queue pausing for HardSuspend 04:29:43   Dome Closed Dome closed (closing time 49s) 04:29:51     Target Cancelled Target cancelled (20/26, UGC 6930) due to cloud 04:38:59   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -25°C) 04:41:29     Target Cancelled Target cancelled (21/26, GCVS DY Per) due to cloud 04:49:00   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -20°C) 04:50:42     Target Cancelled Target cancelled (22/26, GCVS FO Ori) due to cloud 05:02:53     Target Cancelled Target cancelled (23/26, Nova AT2020bfc) due to cloud 05:14:04     Target Cancelled Target cancelled (24/26, NGC 2324) due to cloud 05:26:14 Session Resuming Session resuming 05:26:59   Dome Opened Dome opened (opening time 45s) 05:27:01 Session Running Session running 05:27:03   Queue Resumed Observing Queue resumed 05:27:05     Target Started (25/26) Target started (25/26, UGC 4332) 05:41:29     Target Completed Target partially completed (25/26, UGC 4332) 05:41:31     Target Started (26/26) Target started (26/26, GCVS DX Cnc) 05:44:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:47:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 05:51:20     Target Completed Target completed (26/26, GCVS DX Cnc) 05:51:22   Queue Completed Job Queue completed 05:51:26 Session Closing Session closing 05:52:21   Dome Closed Dome closed (closing time 50s) 05:53:14   Dome Parked Dome parked (parking time 46s), Az: 90.1 deg 05:53:56   Telescope Parked Telescope parked (parking time 37s) 05:54:26   Telescope Switched Off Telescope Power has been switched off via UPB Powerbox. 05:55:12   Services Stopped Night Services stopped 05:55:14 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:55:31 Session Finished Session Finished

Session Alerts

Time     Alert Detail 23:26:35 Dome Alert DomeRecords have stopped updating 23:56:40 Dome Alert DomeRecords are not updating 00:36:11 Unexpected Dome Closure Dome is unexpectedly closing (Good Conditions) 00:40:48 Dome Dome didn't appear to move during the last telescope slew. 00:41:06 Dome Dome Driver/Dome Slaving found to be ok following Slew Tests. 00:56:46 Dome Alert DomeRecords are not updating 01:33:13 Dome Alert DomeRecords have stopped updating 02:03:14 Dome Alert DomeRecords are not updating

Back to Top

Operational Issues (2020-10-28 S823)

• Critical Issues (0)
• Major Issues (2)
• Minor Issues (14)
• Continuous Improvement (4)

[ Prev | Next ]

Critical Issues

•  None

Major Issues

• Job Queue hanging shortly after start of autoguiding (CCDSoft can not open File). Just after beginning to autoguide using TS80/178MC, the job queue execution hung.  After the first occasion where thread was killed to regain control, it was noticed that there was a error window in the background saying "CCDSoft - Can not open file C:\Data\CCD Imaging\New\2020-10-28 S00823\_AutoGuide"  ).

  After acknowledging the error execution of the job queue continued but the window prevented non-attended operation of the session.  Report File showing the message "Take Reference Frame   Failed To capture frame (see log file For details)". Log file indicated a number of exceptions associated with SendRequests to PHD2 server and were a variety of failures to plot header information on GuidingCharts.  The exact logfile messages varied from one target to the next suggesting the issue was possibly related to a subtle timing interaction.  Backed up by indications from PHD2 Client logfile, it was postulated that calls to PHD2.GetCcdTemperature from monitoring loop were interfering with normal calls to PHD2 methods from the job queue /autoguiding monitor. Although no problems were seen in last 3 sessions, it was known that there was a fundamental limitation of the current PHD2 client program.  Resolved in-session by installing and using a new version of AstroMain (3.31.4) in which the calls from New Feature (Camera2.ReadCameraTemperature) were disabled.
  Principal solution (to prevent an invalid file path being sent to CCDSoft.Image.OpenImage) was fixed in AstroMain 3.31.5.  Other issues related to underlying cause and the underlying cause tself are handled under a separate issue.
  Resolved in-session 2020-10-29 (AstroMain 3.31.4).  Major issue fixed 2020-10-29 (AstroMain 3.31.5)

• Following session suspension at 23:39, the initial command to Close Shutter was not carried out by the Pulsar Dome, and although a backup command to Close Shutter worked the shutter was closed  2 minutes later than it should have. Following SoftSuspend and completion of Target 1/25 (Z And) the Session was suspended at 23:39:29.20 session. Call to objDome.CloseShutter was made at 23:39:29:33 and was received by Pulsar Dome driver at 23:29:29.35(ie within 150ms)  but apart from shutter status momentarily changing to 3 (closing) there was no action from the shutter and shutter status quickly returned to 0 (open). A second request to close shutter  was made at 23:41:14 and this time the shutter closed (finishing at 23:41:59).    A session alert should have been issued when the first attempt to close the shutter failed. A description of the issue has been sent by email to Pulsar Observatories on 2020-11-17 for their comment.  Issue eventually resolved by installation of new (1.25) version of the Pulsar Shutter software on 2021-03-31.
  Fixed 2021-03-31 (Pulsar Shutter Software 1.25)

Minor Issues

• Problems performing initial manually initiated Near Zenith Focusing. Both Foc1 and Foc2 failed (22:31).  Not sure why Foc1 focusing failed. Report file say  "Taking 1s image. Failed () ".  Foc2 focusing failed because Lens Cap was still on TS80 secondary scope following early Dark Frame acquisition earlier in the day/evening. Required visit to observatory to remove lens cap.
  Resolved 2020-10-28 (Session)

• Foc1 Offset at start of session was way-off. Whilst wide focus search may have retrieved the situation offset was manually set as observatory was under manual control at the time.  Focus Offset was set to -1587 by the last valid focus profile (Profile 14 in session S821, 2020-10-24, OTA temperature 7.3 degC ).  Although the temperature in first profile in session S823 was very similar (7.0 deg C) it is presumed that the atmospheric properties were just very different  (It is also possible that exercising of the focuser by ASCOM Conform Test before the session had somehow upset the TCF-S focus position).
  Closed 2020-10-29 (Session)

• Foc2 focusing profile was unable to find certain foc2 'ShCap frames.  eg 9/20 & 13/20 (22:42). This would seem to be side-effect of recently introduced code for calling ShCap. GetCameraTemperature whose responses are interferring responses to request for Foc2 focus frame file paths. Despite this the program didn't suffer any crash and focusing was successfully performed without incident.  The underlying issue is not unlike which impacted usage of PHD2 server.
  Fixed 2020-10-31 (AstroMain 3.31.7)

• Reference Frame not being captured and missing camera/guide information on Guiding Charts.
  At the start of autoguiding,  Report File is showing the message "Take Reference Frame   Failed To capture frame (see log file For details)". Log file indicated a number of exceptions associated with SendRequests to PHD2 server (e.g Exception in PHD2.GetBinning, Conversion from string "Error: camera not connected" to type 'Double' is not valid) and were a variety of failures to plot header information on GuidingCharts.  The exact logfile messages varied from one target to the next suggesting the issue was possibly related to a timing interaction.  It was postulated that calls to PHD2.GetCcdTemperature from monitoring loop were interfering with normal calls to PHD2 methods from the job queue /autoguiding monitor. Although no problems were seen in last 3 sessions, it was known that there was a fundamental limitation of the current PHD2 client program.  Resolved in-session by installing and using a new version of AstroMain (3.31.4) in which the calls from New Feature (Camera2.ReadCameraTemperature) were disabled.  Underlying problem (unmanaged response to PHD2 request from different threads) needs to be fixed.
  Resolved in-session 2020-10-29 (AstroMain 3.31.4).  Fixed underlying issue 2020-10-31 (AstroMain 3.31.7)

• Cam2 Temperature chart shows unexpected spikes on temperature curve. It seems that graph is trying to plot to points with value of 0 or vcNull (-99). Investigating code shows that vcNull values are not plotted, suggesting value are 0 ?
  Fixed 2020-11-01 (AstroMain 3.31.7)

• SetCameraSubtract_Dark() routine in AstroShapCap is incorrectly interpreting Camera exposure.value= 20 as being 20ms, when the intended number was 20.0s.  Bin 1 folder reference is also not correct, should be not used (for binning 1) or be \2 (for binning 2)
  Searching dark library Fail Dark Folder not found in library:
C:\Data\ZWO Imaging\SharpCap\darks\ZWO ASI178MC\RAW16@3096x2080\1\20ms\gain_150
Problem is due to differences in behaviour working with ZWO ASI178MC (real camera) versus the Simulator camera used during development of this AstroShCap routine. Fixed by using 'SharpCap.SelectedCamera.Controls.Exposure.ExposureMs' to force a value in milliseconds.
  Fixed 2020-10-29 (AstroShCap 1.3.1)

• File/document updates from final part of session (from 05:14 onwards) don't seem to have been updated to website. Result of session had to be checked in morning using vnc connection to observatory computer.  Investigating showed the 'Live' folder on Observatory Computer had session files going up to 05:55 (the time that session finished). AstroPlan logs show uploads occuring up to 05:20, but no uploads after that time.  Its unclear what caused AstroPlan web uploader to stop uploading files, there were no error messages and AstroPlan UI was functioning normally. Issue resolved by restarting AstroPlan.
  Resolved 2020-10-29 (Observatory Computer/AstroPlan), but monitor for re-occurences of the same problem.

• After Session Suspended (23:59) the Report messages connected to Closing Dome are embedded in the header for the next target, rather than appearing as a footer in the Session Supsended section. This was due to bSoftSuspend flag being cancelled during Set_StateSuspended() routine. Obs. Manager MainLoop code has been modified so that bSoftSuspend flag is instead cancelled  once SessionState=Suspended and Dome.IsClosed = True
  Fixed 2020-10-31 (AstroMain 3.31.7)

• Multiple red alerts during session saying "DomeRecords have stopped updating" and "DomeRecords are not updating"  Attempts to restart Dome connection didn't resolve the problem during the session.   Issue eventually resolved by Dome disconnection/reconnection the next day. The follow-up  'Dome Record are not updating' alerts (every 30min)  should be demoted from Red alert down to Yellow alerts
  Fixed 2020-10-30 (AstroMain 3.31.6)

• FocusTempChart shows spikes dropping down to below Y Min immediately after restarting AstroMain program (with accompanying restart of the Session). Graphs in session S825 show that curve is spike down to a value of 0.0 upon session restart.
  Fixed 2020-11-01 (AstroMain 3.31.7)

• ShCap Console / Report file showing Temperature message line each time ShCap.GetCameraTemperature was called by AstroMain's observatory monitor.  This is a message that was used during testing of the ShCap method which should have been removed before AstroMain Cam2 monitoring via ShCap went live.
  Fixed 2020-10-29 (AstroShCap 1.3.1)

• ShCap Console / Report file showing " 'NoneType' object has no attribute 'FrameStars' " message for each frame in TakeImageSet loop .    Can be handled by checking    if 'item' != None
  Resolved 2020-10-29 (AstroShCap)

• Unhandled Exception in AnalyseMosaicSet due to bad Folder object . Occurred when analysing mosaic frames from NGC 2232. Appears to happen on the second occasion that Analyse Mosaic Set is run ?. AstroMain uses CCDSoft Folder, but in many cases it would be best to use a .Net equivalent to achieve the required functionality.
                                      >>>   Dim Root As DirectoryInfo
                                      >>>   Dim Files As FileInfo()
                                      >>>   Dim File As FileInfo
    Folder.Path = FolderToProcess     >>>    Root = New DirectoryInfo(FolderToProcess)
    Paths = Folder.FilePathArray      >>>
     If UCase(Extension) = ".FIT"     >>>    Files = Root.GetFiles("*.FIT")
    count = UBound(Paths) + 1         >>>  count = UBound(Files) + 1
    FITSPaths(j) = Paths(i)
      For i = 0 To count              >>>  For Each File In Files
        Image.Path = FITSPaths(i)     >>>      Image.Path = File.FullName
  Fixed (AstroMain 3.32.5).

• Log file contains several Get objDome.Azimuth exception message ( Object reference not set to an instance of an object) in tine interval between start of Observatory monitoring and Dome connection.
  Fixed 2020-10-29 (AstroMain 3.31.5)

• PHD2 Listener Alerts when closing services (Development Computer, 2020-10-29) .
  PHD2 Listener Alert PHD2 ListeningLoop has unexpectedly stopped
  PHD2 Listener Alert Unable to read data from the transport connection: A blocking operation was interrupted by a call to WSACancelBlockingCall.
  PHD2 Listener Alert PHD2 ListeningLoop has unexpectedly stopped
  PHD2 Listener Alert Object reference not set to an instance of an object.
  Problem hasn't been since original occurance and is treated as closed.
  Closed 2020-11-25  (AstroMain)

• Problem with MS Edge (Laptop) not presenting the current session but still presenting cached data from the previous session.  IE 11 (Laptop) and Safari (Ipad) didn't show the problem at the same time, (Safari wasn't showing updated data when session was checked in the morning but this seems to have been a separate issue).  Fix attempted by putting following into page head.
  <meta http-equiv="Cache-Control" content="no-cache, no-store, must-revalidate" />
  <meta http-equiv="Pragma" content="no-cache" />
  <meta http-equiv="Expires" content="0" />
  Fix attempted 2020-10-29 (Website)

Continuous Improvement

• Whilst on Observing tab the legacy 'Autoguide' button was accidently clicked.  This didn't cause a particular problem because the Autoguide window was exited as soon as user became aware they were on an unexpected form.  Form design has been modified so that the button is now hidden by default.
  Fixed 2020-10-31 (AstroMain 3.31.7)

• Job queue message saying '.. camera not currently in use (as a guider) is no longer appropriate. Message should be modified or removed.
  Done 2020-10-29 (AstroMain 3.31.5)

• Cam2 Temperature chart to include UPB Env Temperature and outside temperature as control lines.
  Done 2020-10-29 (AstroMain 3.31.5)

• Extend Title of Session Event "Camera1 SetPoint" to "Camera1 SetPoint Increase" or "Camera1 SetPoint Decrease". Routine doesn't have information to say if set point is being increased.   Temperature therefore added to Event title instead.
  Done 2020-10-29 (AstroMain 3.31.5)
