Notes - Session 850 (2021-01-16)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (3),  Continuous Improvement (23)
Bullet Images from 2021-01-16 >>

Session Aims & Highlights (2021-01-16)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by conditions.
  2. Software. Test features recently added to AstroMain 3.34.2

Equipment & Software

Highlights

Summary Plots & Logs

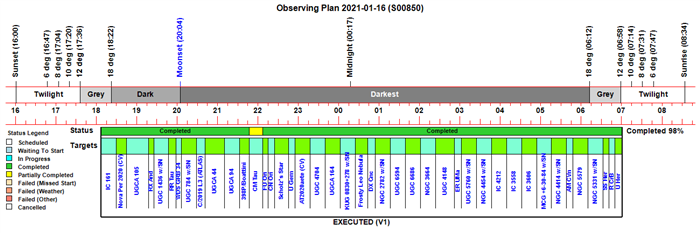

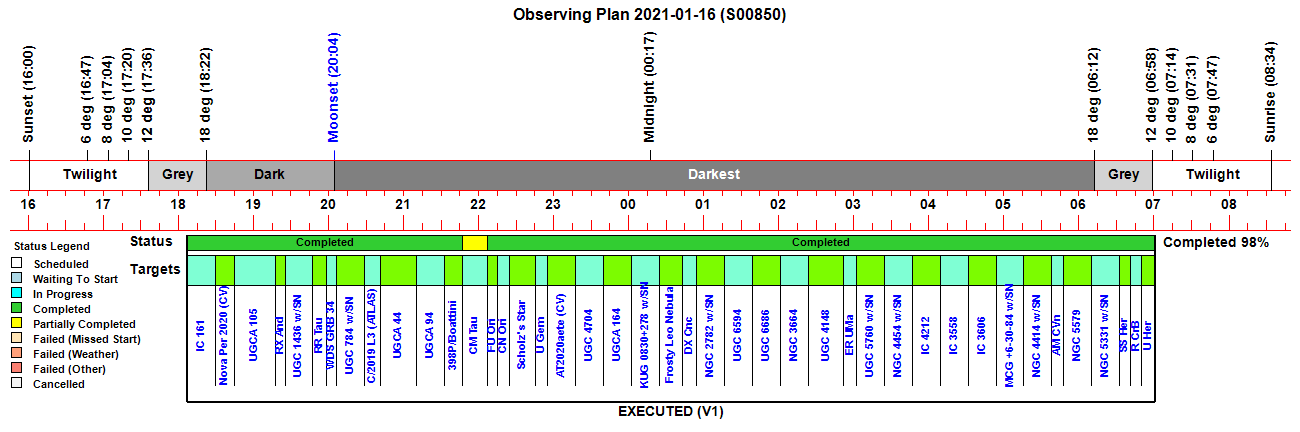

Observing Plan

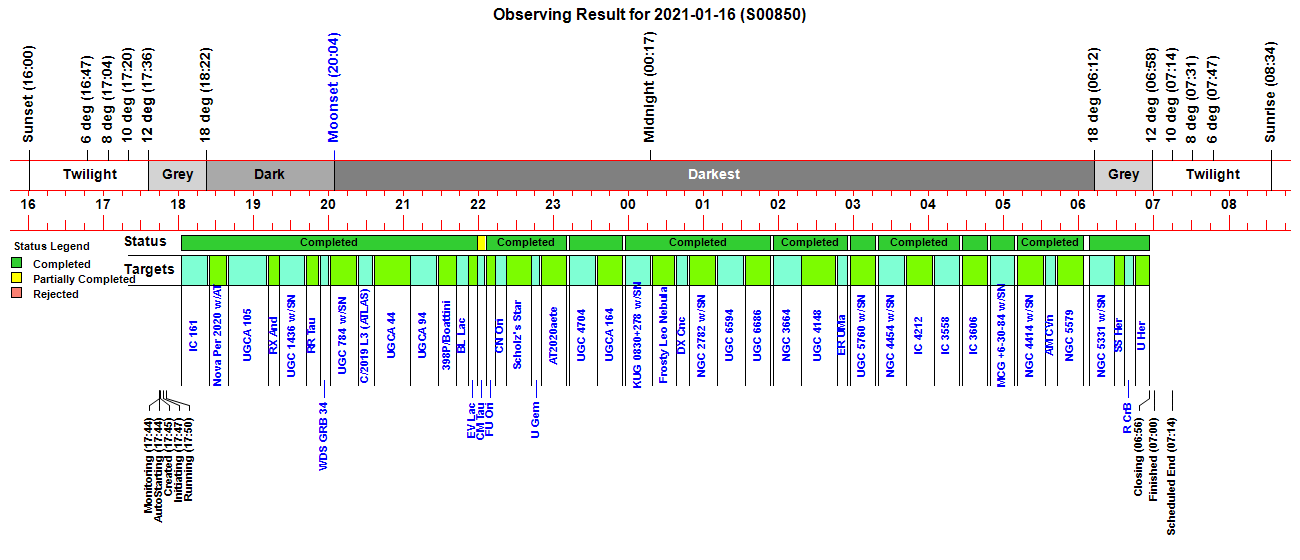

Observing Result

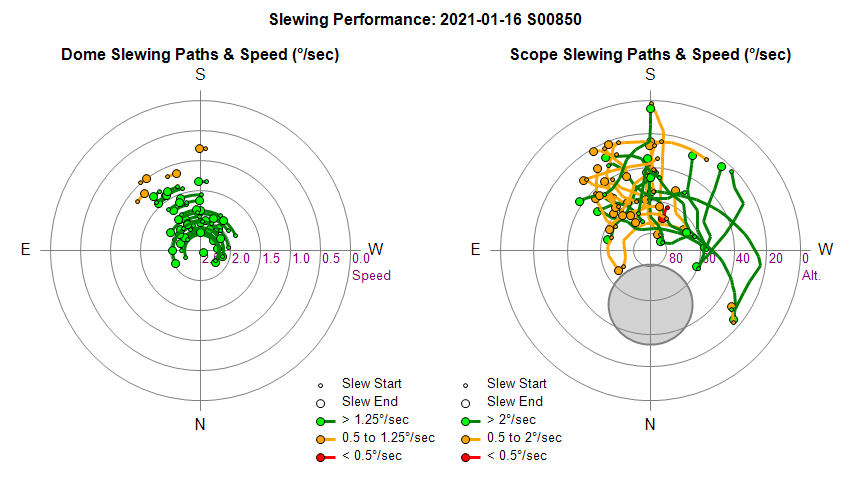

Dome & Scope Slewing Performance

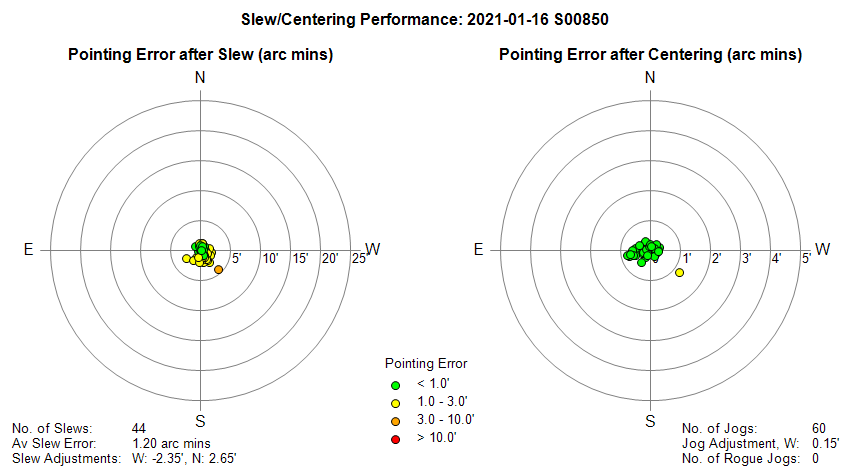

Slew/Centering Performance

Guiding Performance

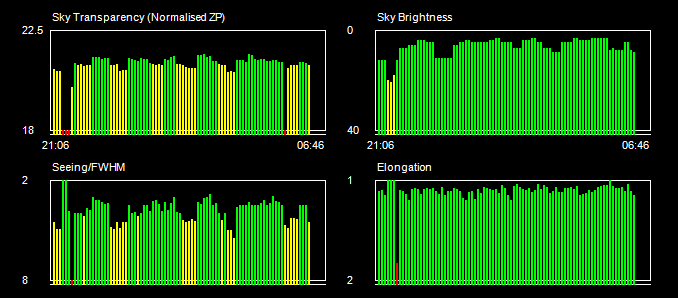

Sky Conditions (Locate Frames)
Data for second part of night is erronous as Observatory shutter was unknowingly closed
Chart unavailable for this session

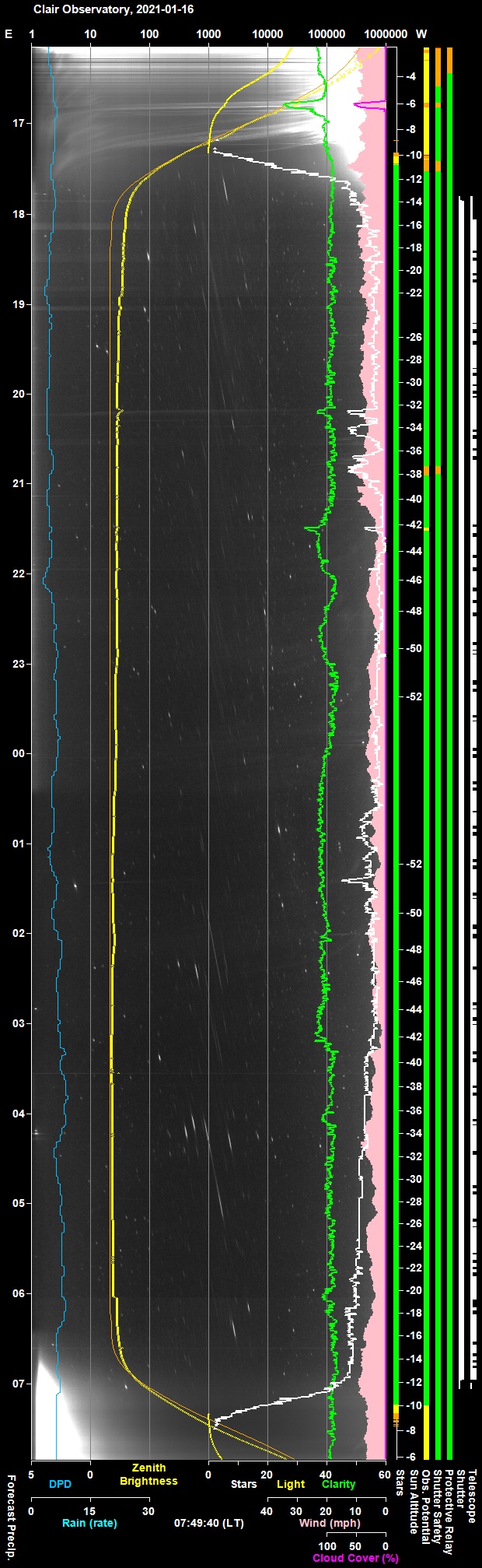

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

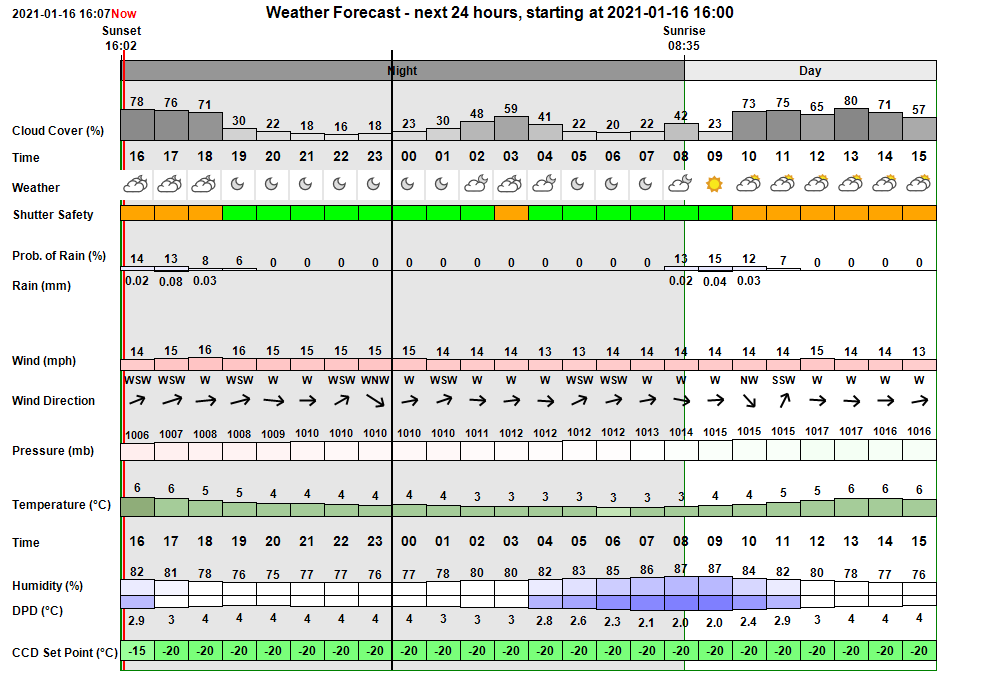

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed that after initial cloud (71-78% cloud cover), clear skies would develop for most of
the night (16-30% cloud cover) with interval of cloud (41-59% cloud cover) around 02:00/03:00.
 No rain. Moderate wind (13-15 mph). with minimum temperature of 3degC by dawn.
Wind calm/light in first part of night, but strengthening later reached 17-19 mph by dawn.

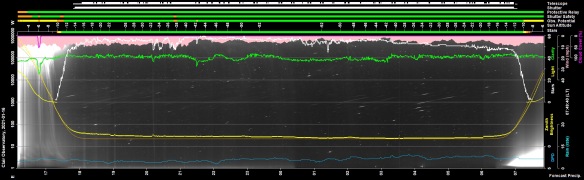

In the event skies were clear all night, with light wind and minimum temperature of 1 degC.

Session Event Log
Time     Event Detail
17:44:43 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 17:44 & 06:28
17:44:44 Session AutoStarting Session autostarting (17:44)
17:45:27   Camera1 Connected SBIG Camera Connected (set point -20°C)
17:45:29 Session Created Live Session Created (2021-01-16 S00850, ImageSaveNum: 850001)
17:45:31   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:47:28   Services Started Observatory Services started
17:47:36 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:47:39 Session Pending Session pending (2021-01-16)
17:47:41 Session Initiating Session initiating (2021-01-16)
17:47:43   Plan Requested Observing Plan requested from AstroPlan (1.19.1)
17:48:10   Plan Loaded Observing Plan loaded to queue (2021-01-16 V1 BEST PLAN, Plan ID: 585)
17:48:13   Camera1 Connected SBIG Camera Connected (set point -20°C)
17:48:17   Telescope Connected Telescope Connected (TheSky6)
17:48:28 Session Equilibration Session ready for dome & camera equilibration
17:50:24   Dome Opened Dome opened (opening time 45s)
17:50:39 Session Running Session running
17:50:42   Queue Started Observing Queue started (42 targets selected)
17:52:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:54:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:56:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:56:43       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:58:56       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
18:00:45       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
18:01:00       Focusing Checked Foc2 Focusing Check Succeeded
18:02:39     Target Started (1/42) Target started (1/42, IC 161)
18:05:54       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
18:23:41     Target Completed Target completed (1/42, IC 161)
18:25:01     Target Started (2/42) Target started (2/42, Nova Per 2020 w/AT2020abap)
18:28:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:30:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:38:36     Target Completed Target completed (2/42, Nova Per 2020 w/AT2020abap)
18:39:53     Target Started (3/42) Target started (3/42, UGCA 105)
18:42:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:44:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
19:11:09   Dome Running test to see Dome Driver is stalled
19:11:29   Dome Dome Driver/Dome Slaving found to be ok.
19:11:39     Target Completed Target completed (3/42, UGCA 105)
19:12:15     Target Started (4/42) Target started (4/42, GCVS RX And)
19:15:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:18:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
19:20:59     Target Completed Target completed (4/42, GCVS RX And)
19:21:01     Target Started (5/42) Target started (5/42, UGC 1436 w/SN2021nv)
19:24:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:26:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
19:41:51     Target Completed Target completed (5/42, UGC 1436 w/SN2021nv)
19:42:27     Target Started (6/42) Target started (6/42, GCVS RR Tau)
19:45:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:46:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
19:52:47     Target Completed Target completed (6/42, GCVS RR Tau)
19:53:32     Target Started (7/42) Target started (7/42, WDS GRB 34)
19:56:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:58:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
20:00:32     Target Completed Target completed (7/42, WDS GRB 34)
20:01:46     Target Started (8/42) Target started (8/42, UGC 784 w/SN2021pc)
20:05:20       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
20:22:32     Target Completed Target completed (8/42, UGC 784 w/SN2021pc)
20:24:08     Target Started (9/42) Target started (9/42, C/2019 L3 (ATLAS))
20:26:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:28:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
20:35:08     Target Completed Target completed (9/42, C/2019 L3 (ATLAS))
20:36:49     Target Started (10/42) Target started (10/42, UGCA 44)
20:41:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:43:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
21:05:29     Target Completed Target completed (10/42, UGCA 44)
21:05:32     Target Started (11/42) Target started (11/42, UGCA 94)
21:08:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
21:26:24     Target Completed Target completed (11/42, UGCA 94)
21:27:37     Target Started (12/42) Target started (12/42, 398P/Boattini)
21:32:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:34:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
21:42:39     Target Completed Target completed (12/42, 398P/Boattini)
21:42:41     Target Started (13/43) Target started (13/43, GCVS BL Lac, ToO)
21:46:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:48:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
21:52:19     Target Completed Target completed (13/43, GCVS BL Lac, ToO)
21:52:21     Target Started (14/44) Target started (14/44, GCVS EV Lac, ToO)
21:55:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:57:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
21:59:19     Target Completed Target completed (14/44, GCVS EV Lac, ToO)
21:59:22     Target Started (15/44) Target started (15/44, GCVS CM Tau)
22:05:55     Target Completed Target partially completed (15/44, GCVS CM Tau)
22:05:58     Target Started (16/44) Target started (16/44, GCVS FU Ori)
22:08:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:10:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
22:13:33     Target Completed Target completed (16/44, GCVS FU Ori)
22:13:35     Target Started (17/44) Target started (17/44, GCVS CN Ori)
22:16:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:18:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
22:22:15     Target Completed Target completed (17/44, GCVS CN Ori)
22:22:17     Target Started (18/44) Target started (18/44, Scholz's Star)
22:25:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:27:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
22:42:03     Target Completed Target completed (18/44, Scholz's Star)
22:42:05     Target Started (19/44) Target started (19/44, GCVS U Gem)
22:44:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:46:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
22:49:47     Target Completed Target completed (19/44, GCVS U Gem)
22:50:22     Target Started (20/44) Target started (20/44, AT2020aete)
22:52:33       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
23:10:00     Target Completed Target completed (20/44, AT2020aete)
23:12:44     Target Started (21/44) Target started (21/44, UGC 4704)
23:15:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:17:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
23:33:17     Target Completed Target completed (21/44, UGC 4704)
23:35:06     Target Started (22/44) Target started (22/44, UGCA 164)
23:37:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:55:23     Target Completed Target completed (22/44, UGCA 164)
23:57:28     Target Started (23/44) Target started (23/44, KUG 0830+278 w/SN2020adow)
23:59:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:01:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
00:17:33     Target Completed Target completed (23/44, KUG 0830+278 w/SN2020adow)
00:19:20     Target Started (24/44) Target started (24/44, Frosty Leo Nebula)
00:21:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:23:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
00:37:15     Target Completed Target completed (24/44, Frosty Leo Nebula)
00:38:19     Target Started (25/44) Target started (25/44, GCVS DX Cnc)
00:40:55       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:47:03     Target Completed Target completed (25/44, GCVS DX Cnc)
00:49:01     Target Started (26/44) Target started (26/44, NGC 2782 w/SN2020scc)
00:51:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:53:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
01:09:21     Target Completed Target completed (26/44, NGC 2782 w/SN2020scc)
01:11:23     Target Started (27/44) Target started (27/44, UGC 6594)
01:14:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:16:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
01:31:59     Target Completed Target completed (27/44, UGC 6594)
01:33:45     Target Started (28/44) Target started (28/44, UGC 6686)
01:35:40       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:53:11     Target Completed Target completed (28/44, UGC 6686)
01:56:07     Target Started (29/44) Target started (29/44, NGC 3664)
01:59:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:02:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
02:18:08     Target Completed Target completed (29/44, NGC 3664)
02:18:29     Target Started (30/44) Target started (30/44, UGC 4148)
02:21:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:23:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
02:45:13     Target Completed Target completed (30/44, UGC 4148)
02:46:55     Target Started (31/44) Target started (31/44, GCVS ER UMa)
02:49:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:54:47     Target Completed Target completed (31/44, GCVS ER UMa)
02:57:13     Target Started (32/44) Target started (32/44, UGC 5760 w/SN2020zoq)
02:59:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:17:36     Target Completed Target completed (32/44, UGC 5760 w/SN2020zoq)
03:19:36     Target Started (33/44) Target started (33/44, NGC 4454 w/SN2020abgq)
03:22:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:24:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
03:40:17     Target Completed Target completed (33/44, NGC 4454 w/SN2020abgq)
03:41:57     Target Started (34/44) Target started (34/44, IC 4212)
03:45:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:47:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
04:02:39     Target Completed Target completed (34/44, IC 4212)
04:04:19     Target Started (35/44) Target started (35/44, IC 3558)
04:06:49       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
04:24:16     Target Completed Target completed (35/44, IC 3558)
04:26:41     Target Started (36/44) Target started (36/44, IC 3606)
04:28:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
04:46:57     Target Completed Target completed (36/44, IC 3606)
04:49:03     Target Started (37/44) Target started (37/44, MCG +6-30-84 w/SN2021K)
04:51:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:53:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
05:08:50     Target Completed Target completed (37/44, MCG +6-30-84 w/SN2021K)
05:10:55     Target Started (38/44) Target started (38/44, NGC 4414 w/SN2021J)
05:14:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:32:04     Target Completed Target completed (38/44, NGC 4414 w/SN2021J)
05:33:18     Target Started (39/44) Target started (39/44, GCVS AM CVn)
05:36:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:38:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 28)
05:41:33     Target Completed Target completed (39/44, GCVS AM CVn)
05:42:50     Target Started (40/44) Target started (40/44, NGC 5579)
05:45:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:47:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 29)
06:03:17     Target Completed Target completed (40/44, NGC 5579)
06:08:18     Target Started (41/44) Target started (41/44, NGC 5331 w/SN2020abir)
06:10:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:12:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 30)
06:28:17     Target Completed Target completed (41/44, NGC 5331 w/SN2020abir)
06:28:19     Target Started (42/44) Target started (42/44, GCVS SS Her)
06:31:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:33:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 31)
06:36:31     Target Completed Target completed (42/44, GCVS SS Her)
06:36:33     Target Started (43/44) Target started (43/44, GCVS R CrB)
06:39:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:40:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 32)
06:43:44     Target Completed Target completed (43/44, GCVS R CrB)
06:45:11     Target Started (44/44) Target started (44/44, GCVS U Her)
06:47:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:48:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 33)
06:56:11     Target Completed Target completed (44/44, GCVS U Her)
06:56:14   Queue Completed Job Queue completed
06:56:18 Session Closing Session closing
06:57:08   Dome Closed Dome closed (closing time 45s)
06:57:41   Dome Parked Dome parked (parking time 26s), Az: 90.0 deg
06:58:17   Telescope Parked Telescope parked (parking time 32s)
06:58:47   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:59:35   Services Stopped Night Services stopped
06:59:37 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
07:00:08 Session Finished Session Finished

Session Alerts
Time     Alert Detail
18:52:20 Dome Dome has been unexpectedly stationary for more than 12 mins
18:57:20 Dome Dome Movements have begun again (outage 17.0 mins)
19:09:21 Dome Dome has been unexpectedly stationary for more than 12 mins
19:11:22 Dome Dome Movements have begun again (outage 14.1 mins)
19:11:29 Dome Dome Driver/Dome Slaving found to be ok following Slew Tests.
02:48:05 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (GCVS ER UMa)


Back to Top


Operational Issues (2021-01-16 S850)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top
