David's Astronomy Pages
Notes - Session 852 (2021-01-18)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (7),  Continuous Improvement (17)
Bullet Images from 2021-01-18 >>
2021-01-21

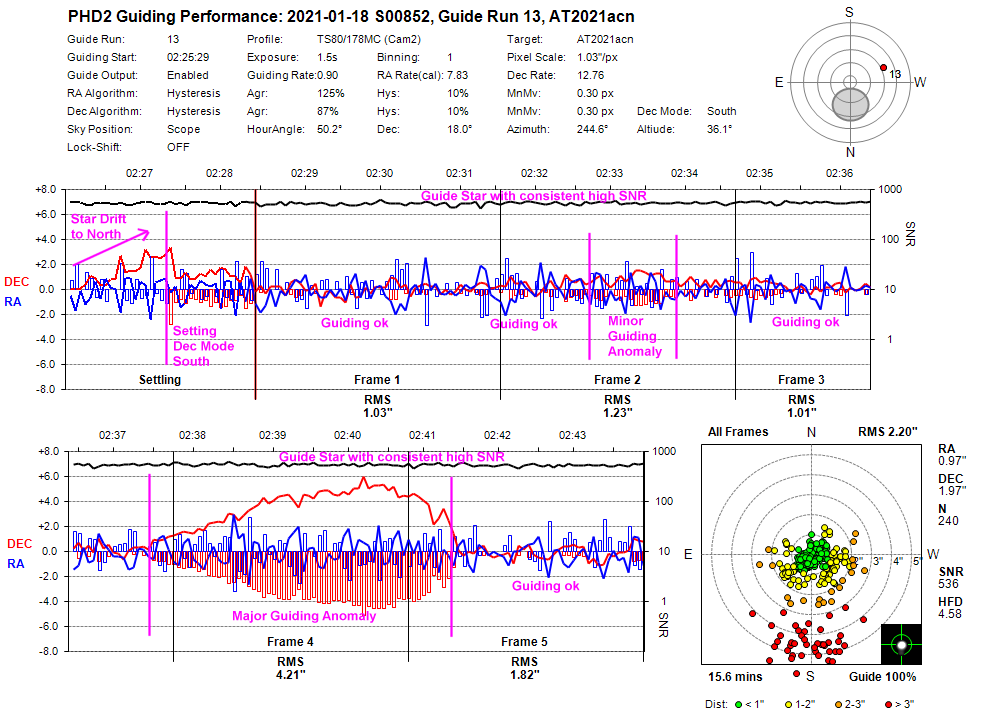

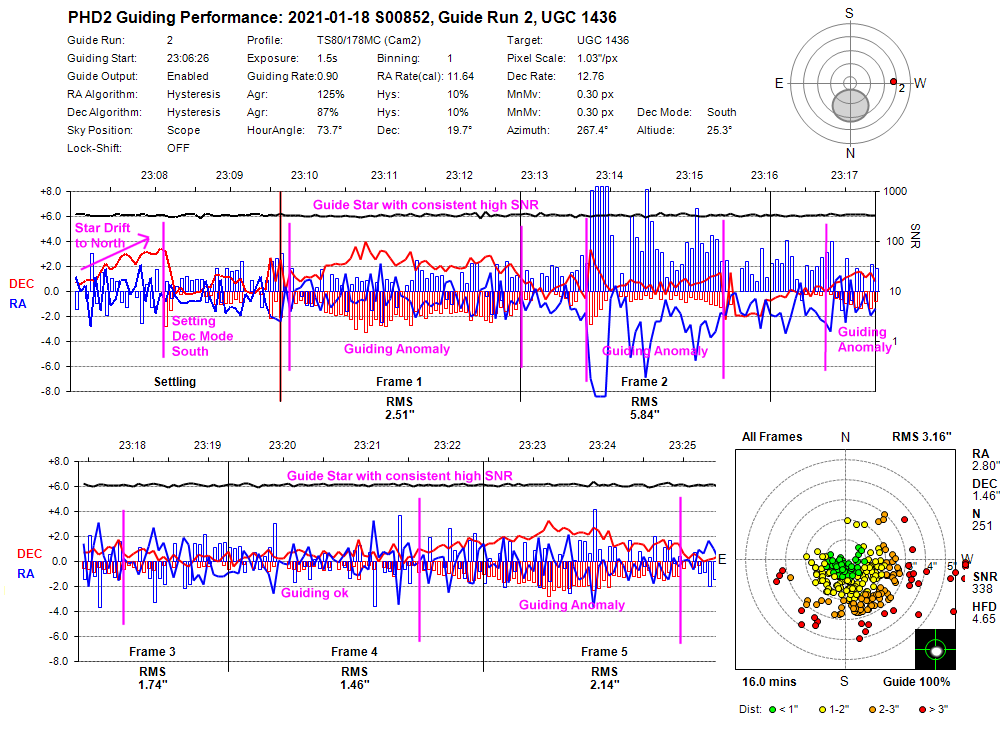

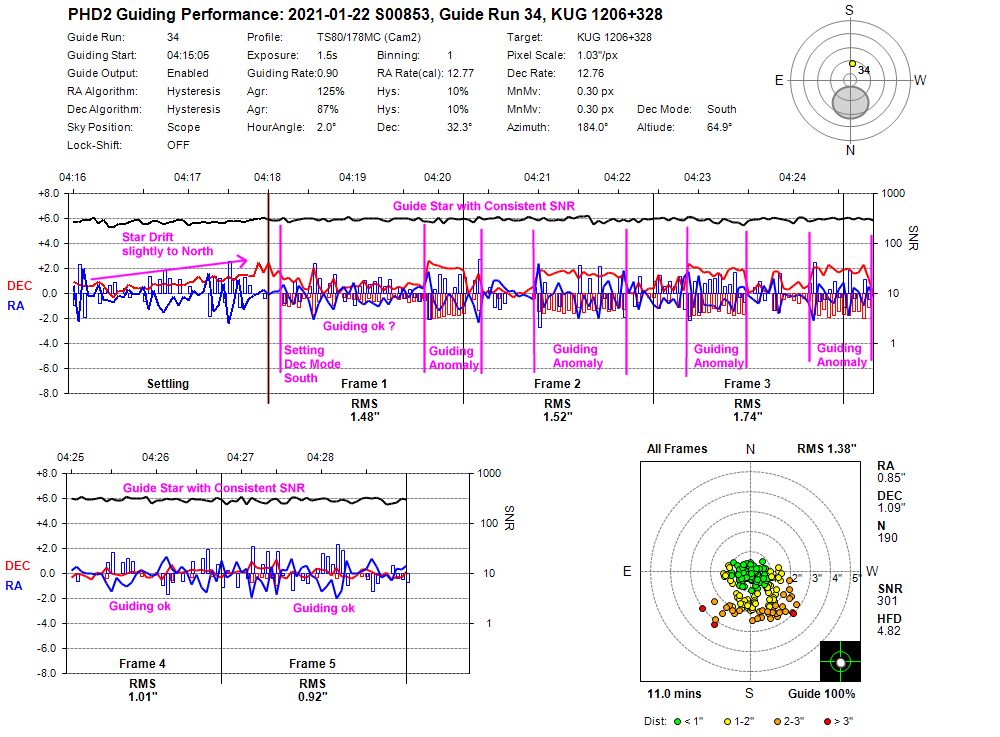

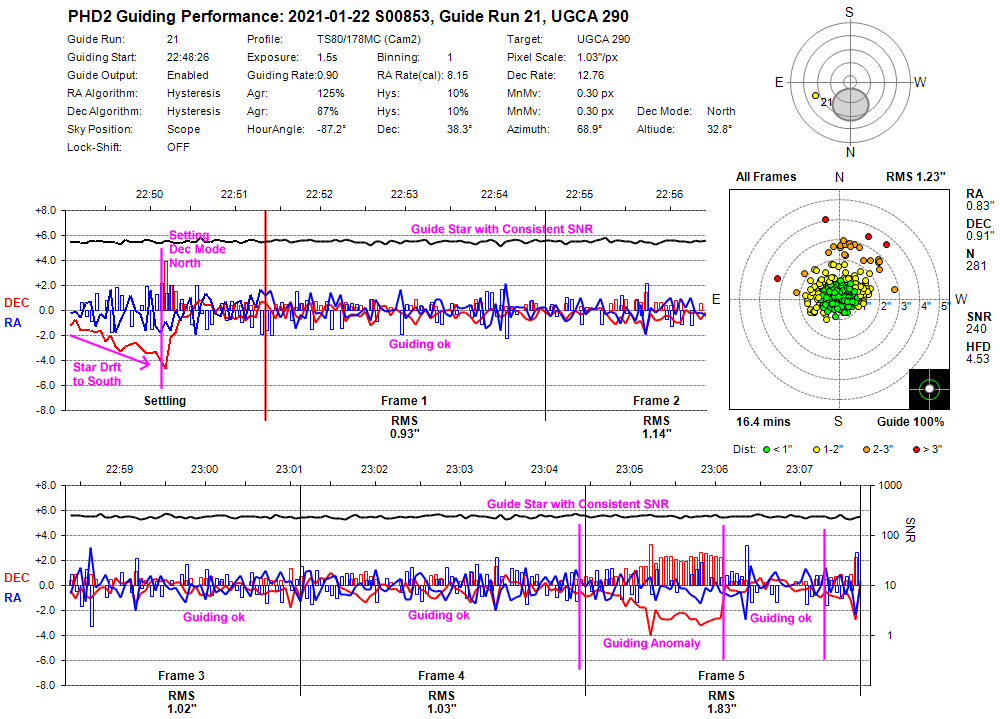

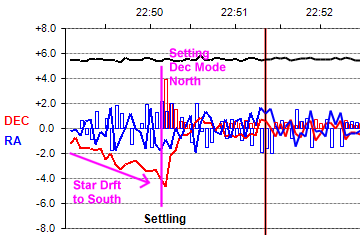

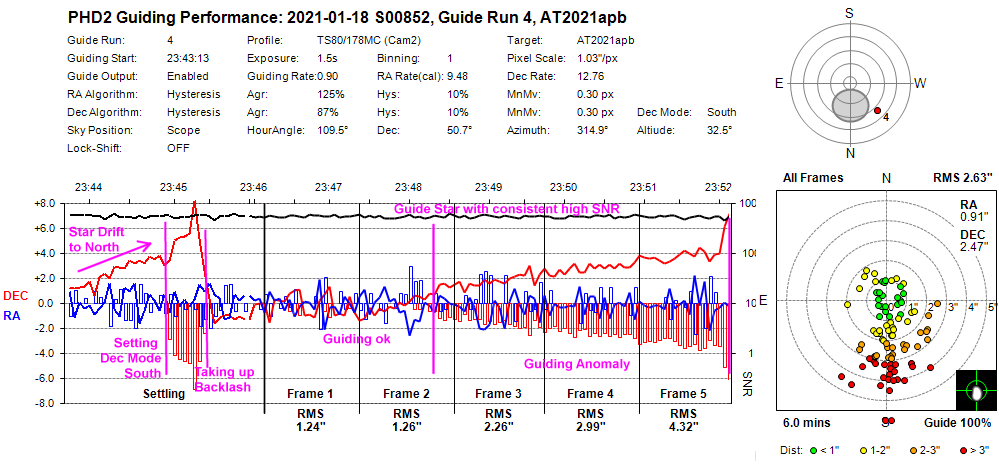

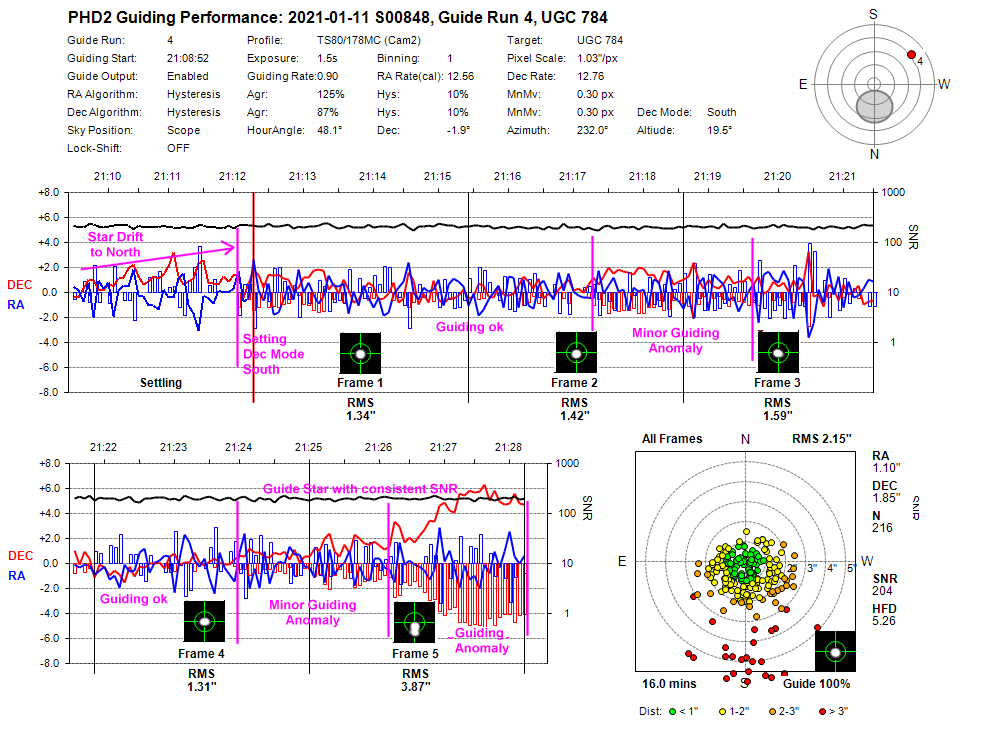

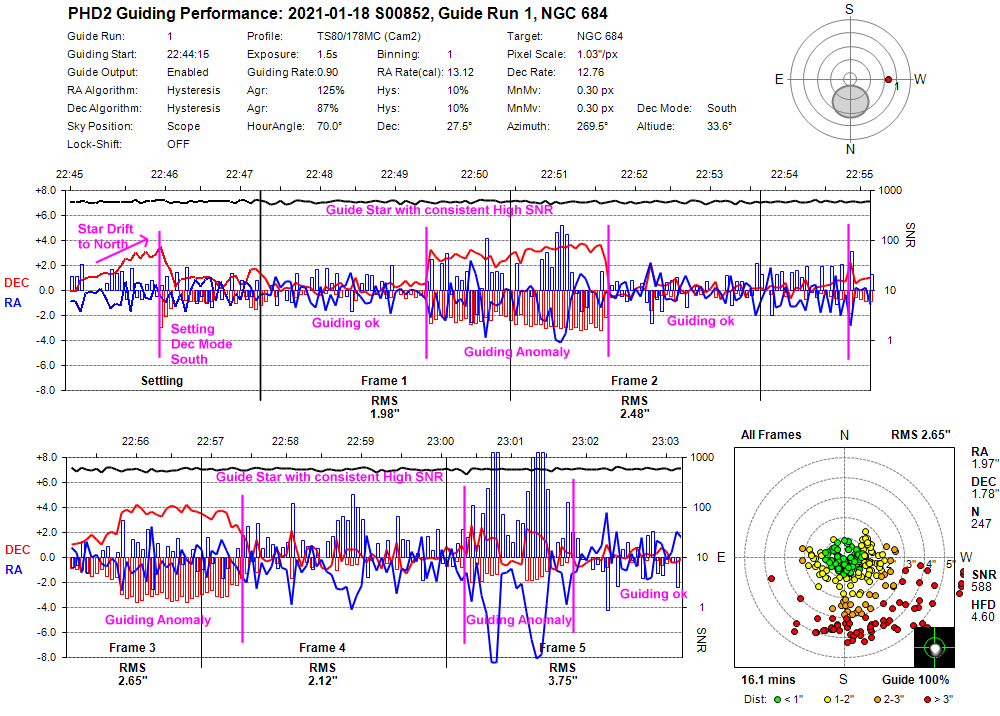

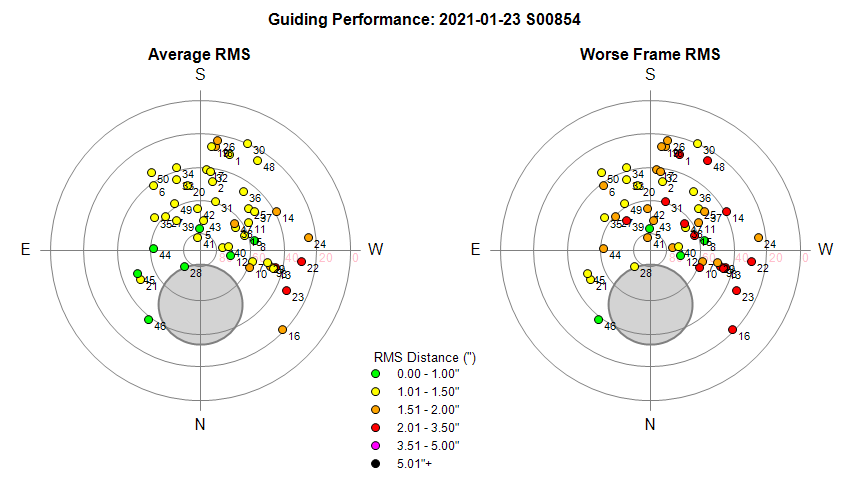

Bullet Investigation -  Guiding Issues (West of Meridian)

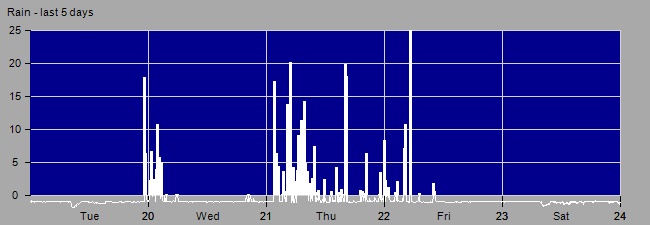

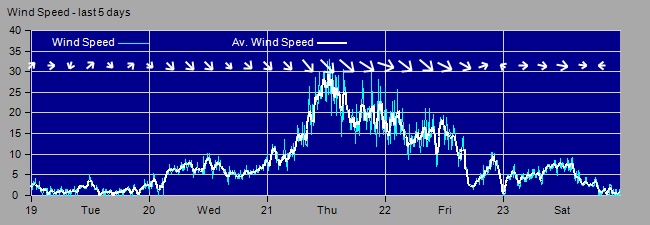

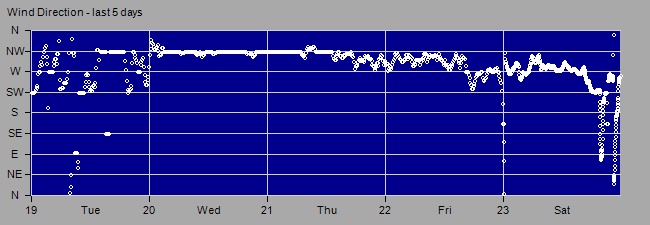

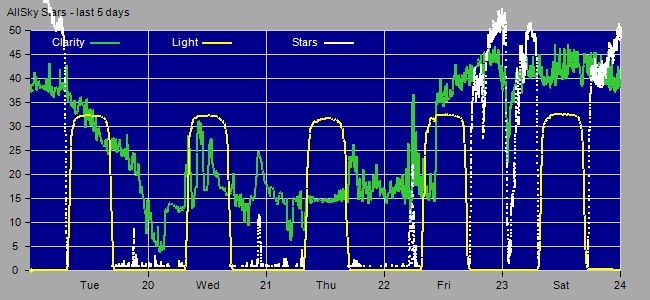

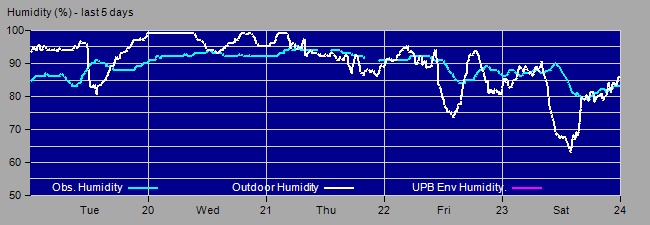

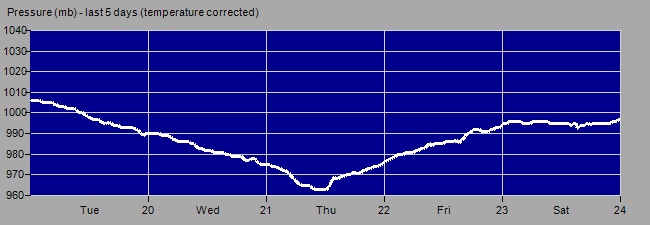

Bullet Storm Christoph

Session Aims & Highlights (2021-01-18)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by conditions.
  2. Software. Test features recently added to AstroMain 3.34.2

Equipment & Software

Highlights

Summary Plots & Logs

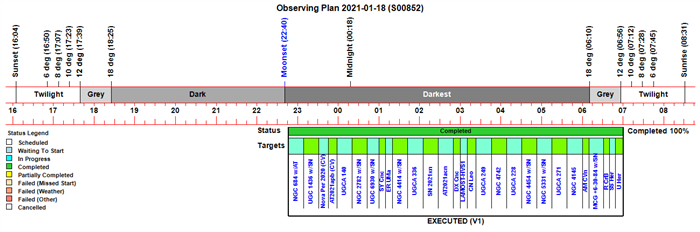

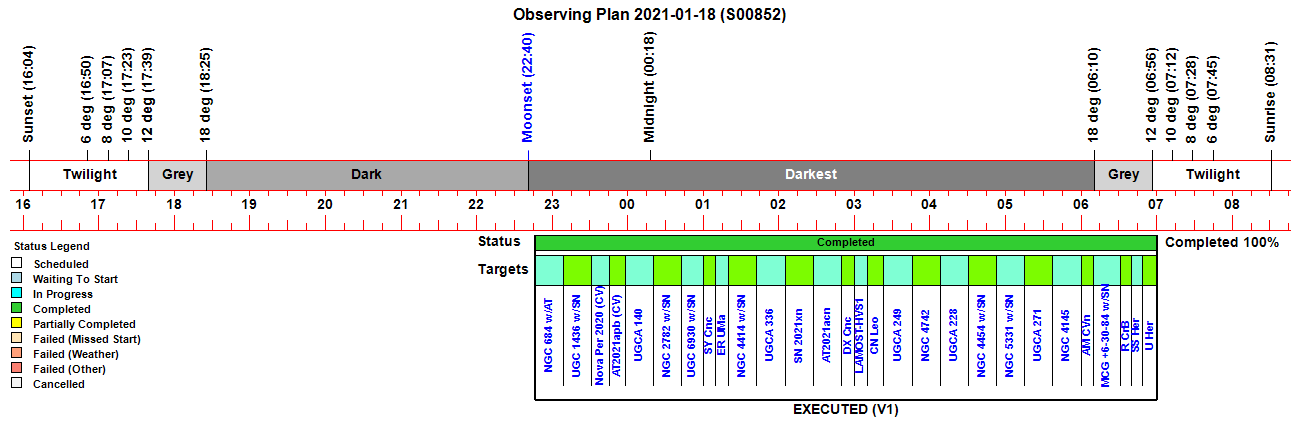

Observing Plan

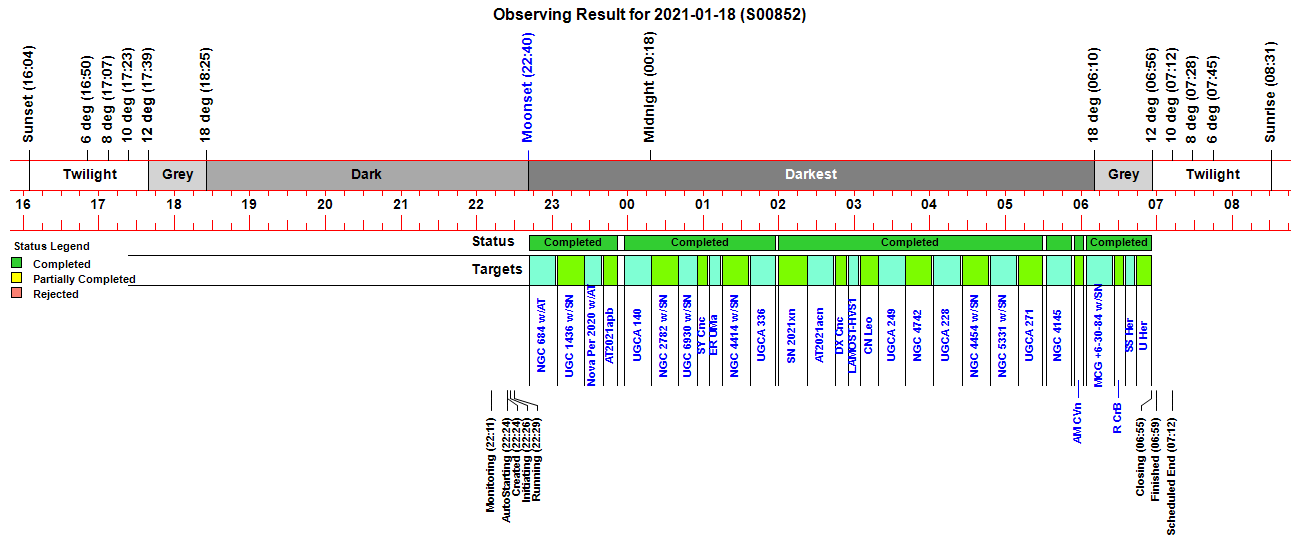

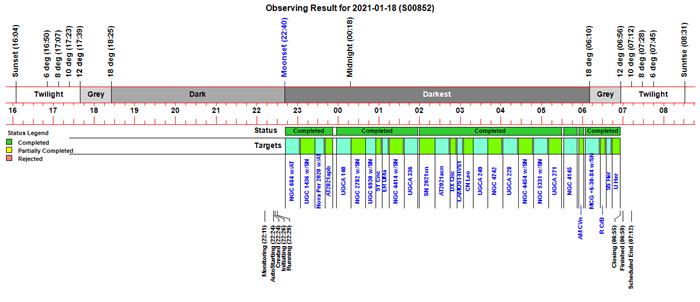

Observing Result

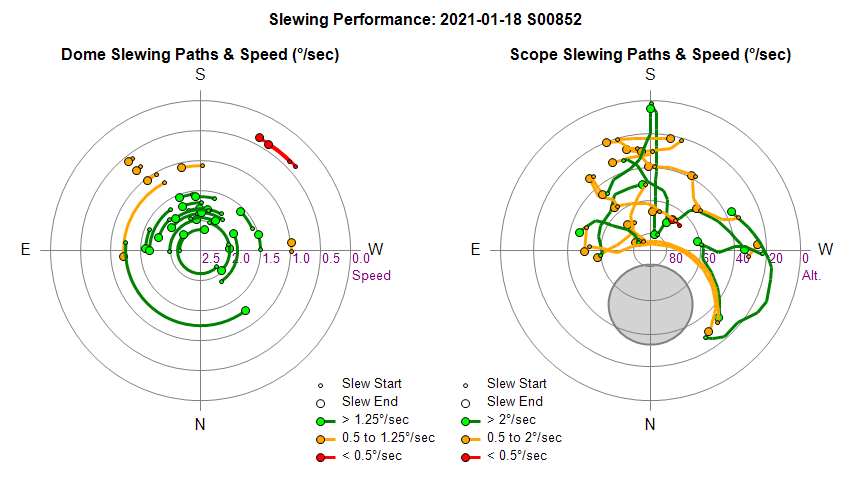

Dome & Scope Slewing Performance

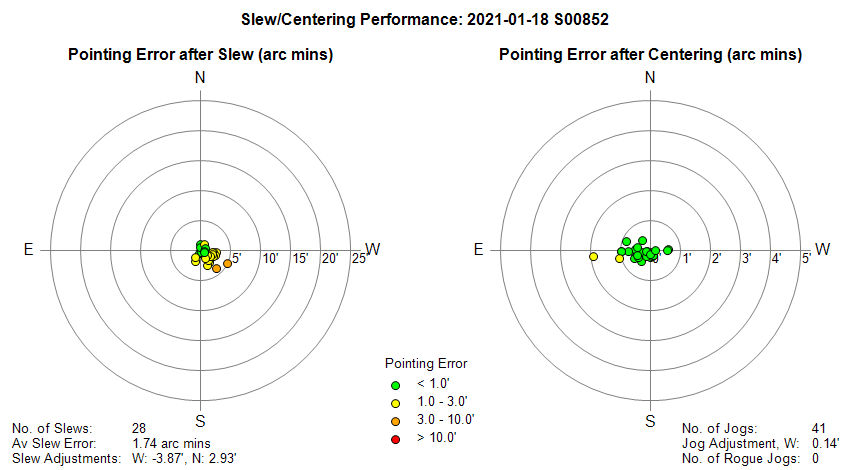

Slew/Centering Performance

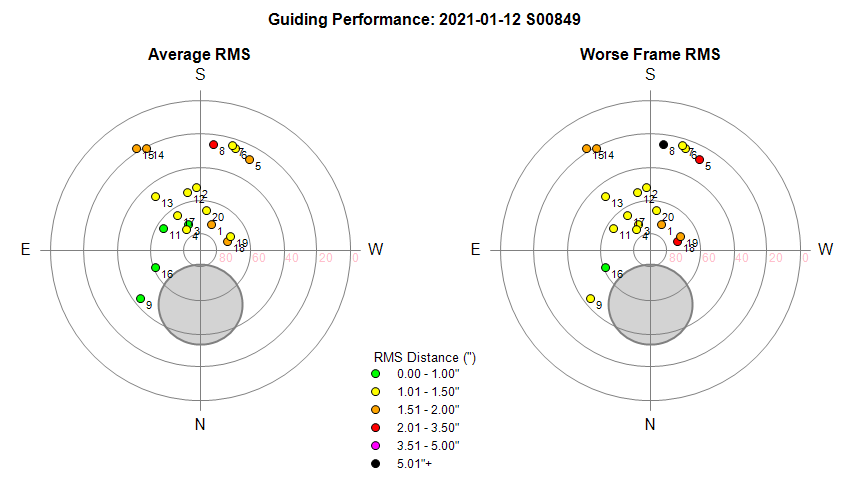

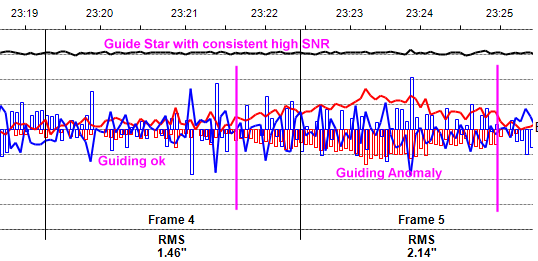

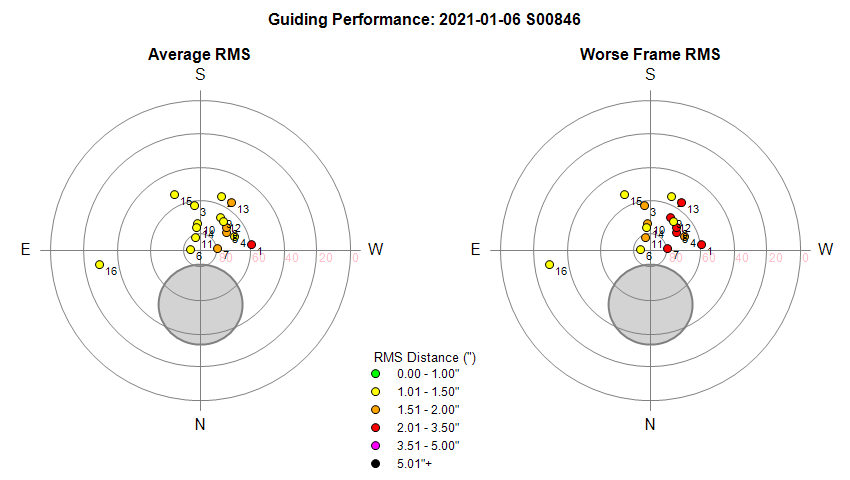

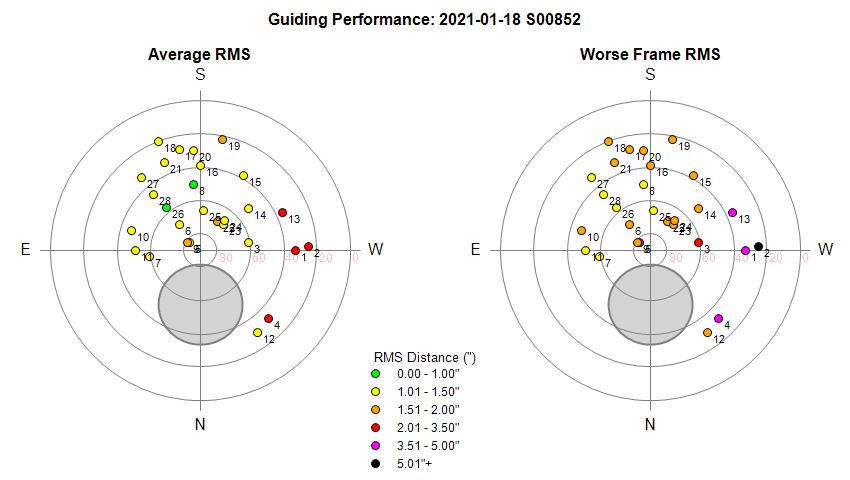

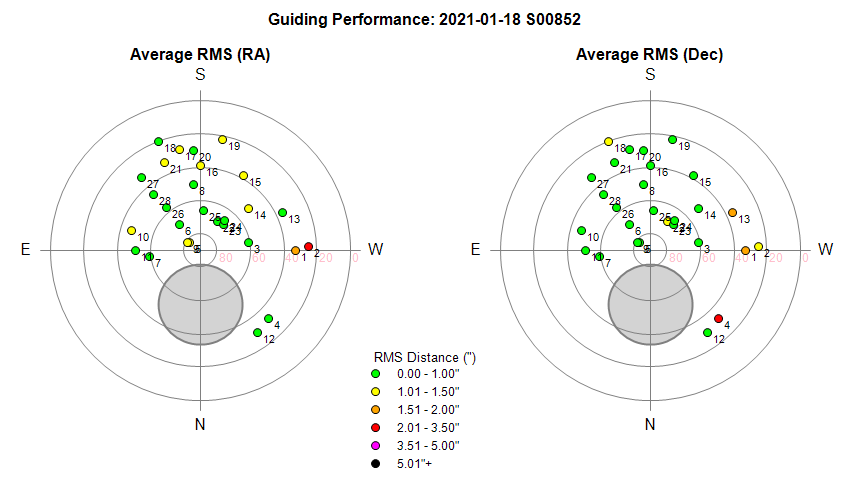

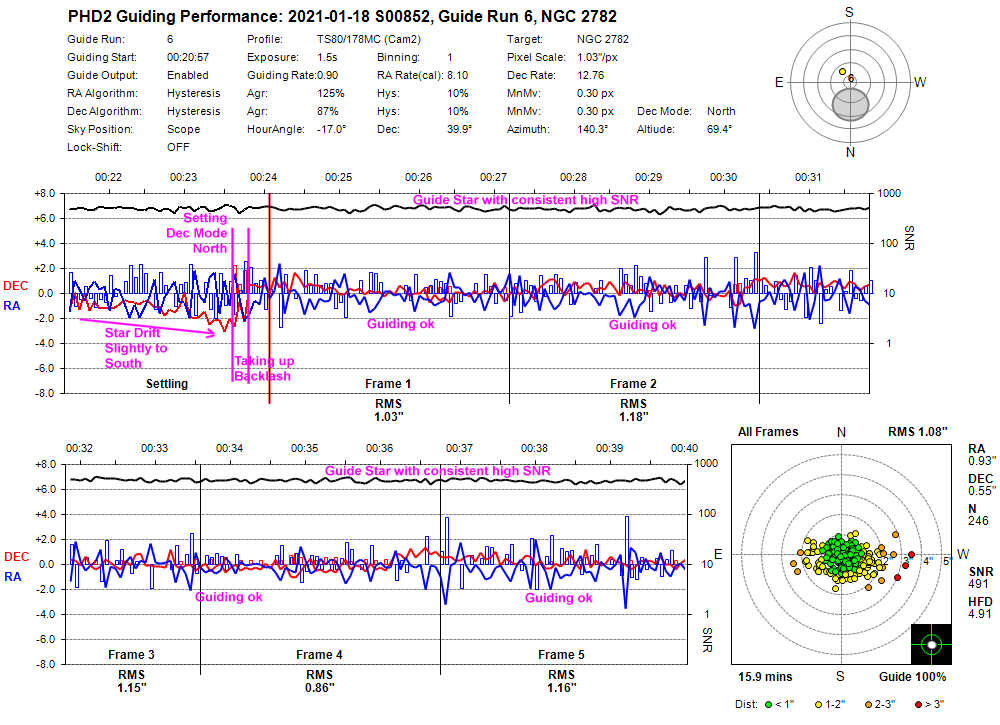

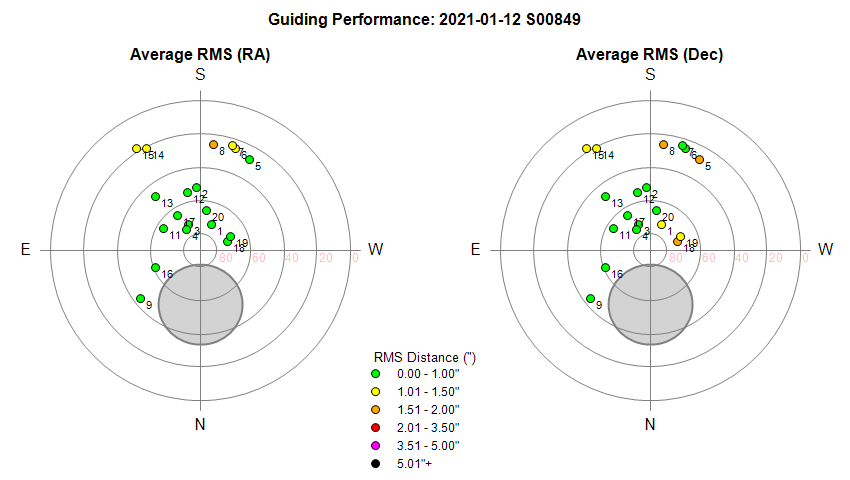

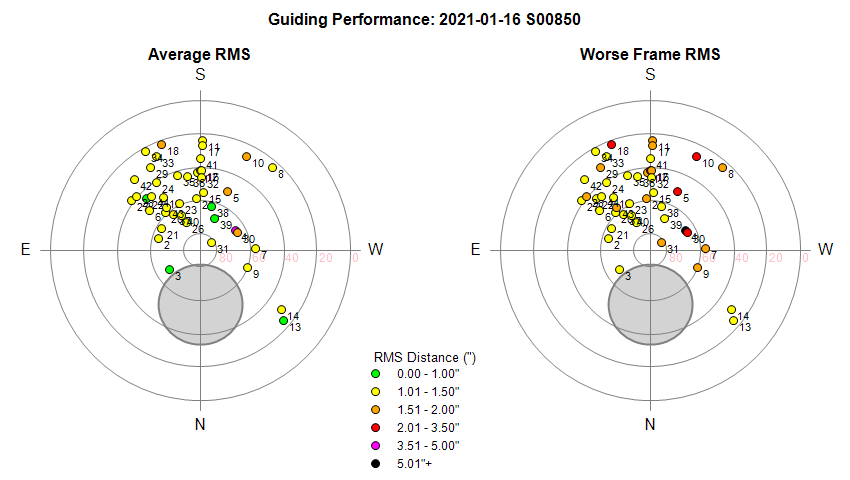

Guiding Performance

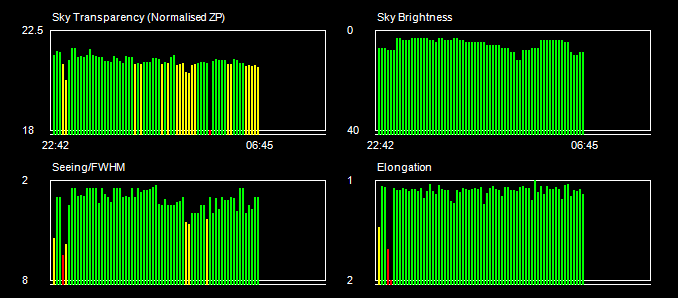

Sky Conditions (Locate Frames)
Data for second part of night is erronous as Observatory shutter was unknowingly closed
Chart unavailable for this session

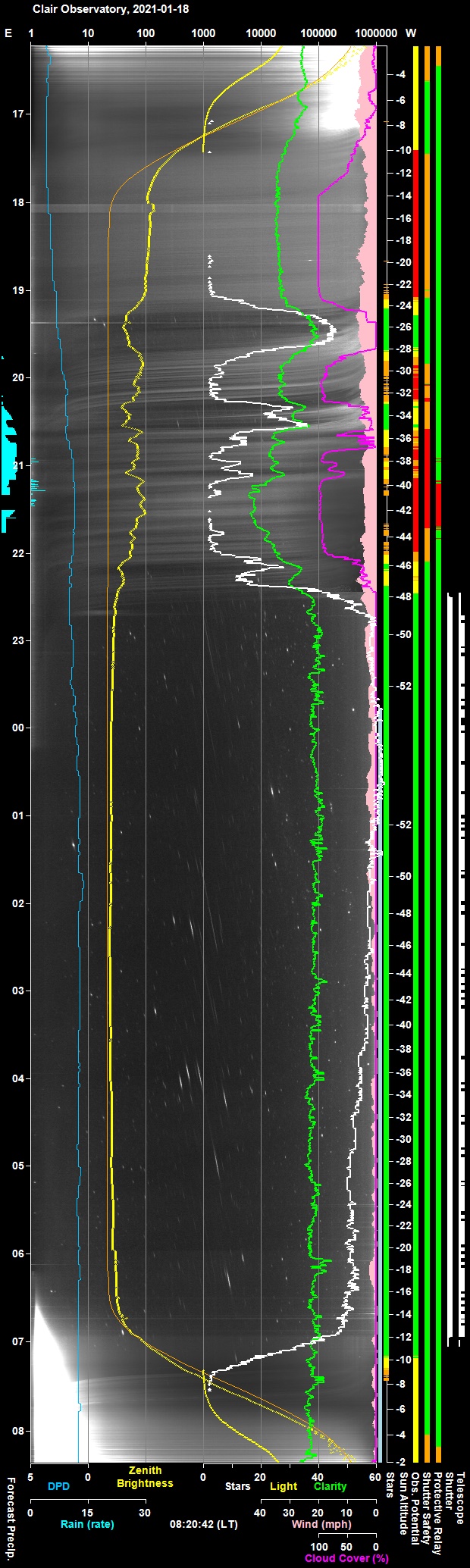

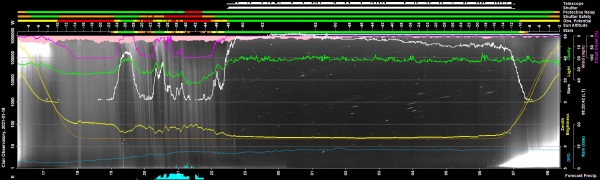

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

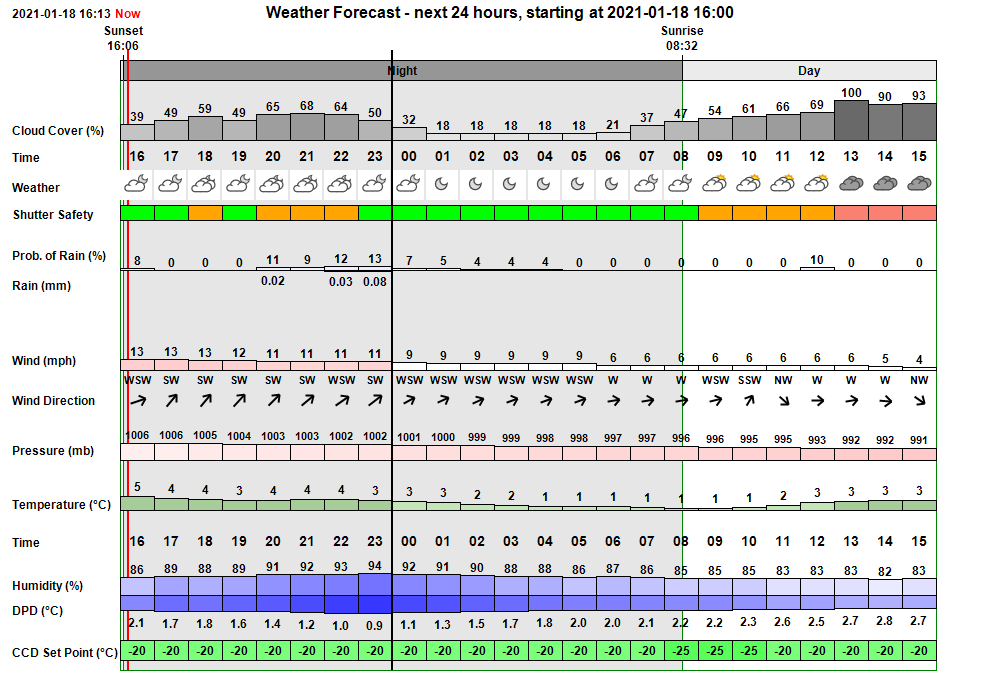

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed overcast conditions (cloud cover 100%) with possibility of light rain showers in first part of night, giving way to clear stars from 02:00 onwards (cloud cover 25-39%) with very low probability of light showers.
Temperatures 5°C falling to 3°C by dawn.. Moderate Wind (13-16 mph)

Observatory was set in AutoStart mode, so that session would begin would automatically commence when
sky conditions became suitable for observing.   In the event skies were overcast until 01:00 (with rain at 00:45) and
then remained clear until dawn except for a passing cloud with spots of rain at 02:55
Temperature of 4°C at 01:00 fell to 1°C by dawn. Winds light to moderate.

Session Event Log
Time     Event Detail
22:11:28 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 22:11 & 06:26
22:11:33   AutoStart Delayed Session delayed due to cloud
22:24:19 Session AutoStarting Session autostarting (22:24)
22:24:49 Session Created Live Session Created (2021-01-18 S00852, ImageSaveNum: 852001)
22:24:51   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:26:32   Services Started Observatory Services started
22:26:40 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:26:44 Session Pending Session pending (2021-01-18)
22:26:46 Session Initiating Session initiating (2021-01-18)
22:26:48   Plan Requested Observing Plan requested from AstroPlan (1.19.3)
22:27:04   Plan Loaded Observing Plan loaded to queue (2021-01-18 V1 BEST PLAN, Plan ID: 587)
22:27:16   Camera1 Connected SBIG Camera Connected (set point -20°C)
22:27:23   Telescope Connected Telescope Connected (TheSky6)
22:27:33 Session Equilibration Session ready for dome & camera equilibration
22:29:30   Dome Opened Dome opened (opening time 45s)
22:29:45 Session Running Session running
22:29:48   Queue Started Observing Queue started (28 targets selected)

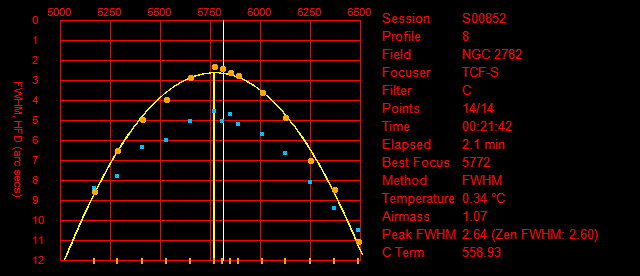

22:30:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:33:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:35:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:35:25       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:37:33       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
22:39:16       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
22:39:31       Focusing Checked Foc2 Focusing Check Succeeded
22:41:44     Target Started (1/28) Target started (1/28, NGC 684 w/AT2021ass)
22:45:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:47:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:03:20     Target Completed Target completed (1/28, NGC 684 w/AT2021ass)
23:04:06     Target Started (2/28) Target started (2/28, UGC 1436 w/SN2021nv)
23:07:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:09:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
23:25:42     Target Completed Target completed (2/28, UGC 1436 w/SN2021nv)
23:25:58     Target Started (3/28) Target started (3/28, Nova Per 2020 w/AT2020abap)
23:28:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:30:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
23:39:05     Target Completed Target completed (3/28, Nova Per 2020 w/AT2020abap)
23:40:50     Target Started (4/28) Target started (4/28, AT2021apb)
23:44:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:46:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:52:13     Target Completed Target completed (4/28, AT2021apb)
23:57:13     Target Started (5/28) Target started (5/28, UGCA 140)
00:00:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:02:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
00:18:30     Target Completed Target completed (5/28, UGCA 140)
00:18:32     Target Started (6/28) Target started (6/28, NGC 2782 w/SN2020scc)
00:21:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:24:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:40:02     Target Completed Target completed (6/28, NGC 2782 w/SN2020scc)
00:40:04     Target Started (7/28) Target started (7/28, UGC 6930 w/SN2020rcq)
00:42:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:44:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:55:03     Target Completed Target completed (7/28, UGC 6930 w/SN2020rcq)
00:55:18     Target Started (8/28) Target started (8/28, GCVS SY Cnc)
00:58:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:00:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
01:03:41     Target Completed Target completed (8/28, GCVS SY Cnc)
01:04:57     Target Started (9/28) Target started (9/28, GCVS ER UMa)
01:07:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:09:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:13:24     Target Completed Target completed (9/28, GCVS ER UMa)
01:15:15     Target Started (10/28) Target started (10/28, NGC 4414 w/SN2021J)
01:19:04       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
01:36:17     Target Completed Target completed (10/28, NGC 4414 w/SN2021J)
01:37:37     Target Started (11/28) Target started (11/28, UGCA 336)
01:39:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:42:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:57:36     Target Completed Target completed (11/28, UGCA 336)
01:59:59     Target Started (12/28) Target started (12/28, SN 2021xn)
02:04:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:06:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
02:23:03     Target Completed Target completed (12/28, SN 2021xn)
02:23:05     Target Started (13/28) Target started (13/28, AT2021acn)
02:26:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:28:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
02:44:00     Target Completed Target completed (13/28, AT2021acn)
02:44:43     Target Started (14/28) Target started (14/28, GCVS DX Cnc)
02:47:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:49:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:54:00     Target Completed Target completed (14/28, GCVS DX Cnc)
02:55:25     Target Started (15/28) Target started (15/28, LAMOST-HVS1)
02:58:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:00:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
03:03:24     Target Completed Target completed (15/28, LAMOST-HVS1)
03:05:11     Target Started (16/28) Target started (16/28, GCVS CN Leo)
03:09:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:11:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:19:15     Target Completed Target completed (16/28, GCVS CN Leo)
03:19:17     Target Started (17/28) Target started (17/28, UGCA 249)
03:23:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:40:54     Target Completed Target completed (17/28, UGCA 249)
03:40:56     Target Started (18/28) Target started (18/28, NGC 4742)
03:43:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:45:52       Focusing Failed Foc1 focusing failed - failed QC check (Ambiguous)
04:01:37     Target Completed Target completed (18/28, NGC 4742)
04:03:08     Target Started (19/28) Target started (19/28, UGCA 228)
04:06:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:08:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
04:24:07     Target Completed Target completed (19/28, UGCA 228)
04:25:29     Target Started (20/28) Target started (20/28, NGC 4454 w/SN2020abgq)
04:28:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:30:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
04:46:16     Target Completed Target completed (20/28, NGC 4454 w/SN2020abgq)
04:47:51     Target Started (21/28) Target started (21/28, NGC 5331 w/SN2020abir)
04:51:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:53:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
05:09:05     Target Completed Target completed (21/28, NGC 5331 w/SN2020abir)
05:10:14     Target Started (22/28) Target started (22/28, UGCA 271)
05:12:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:29:44     Target Completed Target completed (22/28, UGCA 271)
05:32:35     Target Started (23/28) Target started (23/28, NGC 4145)
05:35:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:37:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
05:52:43     Target Completed Target completed (23/28, NGC 4145)
05:54:57     Target Started (24/28) Target started (24/28, GCVS AM CVn)
05:57:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:59:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
06:02:08     Target Completed Target completed (24/28, GCVS AM CVn)
06:04:30     Target Started (25/28) Target started (25/28, MCG +6-30-84 w/SN2021K)
06:07:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:08:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
06:24:41     Target Completed Target completed (25/28, MCG +6-30-84 w/SN2021K)
06:26:22     Target Started (26/28) Target started (26/28, GCVS R CrB)
06:29:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:30:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
06:33:53     Target Completed Target completed (26/28, GCVS R CrB)
06:35:03     Target Started (27/28) Target started (27/28, GCVS SS Her)
06:38:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:40:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
06:43:28     Target Completed Target completed (27/28, GCVS SS Her)
06:43:59     Target Started (28/28) Target started (28/28, GCVS U Her)
06:46:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
06:48:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
06:55:40     Target Completed Target completed (28/28, GCVS U Her)
06:55:43   Queue Completed Job Queue completed
06:55:47 Session Closing Session closing
06:56:42   Dome Closed Dome closed (closing time 50s)
06:57:23   Dome Parked Dome parked (parking time 34s), Az: 90.0 deg
06:58:02   Telescope Parked Telescope parked (parking time 32s)
06:58:32   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:59:19   Services Stopped Night Services stopped
06:59:21 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:59:42 Session Finished Session Finished


Session Alerts
Time     Alert Detail
23:59:30 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (UGCA 140)
01:06:03 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (GCVS ER UMa)



Back to Top


Operational Issues (2021-01-18 S852)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


2021-01-21


Investigation-  Guiding Issues (West of Meridian)

Introduction

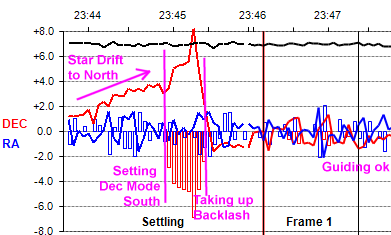

Due to large and variable declination backlash on my LX200 I now exclusively use uni-directional Dec guiding.   The direction of Dec guiding for a given target is automatically selected by my guiding control program by initially examining the direction of drift in guide star with Dec guiding turned off. After determining the direction in drift (either North or South) the appropriate Dec Guide Mode is then automatically set.   Then after taking up any backlash and finishing off autofocussing of the main camera, the main set of images are acquired.

Guiding data is automatically collated and a Guiding Chart is produced in realtime that reports guide parameters and guide results in terms of statistics,  Ra/Dec Error plots and History Graphs.   The quality of guiding for each target (shown by average RMS error, and av RA error and Av Dec error) is also collated and these are plotted on chart which illustrates how guide quality varies according to the telescope's pointing direction (Az/Alt).

Apart from general smaller RA guiding issues due to a potential sub-optimum PEC curve, and issues related to poor seeing,  cloud & loss of guide star, there is a more specific issue that affects random frames acquired for target observations typically those lying west of the meridian.

Data

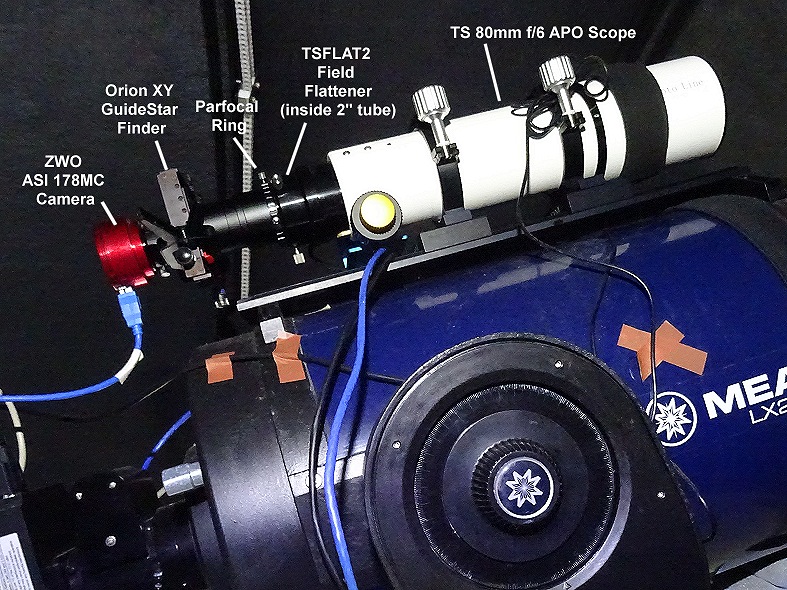

The guiding data below relates to data collected by the guide camera on the guidescope which is attached firmly to fork-mounted LX200 Telescope.

The following example (S852, Guide Run 6, NGC 2782) shows a target lying east of meridian with a 'normal' quality of guiding over a 16 minute run (5x180s sub-frames). The average RMS of 1.08" is reasonable, giving the FWHM of 2.64" (Zenith FWHM 2.60") as determined by the target's focusing profile.  Guide Frames are 1.5s exposures.   Although this example comes from east of the Meridian,  equally good results are obtained for some observations west of the meridian, but more rarely so.

Example of a Target showing 'normal' quality of guiding over a 16 minute interval
Declination drift (slightly to south) relatively well controlled (Dec), some residual
Periodic Error/Random mechanical movement  (RA)  plus normal seeing variations ( RA & Dec)

Autofocusing Profile collected whilst the guiding was settling.
It shows that the seeing (FWHM 2.6") was fairly reasonable.


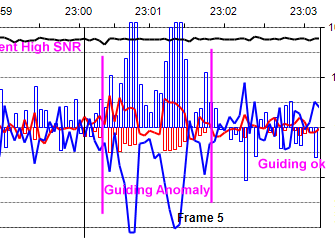

For some targets (most typically those lying in the western sky) the quality of autoguiding is distinctly poorer.  Typically the poor guiding is associated with intervals where guide star drifts away from the lock position in Declination despite guide output trying in vain to correct the error.  Sometimes there are also larger RA execusions but not usually.  Between intervals with poor guiding there are intervals when the guiding is ok/normal. The issue is well illustrated by the example below (S852, Guide Run 1, NGC 684). This was also a 16 minute imaging run with 5x180s sub-frames. The average RMS was 2.6".  Seeing  (FWHM 3.06") was slightly poorer than above 'good example' due to a low altitude but this can't explain the poor guide RMS, nor can the passage of any clouds (the guide star SNR is consistently high).

Example of a Target showing 'poor' quality of guiding over a 16 minute interval
Declination drift ( to north) corrected over some intervals, but in other intervals Dec guide corrections have no effect (Dec) ,
 some residual periodic error & random mechanical with larger unexplained -ve RA excursions over
some intervals (RA),  plus normal seeing variations ( RA & Dec)

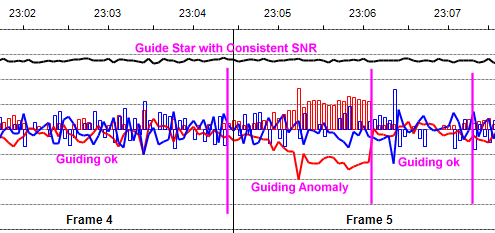

An earlier guide run from session S848 (2021-01-11) showing a particular anomalous 6 arc sec Dec Drift in it final (5th) frame and the case was analysed in detail (See Investigation - Autoguiding Issues (Uncorrected Dec drift during Guide Run 4) ).  After acquiring  4 x 180s with more or less acceptable guiding, the guide star drifted 6" away from Lock Position even though Dec Guide corrections where being made.  The small picture inserts on the guiding chart show expected (simulated) star shapes based on the guide error seen. Looking at the simulated star shape for Frame 5 It would be expected that Frame 5 would have been deemed unusable and would have been thrown away to make a 4 x 180s stack of the first 4 frames only.  In fact the effect on Frame 5 image was minimal and the frame was included in the original 5 x 180s final stack (after alignment of frames).

Re-examining the individual image frames shows that there is a minimal visual difference between frames. The original inclusion of frame 5 in stacking was surprisingly justified. Measured Av. Star Elongation in frames 1 to 5 is 1.15, 1.11, 1.13, 1.12 & 1.16. Frame 5 (1.16) is only marginally worse that the other frames and visually its star elongation is perceived to be very slightly more ovate, but the impact on star elongation is no where as bad as would be suggested by the guiding results and the simulated star shape.

Bad Guiding Results from Guide Run 4 (S848, 2021-01-11)
Declination drift ( to north) corrected over some intervals, but during Frame 5 Dec guide corrections have no effect (Dec) ,
 some residual periodic error & random mechanical movement  (RA),  plus normal seeing variations ( RA & Dec)

Re-examining the individual image frames from above run showed that there was only a minimal visual difference between frames. Measured Av. Star Elongation in frames 1 to 5 is 1.15, 1.11, 1.13, 1.12 & 1.16. Whilst elongation in Frame 5 (1.16) is marginally worse that the other frames and visually its star elongation is perceived to be very slightly higher,  the impact on star elongation is no where as bad as would be suggested by the guiding results and the simulated star shape.   The full frame Y pixel position of the centroid associated with star at the centre of above image has the following value in Frames 1 to 5  : 275.6, 275.2, 276.2, 276.4, 274.2 .  The largest Y position difference is between Frame 4 and Frame 5 where the 2.2 px difference corresponds to a distance of 3.1".

Issue has previously been recorded as an Operational Issue in Session S756.

The guiding anomalies associated with this issue appear to have several different forms:

Further examples
Further examples of guide runs from S852 session with poor guiding outcomes are shown below.
(these are again all asscoiated with telescope positions in the western sky)


More examples of Poor Guiding from S852 session.

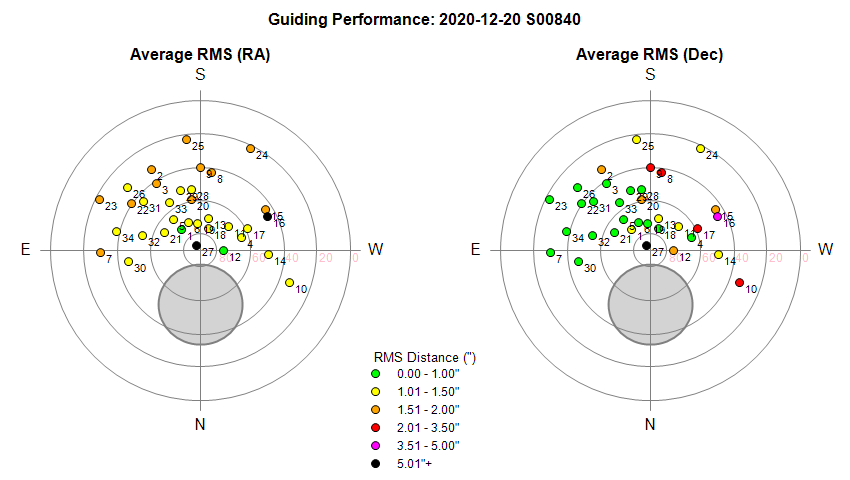

Looking at variation in imaging quality across the sky illustrated by the summary charts below for observing nights during the last 2 -3 weeks, shows that poorest guiding perforamce (in terms of Av RMS, Dec RMS & Worst Frame RMS) are most typically associated with positions in the western sky.

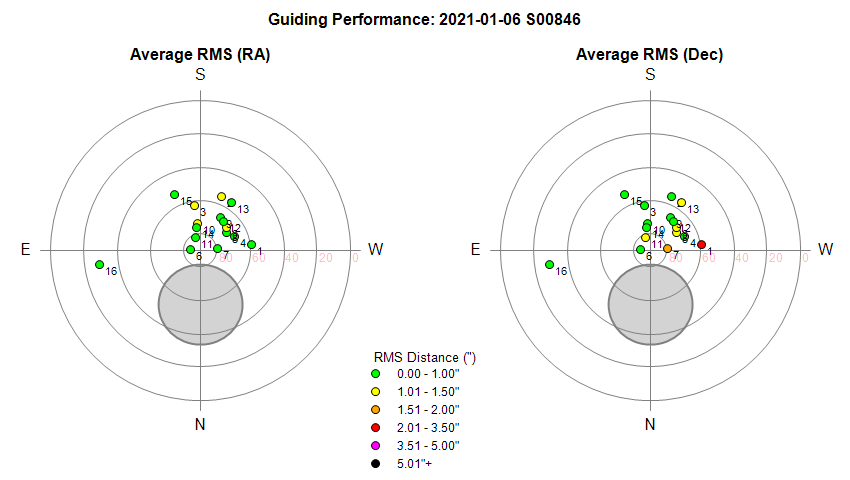

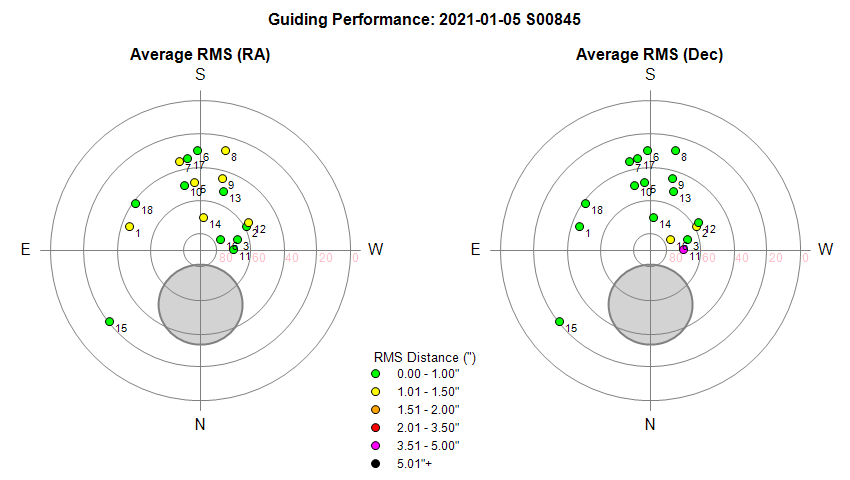

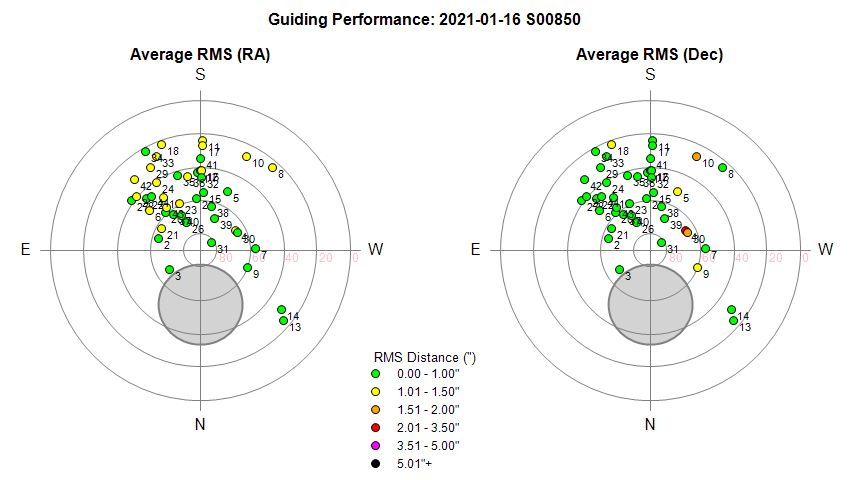

Charts showing RA/Dec Guide quality for most recent session (S852) and a number of other recent sessions
(graphs are in reverse chronological order, i.e. the more recent session chart is shown first
Nights with cloud / unstable conditions and/or technical issue (S848, S847, S844) are not shown here.

 The number against each point is simply the sequential target no. for the night (starting with 1)
Green is considered good guiding (RMS score < 1")
Red, Purple, Black is bad guiding (RMS Score > 2")

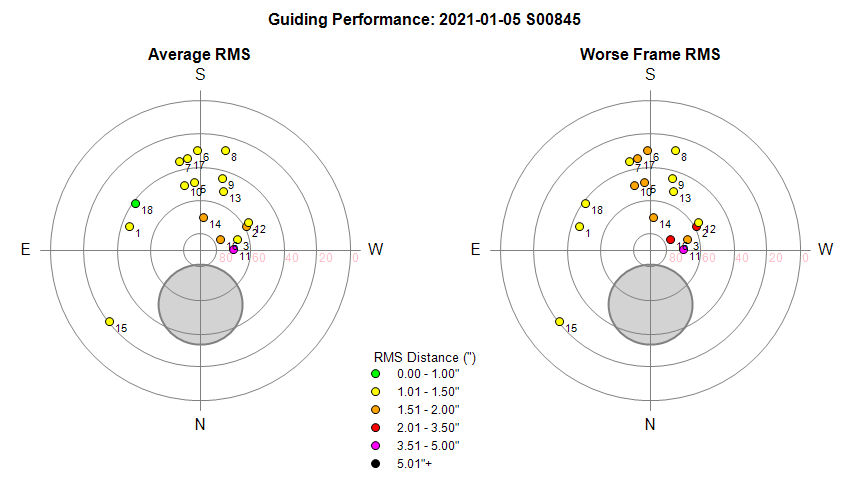

Charts showing Overall Guide quality and Worse Frame quality for most recent session (S852) and a number of other recent sessions
(graphs are in reverse chronological order, i.e. the more recent session chart is shown first
Nights with cloud / unstable conditions and/or technical issue (S848, S847, S844) are not shown here.








Analysis

From a review of the above data it is concluded that :

The guiding anomalies are always associated with guide star drifting or jumping in the direction that the star naturally drifts when Dec Guiding is off. For whatever reason during a guiding anomaly the Dec guide output isn't creating any change or enough change in the scope's Dec position during the anomaly. Normally the Dec Drive should be able to bring the scope immediately back onto the guide star position. Between guiding anomalies this happens so the system is generally perfectly capable of guding.

Follow Up

2021-01-22
The following example taken from the following session (S853, 2021-01-22) shows that the guiding issue under discussion isn't restricted to positions West of Meridian but can also affect target observations East of Meridian (albeit more rarely).

Imagef

This might suggest that the issue isn't simply due to loading on Dec Drive, but is related to particular positions where cables / cable guards are temporarily holding up /  rubbing against the equatorial wedge, fork-arms or pier.

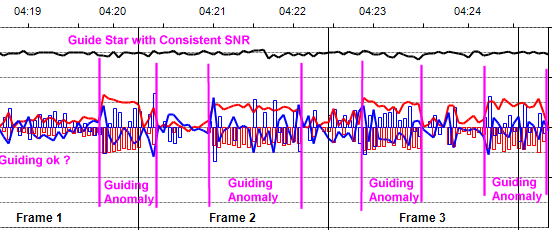

In the following example, again from S853 Session (2021-01-22),  the start and end of the guiding anomalies are particularly sharp.
(In other cases one edge is ramped and the other sharp (like example above) or both edges are ramped )


Example of a Target showing 'poor' quality of guiding , Guiding Anomalies are abrupt (S853)
Declination drift ( to north) corrected over some intervals, but in other intervals Dec guide corrections have no effect (Dec) ,
 some residual Periodic Error/Random mechanical movement  with larger unexplained -ve RA excursions over
some intervals (RA),  plus normal seeing variations ( RA & Dec)

2021-01-23
Session S854 (2021-01-23) had generally good guiding but again showed the occassional poor guiding result from observations west of Meridian.
Average RMS (Dec) west of the meridian doesn't seem to be inherently worse that the east. It just seems that western side is more likely to suffer one or more guiding anomalies and produce a worst frame RMS score.

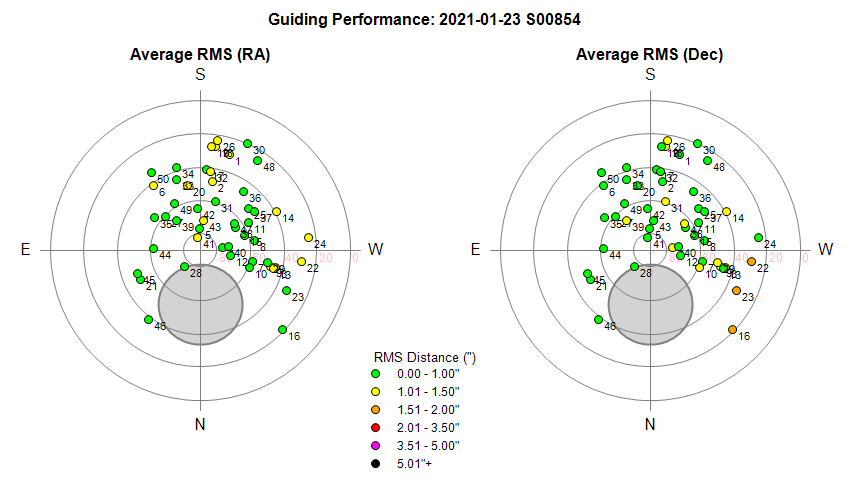

Guiding Performance Results from Session S854 (2021-01-23)
 The number against each point is simply the sequential target no. for the night (starting with 1)


2021-01-26:

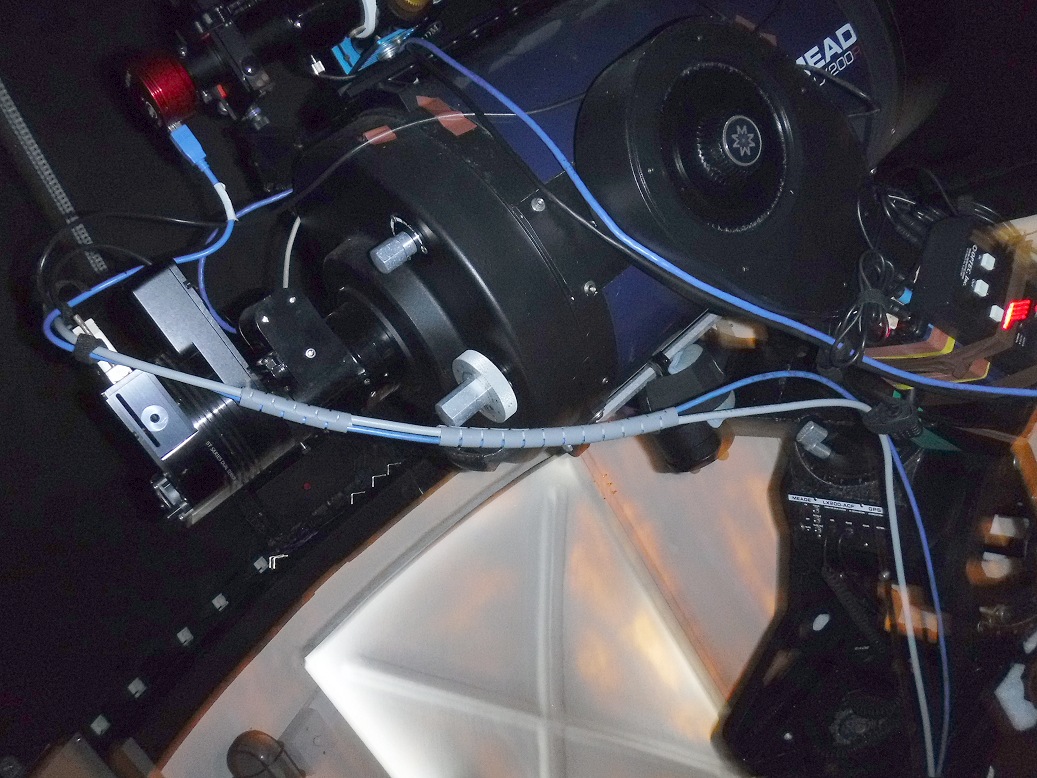

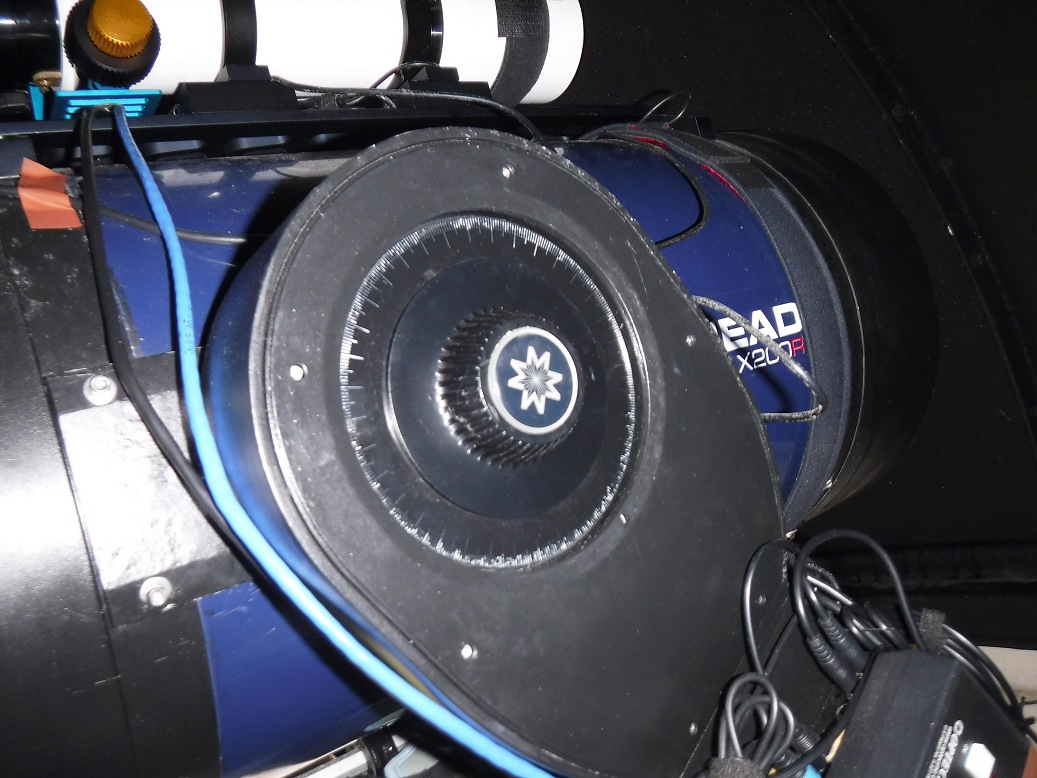

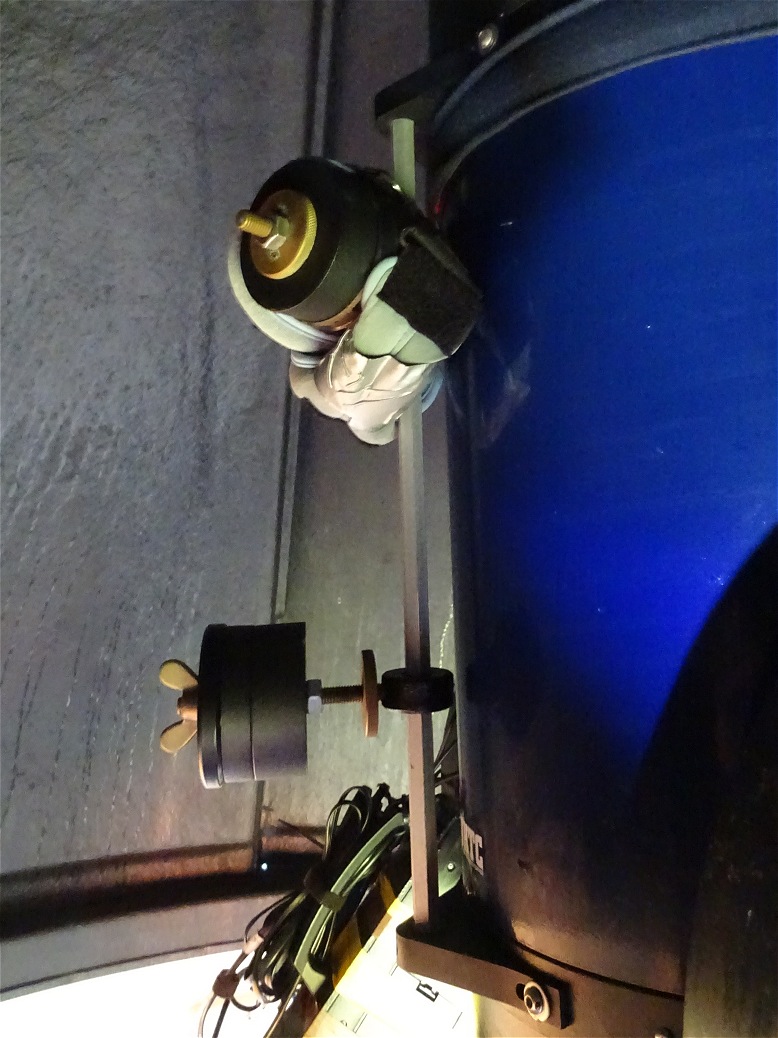

A visual inspection of the Telescope was made today (2021-01-26)

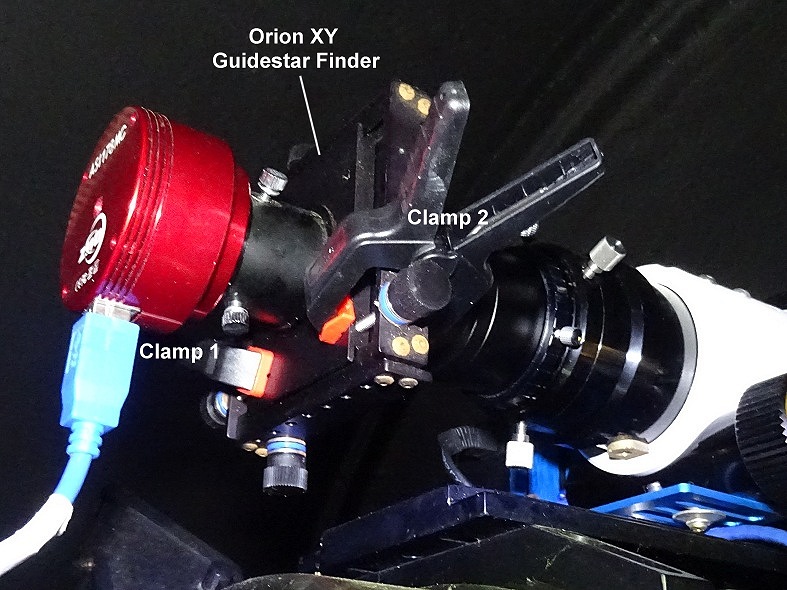

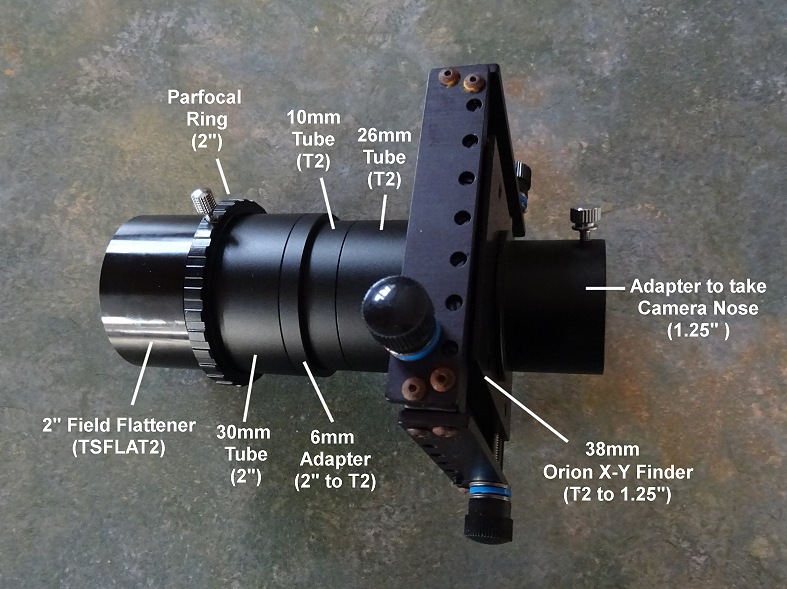

- Clamps on GuideScope's Orion XY Finder are firmly in place

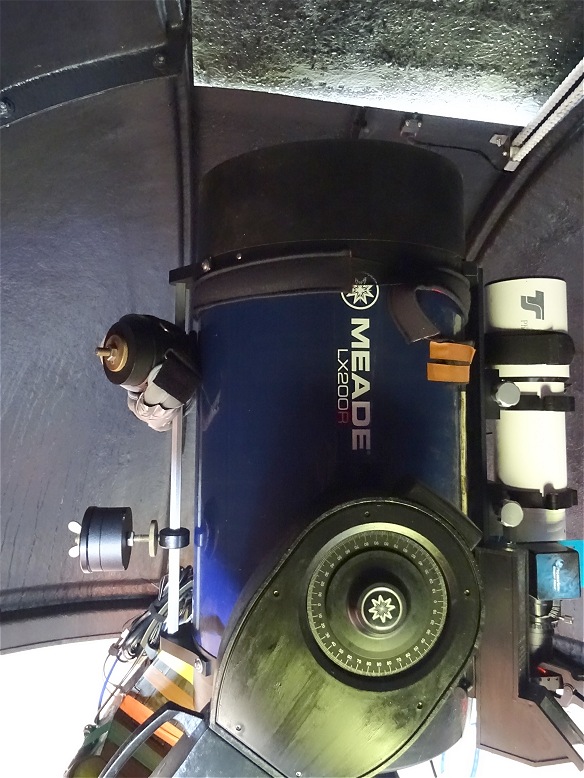

- Guidescope securely attached to Main Scope.

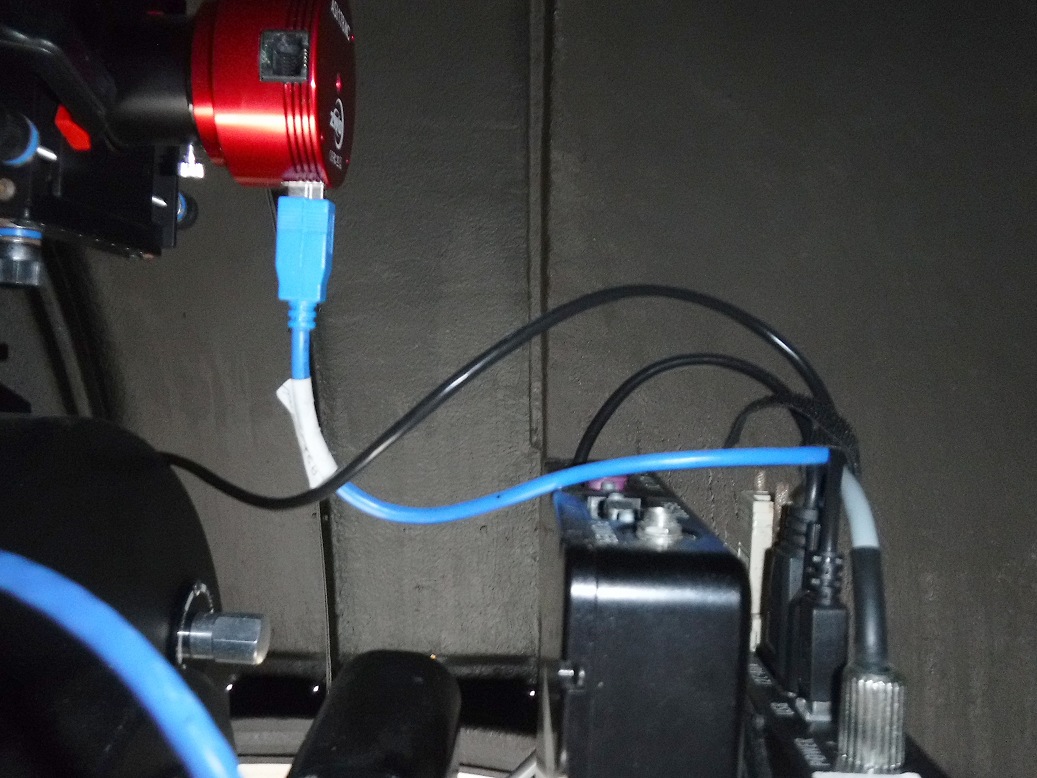

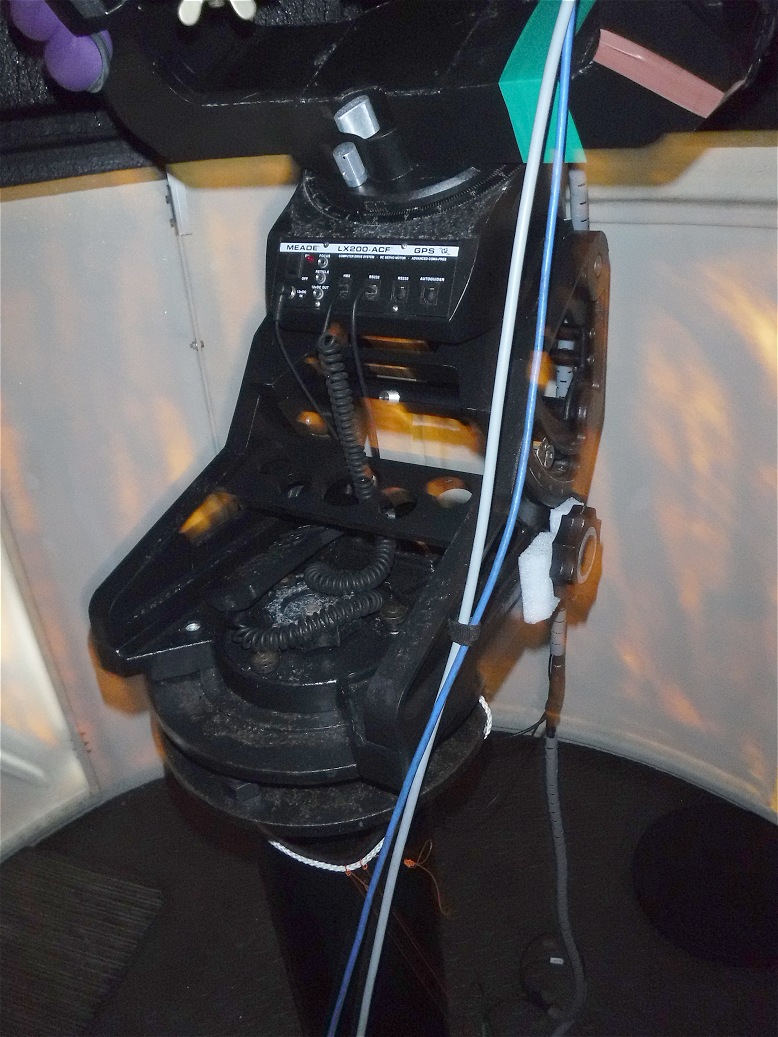

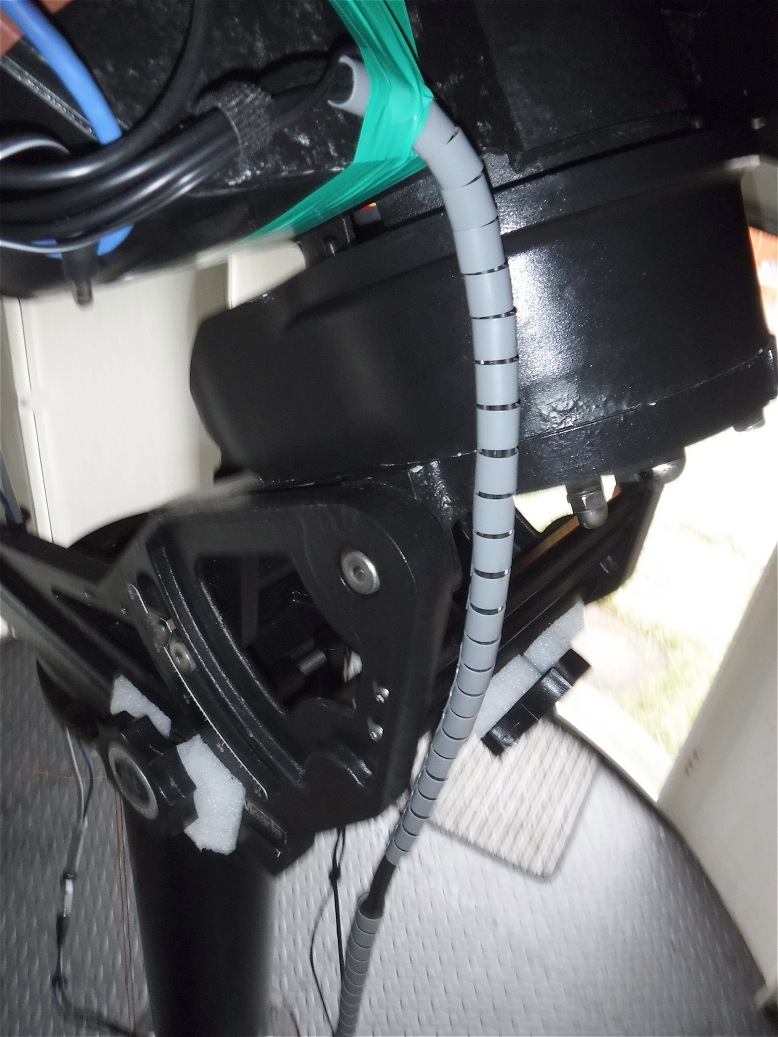

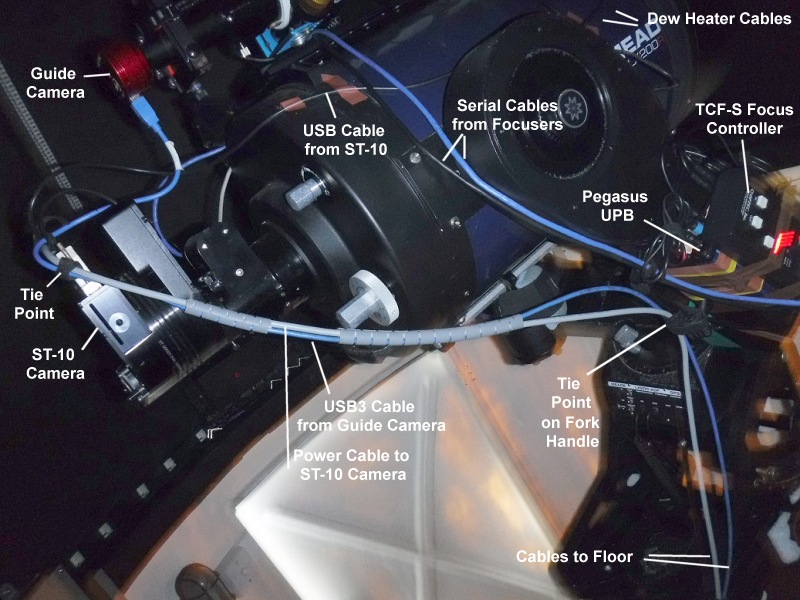

- Cables normal, cable management is the most reasonable possible given current limitations & requirements

2021-02-01

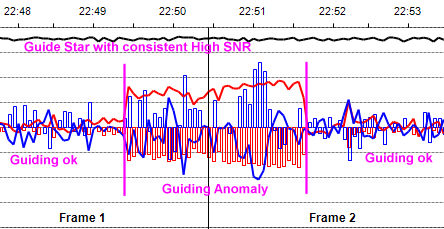

A noticably regular repeating pattern of Guide Anomalies was seen during Guide Run 11 from Session S857 (2021-02-01).  Telescope pointing was to WNW.
Guide run had three very similar looking anomalies with duration of 2.3 to 2.6 mins each and occurring approximately every 5 minutes . Timings are subject to some measurement uncertainty. They occurred every 4.6 -5.4 mins when measuring from start of the anomalies or every 4.9 - 5.2 mins when measuring from end of the anomalies.

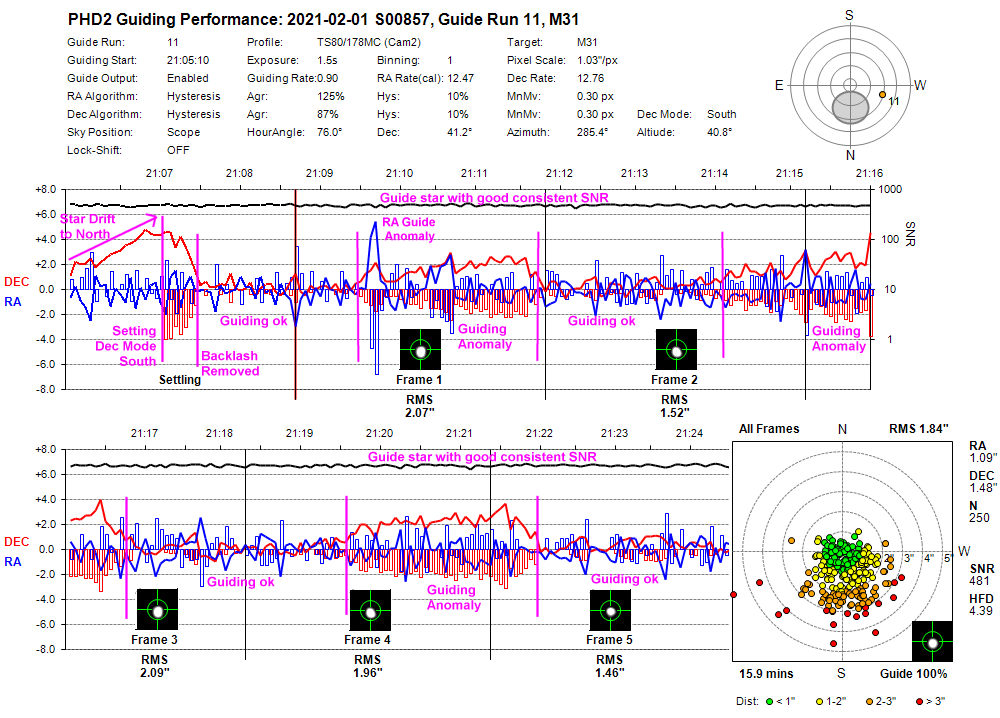

Guiding Performance Guide Run 11 S8547 (2021-02-01)



It doesn't appear that the observed 5 minute period can relate to any hypothesized up/down wobble in the fork arms caused by sidereal tracking of RA drive (as this would be expected to have an 8 minute period)

It doesn't seem that the issue can be caused by striction.  Striction involves the storing up of energy, and if a couple minutes of 'stored gear energy was released in one go it would be expected that declination error would suddenly jump to the south side at the end of each anomaly but it doesn't - it simply gradually comes back to the locked Y position (i.e.to the 0 error line).

Perhaps the dec gears are somehow coming apart on some regular interval and preventing the motor drive from turning the big Dec Gear effectively for a 2 minute period or so ?  One can imagine that due to loading/balance the effect might be greater on one side of the Meridian than the other and in certain sky positions. If the worm drive was uneven or worn in a particular way then it might not present a constant fixed angle to the cogs on the big Dec gear thereby producing less force at certain position of its rotation.

The time interval between the end of taking up Dec backlash and the end of the first anomaly was 4.3 minutes which is a little less than the 5 minute period for the guide anomalies, but it is not so dissimiliar to just make one wonder if there is some connection ?

Assuming a roughly constant star drift through the guide run,  then the anomalies are occuring after regular amounts of accumulated amount of movement of the Declination Motor/Gears.   It can be hypothesized that dependant on sky position the rate of star drift will be different and the period between anomalies might similarly vary as a consequence.

If there is damage on the teeth of the big Dec Gear (none noticed when last inspected)  then it might be hypothesized that guiding anomalies might be more common when working at certain Declinations than other.  The dec drive knob is locked between sessions (and rarely released  manually and no particular pattern has been noticed to date but there hasn't been any detailed review to definitively say whether there is any relationship between guiding anomalies and telescope declination.

More Analysis

A number of possible causes have been considered  :

Pictures showing 2018-2019 maintenance on the Declination Drive.

Declination Drive Cleaning & Regreasing (2018-04-27)

With my 12" LX200 indoors for a RA Motor Unit replacement in April 2019 opportunity
was taken to clean and re-grease the Declination Drive at the same time ( See Notes )
The cleaning and re-greasing made an immediate improvement to the smoothness/sound of declination slewing.

Dec Motor Unit
(picture shows main Dec gear removed with the
wormdrive exposed for cleaning)
  Main Dec Gear after cleaning
(picture shows gear before re-greasing with Lithium Grease)
Image   Image

Dec wormdrive after cleaning   Dec wormdrive after re-greasing
Image    Image

Declination Drive Checks (2019-10-12)
As part of checking out large and variable Declination Backlash (which was affecting bi-directional Dec Guiding)
 the Declination Drive Cover was removed from the right hand fork arm in order to examine the Declination Drive.
The movement of the Declination Drive Unit and its tension against the large Declination Gear seemed normal.
 It would have been nice to reduce the travel distance of the drive unit using travel limit screw
and insert a small washer to increase the spring tension, but it wasn't possible
to apply a enough leverage to move the screw using a small hexagonal allen key
without risk of breaking the key or stripping the hexagonal slot on the screw
( See Notes )

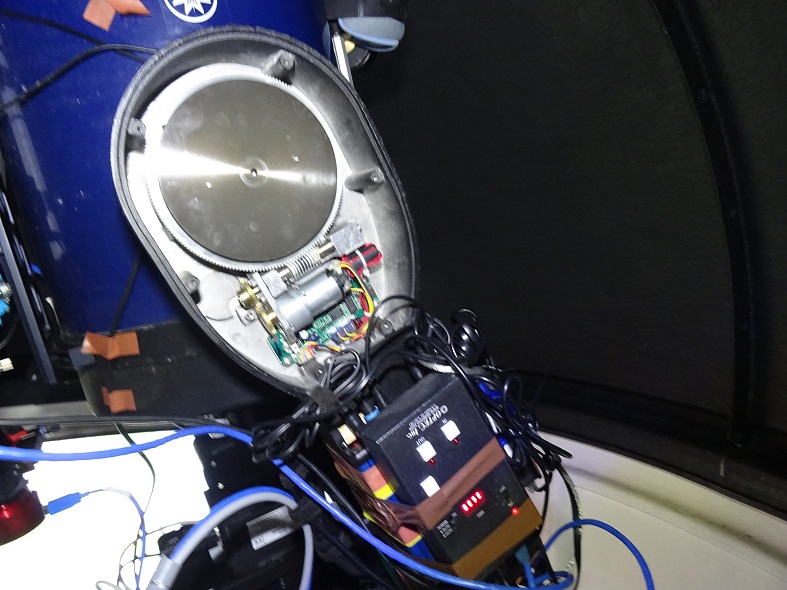

Declination Drive Knob & Cover Removed
(strapped to the fork arm below the Dec Motor is
Pegasus UPB Powerbox and TCF-S Focuser Controller)

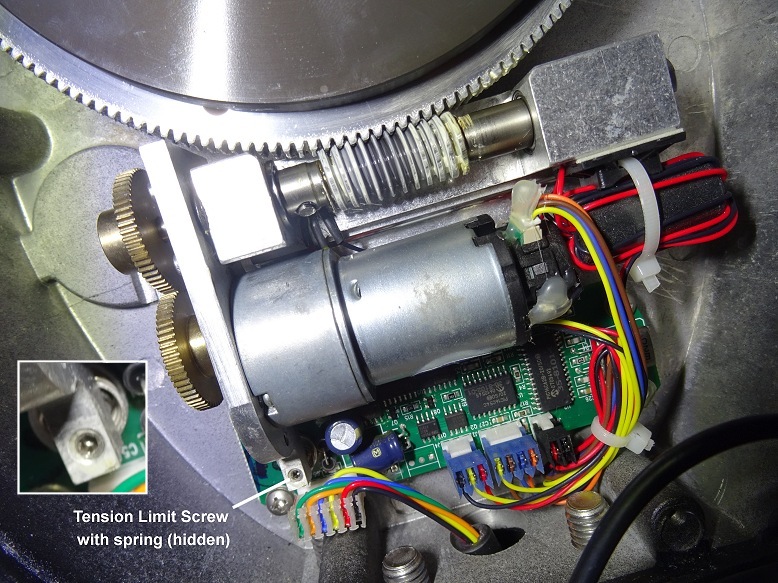

  Declination Drive Unit Examination
Location of the Tension Limit Screw is highlighted
Image    Image


Update 2021-03-14
As part of an attempt to better understand and improve autoguiding performance issues the SBIG Camera's power cable and the ZWO 178MC Camera's USB 3 cable were rerouted on 2021-03-14 ahead of session S870.  Instead of passing from the back of the imaging train to the right hand fork & then indirectly to floor the cables were rerouted to take them back up to the OTA and then down to the right hand fork & then indirectly to the floor (see Camera Cable Rerouting, 2021-03-14).

The benefits or othewise of the new arrangement are still to be determined
(Observing/Guiding opportunities were severly limited in session S870 due to wind/cloud)

Update 2021-10-20
A new Dec Motor was installed on the Observatory LX200 Scope on 2021-10-15 but initial sessions shown have show none of the improvement in Dec Guiding that had been hoped for. Adjustments in the Dec Motor linit screw and cabling have been tried but have still not reduced the problem.

With still no resolution on Dec Guiding issue it is proposed to improve the mount's polar alignment so that the impact of poor Dec guiding is reduced  (see LX200 - Proposed Polar Alignment Change, 2021-10-25).

Update 2022-02-12
Dec Guiding has now been considerably improved (Q1 2022) due to a combination of improved telescope balancing,  modified/improved polar alignment and improved guiding management routines.  Dec RMS error values are generally on par with and even better than RA RMS error values.

There is no longer any imbalance in guiding performance between targets lying west and east of the Meridian.

There are still some issues with Dec Guiding being only partially effective or non-effective at certain telescope positons, but the effect of this is mitigated in part by the better polar alignment (so lower rates of star drift) and by corrections to lock positions between frames.

A separate improvement that avoids scheduling targets where the dome aperture/telescope has to be pointed into strong wind, has also helped reduce overall Dec Guiding errors

Back to Top


Storm Christoph

Introduction

Storm Christoph was the third named storm of the 2020/2021 season and the first of this year, following Storm Aiden on October 30 and Storm Bella on Boxing Day 2020.

The storm swept up the UK producing significant amounts of rain and flooding in many places. On higher ground it produced snowfall. The storm brought some heavy, and at times record breaking, rain to parts of the UK. Provisional figures fromMetOffice show Honister, in Cumbria, received 123.8 mm of rainfall on Tuesday (19th Jan), a new daily rainfall record for this winter and 2021. However, it was well short of England’s all time January daily rainfall record of 180.4mm set in 2005.

The following graphs record the passage of the storm based on Observatory's Weather Station, where it was seen to peak around midday on Jan 21st. (2021-01-21 12:00).

Main features observed.
- low pressure (962 mb minimum)
- high wind (30 mph* at peak)
- little change in wind direction as storm came through  wind from NW leading in,  wind from WNW leading out
- moderate rain over a 30h period
- significant cloud cover (low clarity) for 72h period
- slight warming (steady 4 degC vs  0 +/- 2deg background)
- high humidity  (95-100%) leaading in,  lower humidity (85%) leading out

* note the weather station records lower wind speed than actual wind speed.

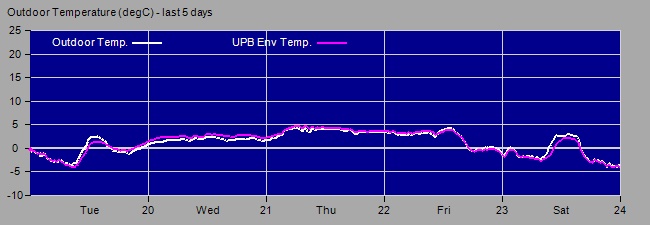

5 days Weather Graphs centered on Storm Christoph (2021-01-21)








Back to Top
