Notes - Session 866 (2021-02-28)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (2),  Continuous Improvement (3)
Bullet Images from 2021-02-28 >>     [ Local Files >> ]
2021-03-02
Bullet Visual Studio 2019 Installation and AstroSuite Project Transfer

2021-03-04
Bullet Pulsar Dome - Software Update (Shutter 1.23 attempt)


Session Aims & Highlights (2021-02-28)

Main aims

  1. AstroMain.  Test AstroMain 3.37.6 for stability and presence/absence of UI lockups
  2. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by conditions.

Equipment & Software

Highlights

Summary Plots & Logs

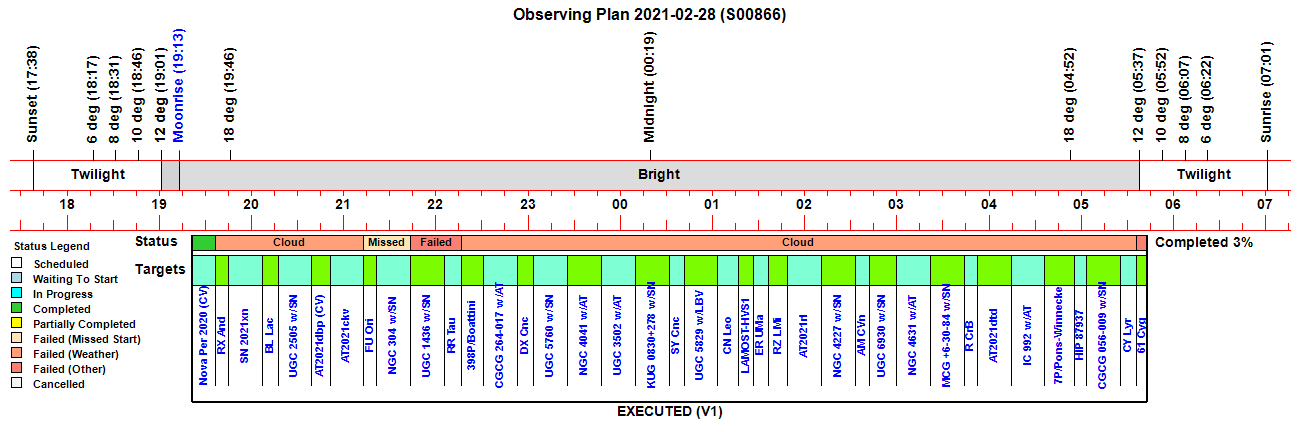

Observing Plan

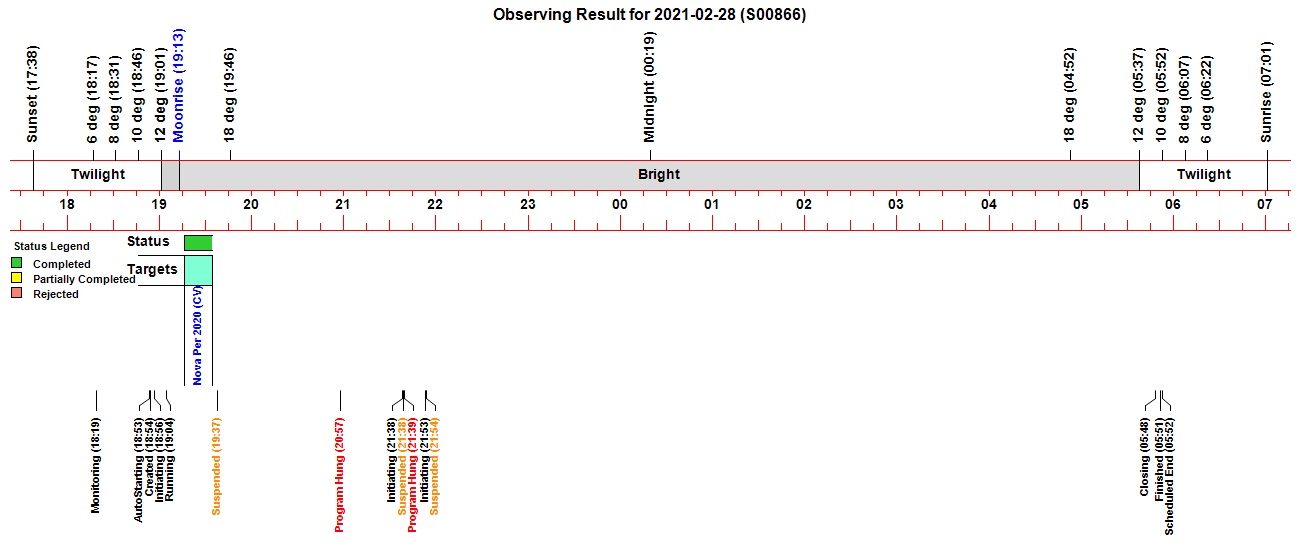

Observing Result

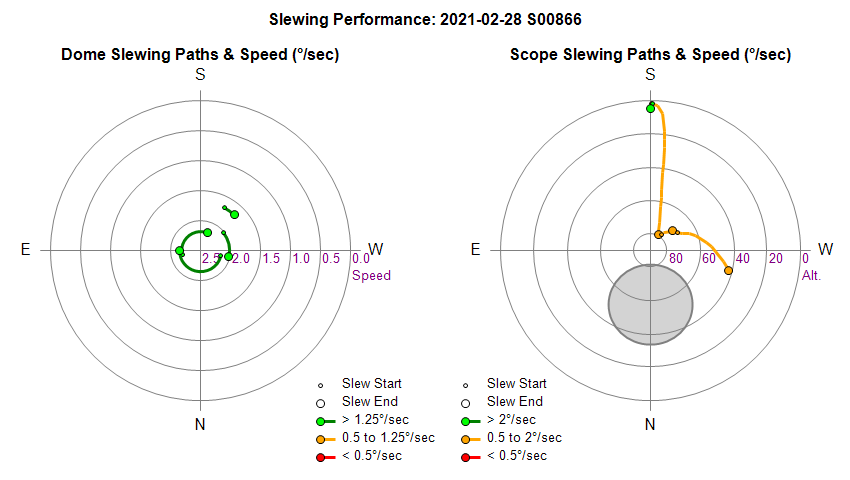

Dome & Scope Slewing Performance

Slew/Centering Performance
Not enough data collected

Guiding Performance
Not enough data collected

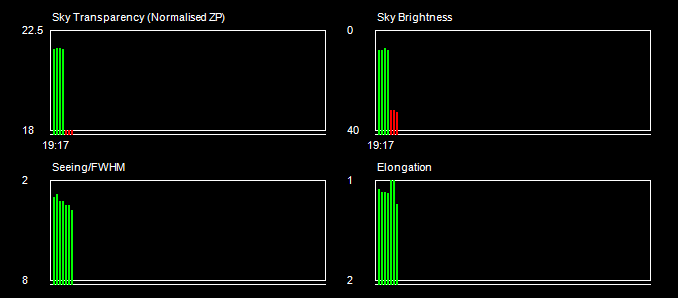

Sky Conditions (Locate Frames)

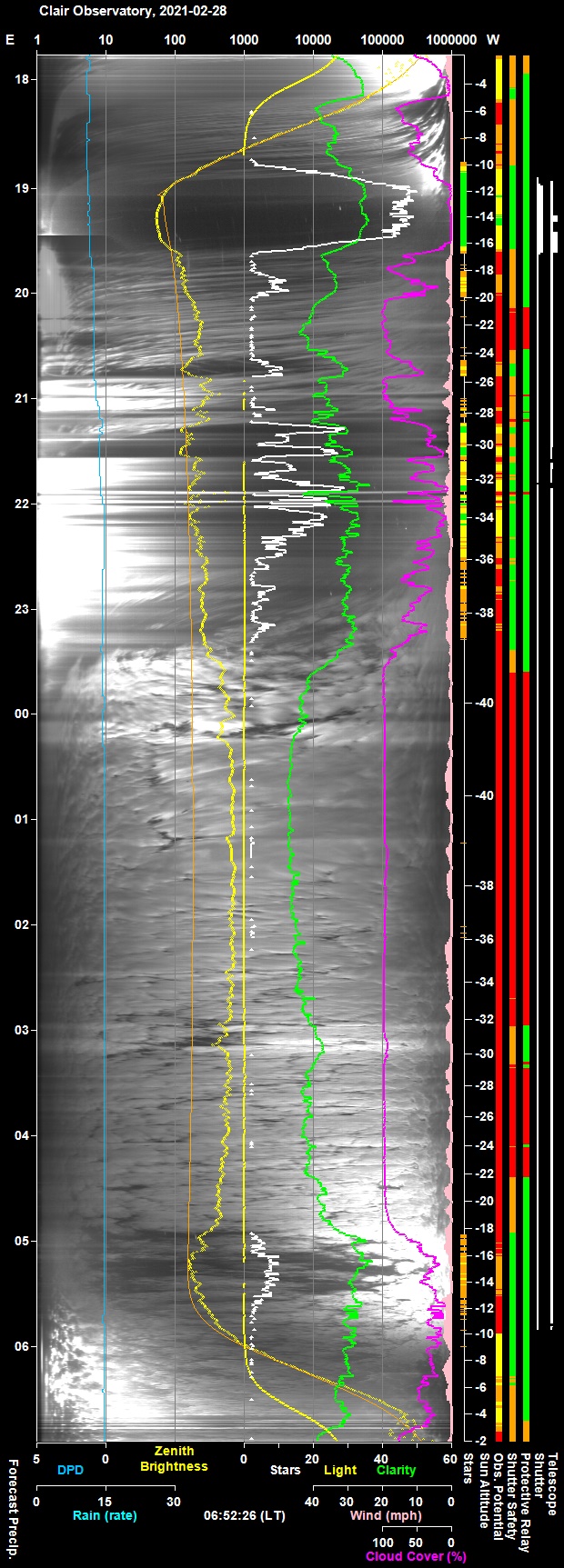

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

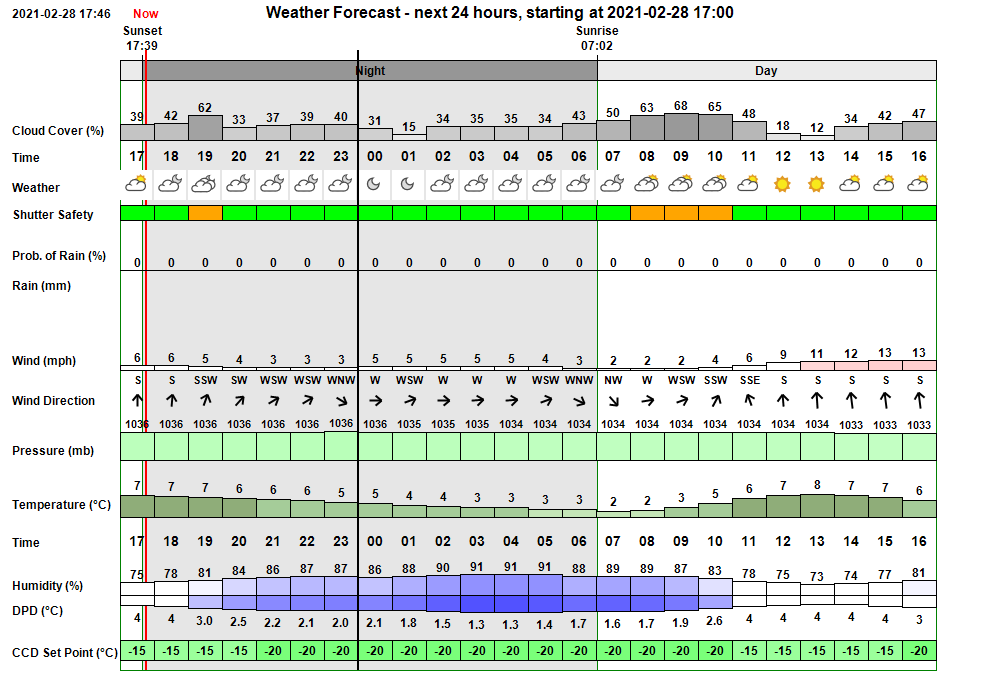

Pre-Session Weather Forecast (API data from darksky.net)

Session Event Log
Time     Event Detail
18:19:07 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 18:31 & 05:07
18:31:31   AutoStart Waiting AutoStart waiting till earliest start time at 18:31
18:31:32   AutoStart Delayed Session delayed due to cloud
18:53:58 Session AutoStarting Session autostarting (18:53)
18:54:28 Session Created Live Session Created (2021-02-28 S00866, ImageSaveNum: 866001)
18:54:30   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
18:56:29   Services Started Observatory Services started
18:56:37 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:56:38 Session Pending Session pending (2021-02-28)
18:56:40 Session Initiating Session initiating (2021-02-28)
18:56:42   Plan Requested Observing Plan requested from AstroPlan (1.20.5)
18:57:29   Plan Loaded Observing Plan loaded to queue (, Plan ID: 603)
18:57:43 Program Resumed AstroMain UI resumed again at 18:57 after 5s
18:57:46   Camera1 Connected SBIG Camera Connected (set point -20°C)
18:57:52   Telescope Connected Telescope Connected (TheSky6)
18:58:02 Session Equilibration Session ready for dome & camera equilibration
18:58:59   Dome Opened Dome opened (opening time 45s)
18:59:02   Equilibration Started Dome Equilibration started
19:04:39   Equilibration Ended Dome Equilibration ended (5.7 mins total)
19:04:41 Session Running Session running
19:04:43   Queue Started Observing Queue started (38 targets selected)
19:06:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:06:56       Focusing Failed Foc1 focusing failed - star lost
19:07:00       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
19:09:16       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide)
19:11:04       Focusing Completed Foc2 AutoFocus Completed (Profile No 1)
19:11:20       Focusing Checked Foc2 Focusing Check Succeeded
19:16:38     Target Started (1/38) Target started (1/38, Nova Per 2020 (CV))
19:20:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:24:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
19:26:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
19:34:43     Target Completed Target completed (1/38, Nova Per 2020 (CV))
19:34:45     Target Started (2/38) Target started (2/38, GCVS RX And)
19:36:02   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
19:37:37 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
19:37:39   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
19:37:43     Target Aborted (2/38) Target aborted (2/38, GCVS RX And) due to cloud
19:37:45   Queue Paused Queue paused for Session Suspension
19:37:47 Session Suspended Session suspended
19:38:37   Dome Closed Dome closed (closing time 45s)
19:39:40     Target Cancelled Target cancelled (2/38, GCVS RX And) due to cloud
19:59:12     Target Cancelled Target cancelled (3/38, SN 2021xn) due to cloud
20:11:30     Target Cancelled Target cancelled (4/38, GCVS BL Lac) due to cloud
20:31:22     Target Cancelled Target cancelled (5/38, UGC 2505 w/SN2021bge) due to cloud
20:45:14     Target Cancelled Target cancelled (6/38, AT2021dbp (CV)) due to cloud
20:57:48 Program Hung AstroMain UI hung when attempting to access Form
21:05:06     Target Cancelled Target cancelled (7/38, AT2021ckv) due to cloud
21:05:36 Job Queue Frozen Job Queue appears to have frozen at around 21:05 - 21:05
21:35:00 Session Resumed Live Session Resumed (2021-02-28 S00866, ImageSaveNum: 866013)
21:35:18   Obs.Manager Started Obs.Manager started
21:35:20   Obs.Overseer Started Obs.Overseer started
21:35:24   Services Started Observatory Services started
21:35:31   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:37:15   Services Started Observatory Services started
21:37:32   Telescope Connected Telescope Connected (TheSky6)
21:37:48   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:38:17 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:38:20 Session Pending Session pending (2021-02-28)
21:38:22 Session Initiating Session initiating (2021-02-28)
21:38:32   Plan Loaded Observing Plan loaded to queue (, Plan ID: 603)
21:38:36   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:38:41   Telescope Connected Telescope Connected (TheSky6)
21:38:53 Session Equilibration Session ready for dome & camera equilibration
21:38:55 Wait On Weather Waiting For acceptable conditions
21:38:57 Session Suspended Session suspended
21:38:59   Dome Closed Dome already closed (closure time is unknown)
21:39:01   Queue Started Observing Queue started (31 targets selected)
21:39:03     Target Missed (8/38) Target's time slot was missed (8/38, GCVS FU Ori)
21:39:05     Target Missed (9/38) Target's time slot was missed (9/38, NGC 304 w/SN2021dnn)
21:39:23 Program Hung AstroMain UI hung when attempting to access Form
21:49:10 Session Resumed Live Session Resumed (2021-02-28 S00866, ImageSaveNum: 866013)
21:49:29   Obs.Manager Started Obs.Manager started
21:49:31   Obs.Overseer Started Obs.Overseer started
21:49:35   Services Started Observatory Services started
21:50:05   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:51:49   Services Started Observatory Services started
21:52:16   Telescope Connected Telescope Connected (TheSky6)
21:52:38   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:53:24 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:53:27 Session Pending Session pending (2021-02-28)
21:53:29 Session Initiating Session initiating (2021-02-28)
21:53:40   Plan Loaded Observing Plan loaded to queue (, Plan ID: 603)
21:53:48   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:53:53   Telescope Connected Telescope Connected (TheSky6)
21:54:04 Session Equilibration Session ready for dome & camera equilibration
21:54:06 Wait On Weather Waiting For acceptable conditions
21:54:08 Session Suspended Session suspended
21:54:10   Dome Closed Dome already closed (closure time is unknown)
21:54:12   Queue Started Observing Queue started (28 targets selected)
22:10:59     Target Cancelled Target cancelled (11/38, GCVS RR Tau) due to other condition
22:25:15     Target Cancelled Target cancelled (12/38, 398P/Boattini) due to cloud
22:44:51     Target Cancelled Target cancelled (13/38, CGCG 264-017 w/AT2021bjy) due to cloud
22:58:24     Target Cancelled Target cancelled (14/38, GCVS DX Cnc) due to cloud
23:17:55     Target Cancelled Target cancelled (15/38, UGC 5760 w/SN2020zoq) due to cloud
23:39:47     Target Cancelled Target cancelled (16/38, NGC 4041 w/AT2021cek) due to cloud
00:01:39     Target Cancelled Target cancelled (17/38, UGC 3502 w/AT2021cwc) due to cloud
00:24:01     Target Cancelled Target cancelled (18/38, KUG 0830+278 w/SN2020adow) due to cloud
00:35:55     Target Cancelled Target cancelled (19/38, GCVS SY Cnc) due to cloud
00:55:32     Target Cancelled Target cancelled (20/38, UGC 5829 w/LBV2021blu) due to cloud
01:11:24     Target Cancelled Target cancelled (21/38, GCVS CN Leo) due to cloud
01:21:10     Target Cancelled Target cancelled (22/38, LAMOST-HVS1) due to cloud
01:30:48     Target Cancelled Target cancelled (23/38, GCVS ER UMa) due to cloud
01:42:06     Target Cancelled Target cancelled (24/38, GCVS RZ LMi) due to cloud
02:02:58     Target Cancelled Target cancelled (25/38, AT2021rl) due to cloud
02:24:50     Target Cancelled Target cancelled (26/38, NGC 4227 w/SN2021biz) due to cloud
02:36:38     Target Cancelled Target cancelled (27/38, GCVS AM CVn) due to cloud
02:52:45     Target Cancelled Target cancelled (28/38, UGC 6930 w/SN2020rcq) due to cloud
03:13:37     Target Cancelled Target cancelled (29/38, NGC 4631 w/AT2021biy) due to cloud
03:35:59     Target Cancelled Target cancelled (30/38, MCG +6-30-84 w/SN2021K) due to cloud
03:47:25     Target Cancelled Target cancelled (31/38, GCVS R CrB) due to cloud
04:06:32     Target Cancelled Target cancelled (32/38, AT2021dtd) due to cloud
04:28:24     Target Cancelled Target cancelled (33/38, IC 992 w/AT2021dwg) due to cloud
04:49:36     Target Cancelled Target cancelled (34/38, 7P/Pons-Winnecke) due to cloud
04:58:11     Target Cancelled Target cancelled (35/38, HIP 87937) due to cloud
05:17:35     Target Cancelled Target cancelled (36/38, CGCG 056-009 w/SN2021apf) due to cloud
05:29:53     Target Cancelled Target cancelled (37/38, GCVS CY Lyr) due to cloud
05:47:55     Target Cancelled Target cancelled (38/38, 61 Cyg) due to other condition
05:48:00   Queue Completed Job Queue completed
05:48:04 Session Closing Session closing
05:48:09   Dome Closed Dome already closed (closure time is unknown)
05:49:34   Dome Parked Dome parked (parking time 77s), Az: 90.0 deg
05:50:05   Telescope Parked Telescope parked (parking time 23s)
05:50:35   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
05:51:31   Services Stopped Night Services stopped
05:51:33 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
05:51:37 Session Finished Session Finished

Session Alerts
Time     Alert Detail
21:15:41 Job Queue Job Queue appears to be frozen (last IamAlive message at 21:05)


Back to Top


Operational Issues (2021-02-28 S866)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


2021-03-02


Visual Studio 2019 Installation and AstroSuite Project Transfer

VS 2019 (v16.8.6) was installed on Development Computer today (2021-03-02) as a test to workaround an issue with VS2017 whereby its performance had suddenly degraded to the point that it was interferring significantly with the development and testing of the AstroMain program.
(Visual Studio 2017 became very slow to run a program in the debugger, and very slow/non-responsive for up to a minute after finishing a program in the debugger or after a fatal program exception etc.  Various attempted fixes / computer restarts failed to solve the issue)

Installation of the community version of the VS2019 was very straightforward and after moving a copy of the AstroMain project folder to the new '\Visual Studio 2019\Projects' area, the project was successfully opened ok in VS2019. Build/program execution/debugging seemed to have relatively normal performance.

Since it was an intention to move up to VS2019 at some stage and since the key AstroMain project seemed ok in VS2019  it was decided to move entirely over to the using the new Visual Studio version.

The following day (2021-03-03) other AstroSuite projects were imported to VS 2019 and had their version numbers changed to reflect the fact they had moved to new environment.    In particular AstroMove was modified to recognise the new project location (fortunately this was a single line change).   Programs were tested briefly for any critical issues, projects backed up and then installed onto the Observatory Computer and/or AllSky/Weather Computer as relevant.

Program   Previous
Version
New
Version
AstroAllSky   3.9.3 3.10
AstroLaunch   1.5.2 1.6
AstroGuard   1.5.1 1.6
AstroMain   3.37.7 3.38
AstroMove   1.6.2 1.7
AstroObsCam 1.4.6 1.5
AstroPlan   1.20.6 1.21
AstroProtect   1.5 1.6
AstroSN   1.4.1 1.5
AstroShCap   1.3.10 1.3.11
AstroVOE   1.6 1.7
AstroWeather   1.11 1.12

Update 2021-03-04
VS 2019 was later updated to v16.9.0 on 2021-03-04.
(Noticing that this version whilst stated to include bug fixes seem to have more bugs in it that than 16.8.6, or at least has bugs that have a greater impact on my work ! )

Update 2021-03-12
VS 2019 was later updated to v16.9.1 on 2021-03-12
(Hopefully this will fix some of the issues noticed in 16.9.0)

Back to Top


2021-03-04

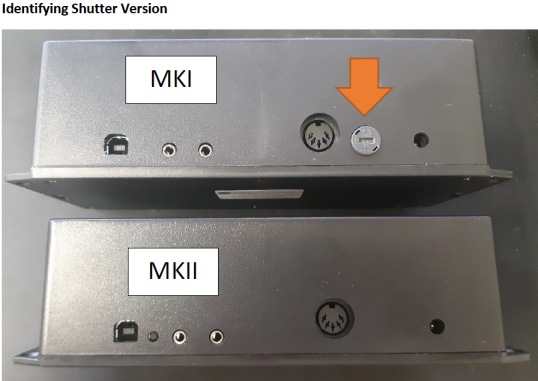

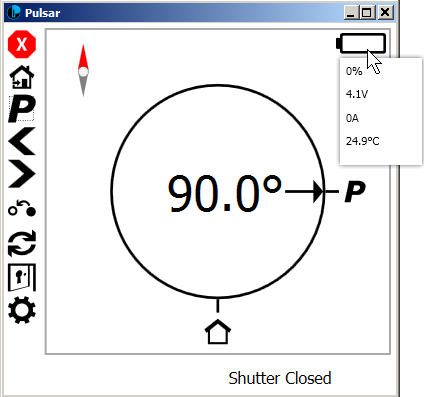

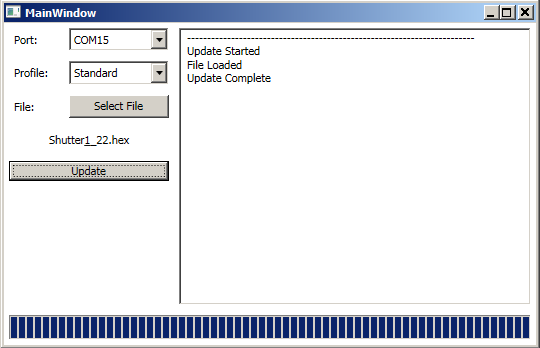

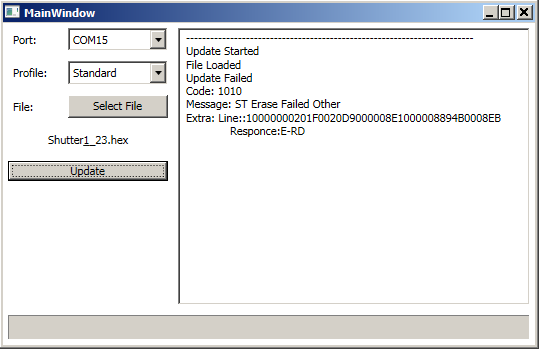

Pulsar Dome - Software Update (Shutter 1.23 attempt)

2021-03-18 Update
A new software file (1.24), was received and installed to the Shutter Unit on 2021-03-18 but didn't resolve issue (details here).

Update 2021-03-31
Shutter was updated to a new 1.25 version on 2021-03-31 which finally resolved issues associated with the shutter falling asleep (details here).
