Notes - Session 884 (2021-04-13)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (1),  Major Issues (0),  Minor Issues (1),  Continuous Improvement (2)
Bullet Images from 2021-04-13 >>     [ Local Files >> ]
Bullet Investigation - Shutter didn't fully close at end of session

Session Aims & Highlights (2021-04-13)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by conditions

Equipment & Software

Highlights

Summary Plots & Logs

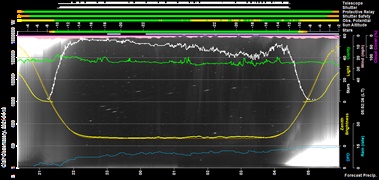

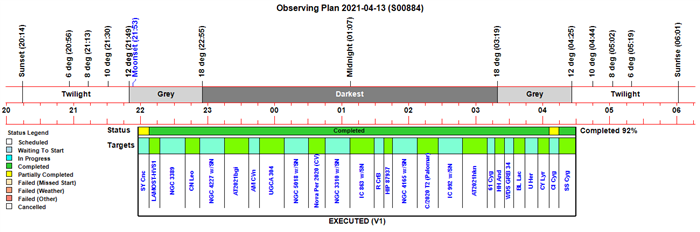

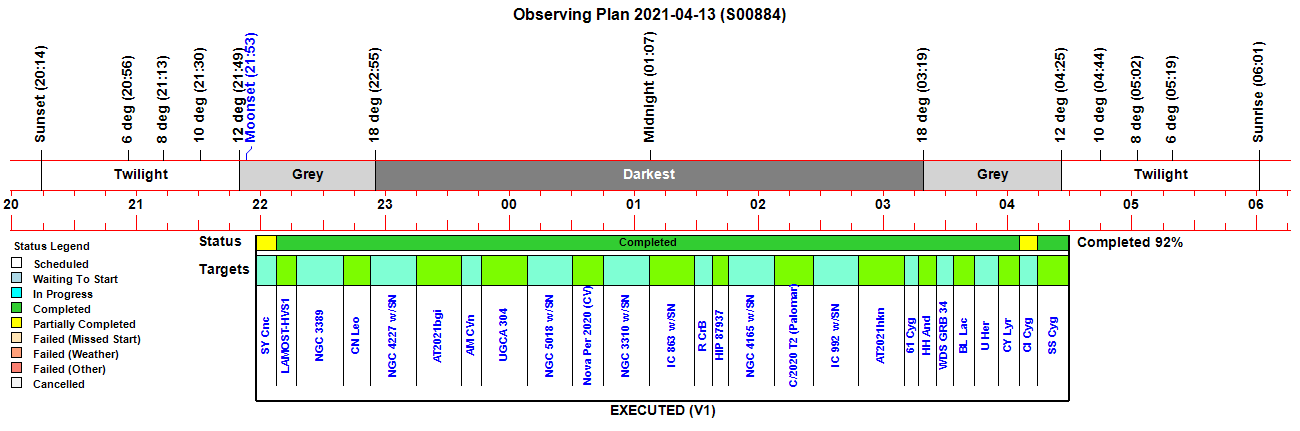

Observing Plan

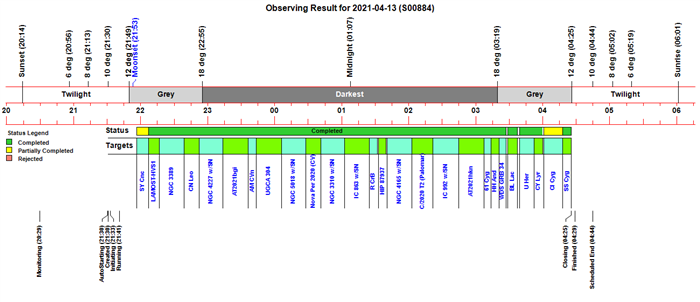

Observing Result

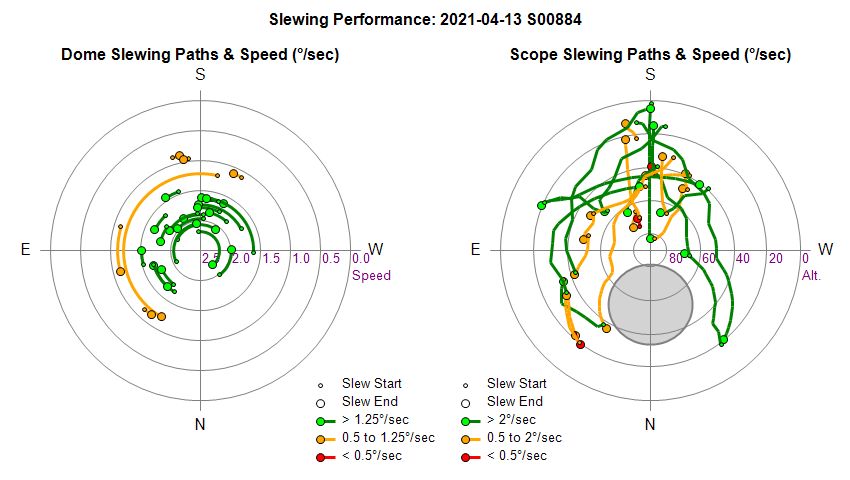

Dome & Scope Slewing Performance

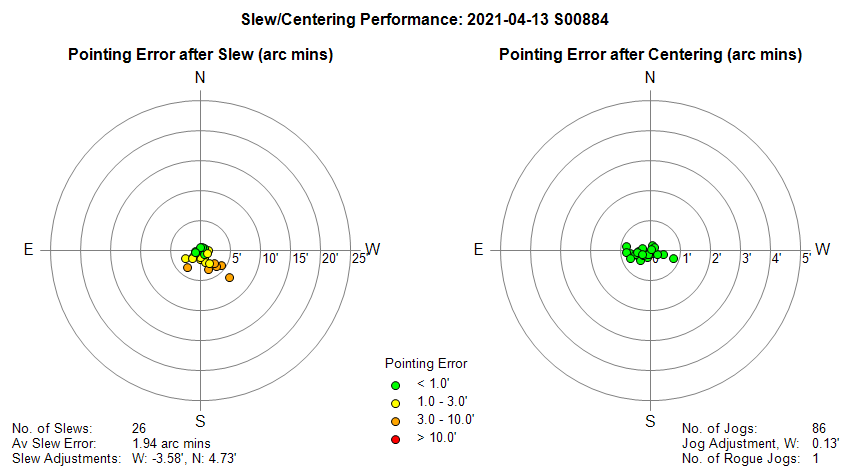

Slew/Centering Performance

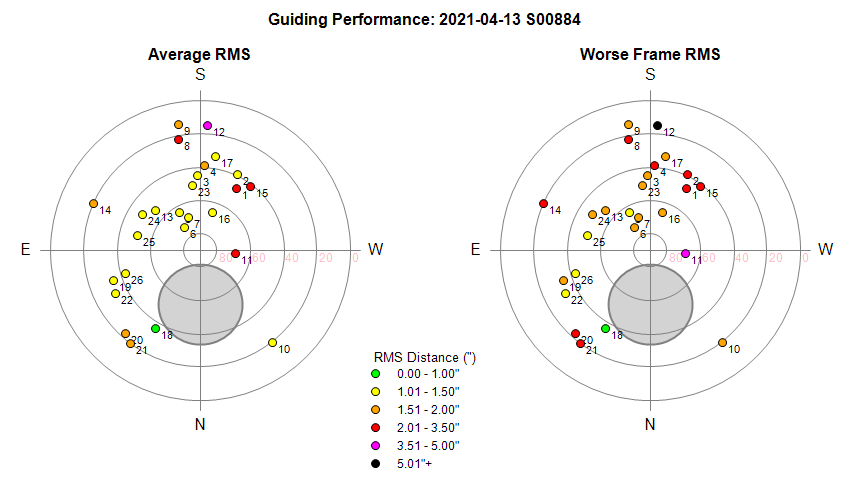

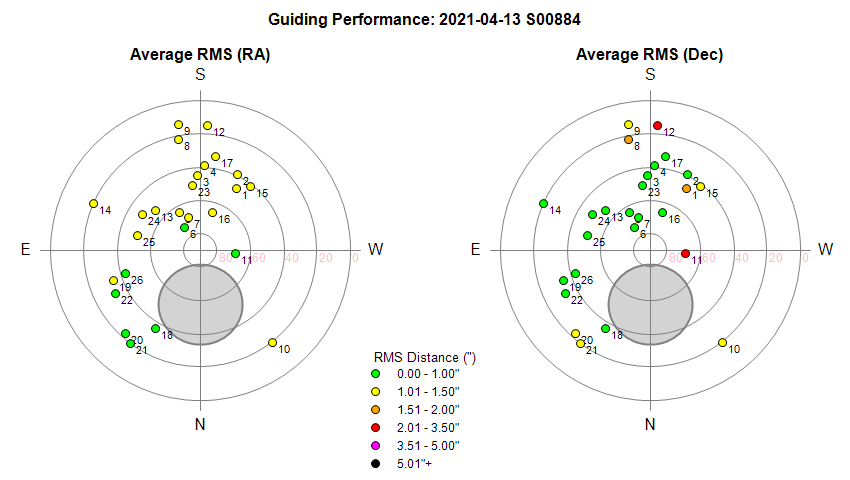

Guiding Performance
Dec Notes :
Run 11 (red) impacted by periods of ineffective Dec guiding
Run 12 (red) impacted by wrong Dec Guide Mode (should have chosen Dec Guide Mode South)
Run 1 (orange) impacted by periods of ineffective Dec guiding
Run 8 (orange) impacted by wrong Dec Guide Mode (should have chosen Dec Guide Mode South)

Sky Conditions (Locate Frames)

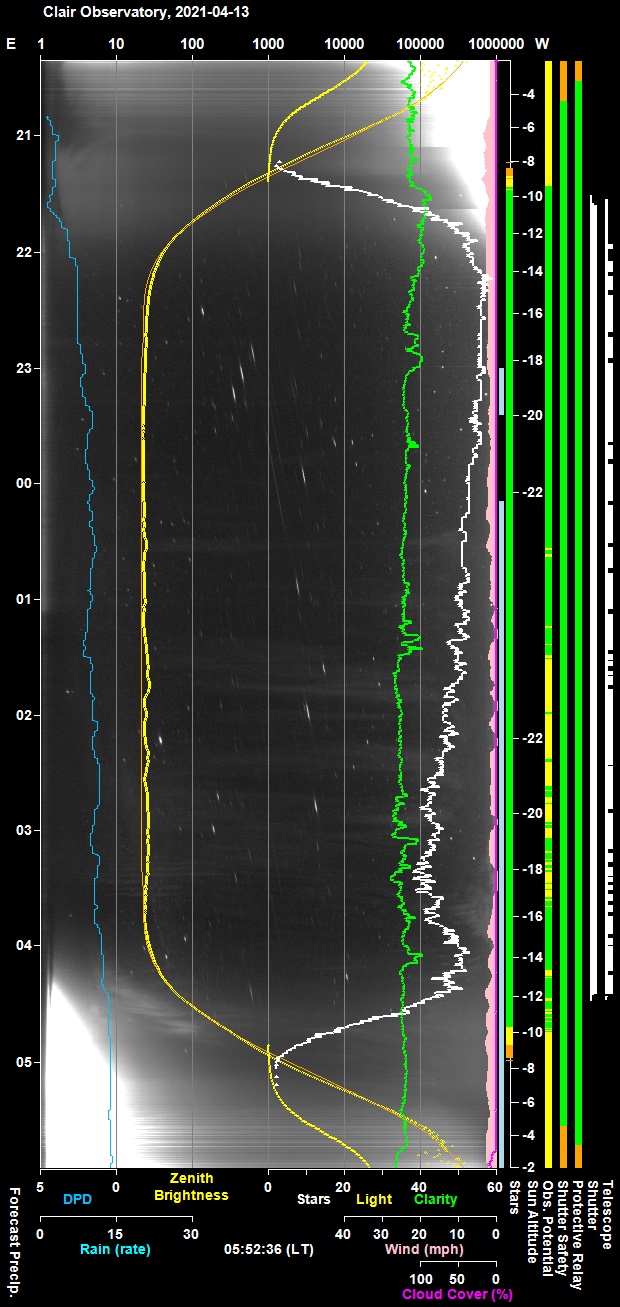

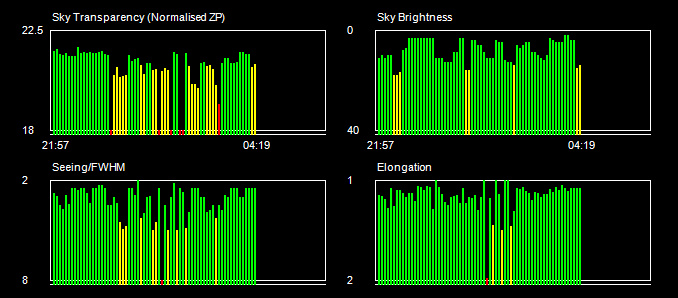

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

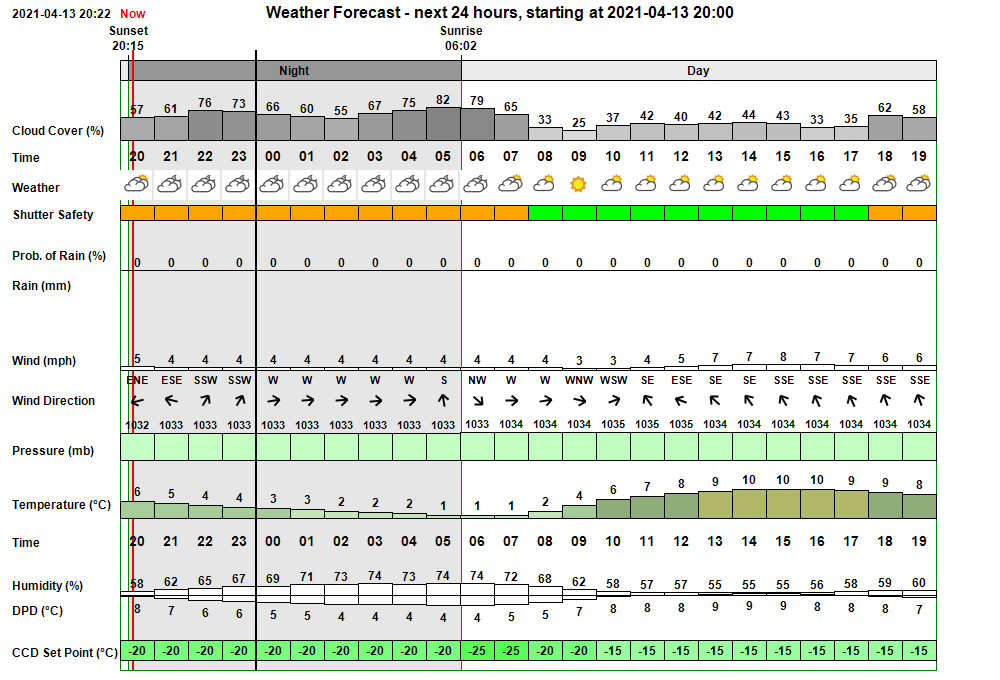

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
20:29:49 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 21:19 & 03:55
21:19:33   AutoStart Waiting AutoStart waiting till earliest start time at 21:19
21:19:34   AutoStart Delayed Session delayed due to cloud
21:30:14 Session AutoStarting Session autostarting (21:30)
21:30:45 Session Created Live Session Created (2021-04-13 S00884, ImageSaveNum: 884001)
21:30:48   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:32:46   Services Started Observatory Services started
21:32:55 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:33:00 Session Pending Session pending (2021-04-13)
21:33:02 Session Initiating Session initiating (2021-04-13)
21:33:04   Plan Requested Observing Plan requested from AstroPlan (1.21.6)
21:34:08   Plan Loaded Observing Plan loaded to queue (, Plan ID: 623)
21:34:22   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:34:28   Telescope Connected Telescope Connected (TheSky6)
21:34:38 Session Equilibration Session ready for dome & camera equilibration
21:35:45   Dome Opened Dome opened (opening time 45s)
21:36:01   Equilibration Started Dome Equilibration started
21:41:00   Equilibration Ended Dome Equilibration ended (5.0 mins total)
21:41:02 Session Running Session running
21:41:04   Queue Started Observing Queue started (26 targets selected)
21:42:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:45:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
21:47:08       Focusing Failed Foc1 focusing failed - failed QC check (Ambiguous)
21:47:12       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:49:29       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:51:17       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:51:33       Focusing Checked Foc2 Focusing Check Succeeded
21:56:14     Target Started (1/26) Target started (1/26, GCVS SY Cnc)
21:59:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:02:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 3, wide)
22:04:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
22:07:04     Target Completed Target partially completed (1/26, GCVS SY Cnc)
22:07:06     Target Started (2/26) Target started (2/26, LAMOST-HVS1)
22:10:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:12:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
22:16:57     Target Completed Target completed (2/26, LAMOST-HVS1)
22:16:59     Target Started (3/26) Target started (3/26, NGC 3389)
22:20:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:22:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:38:45     Target Completed Target completed (3/26, NGC 3389)
22:38:47     Target Started (4/26) Target started (4/26, GCVS CN Leo)
22:42:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:44:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
22:52:20     Target Completed Target completed (4/26, GCVS CN Leo)
22:52:22     Target Started (5/26) Target started (5/26, NGC 4227 w/SN2021biz)
22:55:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:57:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:13:33     Target Completed Target completed (5/26, NGC 4227 w/SN2021biz)
23:13:35     Target Started (6/26) Target started (6/26, AT2021bgi)
23:36:22     Target Completed Target completed (6/26, AT2021bgi)
23:36:24     Target Started (7/26) Target started (7/26, GCVS AM CVn)
23:39:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:40:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:43:36     Target Completed Target completed (7/26, GCVS AM CVn)
23:43:38     Target Started (8/26) Target started (8/26, UGCA 304)
23:48:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:50:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:06:13     Target Completed Target completed (8/26, UGCA 304)
00:06:16     Target Started (9/26) Target started (9/26, NGC 5018 w/SN2021fxy)
00:09:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:11:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:27:46     Target Completed Target completed (9/26, NGC 5018 w/SN2021fxy)
00:27:48     Target Started (10/26) Target started (10/26, Nova Per 2020 (CV))
00:31:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:33:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
00:41:35     Target Completed Target completed (10/26, Nova Per 2020 (CV))
00:41:37     Target Started (11/26) Target started (11/26, NGC 3310 w/SN2021gmj)
00:44:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:46:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:02:34     Target Completed Target completed (11/26, NGC 3310 w/SN2021gmj)
01:02:37     Target Started (12/26) Target started (12/26, IC 863 w/SN2021foa)
01:06:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:08:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:24:33     Target Completed Target completed (12/26, IC 863 w/SN2021foa)
01:24:36     Target Started (13/26) Target started (13/26, GCVS R CrB)
01:27:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:29:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:32:02     Target Completed Target completed (13/26, GCVS R CrB)
01:32:47     Target Started (14/26) Target started (14/26, HIP 87937)
01:35:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:37:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
01:40:02     Target Completed Target completed (14/26, HIP 87937)
01:40:39     Target Started (15/26) Target started (15/26, NGC 4165 w/SN2021gno)
01:45:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:47:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:02:56     Target Completed Target completed (15/26, NGC 4165 w/SN2021gno)
02:02:58     Target Started (16/26) Target started (16/26, C/2020 T2 (Palomar))
02:06:59       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:21:42     Target Completed Target completed (16/26, C/2020 T2 (Palomar))
02:21:44     Target Started (17/26) Target started (17/26, IC 992 w/SN2021dwg)
02:27:08       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:44:34     Target Completed Target completed (17/26, IC 992 w/SN2021dwg)
02:44:36     Target Started (18/26) Target started (18/26, AT2021hkn)
02:49:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:51:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:07:29     Target Completed Target completed (18/26, AT2021hkn)
03:07:31     Target Started (19/26) Target started (19/26, 61 Cyg)
03:10:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:12:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
03:13:42     Target Completed Target completed (19/26, 61 Cyg)
03:13:44     Target Started (20/26) Target started (20/26, GCVS HH And)
03:17:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:19:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
03:20:58     Target Completed Target completed (20/26, GCVS HH And)
03:21:00     Target Started (21/26) Target started (21/26, WDS GRB 34)
03:24:27       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
03:27:20     Target Completed Target completed (21/26, WDS GRB 34)
03:28:46     Target Started (22/26) Target started (22/26, GCVS BL Lac)
03:31:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:33:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
03:37:14     Target Completed Target completed (22/26, GCVS BL Lac)
03:39:04     Target Started (23/26) Target started (23/26, GCVS U Her)
03:43:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:45:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
03:52:20     Target Completed Target completed (23/26, GCVS U Her)
03:52:22     Target Started (24/26) Target started (24/26, GCVS CY Lyr)
03:54:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:56:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:00:12     Target Completed Target completed (24/26, GCVS CY Lyr)
04:00:47     Target Started (25/26) Target started (25/26, GCVS CI Cyg)
04:14:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:15:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:17:59     Target Completed Target partially completed (25/26, GCVS CI Cyg)
04:18:01     Target Started (26/26) Target started (26/26, GCVS SS Cyg)
04:25:21     Target Completed Target completed (26/26, GCVS SS Cyg)
04:25:24   Queue Completed Job Queue completed
04:25:28 Session Closing Session closing
04:26:13   Dome Closed Dome closed (closing time 40s), Shutter only 80% closed.
04:26:30   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg
04:27:13   Telescope Parked Telescope parked (parking time 37s)
04:27:43   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:28:35   Services Stopped Night Services stopped
04:28:37 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:29:03 Session Finished Session Finished
06:22:54 User Intervention User Intervention to correctly close dome
06:23:06   Dome Closed Dome Closed (closing time 12s, going from 80% to 100% closure)


Session Alerts
Time     Alert Detail
-- No Alerts                --


Back to Top


Operational Issues (2021-04-13 S884)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Shutter didn't fully close at end of session

Issue:  Shutter didn't fully close at end of session, although it was reported as Closed

Description:  Checking the ObsCam picture on the Observatory Status Webpage at 06:15 in the morning showed that the shutter was not fully shut, it was only 80% closed and daylight was streaming in !

This was despite the fact that ObsViewer, ObsManager, DeviceHub and AstroGuard all reported that the Shutter was 'Closed'.

Closing time was reported as being 35-40s. This is shorter than the normal closing time (50s) but consistent with the observation that shutter was only partially closed.   Checking the latest ObsCam picture on AllSky/Weather Computer showed that the dome was still partially open and a visual check from the house confirmed that the shutter was indeed partially open.

Although the weather was dry and the amount of shutter closure more or less protected the observatory equipment inside, the issue is deemed critical since the failure could have occurred with the shutter more fully open than it was and weather conditions could have unexpectedly deteriorated (with rain etc)

In order to make the observatory safe/secure the shutter was remotely commanded to open via DeviceHub at 06:22:54 which then, because of Critical Light Conditions, prompted AstroMain to automatically command an immediate shutter closure at 06:22:55. This closure was successfully executed with the dome finally fully closed at 06:23:06  (closing time 10s).

Analysis:  Examining the Session Report File / Session Events table shows the Session entered the 'Closing' State at 04:25:28 (which is an automated process that checks & closes the Observatory Shutter, parks the Dome, parks the Telescope, turns off the Camera etc)

The Pulsar Trace Log shows the Pulsar Dome receiving a CloseShutter request at 04:25:33, after which the shutter starts closing (shutter state 3) at 04:25:34,  becoming 'closed' (shutter state 1) at 04:26:09,  giving an apparent 'closing' time of 35s.  Subsequently the Dome then moving from Az 76.1 to Park Position (Az 90.0) at 04:26:18 to 04:26:19.

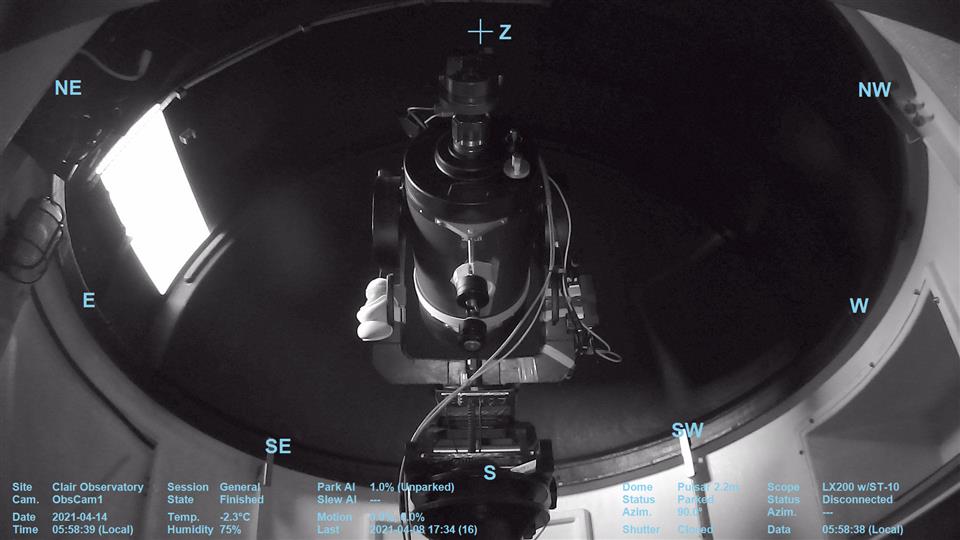

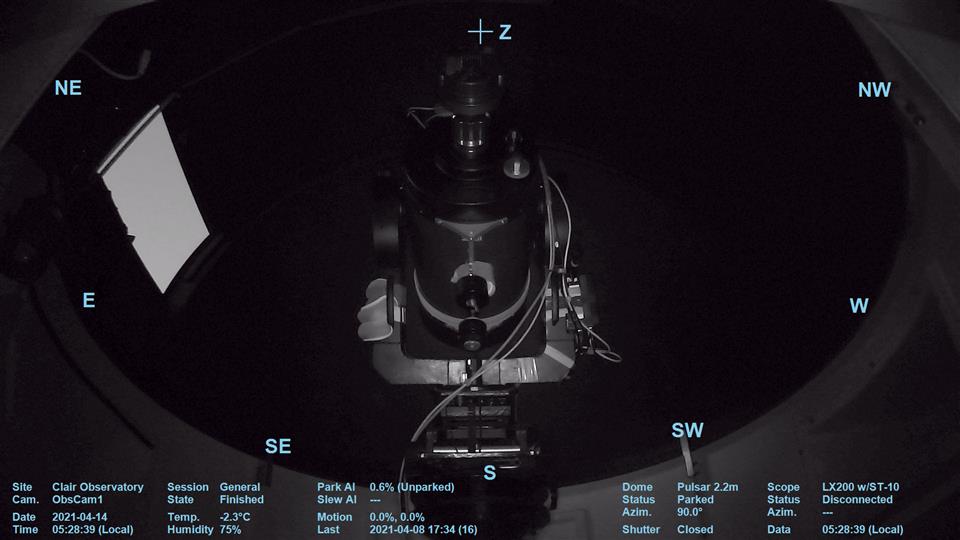

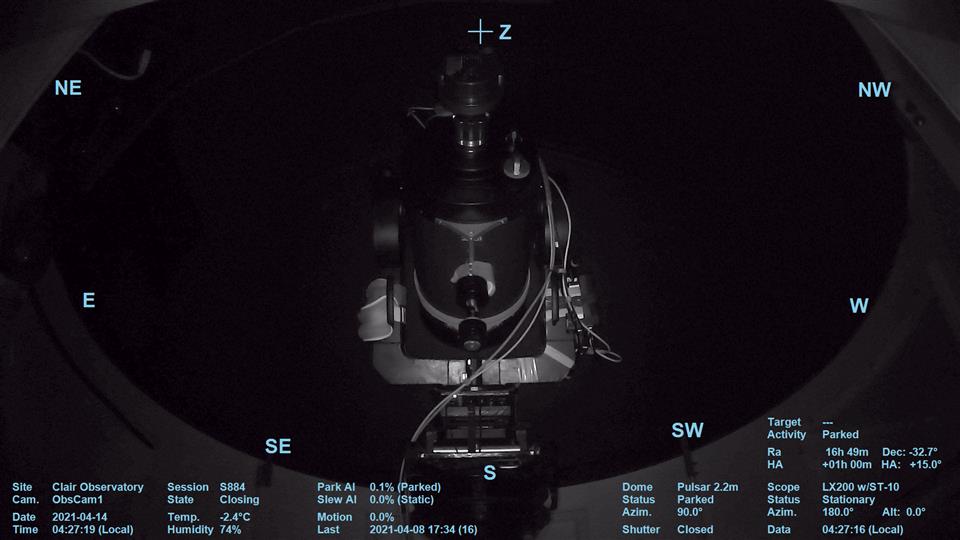

The ObsCam picture from 05:28 shows the shutter as being not fully closed, dawn sky can clearly be seen through the lower 20% of the shutter slit.

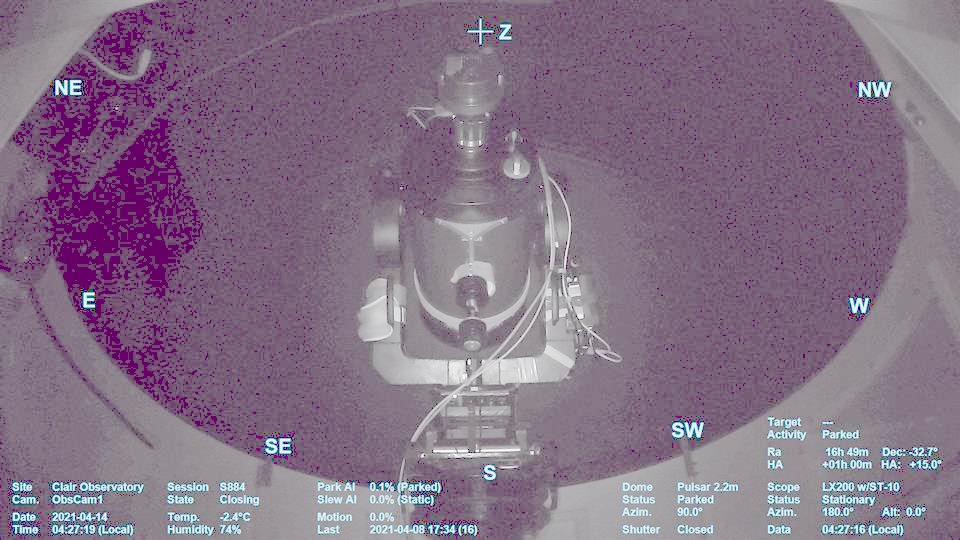

The Shutter Status in ObsCam pictures from 04:26 to 04:27 (Dome Parking),  04:28 and 04:58 is less clear due to the very limited contrast between the dark interior of observatory roof and the dark sky outside. Pushing image processing to the maximum however shows that the shutter was definitely not fully closed at 04:27. This eliminates the possibility that the shutter was fully closed at 04:26  but then became partly open at some point before 05:28.

The Shutter fully closed ok in the following three sessions (S885-S887) as it had done ok in the numerous preceeding sessions (S643-S883)

The only similar previous example of the Shutter not fully closing (other than due to chain issue) occurred in session S642 in Dec 2018 (see Investigation - Observatory Dome Still Open after Session Finished, 2018-12-19 ).  This was not fully explained either though it was felt to most-likely due to a short circut associated with small nicks in insulating layer of the 2 wires to the lower limit switch (apparently dating to original dome manufacture,  now repaired)

Conditions at Time
Freezing, -2.5 degC

The temperature at start of session when the shutter was initially opened  was 2 degC (21:35),  and then fell to 0 degC (22:40)
By the time the shutter was closed at the end of session (04:25) the ambient temperature had fallen to -2.5 degC.
Conditions were therefore below zero for some 5.5 hours before the incident occurred.

Critical Question
After closing for 35s why did the shutter system deem that the shutter had reached a Closed State without the shutter physically making contact with & depressing the lower limit switch.

Conclusion
The failure of the shutter to fully close at end of session is currently unexplained.

Action:
Image Pass on the observations & analysis to Pulsar Observatories for their information and possible comment.

Update 2023-02-15

At least two further occurance of the same issue (Pulsar Dome reporting that shutter is closed when it is only 75-80% closed) occurred in early 2023.  However these were automatically dealt with by introduction of a separate Zigbee based open/closed sensor on the shutter and enhanced autonomous operation by AstroMain's Obs.Manager which upon sensing this condition makes an interventation to properly close the shutter.  It does this by sending an open shutter command to dome and then as soon as shutter is showing as opening to then send a second Close Shutter command, which so far has preven to fix the issue.  The operation also takes an ObsCam picture before the interventation to capture a visual picture of the shutter state.

Back to Top
