Notes - Session 889 (2021-04-21)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (2),  Minor Issues (3),  Small Defects (0),  Continuous Improvement (1)
Bullet Images from 2021-04-21 >>      [ Local Files >> ]
2021-04-23
Bullet MeadeLX200GPS Driver Testing (2021-04-22 to 2021-04-25)
Bullet MeadeGeneric Driver Testing (2021-04-22 to 2021-04-28)
Bullet Telescope Rebalancing (2021-04-23)

Session Aims & Highlights (2021-04-21)

Main aims

  1. MeadeGeneric. Test out Meade Generic Driver for second time in a live session with workarounds in AstroMain 3.39.1
  2. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by conditions

Equipment & Software

Highlights

Notes:

Summary Plots & Logs

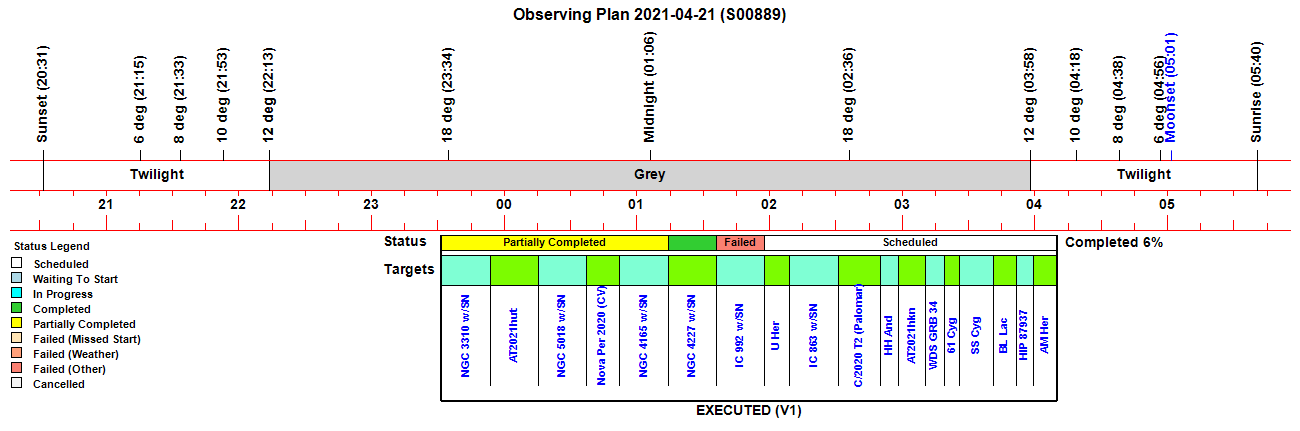

Observing Plan

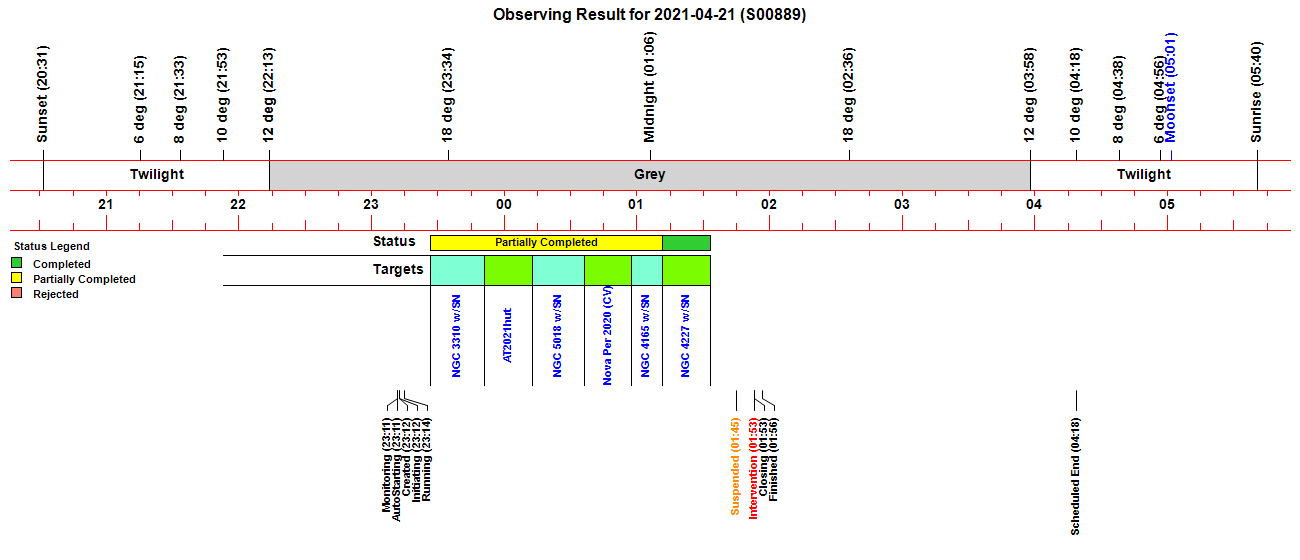

Observing Result

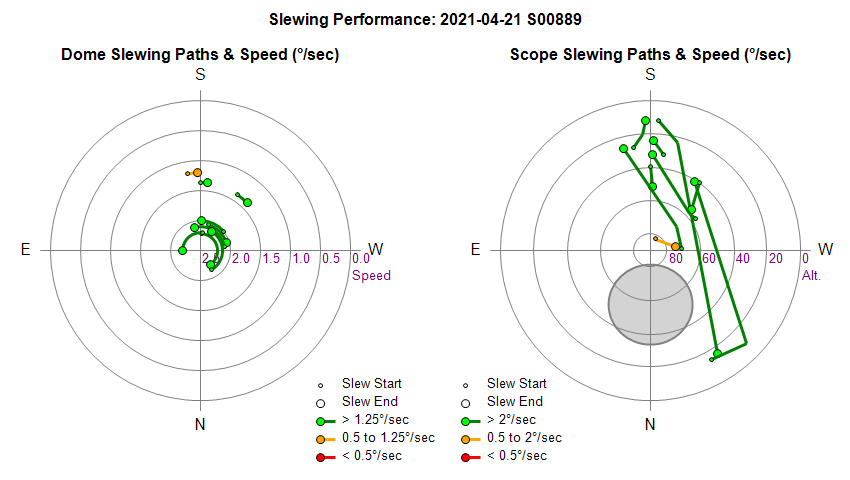

Dome & Scope Slewing Performance
Session using MeadeGeneric telescope driver (1.0.0.296). Scope paths appear as straight line segments
 instead of curved scope paths seen in earlier sessions using MeadeLX200GPS driver
(issue related to MeadeGeneric not correctly setting the telescope Slewing property)

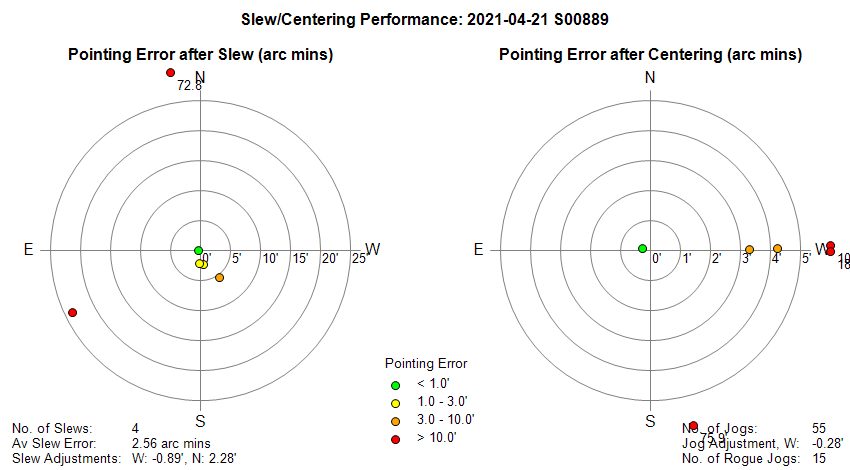

Slew/Centering Performance
Session using MeadeGeneric telescope driver (1.0.0.296). Poor centering performance is due
to MeadeGeneric not correctly setting the telescope Slewing property

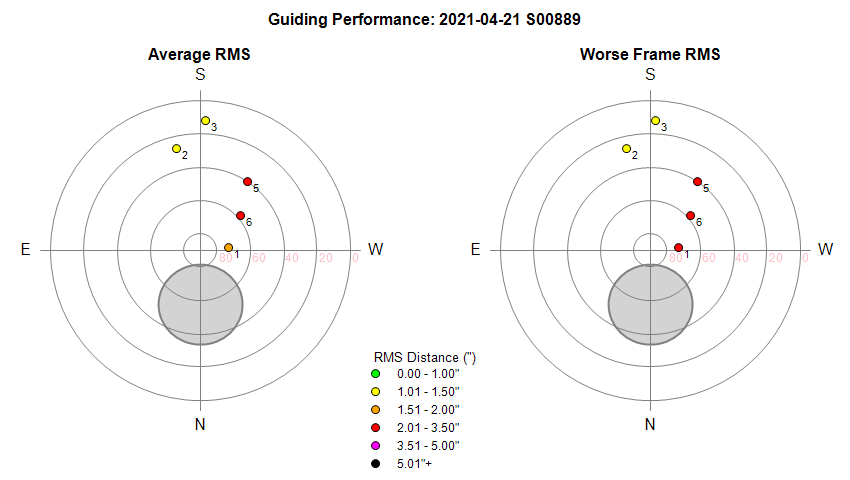

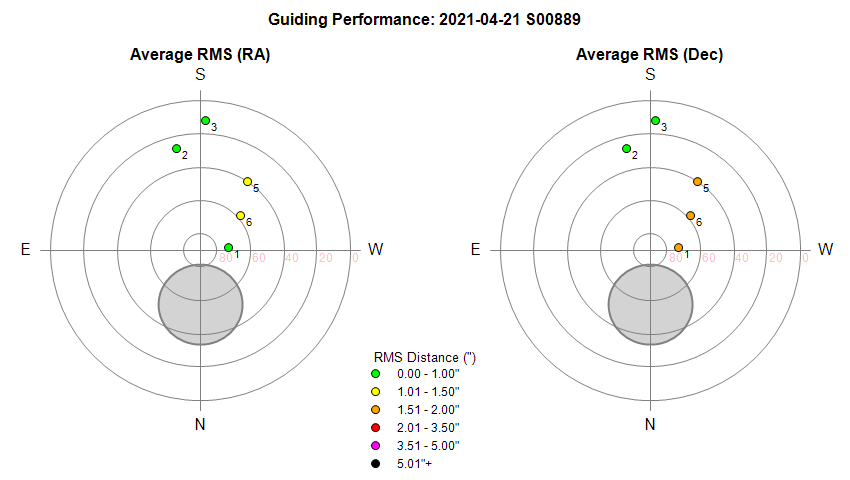

Guiding Performance
Dec Notes :
Run 1, Run 5 & Run 6 (orange) impacted by periods of ineffective Dec guiding

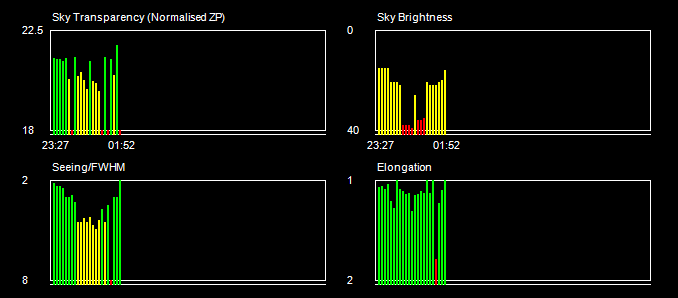

Sky Conditions (Locate Frames)

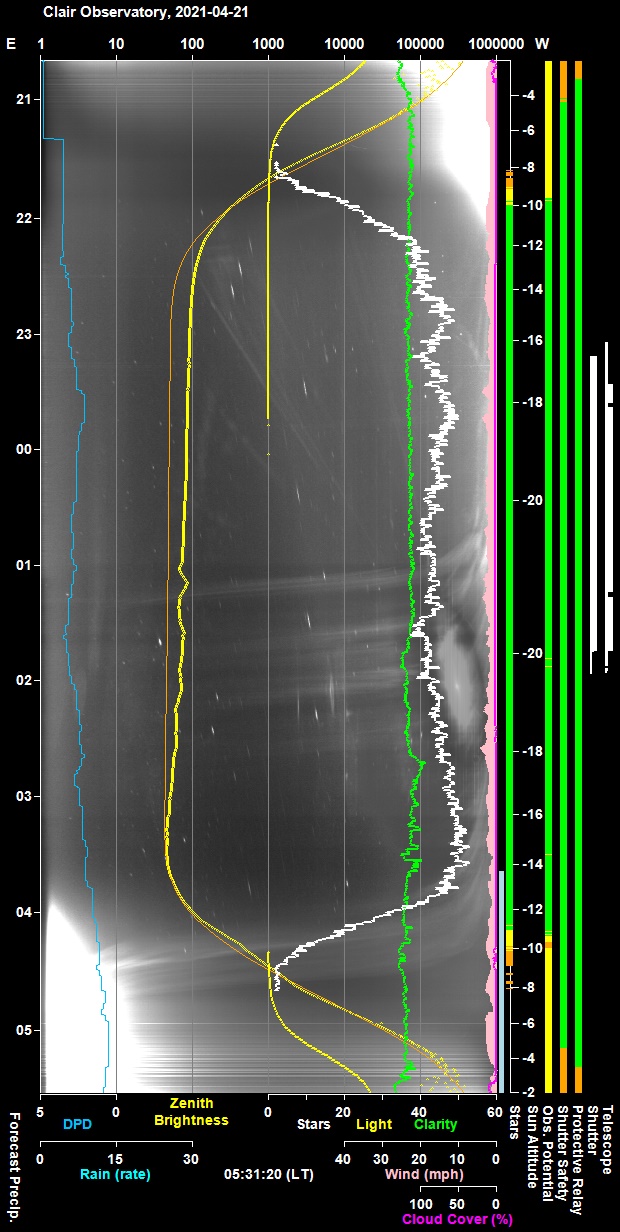

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
23:11:44 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 23:11 & 03:28
23:11:48 Session AutoStarting Session autostarting (23:11)
23:12:32   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:12:34 Session Created Live Session Created (2021-04-21 S00889, ImageSaveNum: 889001)
23:12:36   Services Started Observatory Services started
23:12:38 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:12:43 Session Pending Session pending (2021-04-21)
23:12:45 Session Initiating Session initiating (2021-04-21)
23:12:47   Plan Requested Observing Plan requested from AstroPlan (1.21.6)
23:13:59   Plan Loaded Observing Plan loaded to queue (, Plan ID: 628)
23:14:06   Camera1 Connected SBIG Camera Connected (set point -20°C)
23:14:12   Telescope Connected Telescope Connected (TheSky6)
23:14:22 Session Equilibration Session ready for dome & camera equilibration
23:14:43 Session Running Session running
23:14:45   Queue Started Observing Queue started (18 targets selected)
23:15:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:18:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
23:20:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
23:20:49       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
23:23:13       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
23:25:08       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
23:25:25       Focusing Checked Foc2 Focusing Check Succeeded
23:26:43     Target Started (1/18) Target started (1/18, NGC 3310 w/SN2021gmj)
23:36:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:38:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:50:58     Target Completed Target partially completed (1/18, NGC 3310 w/SN2021gmj)
23:51:00     Target Started (2/18) Target started (2/18, AT2021hut)
00:12:57     Target Completed Target partially completed (2/18, AT2021hut)
00:12:59     Target Started (3/18) Target started (3/18, NGC 5018 w/SN2021fxy)
00:20:09   Telescope Disconnected Telescope Disconected (TheSky6)
00:20:16   Telescope Connected Telescope Connected (TheSky6)
00:36:22     Target Completed Target partially completed (3/18, NGC 5018 w/SN2021fxy)
00:36:24     Target Started (4/18) Target started (4/18, Nova Per 2020 (CV))
00:57:34     Target Completed Target partially completed (4/18, Nova Per 2020 (CV))
00:57:37     Target Started (5/18) Target started (5/18, NGC 4165 w/SN2021gno)
01:11:38     Target Completed Target partially completed (5/18, NGC 4165 w/SN2021gno)
01:11:40     Target Started (6/18) Target started (6/18, NGC 4227 w/SN2021biz)
01:15:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:17:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
01:33:09     Target Completed Target completed (6/18, NGC 4227 w/SN2021biz)
01:33:11     Target Started (7/18) Target started (7/18, IC 992 w/SN2021dwg)
01:35:02 Job Queue Frozen Job Queue appears to have frozen at around 01:34 - 01:35
01:40:06   Telescope Disconnected Telescope Disconected (TheSky6)
01:40:13   Telescope Connected Telescope Connected (TheSky6)
01:45:07 Session Suspended Session suspended
01:45:57   Dome Closed Dome closed (closing time 50s)
01:52:47     Target Failed Target failed due To centering error (7/18, IC 992 w/SN2021dwg)
01:52:49   Queue Aborted Job Queue aborted
01:53:12 User Intervention User request to close and finish session
01:53:14 Session Closing Session closing
01:53:16   Dome Closed Dome already closed (closed at 01:45, closing time 50s)
01:54:05   Dome Parked Dome parked (parking time 44s), Az: 90.0 deg
01:55:25   Telescope Parked Telescope parked (parking time 74s)
01:55:55   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
01:56:45   Services Stopped Night Services stopped
01:56:47 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
01:56:58 Session Finished Session Finished


Session Alerts
Time     Alert Detail
23:31:08 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (NGC 3310)
01:45:07 Job Queue Job Queue appears to be frozen (last IamAlive message at 01:34)


Back to Top


Operational Issues (2021-04-21, S889)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2021-04-23


MeadeLX200GPS Driver Testing (2021-04-22 to 2021-04-28)

A series of daytime tests using Telescope Drivers was conducted on 2021-04-22 & 2021-04-23.  The main conclusions were :

Update 2021-04-24

Update 2021-04-25

Update 2021-04-26

Update 2021-05-22

Back to Top


MeadeGeneric Driver Testing (2021-04-22 to 2021-04-29)

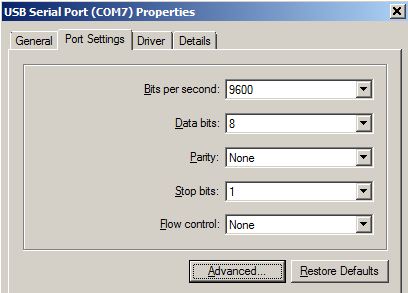

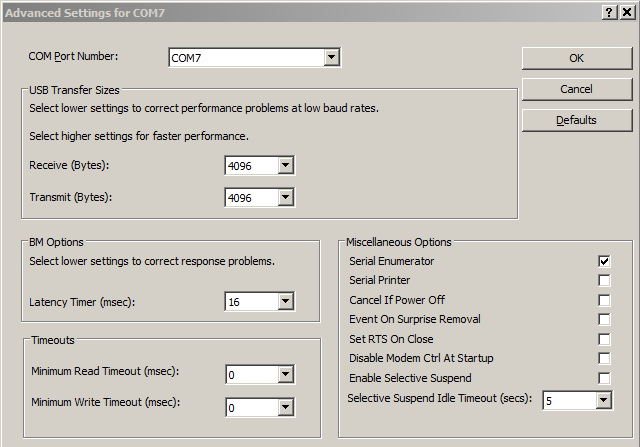

A series of tests were conducted between 2021-04-22 to 2021-04-25 using the MeadeGeneric telescope driver (v1.0.0.296 to 1.0.1.328)

2021-04-22 / 23

Update 2021-04-24

Update 2021-04-25

Update 2021-04-27

Update 2021-04-28

Back to Top


Telescope Rebalancing (2021-04-23)

Opportunity was taken to re-balance the OTA on the observatory' LX200 telescope today (2021-04-23).  This was an overdue task since OTA became unbalanced when secondary scope was removed and then re-attached at a different position on the dovetail  (see motor focus repair, 2020-10-02) . Since then louder than normal sounds began coming from the Dec drive when the scope was slewing at certain locations with greatest load.

Rebalancing was achieved by releasing the Declination clutch and adjusting the positions of the two weight sets suspended on the bottom of the OTA.  After this the scope was deemed to be very well balanced when the OTA was lying horizontal  and moderately well balanced when pointing vertically up.   As the RA position remained in the locked position,and scope repositioned close to the Park Position, the scope will be ok to resume from Park Position (subject to a resync & short mapping run).

Driving the scope from the handbox showed that loud sounds from the Dec Drive when slewing have reduced  following the rebalancing but had not totally disappeared.
(sounds are overall much more normal)
