David's Astronomy Pages Notes - Session 923 (2021-10-10)

Notes (S922)

Notes Main

Home Page

Notes (S924)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (4),  Small Defects (3),  Continuous Improvement (9)
	Images from 2021-10-10 >>          [ Local Files >> ]
	2021-10-12
	LX200 - New Dec Motor Unit

Session Aims & Highlights (2021-10-10)

Main aims

1. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. AstroMain Test fix in AstroMain 3.43.5 to major problem in the last session (S922, 2021-10-09) which was causing a 60s delay before each image frame
3. Foc2 Focusing.  Test revised code for selecting best focus in Foc2 Wide Search Focusing using a new Max Pixel weighted FWHM method

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2 2.6.10,  DeviceHub 6.5.1.4,  MeadeGeneric 1.3.1.361, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.43.5  AstroPlan 1.24.4  AstroShCap 1.3.2, AstroGuard 1.6.2,  AstroVOE 1.8,  AstroSN 1.6,  AstroProtect 1.6
  (AstroWeather 1.13, AstroAllSky 3.12, AstroObsCam 1.5.7)

Highlights

•   AstroMain.  AstroMain 3.43.5 confirmed to have fixed the major problem (60s delay before every image frame) that affected the last session.
•   Foc2 Focusing.  AstroMain 3.43.5 confirmed to have fixed the major problem (60s delay before every image frame) that affected the last session.

•  Wind /Poor Sky Transparency. Wind,  poor seeing, poor sky transparency caused poor guiding results & poor image quality
• Targets.  Few targets were acquired due to cloud (low-medium) and poor sky transparency (high cloud)

Notes:

  Forecast                              2021-10-10 21:24  (Local)
  Minimum Temperature         Ok        9.1°C             (Min. Temperature between now and sunrise)
  Temperature Change (High)   Ok        0.0°              (Temperature change between now and sunrise)
  Temperature Change (Low)    Ok        -1.5°
  Maximum Wind Speed          Ok        17.3 mph          (Max. Wind speed between now and sunrise)
  Maximum Wind Gust           Ok        29.1 mph

Summary Plots & Logs

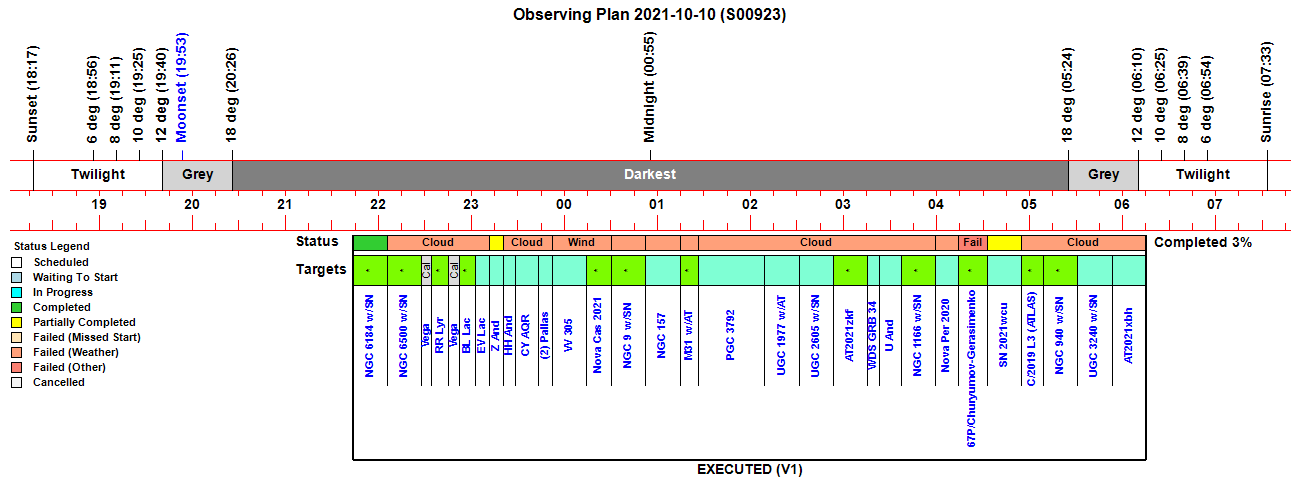

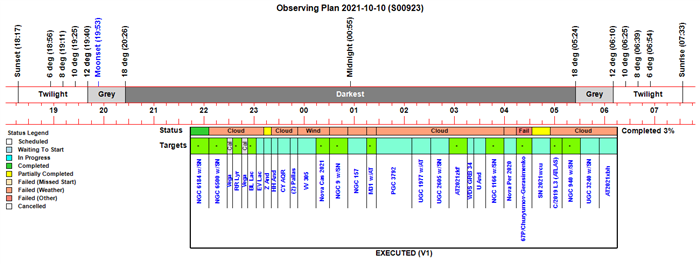

Observing Plan

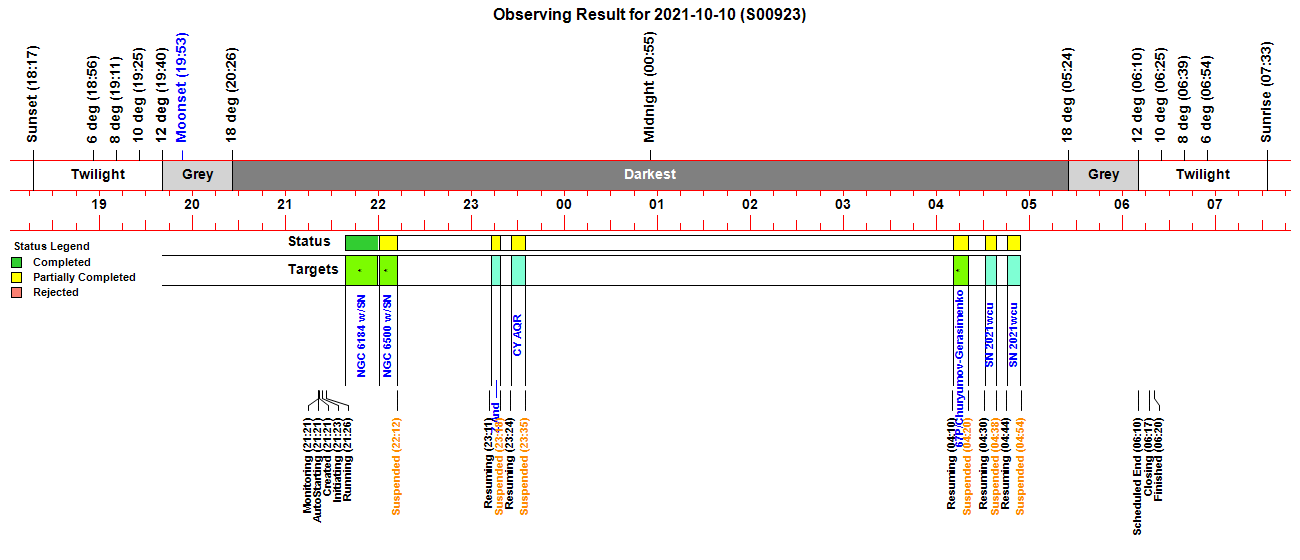

Observing Result

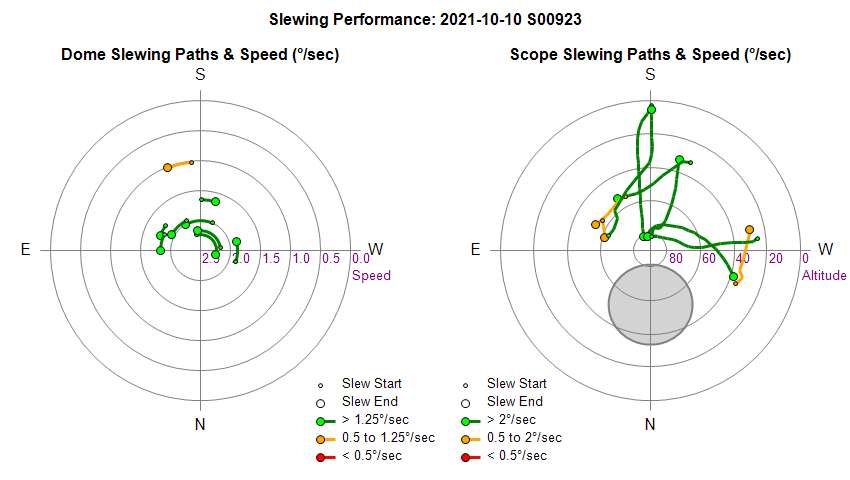

Dome & Scope Slewing Performance

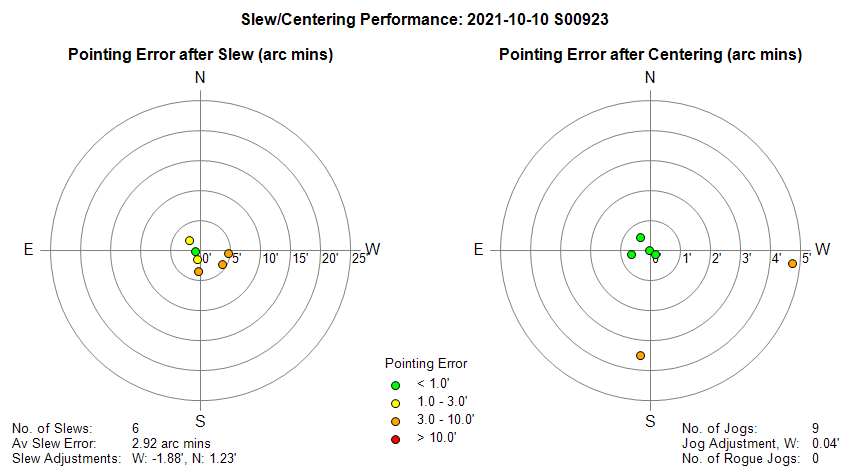

Slew/Centering Performance

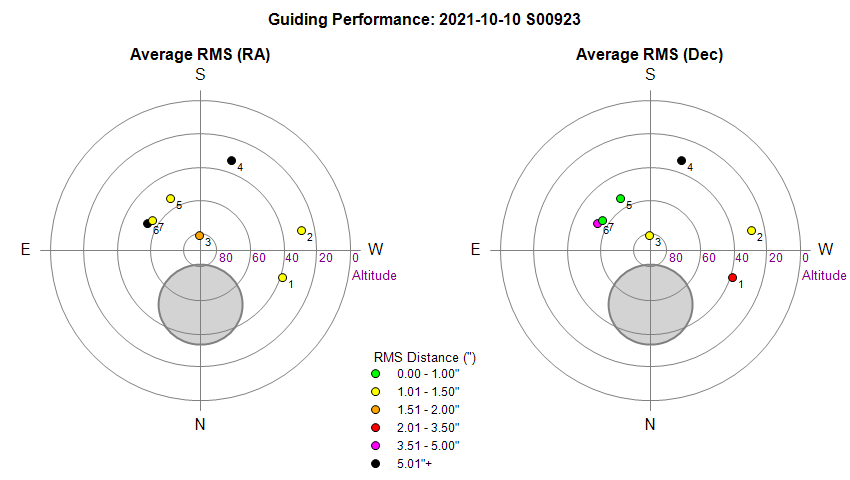

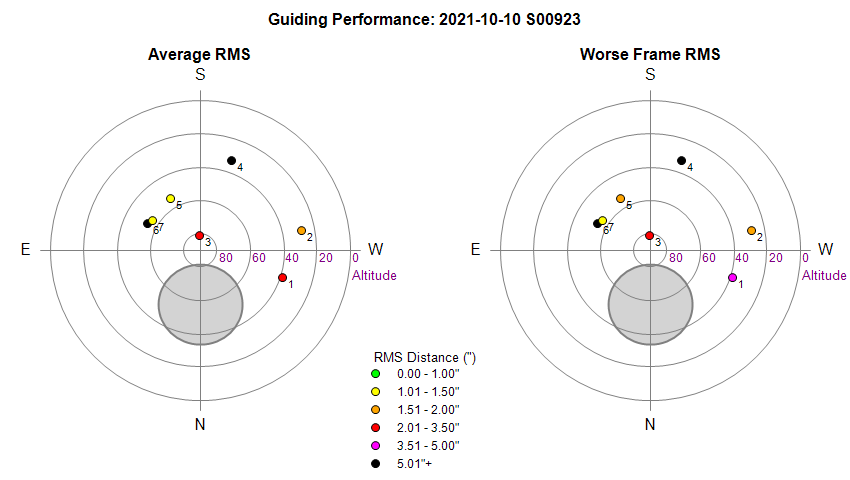

Guiding Performance

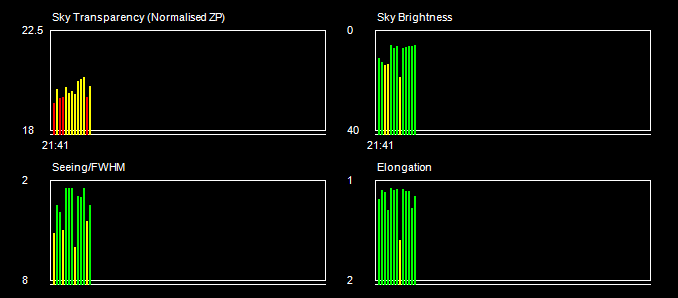

Sky Conditions (Locate Frames)

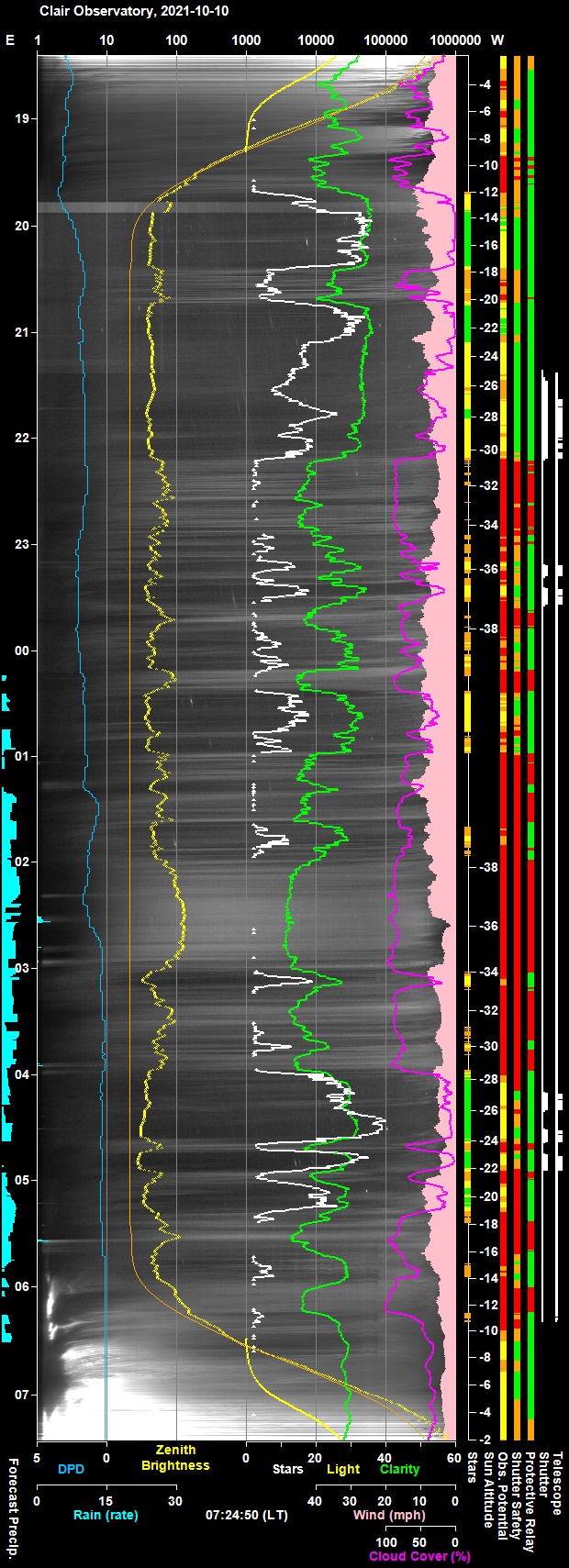

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

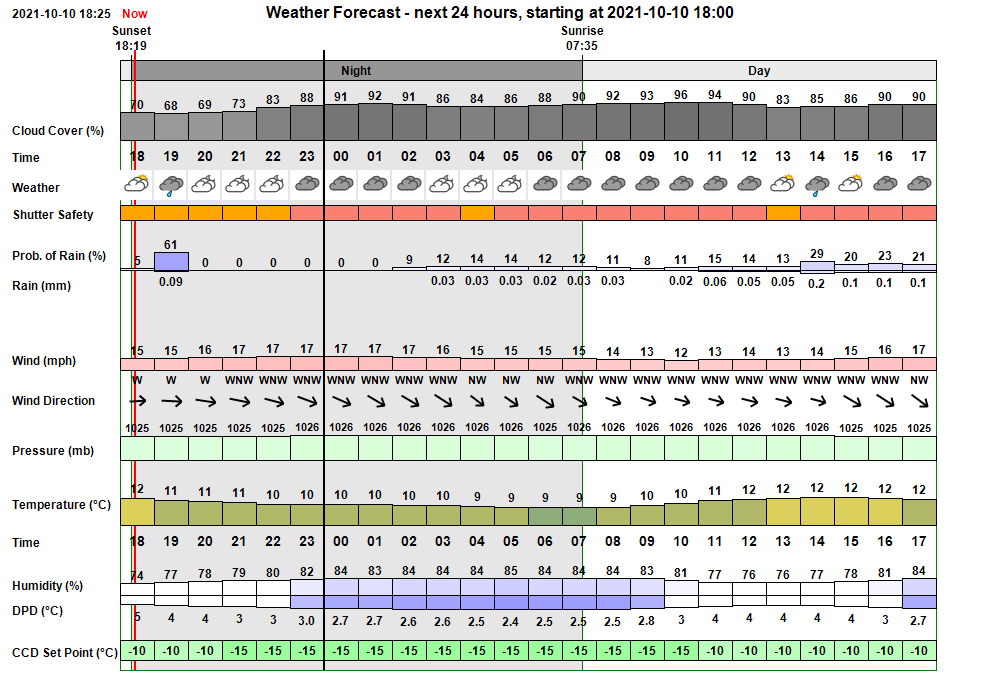

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:21:17 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:21 & 05:30 21:21:20 Session AutoStarting Session autostarting (21:21) 21:21:48 Session Created Live Session Created (2021-10-10 S00923, ImageSaveNum: 923001) 21:21:50   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:23:33   Services Started Observatory Services started 21:23:39 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:23:42 Session Pending Session pending (2021-10-10) 21:23:44 Session Initiating Session initiating (2021-10-10) 21:23:46   Plan Requested Observing Plan requested from AstroPlan (1.24.4) 21:24:19   Plan Loaded Observing Plan loaded to queue (, Plan ID: 671) 21:24:41   Camera1 Connected SBIG Camera Connected (set point -10°C) 21:24:47   Telescope Connected Telescope Connected (TheSky6) 21:25:11 Session Equilibration Session ready for dome & camera equilibration 21:25:56   Dome Opened Dome opened (opening time 45s) 21:26:46 Session Running Session running 21:26:49   Queue Started Observing Queue started (30 targets selected) 21:26:52     Target Started (NrZen) Target started (Focus Field 22, HIP 108888) 21:28:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:31:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:34:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:34:14       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:36:28       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:38:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:38:39     Target Completed Target completed (Focus Field 22, HIP 108888) 21:38:42     Target Started (1/30) Target started (1/30, NGC 6184 w/SN2021wkv) 21:43:01       Focusing Skipped Foc1 focusing skipped - unable To find a star (TCF-S) 22:00:15     Target Completed Target completed (1/30, NGC 6184 w/SN2021wkv) 22:00:38     Target Started (2/30) Target started (2/30, NGC 6500 w/SN2021wuf) 22:06:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:08:30       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 22:12:15   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 22:12:17 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 22:12:19   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 22:12:21     Target Aborted (2/30) Target aborted (2/30, NGC 6500 w/SN2021wuf) due to cloud 22:12:23   Queue Paused Queue paused for Session Suspension 22:12:25 Session Suspended Session suspended 22:13:15   Dome Closed Dome closed (closing time 50s) 22:19:28     Target Cancelled Target cancelled (2/30, NGC 6500 w/SN2021wuf) due to cloud 22:29:31     Target Cancelled Target cancelled (3/30, Vega) due to cloud 22:39:56     Target Cancelled Target cancelled (4/30, GCVS RR Lyr) due to cloud 22:47:29     Target Cancelled Target cancelled (5/30, Vega) due to cloud 22:56:47     Target Cancelled Target cancelled (6/30, GCVS BL Lac) due to cloud 23:06:27     Target Cancelled Target cancelled (7/30, GCVS EV Lac) due to cloud 23:11:55 Session Resuming Session resuming 23:12:40   Dome Opened Dome opened (opening time 45s) 23:12:42 Session Running Session running 23:12:44   Queue Resumed Observing Queue resumed 23:12:46     Target Started (8/30) Target started (8/30, GCVS Z And) 23:16:31   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 23:18:46 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 23:18:48   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:18:50     Target Aborted (8/30) Target aborted (8/30, GCVS Z And) due to cloud 23:18:52   Queue Paused Queue paused for Session Suspension 23:18:54 Session Suspended Session suspended 23:19:41   Dome Closed Dome closed (closing time 50s) 23:23:36     Target Cancelled Target cancelled (9/30, GCVS HH And) due to cloud 23:24:56 Session Resuming Session resuming 23:25:42   Dome Opened Dome opened (opening time 45s) 23:25:44 Session Running Session running 23:25:46   Queue Resumed Observing Queue resumed 23:25:48     Target Started (10/30) Target started (10/30, GCVS CY AQR) 23:29:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:31:12   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 23:31:57   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 23:33:17   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:34:52 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 23:34:54   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:34:56     Target Aborted (10/30) Target aborted (10/30, GCVS CY AQR) due to cloud 23:34:58   Queue Paused Queue paused for Session Suspension 23:35:00 Session Suspended Session suspended 23:35:47   Dome Closed Dome closed (closing time 50s) 23:37:37     Target Cancelled Target cancelled (10/30, GCVS CY AQR) due to cloud 23:46:49     Target Cancelled Target cancelled (11/30, (2) Pallas) due to cloud 00:06:31     Target Cancelled Target cancelled (12/30, VV 305) due to wind 00:25:02     Target Cancelled Target cancelled (13/30, Nova Cas 2021) due to wind 00:44:24     Target Cancelled Target cancelled (14/30, NGC 9 w/SN2021zju) due to threat of rain 01:06:46     Target Cancelled Target cancelled (15/30, NGC 157) due to cloud 01:20:38     Target Cancelled Target cancelled (16/30, M31 w/AT2021aaxp) due to wind 01:59:04     Target Cancelled Target cancelled (17/30, PGC 3792) due to cloud 02:23:26     Target Cancelled Target cancelled (18/30, UGC 1977 w/AT2021irz) due to cloud 02:45:18     Target Cancelled Target cancelled (19/30, UGC 2605 w/SN2021wvw) due to cloud 03:07:10     Target Cancelled Target cancelled (20/30, AT2021zkf) due to cloud 03:18:20     Target Cancelled Target cancelled (21/30, WDS GRB 34) due to cloud 03:31:01     Target Cancelled Target cancelled (22/30, GCVS U And) due to cloud 03:51:23     Target Cancelled Target cancelled (23/30, NGC 1166 w/SN2021zby) due to cloud 04:07:45     Target Cancelled Target cancelled (24/30, Nova Per 2020) due to threat of rain 04:10:17 Session Resuming Session resuming 04:11:03   Dome Opened Dome opened (opening time 45s) 04:11:05 Session Running Session running 04:11:07   Queue Resumed Observing Queue resumed 04:11:09     Target Started (25/30) Target started (25/30, 67P/Churyumov-Gerasimenko) 04:14:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:20:38 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Shutter) 04:20:40   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain) 04:20:43     Target Aborted (25/30) Target aborted (25/30, 67P/Churyumov-Gerasimenko) due to threat of rain 04:20:45   Queue Paused Queue paused for Session Suspension 04:20:47 Session Suspended Session suspended 04:21:33   Dome Closed Dome closed (closing time 50s) 04:27:27     Target Cancelled Target cancelled (25/30, 67P/Churyumov-Gerasimenko) due to other condition 04:30:59 Session Resuming Session resuming 04:31:44   Dome Opened Dome opened (opening time 45s) 04:31:46 Session Running Session running 04:31:48   Queue Resumed Observing Queue resumed 04:31:50     Target Started (26/30) Target started (26/30, SN 2021wcu) 04:34:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:38:35 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 04:38:37   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 04:38:39     Target Aborted (26/30) Target aborted (26/30, SN 2021wcu) due to cloud 04:38:41   Queue Paused Queue paused for Session Suspension 04:38:43 Session Suspended Session suspended 04:39:25   Dome Closed Dome closed (closing time 45s) 04:44:56 Session Resuming Session resuming 04:45:41   Dome Opened Dome opened (opening time 45s) 04:45:43 Session Running Session running 04:45:45   Queue Resumed Observing Queue resumed 04:45:47     Target Started (26/30) Target started (26/30, SN 2021wcu) 04:53:59     Target Completed Target partially completed (26/30, SN 2021wcu) 04:54:01     Target Started (27/30) Target started (27/30, C/2019 L3 (ATLAS)) 04:54:31 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Shutter) 04:54:34   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain) 04:54:36     Target Aborted (27/30) Target aborted (27/30, C/2019 L3 (ATLAS)) due to threat of rain 04:54:38   Queue Paused Queue paused for Session Suspension 04:54:40 Session Suspended Session suspended 04:55:27   Dome Closed Dome closed (closing time 50s) 05:03:34     Target Cancelled Target cancelled (27/30, C/2019 L3 (ATLAS)) due to cloud 05:23:11     Target Cancelled Target cancelled (28/30, NGC 940 w/SN2021vtl) due to cloud 05:45:33     Target Cancelled Target cancelled (29/30, UGC 3240 w/SN2021vau) due to cloud 06:17:25     Target Cancelled Target cancelled (30/30, AT2021xbh) due to cloud 06:17:30   Queue Completed Job Queue completed 06:17:34 Session Closing Session closing 06:17:39   Dome Closed Dome already closed (closed at 04:55, closing time 50s) 06:18:01   Dome Parked Dome parked (parking time 14s), Az: 90.0 deg 06:19:19   Telescope Parked Telescope parked (parking time 74s) 06:19:34   Telescope State Scope parked Turn scope off. (Handbox) 06:19:54   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:20:41   Services Stopped Night Services stopped 06:20:43 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 06:20:44 Session Finished Session Finished

Session Alerts

Time     Alert Detail 00:20:41 Dome Shutter Pulsar Shutter is deemed to be asleep (last fresh data was at 00:00:34) 00:23:02 Dome Shutter Pulsar Shutter has woken up (fresh data started at 00:23:01, outage 0.0 mins)

Back to Top

Operational Issues (2021-10-10, S923)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (4)
• Small Defects (3)
• Continuous Improvement (9)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Whilst testing new code on Development Computer the following exception occurred with Taking Single Target .  Exception details:
  ASCOM.DriverException  HResult=0x80131500 Message=CheckDotNetExceptions ASCOM.DeviceHub.Dome SlewToAzimuth System.Exception: CheckDotNetExceptions ASCOM.Simulator.Dome SlewToAzimuth System.ArgumentException: Delegate to an instance method cannot have null 'this'.
at System.MulticastDelegate.ThrowNullThisInDelegateToInstance()
at ASCOM.Simulator.Hardware.HW_Move(Double Az) in C:\ASCOM Build\Export\Drivers and Simulators\Dome Simulator .NET\Hardware.vb:line 147
at ASCOM.Simulator.Dome.SlewToAzimuth(Double Azimuth) in C:\ASCOM Build\Export\Drivers and Simulators\Dome Simulator .NET\Driver.vb:line 872 (See Inner Exception for details) (See Inner Exception for details)
Source=ASCOM.DriverAccess
  At the same time TheSky6 giving dialog messages ' The selected telescope driver is missing the RightAscension propert' & 'The ASCOM Scope is missing the Connected Property'.  Closed and restarted software, after which the routine worked ok with no repetition of the issue.
   Resolved 2021-10-11 (Development Computer)

• The "Focus Target:" section of the Target Info Chart shows an inappropriate Profile No in the particular cases where focusing fails. In situations where focusing fails  (eg due to dim star / can not far star etc) profile no should be given.
   Fixed 2021-10-11 (AstroMain 3.43.6)

• Guide Summary table on Latest Session webpage showing only 4 guide runs instead of 7 runs expected. Guide Summary Data table only showing data for Guide Runs 1 to 4.  Guide runs 5 to 7 are missing even though the uploaded Guiding Charts show that these guide runs, and the (guidesumm).dat held in the Session folder and the Live Folder is complete.   Problem occurs on at 3 different browsers and  2 different devices (ruling out  computer-device or browser dependant caching issue). There was plenty of time between Guide Run 5 and the end of session for the GuideSumm file to have been updated. AstroPlan shows Session.GuideSumm.dat uploads at 21:23 (Initial) , 22:01 (Run 1), 22:13 (Run 2), 23:19 (Run 3), 23:35 (Run 4). Although other files were uploading there were no uploads corresponding to Run 5 (04:13), Run 6 (04:33) & Run 7 (04:45).     Although the Session.GuideSumm.dat file is complete (ie. includes all 7 runs) it is noticed the files last modifed data is 2021-10-10 23:34 .  This would seem to be critical since AstroPlan's webuploader is triggered by changes in a file's modified date, and if modified date hasn't changed the file isn't uploaded.    Can uploader also look at file size as this could be another indicator that page has changed.  GuideSum file is opened with  AutoFlush = True so that changes are also written to disk file.   Problem has been occasionally been seen before.   Fix attempted by closing (guidesumm).dat file  after each image >= 180s exp and after completion of each guide run, in order to force a firm update/modification of the file on disk.
   Fixed 2021-10-13 (AstroMain 3.43.6, Session, AstroPlan, Website)

• Dome shutter data outage wasn't reported correctly.  Dome shutter was deemed to be asleep at 00:20:41 (last fresh data was as 00:00:34, ie 20 mins beforehand) raising a yellow session alert. Shutter was deternmined to have been woken up at 00:23:01 producing a green alert.  Outage was reported as 0.0 mins rather 23 mins ? A similar problem occurred in the following S924 session (2021-10-13).  Reviewed 2021-12-20 with decision to close issue as it is believed to have been resolved by modification in AstroMain to search further back in ASCOM log folder history for the current Pulsar log file (which might have opened over 48 hours previously). Previously the search was only made in last 2 days of history.
   Closed after review 2021-12-20 (Session)

Small Defects

• Session Local Web Page is missing AllSky Picture for 67P/Churyumov-Gerasimenko 67.  Investing shows that there is a AllSky.20211011.031409.00526944.an.67PChuryumov-Gerasimenko.jpg file available but it can not be recognised as a match for the target_mod name "67P Churyumov-Gerasimenko".   In replacing the "/" symbol from the name in AstroAllSky's SaveScopeImage() routine it appears that is is replaced with empty string "" instead of  " "
   Fixed 2021-10-11 (AstroAllSky 3.12.1)

• During attempted playback of Foc2 Focus Profile 4 from session S918 the profile failed to take any focus points and although reported iy 'Fail' result for Best Focus Position,  it reported that profile had 'Passed QC Check'
   Fixed 2021-10-12 (AstroMain 3.44)

• When running in Test Mode '_ROT' subfolder and '..rot.FIT' files are not saved in the Session's New folder area but get put in '_Test Files' folder.   Fixed by referencing  'Session.AutoSaveFolder'  when building subfolder path and file names.
   Fixed 2021-10-12 (AstroMain 3.44)

Continuous Improvement

• Report file 'Contents' shouldn't be written for general sessions. Hyperlinked Contents table is relevant for Live Sessions (and Test Sessions) but it isn't relevant to General Sessions.
   Done 2021-10-11 (AstroMain 3.43.6)

• The Target Info Chart should show a  "Focus Target:     Focusing Cancelled " statement in the event that focusing is cancelled due to insufficient time. Currently  no "Focus Target:" statement is written.
   Fixed 2021-10-11 (AstroMain 3.43.6)

• Support upload and display of live spectra charts on web site.  AstroPlan webuploader modified to support upload of Spectral charts 'Session.SpectralChart0x.png' .  Current/Latest Session and Latest Targets pages and their embedded javascripts modified to support the display of Spectral Charts (.png files)
   Done 2021-10-12 (AstroMain 3.44, AstroPlan 1.25 & WebSite)

• Query: What caused the 100% CCD Power Cooling spike at 23:29. A cooling power spike is evident at 23:28-23:29 but it doesn't seem to correspond with a lowering of the CCD Set Point, or any obvious temperature change. Logs and other data sources examined.  Monitor file confirms that Cooling Power jumped from 83% to 100% at around 23:28 and then quickly dropped back down to 90% at 23:30 and then to 80% by 23:32. There is no explainable reason for the increase in cooling power. Conditions were stable and whilst CCD cooling was biouncing around at top of cooling power window, there is nothing to indicate that ccd cooler was struggling to maintain CCD Temperature at set point temperature of -15 degC.  Incident is put down to a random glitch. Following review the item is deemed to be closed.
   Closed 2021-10-12 (Session)

• When a hold on imaging is required by the Guiding Monitor the actual start position of the image set/image frame should be indicated on the Guiding Chart's History Graph. Should a 20s or 30s delay be occurred this should be reflected by the Guiding Chart which should show the actual Image Frame intervals, with 'gaps' showing where delays are inserted.  Ab attempt to implement this was made in 3.43.4 / 3.43.5 but it doesn't seem to be effective.  Changes made to AstroMain 3.44 but need a live test to confirm
   Done 2021-10-12 (AstroMain 3.44)

• Get PHD2 version by extracting it from the program's ReadMe file (AstroLaunch).  AstroLaunch is unable to get PHD2 program version from the program's exe file in the same way that it can for many other programs.  Instead of displaying 0.0.0.0 against PHD2 program in AstroLaunch list of programs it should be possible to easily extract the version number from the first line of the program's ReadMe file 'README-PHD2.txt' which looks like 'Welcome to PHD2 Version 2.6.10dev2' .
   Done 2021-10-13 (AstroMove 1.6.5)

• Develop a way of getting autofocusing playback to use  a session's '(focus).dat'  files sitting in its original location. Currently a session's ..(focus).dat file has to be copied to the '..\CCD Imaging\Analysis\_Focus'  folder and renamed as 'focus.dat' in order to playback focus runs from a session.  It would be more convenient to be able to simply specify the session number like '918' and have the program automatically find and access the original (focus).dat file. . Makes use of new routines SetHistoricalFocusDataFilePath() and GetSessionFolder() and a new global 'gHistoricalFocusDataFilePath'.
   Done 2021-10-13 (AstroMain 3.44)

• Add 'points legend' to Focus Profile charts.  FWHM (orange), HFD (cyan) and Max Pixel (lime) points to be shown in the right hand legend area with a note that the Max Pixel points are 'not to the same scale' .
   Done 2021-10-13 (AstroMain 3.44)

• Develop a way of getting test mode to use raw FIT images sitting in their original location. Currently test mode files have to be copied into Test/Demo folder area before running.   It would be more convenient to be able to have the program automatically find and access the original FITS images, based on supplied starting image number. Makes uses of new global  'gTestModeFilePath'
   Done 2021-10-13 (AstroMain 3.44)

• Add Button facility to open a session's '(focus).dat' file for review given it's Session No.  This is to provide a convenient shortcut directly to the file rather than searching for the file using Windows Explorer.
  Done 2021-10-19 (AstroMain 3.44.4

• Can the new delay to imaging after significant focuser movements be better optimised.  In AstroMain 3.43.4 / 3.43.5 a 20s hold on imaging is inserted by the Guiding Monitor after any significant change to focuser position (due to filter change and/or temperature change).   Some delay to imaging is appropriate given the 1 to 3 arc sec shifts in Dec position that are frequently seen when making a large focuser change, but is the arbitary figure of 20s the right delay ?  Should the time be dependant on monitoring the Dec position, so if the Dec position of the guide star is close to Lock position the hold is cancelled to allow imaging to continue. In the shortterm the delay has been reduced to 10s pending a more considered solution. Closed after review 2022-02-15 as item done sometime in early Feb 2022.
   Done Feb 2022 (AstroMain)

[ Prev | Next ]

Back to Top

2021-10-12

LX200 - New Dec Motor Unit

In the hope of resolving ongoing issue with poor Dec Guiding performance when operating west of the Meridian a new Dec Motor Unit has been ordered today for the observatory's 12" LX200 Main Scope & Mount.   Supplier: Meade UK / Optic Star (https://www.meadeuk.com/  &  http://www.opticstar.com/).

(Motor Unit is like this one :  https://agenaastro.com/meade-lx200-dec-motor-37-7260-01lf.html )

Update: New Dec Motor Unit arrived today (2021-10-14)

Update: New Dec Motor Unit was installed on the Observatory's LX200 Scope today (2021-10-15)

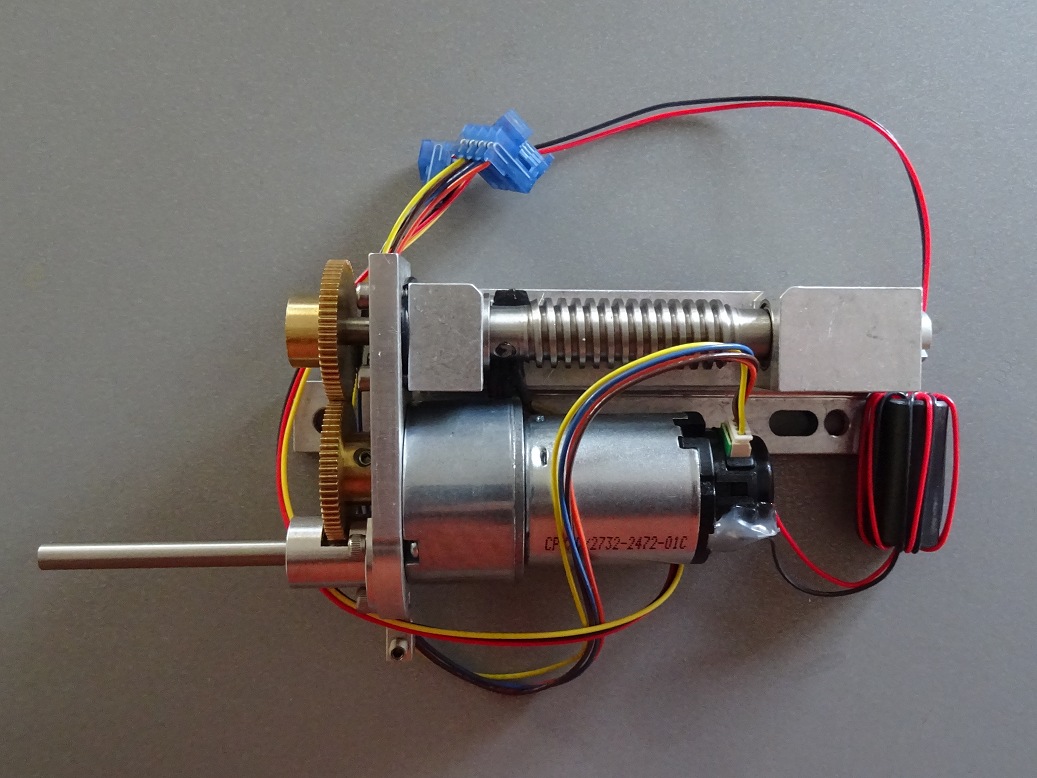

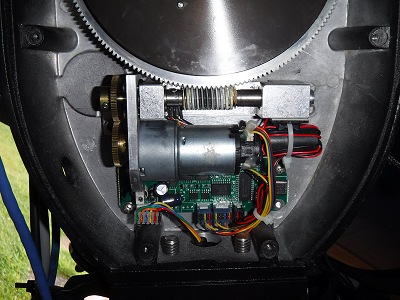

Photo showing new Dec Motor Unit		Photo showing LX200GPS and Old Dec Motor (photo used as reference before disconnection of wires and removal of old unit prior to installation of new unit)
