Notes - Session 948 (2022-01-03)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (1),  Small Defects (1),  Continuous Improvement (2)

Bullet Images from 2022-01-03 >>         [ Local Files >> ]

Session Aims & Highlights (2022-01-03)

Main aims

  1. Centering. Test out JogUsingPulseGuide () routine for jogs in range 2 to 5 arc min.
  2. Guiding Performance. Test out guiding performance using new
  3. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

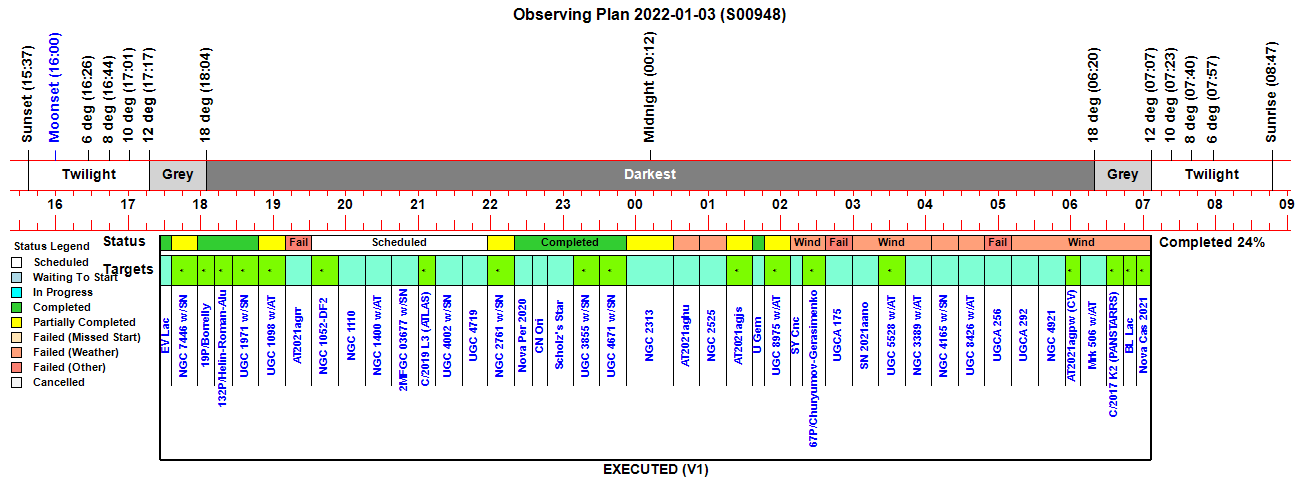

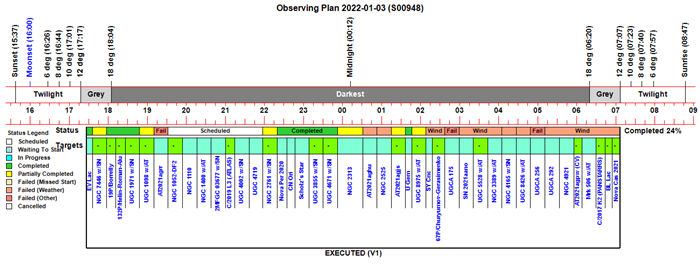

Observing Plan

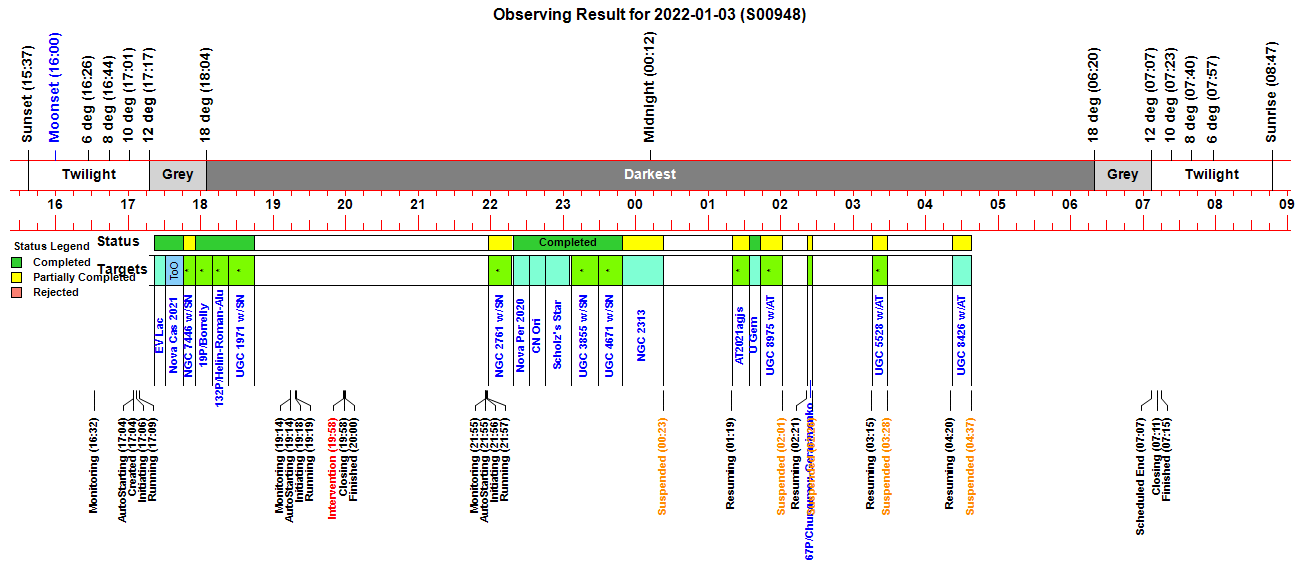

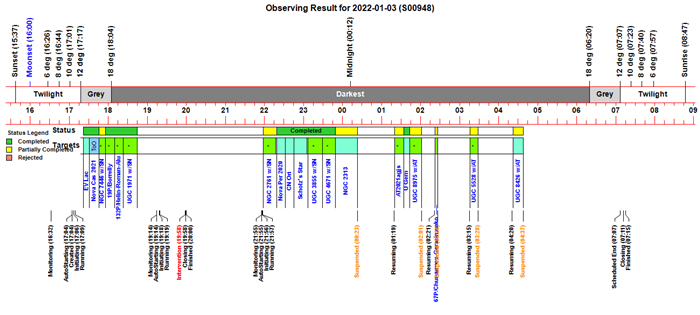

Observing Result

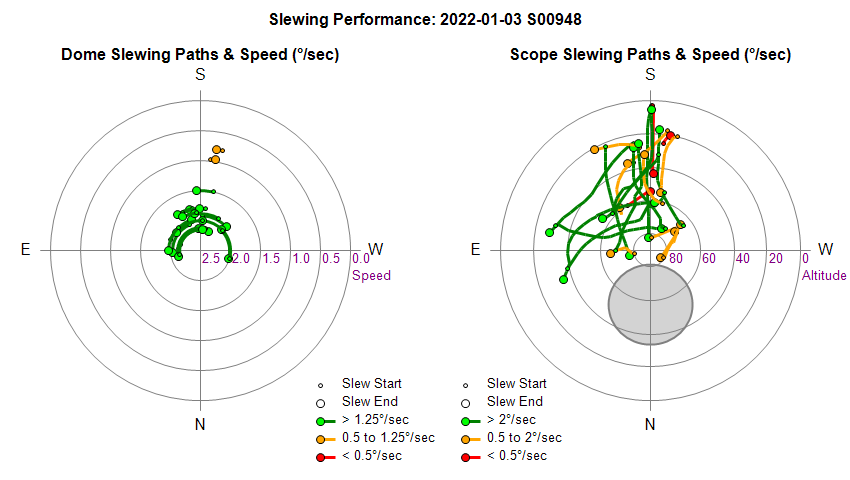

Dome & Scope Slewing Performance

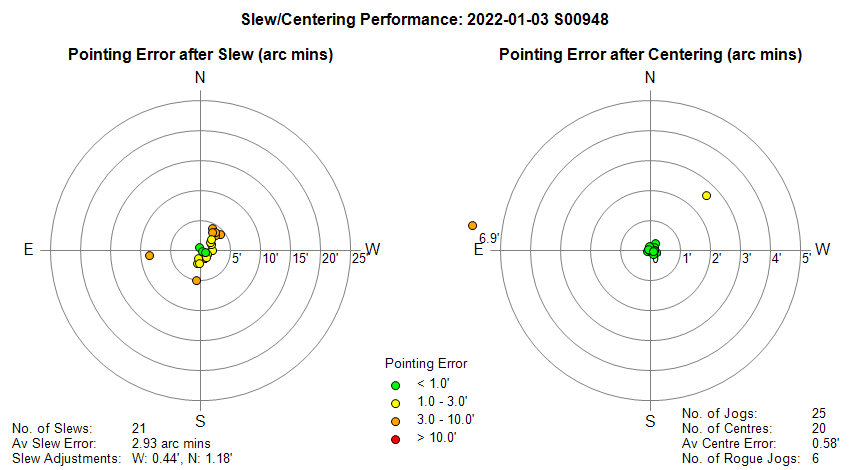

Slew/Centering Performance
Centering performance was mostly very good, but an issue with
LX200 processing performance (now fixed) caused a problem for slewing to and centering a couple of targets

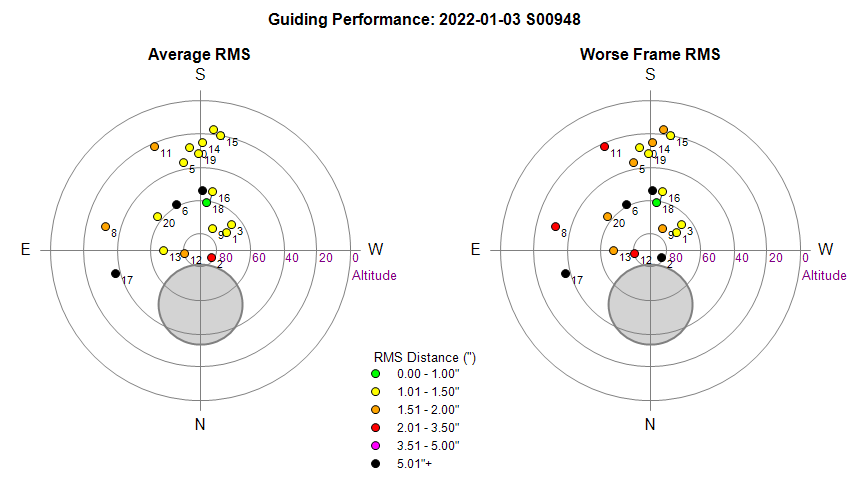

Guiding Performance

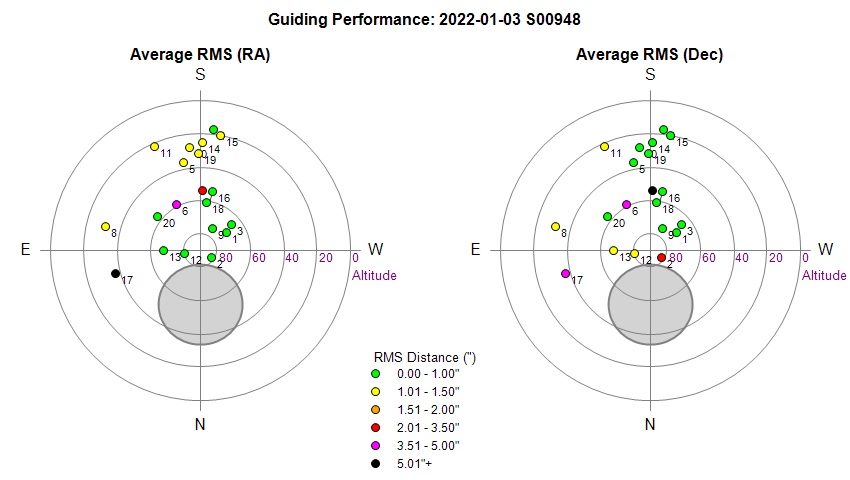

Reasons for poor Dec guiding :
Black point (7)   - Slow LX200 Processing causing infrequent Guide Steps and guide failures (issue now fixed)
Purple point (6)   - Slow LX200 Processing causing infrequent Guide Steps and guide failures (issue now fixed)
Purple point (17)   -  Ineffective Dec guiding (Frames 1-3) and Cloud/Lost Star (Frame 4 & 5) - Black point on RA guiding
Red point  (2)   - Guide star on wrong side of Zero Line for the chosen DecGuideMode (overcorrection / cloud /wind ? effects)
Yellow points (8) - Ineffective Dec guiding (Frame 1)
Yellow points  (11)    - Guide star  on wrong side of Zero Line for the chosen DecGuideMode &  ineffective Dec Pulse Guides.
Yellow points  (12, 13)    - Ineffective Dec Pulse Guides (near Zenith, issue guiding south)

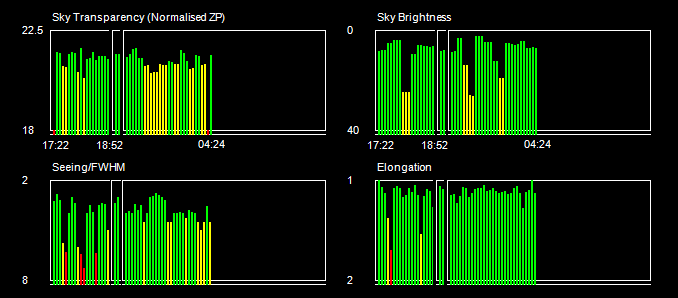

Sky Conditions (Locate Frames)
Sky Brightness measurement problem (due to a SBIG camera bias level issue) is now fixed

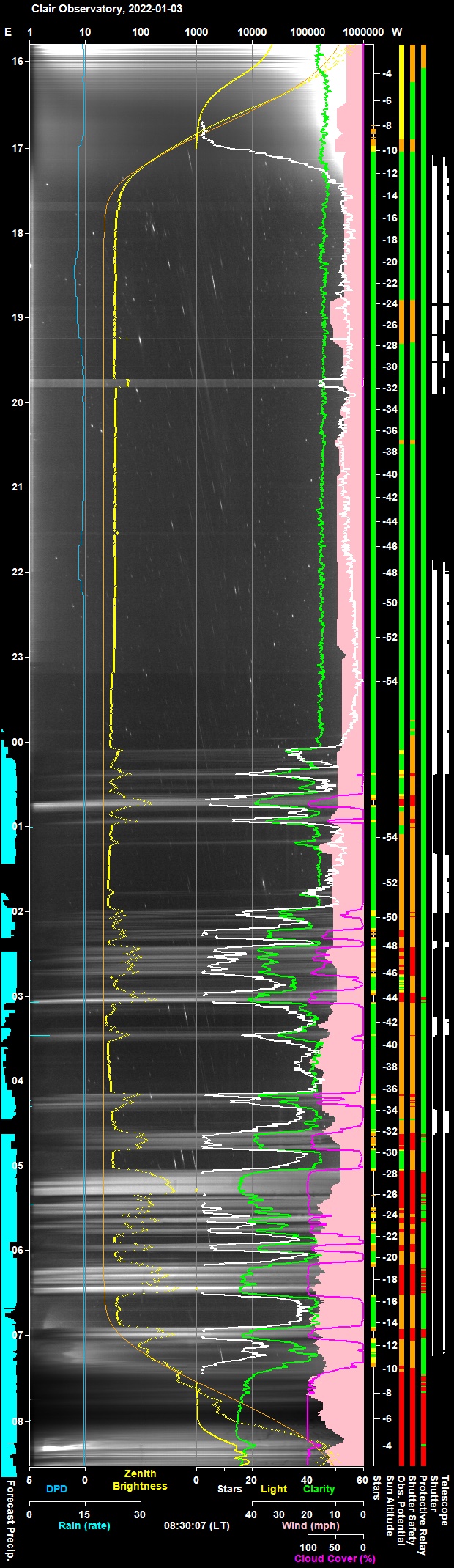

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

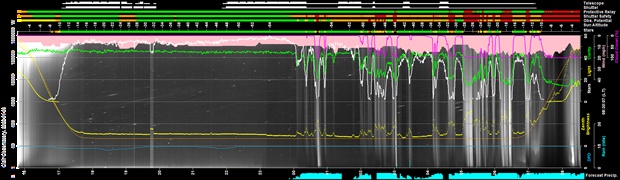

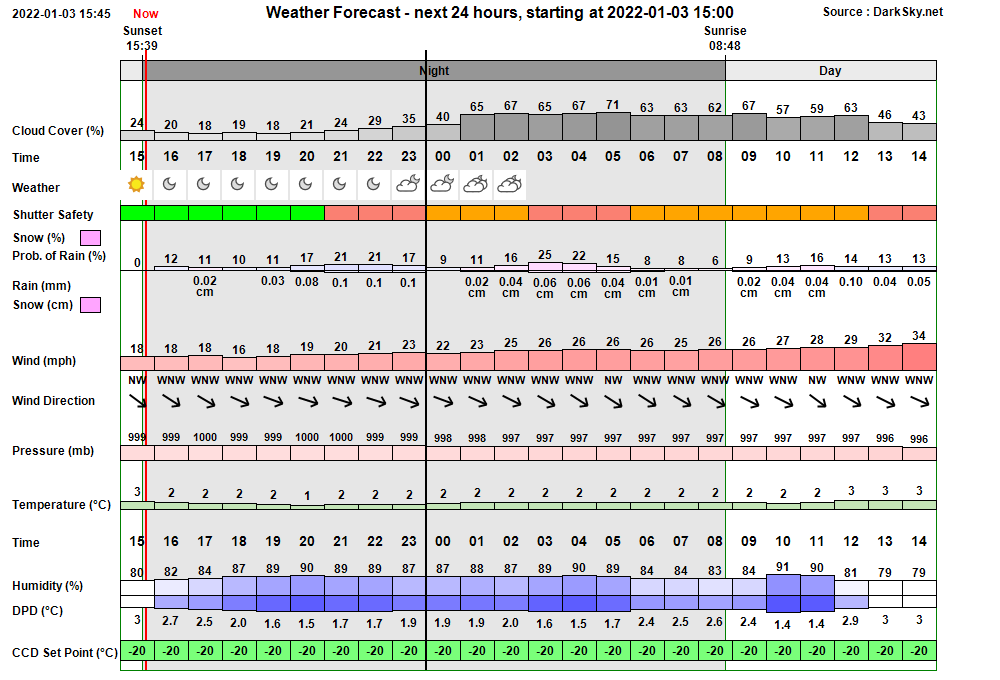

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
16:32:39 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:47 & 06:27
16:32:44   AutoStart Waiting AutoStart waiting till earliest start time at 16:47
16:47:46   AutoStart Delayed Session delayed due to too few stars
17:04:18 Session AutoStarting Session autostarting (17:04)
17:04:55 Session Created Live Session Created (2022-01-03 S00948, ImageSaveNum: 948001)
17:04:57   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:06:39   Services Started Observatory Services started
17:06:45 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:06:48 Session Pending Session pending (2022-01-03)
17:06:50 Session Initiating Session initiating (2022-01-03)
17:06:52   Plan Requested Observing Plan requested from AstroPlan (1.29.2)
17:07:25   Plan Loaded Observing Plan loaded to queue (, Plan ID: 702)
17:07:48   Camera1 Connected SBIG Camera Connected (set point -25°C)
17:07:55   Telescope Connected Telescope Connected (TheSky6)
17:08:19 Session Equilibration Session ready for dome & camera equilibration
17:09:04   Dome Opened Dome opened (opening time 45s)
17:09:54 Session Running Session running
17:09:56   Queue Started Observing Queue started (42 targets selected)
17:09:59     Target Started (NrZen) Target started (Focus Field 0, HIP 106)
17:11:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:15:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
17:17:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
17:17:27       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
17:19:37       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
17:21:23       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
17:21:41     Target Completed Target completed (Focus Field 0, HIP 106)
17:21:56     Target Started (1/42) Target started (1/42, GCVS EV Lac)
17:25:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:27:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
17:30:56     Target Completed Target completed (1/42, GCVS EV Lac)
17:31:00     Target Started (2/43) Target started (2/43, Nova Cas 2021, ToO)
17:33:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
17:37:18       Focusing Failed Foc1 focusing failed (failed QC check - Quadratic)
17:45:57     Target Completed Target completed (2/43, Nova Cas 2021, ToO)
17:46:01     Target Started (3/43) Target started (3/43, NGC 7446 w/SN2021agdd)
17:55:50     Target Completed Target partially completed (3/43, NGC 7446 w/SN2021agdd)
17:55:55     Target Started (4/43) Target started (4/43, 19P/Borrelly)
17:59:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:01:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
18:10:00     Target Completed Target completed (4/43, 19P/Borrelly)
18:10:04     Target Started (5/43) Target started (5/43, 132P/Helin-Roman-Alu)
18:13:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:15:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
18:23:28     Target Completed Target completed (5/43, 132P/Helin-Roman-Alu)
18:23:32     Target Started (6/43) Target started (6/43, UGC 1971 w/SN2021afkk)
18:26:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:28:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
18:44:57     Target Completed Target completed (6/43, UGC 1971 w/SN2021afkk)
18:45:01     Target Started (7/43) Target started (7/43, UGC 1098 w/AT2021ahep)
19:02:46     Target Completed Target partially completed (7/43, UGC 1098 w/AT2021ahep)
19:02:48   Queue Aborted Job Queue aborted
19:07:08   Services Stopped Observatory Services stopped
19:09:54 Program Closed Program closed by User
19:13:15 Session Resumed Live Session Resumed (2022-01-03 S00948, ImageSaveNum: 948063)
19:13:44   Obs.Manager Started Obs.Manager started
19:13:46   Obs.Overseer Started Obs.Overseer started
19:13:49   Services Started Observatory Services started
19:14:07 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:14 & 06:27
19:14:09 Observatory (AutoStart) Observatory placed in Auto-Start Mode
19:14:11 Session AutoStarting Session autostarting (19:14)
19:14:29   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
19:17:10   Services Started Observatory Services started
19:18:30 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:18:34 Session Pending Session pending (2022-01-03)
19:18:36 Session Initiating Session initiating (2022-01-03)
19:18:44   Plan Loaded Observing Plan loaded to queue (, Plan ID: 702)
19:18:55   Camera1 Connected SBIG Camera Connected (set point -25°C)
19:19:01   Telescope Connected Telescope Connected (TheSky6)
19:19:27 Session Equilibration Session ready for dome & camera equilibration
19:19:29 Session Running Session running
19:19:32   Queue Started Observing Queue started (36 targets selected)
19:19:36     Target Started (7/42) Target started (7/42, AT2021agrr)
19:31:21     Target Failed Target failed due to centering error (7/42, AT2021agrr)
19:31:23   Queue Aborted Job Queue aborted
19:38:34   Services Stopped Observatory Services stopped
19:38:47 Program Closed Program closed by User
19:42:54 Session Resumed Live Session Resumed (2022-01-03 S00948, ImageSaveNum: 948066)
19:43:16   Obs.Manager Started Obs.Manager started
19:43:18   Obs.Overseer Started Obs.Overseer started
19:43:21   Services Started Observatory Services started
19:43:44   Scope Switched On Telescope power has been switched on via UPB Powerbox.
19:49:38   Services Started Observatory Services started
19:58:43 User Intervention User request to close and finish session
19:58:45 Session Closing Session closing
19:59:19   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
20:00:14   Services Stopped Night Services stopped
20:00:16 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
20:00:23 Session Finished Session Finished
21:51:57 Session Resumed Live Session Resumed (2022-01-03 S00948, ImageSaveNum: 948066)
21:52:27   Obs.Manager Started Obs.Manager started
21:52:29   Obs.Overseer Started Obs.Overseer started
21:52:32   Services Started Observatory Services started
21:52:41   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:54:05   Services Started Observatory Services started
21:54:28   Telescope Connected Telescope Connected (TheSky6)
21:55:31 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:55 & 06:27
21:55:33 Observatory (AutoStart) Observatory placed in Auto-Start Mode
21:55:35 Session AutoStarting Session autostarting (21:55)
21:56:11   Services Started Observatory Services started
21:56:15 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:56:17 Session Pending Session pending (2022-01-03)
21:56:19 Session Initiating Session initiating (2022-01-03)
21:56:27   Plan Loaded Observing Plan loaded to queue (, Plan ID: 702)
21:56:38   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:56:44   Telescope Connected Telescope Connected (TheSky6)
21:57:08 Session Equilibration Session ready for dome & camera equilibration
21:57:53   Dome Opened Dome opened (opening time 45s)
21:57:55 Session Running Session running
21:57:57   Queue Started Observing Queue started (28 targets selected)
21:58:02     Target Started (15/42) Target started (15/42, NGC 2761 w/SN2021aggu)
22:18:33     Target Completed Target partially completed (15/42, NGC 2761 w/SN2021aggu)
22:18:37     Target Started (16/42) Target started (16/42, Nova Per 2020)
22:21:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:23:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
22:32:22     Target Completed Target completed (16/42, Nova Per 2020)
22:32:26     Target Started (17/42) Target started (17/42, GCVS CN Ori)
22:35:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:37:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
22:45:43     Target Completed Target completed (17/42, GCVS CN Ori)
22:45:47     Target Started (18/42) Target started (18/42, Scholz's Star)
22:48:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:51:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
23:06:36     Target Completed Target completed (18/42, Scholz's Star)
23:06:40     Target Started (19/42) Target started (19/42, UGC 3855 w/SN2021agco)
23:10:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:12:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
23:29:14     Target Completed Target completed (19/42, UGC 3855 w/SN2021agco)
23:29:18     Target Started (20/42) Target started (20/42, UGC 4671 w/SN2021afsj)
23:32:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:49:28     Target Completed Target completed (20/42, UGC 4671 w/SN2021afsj)
23:49:32     Target Started (21/42) Target started (21/42, NGC 2313)
23:52:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:54:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
00:23:15 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
00:23:17   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
00:23:19     Target Aborted (21/42) Target aborted (21/42, NGC 2313) due to threat of rain
00:23:21   Queue Paused Queue paused for Session Suspension
00:23:23 Session Suspended Session suspended
00:24:10   Dome Closed Dome closed (closing time 50s)
00:44:57     Target Cancelled Target cancelled (22/42, AT2021aghu) due to cloud
01:07:19     Target Cancelled Target cancelled (23/42, NGC 2525) due to wind
01:19:31 Session Resuming Session resuming
01:20:16   Dome Opened Dome opened (opening time 45s)
01:20:18 Session Running Session running
01:20:20   Queue Resumed Observing Queue resumed
01:20:23     Target Started (24/42) Target started (24/42, AT2021agjs)
01:34:13     Target Completed Target partially completed (24/42, AT2021agjs)
01:34:17     Target Started (25/42) Target started (25/42, GCVS U Gem)
01:37:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:39:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
01:43:26     Target Completed Target completed (25/42, GCVS U Gem)
01:43:30     Target Started (26/42) Target started (26/42, UGC 8975 w/AT2021adpe)
01:47:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:01:21 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
02:01:23   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
02:01:25     Target Aborted (26/42) Target aborted (26/42, UGC 8975 w/AT2021adpe) due to threat of rain
02:01:27   Queue Paused Queue paused for Session Suspension
02:01:29 Session Suspended Session suspended
02:02:16   Dome Closed Dome closed (closing time 50s)
02:12:30     Target Cancelled Target cancelled (27/42, GCVS SY Cnc) due to wind
02:21:24 Session Resuming Session resuming
02:22:09   Dome Opened Dome opened (opening time 45s)
02:22:11 Session Running Session running
02:22:13   Queue Resumed Observing Queue resumed
02:22:15     Target Started (28/42) Target started (28/42, 67P/Churyumov-Gerasimenko)
02:26:19   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
02:26:21 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
02:26:23   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
02:26:25     Target Aborted (28/42) Target aborted (28/42, 67P/Churyumov-Gerasimenko) due to cloud
02:26:27   Queue Paused Queue paused for Session Suspension
02:26:29 Session Suspended Session suspended
02:27:14   Dome Closed Dome closed (closing time 50s)
02:31:27     Target Cancelled Target cancelled (28/42, 67P/Churyumov-Gerasimenko) due to wind
02:51:34     Target Cancelled Target cancelled (29/42, UGCA 175) due to other condition
03:13:26     Target Cancelled Target cancelled (30/42, SN 2021aano) due to wind
03:15:10 Session Resuming Session resuming
03:15:55   Dome Opened Dome opened (opening time 45s)
03:15:58 Session Running Session running
03:16:00   Queue Resumed Observing Queue resumed
03:16:30     Target Started (31/42) Target started (31/42, UGC 5528 w/AT2022B)
03:19:20       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
03:28:07 Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome)
03:28:09   HardSuspend Called Hard Suspend is called due to Critical Conditions (rain)
03:28:13     Target Aborted (31/42) Target aborted (31/42, UGC 5528 w/AT2022B) due to rain
03:28:15   Queue Paused Queue paused for Session Suspension
03:28:17 Session Suspended Session suspended
03:29:02   Dome Closed Dome closed (closing time 50s)
03:35:18     Target Cancelled Target cancelled (31/42, UGC 5528 w/AT2022B) due to wind
03:57:10     Target Cancelled Target cancelled (32/42, NGC 3389 w/AT2021hkw) due to wind
04:19:02     Target Cancelled Target cancelled (33/42, NGC 4165 w/SN2021gno) due to rain
04:20:28 Session Resuming Session resuming
04:21:13   Dome Opened Dome opened (opening time 45s)
04:21:16 Session Running Session running
04:21:18   Queue Resumed Observing Queue resumed
04:22:06     Target Started (34/42) Target started (34/42, UGC 8426 w/AT2021knq)
04:26:01       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
04:37:40 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
04:37:42   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
04:37:44     Target Aborted (34/42) Target aborted (34/42, UGC 8426 w/AT2021knq) due to threat of rain
04:37:46   Queue Paused Queue paused for Session Suspension
04:37:48 Session Suspended Session suspended
04:38:35   Dome Closed Dome closed (closing time 50s)
04:40:54     Target Cancelled Target cancelled (34/42, UGC 8426 w/AT2021knq) due to wind
05:03:16     Target Cancelled Target cancelled (35/42, UGCA 256) due to other condition
05:25:38     Target Cancelled Target cancelled (36/42, UGCA 292) due to wind
05:48:00     Target Cancelled Target cancelled (37/42, NGC 4921) due to wind
06:01:52     Target Cancelled Target cancelled (38/42, AT2021agpw (CV)) due to wind
06:21:45     Target Cancelled Target cancelled (39/42, Mrk 506 w/AT2021agiv) due to wind
06:38:14     Target Cancelled Target cancelled (40/42, C/2017 K2 (PANSTARRS)) due to wind
06:48:17     Target Cancelled Target cancelled (41/42, GCVS BL Lac) due to wind
07:11:31     Target Cancelled Target cancelled (42/42, Nova Cas 2021) due to wind
07:11:36   Queue Completed Job Queue completed
07:11:38 Session Closing Session closing
07:11:43   Dome Closed Dome already closed (closed at 04:38, closing time 50s)
07:12:15   Dome Parked Dome parked (parking time 24s), Az: 90.0 deg
07:13:30   Telescope Parked Telescope parked (parking time 70s)
07:13:45   Telescope State Scope parked Turn scope off. (Handbox)
07:14:07   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
07:15:00   Services Stopped Night Services stopped
07:15:02 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
07:15:19 Session Finished Session Finished

Session Alerts
Time     Alert Detail
21:58:43 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (NGC 2761)
23:29:52 Dome Dome didn't appear to move during the last telescope slew.

Back to Top


Operational Issues (2022-01-03, S948)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top
