Notes - Session 965 (2022-02-06)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (7),  Small Defects (3),  Continuous Improvement (2)

Bullet Images from 2022-02-06 >>         [ Local Files >> ]

Session Aims & Highlights (2022-02-06)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

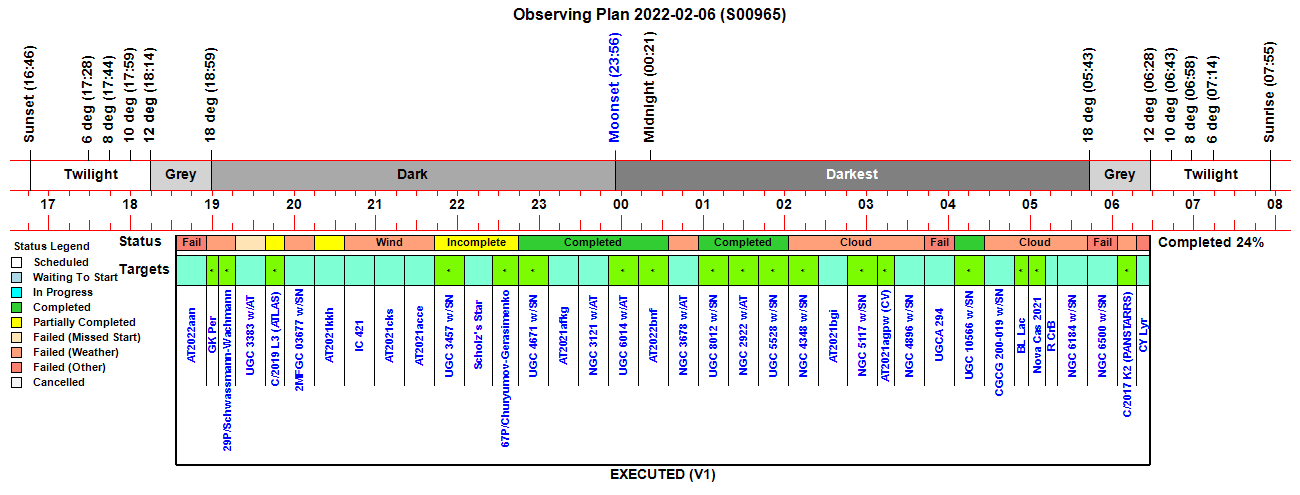

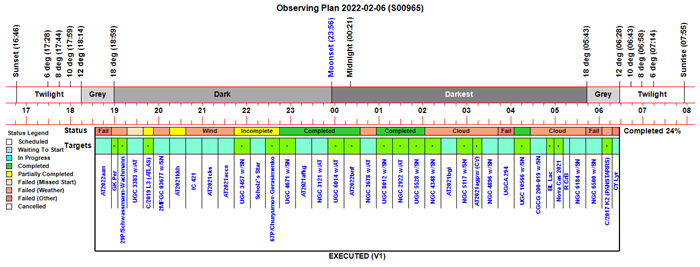

Observing Plan

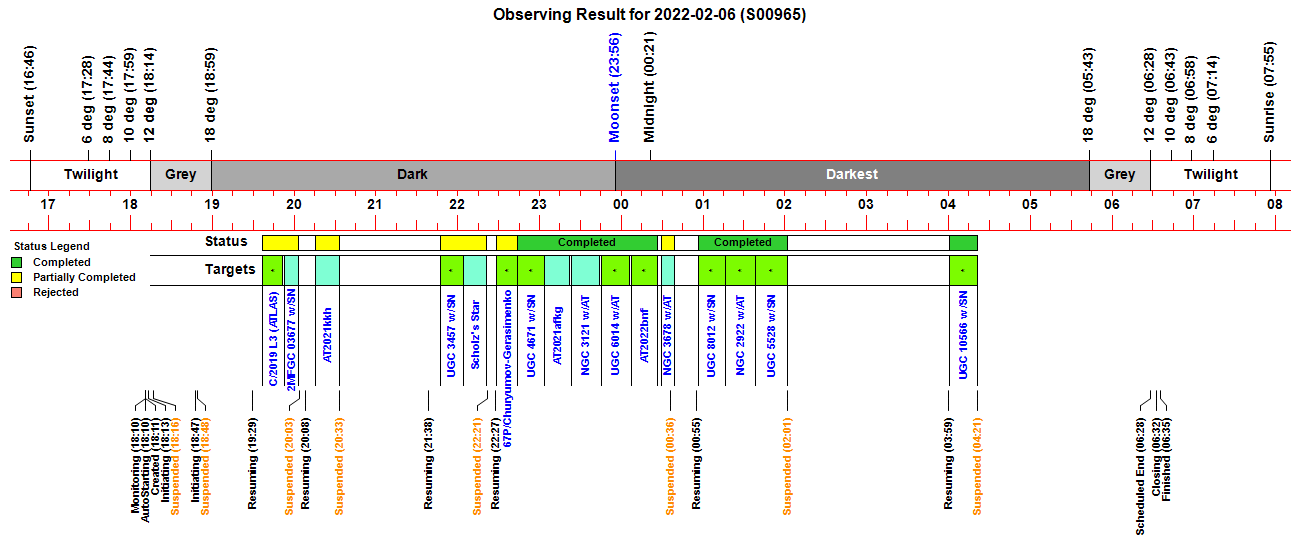

Observing Result

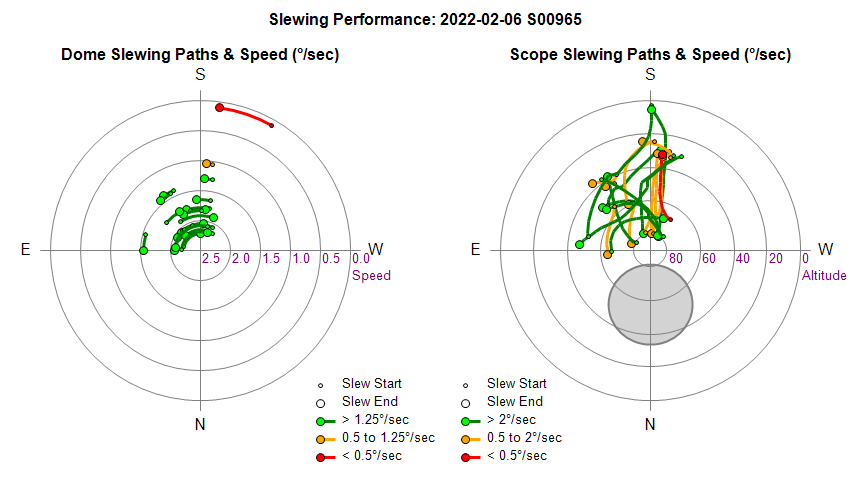

Dome & Scope Slewing Performance

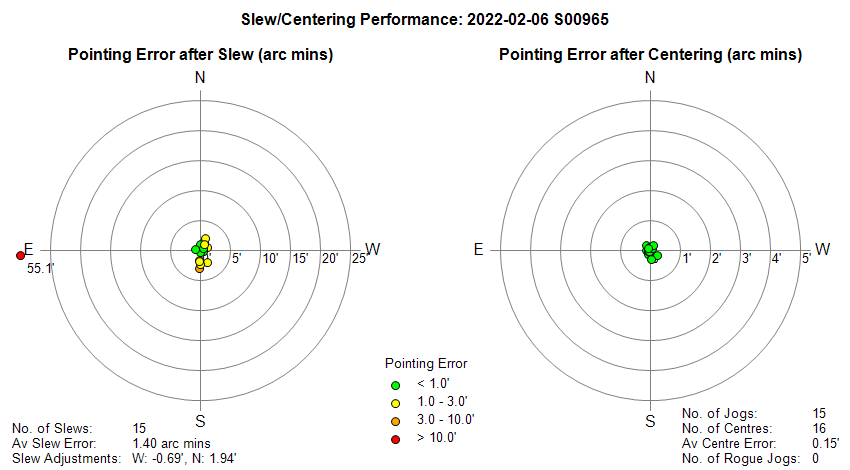

Slew/Centering Performance

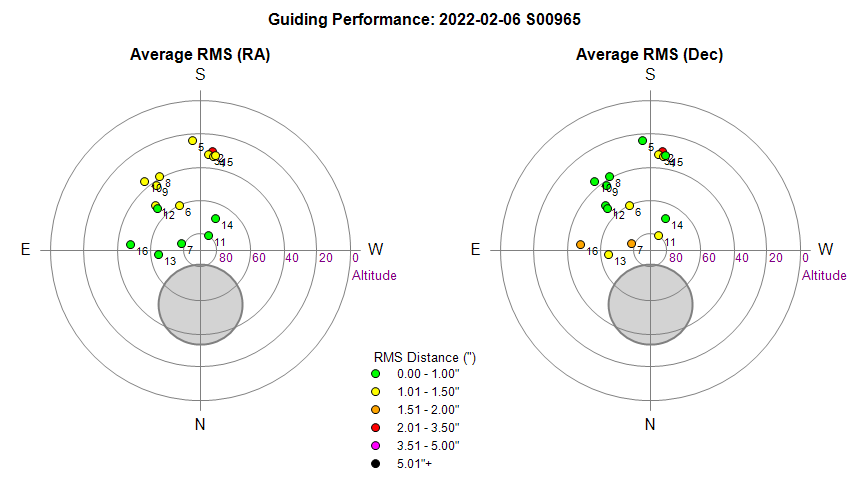

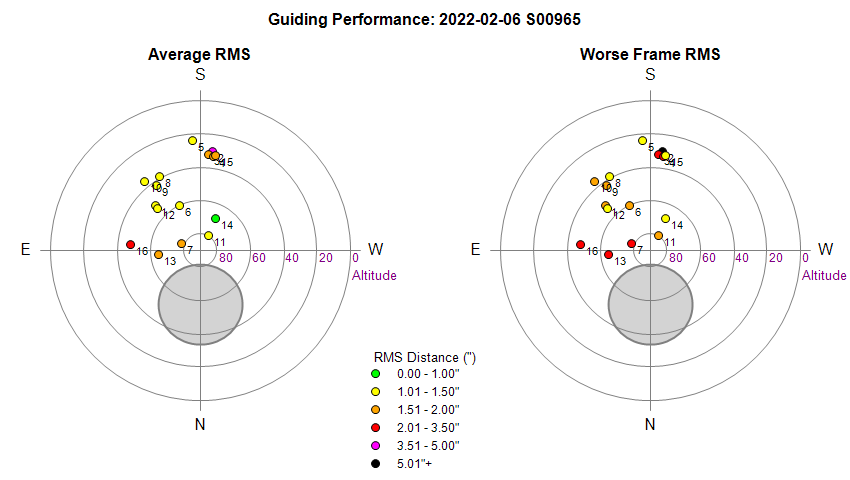

Guiding Performance
Reasons for poor Dec guiding :
Black/Purple points () - None
Red point (2) - Guide star on wrong side of zero line (close to Meridian). Unexplained 3" jump in Dec position (again on wrong side of zero line
and couldn't be immediately corrected. Developing cloud causing a rogue single point spike in Dec, which PHD2 over-reacted
 to and pushed the guide star even further away from zero line (error 7-8" at end of frame 2).
Orange points (7, 16) - Non effective Dec Guiding (South)

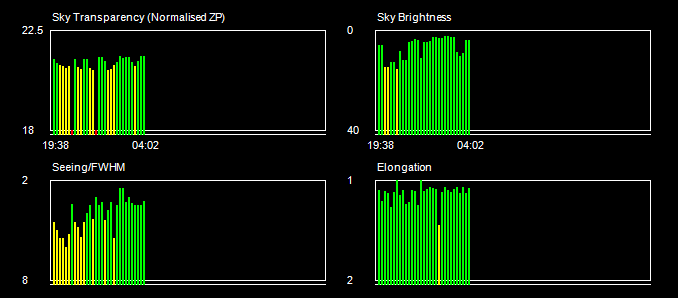

Sky Conditions (Locate Frames)

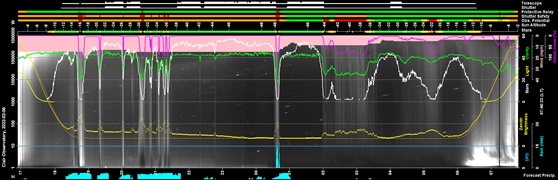

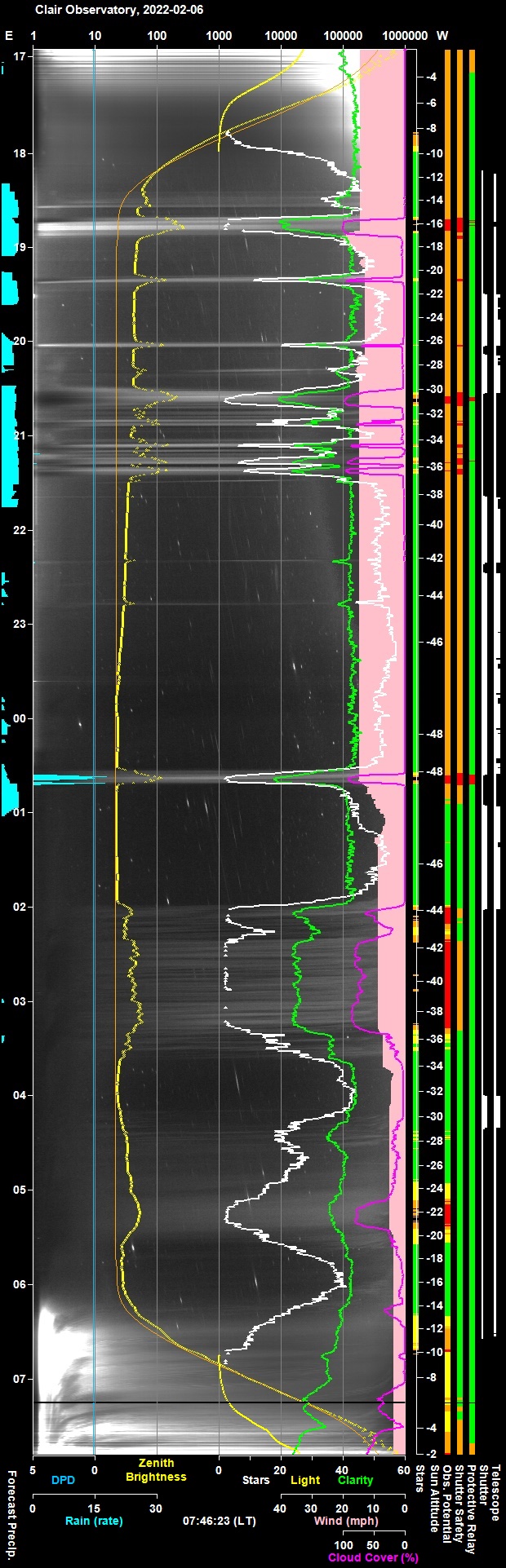

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

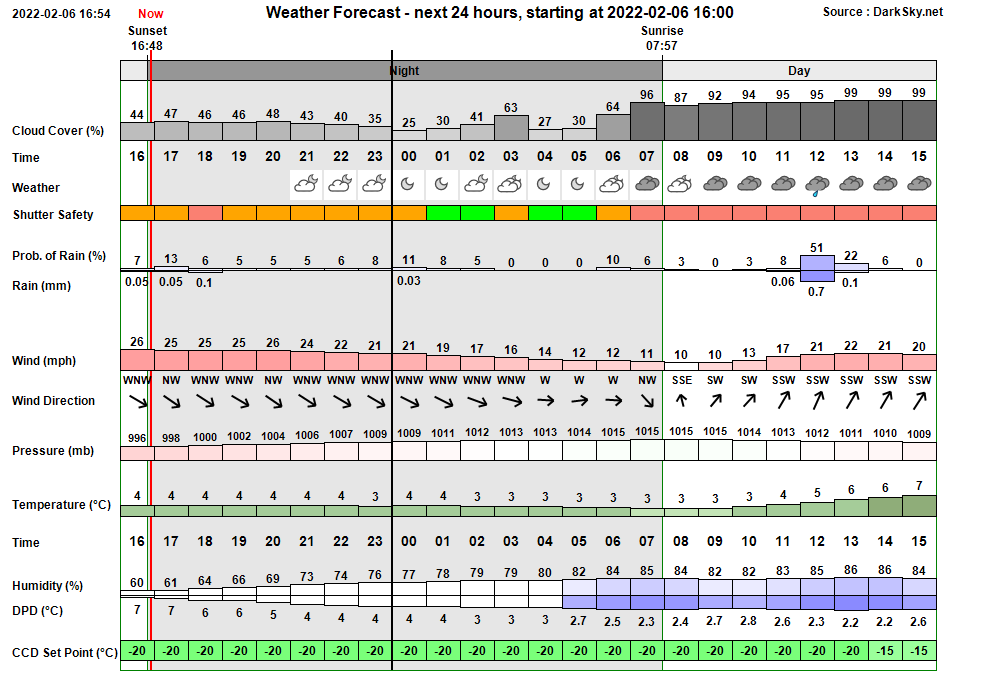

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:10:36 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:10 & 05:48
18:10:39 Session AutoStarting Session autostarting (18:10)
18:11:16 Session Created Live Session Created (2022-02-06 S00965, ImageSaveNum: 965001)
18:11:19   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
18:13:18   Services Started Observatory Services started
18:13:24 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:13:27 Session Pending Session pending (2022-02-06)
18:13:29 Session Initiating Session initiating (2022-02-06)
18:13:31   Plan Requested Observing Plan requested from AstroPlan (1.29.8)
18:14:13   Plan Loaded Observing Plan loaded to queue (, Plan ID: 723)
18:14:35   Camera1 Connected SBIG Camera Connected (set point -25°C)
18:14:42   Telescope Connected Telescope Connected (TheSky6)
18:15:09 Session Equilibration Session ready for dome & camera equilibration
18:16:29 Wait On Weather Waiting for acceptable conditions
18:16:31 Session Suspended Session suspended
18:16:33   Dome Closed Dome already closed (closed at 03:54, closing time 50s)
18:16:35   Queue Started Observing Queue started (37 targets selected)
18:44:14   Queue Aborted Job Queue aborted
18:44:50   Services Stopped Observatory Services stopped
18:44:52   Services Stopped Observatory Services stopped
18:44:54 Program Closed Program closed by User
18:45:36 Session Resumed Live Session Resumed (2022-02-06 S00965, ImageSaveNum: 965001)
18:45:52   Obs.Manager Started Obs.Manager started
18:45:54   Obs.Overseer Started Obs.Overseer started
18:45:57   Services Started Observatory Services started
18:47:23   Services Started Observatory Services started
18:47:56 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:47:57 Session Pending Session pending (2022-02-06)
18:47:59 Session Initiating Session initiating (2022-02-06)
18:48:06   Plan Loaded Observing Plan loaded to queue (, Plan ID: 723)
18:48:18   Camera1 Connected SBIG Camera Connected (set point -20°C)
18:48:32   Telescope Connected Telescope Connected (TheSky6)
18:48:53 Session Equilibration Session ready for dome & camera equilibration
18:48:55 Wait On Weather Waiting for acceptable conditions
18:48:57 Session Suspended Session suspended
18:48:59   Dome Closed Dome already closed (closure time is unknown)
18:49:01   Queue Started Observing Queue started (36 targets selected)
18:59:31     Target Cancelled Target cancelled (2/37, GCVS GK Per) due to wind
19:10:46     Target Cancelled Target cancelled (3/37, 29P/Schwassmann-Wachmann) due to wind
19:29:42 Session Resuming Session resuming
19:30:27   Dome Opened Dome opened (opening time 45s)
19:30:30 Session Running Session running
19:30:32   Queue Resumed Observing Queue resumed
19:30:34     Target Started (NrZen) Target started (Focus Field 4, HIP 18637)
19:31:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:34:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
19:36:38       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous)
19:36:40     Target Completed Target completed (Focus Field 4, HIP 18637)
19:36:42     Target Missed (4/37) Target's time slot was missed (4/37, UGC 3383 w/AT2021abbn)
19:36:47     Target Started (5/37) Target started (5/37, C/2019 L3 (ATLAS))
19:40:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:44:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide)
19:46:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
19:52:32     Target Completed Target partially completed (5/37, C/2019 L3 (ATLAS))
19:52:36     Target Started (6/37) Target started (6/37, 2MFGC 03677 w/SN2021agpj)
20:03:26 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
20:03:28   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
20:03:31     Target Aborted (6/37) Target aborted (6/37, 2MFGC 03677 w/SN2021agpj) due to threat of rain
20:03:33   Queue Paused Queue paused for Session Suspension
20:03:35 Session Suspended Session suspended
20:04:21   Dome Closed Dome closed (closing time 50s)
20:06:39     Target Cancelled Target cancelled (6/37, 2MFGC 03677 w/SN2021agpj) due to wind
20:08:37 Session Resuming Session resuming
20:09:22   Dome Opened Dome opened (opening time 45s)
20:09:24 Session Running Session running
20:09:26   Queue Resumed Observing Queue resumed
20:09:28     Target Started (NrZen) Target started (Focus Field 5, HIP 23569)
20:10:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:12:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
20:12:46     Target Completed Target completed (Focus Field 5, HIP 23569)
20:12:47     Target Started (NrZen) Target started (Focus Field 5, HIP 23569)
20:13:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:15:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
20:15:45     Target Completed Target completed (Focus Field 5, HIP 23569)
20:15:47     Target Started (7/37) Target started (7/37, AT2021kkh)
20:32:50   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
20:33:15 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
20:33:17   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
20:33:20     Target Aborted (7/37) Target aborted (7/37, AT2021kkh) due to threat of rain
20:33:22   Queue Paused Queue paused for Session Suspension
20:33:24 Session Suspended Session suspended
20:34:10   Dome Closed Dome closed (closing time 50s)
20:50:39     Target Cancelled Target cancelled (8/37, IC 421) due to wind
21:00:13 Program Resumed AstroMain UI resumed again at 21:00 after 11s
21:01:19   Services Started Observatory Services started
21:12:39     Target Cancelled Target cancelled (9/37, AT2021cks) due to wind
21:34:39     Target Cancelled Target cancelled (10/37, AT2021acce) due to wind
21:38:53 Session Resuming Session resuming
21:39:38   Dome Opened Dome opened (opening time 45s)
21:39:40 Session Running Session running
21:39:42   Queue Resumed Observing Queue resumed
21:39:44     Target Started (NrZen) Target started (Focus Field 7, HIP 34070)
21:40:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:42:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
21:42:55       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:45:07       Focusing Completed Foc2 AutoFocus Completed (Profile No 6, wide)
21:46:52       Focusing Completed Foc2 AutoFocus Completed (Profile No 6)
21:47:10     Target Completed Target completed (Focus Field 7, HIP 34070)
21:47:15     Target Started (11/37) Target started (11/37, UGC 3457 w/SN2022blm)
22:04:19     Target Completed Target partially completed (11/37, UGC 3457 w/SN2022blm)
22:04:23     Target Started (12/37) Target started (12/37, Scholz's Star)
22:21:23 Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Dome)
22:21:25   HardSuspend Called Hard Suspend is called due to Critical Conditions (rain)
22:21:27     Target Aborted (12/37) Target aborted (12/37, Scholz's Star) due to rain
22:21:29   Queue Paused Queue paused for Session Suspension
22:21:31 Session Suspended Session suspended
22:22:18   Dome Closed Dome closed (closing time 50s)
22:27:23 Session Resuming Session resuming
22:28:08   Dome Opened Dome opened (opening time 45s)
22:28:11 Session Running Session running
22:28:13   Queue Resumed Observing Queue resumed
22:28:15     Target Started (13/37) Target started (13/37, 67P/Churyumov-Gerasimenko)
22:43:53     Target Completed Target partially completed (13/37, 67P/Churyumov-Gerasimenko)
22:43:57     Target Started (14/37) Target started (14/37, UGC 4671 w/SN2021afsj)
23:03:30     Target Completed Target completed (14/37, UGC 4671 w/SN2021afsj)
23:03:34     Target Started (15/37) Target started (15/37, AT2021afkg)
23:06:02       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:22:07     Target Completed Target completed (15/37, AT2021afkg)
23:23:22     Target Started (16/37) Target started (16/37, NGC 3121 w/AT2022dz)
23:26:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:28:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:44:38     Target Completed Target completed (16/37, NGC 3121 w/AT2022dz)
23:45:22     Target Started (17/37) Target started (17/37, UGC 6014 w/AT2022bil)
23:47:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:50:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:06:37     Target Completed Target completed (17/37, UGC 6014 w/AT2022bil)
00:07:22     Target Started (18/37) Target started (18/37, AT2022bnf)
00:10:10       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:26:23     Target Completed Target completed (18/37, AT2022bnf)
00:29:22     Target Started (19/37) Target started (19/37, NGC 3678 w/AT2022ei)
00:32:16       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:35:14   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
00:35:54 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
00:35:56   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
00:36:25 Session Suspended Session suspended
00:37:14   Dome Closed Dome closed (closing time 49s)
00:38:59     Target Aborted (19/37) Target aborted (19/37, NGC 3678 w/AT2022ei) due to rain
00:39:01   Queue Paused Queue paused for Session Suspension
00:48:18     Target Cancelled Target cancelled (19/37, NGC 3678 w/AT2022ei) due to wind
00:55:31 Session Resuming Session resuming
00:56:16   Dome Opened Dome opened (opening time 45s)
00:56:19 Session Running Session running
00:56:21   Queue Resumed Observing Queue resumed
00:56:24     Target Started (20/37) Target started (20/37, UGC 8012 w/SN2022aod)
01:16:30     Target Completed Target completed (20/37, UGC 8012 w/SN2022aod)
01:16:34     Target Started (21/37) Target started (21/37, NGC 2922 w/AT2022bdu)
01:19:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:22:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
01:38:14     Target Completed Target completed (21/37, NGC 2922 w/AT2022bdu)
01:38:18     Target Started (22/37) Target started (22/37, UGC 5528 w/SN2022B)
01:56:49   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:01:53     Target Completed Target completed (22/37, UGC 5528 w/SN2022B)
02:01:55   Queue Paused Queue paused for Session Suspension
02:01:57 Session Suspended Session suspended
02:02:45   Dome Closed Dome closed (closing time 50s)
02:16:18     Target Cancelled Target cancelled (23/37, NGC 4348 w/SN2022fw) due to cloud
02:38:18     Target Cancelled Target cancelled (24/37, AT2021bgi) due to cloud
03:00:18     Target Cancelled Target cancelled (25/37, NGC 5117 w/SN2022abq) due to cloud
03:14:18     Target Cancelled Target cancelled (26/37, AT2021agpw (CV)) due to cloud
03:34:18     Target Cancelled Target cancelled (27/37, NGC 4896 w/SN2021wad) due to cloud
03:56:18     Target Cancelled Target cancelled (28/37, UGCA 294) due to other condition
03:59:59 Session Resuming Session resuming
04:00:44   Dome Opened Dome opened (opening time 45s)
04:00:46 Session Running Session running
04:00:48   Queue Resumed Observing Queue resumed
04:00:51     Target Started (29/37) Target started (29/37, UGC 10566 w/SN2022aab)
04:04:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
04:13:41   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
04:21:06     Target Completed Target completed (29/37, UGC 10566 w/SN2022aab)
04:21:08   Queue Paused Queue paused for Session Suspension
04:21:10 Session Suspended Session suspended
04:21:57   Dome Closed Dome closed (closing time 50s)
04:40:18     Target Cancelled Target cancelled (30/37, CGCG 200-019 w/SN2021usd) due to cloud
04:52:24     Target Cancelled Target cancelled (31/37, GCVS BL Lac) due to cloud
05:05:24     Target Cancelled Target cancelled (32/37, Nova Cas 2021) due to cloud
05:14:56     Target Cancelled Target cancelled (33/37, GCVS R CrB) due to cloud
05:34:11     Target Cancelled Target cancelled (34/37, NGC 6184 w/SN2021wkv) due to cloud
05:56:11     Target Cancelled Target cancelled (35/37, NGC 6500 w/SN2021wuf) due to other condition
06:12:19     Target Cancelled Target cancelled (36/37, C/2017 K2 (PANSTARRS)) due to cloud
06:32:10     Target Cancelled Target cancelled (37/37, GCVS CY Lyr) due to other condition
06:32:15   Queue Completed Job Queue completed
06:32:18 Session Closing Session closing
06:32:23   Dome Closed Dome already closed (closed at 04:21, closing time 50s)
06:32:42   Dome Parked Dome parked (parking time 11s), Az: 90.0 deg
06:33:55   Telescope Parked Telescope parked (parking time 70s)
06:34:10   Telescope State Scope parked Turn scope off. (Handbox)
06:34:32   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:35:25   Services Stopped Night Services stopped
06:35:27 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
06:35:38 Session Finished Session Finished

Session Alerts
Time     Alert Detail
18:42:17 PHD2 Alert No. of incomplete PHD2 stream reads has exceeded 5

Back to Top


Operational Issues (2022-02-06, S965)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top
