Notes - Session 995 (2022-03-25)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (3),  Small Defects (1),  Continuous Improvement (3)

Bullet Images from 2022-03-25 >>         [ Local Files >> ]
Bullet Investigation -  Slow Dome Slew / Slow Scope Slew to one particular target (UGC 4219, 20:35)

Session Aims & Highlights (2022-03-25)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
  2. ARP Objects.  Acquire a number of ARP objects in Cnc, Com and Vir constellations

Equipment & Software

Highlights

Notes:

Summary Plots & Logs

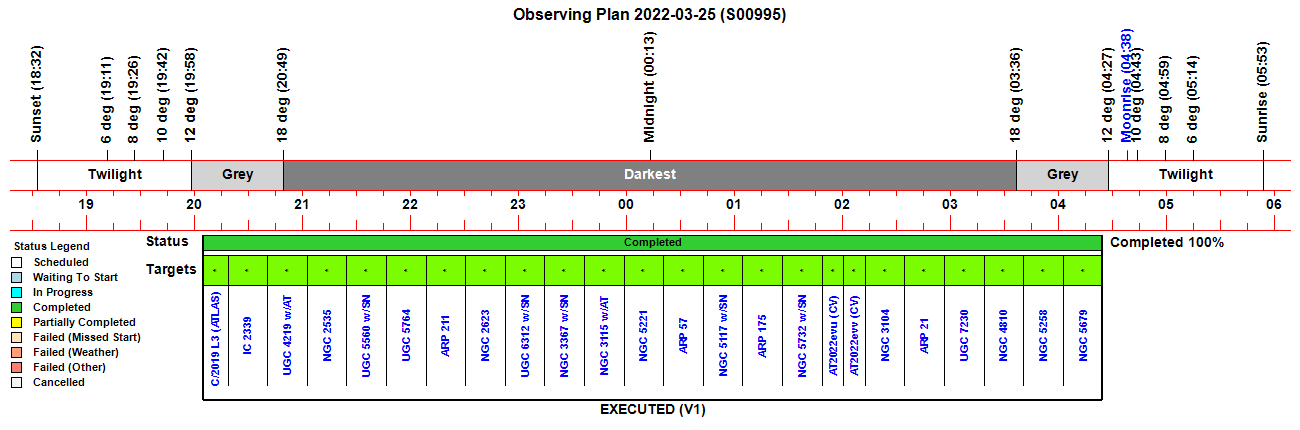

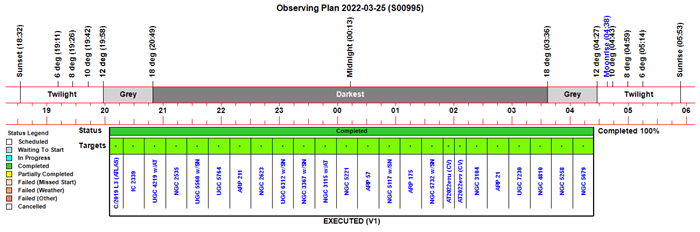

Observing Plan

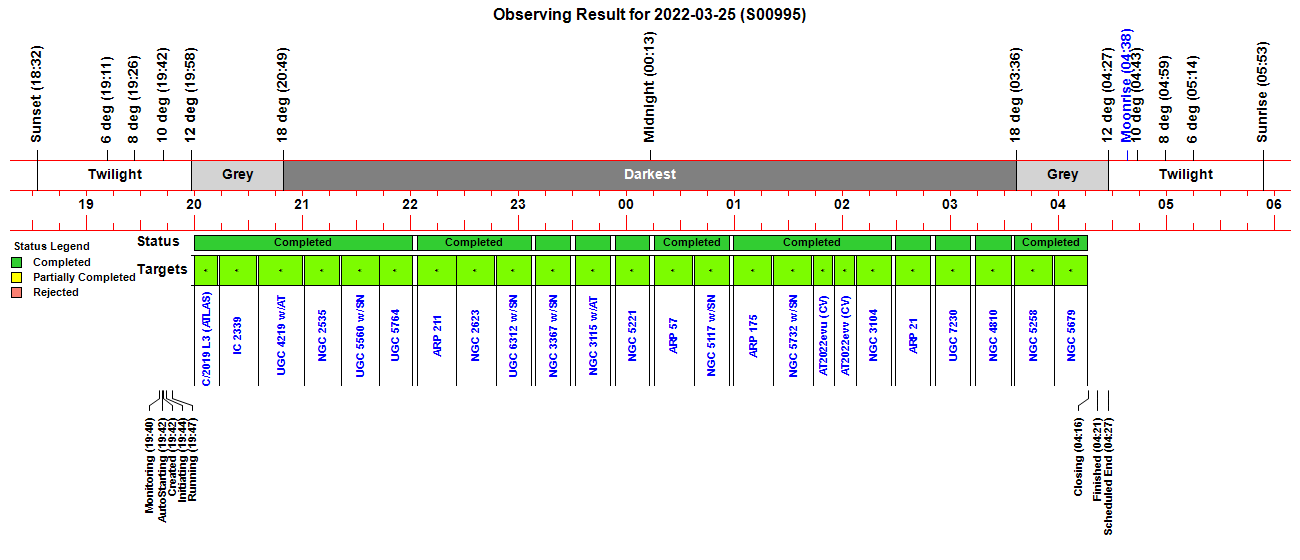

Observing Result

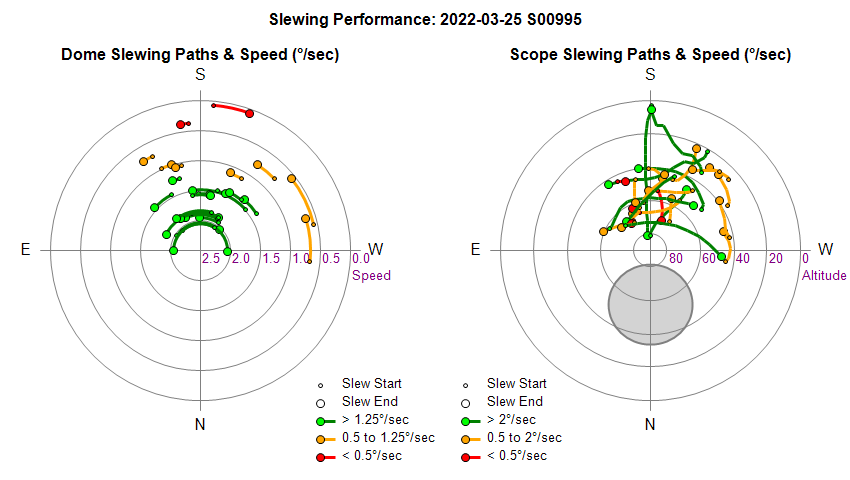

Dome & Scope Slewing Performance

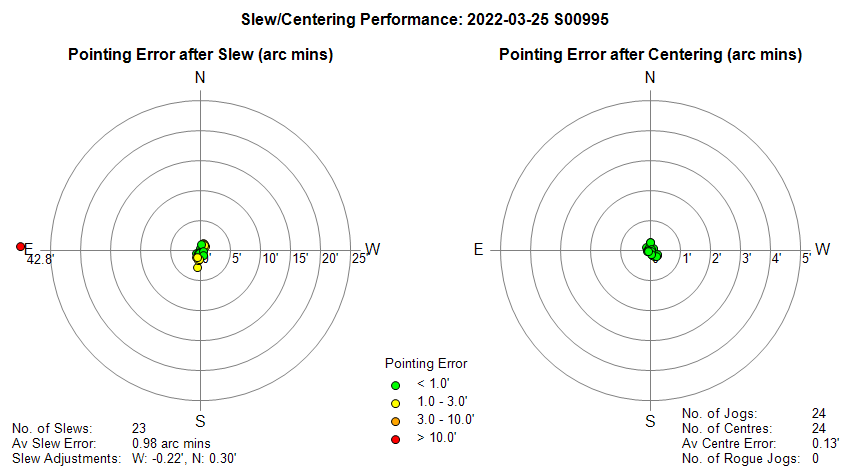

Slew/Centering Performance

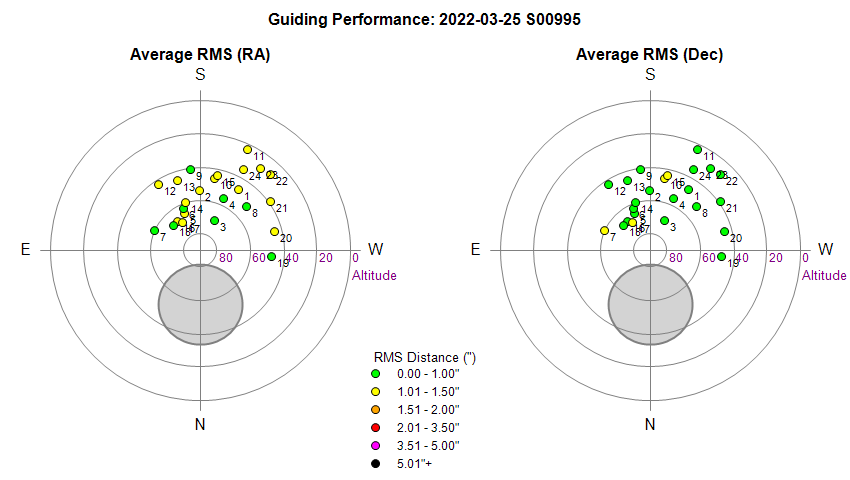

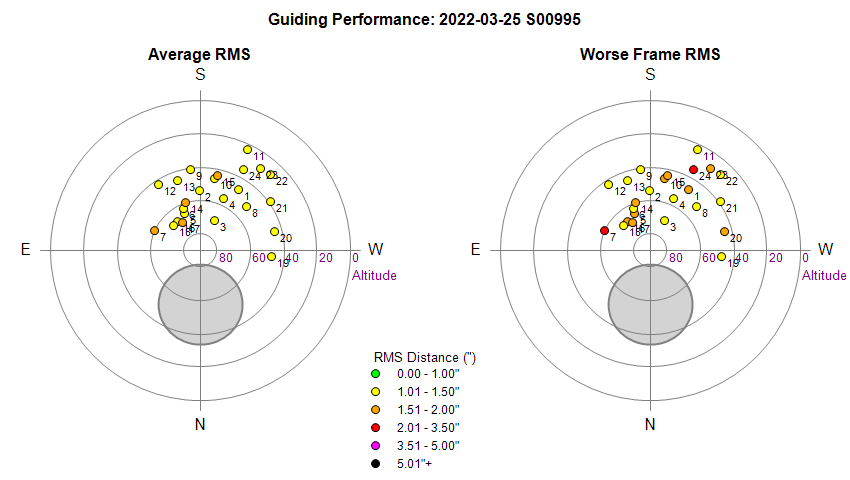

Guiding Performance
Note:

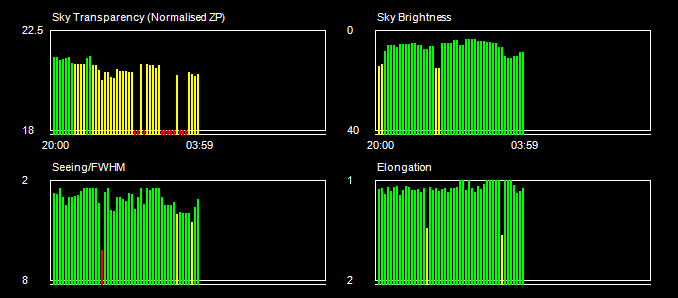

Sky Conditions (Locate Frames)

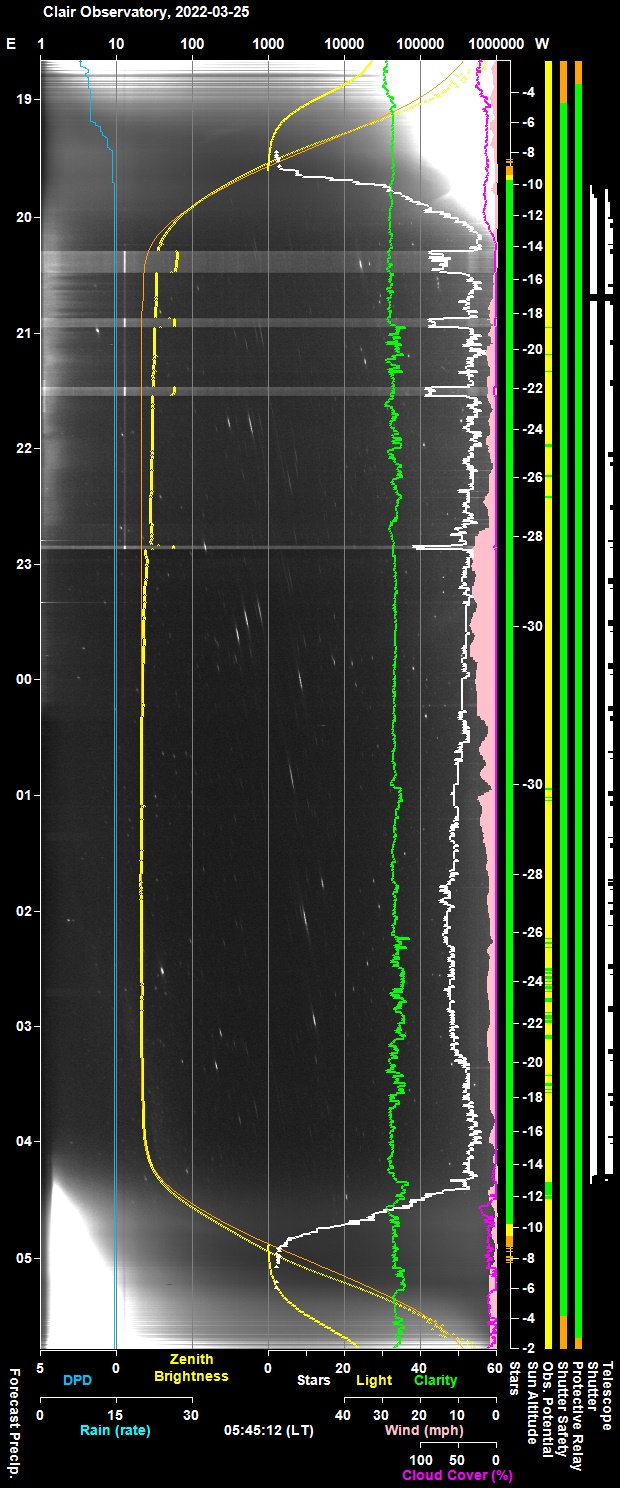

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

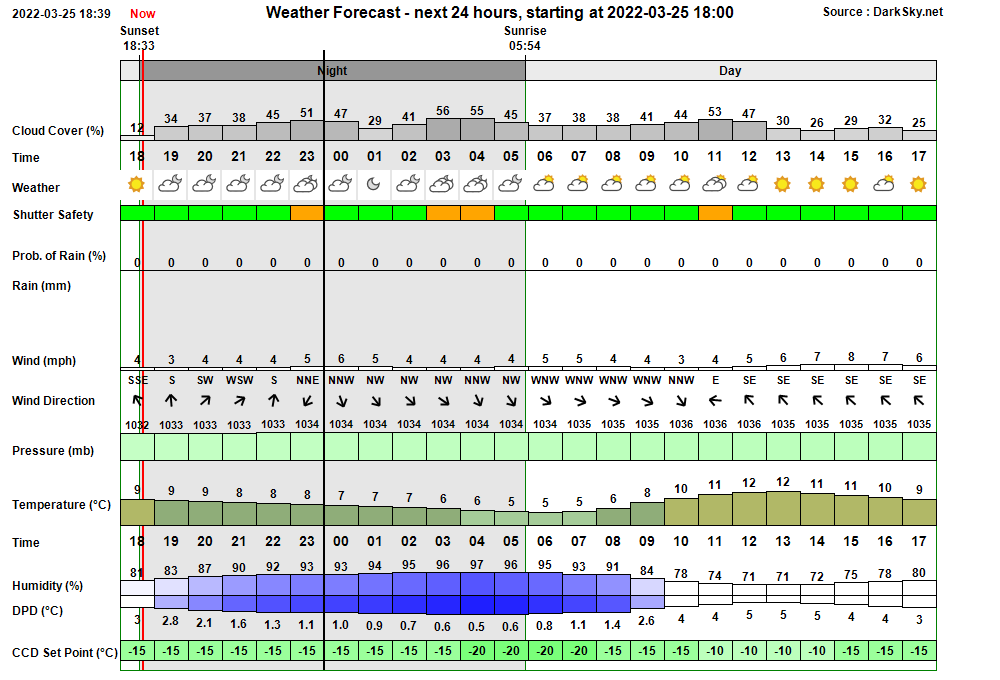

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
19:40:18 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:40 & 03:47
19:40:20   AutoStart Delayed Session delayed due to too few stars
19:42:16 Session AutoStarting Session autostarting (19:42)
19:42:44 Session Created Live Session Created (2022-03-25 S00995, ImageSaveNum: 995001)
19:42:46   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
19:44:27   Services Started Observatory Services started
19:44:34 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:44:36 Session Pending Session pending (2022-03-25)
19:44:38 Session Initiating Session initiating (2022-03-25)
19:44:40   Plan Requested Observing Plan requested from AstroPlan (1.29.13)
19:45:30   Plan Loaded Observing Plan loaded to queue (Plan ID: 753)
19:45:51   Camera1 Connected SBIG Camera Connected (set point -15°C)
19:45:58   Telescope Connected Telescope Connected (TheSky6)
19:46:22 Session Equilibration Session ready for dome & camera equilibration
19:47:07   Dome Opened Dome opened (opening time 45s)
19:47:42 Session Running Session running
19:47:44   Queue Started Observing Queue started (24 targets selected)
19:47:47     Target Started (NrZen) Target started (Focus Field 8, HIP 39357)
19:49:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:52:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
19:54:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
19:54:33       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
19:56:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
19:58:30       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
19:58:48     Target Completed Target completed (Focus Field 8, HIP 39357)
19:59:44     Target Started (1/24) Target started (1/24, C/2019 L3 (ATLAS))
20:02:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:04:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
20:13:25     Target Completed Target completed (1/24, C/2019 L3 (ATLAS))
20:13:37     Target Started (2/24) Target started (2/24, IC 2339)
20:16:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:18:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
20:34:13     Target Completed Target completed (2/24, IC 2339)
20:35:37     Target Started (3/24) Target started (3/24, UGC 4219 w/AT2022eya)
20:42:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:44:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
21:00:42     Target Completed Target completed (3/24, UGC 4219 w/AT2022eya)
21:00:46     Target Started (4/24) Target started (4/24, NGC 2535)
21:03:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:05:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
21:21:16     Target Completed Target completed (4/24, NGC 2535)
21:21:21     Target Started (5/24) Target started (5/24, UGC 5560 w/SN2022ewv)
21:24:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:26:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
21:42:32     Target Completed Target completed (5/24, UGC 5560 w/SN2022ewv)
21:42:36     Target Started (6/24) Target started (6/24, UGC 5764)
21:45:19       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:01:09     Target Completed Target completed (6/24, UGC 5764)
22:03:37     Target Started (7/24) Target started (7/24, ARP 211)
22:06:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:08:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
22:25:27     Target Completed Target completed (7/24, ARP 211)
22:25:31     Target Started (8/24) Target started (8/24, NGC 2623)
22:28:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:31:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
22:47:01     Target Completed Target completed (8/24, NGC 2623)
22:47:37     Target Started (9/24) Target started (9/24, UGC 6312 w/SN2022eyj)
22:50:50       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:06:51     Target Completed Target completed (9/24, UGC 6312 w/SN2022eyj)
23:09:37     Target Started (10/24) Target started (10/24, NGC 3367 w/SN2022ewj)
23:12:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:28:37     Target Completed Target completed (10/24, NGC 3367 w/SN2022ewj)
23:31:37     Target Started (11/24) Target started (11/24, NGC 3115 w/AT2022eyx)
23:34:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:50:46     Target Completed Target completed (11/24, NGC 3115 w/AT2022eyx)
23:53:37     Target Started (12/24) Target started (12/24, NGC 5221)
23:56:41       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
00:12:46     Target Completed Target completed (12/24, NGC 5221)
00:15:37     Target Started (13/24) Target started (13/24, ARP 57)
00:18:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:20:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:36:45     Target Completed Target completed (13/24, ARP 57)
00:37:37     Target Started (14/24) Target started (14/24, NGC 5117 w/SN2022abq)
00:40:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:57:06     Target Completed Target completed (14/24, NGC 5117 w/SN2022abq)
00:59:37     Target Started (15/24) Target started (15/24, ARP 175)
01:02:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:04:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:20:54     Target Completed Target completed (15/24, ARP 175)
01:21:37     Target Started (16/24) Target started (16/24, NGC 5732 w/SN2021agpf)
01:24:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:26:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:42:59     Target Completed Target completed (16/24, NGC 5732 w/SN2021agpf)
01:43:37     Target Started (17/24) Target started (17/24, AT2022evu (CV))
01:48:32       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:54:51     Target Completed Target completed (17/24, AT2022evu (CV))
01:55:37     Target Started (18/24) Target started (18/24, AT2022evv (CV))
01:59:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:01:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
02:07:04     Target Completed Target completed (18/24, AT2022evv (CV))
02:07:37     Target Started (19/24) Target started (19/24, NGC 3104)
02:11:11       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:27:13     Target Completed Target completed (19/24, NGC 3104)
02:29:37     Target Started (20/24) Target started (20/24, ARP 21)
02:32:35       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:48:56     Target Completed Target completed (20/24, ARP 21)
02:51:37     Target Started (21/24) Target started (21/24, UGC 7230)
02:54:39       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
03:10:58     Target Completed Target completed (21/24, UGC 7230)
03:13:37     Target Started (22/24) Target started (22/24, NGC 4810)
03:17:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:33:32     Target Completed Target completed (22/24, NGC 4810)
03:35:37     Target Started (23/24) Target started (23/24, NGC 5258)
03:38:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:40:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
03:56:22     Target Completed Target completed (23/24, NGC 5258)
03:57:37     Target Started (24/24) Target started (24/24, NGC 5679)
04:00:27       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
04:16:17     Target Completed Target completed (24/24, NGC 5679)
04:16:20   Queue Completed Job Queue completed
04:16:21 Session Closing Session closing
04:17:16   Dome Closed Dome closed (closing time 50s)
04:18:23   Dome Parked Dome parked (parking time 60s), Az: 90.0 deg
04:19:34   Telescope Parked Telescope parked (parking time 65s)
04:19:44   Telescope State Scope parked Turn scope off. (Handbox)
04:20:06   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:20:58   Services Stopped Night Services stopped
04:21:00 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:21:22 Session Finished Session Finished

Session Alerts
Time     Alert Detail
-- No Alerts                --


Back to Top


Operational Issues (2022-03-25, S995)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation -  Slow Dome Slew / Slow Scope Slew to one particular target (UGC 4219, 20:35)

Issue.
Unexpectedly slow dome rotation during slew to UGC 4219 (20:35)

Description.
Slew from 185.0 to 199.7° (14.7°) recorded as taking 238s,  a rotation speed of only 0.06°/s instead of a normal speed of 0.5 to 2.2°/s.

The SlewTable shows a D*' suffix on the row associated with slew to UGC 4219, which was a feature added 2022-02-26 (CI, S976) to highlight abnormally slow dome slews.  Because of the 'slow' rotation the log file contains a dump out of the domepath which is useful for analysis (DumpSlewPointsToLogFile() routine added this feature 2022-02-26 (CI, S976) with a bug fix 2022-02-27 (SD, S977)).

Analysis (Dome Slew).
The 'domepath' listing shows that the Dome Slew took 7.5s to move from 185.0 to 197.7°  (speed 1.7°/s),  but then rested at 197.7° before moving to 198.7° after 123.6-124.5s, and then moving from 198.7 to 199.7° between 235.9 and 237.4s.

The 'domepath' listing shows that the Dome Slewing flag switches from 1 to 0 after 7.5s, which should have marked the end of the dome slew at that point, but somehow didn't.    The later movements (marked by the slewing flag temporarily switching back to 1) are possibily related to scope tracking as the movements correspond to 1° changes in required dome azimuth.     The slew monitoring loop in the SlewTheSkyScope() routine is designed to time out after 4 minutes (240s) and this seemed to have happened on this occasion.

There is no evidence to indicate that the problem is related to any physical / mechanical issue with the dome slew, but is more likely related to a bug in the slew monitoring.

Examination of AstroMain code and dome path data would imply tthat bDomeSlewStarted was set to True after 0.5s, that bDomeSlewStopped was set to True after 7.5s (with LastSlewSeconds set to 7.5s), and that bDomeCompleted was set to True after 8.2s.   This fully indicates that DomeSlew was completed after 7.5s. But why does the slew table report a 238s dome slew ?.

The reason would seem to be the subsequent minor dome movements related to telescope tracking ? or continued slow telescope slewing, caused the bDomeSlewStopped flag to be reset to False which led to a revised LastSlewSeconds of 237.5s when the Dome stopped slewing again at 237.5s.   This has only been picked up because Scope slewing was seemingly still ongoing after 240s.

Scope Slew (Scope Slew):
Scope Slew from Az/Alt 186.4°/53.9°  to 199.9° / 70.7° (an angle of 21.6°) was recorded as taking 240s (or a speed of  0.09°/s, which is exceedingly slow) before the slew monitoring loop timed out after 4 minutes (240s), and aborted the slew.

The log file shows that scope had reached Az/Alt  199.91°/70.93° after 9.9s and had become effectively stabilised at Az/Alt  199.80° / 70.74° after 16.8s, but then made intermittent 0.5 deg movements between 16.8s and 240s   The Scope.Slewing flag instead of turning back to 0 (false) after 9.8-16.8s continued showing Slewing 1 (True).  The SlewTheSkyScope() routine continued with bScopeCompleted = false until the moment that slew monitoring timed-out after 4 minutes (240s).

It is hypothesized there was some glitch that caused this particular telescope slew to not complete the final part of the slew.  Plate Solution of the 1st locate frame showed that calculated telescope pointing error was abnormally large (being a value of 42.76' vs a normal pointing error after other slews of only 0.5' to 2.8').     Issue closed after review 2022-05-10, and is put down as rare unexplained glitch.

Conclusion
So it is actually the scope slewing which was unexpectedly slow ! (raised as a separate issue).   AstroMain 3.51.5 modified so that bDomeSlewStopped can only be reset within the first 20s of a slew, and LastSlewSeconds can't be set to 240s (if a later dome movement has to be aborted when bDomeCompleted has already been set to True, but an issue with scope slew completion delays the end of dome rotation monitoring).

Closed after review and small code improvements 2022-05-10 (AstroMain 3.51.5)
