Notes - Session 997 (2022-03-31)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (0),  Continuous Improvement (2)

Bullet Images from 2022-03-31 >>         [ Local Files >> ]
Bullet Investigation -  Slow Dome Slews, Session S997

Session Aims & Highlights (2022-03-31)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
  2. AstroMain.  Check new AstroMain verson 3.50.9 to ensure that it hasn't introduced any issues for live operations.

Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

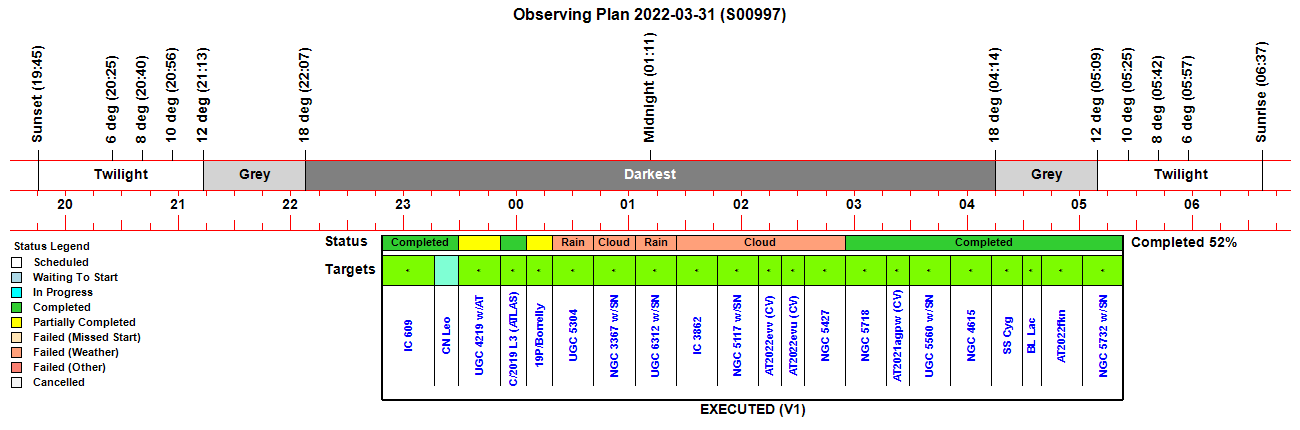

Observing Plan

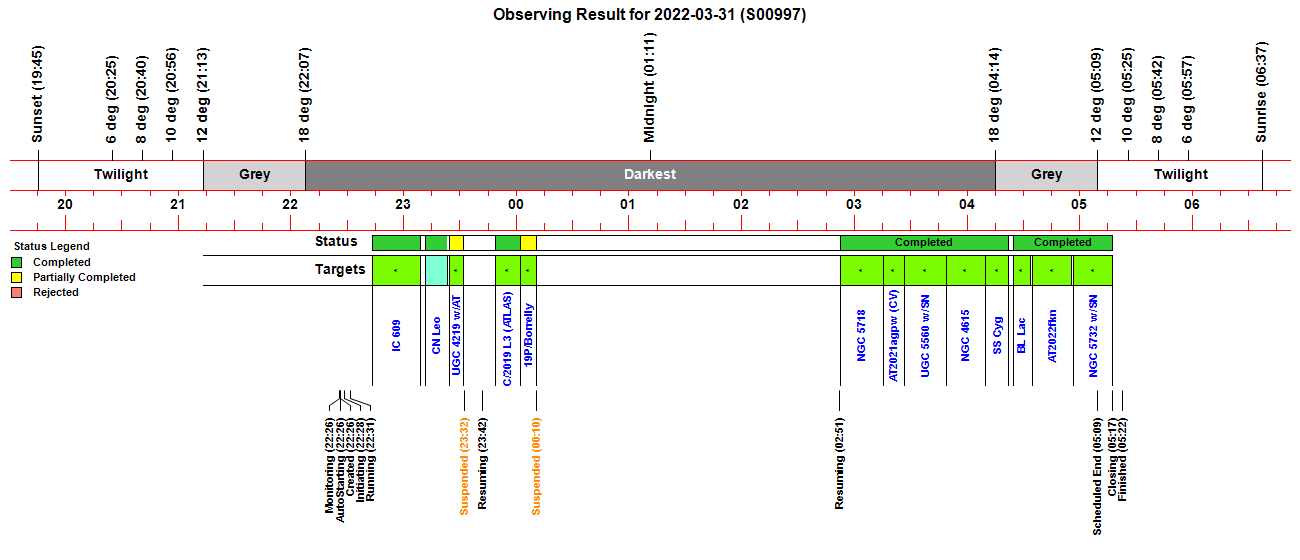

Observing Result

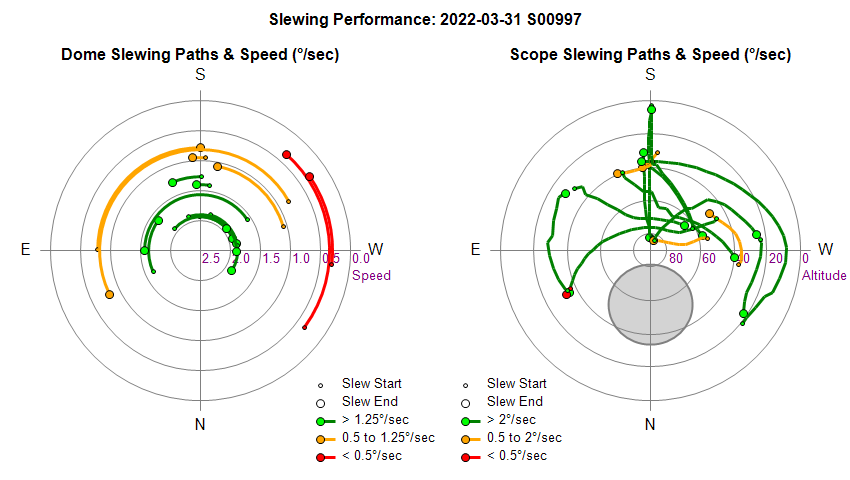

Dome & Scope Slewing Performance

Slew/Centering Performance

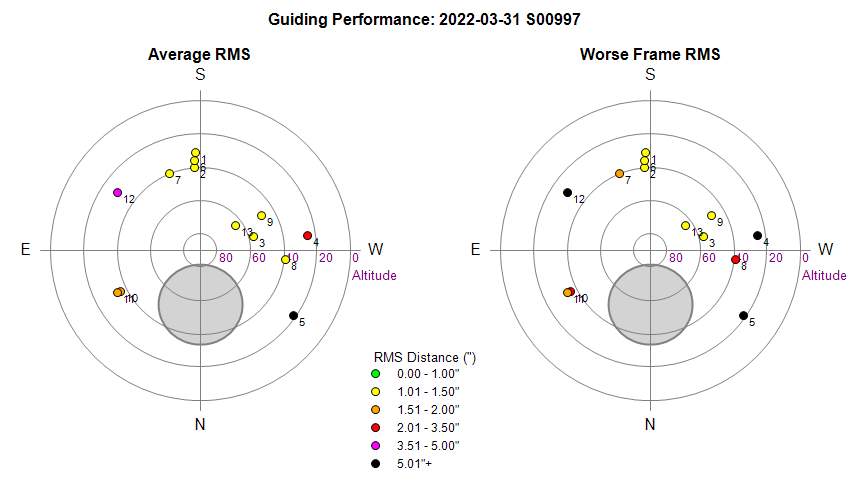

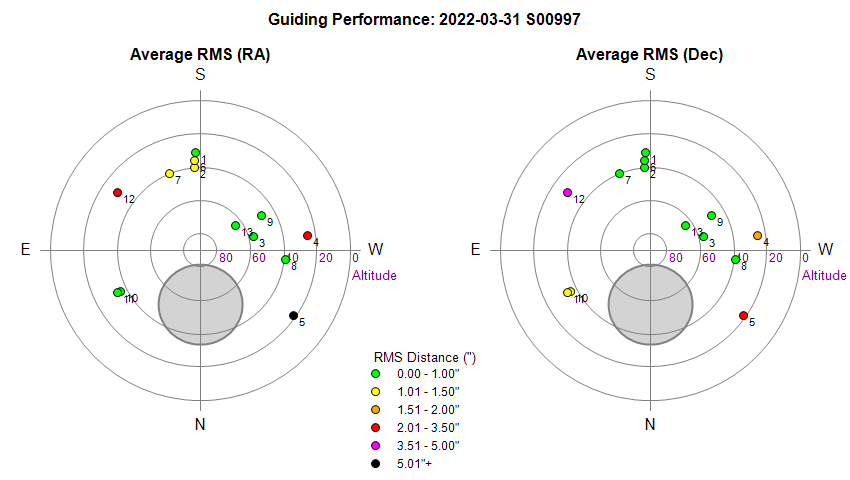

Guiding Performance
Note:

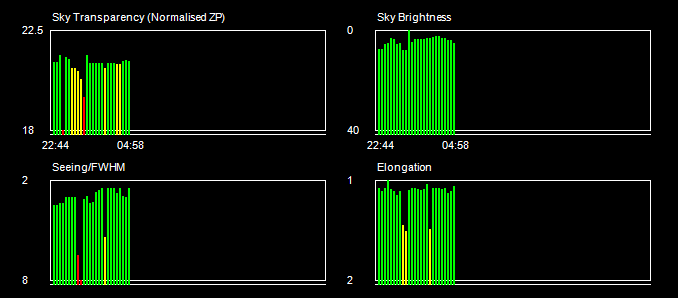

Sky Conditions (Locate Frames)

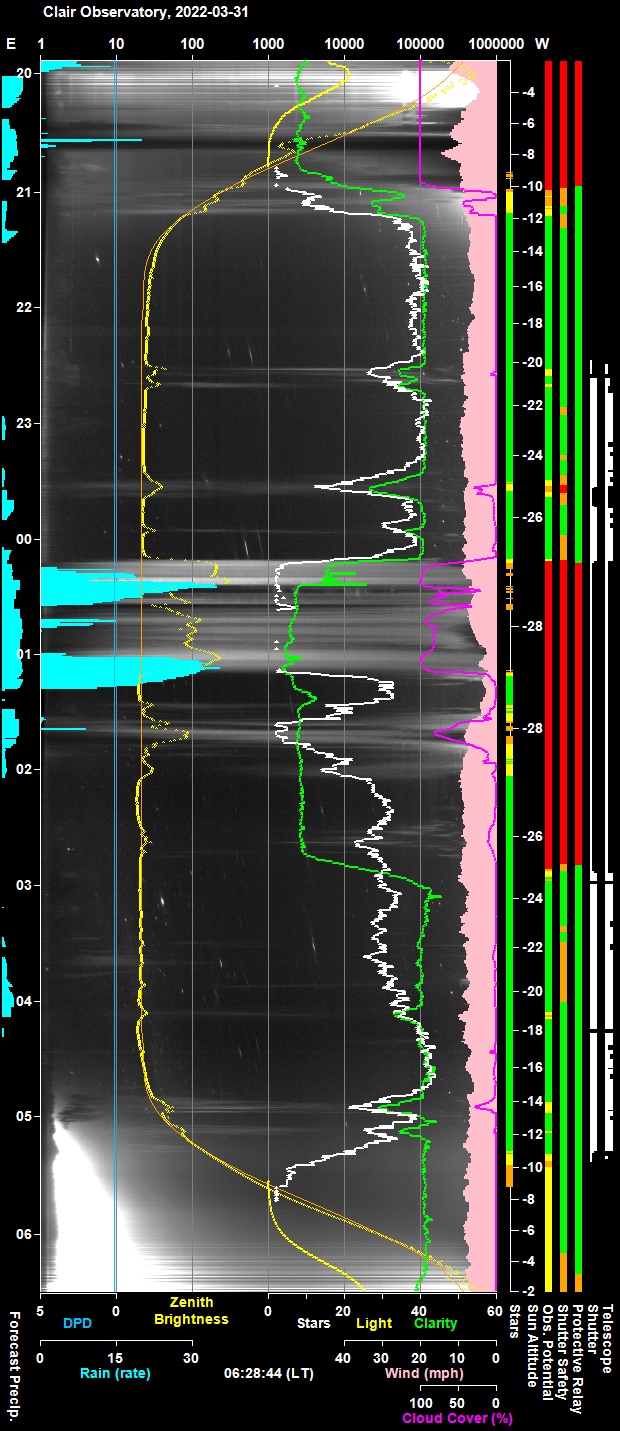

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

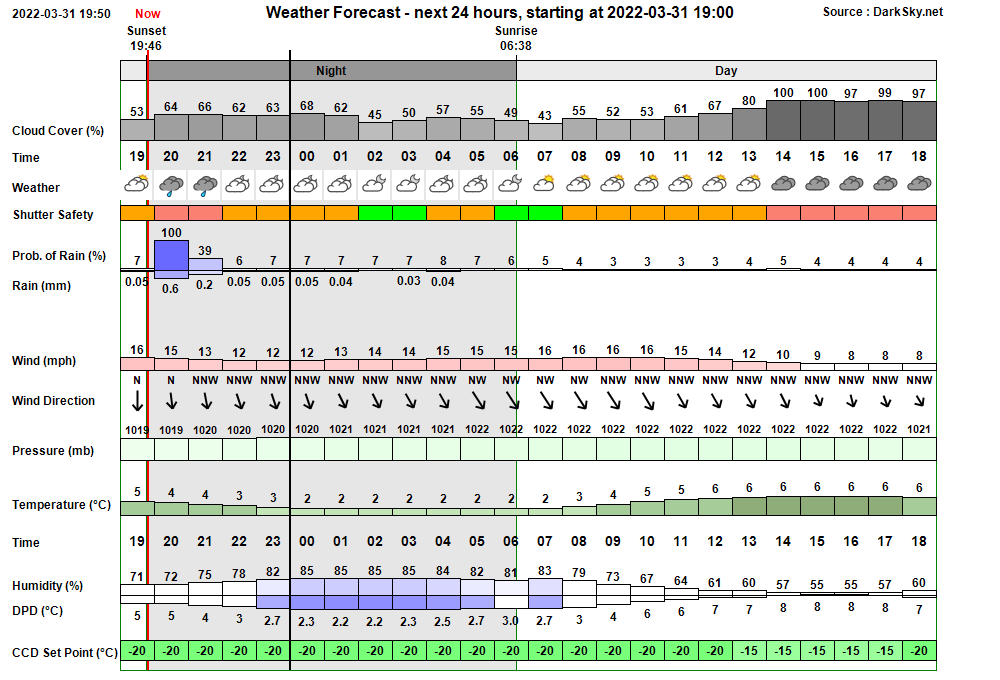

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
22:26:05 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:26 & 04:29
22:26:08 Session AutoStarting Session autostarting (22:26)
22:26:36 Session Created Live Session Created (2022-03-31 S00997, ImageSaveNum: 997001)
22:26:39   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:28:19   Services Started Observatory Services started
22:28:26 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:28:28 Session Pending Session pending (2022-03-31)
22:28:31 Session Initiating Session initiating (2022-03-31)
22:28:33   Plan Requested Observing Plan requested from AstroPlan (1.29.14)
22:29:02   Plan Loaded Observing Plan loaded to queue (Plan ID: 755)
22:29:23   Camera1 Connected SBIG Camera Connected (set point -25°C)
22:29:30   Telescope Connected Telescope Connected (TheSky6)
22:29:54 Session Equilibration Session ready for dome & camera equilibration
22:30:39   Dome Opened Dome opened (opening time 45s)
22:31:35 Session Running Session running
22:31:37   Queue Started Observing Queue started (21 targets selected)
22:31:39     Target Started (NrZen) Target started (Focus Field 10, HIP 49253)
22:34:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:37:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
22:39:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:39:49       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:40:04     Target Completed Target completed (Focus Field 10, HIP 49253)
22:43:37     Target Started (1/21) Target started (1/21, IC 609)
22:46:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:09:04     Target Completed Target completed (1/21, IC 609)
23:11:41     Target Started (2/21) Target started (2/21, GCVS CN Leo)
23:14:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:16:17       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous)
23:23:31     Target Completed Target completed (2/21, GCVS CN Leo)
23:24:31     Target Started (3/21) Target started (3/21, UGC 4219 w/AT2022eya)
23:27:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:29:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:31:17   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:32:02 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
23:32:04   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
23:32:07     Target Aborted (3/21) Target aborted (3/21, UGC 4219 w/AT2022eya) due to threat of rain
23:32:09   Queue Paused Queue paused for Session Suspension
23:32:12 Session Suspended Session suspended
23:33:02   Dome Closed Dome closed (closing time 50s)
23:42:13 Session Resuming Session resuming
23:42:58   Dome Opened Dome opened (opening time 45s)
23:43:01 Session Running Session running
23:43:03   Queue Resumed Observing Queue resumed
23:43:05     Target Started (NrZen) Target started (Focus Field 11, HIP 53798)
23:44:18       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
23:46:29       Focusing Completed Foc2 AutoFocus Completed (Profile No 4, wide)
23:48:14       Focusing Completed Foc2 AutoFocus Completed (Profile No 4)
23:48:32     Target Completed Target completed (Focus Field 11, HIP 53798)
23:48:34     Target Missed (3/21) Target's time slot was missed (3/21, UGC 4219 w/AT2022eya)
23:48:40     Target Started (4/21) Target started (4/21, C/2019 L3 (ATLAS))
23:51:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:53:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:02:25     Target Completed Target completed (4/21, C/2019 L3 (ATLAS))
00:02:29     Target Started (5/21) Target started (5/21, 19P/Borrelly)
00:05:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:10:42 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Dome)
00:10:44   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain)
00:10:46     Target Aborted (5/21) Target aborted (5/21, 19P/Borrelly) due to threat of rain
00:10:48   Queue Paused Queue paused for Session Suspension
00:10:50 Session Suspended Session suspended
00:11:37   Dome Closed Dome closed (closing time 50s)
00:13:28     Target Cancelled Target cancelled (5/21, 19P/Borrelly) due to cloud
00:33:13     Target Cancelled Target cancelled (6/21, UGC 5304) due to rain
00:55:13     Target Cancelled Target cancelled (7/21, NGC 3367 w/SN2022ewj) due to cloud
01:17:13     Target Cancelled Target cancelled (8/21, UGC 6312 w/SN2022eyj) due to rain
01:39:13     Target Cancelled Target cancelled (9/21, IC 3862) due to cloud
02:01:13     Target Cancelled Target cancelled (10/21, NGC 5117 w/SN2022abq) due to cloud
02:15:13     Target Cancelled Target cancelled (11/21, AT2022evv (CV)) due to cloud
02:27:13     Target Cancelled Target cancelled (12/21, AT2022evu (CV)) due to cloud
02:47:13     Target Cancelled Target cancelled (13/21, NGC 5427) due to cloud
02:51:56 Session Resuming Session resuming
02:52:42   Dome Opened Dome opened (opening time 45s)
02:52:44 Session Running Session running
02:52:46   Queue Resumed Observing Queue resumed
02:52:48     Target Started (14/21) Target started (14/21, NGC 5718)
03:15:42     Target Completed Target completed (14/21, NGC 5718)
03:15:46     Target Started (15/21) Target started (15/21, AT2021agpw (CV))
03:18:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:21:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
03:26:52     Target Completed Target completed (15/21, AT2021agpw (CV))
03:26:56     Target Started (16/21) Target started (16/21, UGC 5560 w/SN2022ewv)
03:30:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:32:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
03:49:08     Target Completed Target completed (16/21, UGC 5560 w/SN2022ewv)
03:49:12     Target Started (17/21) Target started (17/21, NGC 4615)
04:09:59     Target Completed Target completed (17/21, NGC 4615)
04:10:03     Target Started (18/21) Target started (18/21, GCVS SS Cyg)
04:22:08     Target Completed Target completed (18/21, GCVS SS Cyg)
04:24:32     Target Started (19/21) Target started (19/21, GCVS BL Lac)
04:27:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:29:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
04:34:01     Target Completed Target completed (19/21, GCVS BL Lac)
04:34:38     Target Started (20/21) Target started (20/21, AT2022fkn)
04:37:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:39:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
04:56:00     Target Completed Target completed (20/21, AT2022fkn)
04:56:38     Target Started (21/21) Target started (21/21, NGC 5732 w/SN2021agpf)
04:59:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:01:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
05:17:17     Target Completed Target completed (21/21, NGC 5732 w/SN2021agpf)
05:17:20   Queue Completed Job Queue completed
05:17:24 Session Closing Session closing
05:18:19   Dome Closed Dome closed (closing time 50s)
05:20:01   Dome Parked Dome parked (parking time 94s), Az: 90.0 deg
05:21:12   Telescope Parked Telescope parked (parking time 65s)
05:21:22   Telescope State Scope parked Turn scope off. (Handbox)
05:21:44   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
05:22:37   Services Stopped Night Services stopped
05:22:39 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
05:22:50 Session Finished Session Finished

Session Alerts
Time     Alert Detail
02:56:57 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (NGC 5718)


Back to Top


Operational Issues (2022-03-31, S997)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation -  Slow Dome Slews, Session S997

Issue.  Four dome slews took an unexpectedly long time :

 1) slew to Focus Field 10 (89.9° in 115s, 0.78 °/s)
 2) slew to NGC 5718 (84.6°in 240s, 0.35 °/s)
 3) slew to NGC 4615 (40.2° in 131s, 0.31 °/s),
 4) slew to SS Cyg  (176.5° slew in 218s, 0.81 °/s),

Analysis

Slew 1 (22:32)
- Slew started from Az 90.3°   (why doesn't slew start from Az 90.0°
- Azimuth fluctuating between 90.3 and 90.4° during first 58s
- Azimuth fluctuating between 90.4° and 90.7 or 90.8°  during next 13s
- Slewed from 91.1° and 180.2 over next 43s (89.1° in 43s,  2.07°/s)
- Looks like dome motors were spinning on roughly same the  spot for first 71s, before grabbing and then performing a normal slew.

Slew 2 (02:52)
- Slew started from Az 306.4°
- Staggered slew with semi-stationary interval at Az 291.5° (70s),  Az 268.2° (38s),  Az 247.0° (39s) &  Az 221.2° (43s at end).
- Looks like dome motors were spinning at a number of spots, grabbing ok in between
- When the semi-stationary intervals (totalling 190s) are removed the active slew rate (84.6°in (240- 190)s,  1.68°/s) is within the normal range.

Slew 3 (03:49)
- Slew started from Az 275.9°
- Staggered slew with semi-stationary interval at Az 268.3° (47s),  Az 246.9° (55s).   These are  'flat-spots' are amoungst the flats-spots seen during slew 2.
- When the semi-stationary intervals (totalling 102s) are removed the active slew rate (40.2°in (131- 102)s,  1.39°/s) is within the normal range.

Slew 4 (04:10)
- Slew started from Az 240.9°
- Slew held up at Az 222° (92s)   Slipping over range ~ 223.1 to 221.6°
- When semi-stationary interval is removed the active slew rate (176.5° in (218-92)s,  1.40°/s) is within the normal range.

Conclusion

In each of these 4 case was dome rotation was held up at particular azimuths when dome motors seem to be slipping given very limited rotation of the dome which lasts until motors grab the dome flange and rotation picks up to normal rates.

Flat spots identified
 Az 90.3,   Az 222°,   Az 247°,   Az 268°,  Az 291°

Issue is believed to be due to a combination of grease/dew on the dome flange and the non-perfect geometry of the dome roof related to original installation.
