Notes - Session 1003 (2022-04-22)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (2),  Small Defects (1),  Continuous Improvement (4)

Bullet Images from 2022-04-22 >>         [ Local Files >> ]
2022-04-23
Bullet Session Attempt (2022-04-23, S1004A)
2022-04-24
Bullet Upgrade to Dimension4, Version 5.31
Bullet Migration to Visual Studio 2022
Bullet Upgrade to ASCOM 6.6
Bullet Upgrade to DeviceHub 6.6.0.4

Session Aims & Highlights (2022-04-22)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
  2. ARP Galaxies in UMa. Continue acquisition of images of previously un-imaged ARP Galaxies in constellation of Ursa Major (UMa)

Equipment & Software

Highlights

Notes:

  Summary Plots & Logs

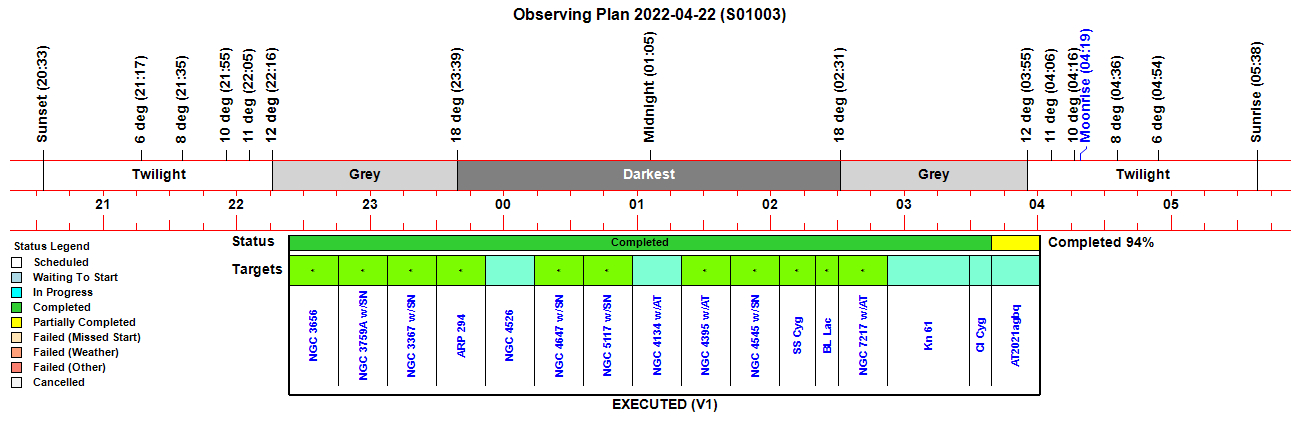

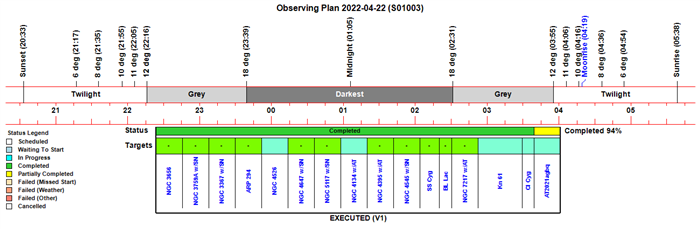

Observing Plan

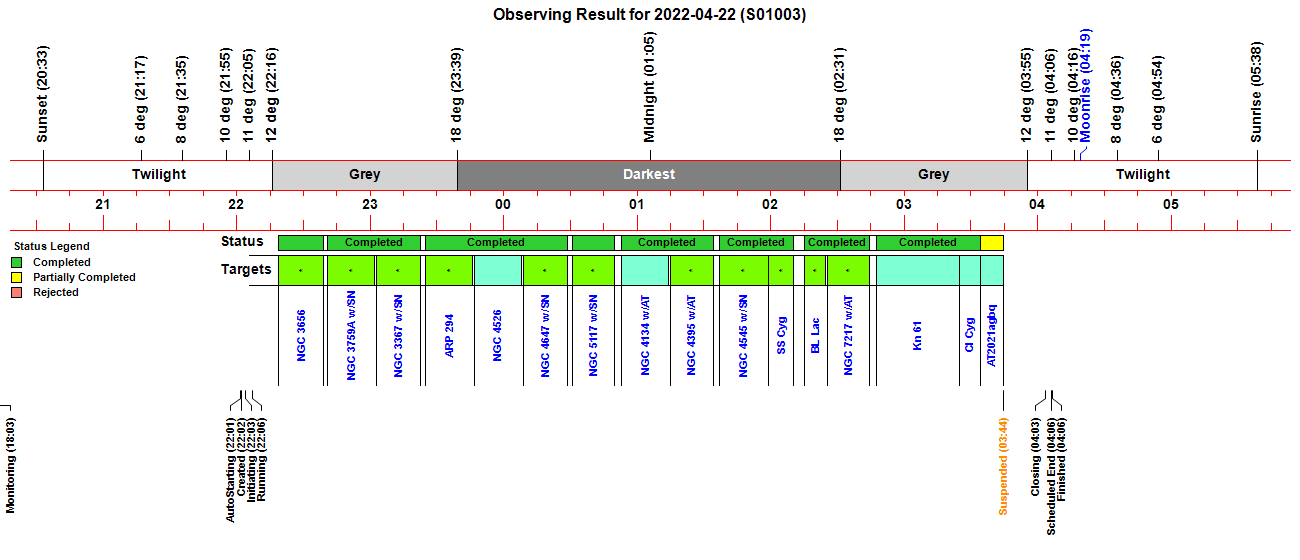

Observing Result

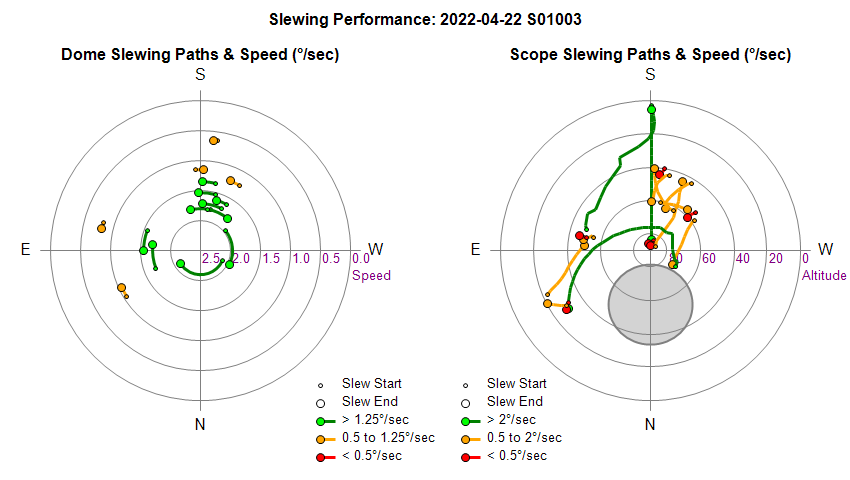

Dome & Scope Slewing Performance

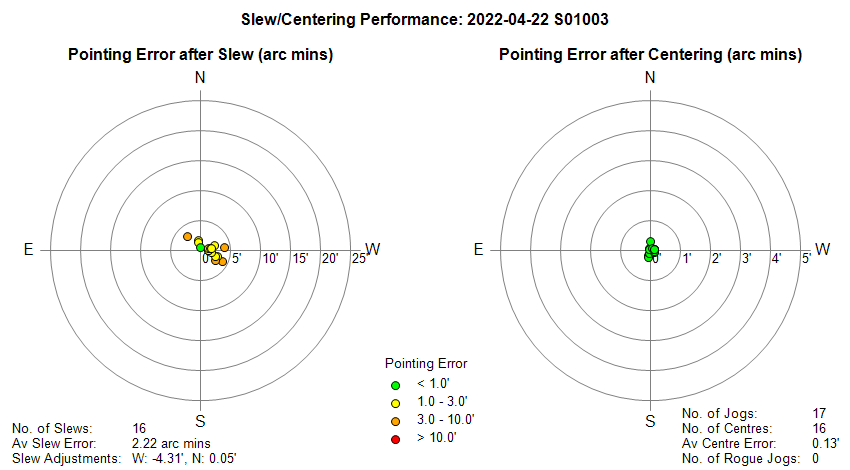

Slew/Centering Performance

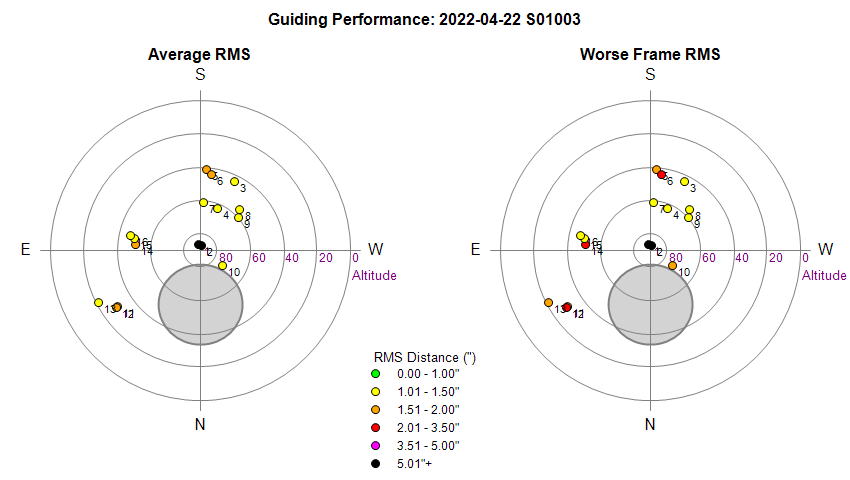

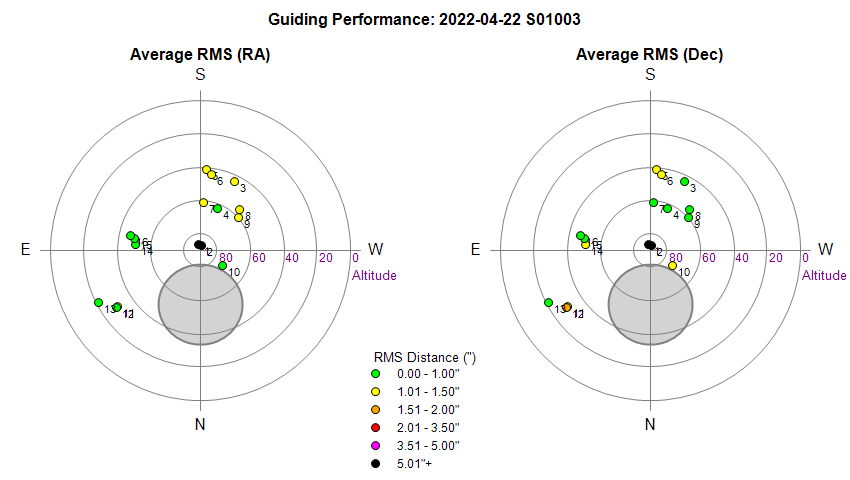

Guiding Performance

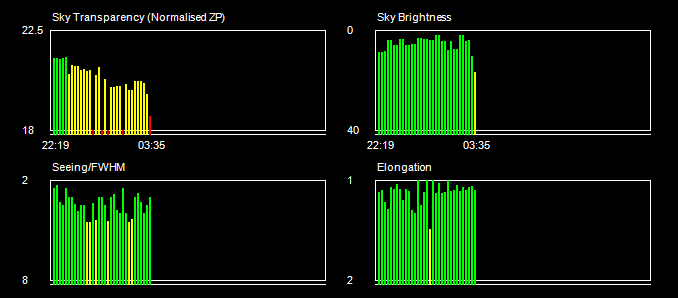

Sky Conditions (Locate Frames)

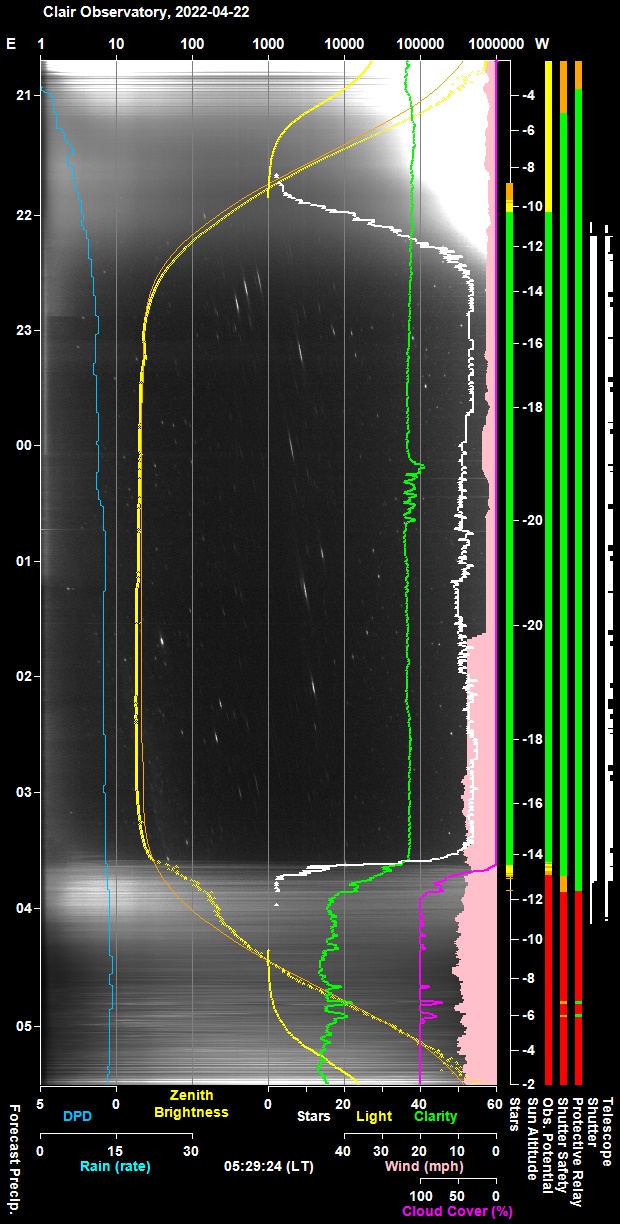

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

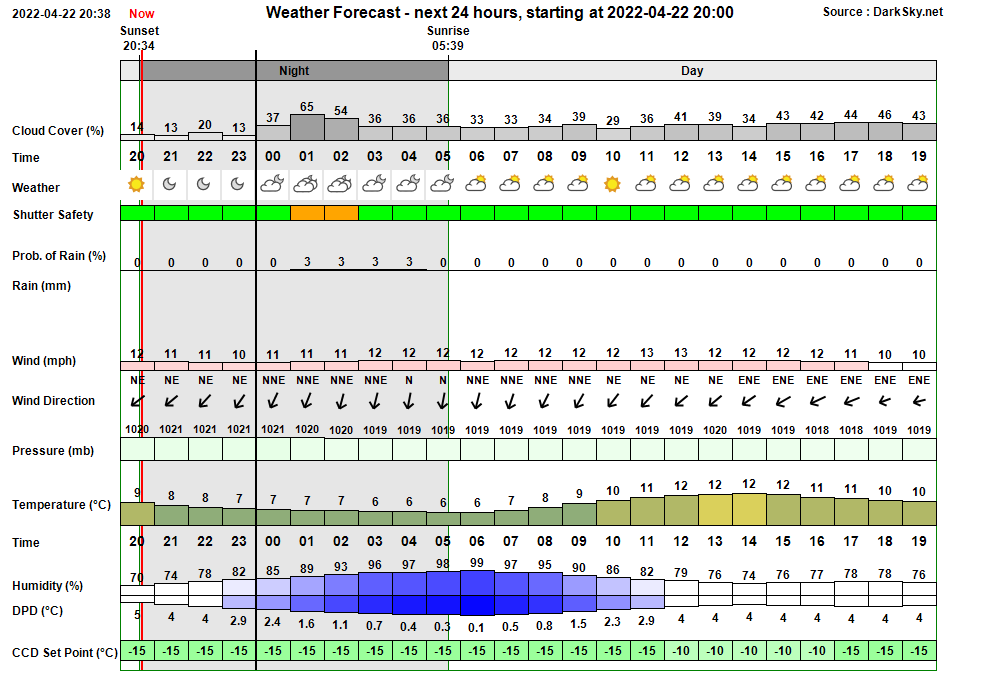

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:03:17 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:46 & 03:15
18:03:17   AutoStart Waiting AutoStart waiting till earliest start time at 21:46
21:46:20   AutoStart Delayed Session delayed due to too few stars
22:01:32 Session AutoStarting Session autostarting (22:01)
22:02:00 Session Created Live Session Created (2022-04-22 S01003, ImageSaveNum: 1003001)
22:02:02   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:03:45   Services Started Observatory Services started
22:03:52 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:03:54 Session Pending Session pending (2022-04-22)
22:03:56 Session Initiating Session initiating (2022-04-22)
22:03:58   Plan Requested Observing Plan requested from AstroPlan (1.29.14)
22:04:21   Plan Loaded Observing Plan loaded to queue (Plan ID: 761)
22:04:42   Camera1 Connected SBIG Camera Connected (set point -20°C)
22:04:49   Telescope Connected Telescope Connected (TheSky6)
22:05:13 Session Equilibration Session ready for dome & camera equilibration
22:05:58   Dome Opened Dome opened (opening time 45s)
22:06:58 Session Running Session running
22:07:00   Queue Started Observing Queue started (16 targets selected)
22:07:03     Target Started (NrZen) Target started (Focus Field 11, HIP 53798)
22:08:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:11:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
22:13:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
22:13:44       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:15:54       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
22:17:42       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
22:18:00     Target Completed Target completed (Focus Field 11, HIP 53798)
22:19:00     Target Started (1/16) Target started (1/16, NGC 3656)
22:22:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:38:52     Target Completed Target completed (1/16, NGC 3656)
22:41:00     Target Started (2/16) Target started (2/16, NGC 3759A w/SN2022hnt)
22:44:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:46:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:02:06     Target Completed Target completed (2/16, NGC 3759A w/SN2022hnt)
23:03:00     Target Started (3/16) Target started (3/16, NGC 3367 w/SN2022ewj)
23:06:17       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:22:42     Target Completed Target completed (3/16, NGC 3367 w/SN2022ewj)
23:25:00     Target Started (4/16) Target started (4/16, ARP 294)
23:28:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:30:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
23:46:14     Target Completed Target completed (4/16, ARP 294)
23:47:00     Target Started (5/16) Target started (5/16, NGC 4526)
23:50:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:52:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:08:08     Target Completed Target completed (5/16, NGC 4526)
00:09:00     Target Started (6/16) Target started (6/16, NGC 4647 w/SN2022hrs)
00:11:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:28:37     Target Completed Target completed (6/16, NGC 4647 w/SN2022hrs)
00:31:00     Target Started (7/16) Target started (7/16, NGC 5117 w/SN2022abq)
00:34:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:49:57     Target Completed Target completed (7/16, NGC 5117 w/SN2022abq)
00:53:00     Target Started (8/16) Target started (8/16, NGC 4134 w/AT2021adlx)
00:55:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:58:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
01:14:06     Target Completed Target completed (8/16, NGC 4134 w/AT2021adlx)
01:15:00     Target Started (9/16) Target started (9/16, NGC 4395 w/AT2022fmn)
01:18:11       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
01:34:14     Target Completed Target completed (9/16, NGC 4395 w/AT2022fmn)
01:37:00     Target Started (10/16) Target started (10/16, NGC 4545 w/SN2022fuc)
01:40:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:42:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
01:58:55     Target Completed Target completed (10/16, NGC 4545 w/SN2022fuc)
01:58:59     Target Started (11/16) Target started (11/16, GCVS SS Cyg)
02:02:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:04:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
02:10:07     Target Completed Target completed (11/16, GCVS SS Cyg)
02:15:16     Target Started (12/16) Target started (12/16, GCVS BL Lac)
02:17:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:20:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
02:24:52     Target Completed Target completed (12/16, GCVS BL Lac)
02:25:22     Target Started (13/16) Target started (13/16, NGC 7217 w/AT2022gyc)
02:28:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:44:16     Target Completed Target completed (13/16, NGC 7217 w/AT2022gyc)
02:47:22     Target Started (14/16) Target started (14/16, Kn 61)
02:50:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:52:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
03:25:00     Target Completed Target completed (14/16, Kn 61)
03:25:04     Target Started (15/16) Target started (15/16, GCVS CI Cyg)
03:27:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:29:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
03:34:24     Target Completed Target completed (15/16, GCVS CI Cyg)
03:34:28     Target Started (16/16) Target started (16/16, AT2021agbq)
03:37:12       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:38:38   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
03:44:24 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
03:44:26   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
03:44:28     Target Aborted (16/16) Target aborted (16/16, AT2021agbq) due to cloud
03:44:30   Queue Paused Queue paused for Session Suspension
03:44:32 Session Suspended Session suspended
03:45:19   Dome Closed Dome closed (closing time 50s)
04:03:15     Target Cancelled Target cancelled (16/16, AT2021agbq) due to cloud
04:03:20   Queue Completed Job Queue completed
04:03:26 Session Closing Session closing
04:03:31   Dome Closed Dome already closed (closed at 03:45, closing time 50s)
04:03:53   Dome Parked Dome parked (parking time 14s), Az: 90.0 deg
04:05:06   Telescope Parked Telescope parked (parking time 68s)
04:05:21   Telescope State Scope parked Turn scope off. (Handbox)
04:05:43   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:06:38   Services Stopped Night Services stopped
04:06:40 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:06:52 Session Finished Session Finished

Session Alerts
Time     Alert Detail
01:52:40 Dome Dome has been stationary for more than 15 mins
01:59:06 Dome Dome Movements have begun again (outage 21.5 mins)


Back to Top


Operational Issues (2022-04-22, S1003)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2022-04-23


Session Attempt (2022-04-23, S1004A)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

Highlights

Notes:

Summary Plots & Logs

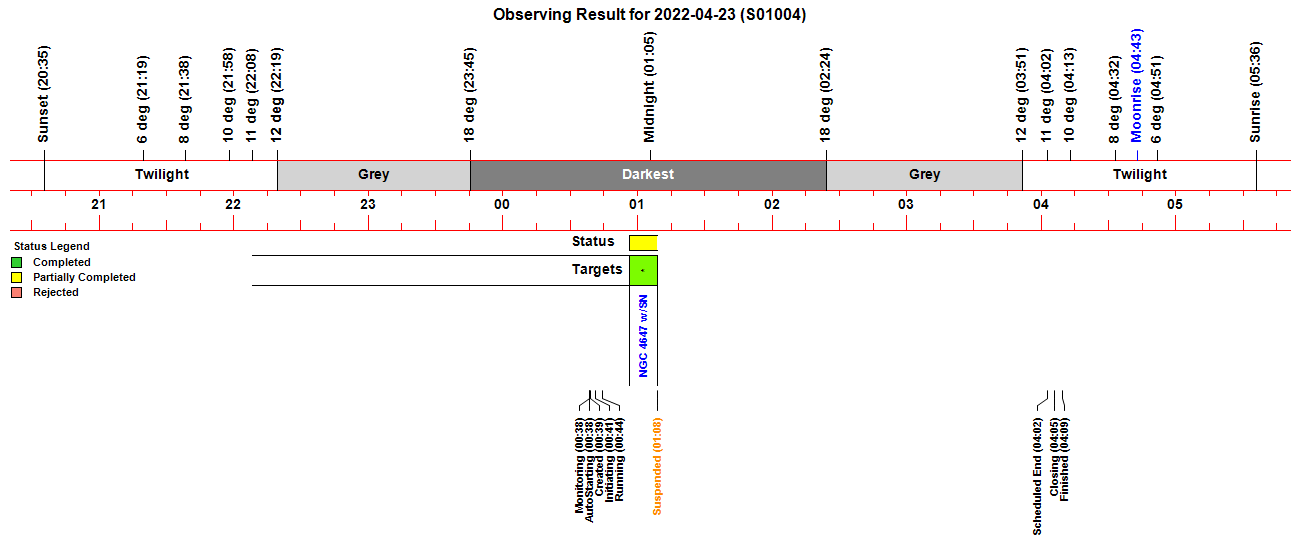

Observing Result

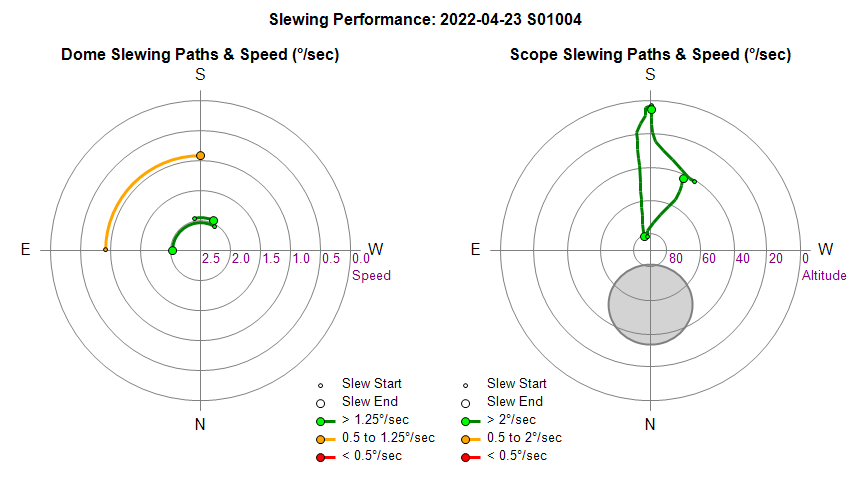

Dome & Scope Slewing Performance

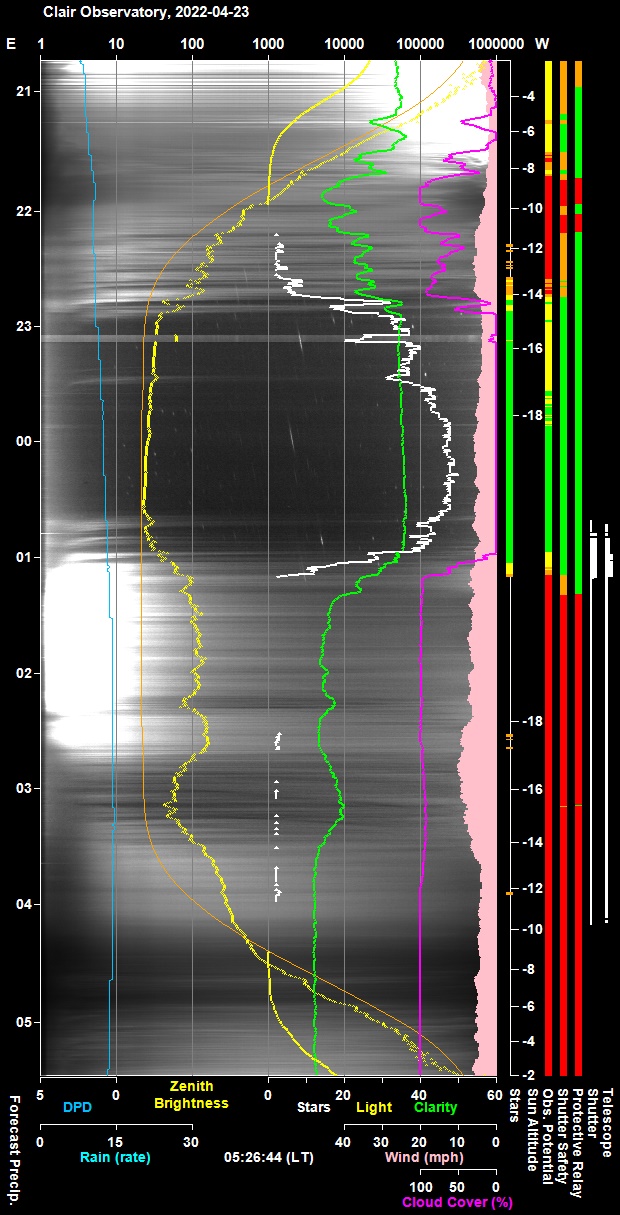

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)



Session Event Log
Time     Event Detail
00:38:43 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:38 & 03:11
00:38:47 Session AutoStarting Session autostarting (00:38)
00:39:16 Session Created Live Session Created (2022-04-23 S01004, ImageSaveNum: 1004001)
00:39:18   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
00:41:01   Services Started Observatory Services started
00:41:08 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:41:10 Session Pending Session pending (2022-04-23)
00:41:12 Session Initiating Session initiating (2022-04-23)
00:41:14   Plan Requested Observing Plan requested from AstroPlan (1.29.14)
00:41:40   Plan Loaded Observing Plan loaded to queue (Plan ID: 762)
00:42:03   Camera1 Connected SBIG Camera Connected (set point -20°C)
00:42:10   Telescope Connected Telescope Connected (TheSky6)
00:42:34 Session Equilibration Session ready for dome & camera equilibration
00:43:19   Dome Opened Dome opened (opening time 45s)
00:44:14 Session Running Session running
00:44:16   Queue Started Observing Queue started (9 targets selected)
00:44:19     Target Started (NrZen) Target started (Focus Field 14, HIP 69068)
00:46:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:50:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
00:52:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
00:52:13       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
00:54:23       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
00:56:09       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
00:56:27     Target Completed Target completed (Focus Field 14, HIP 69068)
00:56:31     Target Started (1/9) Target started (1/9, NGC 4647 w/SN2022hrs)
01:00:07       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
01:03:46   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
01:08:46 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
01:08:48   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
01:08:51     Target Aborted (1/9) Target aborted (1/9, NGC 4647 w/SN2022hrs) due to cloud
01:08:53   Queue Paused Queue paused for Session Suspension
01:08:55 Session Suspended Session suspended
01:09:42   Dome Closed Dome closed (closing time 50s)
01:15:13     Target Cancelled Target cancelled (1/9, NGC 4647 w/SN2022hrs) due to cloud
01:37:12     Target Cancelled Target cancelled (2/9, NGC 5117 w/SN2022abq) due to cloud
01:59:12     Target Cancelled Target cancelled (3/9, NGC 3367 w/SN2022ewj) due to cloud
02:21:12     Target Cancelled Target cancelled (4/9, NGC 3759A w/SN2022hnt) due to cloud
02:43:12     Target Cancelled Target cancelled (5/9, NGC 4395 w/AT2022fmn) due to cloud
03:05:12     Target Cancelled Target cancelled (6/9, NGC 4545 w/SN2022fuc) due to cloud
03:27:12     Target Cancelled Target cancelled (7/9, NGC 5732 w/SN2021agpf) due to cloud
03:46:12     Target Cancelled Target cancelled (8/9, GCVS SS Cyg) due to cloud
04:05:33     Target Cancelled Target cancelled (9/9, GCVS BL Lac) due to cloud
04:05:38   Queue Completed Job Queue completed
04:05:43 Session Closing Session closing
04:05:48   Dome Closed Dome already closed (closed at 01:09, closing time 50s)
04:06:56   Dome Parked Dome parked (parking time 60s), Az: 90.0 deg
04:08:04   Telescope Parked Telescope parked (parking time 65s)
04:08:19   Telescope State Scope parked Turn scope off. (Handbox)
04:08:41   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:09:35   Services Stopped Night Services stopped
04:09:37 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
04:09:38 Session Finished Session Finished

Session Alerts
Time     Alert Detail
-- No Alerts                --


Operational Issues

Back to Top




2022-04-24


Upgrade to Dimension4, Version 5.31

Dimension4 (D4.exe) which is used for monitoring and updating Computer Time on the observatory computer hasn't been operating efficiently on the Windows 10 computers that have replaced older Windows 7 computers. It has been necessary to remember to start up D4 manually using 'Run As Administrator' after each computer restart   (problem was probably due to D4 not being set to run as a service, resolved when installing v 5.31)

Dimension4  5.0 version (2004) has now been updated to 5.31 (2013) version and setup to run as a service and alway use the server ntp2.uk.uu.net.

This should mean that the Dimension4 will now automatically start up when computer are restarted without user intervention, ensuring that computer time in the observatory is always correct.

Back to Top


Migration to Visual Studio 2022

Visual Studio Community is used to create custom (AstroSuite) VB.Net programs for operating the observatory.   It is thus a critical application.

Microsoft support for Visual Studio 2019 has recently ceased and consequently existing programs need to be moved over to use the latest Visual Studio version (ie VS 2022).
To support this the following tasks are required :

Following the installation of VS 2022 and ASCOM 6.6 Developer Components the full set of AstroSuite programs were compiled, checked and then installed on Development and Observatory Computers (as at 2022-04-24).

Note : VS 2022 has still to be installed on Observatory Computer (as of 2022-04-25) but this isn't critical.
Note:  Observatory Computer was finally taken to VS 2022 on 2022-06-22 as part of resetting up the computer following reinstallation of Windows 10.

Back to Top


Upgrade to ASCOM 6.6

ASCOM Platform upgraded on Development & Observatory Computers today (2022-04-24) from version 6.5 SP1 to the new 6.6 version.

The following installations were made:

- ASCOMPlatform66.exe
- ASCOMPlatform66Developer.exe
- Conform.6.6.8048.17861.setup.exe

Notes:
- DeviceHub noted to be 5.5.1.10 following installation (it was believed to have been 5.5.1.9 before installation).
- Following installation of ASCOM 6.6 the DeviceHub program was updated to 6.6.0.4

Back to Top


Upgrade to DeviceHub 6.6.0.4

DeviceHub upgraded on Development & Observatory Computers today (2022-04-24)  from version 6.5.1.9 / 6.5.1.10 to the new 6.6.0.4 version.

The new version includes the following accumulated changes

6.5.1.10
- Fix Dome Shutter position reporting & disable Open/Close Shutter button when CanSetShutter is False.
- Report the Shutter position only when the shutter is Open.
- Changed default label for Open/Close button to Open Shutter.
- Added test case to ensure that CanToggleShutterState returns false when CanSetShutter is false.

6.6.0.1
- Added U/I support for displaying accumulated move amount for relative and absolute focusers.
- Added direct move amount for relative focusers.
- Updated user guide

6.6.0.2
- Show Wait cursor during Connect operations in case it takes a long time to complete.
- Enhanced circle buttons to change when hovered over or pressed..

6.6.0.3
- Improved error handling in user interface for all 3 devices.

6.6.0.4
- Changed drivers to prevent unconnected clients from changing device properties when the device is already connected via the U/I.
- Changed TelescopeViewModel, DomeViewModel and FocuserViewModel classes to prevent interactive disconnects when there are connected clients.

Trying out 6.6.0.4 it was found that it suffers from an issue whereby after disconnecting all telescope or all dome clients the DeviceHub interface shows that it is still connected to the respective device (telescope or dome).   This would be expected where the Device was connected to from DH first,  but not where the first connection was made from the client application.

 Issue was reported to the DeviceHub author on 2022-04-24 (pm)

Update 2022-04-27
A new version (6.6.0.5) issued on 2022-04-27 for testing (see Upgrade to DeviceHub 6.6.0.5).

Back to Top
