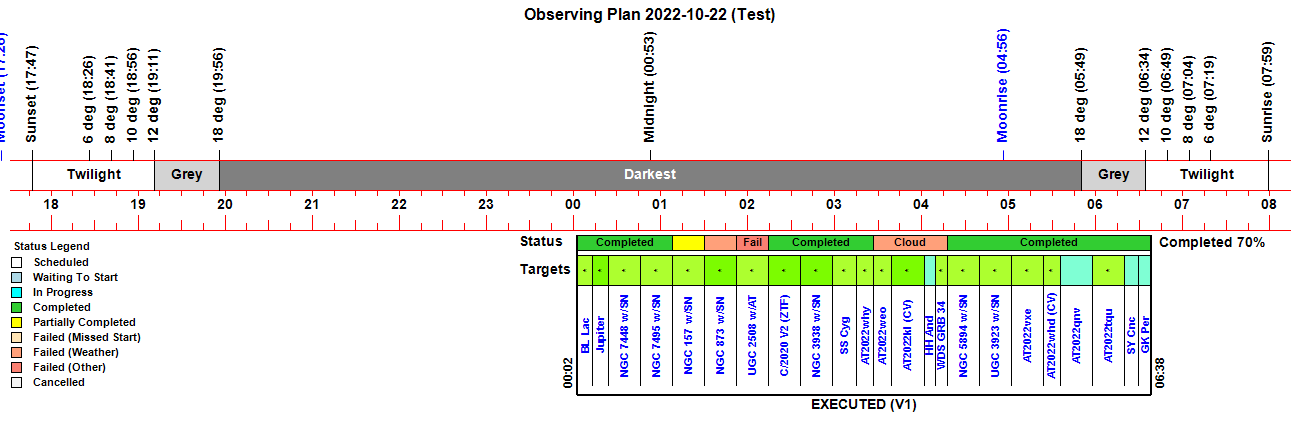

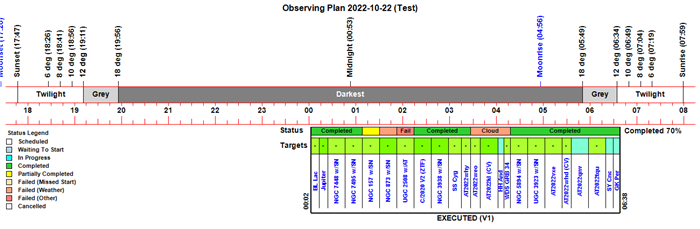

Observing Plan | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

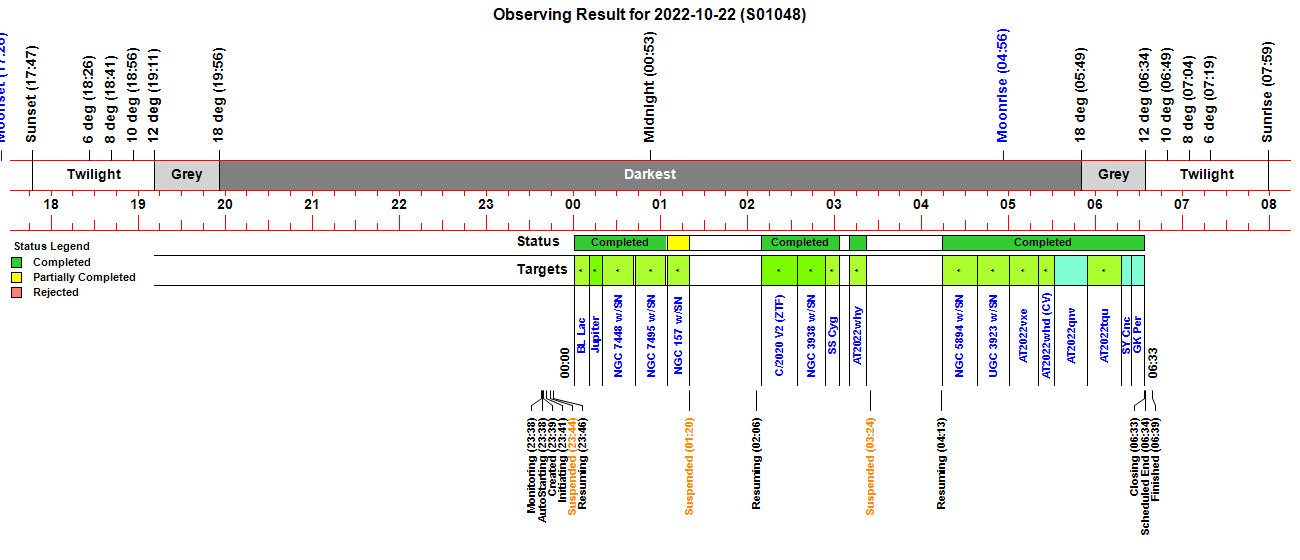

Observing Result |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

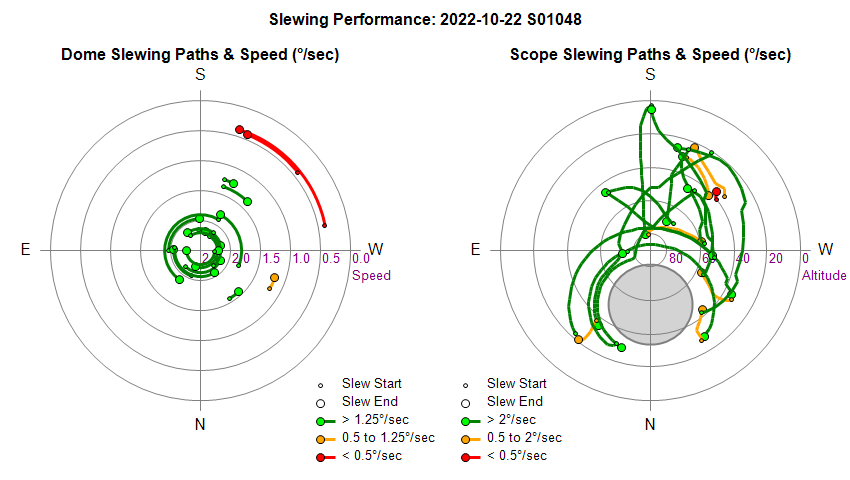

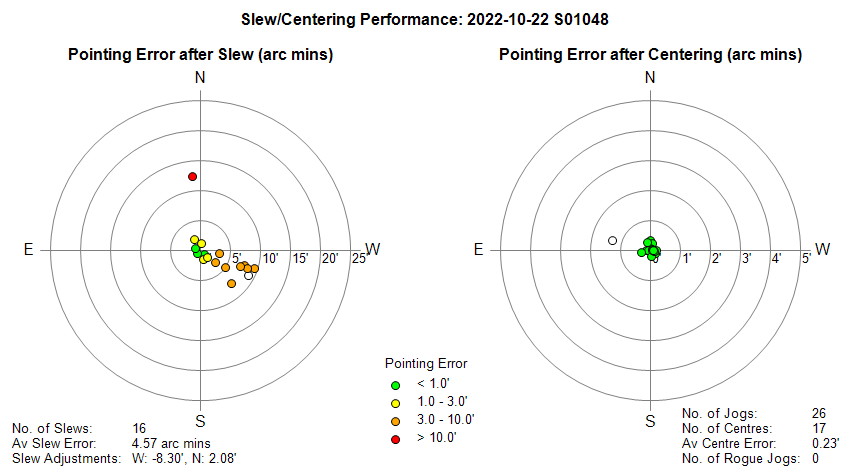

Dome & Scope Slewing Performance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Slew/Centering Performance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

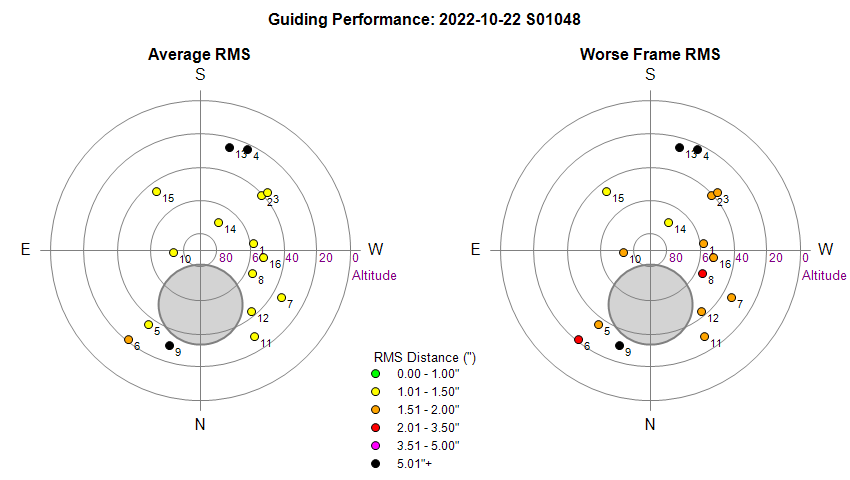

Guiding Performance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

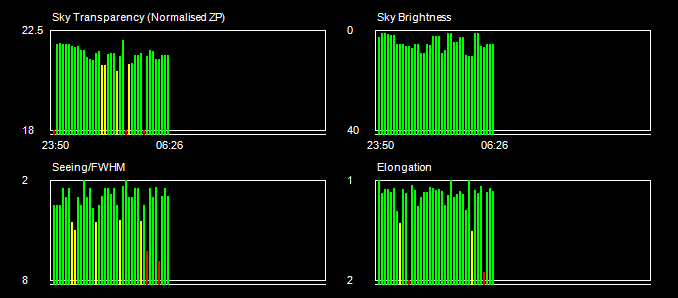

Sky Conditions (Locate Frames) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

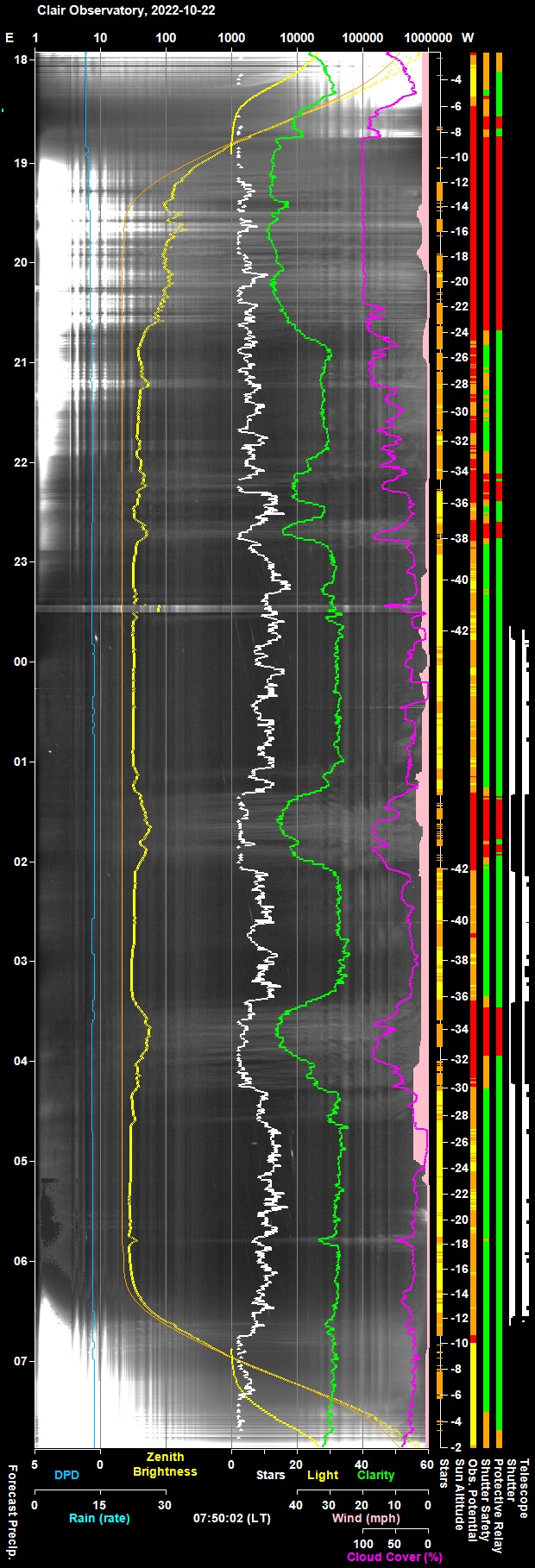

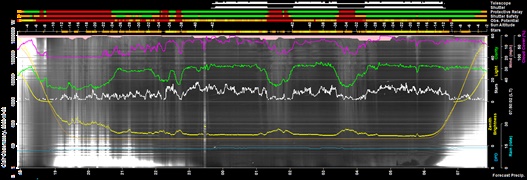

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

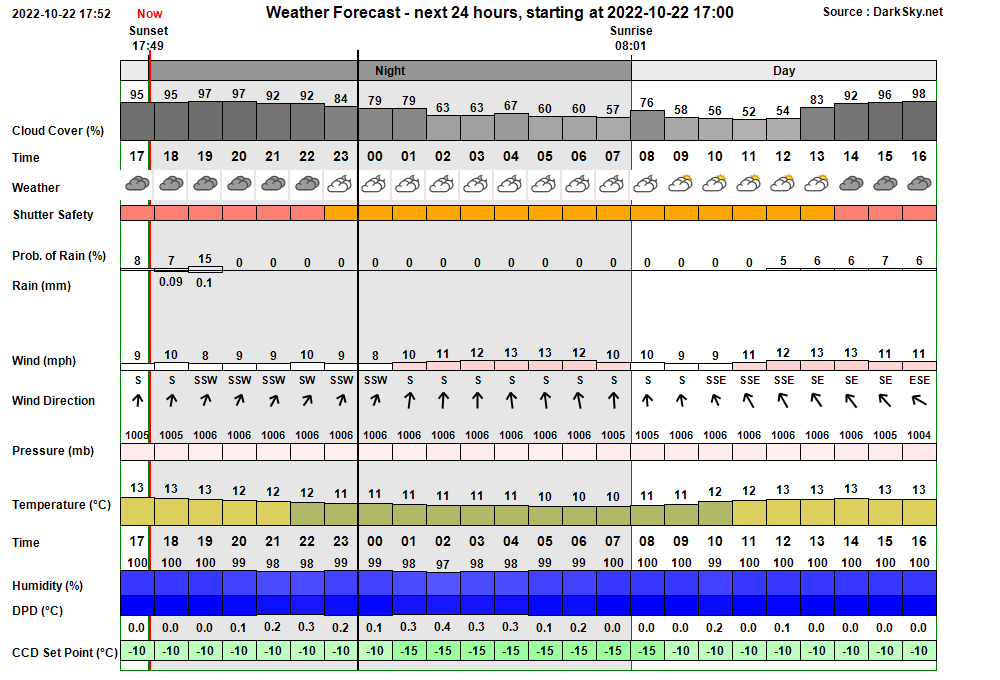

Actual Weather vs Pre-Session Weather Forecast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Session Event Log | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Session Alerts | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Back to Top
Back to Top
A 4-button remote controller or key fob (NEDIS ZBRC10WT Smart Remote
Controller, 6.6cm x 3.4cm x 1.2cm in size, CR 2032 battery) has been ordered
from Amazon on 2022-10-19 (https://www.amazon.co.uk/dp/B087QSD3VC/ref=pe_27063361_485629781_TE_item
) for delivery around 2022-11-01. Consideration will be given to a number of
ideas about how the remote controller will be used for operation of the
observation.
Upon arrival the remote controller will be
installed on the Observatory's zigbee network. It is understood that
switch/button type devices will be installed as sensors of type ZHASwitch,
but that remains to be confirmed. There is a risk that the controller
is difficult or impossible to install or operate on the DeCONZ / Phoscon
based network.
It is probable that button events will need to be read
by means of a Net Socket rather than using REST API's
Switches are
supported as one or more /sensors resources of type ZHASwitch (or ZGPSwitch
for Zigbee Green Power switches), with events with the syntax is X00Y, where
X is the button number and Y is the event
https://github.com/dresden-elektronik/deconz-rest-plugin/wiki/Supported-Devices#events-legend.
For most switches, the value of state.buttonevent indicates how the
switch was operated (X indicates the button): Value
Action
0 x000 Initial Press
1 x001
Hold
2 x002 Release (after press)
3 x003
Release (after hold)
4 x004 Double press
5
x005 Triple press
6 x006 Quadruple press
7
x007 Shake
8 x008 Drop
9 x009
Tilt
10 x010 Many press
Update 2022-11-01
An attempt was made to install the
Nedis Remote Controller (key fob) onto the Observatory Zigbee Network.
Attempts to install the Nedis device using the the Add Sensor/Search dialog
in the Phoscon App failed (search for sensor timed-out having appeared not
to have found or recognised the device). This was tried several times,
taking care to reset the device, but in the end had to concede defeat.
Despite the apparent installation failure in Phoscon it was later
noticed that a new end-device had in fact appeared in the Network map in
deCONZ.
with name '0x7CED' and type 'IAS Ancillary Control
Equipment'. The was no sign of the device using REST-API calls
to get full state or get sensors.
Later on after a WebSockets client
had been built to get push notifications from the WebSocket Server in
deCONZ's REST-API plug-in , it was noted that button presses on the Nedis
remote controller didn't produce any websocket messages. However the same
button presses did cause the devices's top-left indicator (in the deCONZ
network window) to momentarily light up blue. The latter indicates that the
remote controller is functioning and in communication with the Conbee II.
Update 2022-11-09
A fresh attempt was made to access/integrate the
Nedis Remote Controller (key fob)
Again it was confirmed the button
presses on the remote controller caused momentary blue lights to appear in
the deCONZ window and that the button presses were still not causing any
notifications to be recieved over websocket (websocket was definately
working as notications for other devices were being recieved ok).
REST-API document provides information regarding alarm systems and keypads,
from which it was gleaning that rest api information could be obtained for a
sensor using the device's unique id instead of its internal number.
Tried
GET api/{{ApiKey}}/sensors/{{unique_id}}
where {{ApiKey} is the api key for
accessing the network via REST API
and
{{unique_id}} is the device's unique_id.
Since the
remote controller couldn't be seen in response to either
GET api/{{ApiKey}}
or
GET api/{{ApiKey}}/sensors
it was difficult to know definitively what its unique_id was however it
almost certainly starts with its MAC address which is known from device's
Node Info panel in deCONZ.
But using GET
api/{{ApiKey}}/sensors/
bc:33:ac:ff:fe:61:a0:af
gave the 404 Not
Found response with type 3 error 'resource not found'
Next
attempt was to try guessing the suffix at the end of the unique_id.
The 4 Hue Smart Plugs in the Observatory Newtork each have a unique_id
suffix of '-0b' whilst the two open/close sensors both have
suffix '-01-0006'. Whilst the '-0b' suffix for hue smart plugs
possibly related to the device's Manufacturer Code 0x100b
ie 0b. it was clear where the suffix for open/close sensors originated.
Keyfob nedis model. TS0215A 4button device handler?
https://community.smartthings.com/t/keyfob-nedis-model-ts0215a-4button-device-handler/235708
and
https://gist.github.com/nksglns/a0cc110f87233ba0da809ec5b1ce7e44
https://github.com/Koenkk/zigbee2mqtt/issues/13159
Indicates
manufacturer: "_TZ3000_p6ju8myv" or
_TZ3000_tj4pwzzm
model: "TS0215A", or "TS0215A_remote"
This offers the possibility of using DDF Editor to create a json file to define the device
AlarmSystems
I wondered if the Remote Controller needed to be
connected to an alarm system before it would became visible ?
so tried assigning the Nedis remote controller to alarmsystem 1 using
PUT
api/{{ApiKey}}/alarmsystems/1/device/bc:33:ac:ff:fe:61:a0:af
but this failed with type 4 error "PUT not available for
resource \ /alarmsystems\ /1\ /bc:33:ac:ff:fe:61:a0:af"
{ }
It is possible
that this fails because the unique_id is not complete or not recognised in
the REST API environment (even though device is present in the deCONZ
Network Map.)
Prehaps the alarm system needs to be 'configured'
before it would accept a device so tried to set its code0 with the following
command
PUT
api/{{ApiKey}}/alarmsystems/1/config
but this failed success with type 901 error "internal error 'failed to set
code' occurred.
{"code0": "12345" }
This seems a issue with setting up/saving encryted
code0 value, since the following command to change one of the other
alarms configuration parameters PUT api/{{ApiKey}}/alarmsystems/1/config
was successfully achieved
{"armed_night_trigger_duration": 130}
Tried creating a new alarm system using
POST
api/{{ApiKey}}/alarmsystems
{ "name": "ObsAlarm"}
but this gave the a 501 error with message "Unimplemented",
which is consistent with REST-API documentation on 'Create Alarm System'
which says that the request is 'Not Implemented'.
Back to Top
deCONZ has an embedded Websocket server that provides push notifications to applications which require real-time feedback from devices like lights, groups, switches, and sensors. (https://dresden-elektronik.github.io/deconz-rest-doc/endpoints/websocket/)
The Websocket server is started on an unused proxy friendly port which,
depending on the system, is either 443, 8080, 8088, 20877, or any other
unused random port.
and can be configured to include all state or config
attributes in the message, or only the changed attributes.
The
Websocket used port and setting are listed in the configuration API
endpoint:
GET /api/<apikey>/config
Values are currently
"websocketnotifyall": true,
"websocketport": 443,
The
establishment of a connection to deCONZ Websocket server depends on
the underlying programming environment.
Javascript example¶
The following example demonstrates how to establish a connection with
Javascript in a browser or NodeJS implementation.
const WebSocket =
require('ws');
const host = '192.168.1.202';
const port = 8088;
const ws = new WebSocket('ws://' + host + ':' + port);
ws.onmessage = function(msg) {
console.log(JSON.parse(msg.data));
}
The method/code used in VB.Net will be different. The websocket connection and listener to GCN Network that is used in AstroVOE program might form the basis of code to be used in AstoMain for accessing events from deCONZ's websocket.
Format of some the relevant events that will be useful for the
Observatory Automation are as follows:
Light state change example
{
"e": "changed",
"id": "1",
"r":
"lights",
"state": {
"bri": 1,
"on": true,
"x": 65279,
"xy": [
0.9961,
0.9961
],
"y": 65279
},
"t": "event",
"uniqueid":
"00:0b:57:ff:fe:9a:46:ab-01"
}
Sensor button event example¶{
"e": "changed",
"id": "5",
"r": "sensors",
"state": {
"buttonevent": 2002,
"lastupdated":
"2019-03-15T20:16:30"
},
"t": "event",
"uniqueid": "00:0d:6f:00:10:65:8a:6e-01-1000"
}
Load Nugut Package - WebSocketForNet
From Visual Studio UI open the Nuget package manager console using the menu option 'Tools /Nuget Package Manager /Package Manager Console' and enter
NuGet\Install-Package WebSocket4Net -Version 0.15.2
This was performed from a VS project called 'WebSockets' and the
WebSocketForNet assembly was successfully installed and added as a Reference
in the project's Solution.
From this a working prototype program to use
WebSocket connection to the Observatory's Zigbee network was successfuly
created.
However when the same command was used in the 'AstroMain' project the following error occurred
NuGet\Install-Package : Package 'WebSocket4Net 0.15.2' is
not found in the following primary source(s):
'C:\Program Files
(x86)\Microsoft SDKs\NuGetPackages\,C:\Data\Projects\Zigabee
Investigating showed that the the Package installer had placed the WebSocket4Net assembly (plus an associated/dependant SuperSocket.ClientEngine assembly into the packages folder of the 'WebSockets' project
C:\Users\David\Documents\Visual Studio
2022\Projects\WebSockets\packages
To get around this problem, references to the WebSocket4Net assembly & SuperSocket.ClientEngine assemblies were manually added to the 'AstroMain' project using VS menu option 'Project /Add Reference/ Browse' and the two following paths :
C:\Users\David\Documents\Visual Studio
2022\Projects\WebSockets\packages\WebSocket4Net.0.15.2\lib\net45\WebSocket4Net.dll
C:\Users\David\Documents\Visual Studio
2022\Projects\WebSockets\packages\SuperSocket.ClientEngine.Core.0.10.0\lib\net45\SuperSocket.ClientEngine.dll
To use the facilities provided by WebSockets4Net, in a live setting
the "WebSocket4Net.dll' and "SuperSocket.ClientEngine.dll" files need
to be manually copied to the
'C:\Main Programs\AstroMain' folder
on the Observatory Computer.
[ If this isn't done a System.IO.FileNotFoundException arises "Could not load file or assembly 'WebSocket4Net, Version=0.15.2.11, Culture=neutral, PublicKeyToken=eb4e154b696bf72a' or one of its dependencies. The system cannot find the file specified" ]
Back to Top
Event Message associated wiith "Switching On Aux
Lights" :
{"e":"changed","id":"2","r":"lights","state":{"alert":null,"on":true,"reachable":true},"t":"event","uniqueid":"00:17:88:01:09:d6:06:67-0b"}
Event Message associated with "Observatory Door opening" :
{"e":"changed","id":"5","r":"sensors","state":{"lastupdated":"2022-11-08T13:23:45.895","open":true},"t":"event","uniqueid":"00:15:8d:00:08:a5:94:a8-01-0006"}
It is noted that the message associated with a "ZHAOpenClose" sensor doesn't contain "reachable" , "battery" or "temperature" fields that requests through the deCONZ REST-API provides. To get data on these extra fields suggests a requirement to make a REST-API request on a regular basis (say every 60s).
Back to Top

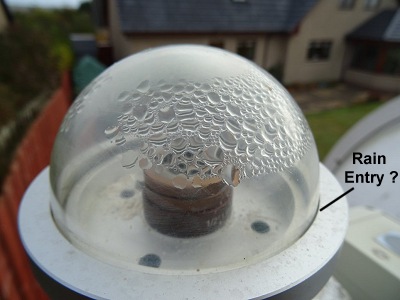

Following an issue with earwigs crawling over AllSky Camera's fish eye lens and getting caught on camera (see AllSky Camera - Earwig Problem, 2022-10-16), it was decided to unscrew the polycarbonate hemisphere covering the camera/camera lens and drop in some earwig/woodlice killing powder taking care not to get any of the powder on the fish-eye lens. The alternative would have been to remove the whole camera from its mast and open it up to remove the earwigs which would have been a more difficult process.
Whilst the Insect killer seems to have resolved the problem (no earwigs seen in images over lthe following 6-7 days, the powder was put in on a very damp day, and it begun to rain lightly before the hemispshere could be put back on. This led to the entrapment of high humidity air and possible some raindrop waters in the hemisphere when it was closed, and led to issue with very sigbificant dew formation on the inside surface of the polycarbonate hemisphere over the next 2 nights.

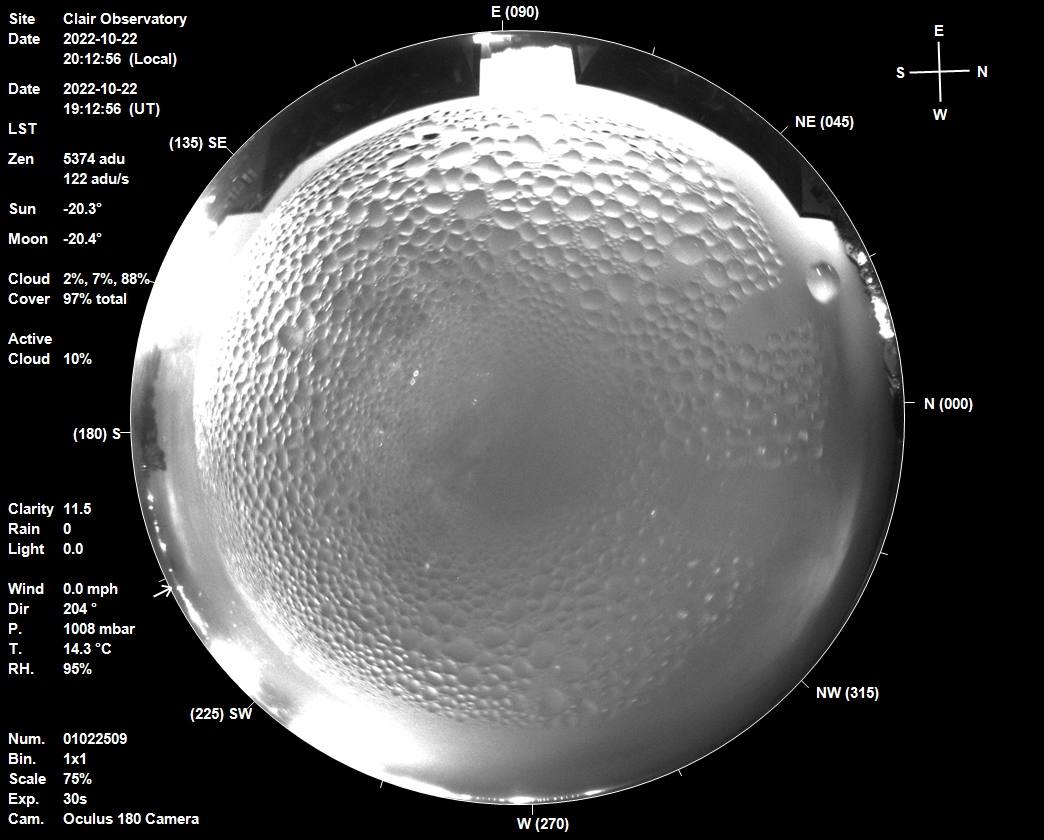

Image below was taken on the night of 2022-10-22. Because the presence of the dew the sky view is very much affected. The automated sky count saw a low star count (and the ones that were counted where potentially not real stars but artefact of the light pattern produced by the dew). The S1048 session had to be conducted without using the 'Too Few Stars' option which would normally be used and used by ObsManager to delay the opening of the dome or suspend the session when the numbers of stars dropped below a certain threshold.

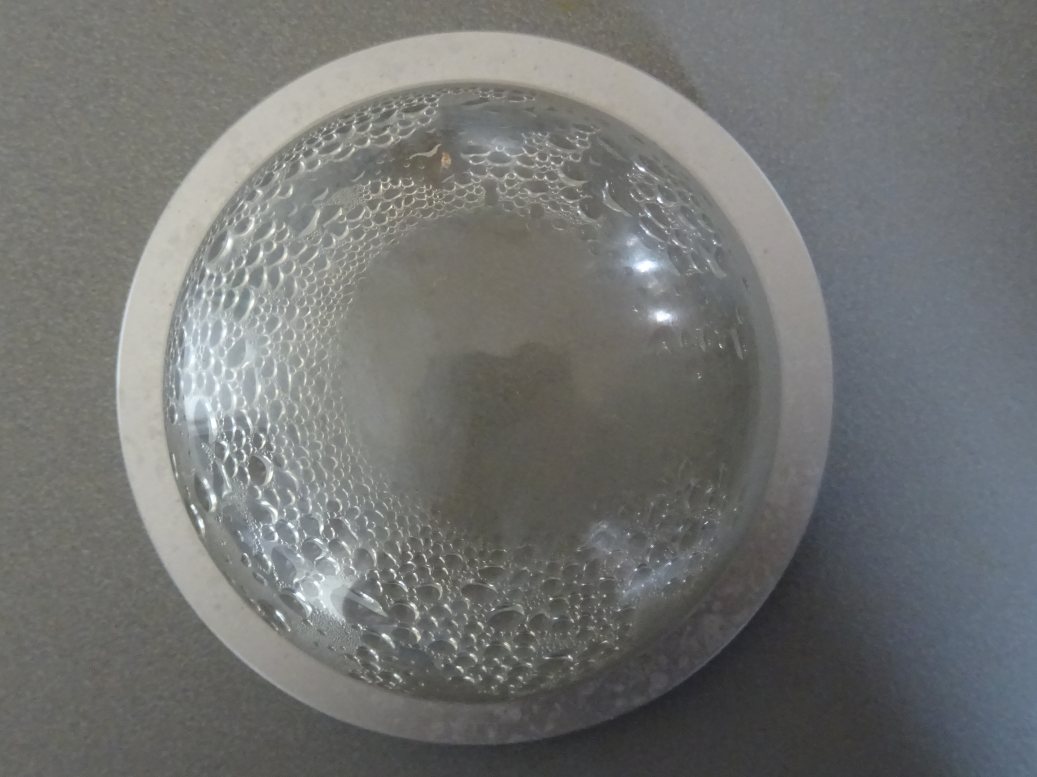

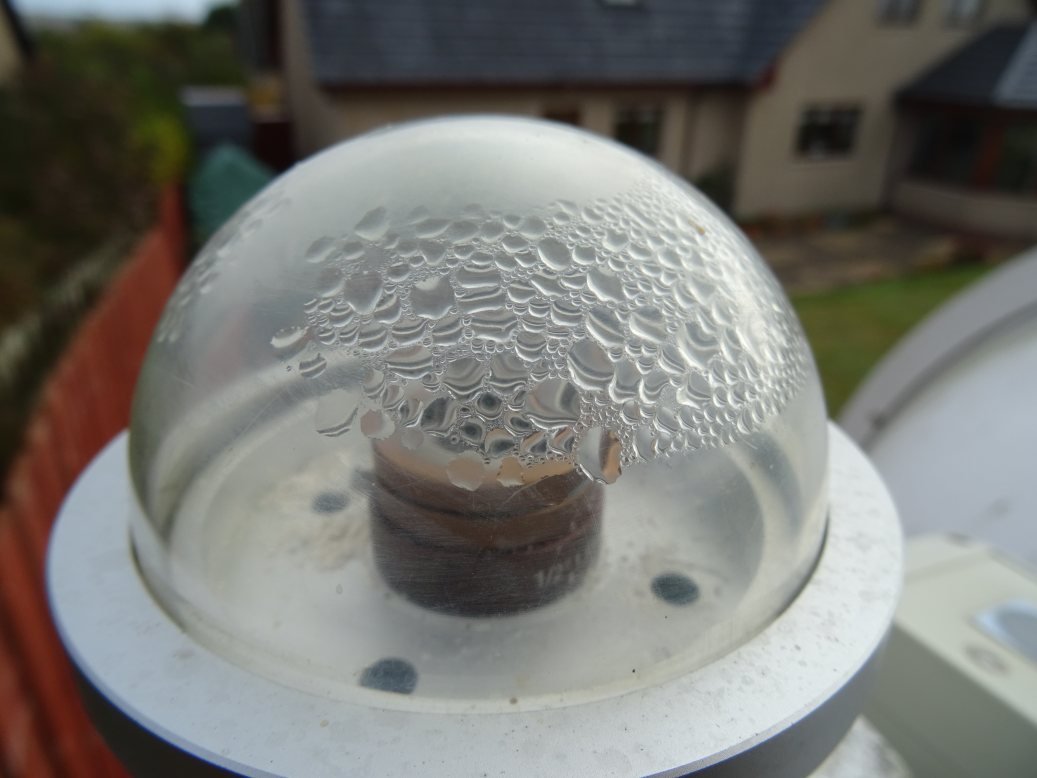

Investigating the following day confirmed that dew in the form of large water drops was present on the inside surface of the hemisphere. The dew was present even though dew heater were on and clearly working (body of camera was warm to touch).
The hemisphere was wiped clear of water & dried, before reattached to the
camera body. Conditions were again very damp when this operation was
conducted, humid air became trapped inside the camera and the following
night dew (slightly finer droplets than before) again formed inside the
hemisphere.
Again the hemisphere was wiped clear of water & dried,
and then reattached. This time the conditions were better, and this
time lower humidity air was trapped inside the hemisphere. There was no
problem with due on the folllowing two nights.
During the process of opening and removing the hemisphere it was noticed that the polycarbonate hemisphere was degraded, becoming less transparent , particularly in certain patched. Clearing didn't remove the marks. It is unclear if patches of downgraded hemisphere is the result of bird-drops effecting the surface of the dome's polycarbonate hemisphere, or is due to unforeseen damaging effect from using a lens cleaner,
Clear Lesson:
Actions:
Update 2022-11-16
A replacement hemisphere was fitted
to the AllSky camera on 2022-11-16 at 13:20 (outside humidity 75%,
temperature 11degC). Three small desicator pouches (recently re-generated in a
110 degC oven) where packed around & below the fish-eye lens to maintain a
dry atmosphere within the hemisphere, and the hemisphere screwed tighly
down.
Picture : TBA
Update
2023-01-25
A new O-Ring was installed in AllSky
Camera that seems eventually to have resolved most of the dew problems (see
AllSky Camera - New O-Ring, 2023-01-25).
Back to Top
This Web Page: | Notes - Session 1048 (2022-10-22) |
Last Updated : | 2024-03-22 |
Site Owner : | David Richards |
Home Page : | David's Astronomy Web Site |
