Notes - Session 1057 (2022-11-11)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (2),  Small Defects (2),  Continuous Improvement (2)

Bullet Images from 2022-11-11 >>        [ Local Files >> ]

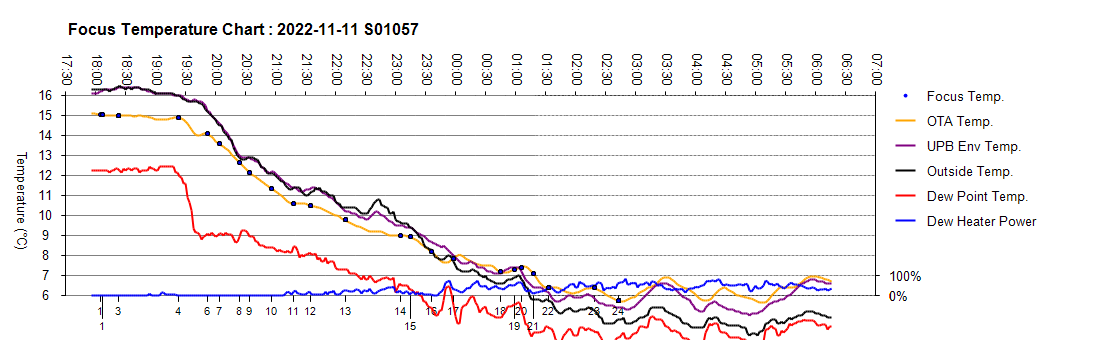

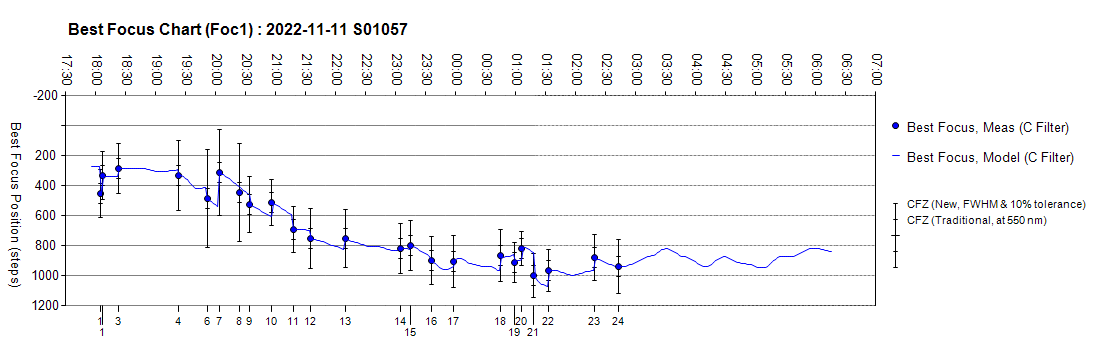

Bullet Focusing - Temperature and Primary Mirror Slippage Effects


Session Aims & Highlights (2022-11-11)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. AstroMain.  Check new AstroMain version (3.57) for any issues introduced by recent changes and additions.
  3. CCDSoft / SBIG : Continue to check for  issues with CCDSoft .Camera (lockups, freezes, exceptions)
  4. Dome Slews : Check if dome slews are less prone to hold-ups  following attempt to change tension of Dome rotation drive. Up to 25% of dome slews in the previous session (S1056) were affected by hold-ups during slewing..

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

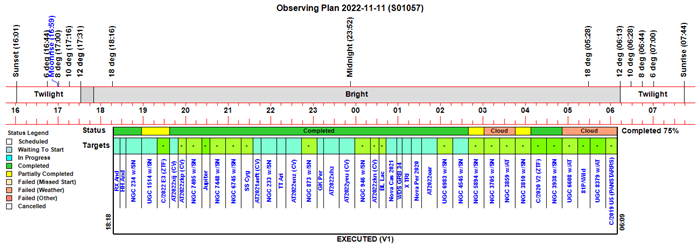

Observing Plan

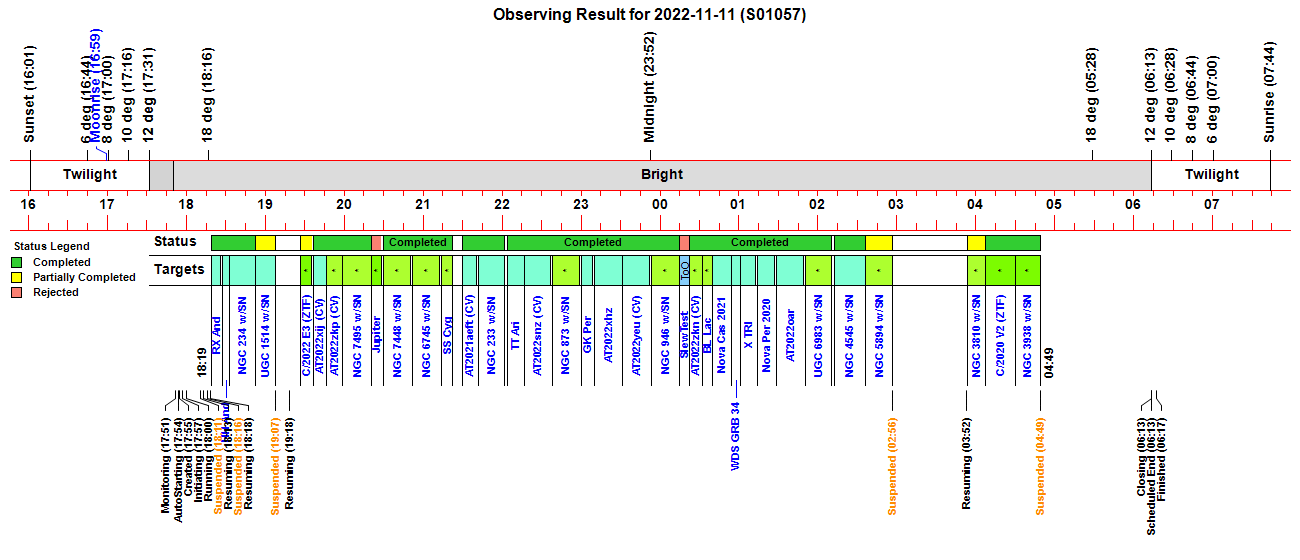

Observing Result

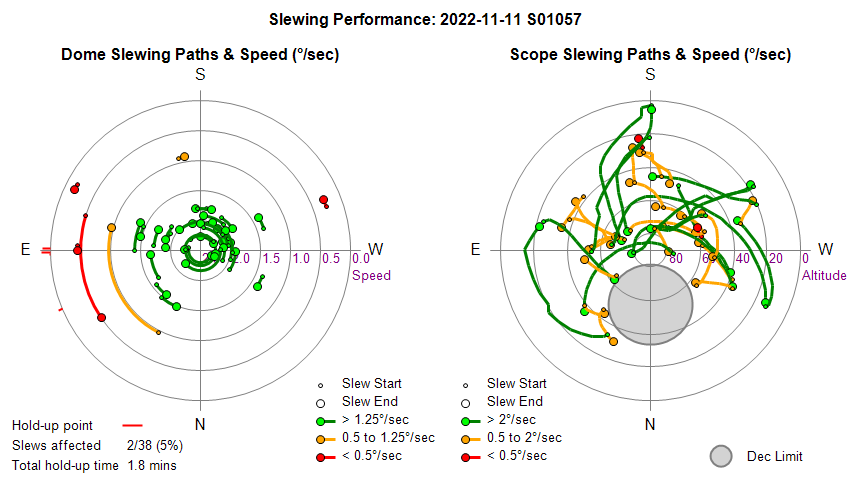

Dome & Scope Slewing Performance

Slew/Centering Performance

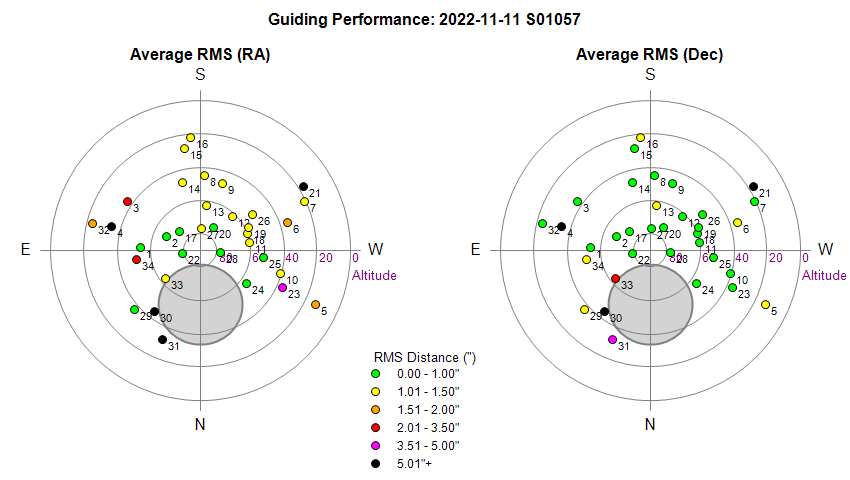

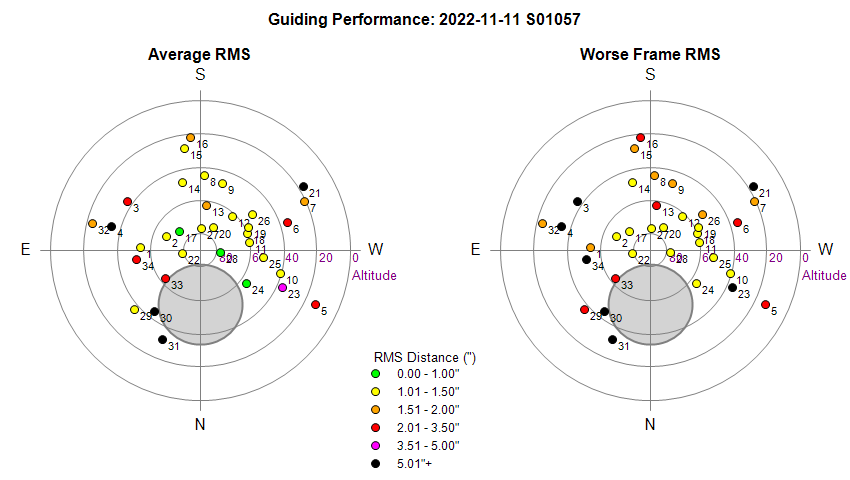

Guiding Performance

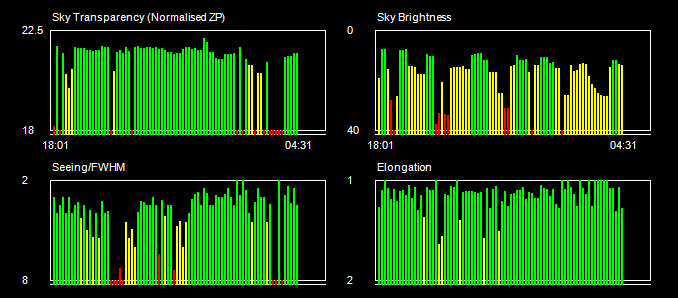

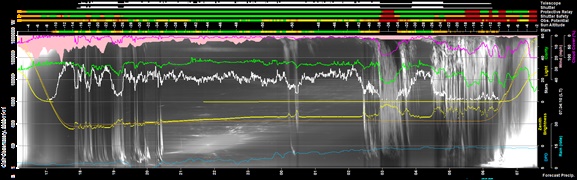

Sky Conditions (Locate Frames)

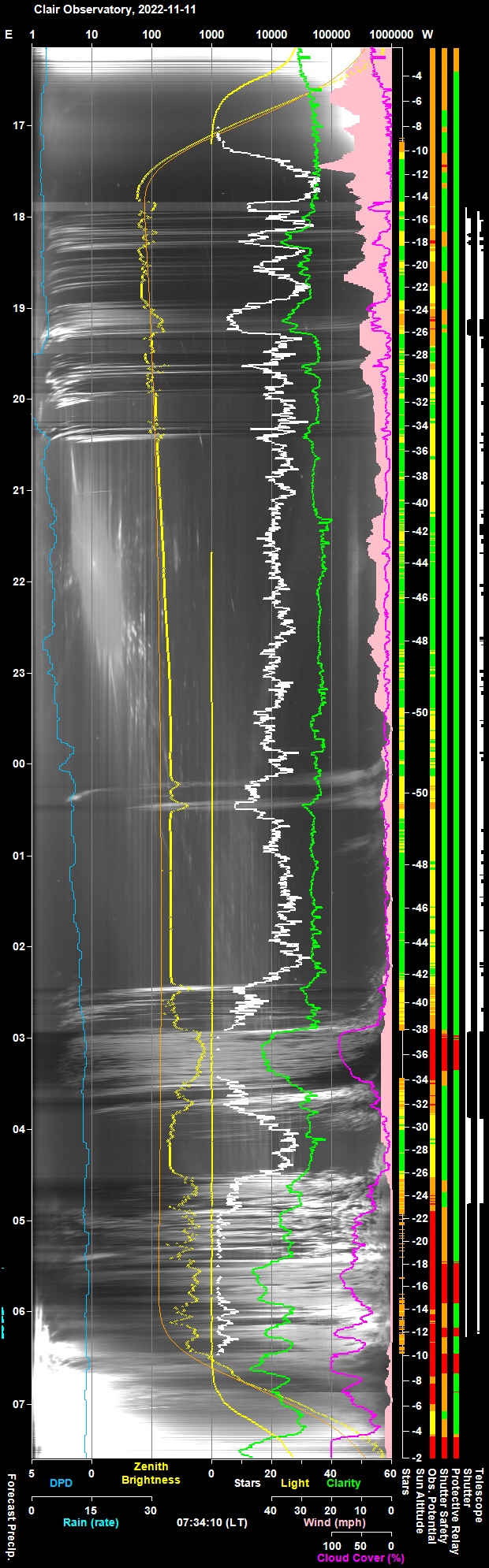

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

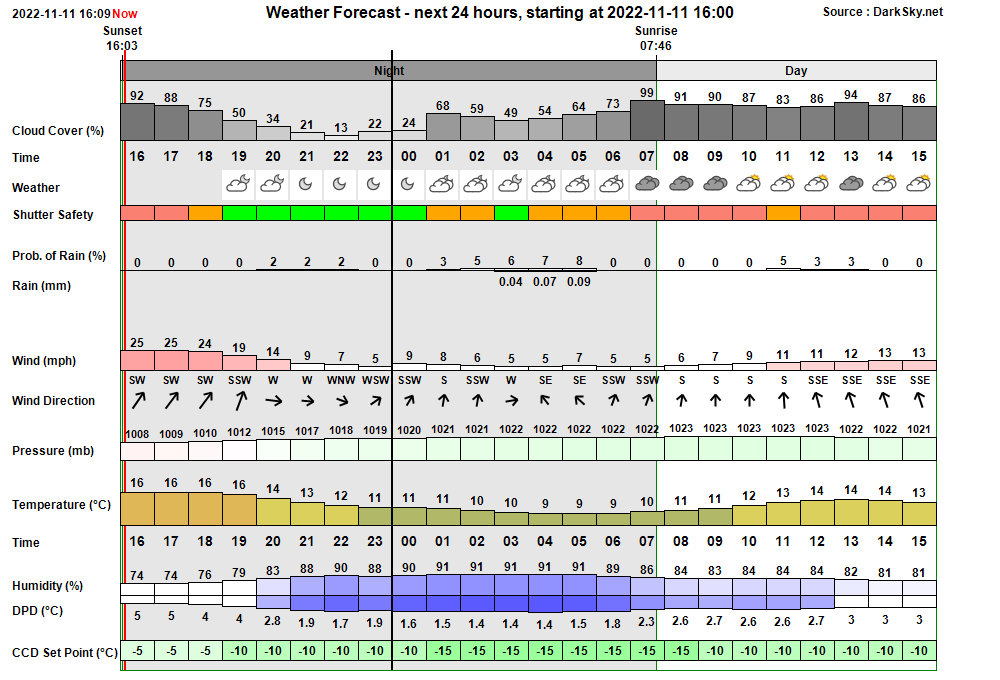

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
17:51:59 Session Monitoring AutoStart monitoring for Live Session opportunity between 17:51 & 05:37
17:52:10   AutoStart Delayed Session delayed due to too few stars
17:54:15 Session AutoStarting Session autostarting (17:54)
17:54:36   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
17:55:01   Camera1 Connected SBIG Camera connected (set point -15°C)
17:55:03 Session Created Session Created (Live, 2022-11-11 S01057, ImageSaveNum: 1057001)
17:55:21   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
17:57:06   Services Started Observatory Services started
17:57:13 Observatory (Auto) Observatory placed in Fully-Automated Mode
17:57:16 Session Pending Session pending (2022-11-11)
17:57:18 Session Initiating Session initiating (2022-11-11)
17:57:20   Plan Requested Observing Plan requested from AstroPlan (1.33.1)
17:58:04   Plan Loaded Observing Plan loaded to queue (Plan ID: 819)
17:58:17   Camera1 Connected SBIG Camera connected (set point -5°C)
17:58:23   Telescope Connected Telescope connected (TheSky6)
17:58:47 Session Equilibration Session ready to Open Dome
17:59:32   Dome Opened Dome opened (opening time 45s)
18:00:22 Session Running Session running
18:00:24   Queue Started Observing Queue started (40 targets selected)
18:00:27     Target Started (NrZen) Target started (Focus Field 23, HIP 113729)
18:00:40   Dome Unparked Dome unparked

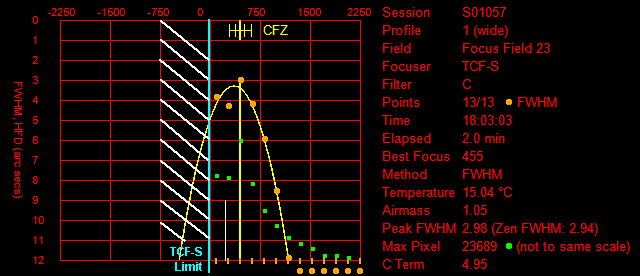

18:03:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)

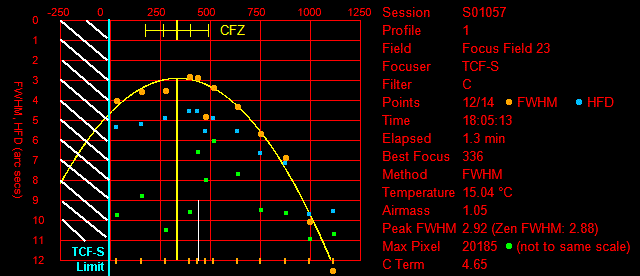

18:05:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
18:06:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
18:07:21       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
18:09:30       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
18:10:21       Focusing Failed Foc2 focusing failed - star lost
18:10:25     Target Completed (NrZen) Target completed (Focus Field 23, HIP 113729)
18:11:03   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
18:11:05   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
18:11:07   Queue Paused Observing Queue pausing for Session Suspension
18:11:08 Session Suspended Session suspended
18:11:53   Dome Closed Dome closed (closing time 45s)
18:13:08 Session Resuming Session resuming
18:13:53   Dome Opened Dome opened (opening time 45s)
18:13:55 Session Running Session running
18:13:57   Queue Resumed Observing Queue resumed
18:14:00     Target Started (1/40) Target started (1/40, GCVS RX And)
18:16:03   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
18:16:05   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
18:16:07     Target Aborted (1/40) Target aborted (1/40, GCVS RX And) due to cloud
18:16:09   Queue Paused Queue paused for Session Suspension
18:16:11 Session Suspended Session suspended
18:16:53   Dome Closed Dome closed (closing time 45s)
18:18:13 Session Resuming Session resuming
18:18:59   Dome Opened Dome opened (opening time 45s)
18:19:01 Session Running Session running
18:19:03   Queue Resumed Observing Queue resumed
18:19:06     Target Started (1/40) Target started (1/40, GCVS RX And)
18:22:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:23:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:27:03     Target Completed Target completed (1/40, GCVS RX And)
18:27:07     Target Started (2/40) Target started (2/40, GCVS HH And)
18:32:51     Target Completed Target completed (2/40, GCVS HH And)
18:32:55     Target Started (3/40) Target started (3/40, NGC 234 w/SN2021abze)
18:36:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
18:52:48     Target Completed Target completed (3/40, NGC 234 w/SN2021abze)
18:52:52     Target Started (4/40) Target started (4/40, UGC 1514 w/SN2022ovq)
18:56:35       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
19:02:58       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
19:07:48   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
19:07:50   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
19:07:51     Target Aborted (4/40) Target aborted (4/40, UGC 1514 w/SN2022ovq) due to cloud
19:07:54   Queue Paused Queue paused for Session Suspension
19:07:56 Session Suspended Session suspended
19:08:38   Dome Closed Dome closed (closing time 45s)
19:11:43     Target Cancelled Target cancelled (4/40, UGC 1514 w/SN2022ovq) due to cloud
19:18:19 Session Resuming Session resuming
19:19:04   Dome Opened Dome opened (opening time 45s)
19:19:06 Session Running Session running
19:19:08   Queue Resumed Observing Queue resumed
19:19:10     Target Started (NrZen) Target started (Focus Field 1, HIP 4911)
19:21:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:22:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
19:22:59       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
19:24:47       Focusing Completed Foc2 AutoFocus Completed (Profile No 5, wide)
19:26:31       Focusing Completed Foc2 AutoFocus Completed (Profile No 5)
19:26:48     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911)
19:26:53     Target Started (5/40) Target started (5/40, C/2022 E3 (ZTF))
19:36:14     Target Completed Target partially completed (5/40, C/2022 E3 (ZTF))
19:36:19     Target Started (6/40) Target started (6/40, AT2022xij (CV))
19:46:15     Target Completed Target completed (6/40, AT2022xij (CV))
19:46:19     Target Started (7/40) Target started (7/40, AT2022zkp (CV))
19:50:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:52:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
19:58:19     Target Completed Target completed (7/40, AT2022zkp (CV))
19:58:23     Target Started (8/40) Target started (8/40, NGC 7495 w/SN2022ubb)
20:02:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:04:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
20:20:37     Target Completed Target completed (8/40, NGC 7495 w/SN2022ubb)
20:20:41     Target Started (9/40) Target started (9/40, Jupiter)
20:22:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:24:18       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous)
20:28:36     Target Completed Target completed (9/40, Jupiter)
20:29:46     Target Started (10/40) Target started (10/40, NGC 7448 w/SN2022wsp)
20:32:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:34:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
20:51:27     Target Completed Target completed (10/40, NGC 7448 w/SN2022wsp)
20:51:46     Target Started (11/40) Target started (11/40, NGC 6745 w/SN2022prr)
20:54:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:56:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
21:13:23     Target Completed Target completed (11/40, NGC 6745 w/SN2022prr)
21:13:46     Target Started (12/40) Target started (12/40, GCVS SS Cyg)
21:16:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:18:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
21:22:33     Target Completed Target completed (12/40, GCVS SS Cyg)
21:30:02     Target Started (13/40) Target started (13/40, AT2021aeft (CV))
21:33:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:35:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
21:41:09     Target Completed Target completed (13/40, AT2021aeft (CV))
21:42:03     Target Started (14/40) Target started (14/40, NGC 233 w/SN2021abzd)
21:45:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:02:10     Target Completed Target completed (14/40, NGC 233 w/SN2021abzd)
22:04:02     Target Started (15/40) Target started (15/40, GCVS TT Ari)
22:07:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:10:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
22:16:41     Target Completed Target completed (15/40, GCVS TT Ari)
22:16:45     Target Started (16/40) Target started (16/40, AT2022snz (CV))
22:20:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:36:40     Target Completed Target completed (16/40, AT2022snz (CV))
22:38:34     Target Started (17/40) Target started (17/40, NGC 873 w/SN2022xjk)
22:42:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:58:41     Target Completed Target completed (17/40, NGC 873 w/SN2022xjk)
23:00:34     Target Started (18/40) Target started (18/40, GCVS GK Per)
23:03:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:05:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
23:09:09     Target Completed Target completed (18/40, GCVS GK Per)
23:09:52     Target Started (19/40) Target started (19/40, AT2022xhz)
23:12:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:15:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
23:31:40     Target Completed Target completed (19/40, AT2022xhz)
23:31:51     Target Started (20/40) Target started (20/40, AT2022yeu (CV))
23:34:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:36:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
23:52:47     Target Completed Target completed (20/40, AT2022yeu (CV))
23:53:51     Target Started (21/40) Target started (21/40, NGC 946 w/SN2022yid)
23:56:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:58:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
00:15:03     Target Completed Target completed (21/40, NGC 946 w/SN2022yid)
00:15:07     Target Started (22/41) Target started (22/41, SlewTest, ToO)
00:22:40     Target Completed Target completed (22/41, SlewTest, ToO)
00:22:44     Target Started (23/41) Target started (23/41, AT2022zkn (CV))
00:27:54       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
00:30:49       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
00:32:29     Target Completed Target completed (23/41, AT2022zkn (CV))
00:32:33     Target Started (24/41) Target started (24/41, GCVS BL Lac)
00:32:43   Dome Unparked Dome unparked
00:39:50     Target Completed Target completed (24/41, GCVS BL Lac)
00:39:54     Target Started (25/41) Target started (25/41, Nova Cas 2021)
00:43:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:45:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
00:54:25     Target Completed Target completed (25/41, Nova Cas 2021)
00:54:30     Target Started (26/41) Target started (26/41, WDS GRB 34)
00:57:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:59:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
01:01:20     Target Completed Target completed (26/41, WDS GRB 34)
01:01:24     Target Started (27/41) Target started (27/41, GCVS X TRI)
01:04:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:06:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
01:13:28     Target Completed Target completed (27/41, GCVS X TRI)
01:13:55     Target Started (28/41) Target started (28/41, Nova Per 2020)
01:16:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:18:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
01:27:46     Target Completed Target completed (28/41, Nova Per 2020)
01:28:25     Target Started (29/41) Target started (29/41, AT2022oar)
01:31:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:33:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
01:49:40     Target Completed Target completed (29/41, AT2022oar)
01:50:25     Target Started (30/41) Target started (30/41, UGC 6983 w/SN2022pru)
01:54:17       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:10:40     Target Completed Target completed (30/41, UGC 6983 w/SN2022pru)
02:12:25     Target Started (31/41) Target started (31/41, NGC 4545 w/SN2022fuc)
02:17:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:19:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
02:28:36       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:32:51       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
02:36:24     Target Completed Target completed (31/41, NGC 4545 w/SN2022fuc)
02:36:28     Target Started (32/41) Target started (32/41, NGC 5894 w/SN2022pgf)
02:41:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:43:02       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:43:07       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
02:43:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
02:48:18       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:56:18   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
02:56:20   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
02:56:23     Target Aborted (32/41) Target aborted (32/41, NGC 5894 w/SN2022pgf) due to cloud
02:56:25   Queue Paused Queue paused for Session Suspension
02:56:27 Session Suspended Session suspended
02:57:13   Dome Closed Dome closed (closing time 50s)
03:15:21     Target Cancelled Target cancelled (33/41, NGC 3705 w/SN2022xxf) due to cloud
03:37:21     Target Cancelled Target cancelled (34/41, NGC 3859 w/AT2022zia) due to cloud
03:52:44 Session Resuming Session resuming
03:53:29   Dome Opened Dome opened (opening time 45s)
03:53:31 Session Running Session running
03:53:33   Queue Resumed Observing Queue resumed
03:53:35     Target Started (35/41) Target started (35/41, NGC 3810 w/SN2022zut)
03:54:13   Dome Unparked Dome unparked
03:54:59     Dome Slew Dome slew held up at Az. 90.7° (Delay 39s)
04:07:18     Target Completed Target partially completed (35/41, NGC 3810 w/SN2022zut)
04:07:22     Target Started (36/41) Target started (36/41, C/2020 V2 (ZTF))
04:09:13     Dome Slew Dome slew held up at Az. 89.3, 88.5, 67.1° (Total delay 69s)
04:29:50     Target Completed Target completed (36/41, C/2020 V2 (ZTF))
04:29:54     Target Started (37/41) Target started (37/41, NGC 3938 w/SN2022xlp)
04:34:28       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
04:49:10     Target Completed Target completed (37/41, NGC 3938 w/SN2022xlp)
04:49:12   Queue Paused Queue paused for Session Suspension
04:49:15 Session Suspended Session suspended
04:50:04   Dome Closed Dome closed (closing time 50s)
05:05:41     Target Cancelled Target cancelled (38/41, UGC 6608 w/AT2022zvr) due to cloud
05:24:45     Target Cancelled Target cancelled (39/41, 81P/Wild) due to cloud
05:45:15     Target Cancelled Target cancelled (40/41, UGC 8379 w/AT2022qza) due to cloud
06:13:24     Target Cancelled Target cancelled (41/41, C/2019 U5 (PANSTARRS)) due to cloud
06:13:29   Queue Completed Job Queue completed
06:13:32 Session Closing Session closing
06:13:37   Dome Closed Dome already closed (closed at 04:50, closing time 50s)
06:13:57   Dome Parked Dome parked (parking time 12s), Az: 90.0 deg
06:15:19   Telescope Parked Telescope parked (parking time 77s)
06:15:34   Telescope State Scope parked Turn scope off. (Handbox)
06:15:57   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:16:50   Services Stopped Night Services stopped
06:16:52 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
06:17:23 Session Finished Session Finished

Session Alerts & Alarms
Time     Type       Name Detail
18:33:07 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 125.5° (T+7.3s)
19:46:31 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 242.3° (T+7.5s)
19:46:52 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (AT2022zkp)
01:29:10 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (AT2022oar)


Back to Top


Operational Issues (2022-11-11, S1057)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


Focusing - Temperature and Primary Mirror Slippage Effects

Initial focusing of the LX200 telescope at the start of the S1057 session showed that the Foc1 Best Focus position lay at a position of around 300, which is close to the 0 step limit for the TCF-S focuser , compared to a position of 1000 at the end of the previous session (S1056) and to a mid-range (ideal) step position of 3500.   Plots below show that the wide & standard focus profiles from initial Near Zenith Focusing were able to find best focus at 336 , they are both clearly curtailed below the 0 step position point.



Even though later in the night the Best Focus position increased from 300 to 900, there is risk that any further slippage of the primary mirror focus could cause focusing difficulties in future.


The increase in Best Focus Position is associated with a drop in temperature associated with a cold front whose leading front was crossed at 19:40, when there was marked by sharp humidity, dew point and wind speed changes.


Primary Mirror Slippage

There has likely to have been a gradual slippage of the LX200's primary mirror since it was last focussed & locked. Whilst the perception has been that the slippage was gradual, data from S1050 session show that it may have slipped and changed the best focus position sharply from 1900-2000 to a new position at 1400 steps somewhen between 19:50 & 20:50.



Action
The TCF-S focuser needs to be reset to c. 3500 (middle of its range) and the LX200 Primary Mirror focus adjusted for approximate focus at the start of next session, and then relocked again / refocussed with TCF-F Focuser.

Update 2022-11-24
In sessions S1058 -S1061 conditions were colder than in S1057 and focusing operations and creation of focus profiles wasn't impacted by the focuser's hard limit at all and the LX200's primary mirror position was left unchanged.

Update 2022-11-25
There was a dramatic change in Foc1 Best Focus Position from between that in session S1061 (2022-11-24) and that in S1062 (2022-11-25), which resolved the earlier concerns over focus position being close to the TCF-S focusers hard-limit at 0 steps position.

Initial Near Zenith Locate frames using the predicted best focus position of 780 (for tube temperature 6.3°C) showed significantly out-of-focus, doughnut shaped stars (see Fig 1). Observatory was taken back to Manual mode and after moving the focuser to 3500 position (in preparation for a refocus of the primary mirror, but no longer required) it was observed that focus had improved. Further nudges of the focus position showed that best focus was lay around 4200-4400.

A Foc1 Autofocus operation was manually initiated, which showed that best focus lay at 4616 positon (tube temperature 5.6°C).  This compares with a best focus position at 669 position (tube temperature 7.4°C) from the final Foc1 Focus Profile on the previous night (S1061).  This is a dramatic change.  The large discrepency is not fully understood - it is potentially due to a unexpected movement of the LX200's primary mirror however the mirror is tightly locked.  Previous large changes have been seen that are considered to be related to likely significant changes in atmospheric properties affecting focus.  The primary mirror was due to be refocussed to bring best focus closer to the middle of the TCF-S focuser range (as it had begun to approach the 0 position hard-limit however this is now no longer appropriate.



Update S1151 (Oct 2023)
More cases of focus drift occured trhough Sept 2023 and led to the Main Scope's Primary Mirror position being adjusted at the start of session S1151 (2023-09-29),
It was concluded that the mirror lock on the 12" LX200 Main Scope isn't working (see Investigation - Drift in Best Focus Position (Primary Mirror Focus Slipping / Mirror Lock Not Working (2023-09-30) ), and a fix for this problem has been researched but not yet made (see LX200 - Mirror Lock Fix (2023-10-08) ).

Back to Top
