David's Astronomy Pages Notes - Session 1068 (2022-12-11)

Notes (S1067)

Notes Main

Home Page

Notes (S1069)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (8),  Continuous Improvement (5)
	Images from 2022-12-11 >>        [ Local Files >> ]

Session Aims & Highlights (2022-12-11)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. 29P/Schwassmann-Wachmann. Acquire further images of 29P/Schwassmann-Wachmann, as followup to images taken in previous sessions (S1061 - S1067) . Continue to look out for expanding coma following 4 mag outburst on Nov 22nd 2022.
3. AstroMain.  Check new AstroMain version (3.59.3) for any issues introduced by several recent changes, bug fixes and additions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev2, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.59.3, AstroPlan 1.35.1,   AstroShCap 1.3.12, AstroGuard 1.10.1
  AstroVOE 1.12.0  AstroSN 1.8.6,  AstroProtect 1.7,  AstroMove 1.9.7
  (AstroWeather 1.19.6, AstroAllSky 3.17.2,  AstroObsCam 1.11.1, AstroLaunch 1.10.5

Highlights

• Targets. 44 out of 47 planned targets were completed. 1 target (NGC 1300) failed due to cloud. Two other targets partially completed.
• 29P/Schwassmann-Wachmann.  Images acquired.
• AstroMain. No significant issues with AstroMain 3.59.3
• Dome Slews. A few significant hold-ups encountered but affected only 11% of slews (5/47 slew affected, 11%, 5.9 minutes total hold-up time).

Notes:

• Cold conditions, reaching minimum of -6°C.  Obs Temperature failed at -5°C.

Summary Plots & Logs

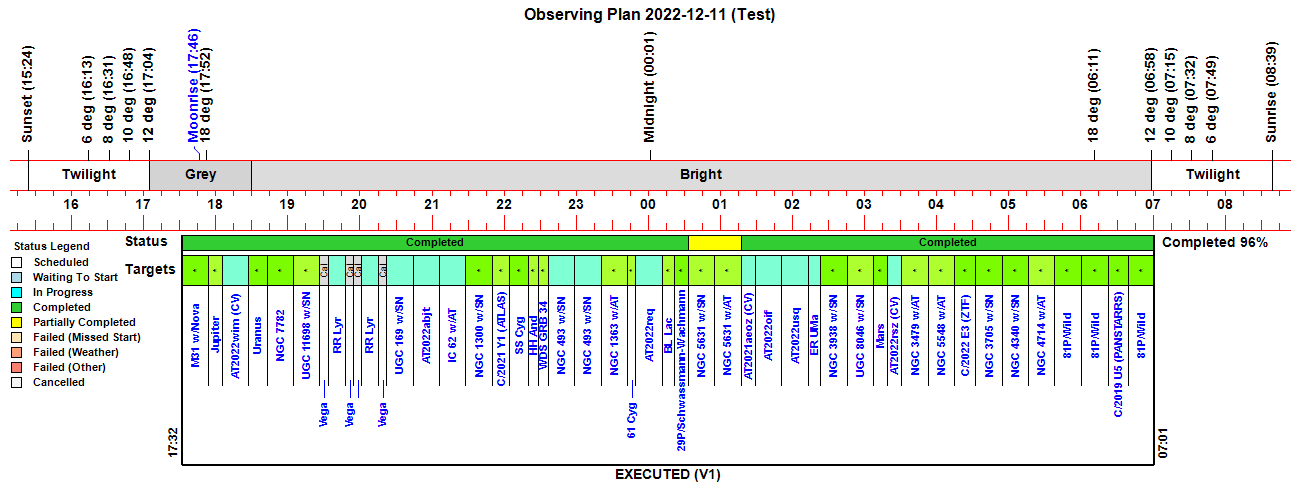

Observing Plan

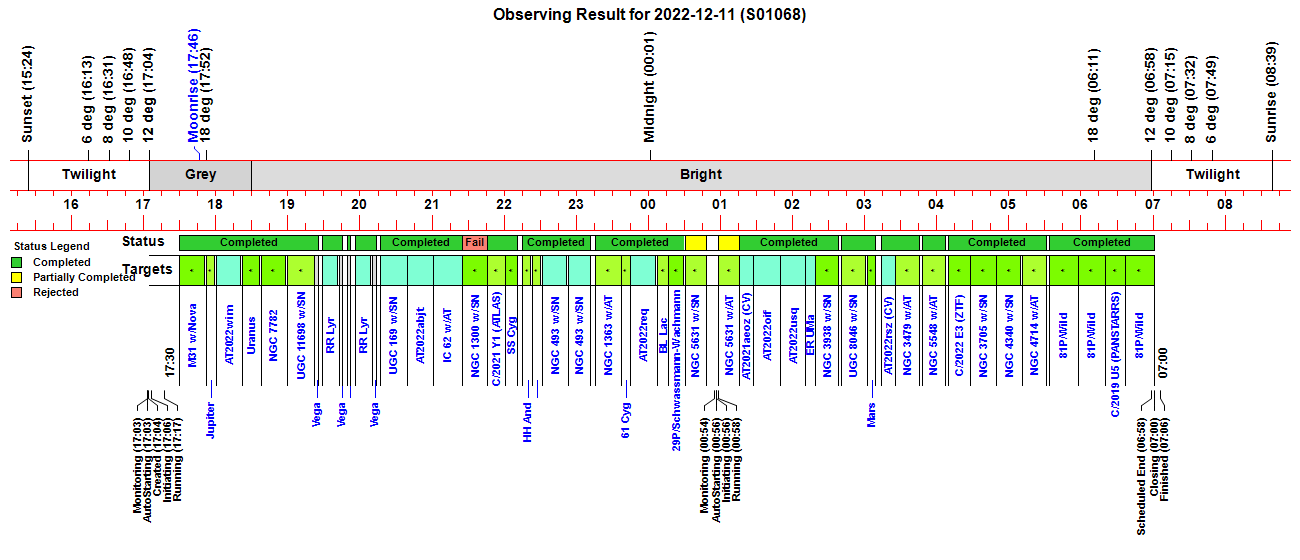

Observing Result

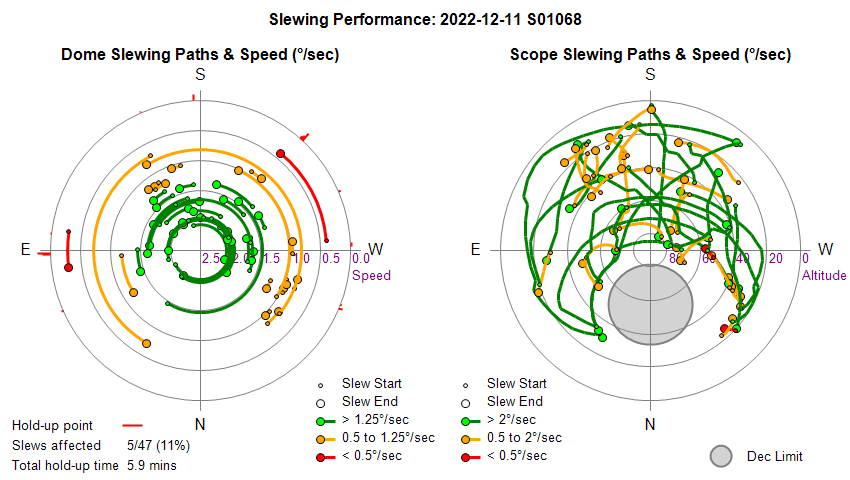

Dome & Scope Slewing Performance

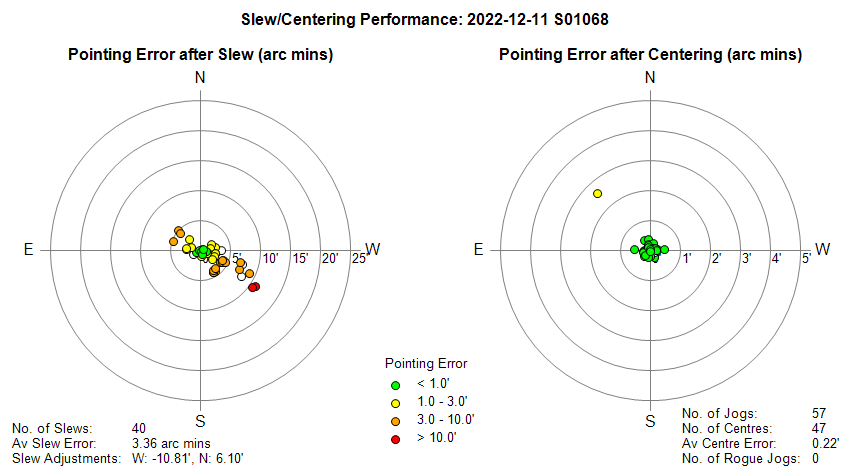

Slew/Centering Performance

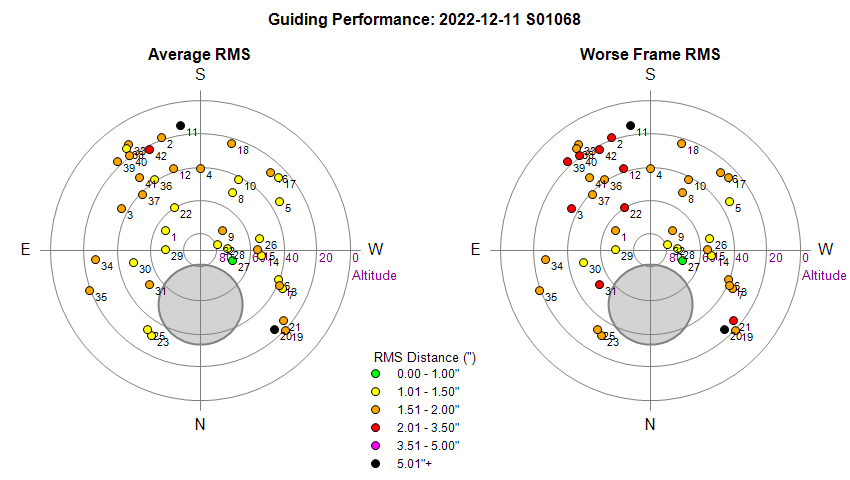

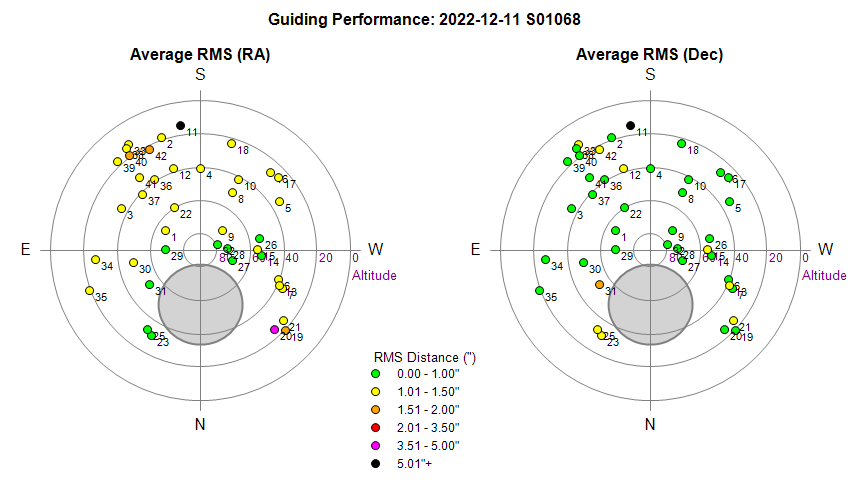

Guiding Performance

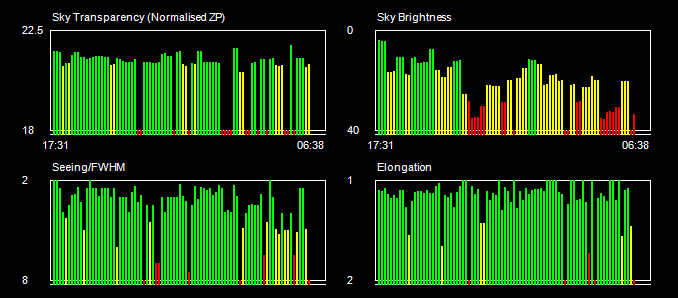

Sky Conditions (Locate Frames)

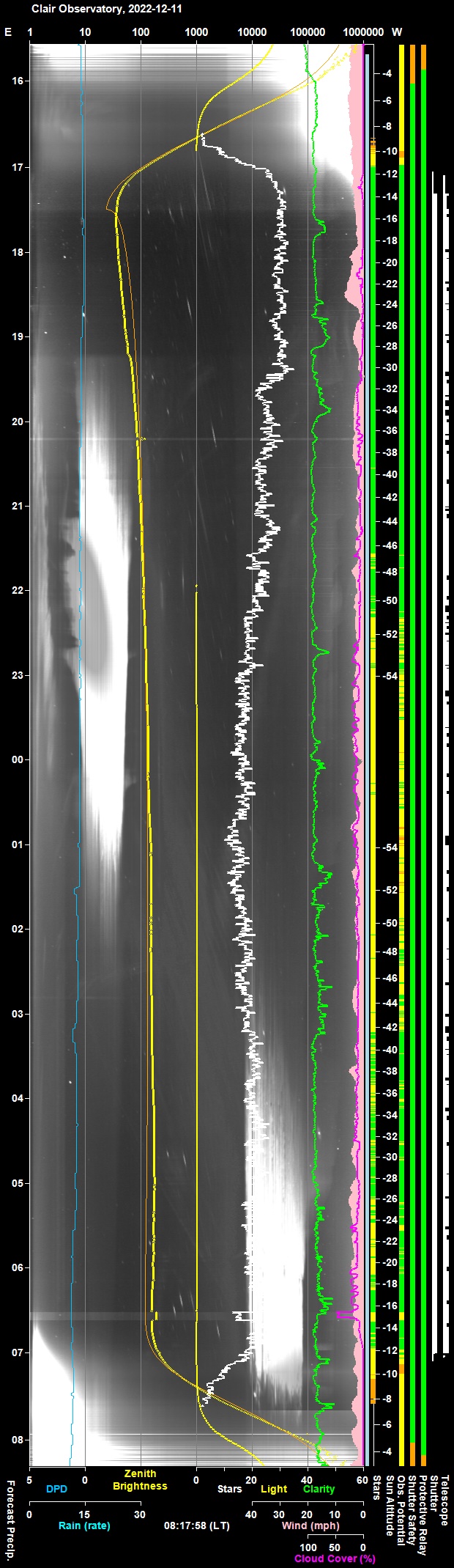

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

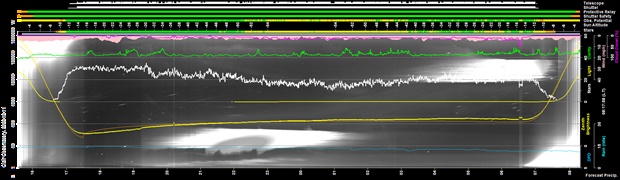

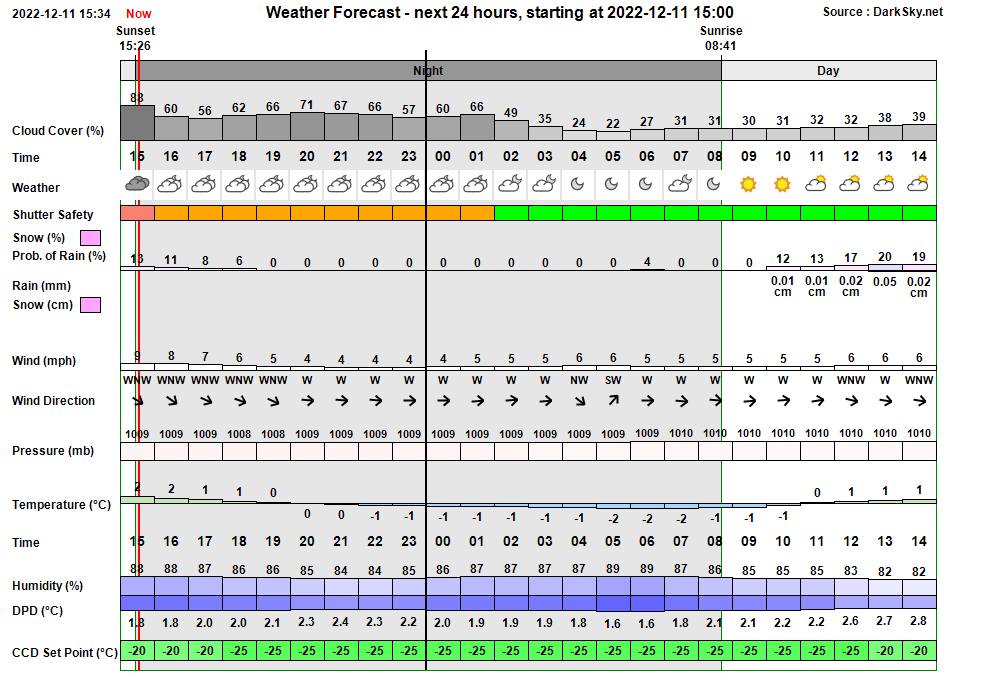

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 17:03:23 Session Monitoring AutoStart monitoring for Live Session opportunity between 17:03 & 06:22 17:03:28 Session AutoStarting Session autostarting (17:03) 17:03:48   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:04:15   Camera1 Connected SBIG Camera connected (set point -25°C) 17:04:17 Session Created Session Created (Live, 2022-12-11 S01068, ImageSaveNum: 1068001) 17:04:41   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:06:26   Services Started Observatory Services started 17:06:34 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:06:38 Session Pending Session pending (2022-12-11) 17:06:40 Session Initiating Session initiating (2022-12-11) 17:06:42   Plan Requested Observing Plan requested from AstroPlan (1.35.1) 17:15:20   Plan Loaded Observing Plan loaded to queue (Plan ID: 839) 17:15:35   Camera1 Connected SBIG Camera connected (set point -25°C) 17:16:01   Telescope Connected Telescope connected (TheSky6) 17:16:25 Session Equilibration Session ready to Open Dome 17:17:10   Dome Opened Dome opened (opening time 45s) 17:17:12 Session Running Session running 17:17:14   Queue Started Observing Queue started (47 targets selected) 17:17:15     Target Started (NrZen) Target started (Focus Field 22, HIP 108888) 17:17:29       Dome Unparked Dome unparked 17:21:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:23:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:25:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:25:52       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:28:00       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:29:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:30:00     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888) 17:30:05     Target Started (1/47) Target started (1/47, M31 w/Nova2022zzj) 17:33:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:35:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:51:50     Target Completed Target completed (1/47, M31 w/Nova2022zzj) 17:51:55     Target Started (2/47) Target started (2/47, Jupiter) 17:58:49     Target Completed Target completed (2/47, Jupiter) 18:00:36     Target Started (3/47) Target started (3/47, AT2022wim (CV)) 18:05:19       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 18:21:14     Target Completed Target completed (3/47, AT2022wim (CV)) 18:22:36     Target Started (4/47) Target started (4/47, Uranus) 18:25:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:27:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:37:20     Target Completed Target completed (4/47, Uranus) 18:37:48     Target Started (5/47) Target started (5/47, NGC 7782) 18:41:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 18:58:47     Target Completed Target completed (5/47, NGC 7782) 18:59:47     Target Started (6/47) Target started (6/47, UGC 11698 w/SN2022abik) 19:03:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:05:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:21:46     Target Completed Target completed (6/47, UGC 11698 w/SN2022abik) 19:21:50     Target Started (7/47) Target started (7/47, Vega) 19:25:10     Target Completed Target completed (7/47, Vega) 19:28:38     Target Started (8/47) Target started (8/47, GCVS RR Lyr) 19:31:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:33:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:41:57     Target Completed Target completed (8/47, GCVS RR Lyr) 19:42:40     Target Started (9/47) Target started (9/47, Vega) 19:45:40     Target Completed Target completed (9/47, Vega) 19:49:31     Target Started (10/47) Target started (10/47, Vega) 19:52:05     Target Completed Target completed (10/47, Vega) 19:56:22     Target Started (11/47) Target started (11/47, GCVS RR Lyr) 19:59:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:01:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:09:35     Target Completed Target completed (11/47, GCVS RR Lyr) 20:10:24     Target Started (12/47) Target started (12/47, Vega) 20:13:38     Target Completed Target completed (12/47, Vega) 20:17:15     Target Started (13/47) Target started (13/47, UGC 169 w/SN2022nmq) 20:18:56     Dome Slew Dome slew held up at Az. 222.1, 221.7° (Total delay 38s) 20:21:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:23:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:39:35     Target Completed Target completed (13/47, UGC 169 w/SN2022nmq) 20:39:39     Target Started (14/47) Target started (14/47, AT2022abjt) 20:42:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:44:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:00:51     Target Completed Target completed (14/47, AT2022abjt) 21:01:15     Target Started (15/47) Target started (15/47, IC 62 w/AT2022wvj) 21:06:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:09:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:25:25     Target Completed Target completed (15/47, IC 62 w/AT2022wvj) 21:25:29     Target Started (16/47) Target started (16/47, NGC 1300 w/SN2022acko) 21:46:21     Target Completed Target completed (16/47, NGC 1300 w/SN2022acko) 21:46:25     Target Started (17/47) Target started (17/47, C/2021 Y1 (ATLAS)) 21:50:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:52:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:00:58     Target Completed Target completed (17/47, C/2021 Y1 (ATLAS)) 22:01:02     Target Started (18/47) Target started (18/47, GCVS SS Cyg) 22:04:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:06:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 22:11:09     Target Completed Target completed (18/47, GCVS SS Cyg) 22:15:34     Target Started (19/47) Target started (19/47, GCVS HH And) 22:18:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:20:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 22:23:03     Target Completed Target completed (19/47, GCVS HH And) 22:23:37     Target Started (20/47) Target started (20/47, WDS GRB 34) 22:26:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:27:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 22:30:12     Target Completed Target completed (20/47, WDS GRB 34) 22:31:40     Target Started (21/47) Target started (21/47, NGC 493 w/SN2022ywf) 22:33:40     Dome Slew Dome slew held up at Az. 246.7, 223.0, 222.7, 221.7° (Total delay 82s) 22:36:37       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 22:52:55     Target Completed Target completed (21/47, NGC 493 w/SN2022ywf) 22:53:40     Target Started (22/47) Target started (22/47, NGC 493 w/SN2022ywf) 22:55:46       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:11:39     Target Completed Target completed (22/47, NGC 493 w/SN2022ywf) 23:15:41     Target Started (23/47) Target started (23/47, NGC 1363 w/AT2022ackv) 23:19:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:21:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 23:37:19     Target Completed Target completed (23/47, NGC 1363 w/AT2022ackv) 23:37:40     Target Started (24/47) Target started (24/47, 61 Cyg) 23:41:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:43:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 23:45:24     Target Completed Target completed (24/47, 61 Cyg) 23:45:28     Target Started (25/47) Target started (25/47, AT2022req) 23:49:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:51:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 23:55:56       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:56:01       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:07:07     Target Completed Target completed (25/47, AT2022req) 00:07:11     Target Started (26/47) Target started (26/47, GCVS BL Lac) 00:10:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:12:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 00:16:39     Target Completed Target completed (26/47, GCVS BL Lac) 00:16:43     Target Started (27/47) Target started (27/47, 29P/Schwassmann-Wachmann) 00:20:08     Dome Slew Dome slew held up at Az. 291.2, 268.2, 267.5, 222.3, 221.6, 177.3, 156.5° (Total delay 91s) 00:22:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:24:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 00:30:25     Target Completed Target completed (27/47, 29P/Schwassmann-Wachmann) 00:30:29     Target Started (28/47) Target started (28/47, NGC 5631 w/SN2022aaiq) 00:33:27     Dome Slew Dome slew held up at Az. 96.5, 88.8, 66.4° (Total delay 84s) 00:44:55       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 00:45:21       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:48:03     Target Aborted (28/47) Target aborted (28/47, NGC 5631 w/SN2022aaiq) due to Priority 1 ToO Target 00:48:08     Target Started (29/48) Target started (29/48, NGC 1300 w/SN2022acko, ToO) 00:54:21     Target Failed (29/48) Target failed due to aborted (29/48, NGC 1300 w/SN2022acko, ToO) 00:54:23   Queue Aborted Job Queue aborted 00:54:45 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:54 & 06:22 00:54:47 Observatory (AutoStart) Observatory placed in Auto-Start Mode 00:56:27 Session AutoStarting Session autostarting (00:56) 00:56:48   Services Started Observatory Services started 00:56:53 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:56:57 Session Pending Session pending (2022-12-11) 00:56:59 Session Initiating Session initiating (2022-12-11) 00:57:09   Plan Loaded Observing Plan loaded to queue (Plan ID: 839) 00:57:23   Camera1 Connected SBIG Camera connected (set point -30°C) 00:57:49   Telescope Connected Telescope connected (TheSky6) 00:58:13 Session Running Session running 00:58:15   Queue Started Observing Queue started (19 targets selected) 00:58:21     Target Started (29/47) Target started (29/47, NGC 5631 w/AT2022acsj) 01:15:27     Target Completed Target partially completed (29/47, NGC 5631 w/AT2022acsj) 01:15:31     Target Started (30/47) Target started (30/47, AT2021aeoz (CV)) 01:19:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:21:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 01:27:25     Target Completed Target completed (30/47, AT2021aeoz (CV)) 01:27:29     Target Started (31/47) Target started (31/47, AT2022oif) 01:31:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:33:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 01:49:42     Target Completed Target completed (31/47, AT2022oif) 01:49:46     Target Started (32/47) Target started (32/47, AT2022usq) 01:52:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:54:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 02:10:39     Target Completed Target completed (32/47, AT2022usq) 02:10:43     Target Started (33/47) Target started (33/47, GCVS ER UMa) 02:14:53       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:18:49     Target Completed Target completed (33/47, GCVS ER UMa) 02:18:53     Target Started (34/47) Target started (34/47, NGC 3938 w/SN2022xlp) 02:19:55     Dome Slew Dome slew held up at Az. 88.6° (Delay 39s) 02:22:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:38:10     Target Completed Target completed (34/47, NGC 3938 w/SN2022xlp) 02:40:22     Target Started (35/47) Target started (35/47, UGC 8046 w/SN2022zxr) 02:44:04       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:00:35     Target Completed Target completed (35/47, UGC 8046 w/SN2022zxr) 03:02:22     Target Started (36/47) Target started (36/47, Mars) 03:09:06     Target Completed Target completed (36/47, Mars) 03:13:52     Target Started (37/47) Target started (37/47, AT2022rsz (CV)) 03:17:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:19:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 03:25:23     Target Completed Target completed (37/47, AT2022rsz (CV)) 03:25:52     Target Started (38/47) Target started (38/47, NGC 3479 w/AT2022abgf) 03:29:35       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:45:56     Target Completed Target completed (38/47, NGC 3479 w/AT2022abgf) 03:47:53     Target Started (39/47) Target started (39/47, NGC 5548 w/AT2022abcs) 03:50:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:06:55     Target Completed Target completed (39/47, NGC 5548 w/AT2022abcs) 04:09:52     Target Started (40/47) Target started (40/47, C/2022 E3 (ZTF)) 04:13:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:15:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 04:27:50     Target Completed Target completed (40/47, C/2022 E3 (ZTF)) 04:27:54     Target Started (41/47) Target started (41/47, NGC 3705 w/SN2022xxf) 04:31:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:34:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 04:50:03     Target Completed Target completed (41/47, NGC 3705 w/SN2022xxf) 04:50:07     Target Started (42/47) Target started (42/47, NGC 4340 w/SN2022zzz) 04:53:57       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 05:10:12     Target Completed Target completed (42/47, NGC 4340 w/SN2022zzz) 05:11:26     Target Started (43/47) Target started (43/47, NGC 4714 w/AT2022rrp) 05:14:45       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 05:30:59     Target Completed Target completed (43/47, NGC 4714 w/AT2022rrp) 05:33:26     Target Started (44/47) Target started (44/47, 81P/Wild) 05:37:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:40:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 05:57:39     Target Completed Target completed (44/47, 81P/Wild) 05:57:43     Target Started (45/47) Target started (45/47, 81P/Wild) 06:00:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:02:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 06:20:19     Target Completed Target completed (45/47, 81P/Wild) 06:20:23     Target Started (46/47) Target started (46/47, C/2019 U5 (PANSTARRS)) 06:23:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:26:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 06:36:45     Target Completed Target completed (46/47, C/2019 U5 (PANSTARRS)) 06:36:49     Target Started (47/47) Target started (47/47, 81P/Wild) 06:40:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:42:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 07:00:48     Target Completed Target completed (47/47, 81P/Wild) 07:00:52   Queue Completed Job Queue completed 07:00:53 Session Closing Session closing 07:01:48   Dome Closed Dome closed (closing time 50s) 07:02:31   Dome Parked Dome parked (parking time 36s), Az: 90.0 deg 07:03:41   Telescope Parked Telescope parked (parking time 66s) 07:03:56   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:04:18   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:05:31   Services Stopped Night Services stopped 07:05:34 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 07:06:29 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 20:18:56 Yellow Alert Dome Slew Dome slew held up at Az. 222.1, 221.7° (Total delay 38s) 22:33:40 Yellow Alert Dome Slew Dome slew held up at Az. 246.7, 223.0, 222.7, 221.7° (Total delay 82s) 22:40:04 Yellow Alert UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted 22:40:26 Yellow Alert UPB.Switch Restarting UPB Powerbox Software 22:40:34 Green Alert UPB.Switch UPB.Switch service has been restored 00:20:08 Yellow Alert Dome Slew Dome slew held up at Az. 291.2, 268.2, 267.5, 222.3, 221.6, 177.3, 156.5° (Total delay 91s) 00:33:27 Yellow Alert Dome Slew Dome slew held up at Az. 96.5, 88.8, 66.4° (Total delay 84s) 02:19:55 Yellow Alert Dome Slew Dome slew held up at Az. 88.6° (Delay 39s)

Back to Top

Operational Issues (2022-12-11, S1068)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (8)
• Continuous Improvement (5)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• 'Last Session' field on AstroMain Analysis/Image Sets tabs shows'S938' for 'M31' (w/AT 2022zzj) instead of S1059 or S1060.  This is an issue for M31 Transients whose pictures are stored in 'M31 Nova' Store folder.  The GetLastSession() routine should make a custom search for M31 in which it search for pictures file with the prefix including the transient name (eg. "M31_AT2022zzj')
  Fixed 2022-12-12 (AstroMain 3.59.4).

• Observatory Temperature/Humidity sensor seem to go offline in cold conditions.  The Observatory Temperature/Humidity sensor located in the WMR80 base station went offline at 02:30 when tempertures fell to -5°C (conditions eventually reaching -7°C by dawn).  Data came back online at 10:10. Interestingly this was at about the point wher temperatures had risen above -5°C.  Data was monitor the  next cold night to see and again ObservatoryTemperature/Humidity go offline in the same manner. What seeems to happen is than when Base Station temperature falls to below -5.0°C, the Weather Station reports a Indoor (Base Station) Temperature of 0.0°C, and a Indoor (Base Station) Humidity values corresponding to the last good value. Separate continuous improvements tickets are raised to mitigate the impact of this.
  Issue understood 2022-12-12  (WeatherStation / AstroWeather).

• GuidingChart and GuideSumm Data file contain inappropriate () terms.  These are surrounding brackets for time lapse frame numbers.   These target aren't using TimeLapse recording and shouldn't have these brackets shown.
  Fixed 2022-12-11 (AstroMain 3.59.4).

• TheSky6 ended session with a dialog window entitled "ASCOM.DriverAccess" with message "Get RightAscension" and a Red/White Cross.  Presumably TheSky was attenpted to read RA from scope right at the moment TheSky telescope was disconnected ? The issue didn't seem to affect operations at all. The LX200 Scope made its final slew to 'Near Park' postion using TheSky.Telescope ok.  No anomalous message in log file.  TeleLink log shows last GetRightAscension at 07:03:01.068 with disconnection of TheSky.Telescope at 07:03:01.071. Closed after review 2022-12-12 (not enough information to establish a cause or conduct further diagnostics)
  Closed after review 2022-12-12 (TheSky6, AstroMain).

• Labelling of Spectra Graphs has taken a backward step (post-session analysis).  Spectral Graph Chart created for "Lyr_RR 2x2 45s S Set1" should have been labelled GCVS RR Lyr,  4x45s, 2x2, 2022-12-11 19:39 UT    Lyr_RR.20221211.im1068111-15.av4x45s.S.FIT,  but was labelled as Nova Cas 2021, 30S, 2x2, #920126 0006  2021-10-05 0Lyr_RR.20221211.im1068111-15.av4x45s.S.FIT" . Compare pictures with session S936 (2021-11-23) and compare  AstroMain code 3.59.4 with AstroMain 3.47.
  Fixed 2022-12-12  (AstroMain 3.59.5).

• Observing Plan contains duplicate observations for same target. Plan contained duplicates for NGC 5631 w/SN2022aaiq (2 entries) and 81P/Wild (3 entries). Observing Plan is designed to be not have more than one observation scheduled for the same target. This is most probably a sideffect of a bug in ChooseTarget() routine which is fixed in AstroPlan 1.35.2.
  Probably resolved 2022-12-16 (AstroPlan 1.35.2).

• AutoStart unnecessarily waiting on Pulsar Data to change (00:54). Job was accidently abort at 00:53 when it was intended to just abort the current target (NGC 1300). AutoStart was initiated to resume the session and it was disappointly to find AutoStart had to wait a 3 or 4 minutes for Pulsar Data to change.  Last Pulsar Data change should be carried forward for just this eventuality. A new "Skip PulsWait" check box (cboxSkipWaitOnFreshShutterData) has been added to AstroMain 3.61.6 to allow the user to skip ObsManager's 'wait for fresh shutter data'.
  Fixed 2023-02-14 (AstroMain 3.61.6)

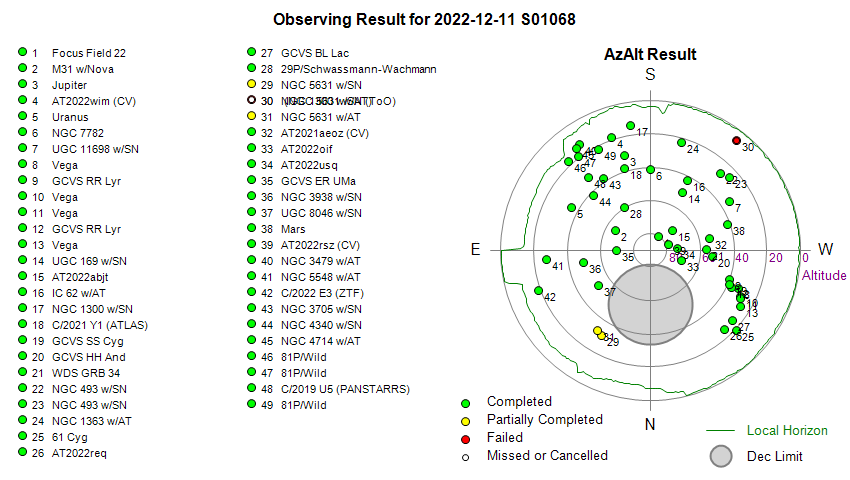

• Name of Target 30 on the AzAltResult chart was overposted.  It seems that  "NGC 1300 w/SN2022acko (ToO)" was overposted (or underposted) by "NGC 5631 w/SN2022aaiq" which was both the preceeding and succeeding target.  May be confused because NGC 1300 w/SN2022acko was a ToO target which was aborted by user mid-target due to low transparency/failed centering (accidentally using JobAbort, rather than jobTargetAbort)
  To fix 2022-12-12  (AstroMain 3.59.4).

• Reducing Process All should write the current raw set to objconsole status field like 'Processing Reduction Set 3/30'
  Done  2022-12-12  (AstroMain 3.59.4).

• Build a google search field to submit a google search 'item site:astro-richweb.net'.  This can be activated by setting up a programmable google search at https://programmablesearchengine.google.com, and pasting code into website.   Prototype below, and subsequently built into the Session Images page.

  Done  2022-12-12  (Website).

• Observatory Temperature data is inappropriately averaged when Temperature/Humidity data went offline (02:30). When tempearture data suddenly jumped from -5°C to a flatlined value of 0°C, the temperature data is still average and plotted, until the point where data is deemed to have flatflined and is no longer drawn.  A second parse of data should be made to rule out these inappropriately averaged sections.
  Done 2022-12-17  (AstroWeather 1.19.7).

• Graph boxes should report an Observatory Temperature from the Ch2Temperature sensor when temperatures fall below -5°C. Below -5°C the Weather Station jumps to reporting a value of 0°C for the Indoor (Base Station) Temperature.
  Done  2022-12-17  (AstroWeather 1.19.7).

• Temperature Graphs should show Ch2 Temperature for the the Observatory Temperature when temperatures fall below -5°C. Below -5°C the Weather Station jumps to reporting a value of 0°C for the Indoor (Base Station) Temperature, and is currently identified as a flat-lined sensor and not plotted.  Observatort Dew Point should be recalculated using the Observatory Humidity (albeit flat lining) and the Ch2 Temperature.
  Done  2022-12-17  (AstroWeather 1.19.7).
