Notes - Session 1107 (2023-03-14)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (4),  Small Defects (2),  Continuous Improvement (1)

Bullet Images from 2023-03-14 >>
Bullet Investigation - Problem linking one particular image (post-session)


Session Aims & Highlights (2023-03-14)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions
  2. Sessions. Make live session test using new AstroMain (3.62), AstroMove (1.12) & Fits Summary (Excel) software using relocating Session Folders, which have been moved ahead of session from ../Analysis to ../Sessions directory paths.

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

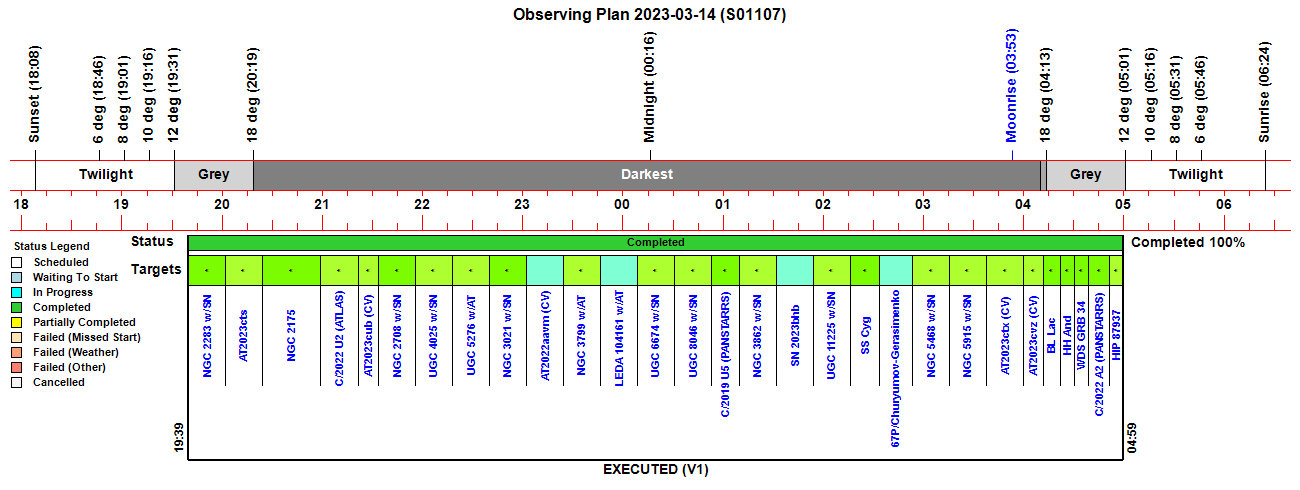

Observing Plan

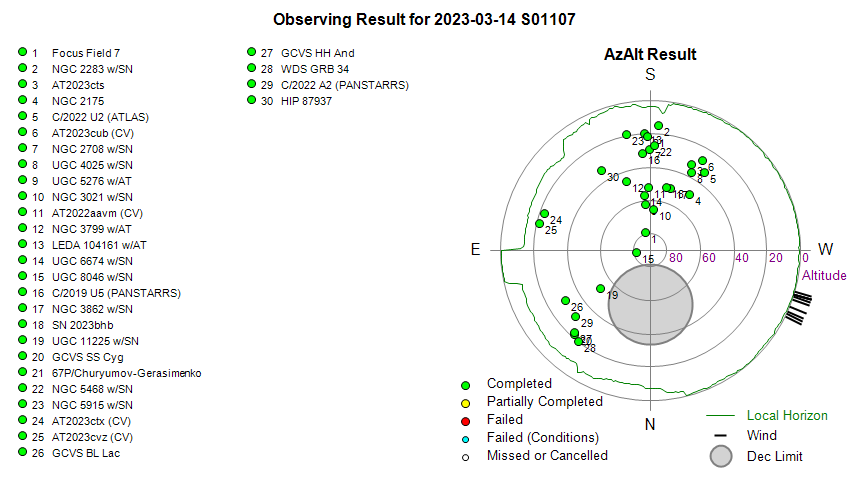

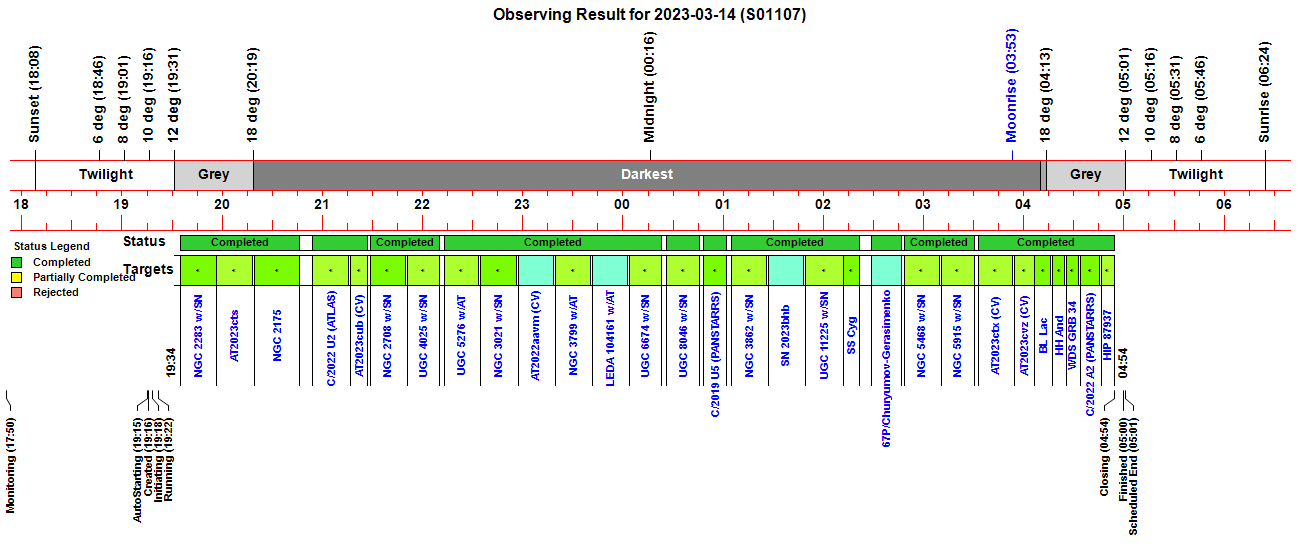

Observing Result

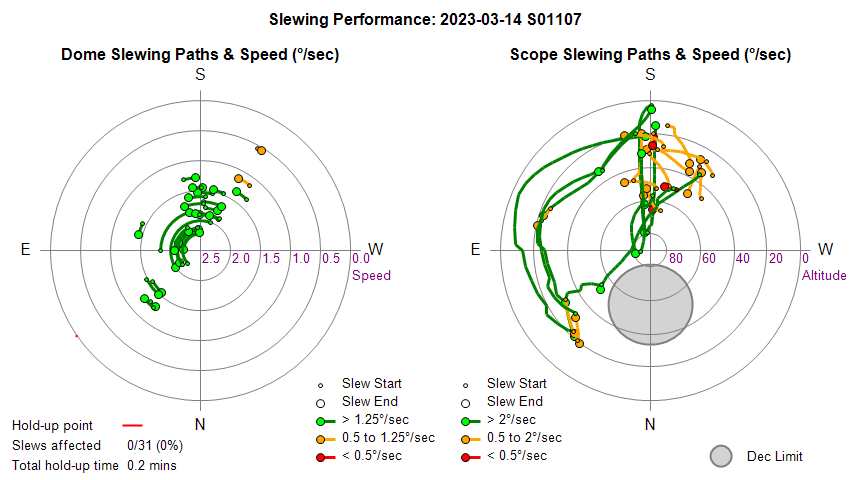

Dome & Scope Slewing Performance

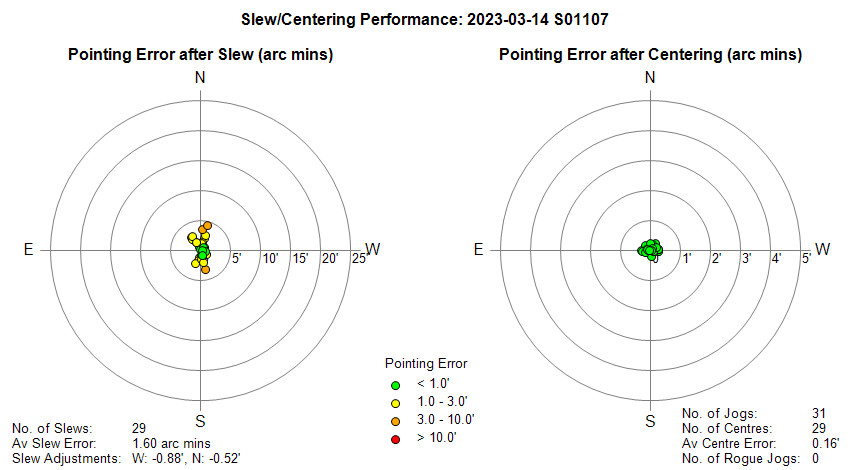

Slew/Centering Performance

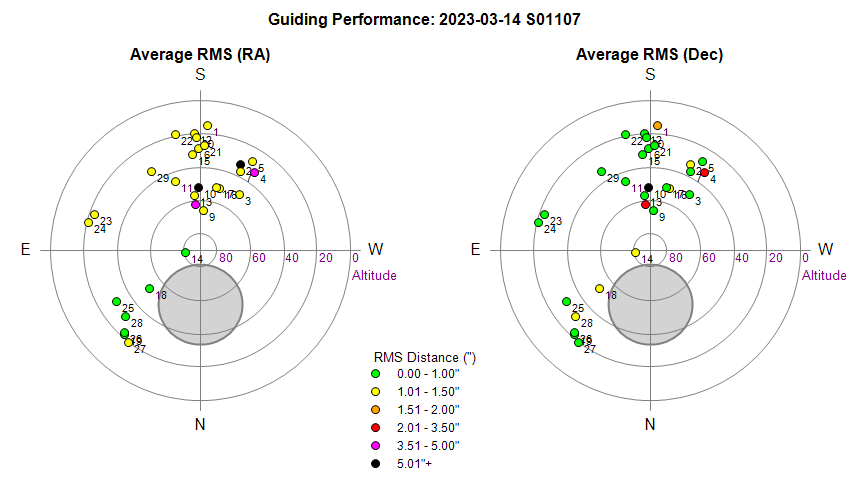

Guiding Performance

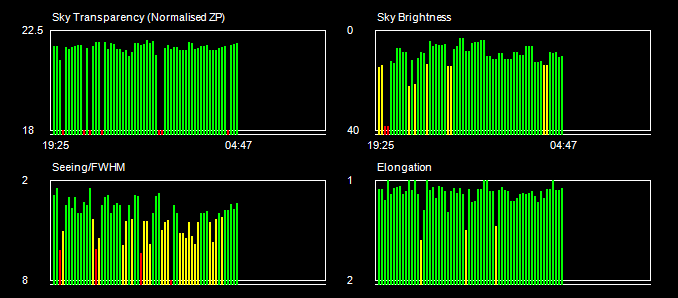

Sky Conditions (Locate Frames)

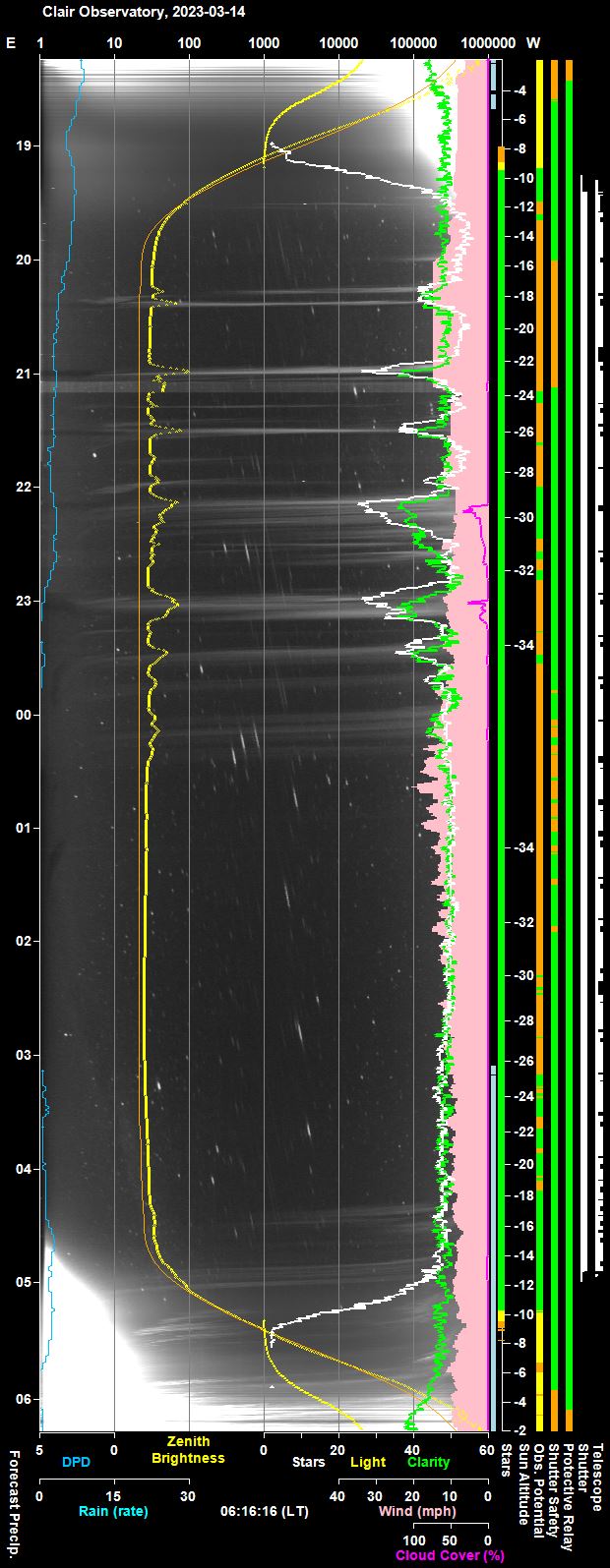

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

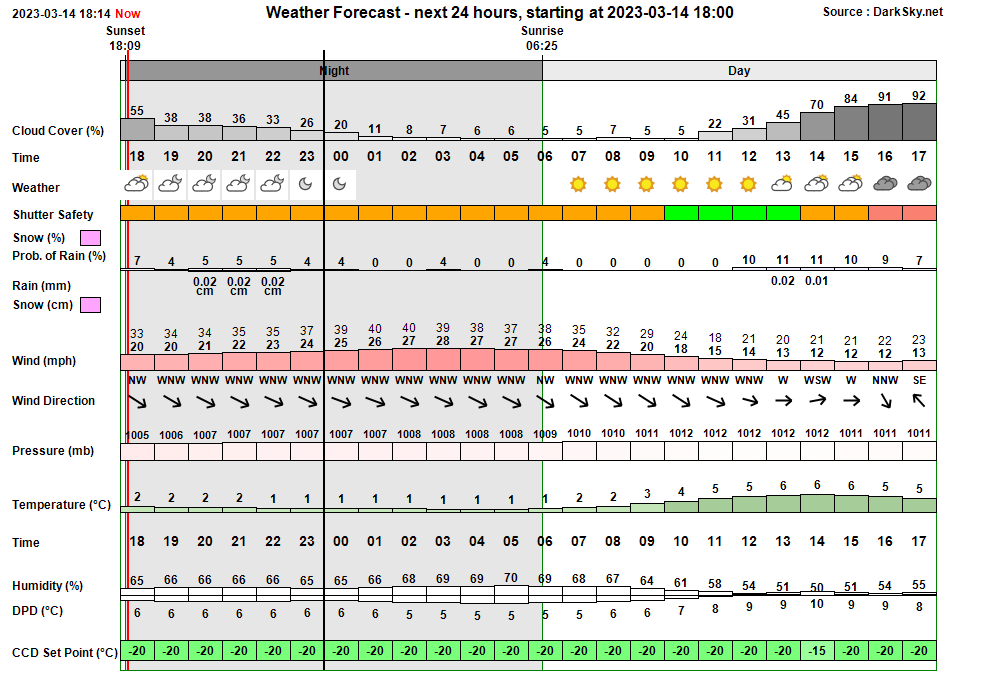

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
17:50:40 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:57 & 04:25
17:50:42   AutoStart Waiting AutoStart waiting till earliest start time at 18:57
18:57:55   AutoStart Delayed Session delayed due to too few stars
19:15:32 Session AutoStarting Session autostarting (19:15)
19:15:52   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
19:16:05 Session Created Session Created (Live, 2023-03-14 S01107, ImageSaveNum: 1107001)
19:16:32   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
19:18:16   Services Started Observatory Services started
19:18:23 Observatory (Auto) Observatory placed in Fully-Automated Mode
19:18:27 Session Pending Session pending (2023-03-14)
19:18:29 Session Initiating Session initiating (2023-03-14)
19:18:31   Plan Requested Observing Plan requested from AstroPlan (1.36.5)
19:19:49   Plan Loaded Observing Plan loaded to queue (Plan ID: 879)
19:20:12   Camera1 Connected SBIG Camera connected (set point -25°C)
19:20:49   Telescope Connected Telescope connected (TheSky6)
19:21:13 Session Equilibration Session ready to Open Dome
19:21:58   Dome Opened Dome opened (opening time 45s)
19:22:00 Session Running Session running
19:22:03   Queue Started Observing Queue started (29 targets selected)
19:22:04     Target Started (NrZen) Target started (Focus Field 7, HIP 34070)
19:22:16       Dome Unparked Dome unparked
19:26:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:28:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
19:30:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
19:30:51       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
19:32:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
19:34:26       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
19:34:43     Target Completed (NrZen) Target completed (Focus Field 7, HIP 34070)
19:34:59     Target Started (1/29) Target started (1/29, NGC 2283 w/SN2023axu)
19:38:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:40:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
19:56:50     Target Completed Target completed (1/29, NGC 2283 w/SN2023axu)
19:56:54     Target Started (2/29) Target started (2/29, AT2023cts)
19:59:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:01:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
20:18:13     Target Completed Target completed (2/29, AT2023cts)
20:19:19     Target Started (3/29) Target started (3/29, NGC 2175). Using SharpCap
20:21:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:23:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
20:46:30   Camera1 Connected SBIG Camera connected (set point -25°C)
20:46:32     Target Completed Target completed (3/29, NGC 2175)
20:53:49     Target Started (4/29) Target started (4/29, C/2022 U2 (ATLAS))
20:56:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:58:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
21:16:06     Target Completed Target completed (4/29, C/2022 U2 (ATLAS))
21:16:39     Target Started (5/29) Target started (5/29, AT2023cub (CV))
21:19:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:21:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
21:26:56     Target Completed Target completed (5/29, AT2023cub (CV))
21:28:39     Target Started (6/29) Target started (6/29, NGC 2708 w/SN2023bee)
21:31:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:33:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
21:49:46     Target Completed Target completed (6/29, NGC 2708 w/SN2023bee)
21:50:59     Target Started (7/29) Target started (7/29, UGC 4025 w/SN2023boc)
21:54:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:09:57     Target Completed Target completed (7/29, UGC 4025 w/SN2023boc)
22:12:59     Target Started (8/29) Target started (8/29, UGC 5276 w/AT2023cxk)
22:17:30       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:33:50     Target Completed Target completed (8/29, UGC 5276 w/AT2023cxk)
22:34:59     Target Started (9/29) Target started (9/29, NGC 3021 w/SN2023bvj)
22:37:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:40:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
22:56:12     Target Completed Target completed (9/29, NGC 3021 w/SN2023bvj)
22:57:19     Target Started (10/29) Target started (10/29, AT2022aavm (CV))
23:00:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:02:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
23:18:24     Target Completed Target completed (10/29, AT2022aavm (CV))
23:19:39     Target Started (11/29) Target started (11/29, NGC 3799 w/AT2023clx)
23:22:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:24:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
23:40:32     Target Completed Target completed (11/29, NGC 3799 w/AT2023clx)
23:41:39     Target Started (12/29) Target started (12/29, LEDA 104161 w/AT2022qvr)
23:44:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:47:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
00:03:09     Target Completed Target completed (12/29, LEDA 104161 w/AT2022qvr)
00:03:59     Target Started (13/29) Target started (13/29, UGC 6674 w/SN2023bvi)
00:06:52       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:22:47     Target Completed Target completed (13/29, UGC 6674 w/SN2023bvi)
00:25:59     Target Started (14/29) Target started (14/29, UGC 8046 w/SN2022zxr)
00:29:07       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:45:36     Target Completed Target completed (14/29, UGC 8046 w/SN2022zxr)
00:48:19     Target Started (15/29) Target started (15/29, C/2019 U5 (PANSTARRS))
00:51:28       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:01:56     Target Completed Target completed (15/29, C/2019 U5 (PANSTARRS))
01:05:03     Target Started (16/29) Target started (16/29, NGC 3862 w/SN2023bqk)
01:07:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:10:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:26:22     Target Completed Target completed (16/29, NGC 3862 w/SN2023bqk)
01:27:03     Target Started (17/29) Target started (17/29, SN 2023bhb)
01:30:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:32:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:48:10     Target Completed Target completed (17/29, SN 2023bhb)
01:49:03     Target Started (18/29) Target started (18/29, UGC 11225 w/SN2023bqh)
01:52:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:55:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:12:00     Target Completed Target completed (18/29, UGC 11225 w/SN2023bqh)
02:12:05     Target Started (19/29) Target started (19/29, GCVS SS Cyg)
02:15:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:17:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:21:25     Target Completed Target completed (19/29, GCVS SS Cyg)
02:28:49     Target Started (20/29) Target started (20/29, 67P/Churyumov-Gerasimenko)
02:32:44       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
02:46:38     Target Completed Target completed (20/29, 67P/Churyumov-Gerasimenko)
02:48:24     Target Started (21/29) Target started (21/29, NGC 5468 w/SN2023cj)
02:51:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:53:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:09:16     Target Completed Target completed (21/29, NGC 5468 w/SN2023cj)
03:10:44     Target Started (22/29) Target started (22/29, NGC 5915 w/SN2023cpt)
03:14:32       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:30:35     Target Completed Target completed (22/29, NGC 5915 w/SN2023cpt)
03:32:44     Target Started (23/29) Target started (23/29, AT2023ctx (CV))
03:36:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:38:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 18)
03:54:04     Target Completed Target completed (23/29, AT2023ctx (CV))
03:54:44     Target Started (24/29) Target started (24/29, AT2023cvz (CV))
03:58:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:00:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 19)
04:06:22     Target Completed Target completed (24/29, AT2023cvz (CV))
04:06:44     Target Started (25/29) Target started (25/29, GCVS BL Lac)
04:10:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:12:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
04:16:35     Target Completed Target completed (25/29, GCVS BL Lac)
04:17:02     Target Started (26/29) Target started (26/29, GCVS HH And)
04:20:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:22:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
04:24:55     Target Completed Target completed (26/29, GCVS HH And)
04:25:29     Target Started (27/29) Target started (27/29, WDS GRB 34)
04:28:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:30:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
04:32:31     Target Completed Target completed (27/29, WDS GRB 34)
04:33:57     Target Started (28/29) Target started (28/29, C/2022 A2 (PANSTARRS))
04:37:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:39:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
04:46:12     Target Completed Target completed (28/29, C/2022 A2 (PANSTARRS))
04:46:16     Target Started (29/29) Target started (29/29, HIP 87937)
04:49:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:52:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
04:54:30     Target Completed Target completed (29/29, HIP 87937)
04:54:33   Queue Completed Job Queue completed
04:54:35 Session Closing Session closing
04:55:30   Dome Closed Dome closed (closing time 50s)
04:56:08   Dome Parked Dome parked (parking time 31s), Az: 90.0 deg
04:57:21   Telescope Parked Telescope parked (parking time 71s)
04:57:36   Telescope State Handbox reads 'Scope parked Turn scope off.'
04:57:58   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:59:23   Services Stopped Night Services stopped
04:59:26 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
05:00:01 Session Finished Session Finished

Session Alerts & Alarms
Time     Type       Name Detail
--             No Alerts                --


Back to Top


Operational Issues (2023-03-14, S1107)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top

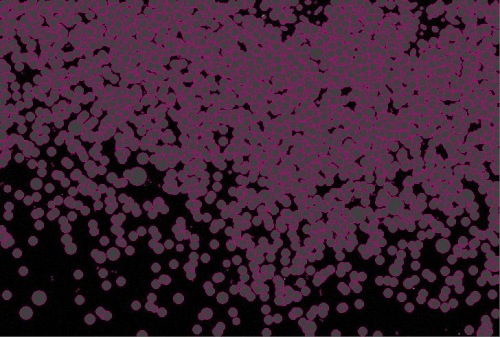

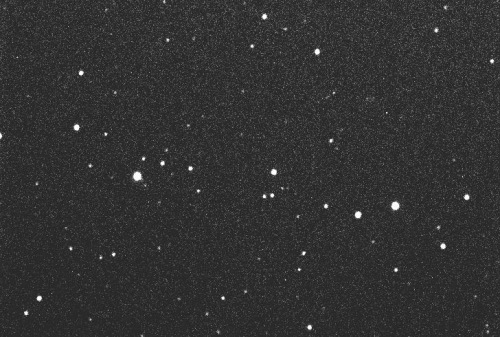

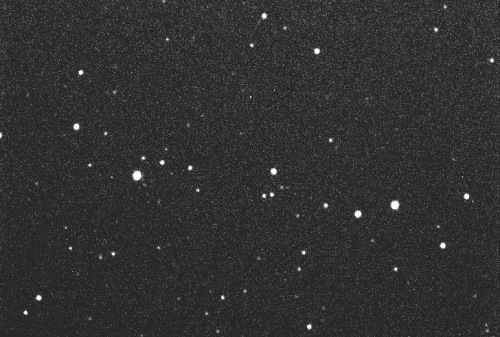

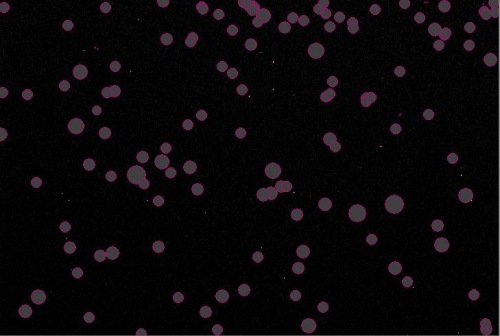

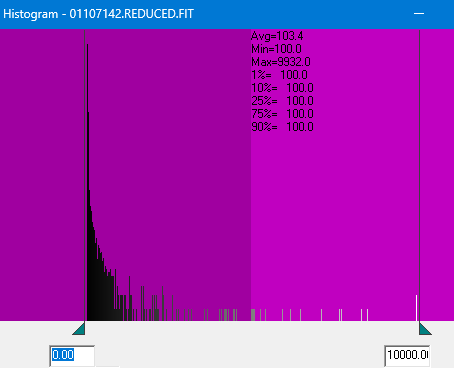

Investigation - Problem linking one particular image (post-session)

Issue
AstroMain crashed whilst analysing  image 142 of 240, 01107142 (post-session).

Description
AstroMain crashed whilst analysing  image 142 of 240 (01107142.REDUCED.FIT).  Image was third 15s B filter frame for Target 19/29 (GCVS SS Cyg).  No error messages or exceptions recorded. Examining the log file shows  ImageCoords(Image) of  RA= 00 00 00.000 Dec= +00 00 00.00 for the image, which may be relevant to the problem. It may also of note that the Star Inventory for image was reported  as  'nObjects = 3628   (nStars = 50)'.

Image  Image

The nObjects value of 3628 is exceptional large and anomalous (see following picture with star inventory overlaid).

In comparison the 1st and 2nd 15s B frames had nObjects values of only 256 & 147 respectively.

Analysis
Rerunning the Analysis within Visual Studio Debugging environment, record a System.IndexOutOfRangeException (Index was outside the bounds of the array) at code line 'Star(StarNo) = i' in GetInventoryDetails() routine. Problem is the Star array is sized at 2000, and exception occurred when StarNo reached the value of 2001.

Visually and statistically the problem frame (1107142) and the prior 15s B frame (1107139) look very similar (see Figs 1 to Fig 3 below).  Regardless of the reason why Star Inventory finds a very high number of objects the AstroMain programme clearly shouldn't crash.

Fix
Fix implemented in AstroMain 3.62.1 to prevent exception, but stopping loop through star inventory objects once 2000 is reached.

The problem image remains very slow to link and fails to solve in CCDSoft/TheSky using DoImageLink, taking 58s to attempt link with UCA/USNO stars and a further 12s to attempt link with GSC stars.  ASTAP link also fails.  The final simple link (using UCA/USNO stars) takes just 0.4s to successfully link.  The first two attempts are trying to link based on 3628 potential star points and fail accordingly,  whilst the final approach uses the TheSky's estimate of stars (probably 30-40 stars) based on the image 'pasted' into TheSky virtual view.

Analysing image (01107142.REDUCED.FIT)
  Image/Object                REDUCED  GCVS SS Cyg
  - FileName                  Ok    01107142.REDUCED.FIT
  - Exposure                  15s   [01107142] (3x3 15s B -25.4°C)
  - Date/Time                 Ok    2023-03-15 02:20:15 UT
  - Star Inventory            Ok    nObjects = 3628 (nStars = 50)

  Linking image (UCA/USNO)... Fail  Unsolved in 58.0s (No Match Found)
  Linking image (GSC)...      Fail  Unsolved in 12.0s (No Match Found)
  Linking Image (ASTAP)..     Fail  Unsolved in 3.2s (No Match Found)
  Linking image (UCA/USNO*)...Ok    Solved in 0.4s (Stars 50, Scale 1.404, Angle 180.27°)
  - Checking WCS              Fail  Image doesn't contain keywords for WCS center (CRVAL1, CRVAL2)
  - Plate Coordinates (RA)    Ok    21 42 47.596 (RA J2000)
  - Plate Coordinates (Dec)   Ok    +43 35 17.40 (Dec J2000)
  - Pointing Error            Ok    0.21' [N: 0.11', W: 0.18']

Fig 1 : Comparison of Problem Image #1107142 (left) and a Normal Image #1107139 (right), presented at 70% size
- Both images taken of the same star field, taken less than 1 minute apart and have same CCD Temperature (-25 degC)
- Both images are 15s exposures through B Filter and use 3x3 binning .
- Both images reduced using same Master Dark/Master Flat.

Image  Image

Fig 2 : Comparison of Problem Image #1107142 (left) and a Normal Image #1107139 (right)
Images as above with Star Inventory overlaid (created using SExtractor/CCDSoft using same settings)

Image  Image

Fig 3. Comparsion of Histograms from  Problem Image #1107142 (left) and a Normal Image #1107139 (right)

Image  Image

Update 2023-03-27
Two images from the following Session S1108 (01108163.FIT and 01108166.FIT both 15s B for SS Cyg) both had anomalous large object numbers (1727 and 1249 respectively), but program didn't crash due to the successfully implemented fix.

Back to Top
