Session Aims & Highlights (2023-04-19)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions
2. NGC 5576 Galaxy Group.  Acquire images of galaxies in NGC 5576 Galaxy Group (Astro.Now Deep Sky Challenge object for May 2023)

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.3, AstroPlan 1.38.1,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.2
  (AstroWeather 1.20, AstroAllSky 3.19,  AstroObsCam 1.11.4, AstroLaunch 1.10.9 / 1.11

Highlights

• Targets. 20 out of 20 planned targets were completed.
• NGC 5576 Galaxy Group. Images of NGC 5574, 5576, & NGC 5577 successfully acquired.
• Dome Slews.  One slew was significantly delayed with a total hold-up delay of 152s with holdups at Az 59.3, 65.4 85.6, 86.4, 87.5, 88.2 deg (Hold Up Stats: 1/22 slews affected, 5%, 3.6 minutes total hold-up time).

Notes:

Summary Plots & Logs

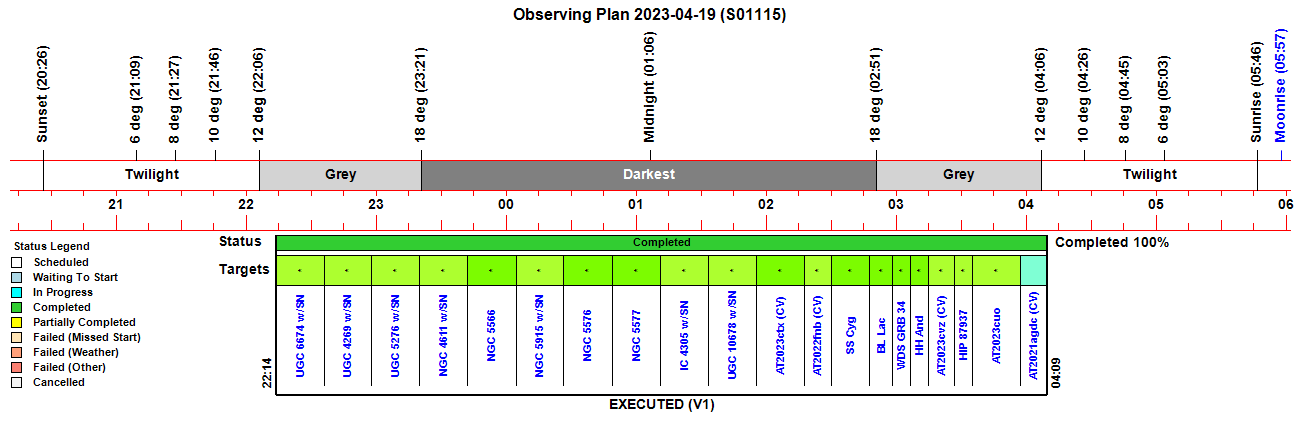

Observing Plan

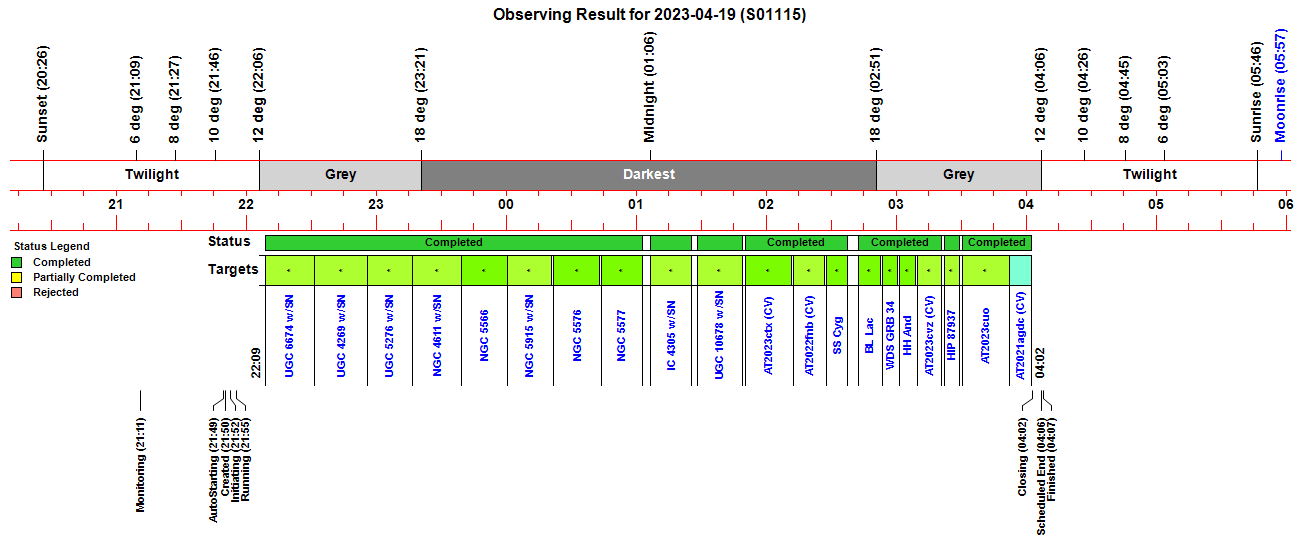

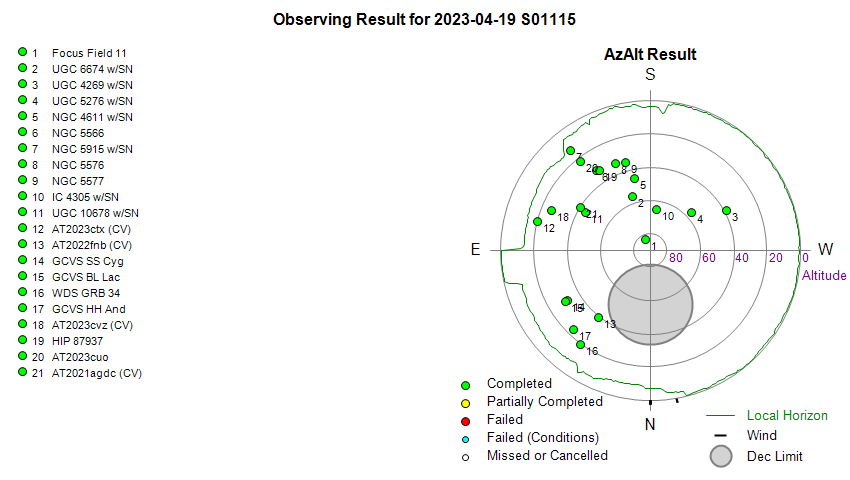

Observing Result

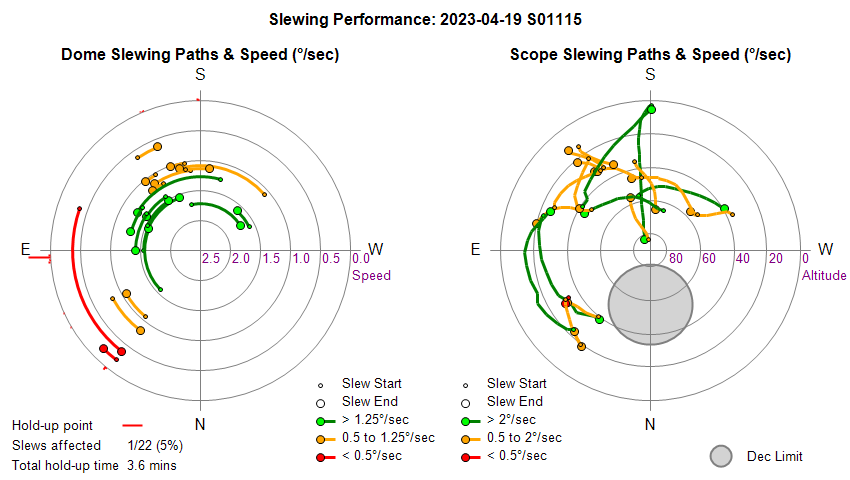

Dome & Scope Slewing Performance

Slew/Centering Performance

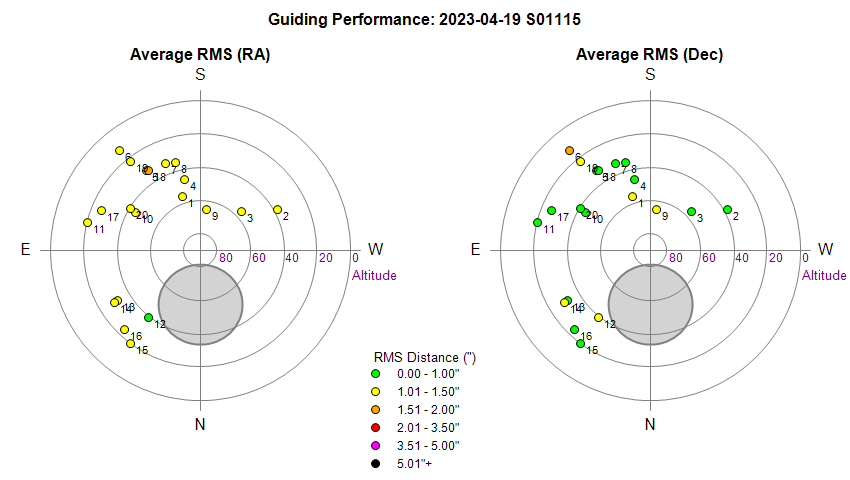

Guiding Performance

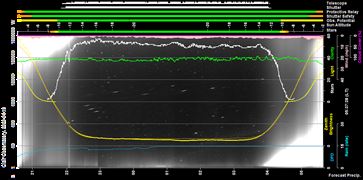

Sky Conditions (Locate Frames)

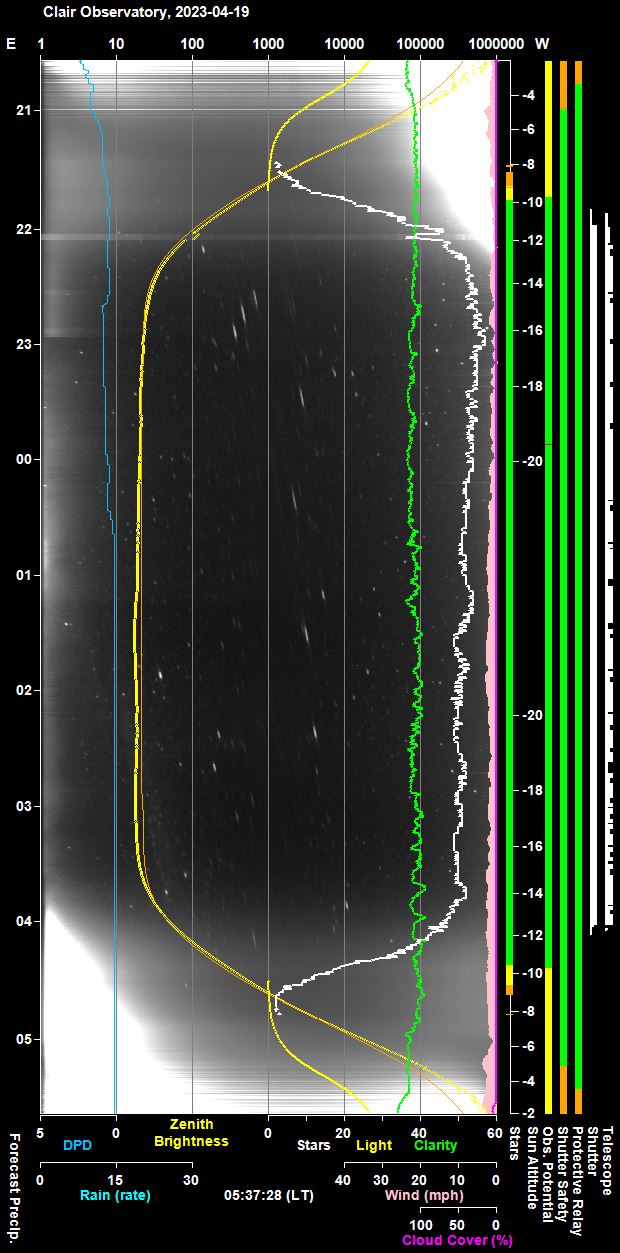

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

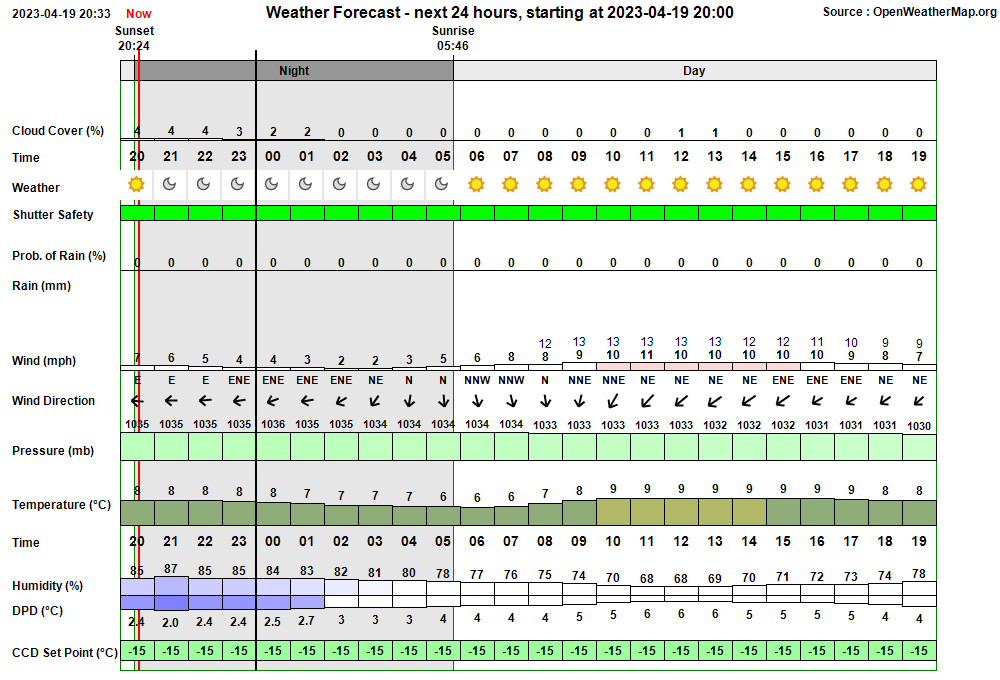

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:11:08 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:30 & 03:32 21:11:09   AutoStart Waiting AutoStart waiting till earliest start time at 21:30 21:30:56   AutoStart Delayed Session delayed due to too few stars 21:49:37 Session AutoStarting Session autostarting (21:49) 21:50:06   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 21:50:19 Session Created Session Created (Live, 2023-04-19 S01115, ImageSaveNum: 1115001) 21:50:46   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:52:25   Services Started Observatory Services started 21:52:32 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:52:35 Session Pending Session pending (2023-04-19) 21:52:37 Session Initiating Session initiating (2023-04-19) 21:52:39   Plan Requested Observing Plan requested from AstroPlan (1.38.1) 21:53:36   Plan Loaded Observing Plan loaded to queue (Plan ID: 887) 21:53:58   Camera1 Connected SBIG Camera connected (set point -15°C) 21:54:35   Telescope Connected Telescope connected (TheSky6) 21:54:59 Session Equilibration Session ready to Open Dome 21:55:44   Dome Opened Dome opened (opening time 45s) 21:55:46 Session Running Session running 21:55:48   Queue Started Observing Queue started (20 targets selected) 21:55:51     Target Started (NrZen) Target started (Focus Field 11, HIP 53798) 21:56:03       Dome Unparked Dome unparked 22:00:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:02:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:04:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:04:13       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:06:08       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:07:50       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:08:08     Target Completed (NrZen) Target completed (Focus Field 11, HIP 53798) 22:09:05     Target Started (1/20) Target started (1/20, UGC 6674 w/SN2023bvi) 22:11:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:14:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:31:29     Target Completed Target completed (1/20, UGC 6674 w/SN2023bvi) 22:31:33     Target Started (2/20) Target started (2/20, UGC 4269 w/SN2023dxb) 22:36:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:39:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:55:49     Target Completed Target completed (2/20, UGC 4269 w/SN2023dxb) 22:55:53     Target Started (3/20) Target started (3/20, UGC 5276 w/SN2023cxk) 22:58:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:00:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:16:41     Target Completed Target completed (3/20, UGC 5276 w/SN2023cxk) 23:16:45     Target Started (4/20) Target started (4/20, NGC 4611 w/SN2023dtz) 23:20:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:22:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 23:39:13     Target Completed Target completed (4/20, NGC 4611 w/SN2023dtz) 23:39:17     Target Started (5/20) Target started (5/20, NGC 5566) 23:42:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:44:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 00:00:43     Target Completed Target completed (5/20, NGC 5566) 00:00:47     Target Started (6/20) Target started (6/20, NGC 5915 w/SN2023cpt) 00:04:39       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:21:27     Target Completed Target completed (6/20, NGC 5915 w/SN2023cpt) 00:21:45     Target Started (7/20) Target started (7/20, NGC 5576) 00:24:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:26:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 00:43:21     Target Completed Target completed (7/20, NGC 5576) 00:44:05     Target Started (8/20) Target started (8/20, NGC 5577) 00:46:45       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:02:43     Target Completed Target completed (8/20, NGC 5577) 01:06:25     Target Started (9/20) Target started (9/20, IC 4305 w/SN2023edc) 01:09:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:25:39     Target Completed Target completed (9/20, IC 4305 w/SN2023edc) 01:28:25     Target Started (10/20) Target started (10/20, UGC 10678 w/SN2023foa) 01:31:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:33:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 01:49:18     Target Completed Target completed (10/20, UGC 10678 w/SN2023foa) 01:50:25     Target Started (11/20) Target started (11/20, AT2023ctx (CV)) 01:53:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:55:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 02:11:44     Target Completed Target completed (11/20, AT2023ctx (CV)) 02:12:45     Target Started (12/20) Target started (12/20, AT2022fnb (CV)) 02:16:09     Dome Slew Dome slew held up at Az. 88.2, 87.5, 86.4, 85.6, 65.4, 59.3° (Total delay 152s) 02:18:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:20:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 02:27:35     Target Completed Target completed (12/20, AT2022fnb (CV)) 02:27:39     Target Started (13/20) Target started (13/20, GCVS SS Cyg) 02:30:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:32:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 02:37:46     Target Completed Target completed (13/20, GCVS SS Cyg) 02:42:50     Target Started (14/20) Target started (14/20, GCVS BL Lac) 02:46:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:48:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 02:53:26     Target Completed Target completed (14/20, GCVS BL Lac) 02:53:30     Target Started (15/20) Target started (15/20, WDS GRB 34) 02:57:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:59:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 03:01:08     Target Completed Target completed (15/20, WDS GRB 34) 03:01:36     Target Started (16/20) Target started (16/20, GCVS HH And) 03:05:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:07:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 03:09:24     Target Completed Target completed (16/20, GCVS HH And) 03:10:03     Target Started (17/20) Target started (17/20, AT2023cvz (CV)) 03:13:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:15:16       Focusing Failed Foc1 focusing check failed 03:15:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 03:21:04     Target Completed Target completed (17/20, AT2023cvz (CV)) 03:22:04     Target Started (18/20) Target started (18/20, HIP 87937) 03:24:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:26:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 03:29:25     Target Completed Target completed (18/20, HIP 87937) 03:30:26     Target Started (19/20) Target started (19/20, AT2023cuo) 03:33:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:36:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 03:52:08     Target Completed Target completed (19/20, AT2023cuo) 03:52:26     Target Started (20/20) Target started (20/20, AT2021agdc (CV)) 03:54:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:56:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 04:02:37     Target Completed Target completed (20/20, AT2021agdc (CV)) 04:02:40   Queue Completed Job Queue completed 04:02:43 Session Closing Session closing 04:03:36   Dome Closed Dome closed (closing time 50s) 04:04:09   Dome Parked Dome parked (parking time 26s), Az: 90.0 deg 04:05:26   Telescope Parked Telescope parked (parking time 73s) 04:05:41   Telescope State Handbox reads 'Scope parked Turn scope off.' 04:06:03   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:07:29   Services Stopped Night Services stopped 04:07:31 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 04:07:52 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 21:52:33 Yellow Alert Disk Space Free Space on C:\ Drive (48.91 GB) is less than 50 GB 22:09:12 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 170.2° (T+1.8s) 02:16:09 Red Alert Dome Slew Dome slew held up at Az. 88.2, 87.5, 86.4, 85.6, 65.4, 59.3° (Total delay 152s) 04:07:48 Yellow Alert Disk Space Free Space on C:\ Drive (47.23 GB) is less than 50 GB

Back to Top

Operational Issues (2023-04-19, S1115)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (1)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Free Disk Space on Observatory Computer has fallen below 50 GB. Free disk space on C drive down to 48.9 GB at start of session, reduced to 47.2 GB by end of session. 31 GB reclaimed by deleting older (no longer required) SharpCap image files.  30 GB reclaimed by deleting older (no longer required) ObsPic files.
  Resolved 2023-04-20 (Observatory Computer)

Small Defects

• Scorecard/Synopsis Data records not received by AstroMain running on new Development Computer. It is presumed that TCP/IP connection isn't being made from AstroAllSky running on AllSky/Weather Computer. CloudSensor / Weather Data records are being passed ok to new Development Computer from AstroWeather running on AllSky/Weather Computer.  Problem is most probably due to missing functionality in AstroAllSky.  Issue deemed to have been resolved around 2023-04-20 or so.
  Resolved 2023-04-20 (AstroAllSky)

Continuous Improvement

• None
