Notes - Session 1122 (2023-07-15)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (3),  Small Defects (2),  Continuous Improvement (0)

Bullet Images from 2023-07-15 >>

2023-07-19
Bullet Pulsar Dome - Rotation Drive Tension Adjustment

Session Aims & Highlights (2023-07-15)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

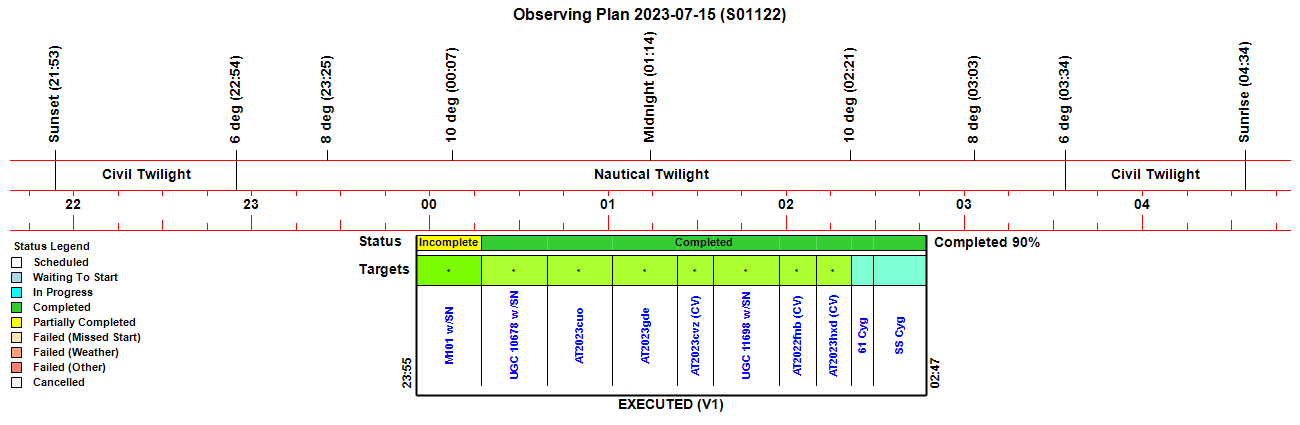

Observing Plan

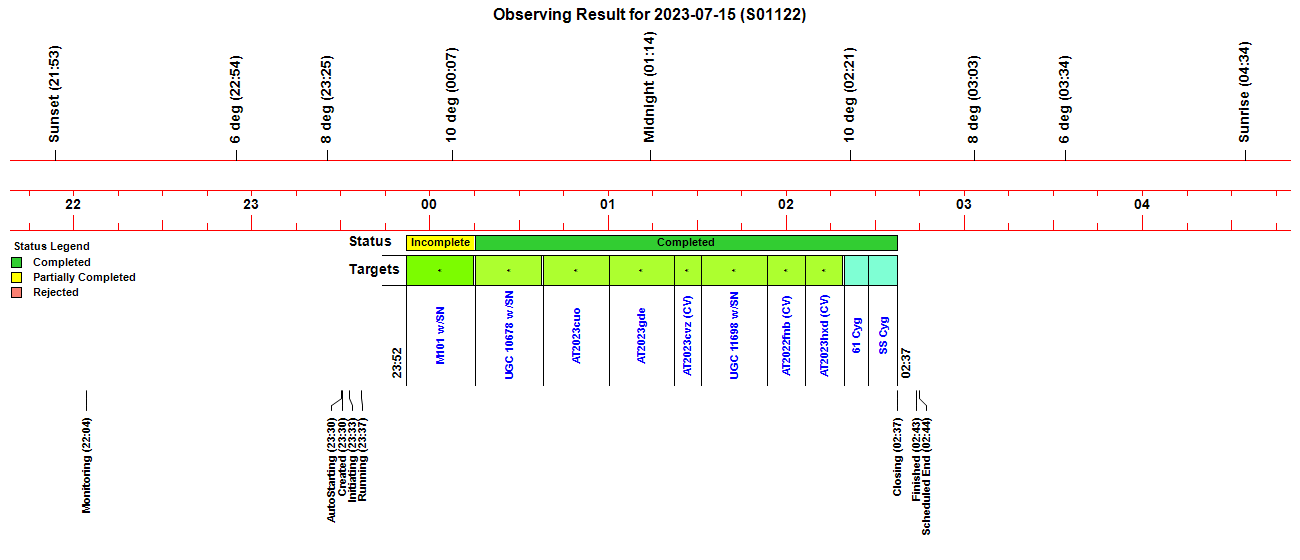

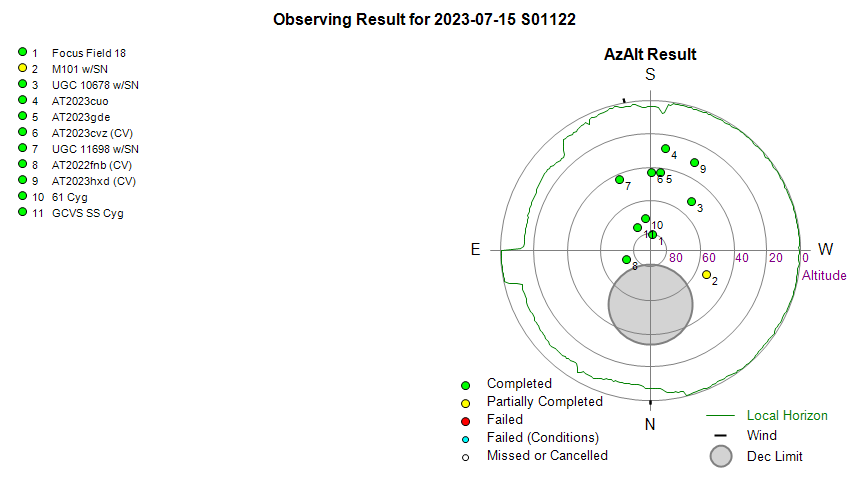

Observing Result



Dome & Scope Slewing Performance

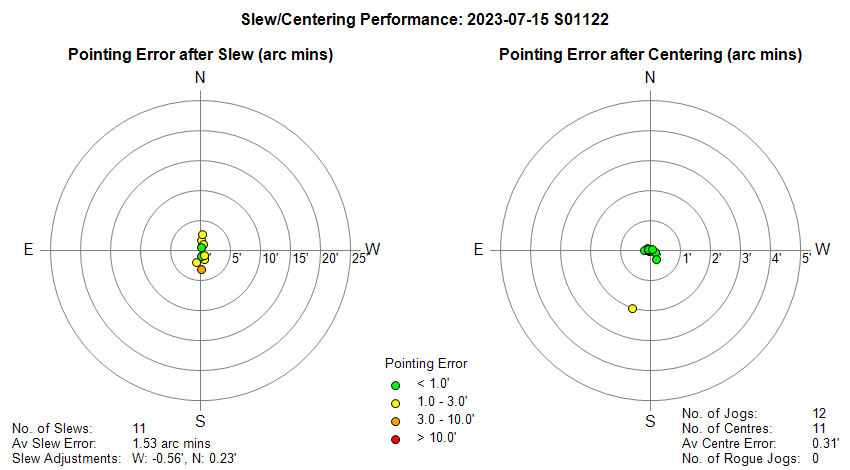

Slew/Centering Performance

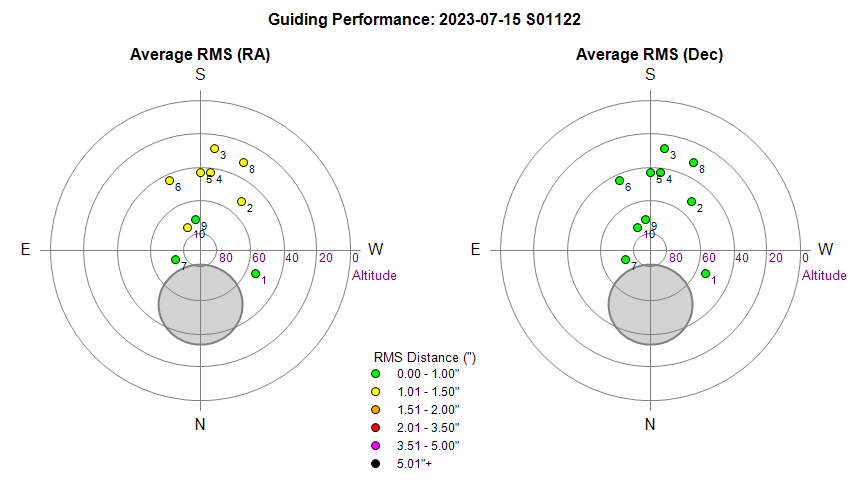

Guiding Performance

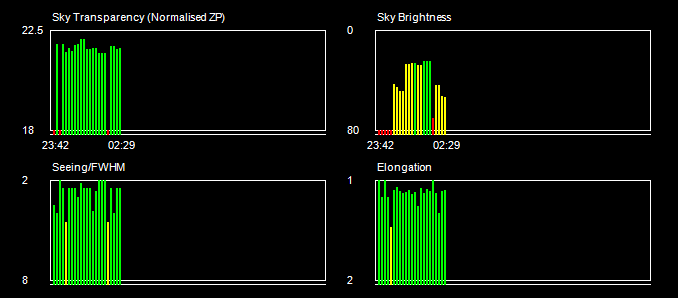

Sky Conditions (Locate Frames)

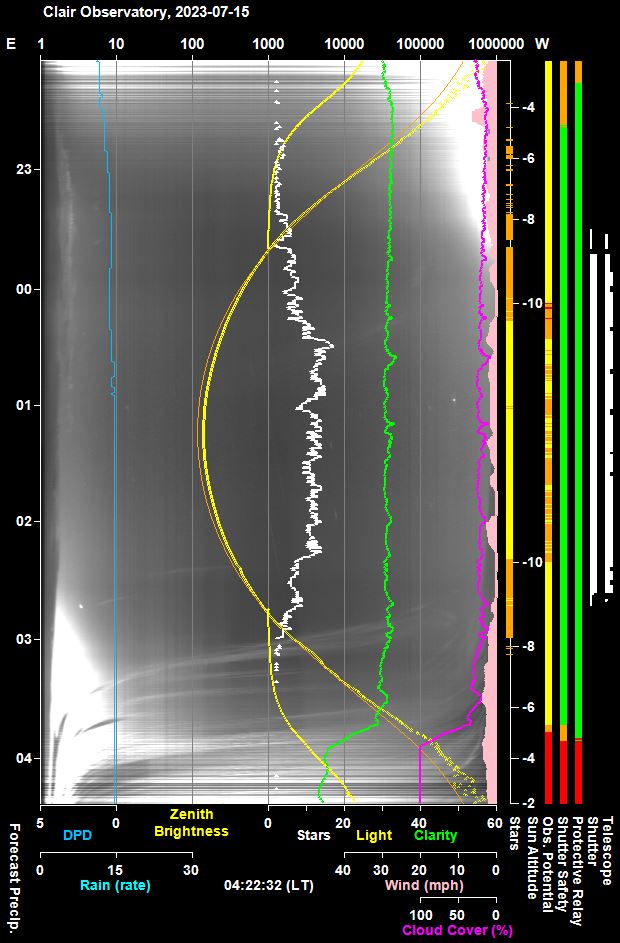

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

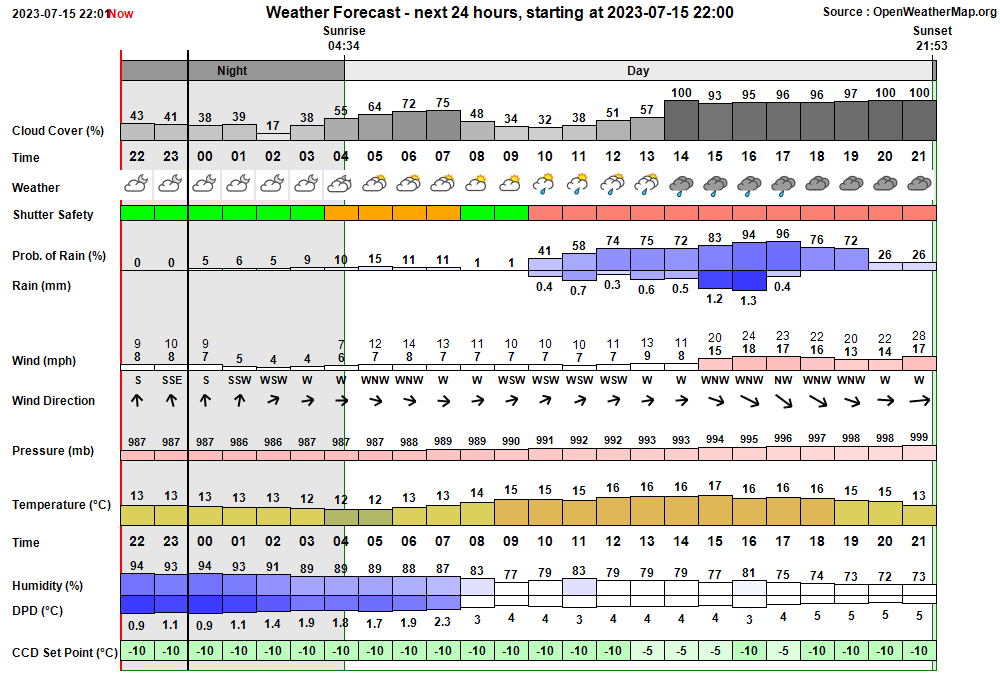

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
22:04:28 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:25 & 01:54
22:04:29   AutoStart Waiting AutoStart waiting till earliest start time at 23:25
23:25:02   AutoStart Delayed Session delayed due to too few stars
23:30:03 Session AutoStarting Session autostarting (23:30)
23:30:23   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
23:30:36 Session Created Session Created (Live, 2023-07-15 S01122, ImageSaveNum: 1122001)
23:31:03   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
23:32:48   Services Started Observatory Services started
23:32:54 Observatory (Auto) Observatory placed in Fully-Automated Mode
23:32:58 Session Pending Session pending (2023-07-15)
23:33:00 Session Initiating Session initiating (2023-07-15)
23:33:02   Plan Requested Observing Plan requested from AstroPlan (1.38.1)
23:34:20   Plan Loaded Observing Plan loaded to queue (Plan ID: 895)
23:34:43   Camera1 Connected SBIG Camera connected (set point -10°C)
23:35:20   Telescope Connected Telescope connected (TheSky6)
23:35:44 Session Equilibration Session ready to Open Dome
23:36:29   Dome Opened Dome opened (opening time 45s)
23:37:04 Session Running Session running
23:37:07   Queue Started Observing Queue started (10 targets selected)
23:37:11     Target Started (NrZen) Target started (Focus Field 18, HIP 88232)
23:41:19     Dome Slew Dome slew held up at Az. 90.0° (Delay 234s)
23:41:21     Dome Slew Dome slew held up at Az. 90.0° (Delay 234s)
23:43:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:43:08       Dome Unparked Dome unparked
23:46:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
23:48:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
23:48:18       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
23:50:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
23:51:46       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
23:52:03     Target Completed (NrZen) Target completed (Focus Field 18, HIP 88232)
23:52:07     Target Started (1/10) Target started (1/10, M101 w/SN2023ixf)
23:56:14     Dome Slew Dome slew held up at Az. 286.8° (Delay 176s)
23:59:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:01:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
00:15:09     Target Completed Target partially completed (1/10, M101 w/SN2023ixf)
00:15:14     Target Started (2/10) Target started (2/10, UGC 10678 w/SN2023foa)
00:17:39     Dome Slew Dome slew held up at Az. 271.7, 254.5, 253.5, 232.6° (Total delay 83s)
00:20:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:22:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
00:38:03     Target Completed Target completed (2/10, UGC 10678 w/SN2023foa)
00:38:07     Target Started (3/10) Target started (3/10, AT2023cuo)
00:39:18     Dome Slew Dome slew held up at Az. 209.4, 186.8° (Total delay 32s)
00:41:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:43:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
01:00:18     Target Completed Target completed (3/10, AT2023cuo)
01:00:23     Target Started (4/10) Target started (4/10, AT2023gde)
01:03:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:05:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
01:22:22     Target Completed Target completed (4/10, AT2023gde)
01:22:27     Target Started (5/10) Target started (5/10, AT2023cvz (CV))
01:25:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:25:43       Focusing Failed Foc1 focusing failed - star lost
01:31:30     Target Completed Target completed (5/10, AT2023cvz (CV))
01:31:34     Target Started (6/10) Target started (6/10, UGC 11698 w/SN2022abik)
01:33:15     Dome Slew Dome slew held up at Az. 173.7, 171.4° (Total delay 72s)
01:35:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:37:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
01:53:45     Target Completed Target completed (6/10, UGC 11698 w/SN2022abik)
01:53:49     Target Started (7/10) Target started (7/10, AT2022fnb (CV))
01:57:21     Dome Slew Dome slew held up at Az. 152.0, 86.2, 85.9° (Total delay 139s)
02:06:29     Target Completed Target completed (7/10, AT2022fnb (CV))
02:06:34     Target Started (8/10) Target started (8/10, AT2023hxd (CV))
02:10:40     Dome Slew Dome slew held up at Az. 87.4, 88.3, 124.6, 126.3, 153.3, 154.0° (Total delay 193s)
02:19:25     Target Completed Target completed (8/10, AT2023hxd (CV))
02:19:29     Target Started (9/10) Target started (9/10, 61 Cyg)
02:22:11     Dome Slew Dome slew held up at Az. 173.1, 172.6, 171.4, 170.7° (Total delay 128s)
02:24:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:26:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
02:27:48     Target Completed Target completed (9/10, 61 Cyg)
02:27:52     Target Started (10/10) Target started (10/10, GCVS SS Cyg)
02:28:53     Dome Slew Dome slew held up at Az. 151.6° (Delay 34s)
02:31:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:33:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
02:37:27     Target Completed Target completed (10/10, GCVS SS Cyg)
02:37:30   Queue Completed Job Queue completed
02:37:31 Session Closing Session closing
02:38:26   Dome Closed Dome closed (closing time 50s)
02:40:12     Dome Slew Dome slew held up at Az. 145.3, 144.8, 142.5, 138.3° (Total delay 37s)
02:40:14   Dome Parked Dome parked (parking time 98s), Az: 90.0 deg
02:41:35   Telescope Parked Telescope parked (parking time 73s)
02:41:50   Telescope State Handbox reads 'Scope parked Turn scope off.'
02:42:12   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
02:43:39   Services Stopped Night Services stopped
02:43:42 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
02:43:52 Session Finished Session Finished

Session Alerts & Alarms
Time     Type       Name Detail
23:38:17 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 90.0° (T+60.0s)
23:41:15 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 90.0° (T+238.1s)
23:41:17 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 90.0° (T+240.2s)
23:41:19 Red Alert Dome Slew Dome slew held up at Az. 90.0° (Delay 234s)
23:41:21 Red Alert Dome Slew Dome slew held up at Az. 90.0° (Delay 234s)
23:41:27 Red Alert Dome Dome didn't appear to move during the last telescope slew
23:41:29 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (Focus Field 18)
23:56:14 Red Alert Dome Slew Dome slew held up at Az. 286.8° (Delay 176s)
23:56:22 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (M101)
00:17:39 Yellow Alert Dome Slew Dome slew held up at Az. 271.7, 254.5, 253.5, 232.6° (Total delay 83s)
00:39:18 Yellow Alert Dome Slew Dome slew held up at Az. 209.4, 186.8° (Total delay 32s)
01:33:15 Yellow Alert Dome Slew Dome slew held up at Az. 173.7, 171.4° (Total delay 72s)
01:57:21 Red Alert Dome Slew Dome slew held up at Az. 152.0, 86.2, 85.9° (Total delay 139s)
02:10:40 Red Alert Dome Slew Dome slew held up at Az. 87.4, 88.3, 124.6, 126.3, 153.3, 154.0° (Total delay 193s)
02:10:48 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (AT2023hxd)
02:10:50 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (AT2023hxd)
02:22:11 Red Alert Dome Slew Dome slew held up at Az. 173.1, 172.6, 171.4, 170.7° (Total delay 128s)
02:28:53 Yellow Alert Dome Slew Dome slew held up at Az. 151.6° (Delay 34s)
02:40:12 Yellow Alert Dome Slew Dome slew held up at Az. 145.3, 144.8, 142.5, 138.3° (Total delay 37s)


Back to Top


Operational Issues (2023-07-15, S1122)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2023-07-19


Pulsar Dome - Rotation Drive Tension Adjustment

Dome Slewing performance has become progressively worse during recent sessions where hold-ups would occur during dome slews where the rotation drive wheels would spin at certain azimuth positions for 30-180s until they finally grip and rotation continues again.  In the last session (S1122, 2023-07-15) every slew during session suffered a significant hold-up.  The total of 22.7 minutes were lost during the session because of this problem , which is particularly significant given the very short observing period (short summer night).  Associated with the same issue Dome Parking failed when the operation was aborted by AstroMain program after the slew to the Park Position  (Az 90 deg) took more than 180s.    Other consequence of the slew hold-up is that the dome can gradually lose its azimuth accuracy, such that by end of session the dome azimuth can be out by 2- 5 degrees when Parked, meaning that the two halves of the Induction Charger aren't aligned and the Shutter Battery won't recharge following the session, unless an intervention is made to correct park the dome and resync the dome azimuth to the Park Azimuth (090 deg).

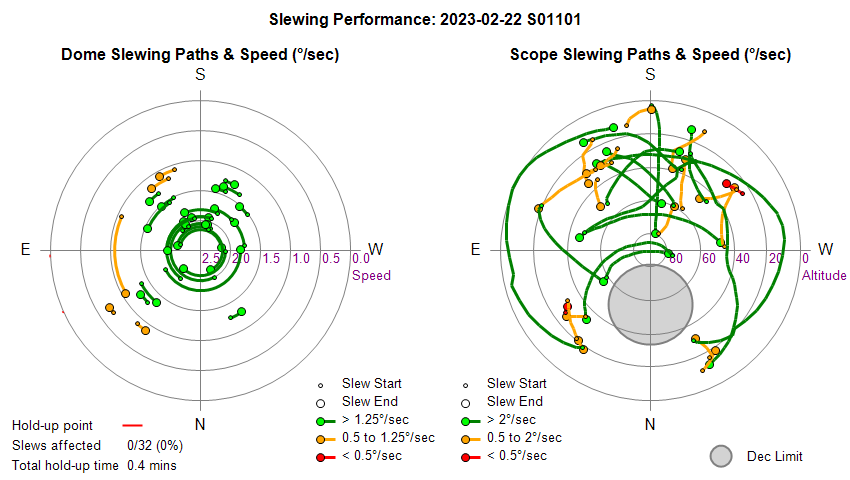

The left graph in charts below show the bad dome slewing performance from sessions S1122 & S1121 where majority of slews suffered from significant hold-ups.  This can be compared with the good slewing performance from the S1101 session (2023-02-22) where none of the 32 dome slews suffered from any significant hold-up.




The Observatory Dome has a tendancy to hold-up as the dome wall is not perfectly circular but is very slightly elliptical (this is due to a vital check being missed during erection of the observatory which is difficult to rectify now as the dome is securely bolted to its concrete base). This slight ellipticity causes the dome roof flange to be distorted as it passes over the wheels in the roof wall and can cause some 'semi-permanent distortion of the certain parts of the roof flange because of the long periods of time that the dome sits at its park position. The distortion leads to varying amount of tension between the drive wheels and the roof flange, and when the tension/friction is not great enough the wheels can spin on the same spot for up to 180-240s. There is sometimes a correspondance between the problem nights and nights with higher dew levels,  and tricks of wiping the roof flange from traces of grease, water & dirt can be sometimes be used to improve dome slewing performance. Taking out some of the distortion in the roof flange can be relieved by prior manual manipulation of the flange.   Attempting to tighten the drive tension knob generally fails to improve the situation, as the knob is pretty much as tight as it can go.

With usual tricks being unable to improve the poor performance in recent sessions, and with the problem now appearing to affect every slew made,  a fresh attempt was made today (2023-07-19) to increase the rotation drive tension. To do this we need to get access to a nut attaching the drive tension bolt to the metal plate that holds the single drive motor that turns the drive wheel against the inside of the roof flange, but that access is blocked by the half of the induction charger that is attached to the top of rotation drive unit.  The used steps to adjust the tension were as

Photos below shows Rotation Drive Unit with one half of Induction Charger attached to its top.
(One of the two nuts that has to be loosened to access inside of drive unit from the top is visible)


Dome Slewing will be checked in the next session (S1233)  to see if it has imrpoved or fixed the issue.

Update 2023-07-22

Good Dome Slewing performance in session S1123 (2023-07-22) , suggested that issue has been resolved (but in fact it hasn't as shown by later sessions)




Update 2023-10-25

The following session S1124  (2023-07-30) , again showed signs of the ongoing issue with 2 slews having significant hold-ups, indicating that the problem hasn't been totally resolved.


Some later sessions e.g S1158 (2023-10-22) show that the problem can still be very bad at times, with 62% of slews suffering from significant hold-up and a total time lost to hold-ups of 45 minutes.


Issue was investigated on 2023-10-25 (see Investigation - Hold-ups during Dome Slewing, 2023-10-25) and concluded that Condensation/Dew acting as a lubricant reduces the force that the rotation drive motors can apply to the roof flange and is the number factor responsible.   It is proposed to apply Anti-Slip Tape to the inner surface of the roof flange to increase grip from the innermost drive motor wheel.
