Notes - Session 1164 (2023-11-09)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (2),  Small Defects (6),  Continuous Improvement (6)
Bullet Images from 2023-11-09 >>

Bullet Investigation - Dome failed to fully close during session suspension and safe-recovery attempts

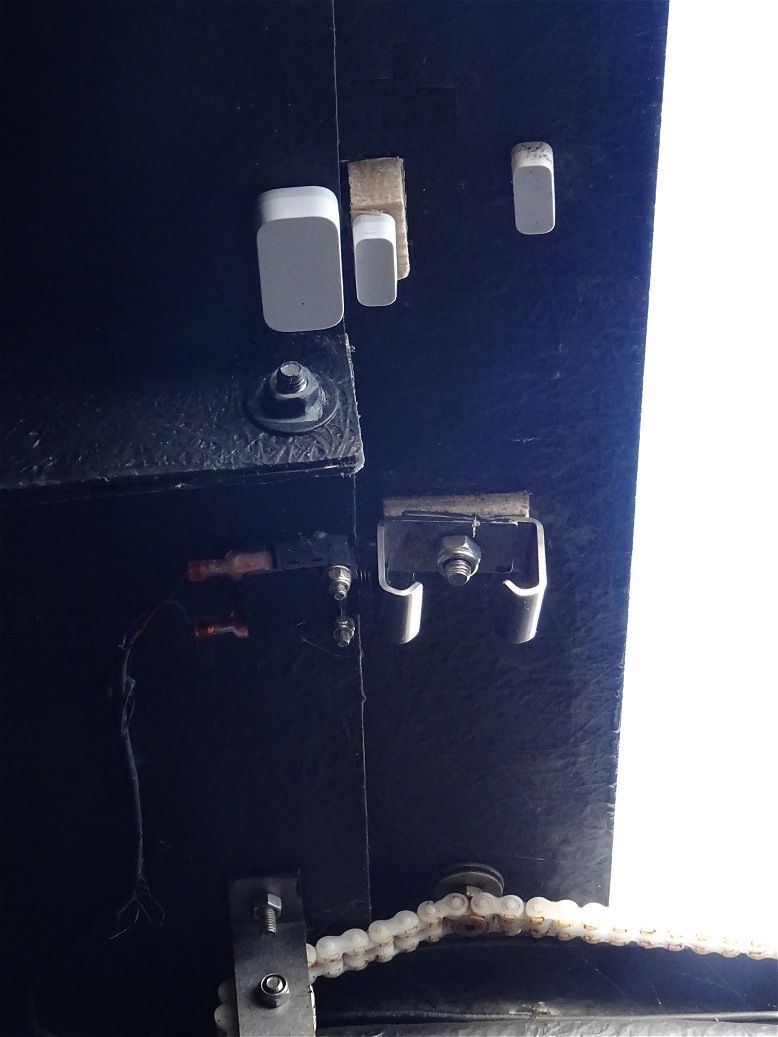

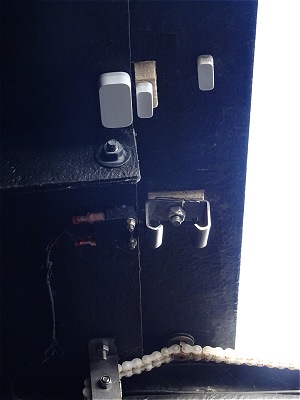

Bullet New Zigbee Sensor for Dome's Shutter (Top)


Session Aims & Highlights (2023-11-09)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. Dome Slewing. Check Dome Slewing performance following repair to drive wheel following issues in the second part of S1163 session (2023-11-08)

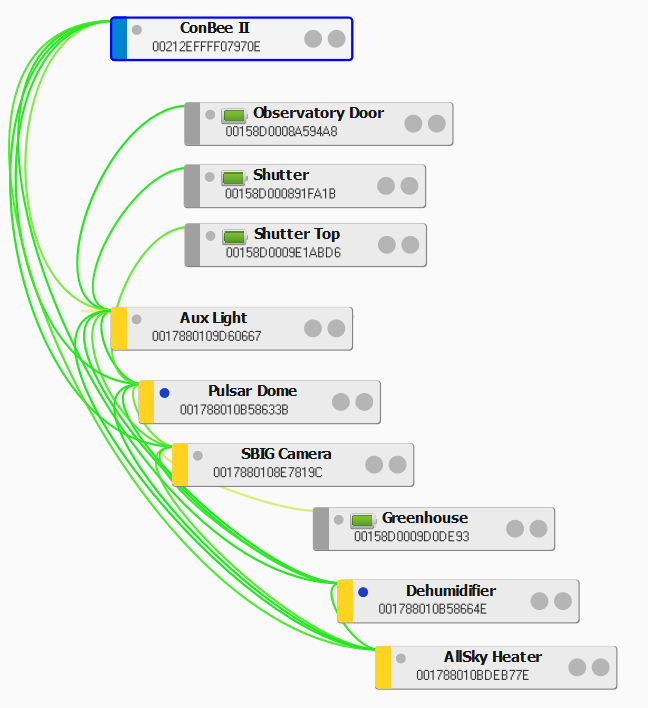

  3. Shutter Sensor - Check functioning and integration of new zigbee sensor ('Shutter Top') for sensing when the shutter is fully open and its reporting through the new AstroMain version 3.64.3

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

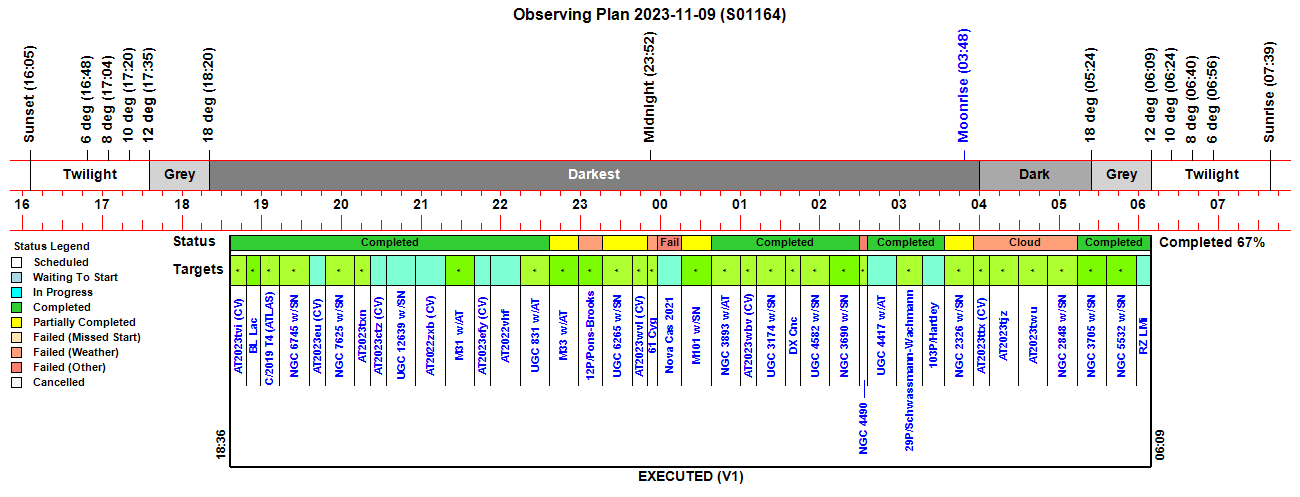

Observing Plan

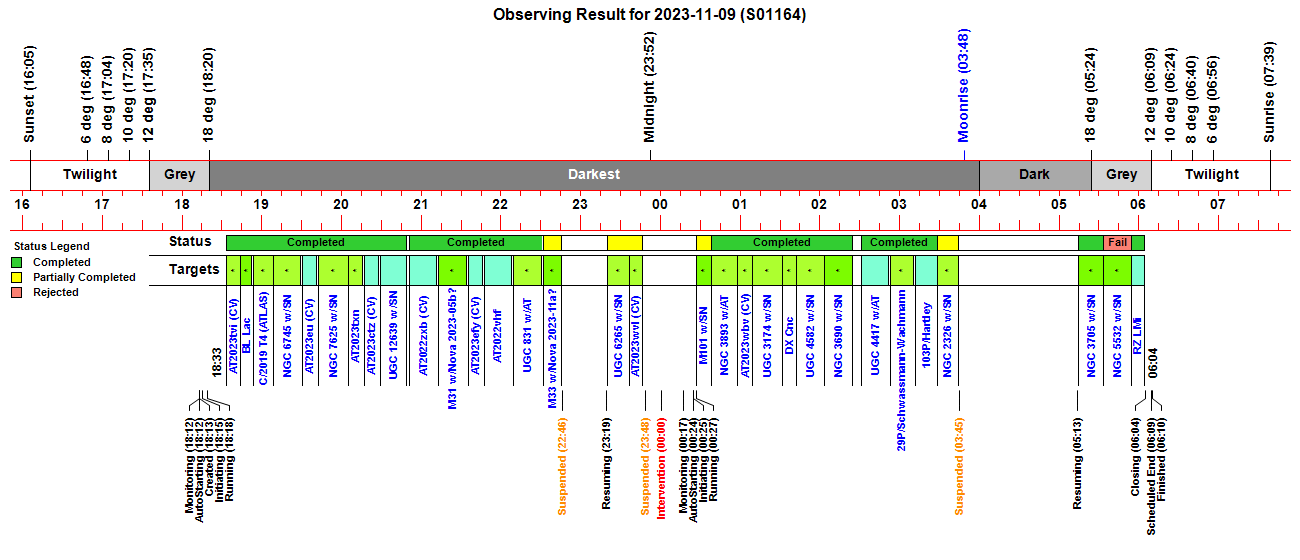

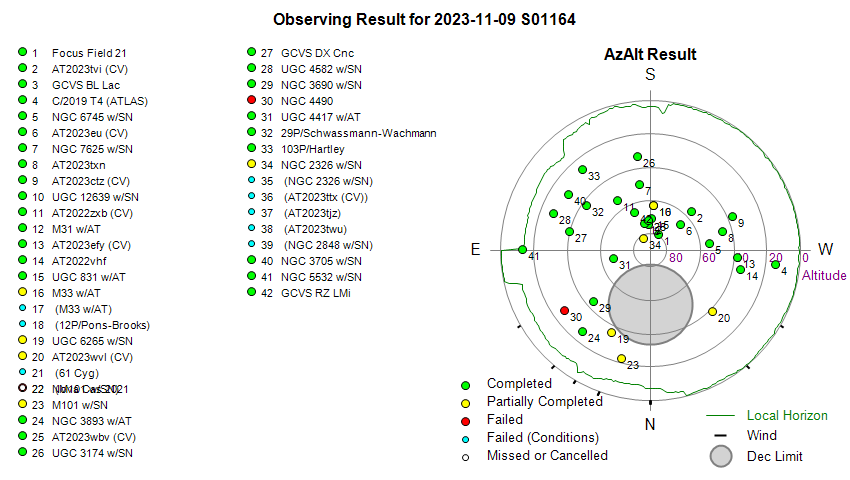

Observing Result

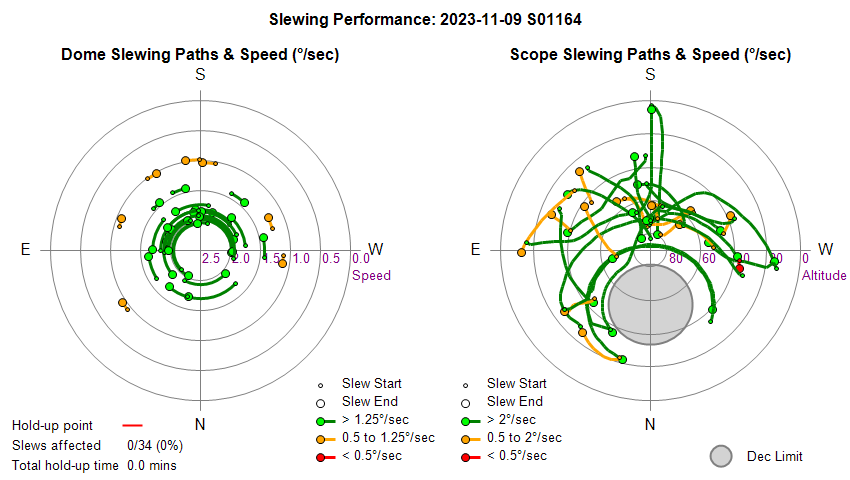

Dome & Scope Slewing Performance

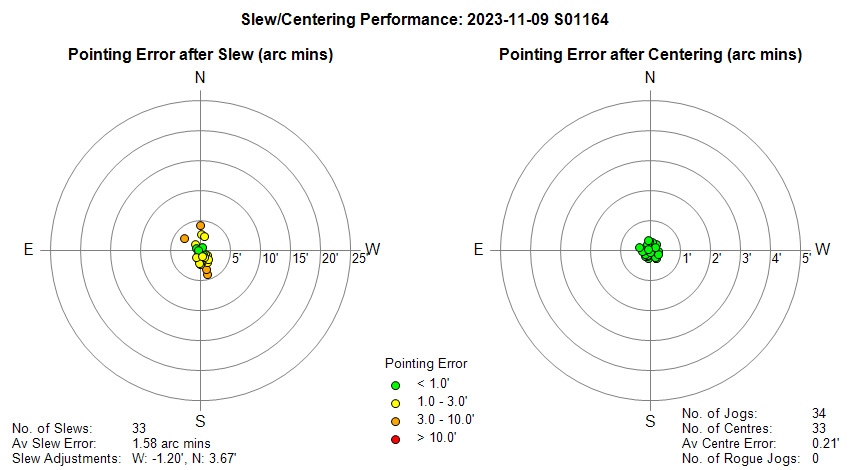

Slew/Centering Performance

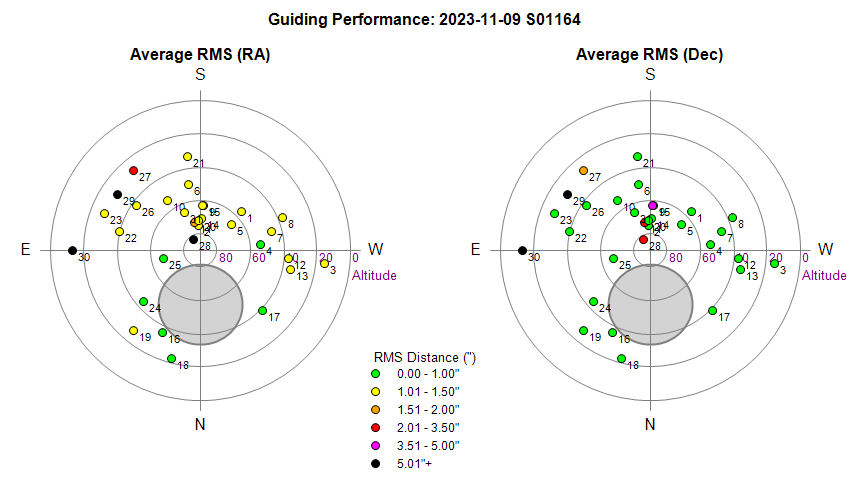

Guiding Performance

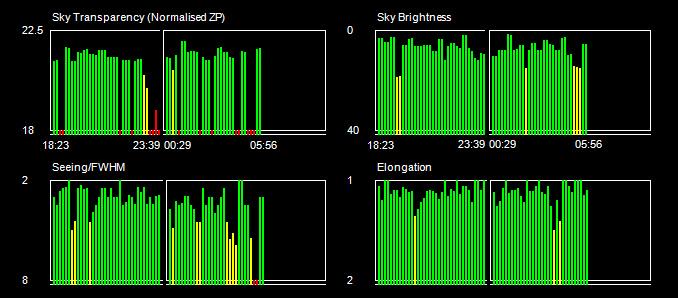

Sky Conditions (Locate Frames)

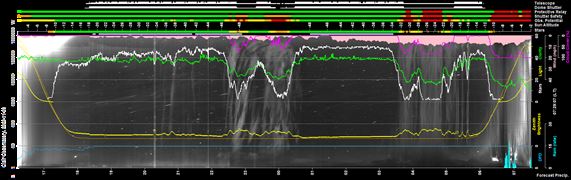

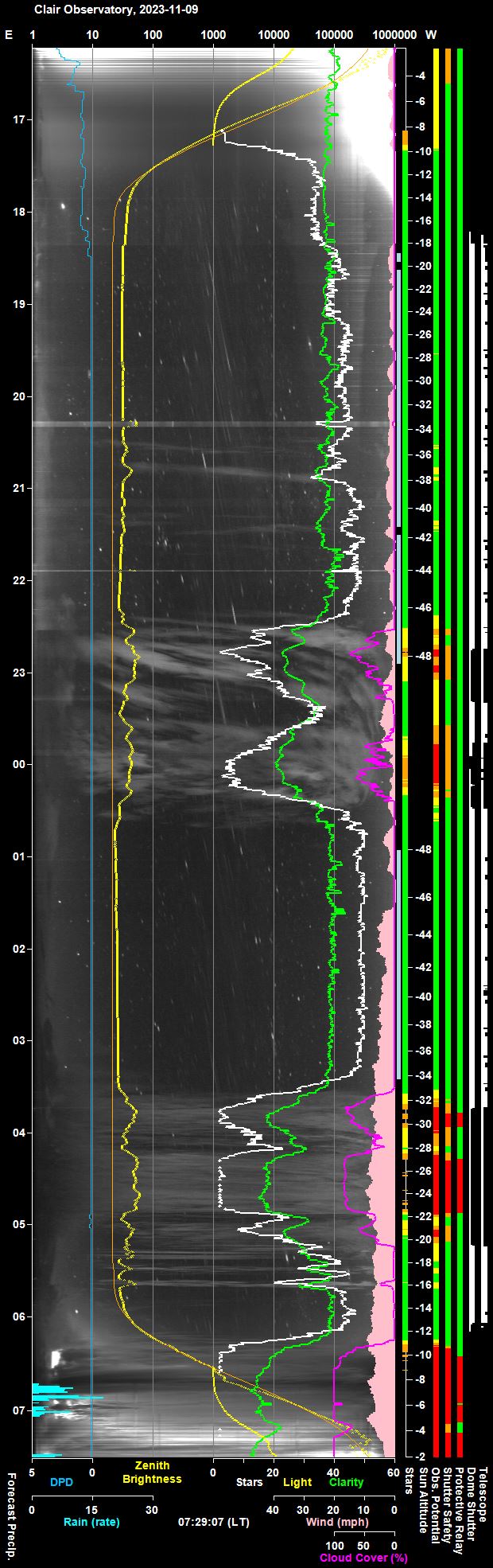

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

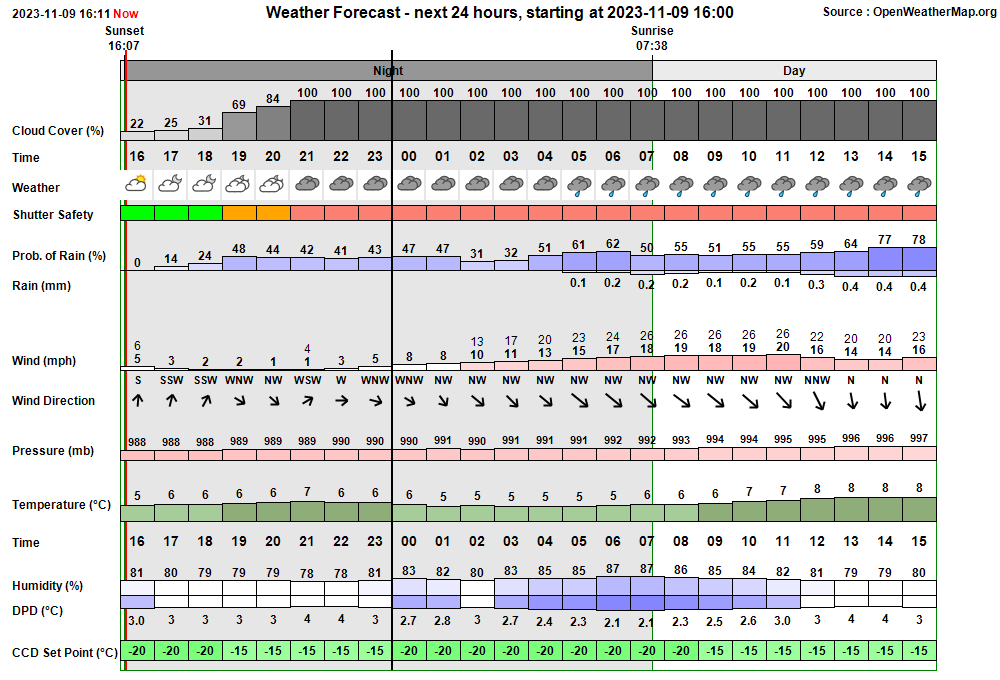

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:12:50 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:12 & 05:29
18:12:52 Session AutoStarting Session autostarting (18:12)
18:13:03   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
18:13:16 Session Created Session Created (Live, 2023-11-09 S01164, ImageSaveNum: 1164001)
18:13:23   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
18:15:08   Services Started Observatory Services started
18:15:15 Observatory (Auto) Observatory placed in Fully-Automated Mode
18:15:18 Session Pending Session pending (2023-11-09)
18:15:20 Session Initiating Session initiating (2023-11-09)
18:15:22   Plan Requested Observing Plan requested from AstroPlan (1.38.9)
18:16:39   Plan Loaded Observing Plan loaded to queue (Plan ID: 938)
18:17:03   Camera1 Connected SBIG Camera connected (set point -25°C)
18:17:39   Telescope Connected Telescope connected (TheSky6)
18:18:04 Session Equilibration Session ready to Open Dome
18:18:49   Dome Opened Dome opened (opening time 45s)
18:18:51 Session Running Session running
18:18:53   Queue Started Observing Queue started (39 targets selected)
18:18:55     Target Started (NrZen) Target started (Focus Field 21, HIP 103850)
18:19:09       Dome Unparked Dome unparked
18:24:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:27:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
18:29:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
18:29:03       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
18:31:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
18:32:46       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
18:33:03     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850)
18:33:07     Target Started (1/39) Target started (1/39, AT2023tvi (CV))
18:35:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:37:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
18:43:44     Target Completed Target completed (1/39, AT2023tvi (CV))
18:43:48     Target Started (2/39) Target started (2/39, GCVS BL Lac)
18:46:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
18:49:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
18:53:00     Target Completed Target completed (2/39, GCVS BL Lac)
18:54:08     Target Started (3/39) Target started (3/39, C/2019 T4 (ATLAS))
18:58:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:00:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
19:09:04     Target Completed Target completed (3/39, C/2019 T4 (ATLAS))
19:09:08     Target Started (4/39) Target started (4/39, NGC 6745 w/SN2023ucy)
19:12:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:14:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
19:29:58     Target Completed Target completed (4/39, NGC 6745 w/SN2023ucy)
19:31:00     Target Started (5/39) Target started (5/39, AT2023eu (CV))
19:33:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:35:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
19:41:43     Target Completed Target completed (5/39, AT2023eu (CV))
19:43:00     Target Started (6/39) Target started (6/39, NGC 7625 w/SN2023vyl)
19:46:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
19:48:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
20:05:11     Target Completed Target completed (6/39, NGC 7625 w/SN2023vyl)
20:05:15     Target Started (7/39) Target started (7/39, AT2023txn)
20:08:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:10:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
20:16:55     Target Completed Target completed (7/39, AT2023txn)
20:16:59     Target Started (8/39) Target started (8/39, AT2023ctz (CV))
20:19:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:21:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
20:27:31     Target Completed Target completed (8/39, AT2023ctz (CV))
20:29:00     Target Started (9/39) Target started (9/39, UGC 12639 w/SN2023jri)
20:31:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:33:01       Focusing Failed Foc1 focusing failed - star lost
20:49:00     Target Completed Target completed (9/39, UGC 12639 w/SN2023jri)
20:51:00     Target Started (10/39) Target started (10/39, AT2022zxb (CV))
20:53:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:56:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
21:12:10     Target Completed Target completed (10/39, AT2022zxb (CV))
21:13:20     Target Started (11/39) Target started (11/39, M31 w/Nova M31 2023-05b?)
21:15:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:18:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
21:33:57     Target Completed Target completed (11/39, M31 w/Nova M31 2023-05b?)
21:35:21     Target Started (12/39) Target started (12/39, AT2023efy (CV))
21:38:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:40:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
21:46:24     Target Completed Target completed (12/39, AT2023efy (CV))
21:47:20     Target Started (13/39) Target started (13/39, AT2022vhf)
21:49:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:52:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
22:08:16     Target Completed Target completed (13/39, AT2022vhf)
22:09:40     Target Started (14/39) Target started (14/39, UGC 831 w/AT2023wdd)
22:12:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:15:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
22:31:04     Target Completed Target completed (14/39, UGC 831 w/AT2023wdd)
22:31:40     Target Started (15/39) Target started (15/39, M33 w/Nova M33 2023-11a?)
22:34:19       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
22:34:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:45:10   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
22:45:12   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
22:45:14     Target Aborted (15/39) Target aborted (15/39, M33 w/Nova M33 2023-11a?) due to cloud
22:45:16   Queue Paused Queue paused for Session Suspension
22:45:18 Session Suspending Session suspending
22:46:05   Dome Closed Dome closed (closing time 50s)
22:46:07 Session Suspended Session suspended
22:50:36     Target Cancelled Target cancelled (15/39, M33 w/Nova M33 2023-11a?) due to cloud
23:10:08     Target Cancelled Target cancelled (16/39, 12P/Pons-Brooks) due to too few stars
23:19:09 Session Resuming Session resuming
23:19:54   Dome Opened Dome opened (opening time 45s)
23:19:56 Session Running Session running
23:19:58   Queue Resumed Observing Queue resumed
23:20:01     Target Started (17/39) Target started (17/39, UGC 6265 w/SN2023wcw)
23:37:01     Target Completed Target partially completed (17/39, UGC 6265 w/SN2023wcw)
23:37:05     Target Started (18/39) Target started (18/39, AT2023wvl (CV))
23:39:16       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
23:40:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:43:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
23:46:27   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
23:46:29   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
23:46:31     Target Aborted (18/39) Target aborted (18/39, AT2023wvl (CV)) due to cloud
23:46:33   Queue Paused Queue paused for Session Suspension
23:46:35 Session Suspending Session suspending
23:48:07   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
23:48:32 Session Suspended Session suspended
23:50:37   Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
23:52:47   Observatory Door Observatory Door has opened
23:52:52     Target Cancelled Target cancelled (19/39, 61 Cyg) due to cloud
23:52:54   Observatory Door Observatory Door has closed (open time 5 sec)
23:59:01   Observatory Door Observatory Door has opened
23:59:06   Observatory Door Observatory Door has closed (open time 5 sec)
00:00:50 User Intervention User Intervention to stop program / stop DeviceHub & then restart afresh.
00:00:53   Services Stopped Observatory Services stopped
00:01:04   Queue Aborted Job Queue aborted
00:01:11 Session Closed Session closed by User
00:01:14 Program Closed Program closed by User
00:03:02 Program Opened Program Opened (AstroMain 3.64.3)
00:03:04   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
00:03:15 Session Resumed Session Resumed (Live, 2023-11-09 S01164, ImageSaveNum: 1164117)
00:03:29   Obs.Overseer Started Obs.Overseer started
00:03:38   Obs.Manager Started Obs.Manager started
00:03:46   Services Started Observatory Services started
00:05:41   Services Started Observatory Services started
00:06:41   Services Stopped Observatory Services stopped
00:06:46 Session Closed Session closed by User
00:06:49 Program Closed Program closed by User
00:08:14 Program Opened Program Opened (AstroMain 3.64.4)
00:08:16 Session Resumed Session Resumed (Live, 2023-11-09 S01164, ImageSaveNum: 1164117)
00:08:18   Obs.Overseer Started Obs.Overseer started
00:09:26   Obs.Manager Started Obs.Manager started
00:09:35   Services Started Observatory Services started
00:10:34   Services Started Observatory Services started
00:13:57   Dome Opened Dome opened (opening time 49s)
00:15:07   Dome Closed Dome closed (closing time 47s)
00:15:50   Observatory Door Observatory Door has opened
00:16:06   Observatory Door Observatory Door has closed (open time 16 sec)
00:17:36 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:17 & 05:29
00:17:38 Observatory (AutoStart) Observatory placed in Auto-Start Mode
00:17:40   AutoStart Delayed Session delayed due to too few stars
00:24:43 Session AutoStarting Session autostarting (00:24)
00:24:52   Telescope Connected Telescope connected (TheSky6)
00:24:54   Services Started Observatory Services started
00:24:59 Observatory (Auto) Observatory placed in Fully-Automated Mode
00:25:03 Session Pending Session pending (2023-11-09)
00:25:05 Session Initiating Session initiating (2023-11-09)
00:25:15   Plan Loaded Observing Plan loaded to queue (Plan ID: 938)
00:25:29   Camera1 Connected SBIG Camera connected (set point -25°C)
00:26:05   Telescope Connected Telescope connected (TheSky6)
00:26:29 Session Equilibration Session ready to Open Dome
00:27:14   Dome Opened Dome opened (opening time 45s)
00:27:16 Session Running Session running
00:27:19   Queue Started Observing Queue started (19 targets selected)
00:27:23     Target Started (21/39) Target started (21/39, M101 w/SN2023ixf)
00:38:07     Target Completed Target partially completed (21/39, M101 w/SN2023ixf)
00:38:11     Target Started (22/39) Target started (22/39, NGC 3893 w/AT2023uhx)
00:58:08     Target Completed Target completed (22/39, NGC 3893 w/AT2023uhx)
00:58:13     Target Started (23/39) Target started (23/39, AT2023wbv (CV))
01:01:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:03:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 20)
01:09:29     Target Completed Target completed (23/39, AT2023wbv (CV))
01:09:33     Target Started (24/39) Target started (24/39, UGC 3174 w/SN2023mut)
01:13:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:15:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 21)
01:31:38     Target Completed Target completed (24/39, UGC 3174 w/SN2023mut)
01:31:42     Target Started (25/39) Target started (25/39, GCVS DX Cnc)
01:35:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:37:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 22)
01:42:02     Target Completed Target completed (25/39, GCVS DX Cnc)
01:42:06     Target Started (26/39) Target started (26/39, UGC 4582 w/SN2023twg)
01:45:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:47:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 23)
02:03:10     Target Completed Target completed (26/39, UGC 4582 w/SN2023twg)
02:03:14     Target Started (27/39) Target started (27/39, NGC 3690 w/SN2023wrk)
02:06:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:08:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 24)
02:24:36     Target Completed Target completed (27/39, NGC 3690 w/SN2023wrk)
02:24:58     Target Started (28/39) Target started (28/39, NGC 4490)
02:26:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:27:23     Target Failed (28/39) Target failed due to (28/39, NGC 4490)
02:30:58     Target Started (29/39) Target started (29/39, UGC 4417 w/AT2023ews)
02:33:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:36:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 25)
02:52:04     Target Completed Target completed (29/39, UGC 4417 w/AT2023ews)
02:52:58     Target Started (30/39) Target started (30/39, 29P/Schwassmann-Wachmann)
02:55:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:57:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 26)
03:10:06     Target Completed Target completed (30/39, 29P/Schwassmann-Wachmann)
03:11:54     Target Started (31/39) Target started (31/39, 103P/Hartley)
03:15:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:17:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 27)
03:28:11     Target Completed Target completed (31/39, 103P/Hartley)
03:28:38     Target Started (32/39) Target started (32/39, NGC 2326 w/SN2023pgb)
03:31:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:33:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 28)
03:37:12       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
03:44:02   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
03:44:04   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
03:44:07     Target Aborted (32/39) Target aborted (32/39, NGC 2326 w/SN2023pgb) due to cloud
03:44:09   Queue Paused Queue paused for Session Suspension
03:44:11 Session Suspending Session suspending
03:44:58   Dome Closed Dome closed (closing time 50s)
03:45:00 Session Suspended Session suspended
03:47:35     Target Cancelled Target cancelled (32/39, NGC 2326 w/SN2023pgb) due to cloud
04:01:34     Target Cancelled Target cancelled (33/39, AT2023ttx (CV)) due to cloud
04:23:06     Target Cancelled Target cancelled (34/39, AT2023tjz) due to cloud
04:43:36     Target Cancelled Target cancelled (35/39, AT2023twu) due to cloud
05:05:36     Target Cancelled Target cancelled (36/39, NGC 2848 w/SN2023usp) due to cloud
05:13:33 Session Resuming Session resuming
05:14:18   Dome Opened Dome opened (opening time 45s)
05:14:20 Session Running Session running
05:14:22   Queue Resumed Observing Queue resumed
05:14:25     Target Started (37/39) Target started (37/39, NGC 3705 w/SN2022xxf)
05:33:26     Target Completed Target completed (37/39, NGC 3705 w/SN2022xxf)
05:33:30     Target Started (38/39) Target started (38/39, NGC 5532 w/SN2023omo)
05:38:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:54:24     Target Completed Target completed (38/39, NGC 5532 w/SN2023omo)
05:54:28     Target Started (39/39) Target started (39/39, GCVS RZ LMi)
05:57:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
05:59:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 29)
06:04:36     Target Completed Target completed (39/39, GCVS RZ LMi)
06:04:39   Queue Completed Job Queue completed
06:04:41 Session Closing Session closing
06:05:34   Dome Closed Dome closed (closing time 50s)
06:06:19   Dome Parked Dome parked (parking time 38s), Az: 90.0 deg
06:07:36   Telescope Parked Telescope parked (parking time 70s)
06:07:50   Telescope State Handbox reads 'Scope parked Turn scope off.'
06:08:13   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:08:44   Dome Charging Dome is parked and re-charging ok
06:09:37   Services Stopped Night Services stopped
06:09:39 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
06:10:10 Session Finished Session Finished

Session Alerts & Alarms
Time     Type       Name Detail
23:48:07 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
23:49:02 Red Alert Dome Alert Dome hasn't reached 'Closed' state after 120s during HardSuspend
23:50:37 Red Alarm Dome Closing Dome closure hasn't finished after 90s (ShutterState=Closing)
23:51:07 Red Alert Dome Alert Dome hasn't reached 'Closed' state after 120s during HardSuspend
23:55:43 Red Alert Dome Alert DomeRecords have stopped updating
23:55:48 Green Clear Dome Alert DomeRecords have resumed updating


Back to Top


Operational Issues (2023-11-09, S1164)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


Investigation - Dome failed to fully close during session suspension and safe-recovery attempts

Issue:

Description

Analysis

Conclusion

Actions

Back to Top


New Zigbee Sensor for Dome's Shutter (Top)

Since Oct 2022 the observatory has had a zigbee sensor at the bottom of Dome's shutter that provides independant indication of when the shutter is fully closed, and this has worked well .  Following an incident in the S1162 session where the shutter was reported to have not finished opening after 90s,  and unable to tell when the shutter physically become fully open it would be useful to have an extra zigbee sensor at the top of the shutter to indicate when the shutter is fully open.

A new Zigbee Sensor of the same type as previous (Aqara MCCGQ11LM Door & Window Sensor, https://www.amazon.co.uk/Aqara-MCCGQ11LM-Door-Window-Sensor/dp/B07D37VDM3) was ordered 2023-11-08. The sensor arrived 2023-11-09 and was the two parts fixed to the shutter and dome roof and installed on the observatory's zigbee network (AstroGW) the same day.  The sensor properties record type=ZHAOpenClose, manufacturer=LUMI, modelid=lumi.sensor_magnet.aq, swversion 20161128, and took sensor id = 12.

Network Diagram showing Observatory's Zigbee Network after the addition of the 'Shutter Top' Sensor.




AstroMain 3.64.3 was updated to access the new sensor ' as new device 'ShutterTopSensor' and used during session S1164 Session (2023-11-09)

First results from using the new device are shown by the following report messages that were produced whilst opening the dome at the start of the session.

Open Dome                               2023-11-09 18:18  (Local, GMT)
  Check Conditions            Ok        Conditions are ok (Conditions are suitable for opening dome)
> Observatory Shutter         Info      Shutter has opened            (18:18:05, close time 6.5 min)
  Open Dome...                Ok        Dome is opening   (Clarity: 37.5, Stars: 33, Rain: -0.9, Wind: 0.0)
> Observatory Shutter2        Info      Shutter2 is fully open        (18:18:45,  > 7.8 min)
  Open Dome...                Ok        Dome is open      (Opening time 45s)

Later results showing the associated reporting after futher development and fine tuning is shown below

Open Dome                               2023-11-11 14:01  (Local, GMT)
  Open Dome...                Ok        Dome is opening   (Clarity: 40.5, Stars: 0, Rain: -1.2, Wind: 5.5)
> Observatory Shutter         Info      Shutter is opening            (14:01:46, close time > 1.6 min)
> Observatory Shutter         Info      Shutter is open               (14:02:26, opening time 40s)
  Open Dome...                Ok        Dome is open      (Opening time 46s)

Close Dome                              2023-11-11 14:03  (Local, GMT)
> Observatory Shutter         Info      Shutter is closing            (14:03:02, open time 36s)
  Close Dome...               Ok        Dome is closing   (Clarity: 41.9, Stars: 0, Rain: -1.2, Wind: 6.3)
> Observatory Shutter         Info      Shutter has closed            (14:03:44, closing time 43s)
  Close Dome...               Ok        Dome is closed    (Closing time 51s)

Update 2023-11-11
The small block of wood with the attached sensor magnet came away from the shutter last night. (probably because the wood block + magnet was in an awkward position and couldn't be held in place whilst the adhesive set and gravity simply caused it to eventually fall away).  A more secure method of fitting the wood block + magnet using 'nano gel tape' (suggested by my wife from the beginning, https://www.creativeproducts.ltd.uk/nano-gel-tape/ ) was employed and is holding firm.

Photo showing the new 'Top Sensor' with the shutter in its fully open position.


Notes:
- The smal block of wood is used to bring the small magnet unit up to the same level as the larger main sensor unit.
- Adjacent to the Top Sensor magnet is the Magnet that is associated with the Bottom Sensor
- Below the new Top Sensor, is the Wired Top Sensor used by the Pulsar Dome for detecting the fully open shutter state.

Back to Top
