David's Astronomy Pages Notes - Session 1184 (2024-02-12)

Notes (S1183)

Notes Main

Home Page

Notes (S1185)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (4),  Small Defects (2),  Continuous Improvement (0)
	Images from 2024-02-12 >>

Session Aims & Highlights (2024-02-12)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. 12P/Pons-Brooks. Acquire images of Comet 12P/Pons-Brooks which has been undergoing regular outbursts.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6,   Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.65.12, AstroPlan 1.39.5,  AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13,  AstroSN 1.10.2,  AstroProtect 1.7,  AstroMove 1.12.10
  (AstroWeather 1.23.10, AstroAllSky 3.19.11,  AstroObsCam 1.11.4, AstroLaunch 1.11.1

Highlights

• Targets. 17/28 planned targets observations was completed, with 9 other targets partially completed largely due to cloud or Camera issue.  2 planned targets failed due to cloud/session suspension or Camera issue. One additional ToO target (FU Ori) acquired to replace a target whose location was cloudy.
• 12P/Pons-Brooks. Only a single frame of Comet 12P/Pons-Brooks were acquired
•  Dome Parking.  Dome parked ok at the correct position at end of the session.

Notes:

Summary Plots & Logs

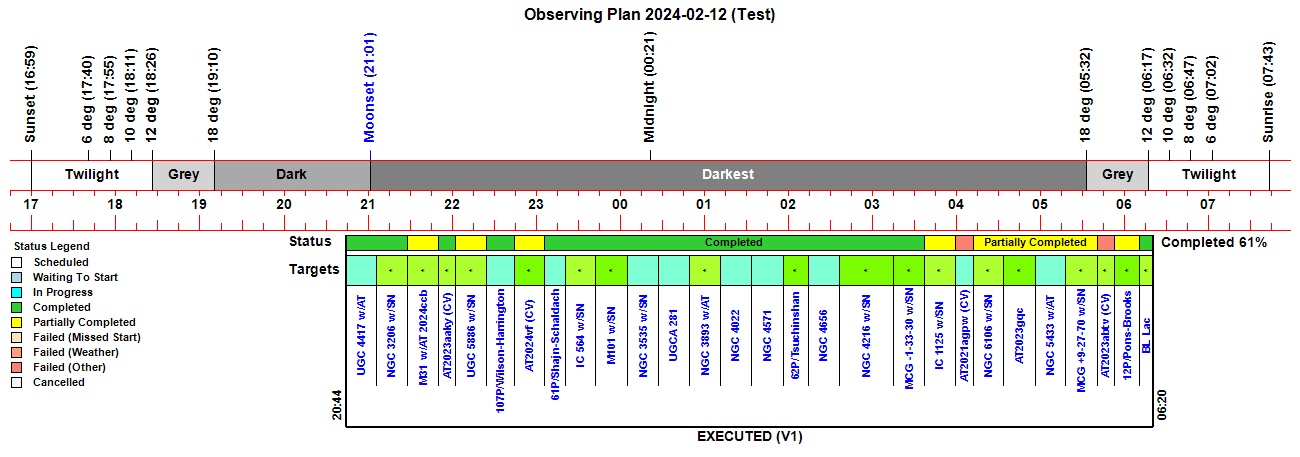

Observing Plan

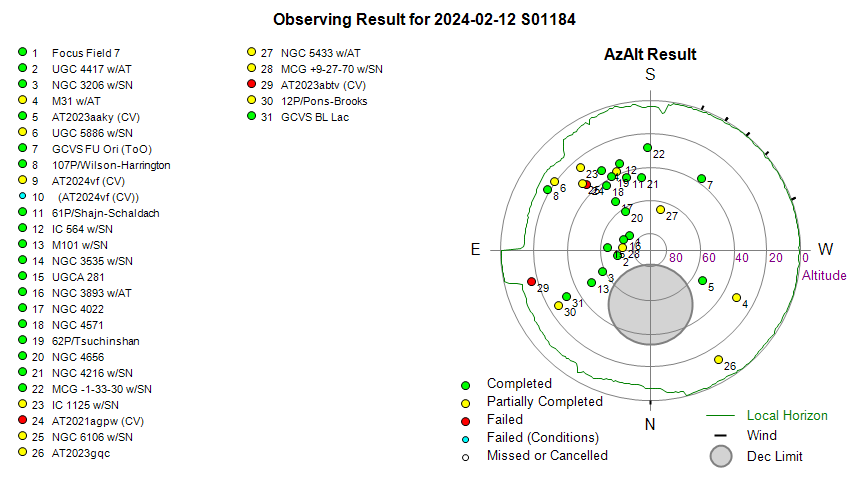

Observing Result

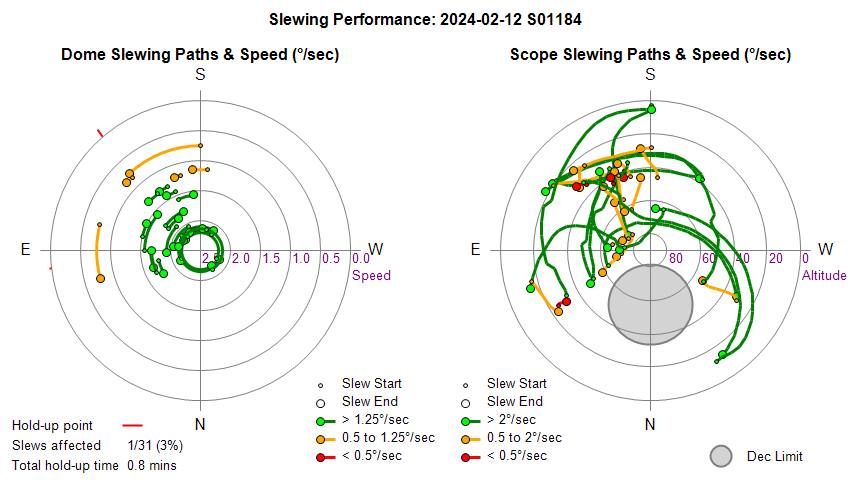

Dome & Scope Slewing Performance

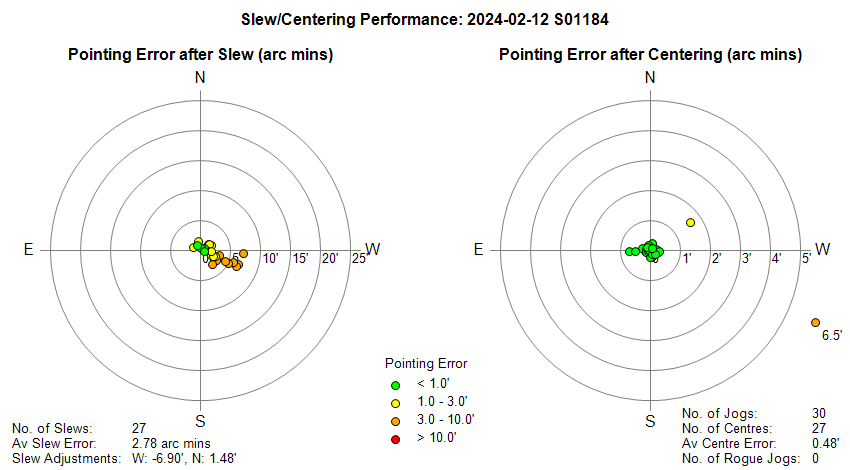

Slew/Centering Performance

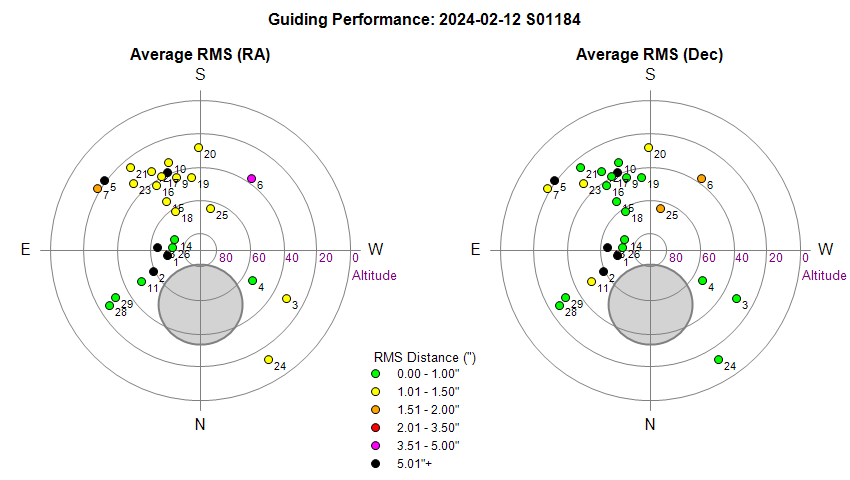

Guiding Performance

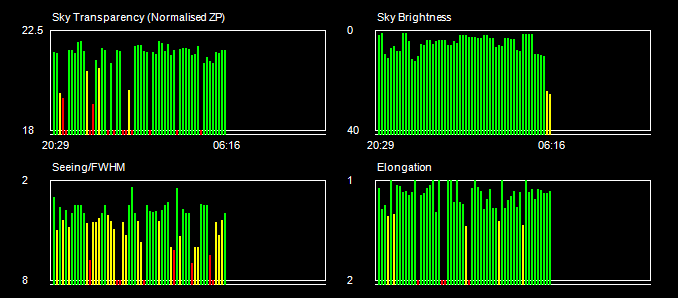

Sky Conditions (Locate Frames)

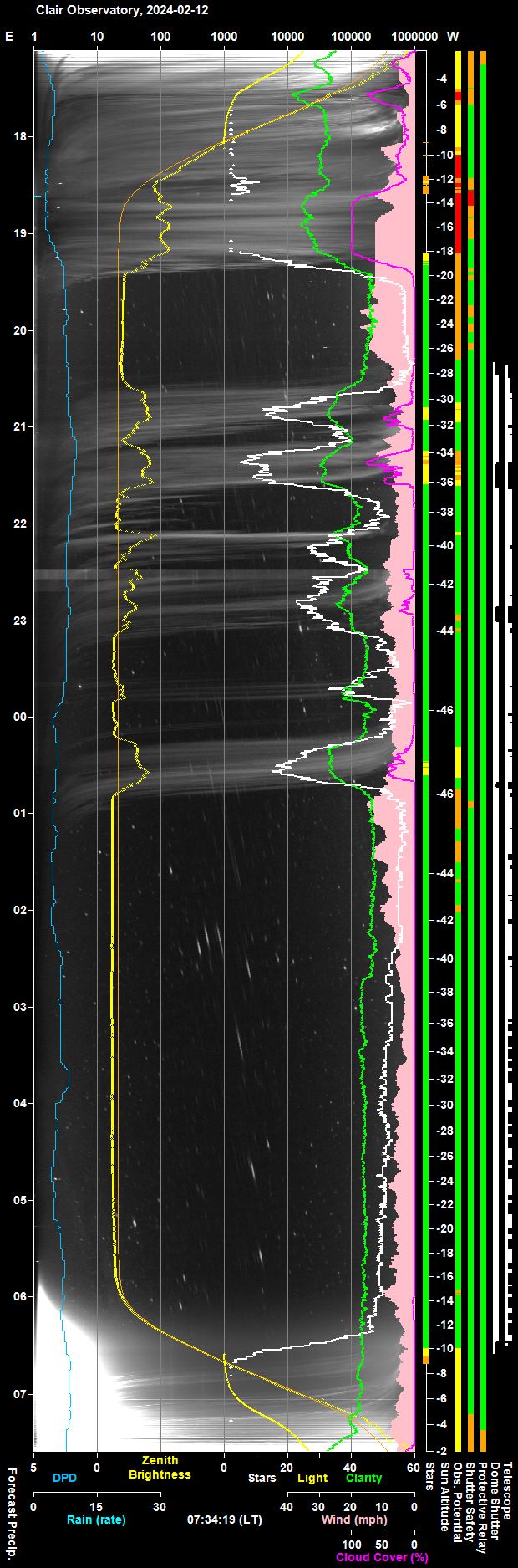

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

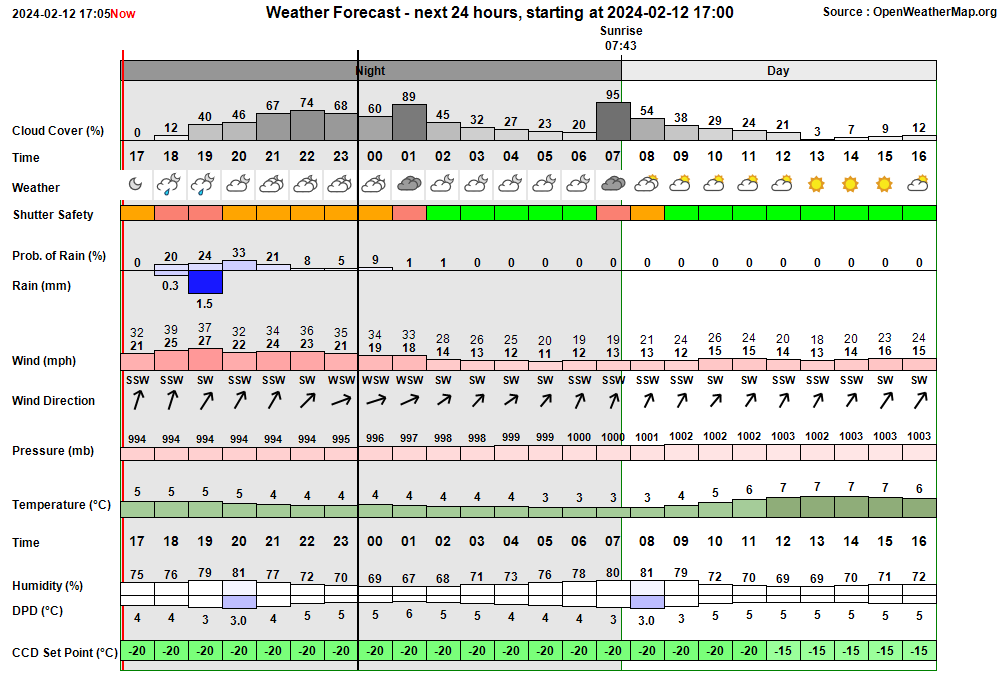

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 20:20:17 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:20 & 05:37 20:20:22 Session AutoStarting Session autostarting (20:20) 20:20:32   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 20:20:45 Session Created Session Created (Live, 2024-02-12 S01184, ImageSaveNum: 1184001) 20:20:52   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:22:38   Services Started Observatory Services started 20:22:45 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:22:47 Session Pending Session pending (2024-02-12) 20:22:49 Session Initiating Session initiating (2024-02-12) 20:22:51   Plan Requested Observing Plan requested from AstroPlan (1.39.5) 20:23:43   Plan Loaded Observing Plan loaded to queue (Plan ID: 958) 20:24:07   Camera1 Connected SBIG Camera connected (Set point -20°C) 20:24:44   Telescope Connected Telescope connected (TheSky6) 20:25:08 Session Equilibration Session ready to Open Dome 20:25:53   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 20:25:55 Session Running Session running 20:25:57   Queue Started Observing Queue started (28 targets selected) 20:25:59     Target Started (NrZen) Target started (Focus Field 7, HIP 34070) 20:26:13       Dome Unparked Dome unparked 20:30:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:33:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 20:34:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:35:02       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:37:11       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:38:54       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:39:11     Target Completed (NrZen) Target completed (Focus Field 7, HIP 34070) 20:39:16     Target Started (1/28) Target started (1/28, UGC 4417 w/AT2023ews) 20:43:10       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:50:51       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 20:56:37       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 20:59:17     Target Completed Target completed (1/28, UGC 4417 w/AT2023ews) 21:01:19     Target Started (2/28) Target started (2/28, NGC 3206 w/SN2024bch) 21:01:27       Dome Unparked Dome unparked 21:05:24       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:17:44       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 21:22:36     Target Completed Target completed (2/28, NGC 3206 w/SN2024bch) 21:22:38   Queue Paused Queue paused for Session Suspension 21:22:40 Session Suspending Session suspending 21:23:30   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 21:23:32 Session Suspended Session suspended 21:38:17 Session Resuming Session resuming 21:39:02   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 21:39:04 Session Running Session running 21:39:06   Queue Resumed Observing Queue resumed 21:39:08     Target Started (3/28) Target started (3/28, M31 w/AT2024ccb) 21:50:24     Target Completed Target partially completed (3/28, M31 w/AT2024ccb) 21:50:28     Target Started (4/28) Target started (4/28, AT2023aaky (CV)) 21:59:09     Target Completed Target completed (4/28, AT2023aaky (CV)) 21:59:13     Target Started (5/28) Target started (5/28, UGC 5886 w/SN2024hw) 22:10:03     Target Aborted (5/28) Target aborted (5/28, UGC 5886 w/SN2024hw) due to Priority 1 ToO Target 22:10:07     Target Started (6/29) Target started (6/29, GCVS FU Ori, ToO) 22:14:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:16:18       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 22:19:19     Target Completed Target completed (6/29, GCVS FU Ori, ToO) 22:19:23     Target Started (7/29) Target started (7/29, 107P/Wilson-Harrington) 22:24:54       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 22:39:43     Target Completed Target completed (7/29, 107P/Wilson-Harrington) 22:39:47     Target Started (8/29) Target started (8/29, AT2024vf (CV)) 22:45:26       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:50:45       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:51:36     Target Aborted (8/29) Target aborted (8/29, AT2024vf (CV)) due to User Intervention 22:51:38   Queue Paused Queue paused for Session Suspension 22:51:40 Session Suspending Session suspending 22:52:30   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 22:52:32 Session Suspended Session suspended 22:58:05     Target Cancelled Target cancelled (8/29, AT2024vf (CV)) due to too few stars 23:01:06 Session Resuming Session resuming 23:01:51   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 23:01:53 Session Running Session running 23:01:55   Queue Resumed Observing Queue resumed 23:01:56     Target Started (9/29) Target started (9/29, 61P/Shajn-Schaldach) 23:06:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:08:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:17:20     Target Completed Target completed (9/29, 61P/Shajn-Schaldach) 23:17:24     Target Started (10/29) Target started (10/29, IC 564 w/SN2023abqf) 23:21:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:37:40     Target Completed Target completed (10/29, IC 564 w/SN2023abqf) 23:37:44     Target Started (11/29) Target started (11/29, M101 w/SN2023ixf) 23:41:40       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:58:16     Target Completed Target completed (11/29, M101 w/SN2023ixf) 00:00:01     Target Started (12/29) Target started (12/29, NGC 3535 w/SN2023hrn) 00:00:20       Dome Unparked Dome unparked 00:03:50       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:20:34     Target Completed Target completed (12/29, NGC 3535 w/SN2023hrn) 00:22:01     Target Started (13/29) Target started (13/29, UGCA 281) 00:22:41       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 00:25:03       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:41:16     Target Completed Target completed (13/29, UGCA 281) 00:41:18   Queue Paused Queue paused for Session Suspension 00:41:20 Session Suspending Session suspending 00:42:08   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 00:42:11 Session Suspended Session suspended 00:44:14 Session Resuming Session resuming 00:44:59   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 00:45:01 Session Running Session running 00:45:03   Queue Resumed Observing Queue resumed 00:45:05     Target Started (14/29) Target started (14/29, NGC 3893 w/AT2023uhx) 00:48:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:50:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 01:06:34     Target Completed Target completed (14/29, NGC 3893 w/AT2023uhx) 01:06:38     Target Started (15/29) Target started (15/29, NGC 4022) 01:09:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:25:52     Target Completed Target completed (15/29, NGC 4022) 01:29:01     Target Started (16/29) Target started (16/29, NGC 4571) 01:32:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:34:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 01:51:05     Target Completed Target completed (16/29, NGC 4571) 01:51:28     Target Started (17/29) Target started (17/29, 62P/Tsuchinshan) 01:54:41       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:06:27     Target Completed Target completed (17/29, 62P/Tsuchinshan) 02:09:30     Target Started (18/29) Target started (18/29, NGC 4656) 02:12:46       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:29:05     Target Completed Target completed (18/29, NGC 4656) 02:31:50     Target Started (19/29) Target started (19/29, NGC 4216 w/SN2024gy) 02:35:50       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:08:15     Target Completed Target completed (19/29, NGC 4216 w/SN2024gy) 03:10:08     Target Started (20/29) Target started (20/29, MCG -1-33-30 w/SN2024byg) 03:16:39   SBIG Camera Take Image failed (Command timed-out) 03:16:41   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 03:16:43   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 03:16:46   SBIG Camera Reset SBIG Camera being power-cycled 03:17:18   SBIG Camera Take Image failed (No connection. Error code = 200 (0xc8).) 03:25:50   CCDSoft Issue CCDSoft has encountered an image save issue [0000] 03:25:52   CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 03:25:57   SBIG Camera Reset SBIG Camera being power-cycled 03:26:46     Target Completed Target completed (20/29, MCG -1-33-30 w/SN2024byg) 03:32:28     Target Started (21/29) Target started (21/29, IC 1125 w/SN2024jz) 03:33:34     Dome Slew Dome slew held up at Az. 139.4° (Delay 39s) 03:38:55   SBIG Camera Take Image command accepted (bSbigDriverException flag is reset) 03:57:43     Target Completed Target partially completed (21/29, IC 1125 w/SN2024jz) 03:57:47     Target Started (22/29) Target started (22/29, AT2021agpw (CV)) 04:13:51     Target Failed (22/29) Target failed due to (22/29, AT2021agpw (CV)) 04:13:55     Target Started (23/29) Target started (23/29, NGC 6106 w/SN2024ahv) 04:32:04     Target Completed Target partially completed (23/29, NGC 6106 w/SN2024ahv) 04:32:08     Target Started (24/29) Target started (24/29, AT2023gqc) 04:54:21     Target Completed Target partially completed (24/29, AT2023gqc) 04:54:26     Target Started (25/29) Target started (25/29, NGC 5433 w/AT2023apy) 05:16:21     Target Completed Target partially completed (25/29, NGC 5433 w/AT2023apy) 05:16:25     Target Started (26/29) Target started (26/29, MCG +9-27-70 w/SN2023acha) 05:38:01     Target Completed Target partially completed (26/29, MCG +9-27-70 w/SN2023acha) 05:38:05     Target Started (27/29) Target started (27/29, AT2023abtv (CV)) 05:53:12     Target Failed (27/29) Target failed due to (27/29, AT2023abtv (CV)) 05:53:16     Target Started (28/29) Target started (28/29, 12P/Pons-Brooks) 06:09:47     Target Completed Target partially completed (28/29, 12P/Pons-Brooks) 06:09:51     Target Started (29/29) Target started (29/29, GCVS BL Lac) 06:28:12     Target Completed Target completed (29/29, GCVS BL Lac) 06:28:15   Queue Completed Job Queue completed 06:28:17 Session Closing Session closing 06:29:10   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 06:29:35   Dome Parked Dome parked (parking time 17s), Az: 90.1 deg 06:30:58   Telescope Parked Telescope parked (parking time 81s) 06:31:13   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:31:35   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:32:56   Dome Charging Dome is parked and re-charging Ok (12mA) 06:32:58   Services Stopped Night Services stopped 06:33:01 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 06:33:27     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide) 06:34:31     Dome Find Park found (Best Park Az 90.5°) 06:34:39     Dome (Find Park) Find Park started (Search Az 87.4 to 93.4°, Step 0.2°, Narrow) 06:36:05     Dome Find Park found (Best Park Az 90.6°) 06:36:11 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 22:23:47 Red Alert Dome Alert Shutter Data isn't being refreshed 22:23:50 Yellow Alert Dome Shutter Pulsar Shutter appears to be asleep (last fresh data was at 22:03:47) 22:26:30 Green Clear Dome Shutter Pulsar Shutter has woken up (fresh data at 22:26:17, outage 22.7 min) 22:26:32 Green Clear Dome Alert Shutter Data has resumed updating 02:10:14 Red Alert Dome Alert Shutter Data isn't being refreshed 02:10:33 Yellow Alert Dome Shutter Pulsar Shutter appears to be asleep (last fresh data was at 01:50:14) 02:12:53 Green Clear Dome Shutter Pulsar Shutter has woken up (fresh data at 02:12:44, outage 22.7 min) 02:12:55 Green Clear Dome Alert Shutter Data has resumed updating 03:16:39 Red Alert SBIG Camera Alert Take Image failed (Command timed-out) 03:16:41 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 03:17:18 Red Alert SBIG Camera Alert Take Image failed (No connection. Error code = 200 (0xc8).) 03:25:50 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 03:33:34 Yellow Alert Dome Slew Dome slew held up at Az. 139.4° (Delay 39s) 03:38:55 Green Clear SBIG Camera Take Image command accepted (bSbigDriverException flag is reset) 03:39:14 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart 05:38:42 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 83.3° (T+32.4s)

Back to Top

Operational Issues (2024-02-12, S1184)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (4)
• Small Defects (2)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• CCD Temperature Regulation not working for the final 33 image frames of the session (03:38). Images 1184162-94 had CCD Temperature of 8.4°C instead of an expected (regulated) CCD Temperature of -20°C. Images were reduced with a -5°C Dark Frame Set (highest tempearture set available to hand) which compromised final image quality.  Issue followed a problem with CCD Camera at 03:15 which saw an automated restart of CCDSoft/SBIG Camera in response at 03:16 (RestartCCDSoft() with RestartMode = RestartCCDSoftMode.UnSavedFileIssue) , followed up by a further automated restart of CCDSoft/SBIG Camera at 03:25.  The routine to restart CCDSoft/SBIG in mid session should automatically re-enable CCD Temperature regulation and use an appropriate set point temperature. Fixed in AstroMain 3.65.13 so that 'Connect Camera' is automatically called when Restarting CCDSoft during a Live Session provided that RestartCCDSoft reason isn't simply to SetSaveNo.
  Fixed 2024-02-13 (AstroMain 3.65.13)

Minor Issues

• Unable to make session attempt due to low temperature reading (2024-02-11). Session attempt on proceeding night (2024-02-11) can be started due to perceived low temperature (-17.8°C).  Issue was due to Weather Station showing Outside Temperature/Humidity Sensor having flat battery and not producing any valid readings and a restart of Virtual Weather Station that saves weather records with Ch1 (Outside) Temperature of -17.8°C (based on 0.0°F).   Fixed by replacing 2xAAA batteries in Sensor and resetting weather station.  (2xAA batteries replaced in Wind Sensor at same time). Checks confirm that outside temperature / humidity and wind speed values are being recorded by Virtual Wether Station and transmitted onwards to Observatory Computer by AstroWeather program.   Session S1184 run ok on 2024-02-12.
  Resolved 2024-02-12 (Weather Station)

• Session Autostart wouldn't begin with the stated reason 'due to software' (20:10). Autostart giving the message "Unable to begin AutoStart at 20:10 due to software". Restarting AstroMain program alone didn't resolve issue as it gave the similar message "Unable to begin AutoStart at 20:13 due to software". Log messages suggest an issue with the 'ScopeMonitor' thread with messages like "ScopeMonitor is Pending (27s)"   Resolved by restarting the entire Observatory Suite including TheSky6.  This time autostart successfully started "AutoStart Check Ok Conditions at 20:20 are suitable for starting an observing session". 10 minutes observing time were lost due to the problem.
  Resolved in-session 2024-02-12 (Observatory Computer, TheSky6/AstroMain)

• Taking CCD Image Failed (03:15). Locate Frame 1 (10s) for Target 20/29 MCG -1-33-30 w/SN2024byg) at 03:15 failed with command timed-out error & red alert at 03:16:39. In response CCDSoft was restarted at 03:16:39 in an 'attempt to fix unsaved file issue'.   This wasn't successful and  there were further image failures on Locate Frame 2 - 4 and the first 180s main frame.   A further automated restart of CCDSoft/SBIG Camera was made at 03:25:50, but the following four 180s frames were also repoted to have failed, with 'No connection' (Error code = 200) exception from Camera.TakeImage() between 03:26:29 & 03:26:32.   Only after a reporting of 'Reconnect Camera' operation by job executor at 03:26 did the CCD Camera imaging successful resume again for Target 21/29 (IC 1125 w/SN2024jz).  Issue closed as failure of CCDSoft/CCD Camera is a known occasional issue and it was eventually resolved by ObsOverseer & Job Executor but with a loss of around 11 minutes observing time including the MCG -1-33-30 target.  The cause of the delay is investigated under a separate ticket item (see below).
  Resolved automatically in-session 2024-02-12 (AstroMain)

• Restart CCDSoft/SBIG Camera failed to resolve camera issue (03:16 & 03:25). Locate Frame 1 (10s) for Target 20/29 MCG -1-33-30 w/SN2024byg) at 03:15 failed with command timed-out error & red alert at 03:16:39. In response CCDSoft was restarted at 03:16:39 in an 'attempt to fix unsaved file issue'.   This wasn't successful and  there were further image failures on Locate Frame 2 - 4 and the first 180s main frame.   A further automated restart of CCDSoft/SBIG Camera was made at 03:25:50, but the following four 180s frames were also repoted to have failed, with 'No connection' (Error code = 200) exception from Camera.TakeImage() between 03:26:29 & 03:26:32.   Only after a reporting of 'Reconnect Camera' operation by job executor at 03:26 did the CCD Camera imaging successful resume again for Target 21/29 (IC 1125 w/SN2024jz).  Examining the logs indicates that operation to switch off SBIG Camera was anomalous.  The SBIG Power was reported by zigbee to have switched off at 03:16:46 (after on time > 7.0 hour) and then immediately reported by zigbee to have switched on at 03:16:46 (after an off time of 0s).   The planned restart SBIG Camera wasn't acted upon as the SBIG Camera was determined to be already on.   There was then a Zigbee message reporting that SBIG Power has switched off at 03:16:52 (after an on time of 6 sec).  This would explain the Image failures between 03:16 and 03:24 (the camera wasn't powered !) and explains why the Connect Camera operation at the end of first Restart attempt failed at 03:17 with the message "SBIG Driver: Device not found".  During the second Restart attempt at 03:25, the Stop SBIG Camera operation reported that the SBIG Camera was already off, confirming the previous assessment, and was then Restarted at 03:26 with Zigbee message SBIG Power has switched on at 03:26:02 (with off time of 9.2 min).   Whilst CCDSoft was Restarted, there seems to have been no 'Reconnect Camera' operation on the second attempt. This presumably didn't happen by design as the Camera was connected going into the Restart Attempt. Examining the Zigbee log file from the recent incident shows

     03:16:46.38 | Command >> GET api/<ApiKey>/lights/3   >  "state":{"on":true}       ' Get  SBIG Camera Power State  (On)
   03:16:46.38 | Command >> PUT /api/<apikey>/lights/3/state {"on": false}           ' Turn Off SBIG Camera
   03:16:46.39 | Event << {"e":"changed","id":"3","r":"lights","state":{"on":false}  ' SBIG Camera is Off
   03:16:46.41 | Event << {"e":"changed","id":"3","r":"lights","state":{"on":true}   ' SBIG Camera is On

   03:16:50.44 | Command >> GET api/<ApiKey>/lights/3  >  "state":{"on":true}        ' Get  SBIG Camera Power State  (On)
   03:16:52.32 | Event << {"e":"changed","id":"3","r":"lights","state":{"on":false}  ' SBIG Camera is Off
  This confirms that there is an issue, and that seemingly anomalous event messages are being generated by the igbee Smart Plug for the SBIG Camera or by the Zigbee System itself.  A very similar issue occurred during a Session Attempt in Oct 2023 (S1156A, 2023-10-10).  Currently there is a 4s wait period between calling SwitchOffSbigPower()  and SwitchOnSbigPower(), however in this recent instance there was a 6s delay between sending PUT command to turn off the power plug and the 'final event message' confirming that camera power plug was off.   Fix attempted in AstroMain 3.65.13 by increasing the wait period from 4s to 12s.  If this proves non-effective additional work might comprise repeating SwitchOffSbigPower() & SwitchOnSbigPower() if there SBIG Camera Plug appears to not have responded in the correct/expected manner.
  Fix attempted 2024-02-13 (AstroMain 3.65.13, Zigbee, SBIG Camera)

Small Defects

• ScopeMonitor logged as pending (21:31).  Log file records that ScopeMonitor is pending for periods up to 87s at 21:31:40 (during Target 2/28, M31), at 22:58:59 (during Target 9/29, 61P/Shajn-Schaldach), 03:15:40 (during Target 20/29, MCG -1-33-30), at 03:30:11, 03:33:06 & 03:34:42, 03:45:38 (during Target 21/29, IC 1125)   In each case TheSkyScope.Monitor has resumed messages where recorded after 60-87s.  There were no problems caused by the issue, but is worth noting that AutoStart failed to initially commence at start of session due to ScopeMonitor not being ready. Closed after review 2024-02-13, but continue to monitor.
  Closed after review 2024-02-13 (AstroMain)

• Sync Dome to Az 90.0° failed at end of session (06:36).  After determining best Park Position was at Az 90.6° by searching for Park sensor the dome was slewed to Az 90.6°. However slew to Best Park Az (90.6°) ended up at Az 90.7° (instead of 90.6°), and this caused the following 'Sync to Park Az' to fail with message as the "Dome (90.7°) is not at best Park Az (90.6°)".  Dome manually synced to Az 90.0 the following day.   Fixed in AstroMain 3.65.13  by permitting a 0.2° tolerance to prevent failure.
  Fixed (AstroMain 3.65.13).

Continuous Improvement

• None
