Notes - Session 1187 (2024-02-20)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (2),  Continuous Improvement (5)
Bullet Images from 2024-02-20 >>



Session Aims & Highlights (2024-02-20)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  2. 12P/Pons-Brooks. Acquire images of Comet 12P/Pons-Brooks which has been undergoing regular outbursts.
  3. PHD2/Guiding. First live usage of new PHD2 version 2.6.13. Check for any issues or problems.
  4. AstroMain. Continue to test fixes to CCDSoft Camera/SBIG Camera operations to prevent stalled execution during starting, fix issues due to occasional repeated failures during Cam1 focusing and occassional unexpected CCD Temperature regulation.

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

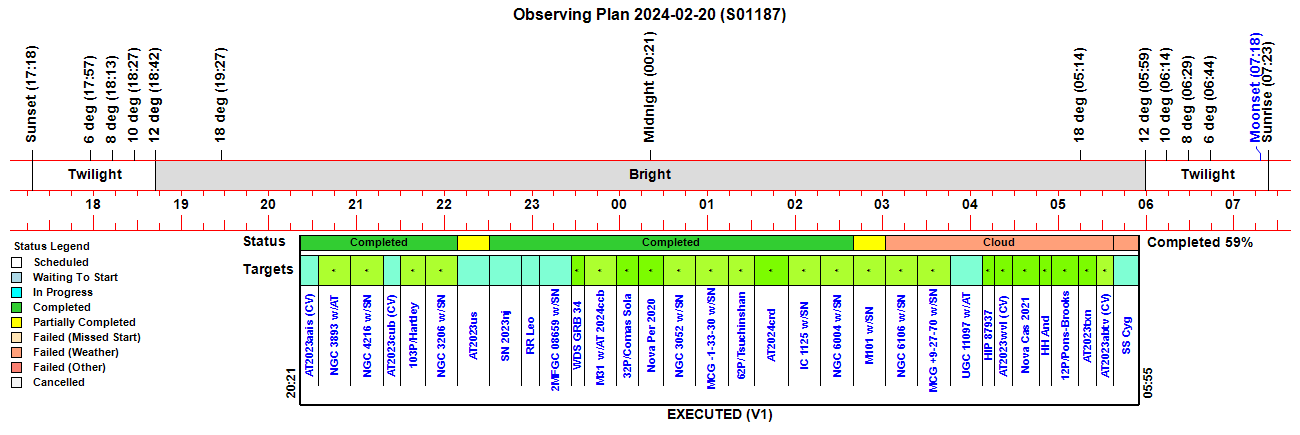

Observing Plan

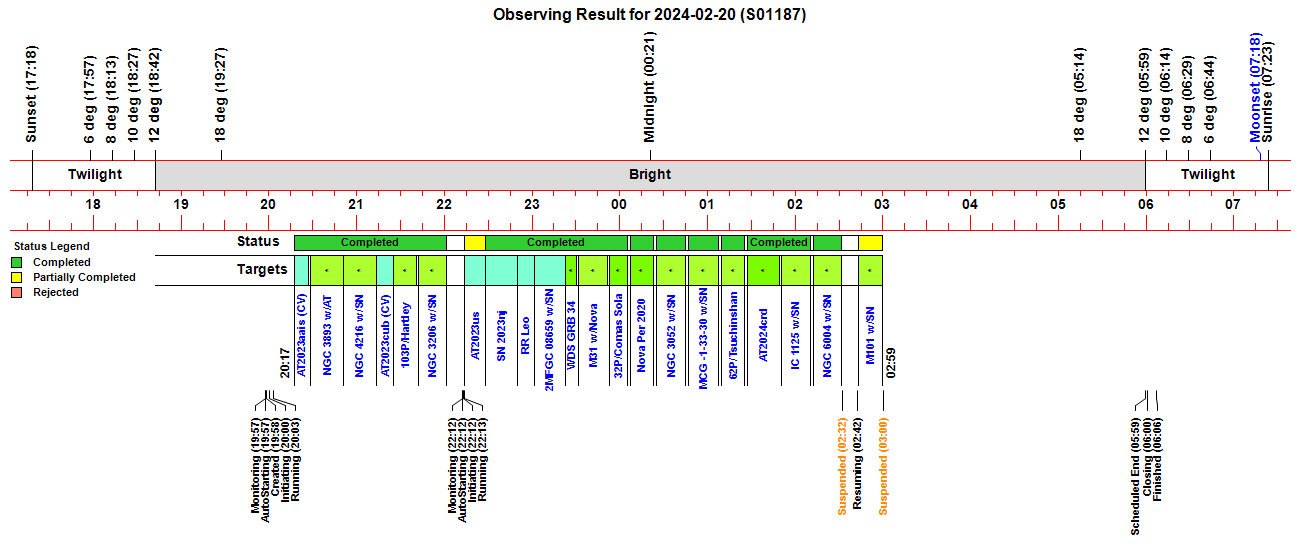

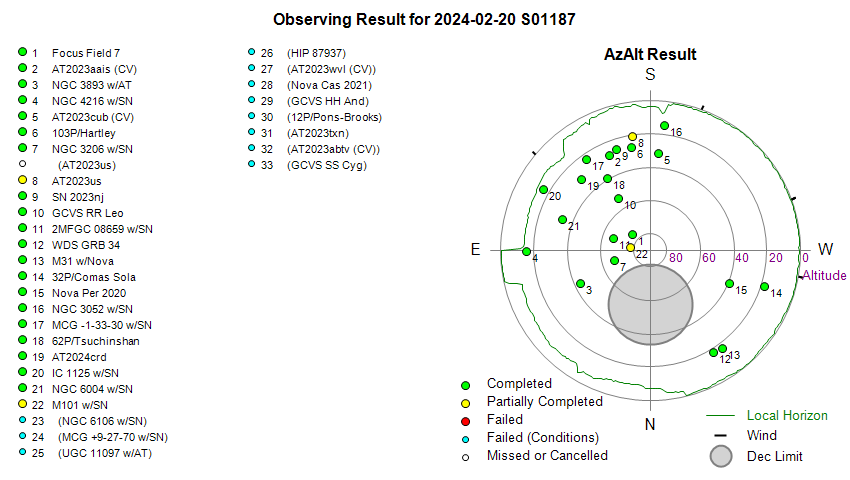

Observing Result

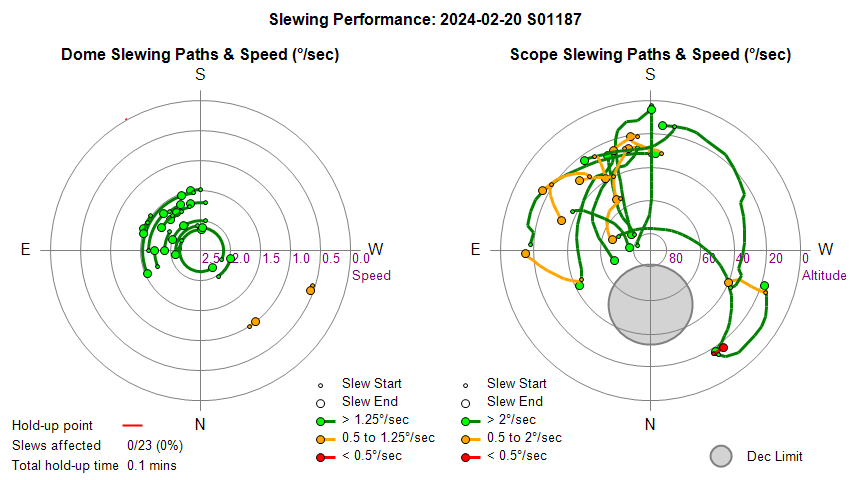

Dome & Scope Slewing Performance

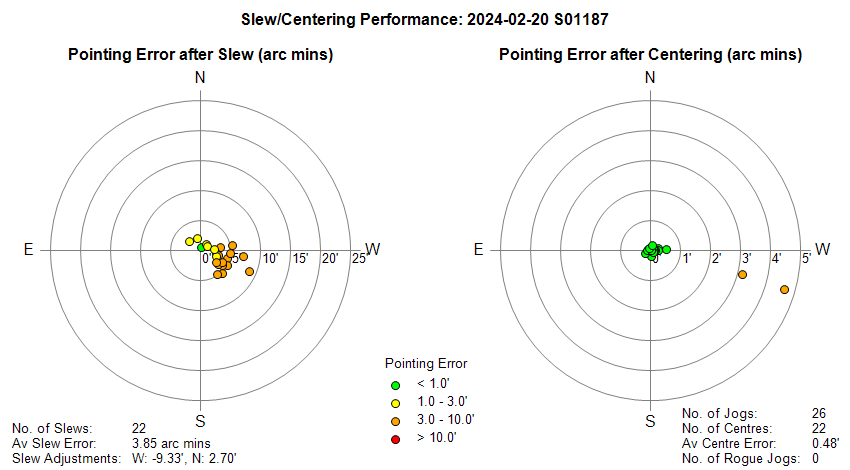

Slew/Centering Performance

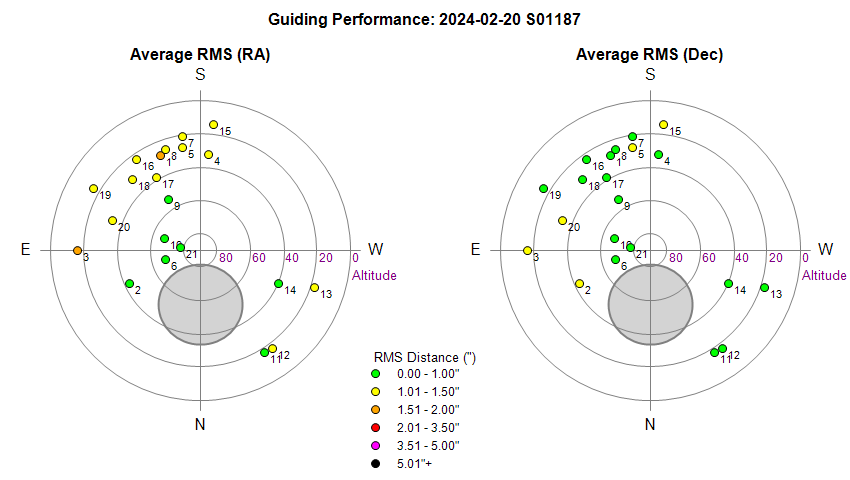

Guiding Performance

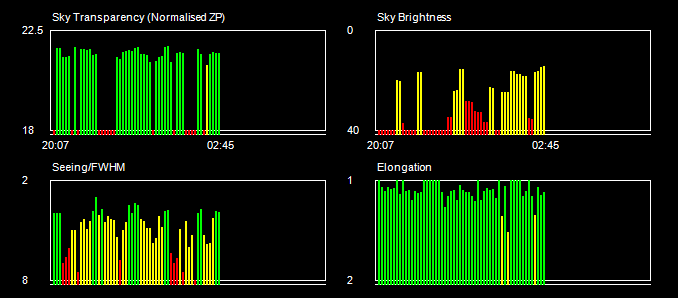

Sky Conditions (Locate Frames)

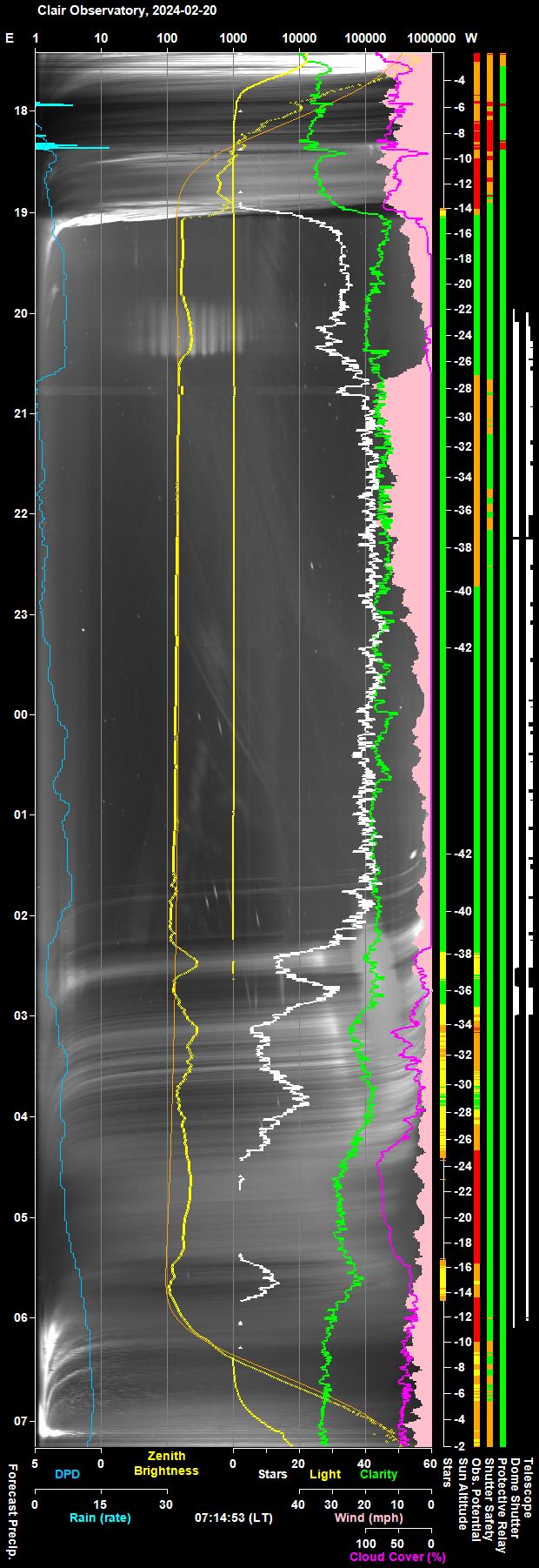

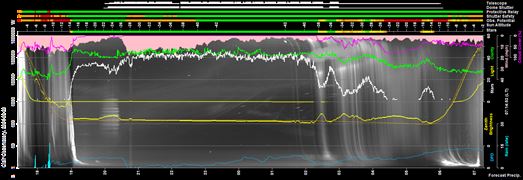

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

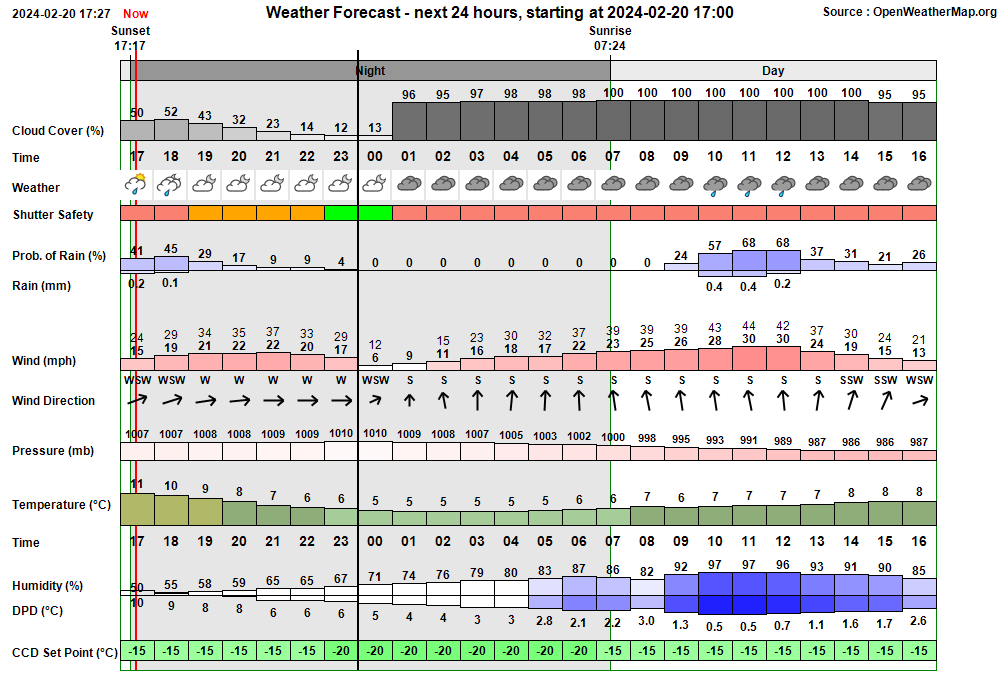

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
19:57:44 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:57 & 05:19
19:57:47 Session AutoStarting Session autostarting (19:57)
19:57:57   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
19:58:10 Session Created Session Created (Live, 2024-02-20 S01187, ImageSaveNum: 1187001)
19:58:17   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
20:00:03   Services Started Observatory Services started
20:00:09 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:00:12 Session Pending Session pending (2024-02-20)
20:00:14 Session Initiating Session initiating (2024-02-20)
20:00:16   Plan Requested Observing Plan requested from AstroPlan (1.39.5)
20:01:12   Plan Loaded Observing Plan loaded to queue (Plan ID: 961)
20:01:37   Camera1 Connected SBIG Camera connected (Set point -20°C)
20:02:14   Telescope Connected Telescope connected (TheSky6)
20:02:38 Session Equilibration Session ready to Open Dome
20:03:23   Dome Opened Dome opened (Opening time 45s, Zigbee 41s)
20:03:26 Session Running Session running
20:03:28   Queue Started Observing Queue started (32 targets selected)
20:03:29     Target Started (NrZen) Target started (Focus Field 7, HIP 34070)
20:03:43       Dome Unparked Dome unparked
20:08:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:11:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
20:13:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
20:13:14       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
20:15:19       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
20:17:01       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
20:17:18     Target Completed (NrZen) Target completed (Focus Field 7, HIP 34070)
20:17:22     Target Started (1/32) Target started (1/32, AT2023aais (CV))
20:21:19       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
20:27:45     Target Completed Target completed (1/32, AT2023aais (CV))
20:28:44     Target Started (2/32) Target started (2/32, NGC 3893 w/AT2023uhx)
20:32:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:35:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
20:51:16     Target Completed Target completed (2/32, NGC 3893 w/AT2023uhx)
20:51:20     Target Started (3/32) Target started (3/32, NGC 4216 w/SN2024gy)
20:56:51       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
21:13:33     Target Completed Target completed (3/32, NGC 4216 w/SN2024gy)
21:13:37     Target Started (4/32) Target started (4/32, AT2023cub (CV))
21:17:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:19:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
21:25:29     Target Completed Target completed (4/32, AT2023cub (CV))
21:25:33     Target Started (5/32) Target started (5/32, 103P/Hartley)
21:29:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:31:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
21:41:56     Target Completed Target completed (5/32, 103P/Hartley)
21:42:08     Target Started (6/32) Target started (6/32, NGC 3206 w/SN2024bch)
21:45:22       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:01:33     Target Completed Target completed (6/32, NGC 3206 w/SN2024bch)
22:01:35   Queue Aborted Job Queue aborted
22:03:52   Observatory Door Observatory Door has opened
22:03:59   Observatory Door Observatory Door has closed (open time 7s)
22:04:07   Observatory Door Observatory Door has opened
22:04:08   Observatory Door Observatory Door has closed (open time 1s)
22:12:24 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:12 & 05:19
22:12:26 Observatory (AutoStart) Observatory placed in Auto-Start Mode
22:12:29 Session AutoStarting Session autostarting (22:12)
22:12:40   Services Started Observatory Services started
22:12:44 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:12:49 Session Pending Session pending (2024-02-20)
22:12:51 Session Initiating Session initiating (2024-02-20)
22:12:57   Plan Loaded Observing Plan loaded to queue (Plan ID: 961)
22:13:10   Camera1 Connected SBIG Camera connected (Set point -20°C)
22:13:15   Telescope Connected Telescope connected (TheSky6)
22:13:34 Session Running Session running
22:13:37   Queue Started Observing Queue started (26 targets selected)
22:13:43     Target Started (7/32) Target started (7/32, AT2023us)
22:14:12   Observatory Door Observatory Door has opened
22:14:17   Observatory Door Observatory Door has closed (open time 5s)
22:28:19     Target Completed Target partially completed (7/32, AT2023us)
22:28:23     Target Started (8/32) Target started (8/32, SN 2023nj)
22:31:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:34:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
22:50:02     Target Completed Target completed (8/32, SN 2023nj)
22:50:06     Target Started (9/32) Target started (9/32, GCVS RR Leo)
22:53:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:55:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:01:28     Target Completed Target completed (9/32, GCVS RR Leo)
23:01:33     Target Started (10/32) Target started (10/32, 2MFGC 08659 w/SN2023xyr)
23:04:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:06:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:23:00     Target Completed Target completed (10/32, 2MFGC 08659 w/SN2023xyr)
23:23:04     Target Started (11/32) Target started (11/32, WDS GRB 34)
23:27:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:29:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
23:31:26     Target Completed Target completed (11/32, WDS GRB 34)
23:31:30     Target Started (12/32) Target started (12/32, M31 w/Nova M31 AT2024ccb)
23:35:11       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:51:53     Target Completed Target completed (12/32, M31 w/Nova M31 AT2024ccb)
23:52:46     Target Started (13/32) Target started (13/32, 32P/Comas Sola)
23:56:07       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:05:09     Target Completed Target completed (13/32, 32P/Comas Sola)
00:07:36     Target Started (14/32) Target started (14/32, Nova Per 2020)
00:10:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:12:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:23:17     Target Completed Target completed (14/32, Nova Per 2020)
00:24:56     Target Started (15/32) Target started (15/32, NGC 3052 w/SN2024chx)
00:28:42       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:45:02     Target Completed Target completed (15/32, NGC 3052 w/SN2024chx)
00:46:57     Target Started (16/32) Target started (16/32, MCG -1-33-30 w/SN2024byg)
00:51:38       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:07:30     Target Completed Target completed (16/32, MCG -1-33-30 w/SN2024byg)
01:09:16     Target Started (17/32) Target started (17/32, 62P/Tsuchinshan)
01:13:54       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:25:35     Target Completed Target completed (17/32, 62P/Tsuchinshan)
01:27:18     Target Started (18/32) Target started (18/32, AT2024crd)
01:30:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:32:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:49:08     Target Completed Target completed (18/32, AT2024crd)
01:50:18     Target Started (19/32) Target started (19/32, IC 1125 w/SN2024jz)
01:54:14       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:10:23     Target Completed Target completed (19/32, IC 1125 w/SN2024jz)
02:12:18     Target Started (20/32) Target started (20/32, NGC 6004 w/SN2024cld)
02:15:20       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:24:59       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:31:35     Target Completed Target completed (20/32, NGC 6004 w/SN2024cld)
02:31:37   Queue Paused Queue paused for Session Suspension
02:31:39 Session Suspending Session suspending
02:32:25   Dome Closed Dome closed (Closing time 50s, Zigbee 44s)
02:32:28 Session Suspended Session suspended
02:42:37 Session Resuming Session resuming
02:43:22   Dome Opened Dome opened (Opening time 45s, Zigbee 41s)
02:43:25 Session Running Session running
02:43:27   Queue Resumed Observing Queue resumed
02:43:29     Target Started (21/32) Target started (21/32, M101 w/SN2023ixf)
02:55:28       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
02:59:29     Target Completed Target partially completed (21/32, M101 w/SN2023ixf)
02:59:31   Queue Paused Queue paused for Session Suspension
02:59:34 Session Suspending Session suspending
03:00:24   Dome Closed Dome closed (Closing time 50s, Zigbee 44s)
03:00:25 Session Suspended Session suspended
03:15:54     Target Cancelled Target cancelled (22/32, NGC 6106 w/SN2024ahv) due to cloud
03:38:14     Target Cancelled Target cancelled (23/32, MCG +9-27-70 w/SN2023acha) due to cloud
04:00:14     Target Cancelled Target cancelled (24/32, UGC 11097 w/AT2024ajp) due to cloud
04:11:35     Target Cancelled Target cancelled (25/32, HIP 87937) due to cloud
04:22:57     Target Cancelled Target cancelled (26/32, AT2023wvl (CV)) due to cloud
04:40:34     Target Cancelled Target cancelled (27/32, Nova Cas 2021) due to cloud
04:50:27     Target Cancelled Target cancelled (28/32, GCVS HH And) due to cloud
05:07:04     Target Cancelled Target cancelled (29/32, 12P/Pons-Brooks) due to cloud
05:19:54     Target Cancelled Target cancelled (30/32, AT2023txn) due to cloud
05:31:54     Target Cancelled Target cancelled (31/32, AT2023abtv (CV)) due to cloud
06:00:25     Target Cancelled Target cancelled (32/32, GCVS SS Cyg) due to too few stars
06:00:30   Queue Completed Job Queue completed
06:00:36 Session Closing Session closing
06:00:41   Dome Closed Dome already closed (closed at 03:00, closing time 50s, zigbee 44s)
06:01:07   Dome Parked Dome parked (parking time 18s), Az: 90.1 deg
06:02:31   Telescope Parked Telescope parked (parking time 79s)
06:02:46   Telescope State Handbox reads 'Scope parked Turn scope off.'
06:03:17   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:04:41   Dome Charging Dome is parked and re-charging Ok (18mA)
06:04:43   Services Stopped Night Services stopped
06:04:46 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
06:05:08     Dome (Find Park) Find Park started (Search Az 87.0 to 93.0°, Step 0.2°, Narrow)
06:06:39     Dome Find Park found (Best Park Az 90.2°)
06:06:46     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.3°)
06:06:48   Dome Parked Dome parked
06:06:51   Dome Charging Dome is parked and re-charging Ok (18mA)
06:06:53 Session Finished Session Finished


Session Alerts & Alarms
Time     Type       Name Detail
20:29:09 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 150.5° (T+20.4s)
06:06:51 Green Clear Dome Charging Dome is parked and re-charging Ok (18mA)


Back to Top


Operational Issues (2024-02-20 S1187)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]


Fig 1.   Cam1 Camera Angle showing affect of camera adjustment at 22:10.
Camera angle was adjusted to make average camera angle lie close to 180.0° rather than its former value of 180.3° or so.



Back to Top
