Notes - Session 1225 (2024-08-09)


Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (0),  Small Defects (1),  Continuous Improvement (1)
Bullet Images from 2024-08-09 >>

2024-08-10
Bullet Investigation - Telescope Connection Failing during Autostart



Session Aims & Highlights (2024-08-09)

Main aims

  1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

Highlights-

Notes:



Summary Plots & Logs

Observing Plan

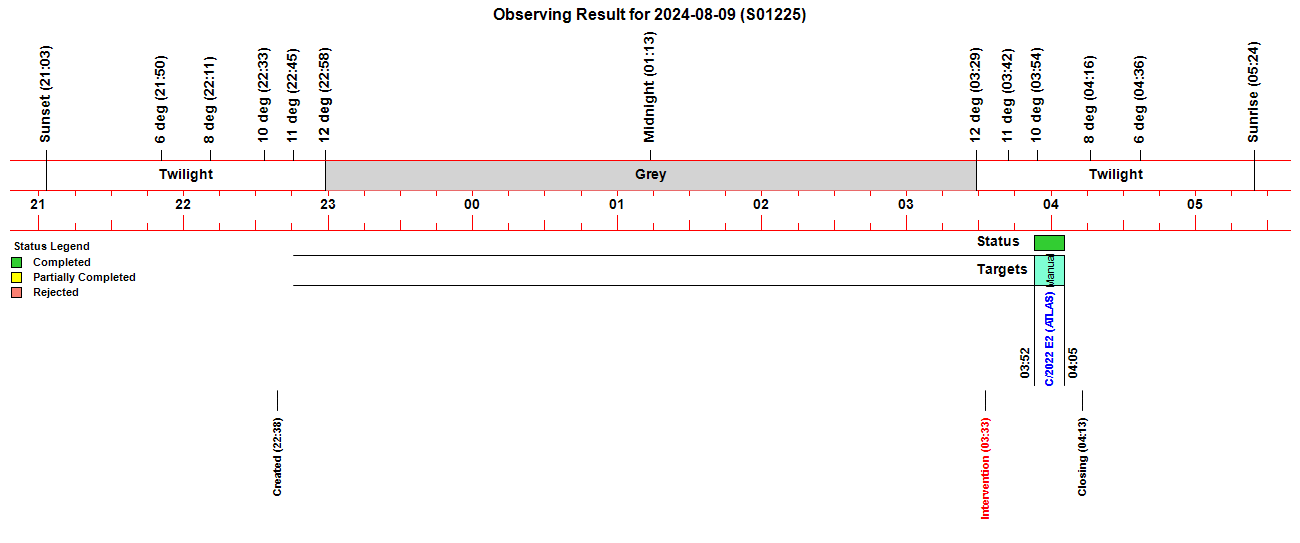

Observing Result

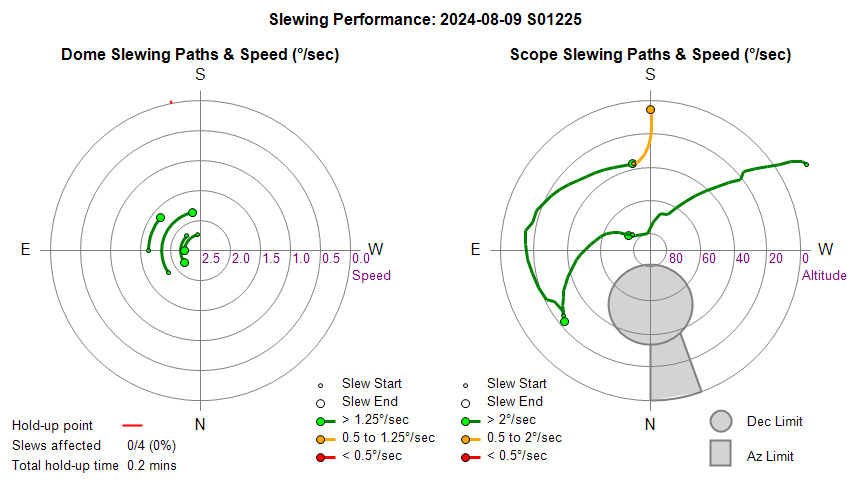

Dome & Scope Slewing Performance

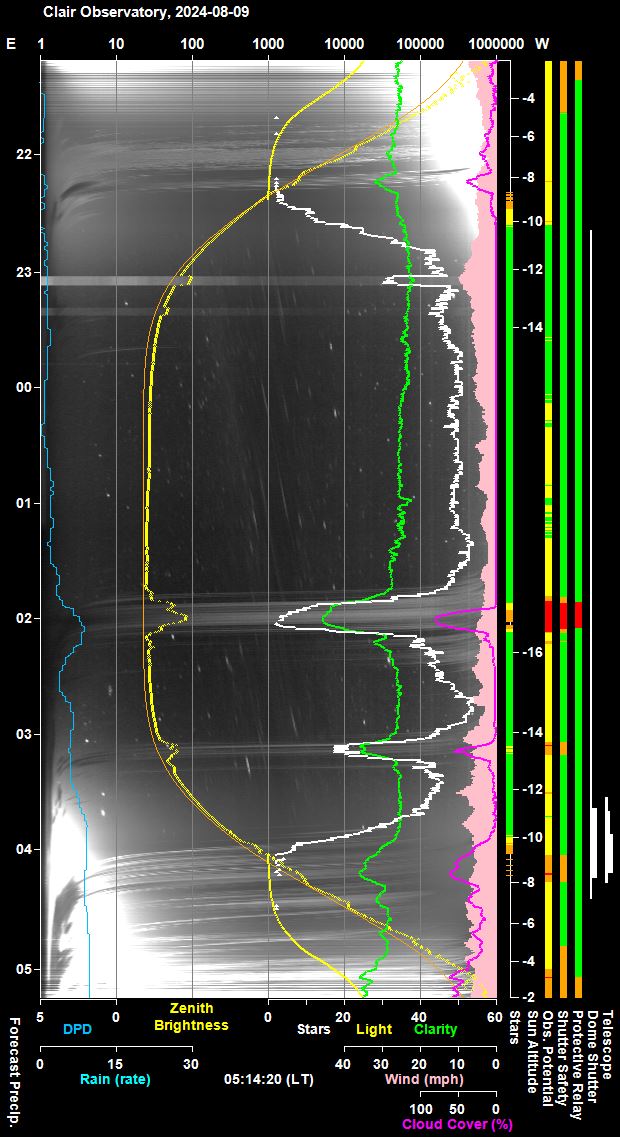

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

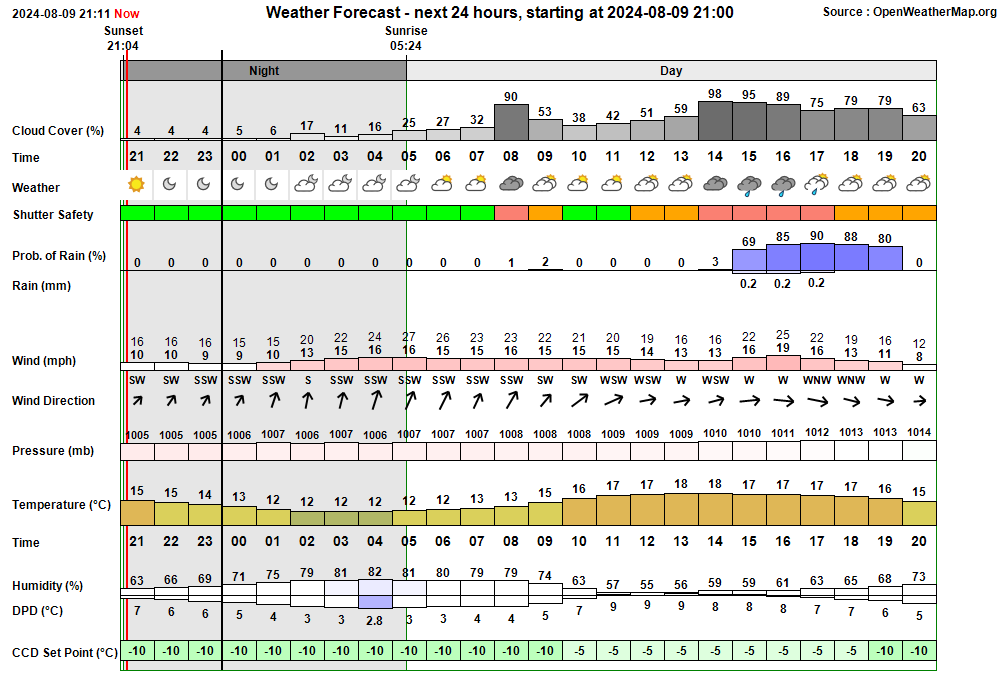

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
22:38:21   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.)
22:38:49   Camera1 Connected SBIG Camera connected (Set point -10°C)
22:38:51 Session Created Session Created (Live, 2024-08-09 S01225, ImageSaveNum: 1225001)
22:38:56   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:40:28   Services Started Observatory Services started
22:40:30 Observatory (Manual) Observatory placed in Manual Mode
03:33:00 User Intervention Useri intervention to connect to scope
03:34:20   Telescope Connected Telescope connected (TheSky6)
03:36:54     Target Started (NrZen) Target started (Focus Field 1, HIP 4911)
03:37:08       Dome Unparked Dome unparked
03:38:47   Dome Opened Dome opened (Opening time 45s, Zigbee 40s)
03:41:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:44:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
03:46:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
03:46:16     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911)
03:52:56     Target Started (1/1) Target started (1/1, C/2022 E2 (ATLAS))
04:05:44     Target Completed Target completed (1/1, C/2022 E2 (ATLAS))
04:10:33     Target Started (1/1) Target started (1/1, 54P/de Vico-Swift-NEAT)
04:11:00   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome)
04:11:40   Dome Closed Dome closed (Closing time 40s, Zigbee 0s)
04:11:45   Shutter Issue Shutter Sensor indicates that shutter hasn't fully closed
04:12:33     Target Failed (1/1) Target failed (1/1, 54P/de Vico-Swift-NEAT) due to centering error
04:12:35   Dome Closed Dome closed (Closing time 15s, Zigbee 11s)
04:13:07 Session Closing Session closing
04:13:09   Dome Closed Dome already closed (closed at 04:12, closing time 15s, zigbee 11s)
04:13:50   Dome Parked Dome parked (parking time 37s), Az: 90.0 deg
04:15:01   Telescope Parked Telescope parked (parking time 64s total)
04:15:16   Telescope State Handbox reads 'Scope parked Turn scope off.'
04:15:38   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
04:17:03   Services Stopped Night Services stopped
04:17:06 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files)
04:17:13     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow)
04:18:14     Dome Find Park found (Best Park Az 90.2°)
04:18:20     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.2°)
04:18:22   Dome Parked Dome parked


Session Alerts & Alarms
Time     Type       Name Detail
22:40:29 Red Alarm Telescope Alert ASCOM Telescope not connnected
22:40:32 Red Alert Observatory Mode Obs.Manager has put Observatory back to manual mode (problem connecting telescope
04:11:45 Red Alert Shutter Shutter Sensor indicates that shutter hasn't fully closed
04:12:40 Green Clear Shutter Shutter Sensor confirms shutter is closed after earlier issue


Back to Top


Operational Issues (2024-08-09 S1225)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top


2024-08-10


Investigation - Telescope Connection Failing during Autostart

Issue

1a) Telescope service failed to connect during Autostart (S1122 2024-08-03 23:17)
1b) Telescope service failed to connect during Autostart (S1124 2024-08-07 22:46)
1c) Telescope service failed to connect during Autostart (S1125 2024-08-09 22:40)

Description
In three recent sessions (S1222, S1224 & S1225) the telescope has failed to connect correctly during AutoStart attempt at the beginning of the session using Start Observatory Services / Start Telescope Service.  In each case the telescope service failed to connect, a red telescope alert was raised with the message "ASCOM Telescope not connected" and the session was prevented from proceeding in Fully Automated Mode and was placed back into Manual Mode.   In sessions S1222 & S1224, the issue was identfied after 5 mins and after 15mins respectively, and a user intervention made to rerun the 'Start Observatory Services' routine and recommence Autostart, and this time the Telescope Service started ok, though with the loss of around 5-10% of the night's observing time.  In session S1125 the issue wasn't noticed until some 5 hour later wasting nearly 95% of the night's observing time.

The issue is ranked as 'Major' due to the potential, and in case of S1125 the actuality,  of loosing an entire night's observing time.

Analysis
AstroMain's log show 'Start  DeviceHub.Scope  - Fail' with message  "Failed to connect (ASCOM.MeadeGeneric.Telescope, 1.3.9.482) . Examining MeadeGeneric log show each case that after making initial connection and bypassing the Date/Time prompts, there is a timeout after around 5s when waiting for responses to :GD (Get Declination) requests to the physical telescope.

SendString        Transmitting #:GD#
SendString        Timed out waiting for received data
Declination Get   Error: Timed out waiting for received data
Connected Set     Error connecting to port COM6 - Timed out waiting for received data

e.g. from S1125

22:39:58.477 SendString Transmitting #:GR#
22:39:59.917 SendString Received 18:46:59#
22:39:59.917 RightAscension Get - 18:46:59 convert to 18.7830555555556 18:46:59
22:39:59.918 AtPark Get - False
22:39:59.918 SendString Transmitting #:GD#
22:40:04.957 SendString Timed out waiting for received data
22:40:04.957 Declination Get Error: Timed out waiting for received data
22:40:05.077 Connected Set Error connecting to port COM6 - Timed out waiting for received data

When a second attempt is made to connect Telescope it is typically successful.
e.g. from S1125

03:33:32.082 SendString Transmitting #:GR#
03:33:32.449 SendString Received 18:43:06#
03:33:32.449 RightAscension Get - 18:43:06 convert to 18.7183333333333 18:43:06
03:33:32.450 AtPark Get - False
03:33:32.450 SendString Transmitting #:GD#
03:33:32.497 SendString Received -29[DF]24:57#
03:33:32.497 Declination Get - -29[DF]24:57 convert to -29.4158333333333 -29:24:57"
03:33:32.497 AtPark Get - False
03:33:32.498 SendString Transmitting #:GA#
03:33:32.528 SendString Received -16[DF]21:31#
03:33:32.528 Altitude -16.3586111111111
03:33:32.528 AtPark Get - False
03:33:32.529 SendString Transmitting #:GZ#
03:33:32.561 SendString Received 240[DF]34:30#
03:33:32.562 Azimuth Get 240.575
03:33:32.562 Connected Set Connected OK. Current RA = 18:43:06 Dec = -29[B0] 24' 57" Az=240.575 Alt=-16.3586111111111

Problem seemed to appear with Session S1122 (2024-08-03) since the issue had been noticed with Session S1121 (2024-05-29) and before.

During a daytime test on 2023-08-10 (day after S1125 session)  the telescope connection was made from the DeviceHub UI  and was successful, however the MeadeGeneric log showed that despite completing successfully, the string response to :GD (Get Declination) took 5.022s to receive and evidentally didn't trigger a timeout at all.

12:24:59.855 SendString Transmitting #:GR#
12:25:00.302 SendString Received 08:34:21#
12:25:00.302 RightAscension Get - 08:34:21 convert to 8.5725 08:34:21
12:25:00.303 AtPark Get - False
12:25:00.303 SendString Transmitting #:GD#
12:25:05.325 SendString Received -29[DF]40:00#
12:25:05.325 Declination Get - -29[DF]40:00 convert to -29.6666666666667 -29:40:00"
12:25:05.326 AtPark Get - False
12:25:05.326 SendString Transmitting #:GA#
12:25:05.373 SendString Received +03[DF]14:05#
12:25:05.373 Altitude 3.23472222222222
12:25:05.374 AtPark Get - False
12:25:05.374 SendString Transmitting #:GZ#
12:25:05.453 SendString Received 180[DF]04:17#
12:25:05.453 Azimuth Get 180.071388888889
12:25:05.453 Connected Set Connected OK. Current RA = 08:34:21 Dec = -29[B0] 40' 00" Az=180.071388888889 Alt=3.23472222222222

Examining logs associated with other successful connections show that a response delay of around 5s is quite common it seems (occur for :GR calls in the two cases below) but fortunately they don't trigger a timeout delay, e.g. :

MeadeGeneric Log (S1221).  Here the telescope connection was successful with the wait for the  :GD (Get Declination) response taking only 0.063s, however it is noted that the response to preceeding :GR (Get RA) took 5.006s (ie is very close to a timeout condition).

23:51:32.324 SendString Transmitting #:GR#
23:51:37.330 SendString Received 20:03:27#
23:51:37.331 RightAscension Get - 20:03:27 convert to 20.0575 20:03:27
23:51:37.331 AtPark Get - False
23:51:37.331 SendString Transmitting #:GD#
23:51:37.394 SendString Received -29[DF]39:55#
23:51:37.394 Declination Get - -29[DF]39:55 convert to -29.6652777777778 -29:39:55"
23:51:37.395 AtPark Get - False
23:51:37.395 SendString Transmitting #:GA#
23:51:37.475 SendString Received +03[DF]14:14#
23:51:37.476 Altitude 3.23722222222222
23:51:37.476 AtPark Get - False
23:51:37.476 SendString Transmitting #:GZ#
23:51:37.522 SendString Received 180[DF]05:45#
23:51:37.522 Azimuth Get 180.095833333333
23:51:37.522 Connected Set Connected OK. Current RA = 20:03:27 Dec = -29[B0] 39' 55" Az=180.095833333333 Alt=3.23722222222222

MeadeGeneric Log (S1223)
Again the telescope connection was successful with the wait for the  :GD (Get Declination) response taking only 0.062s, however it is noted that the response to the preceeding :GR (Get RA) took 5.007s (i.e. very close to a timeout condition).

22:48:15.759 SendString Transmitting #:GR#
22:48:20.766 SendString Received 20:03:27#
22:48:20.767 RightAscension Get - 20:03:27 convert to 20.0575 20:03:27
22:48:20.767 AtPark Get - False
22:48:20.767 SendString Transmitting #:GD#
22:48:20.829 SendString Received -29[DF]39:55#
22:48:20.830 Declination Get - -29[DF]39:55 convert to -29.6652777777778 -29:39:55"
22:48:20.830 AtPark Get - False
22:48:20.830 SendString Transmitting #:GA#
22:48:20.910 SendString Received +03[DF]14:07#
22:48:20.910 Altitude 3.23527777777778
22:48:20.910 AtPark Get - False
22:48:20.910 SendString Transmitting #:GZ#
22:48:20.958 SendString Received 180[DF]05:39#
22:48:20.958 Azimuth Get 180.094166666667
22:48:20.958 Connected Set Connected OK. Current RA = 20:03:27 Dec = -29[B0] 39' 55" Az=180.094166666667 Alt=3.23527777777778

Looking back at a MeadeGeneric log from 2024-03-04, just after 1.3.9 was installed, and I can see a 4.91s wait for the GR (Get RightAscension) call.

18:26:40.810 SendString Transmitting #:GR#
18:26:45.720 SendString Received 20:03:27#
18:26:45.721 RightAscension Get - 20:03:27 convert to 20.0575 20:03:27
18:26:45.721 AtPark Get - False

Looking at a MeadeGeneric log from 2024-01-12, when I was running 1.3.5, it is harder / impossible(?) to calculate the wait times as it doesn't contain the 'SendString Transmitting' and 'SendString Transmitting' messages, that logs from 1.3.9 have.

So although wait times of 4.9 - 5.022s have been associated with telescope connections during sessions between 2023-03-02 and 2023-05-29, its only sessions since 2024-08-03 (post-summer hiatus) (have 3 out of 4 sessions produce these timeout / connection failures.

I've now implemented a workaround fix, whereby my client program automatically makes up to 3 attempts to get a successful telescope connection before it gets up. This fix was successfully employed last night - the 1st attempt failed in the manner described above, the automatic 2nd attempt succeeded and the session ran the whole night.

Conclusion

Actions:

Update 2024-08-10
A daytime test of 3.69.2 was made,  during Connect Telescope Services, the first attempt failed but the new code automatically made a second attempt which was successful.

Meade Generic logs show that the first connection attempt failed due to a timeout on SendString :GR (Get RightAscension) showing that (as suspected) timeouts can happen on other strings (not just :GD)

16:02:38.450 SendString Transmitting #:GR#
16:02:43.473 SendString Timed out waiting for received data
16:02:43.473 RightAscension Get Error: Timed out waiting for received data
16:02:43.592 Connected Set Error connecting to port COM6 - Timed out waiting for received data
16:02:44.109 Connected Get False

whilst the automated second attempt succeeded:

16:02:55.909 SendString Transmitting #:GR#
16:02:55.956 SendString Received 12:12:33#
16:02:55.956 RightAscension Get - 12:12:33 convert to 12.2091666666667 12:12:33
16:02:55.957 AtPark Get - False
16:02:55.957 SendString Transmitting #:GD#
16:02:56.004 SendString Received -29[DF]40:05#
16:02:56.004 Declination Get - -29[DF]40:05 convert to -29.6680555555556 -29:40:05"
16:02:56.004 AtPark Get - False
16:02:56.005 SendString Transmitting #:GA#
16:02:56.052 SendString Received +03[DF]13:58#
16:02:56.052 Altitude 3.23277777777778
16:02:56.052 AtPark Get - False
16:02:56.052 SendString Transmitting #:GZ#
16:02:56.100 SendString Received 180[DF]08:00#
16:02:56.100 Azimuth Get 180.133333333333
16:02:56.100 Connected Set Connected OK. Current RA = 12:12:33 Dec = -29[B0] 40' 05" Az=180.133333333333 Alt=3.23277777777778
16:02:56.612 Connected Get True

Tracing shows that the error in first attempt doesn't thrown an exception to the client, but it results in Get property Scope.Connected = False

Update 2024-08-11
A workaround fix has been implemented in AstroMain 3.69.2, whereby the client program now automatically makes up to 3 attempts to get a successful telescope connection before it gives up.  This fix was successfully employed last night (2024-08-10) - the 1st attempt failed in the manner described above, but the automatically applied 2nd attempt succeeded and the session successfully ran the whole night.
