Introduction

"Vma_Program" is a hypertext application (hta) than runs Visual Basic scripts to analyses batches of FITS images and measures the magnitude brightness of variable stars at one or more filter bands.

The program accesses a pre-prepared Reference File which lists the variable stars under analysis, together with their reference stars, and then uses 'TheSky' & 'CCDSoft' (Software Bisque) to locate the position of the Variable & Reference Stars in each image and measure magnitudes. Results are written to a tab delimited file which can be easily imported into Excel.

Back to Top

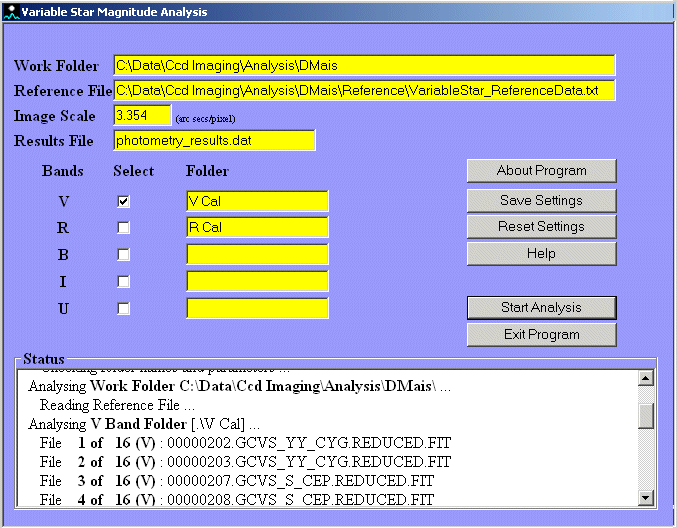

Screen Shot

Back to Top

Program Details

********************************************************************
VARIABLE STAR MAGNITUDE ANALYSIS


===================================================================
PRODUCT INFORMATION

Name : Variable Star Magnitude Analysis

;* Program : vma_Application.hta
Version : 1.2
Build : Build A (for CCDSoft 5.00.99) &
Build : Build B (for CCDSoft 5.00.77)
Date : 2003-05-13

Language : Html/hta and Visual Basic Script
Author : David Richards, Dorset, UK (2003)
Email :
WebSite : http://www.richweb.f9.co.uk/astro

Info : vma_readme.txt
Online : http://www.richweb.f9.co.uk/astro/vma_program.htm

Files : vma_Application.hta - Main Application (HTA)
vma_Scripts.vb - Analysis routines/Scripts (VB)
vma_Support.vb - Support routines (VB)
vma_Setup.ini - Saved Settings
vma_Icon.bmp - Program icon
vma_Readme.txt - Readme file
vma_Log.log - Logfile file
example_reference_data.txt - Example Reference File
example_photometry_results.dat - Example Tab-delimited Results File

Calls CCDSoft & TheSky (Software Bisque)

Testing : Build A has been tested with TheSky 5.00.100,
CCDSoft 5.00.99 & Internet Explorer 6 on a 700 MHz
Laptop running Windows XP Home.

Build B has not been explicitly tested, but should work based on
earlier versions and the single code line change involved.
********************************************************************
INSTALLATION

1) Open ZIPPED file and extract files to a folder of your choice
use either "vma_program_1.2_BuildA_for_CCDSoft5.00.99.zip"
or "vma_program_1.2_BuildB_for_CCDSoft5.00.77.zip"
2) Read notes in "README" file
3) Install Windows Script Host (vn 5) if required
To install the latest version of Microsoft Windows Script Host (WSH),
go to Microsoft Windows Script Host [http://msdn.microsoft.com/scripting/]
> Windows Scripting Host > Downloads.
Follow the installation instructions.
Alternatively, run ste50en.exe from the "Orchestrate" folder.
4) Copy "REFERENCE_DATA" file and edit to insert details of variables
star targets, along with corresponding C,K Reference Stars + Mags
(* Be careful not to change format /columns positions in the Reference file)
********************************************************************
OPERATION

1) Create a WORK FOLDER and place reduced FIT files into appropriate
subfolders, one BAND SUBFOLDER for each filter band (eg V Cal, R Cal)
2) Check that REFERENCE DATA file includes the Variables Stars you wish to analyse
and that Reference Star details and magnitudes are correct
3) RUN program "vma_Application.hta"
It should run ok whether TheSky & CCDSoft are already open or not
(You might need to relax Internet Explorer Security settings)
4) EDIT the following fields as required
Work Folder - Full pathname for Parent Folder
(this is the folder that will contain Band Subfolders
and where results will be placed)
Reference File - Full pathname to reference file with C,K Stars, Mags etc
Image Scale - in arc sec/pixel (e.g. 3.354)
Results File - name of file for results (filepath not required)
V - Checkbox and name of V Band Subfolder
R - Checkbox and name of R Band Subfolder if used
B - Checkbox and name of B Band Subfolder if used
I - Checkbox and name of I Band Subfolder if used
U - Checkbox and name of U Band Subfolder if used

5) Click on SAVE button to save your settings ready for next time
6) Click on START ANALYSIS button
7) Check LOG file on first run and whenever problems are reported
Most likely problems relate to a mistyped name in Reference File or
problem extracting a variable magnitude due to inaccurate catalog position
for the variable. Insert equivalent GSC or SAO star name as V_AltName
in the Reference File to overcome this problem (1 in 4 stars need this).
Then rerun script
(Note that new result/logs are appended to RESULTS and LOG files.
Delete these files manually to start'clean'.
8) Locate RESULTS file"in Work Folder and import into EXCEL or other application
(file is Tab-delimited to aid this task)
9) Compare results with those expected
Consider whether any refinements to parameter values in
CCDSoft's Source Extraction setup are required or not

********************************************************************
NOTES (MagVarAnalysis)

1)The Format of the SETUP and REFERENCE DATA files should not be changed.
Doing so could cause the program to stop working correctly or crash.

2)The catalog positions of certain GCVS variable stars are inaccurate
and for these stars the script cannot directly take a magnitude reading.
This problem is easily solved by defining the star's GSC or SAO equivalent
name in the REFERENCE DATA file. This allows the script to use more
accurate position coordinates

3)The script will automatically InsertWCS into analysed FITS images,
so this could be a step that could be dropped from regular processing

4)The MagVarAnalysis PROGRAM CODE (HTA and VB) is part of a larger program
code set and most non-required subroutines have been removed from this
code subset. Certain references to these removed routines may remain in
the code, but testing shows that these shouldn't effect program execution.

Similarly there are certain program variables, objects and constants
which are defined in code headings, but are not actually used.

' ********************************************************************
NOTES (Telescope Operation)

1)When using the full script for unattended telescope control and image
acquisition you should be aware of potential risks to equipment and
telescope. (Please see disclainer below)

You are advised to only operate these scripts unattended when you are
completely familiar with the working's of these scripts and
their operation with your scope / your setup / your versions TheSky/CCDSoft

2)Image acquisition and telescope control (routines within full
script version have been developed and tested on the author's own
non-HPP LX200 Scope / ST7e camera.

********************************************************************
CODE DEVELOPMENT, FIXES AND ENHANCEMENTS

2003-05-13 Release of version 1.2 (Build B). As per Build A, but works with
older version of (CCDSoft 5.00.77)
(uses 'Image.Scale' instead of 'Image.ScaleInArcsecondsPerPixel')

2003-05-13 Release of version 1.2 (Build A), with bug fixes and more robust
interface and improved data validation. Works with CCDSoft 5.00.99

Enhancements : - Extraction and output of AIRMASS from Fits Header
Updates : - Updates to make code compatible with CCDSoft 5.00.99
- Image.Scale changed to Image.ScaleInArcsecondsPerPixel
Bug fixes : - Check boxes now turn on/off the analysis of specific bands
- Analysis can now be repeated without error message

2003-02-12 Release of version 1.1 with revised inteface using HTA
(Hypertext Application) and including support for additional
bands U, B, I) and multiple variables star analysis per CCD frame

Code tested against CCDSoft 5.00.75 beta, TheSky 5.00.40 beta
and Internet Explorer 6

2003-01-24 Release of "Variable Star magnitude analysis" code subset (1.0)
for appraisal by Dale Mais, San Diego, CA.
2003-01-23: Code review and modification to DMais routines using
V & R FITS files supplied by D.Mais
2003-01-04 Development of Variable Star Magnitude Analysis scripts
2002-11-01 First code concepts using Visual Basic scripting of CCD and Telescope
operation using TheSky and CCDSoft

*********************************************************************
PROGRAM USE

1)The Script may be freely used by fellow amateur astonomers,
(feedback via email address listed above would be very much appreciated)
2)Script components may be modified or incorporated into your own script,
but not distributed without express permission of this author and not
without full acknowledgement
3)The Script must not be used for any form of commercial use or gain

*********************************************************************
ACKNOWLEDGEMENTS

1)Some of the initial insights into creating VB scripts to control
Telescope and CCD Camera, came from code examples from Software Bisque
Original code from Software Bisque has been significantly amended/extended
and is not considered to infringe Copyright.

2)Script functionality was widened through communications and discussions
with a number of people, including Dale Mais

*********************************************************************
DISCLAIMER

Telescopes do not have an unlimited range of movement. The type of
telescope, type of mount, and size and position of accessories can
prevent it pointing in certain directions. If the telescope is forced
past these points, the telescope, it's mounting or accessories (such as
an attached CCD Camera) might be damaged.

Whilst this script operates with TheSky (which includes a "limit line"
feature to specify inaccessible positions) and has some independent safety
features, any telescope could run past its mechanical limits through
accident or carelessness or component failure. With unattended
operation and the dependance on correct content and formatting of user
supplied target data, the potential risk is higher still.

The author (David Richards) therefore cannot be responsible for any
damage to any telescope or equipment that occurs when using this script
or any modifed derivative.

*********************************************************************

Back to Top
