David's Astronomy Pages (All Sky Camera) Aurora on night  2016-10-02 /  2016-10-03

Aurora  2016-10-01

All Sky Images

Home Page

Aurora 2016-10-24

Aurora	Notes
Pictures Videos Summary Plot Magnetometer Stack Plots (for reference)	- Weak aurora display close to northern horizon  appearing to peak around 20:00h UT (21:00h BST).  - Display affected by passing clouds,  and clouds in NW Sky lit up by reflection from light pollution in nearby town.

Pictures

Panoramic View - Northern Sky

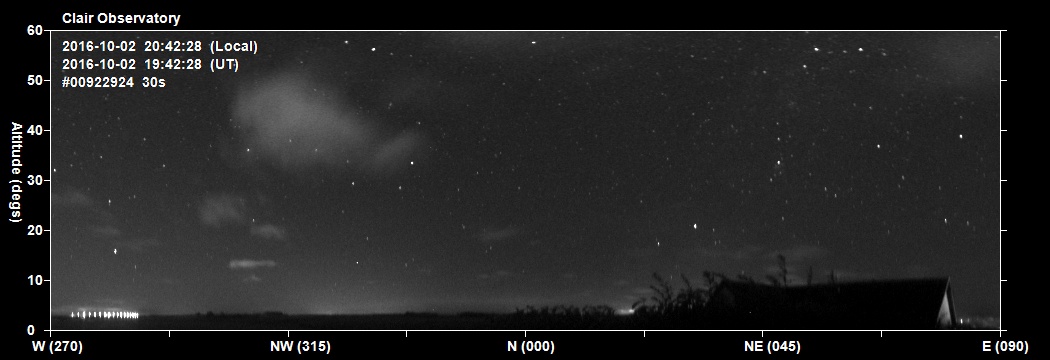

Aurora - 2016-10-02 19:42h UT (20:42h BST). Image #922924

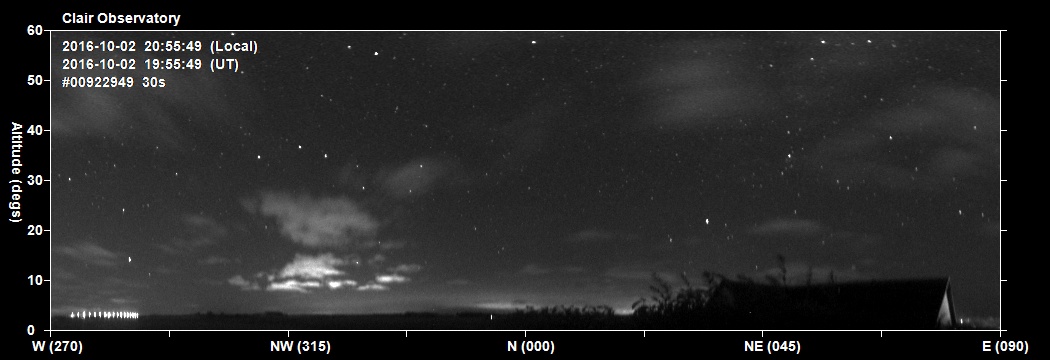

Aurora - 2016-10-02 19:55h UT (20:55h BST). Image #922949

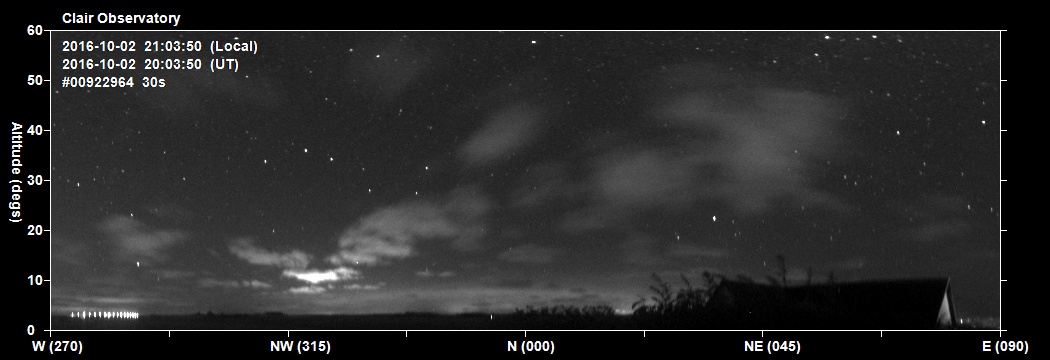

Aurora - 2016-10-02 20:03h UT (21:03h BST). Image #922964

Panorama views of northern sky converted from original fish eye images 30s exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

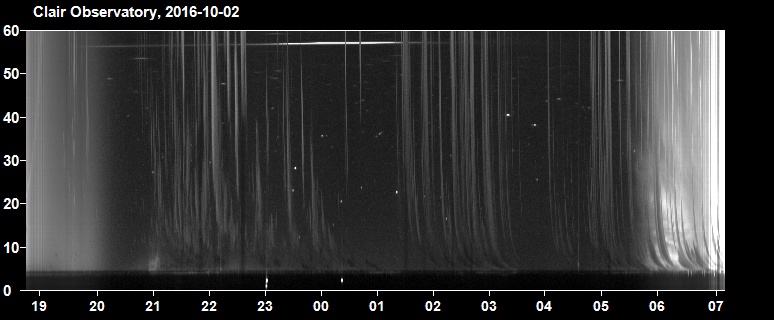

Night Summary Plot

Night Summary Plot - North Sky (2016-10-02 / 2016-10-03) Times on plot are local BST times (= UT time + 1 hour)

Back to Top

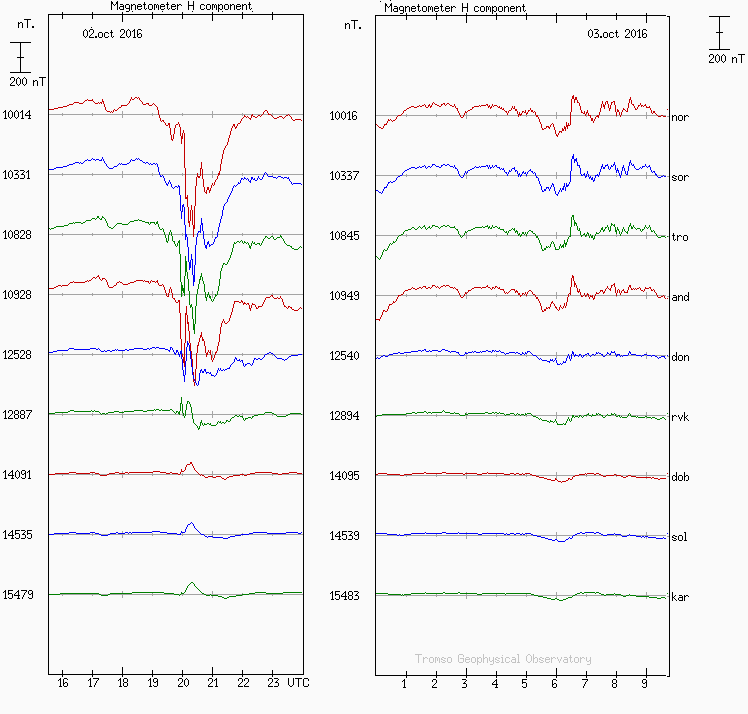

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2016-10-02 / 2016-10-03 Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers). Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top
