Aurora on night  2016-11-24 /  2016-11-25

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
- Aurora display between 20:50 and ~02:00h UT (GMT), peaking around 00:30h UT (GMT). (Kp4 event).  Auroral rays reaching to 20-25 deg altitude.
 - No sign of later activity (Kp5 event) at ~ 06:00 (cloud ?)

Pictures

Panoramic View - Northern Sky
Satellite (Iridium) Flare - 2016-11-24 18:37h UT (GMT). Image #992773

Aurora - 2016-11-24 21:00h UT (GMT). Image #993042

Aurora - 2016-11-24 21:36h UT (GMT). Image #993110

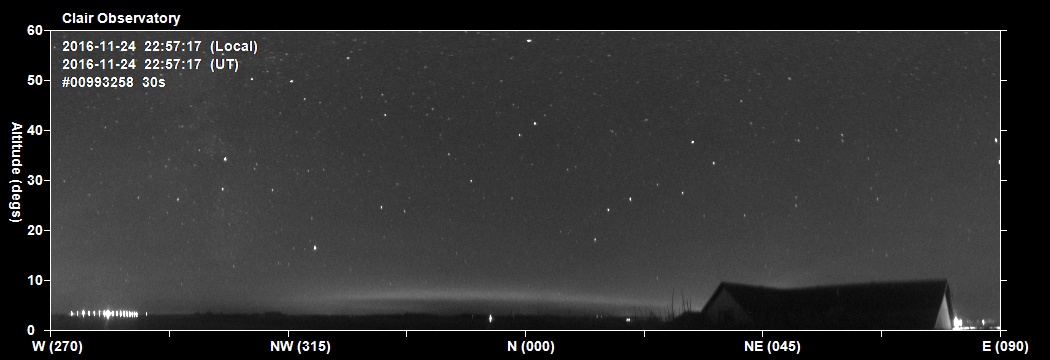

Aurora - 2016-11-24 22:57h UT (GMT). Image #993258

Aurora - 2016-11-25 00:19h UT (GMT). Image #993412

Aurora - 2016-11-25 00:32h UT (GMT). Image #993436

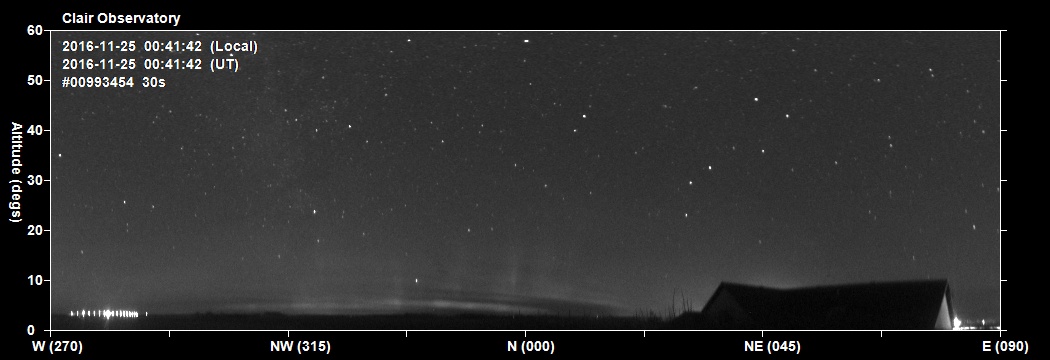

Aurora - 2016-11-25 00:41h UT (GMT). Image #993454

Aurora & Clouds - 2016-11-25 01:53h UT (GMT). Image #993588

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 6.5 hour period
2016-11-24 20:30h to 2016-11-25 03:00h UT (GMT), Frames 992984-993715.
Link to .mp4 video file (4.6 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

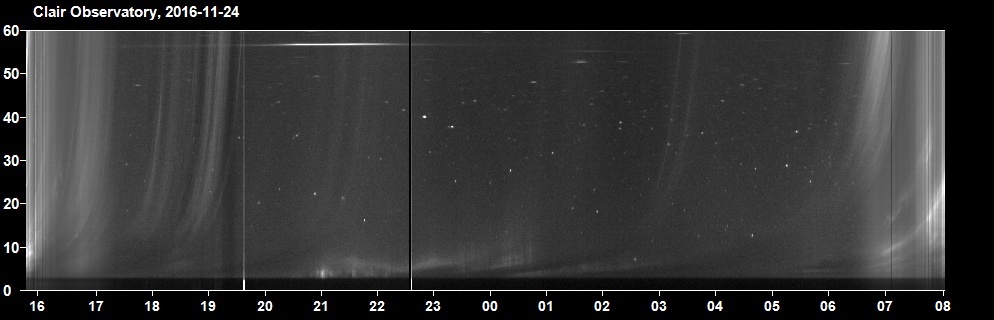

Night Summary Plot - North Sky (2016-11-24 / 2016-11-25)
Times on plot are local GMT times (= UT time)

Back to Top


Magnetometer Stack Plots (for reference)

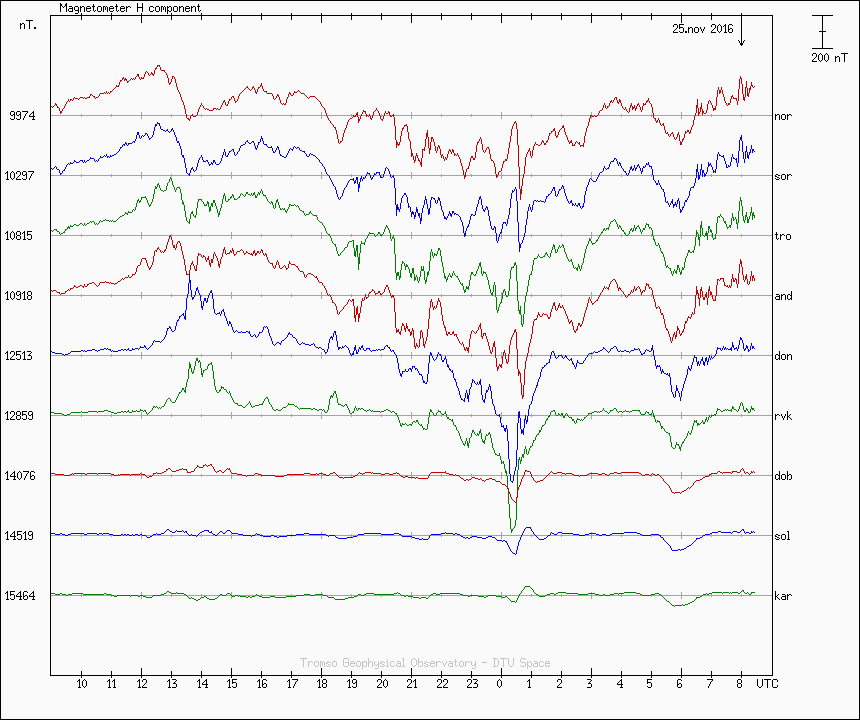

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-11-24 / 2016-11-25
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

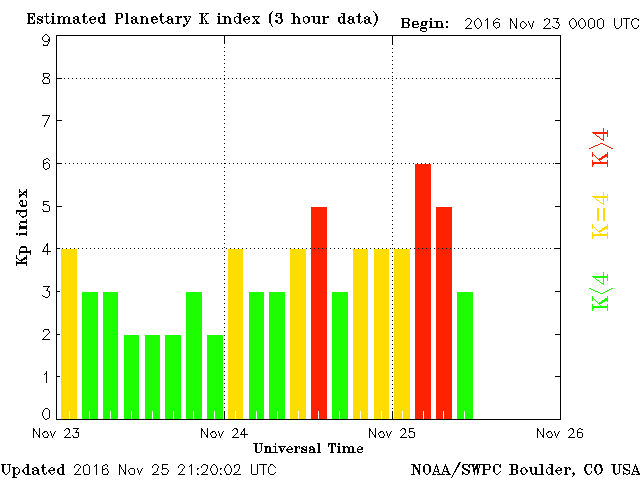

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
