David's Astronomy Pages (All Sky Camera)
Aurora on night  2016-12-21 /  2016-12-22

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
- Aurora display between 18:55 and 21:20h UT (GMT), peaking around 20:50h UT (GMT). (~ Kp4 event).  Auroral rays reaching to 20-25 deg altitude.
 - Some sign of later activity at ~ 02:15-02:45, partly hidden by cloud

Pictures

Panoramic View - Northern Sky
Aurora - 2016-12-21 19:15h UT (GMT). Image #1043411

Aurora - 2016-12-21 19:40h UT (GMT). Image #1043458

Aurora - 2016-12-21 20:20h UT (GMT). Image #1043533

Aurora - 2016-12-21 20:49h UT (GMT). Image #1043587

Aurora - 2016-12-21 20:56h UT (GMT). Image #1043600

Later Faint Aurora - 2016-12-22 02:17h UT (GMT). Image #1044201

Panorama views of northern sky converted from original fish eye images
30s exposures taken with Oculus All Sky Camera


Back to Top


 Videos

Video: North panoramic view, 9.5 hour period
2016-12-21 18:30h to 2016-12-22 04:00h UT (GMT), Frames 1043329-104392
Link to .mp4 video file (6.5 MB)
0.0s / 0.0s

Back to Top

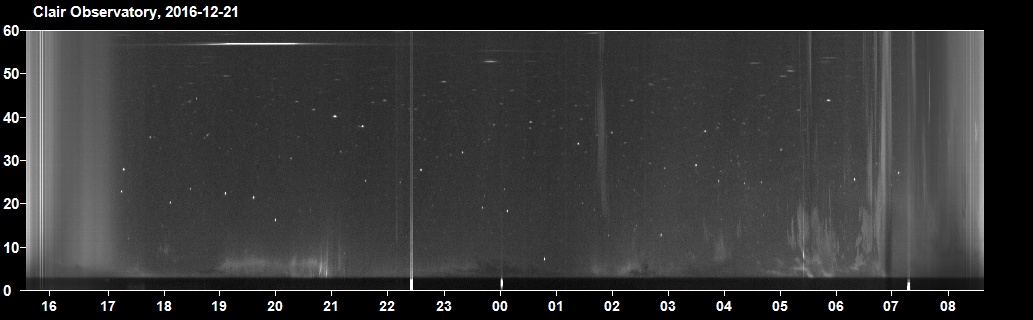

Night Summary Plot

Night Summary Plot - North Sky (2016-12-21 / 2016-12-22)
Times on plot are local GMT times (= UT time)

Back to Top

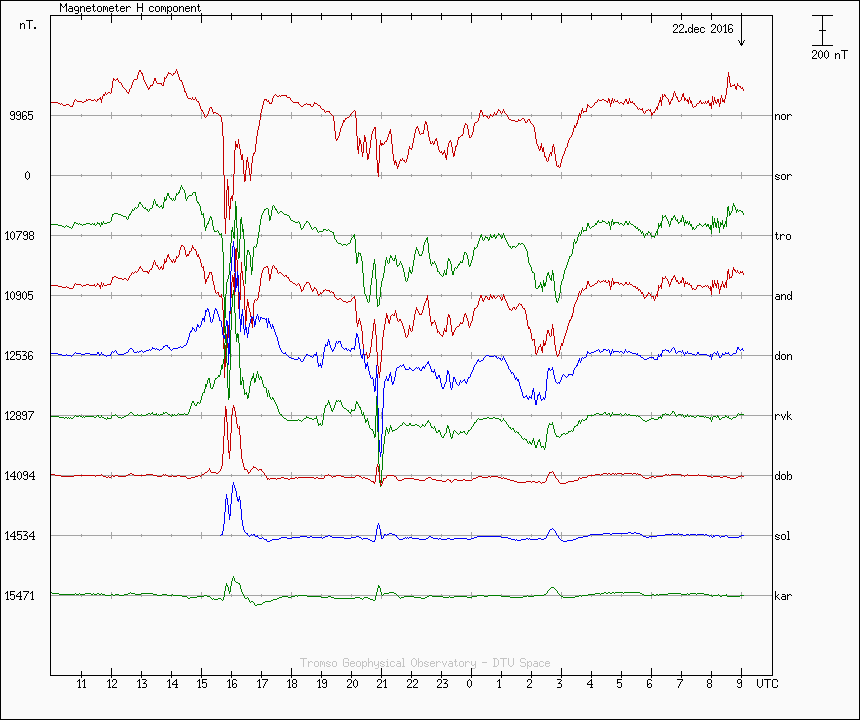

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2016-12-21 / 2016-12-22
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

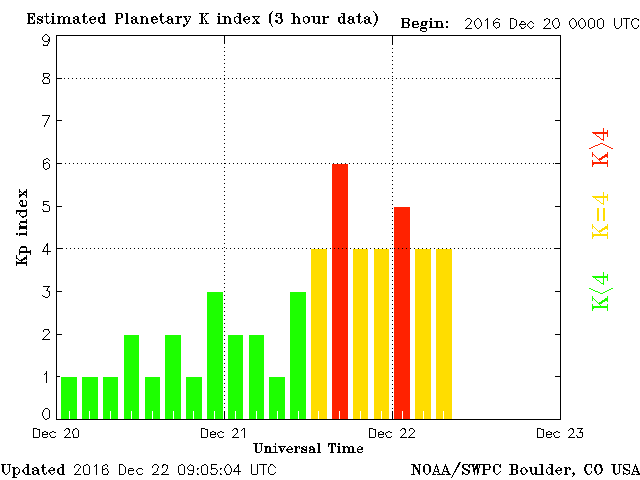

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
