Aurora on night  2021-01-11 /  2021-01-12

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora display in NE Scotland
- Activity observed from 21:33 to 22:15 hUT before cloud occuled further views
- Peak of activity (Kp4) at ~21:10

- Activity at around 01:20 not visible due to cloud.

- Telescope Images from 2021-01-11 >>

Pictures

Panoramic View - Northern Sky

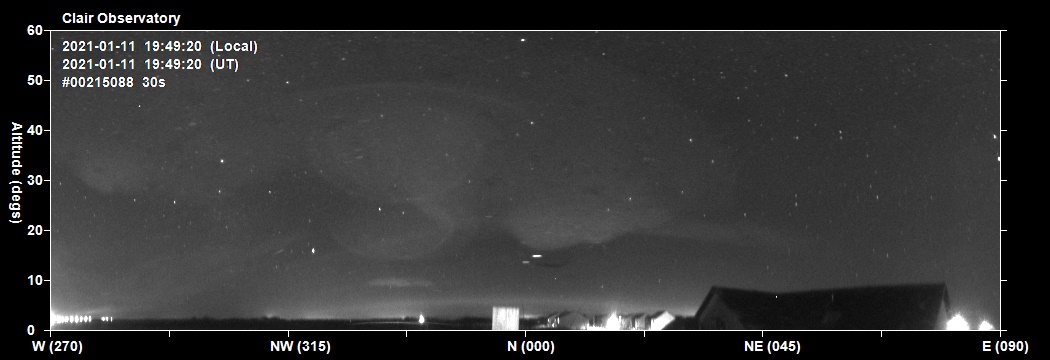

2021-01-11 19:49h UT (GMT)
Aurora are developing on N horizon + artifacts from nearby security lighting

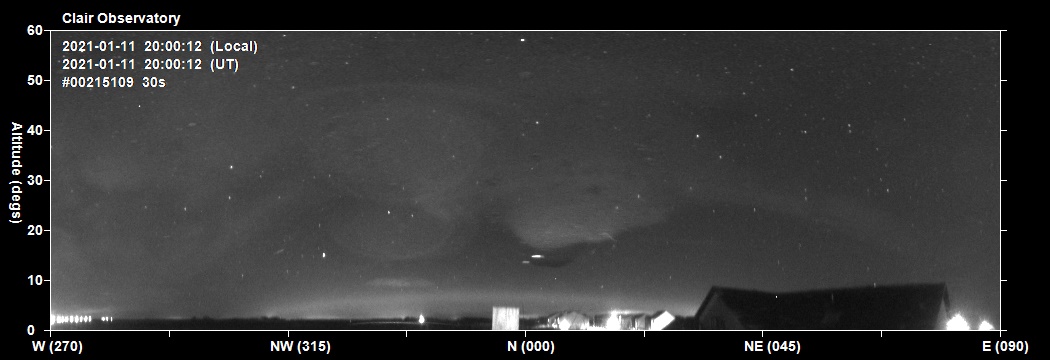

2021-01-11 20:00h UT (GMT)
Arc brightening  + artifacts from nearby security lighting

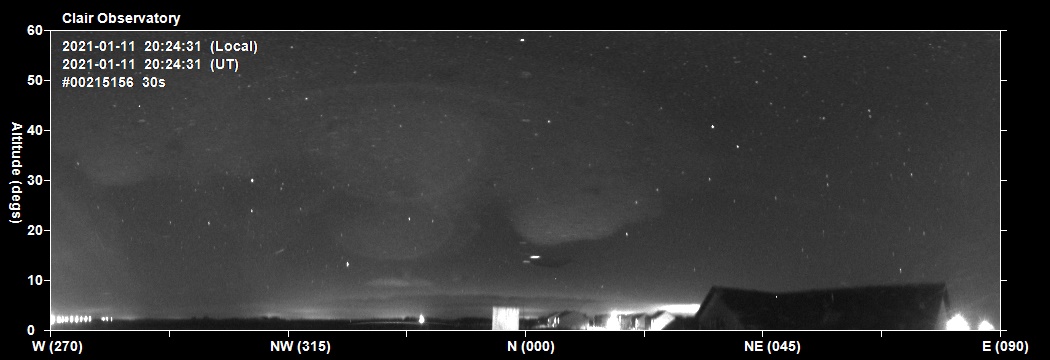

2021-01-11 20:24h UT (GMT)
Arc partially hidden by distant clouds + artifacts from nearby security lighting

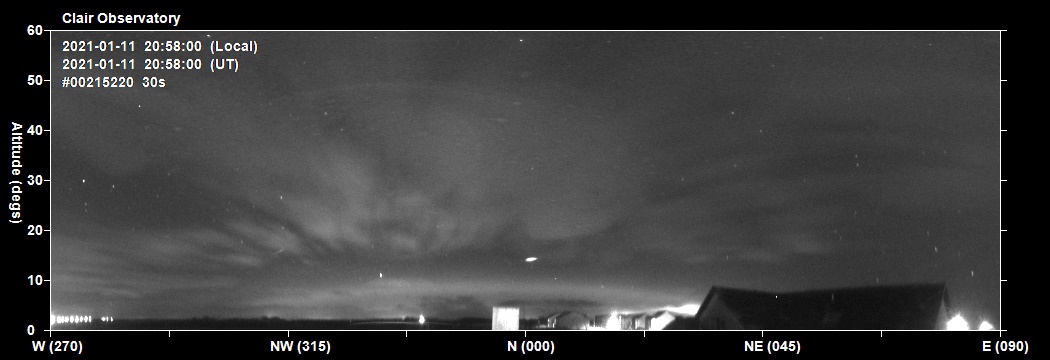

2021-01-11 20:58h UT (GMT)
Arc brightening and increasing in altitude. With Clouds + artifacts from nearby security lights

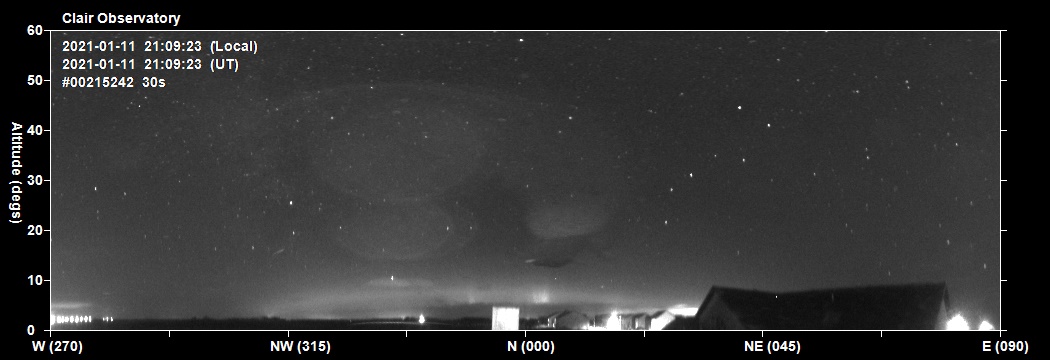

2021-01-11 21:09h UT (GMT)
Arc with moving curtain/rays + artifacts from nearby security lights

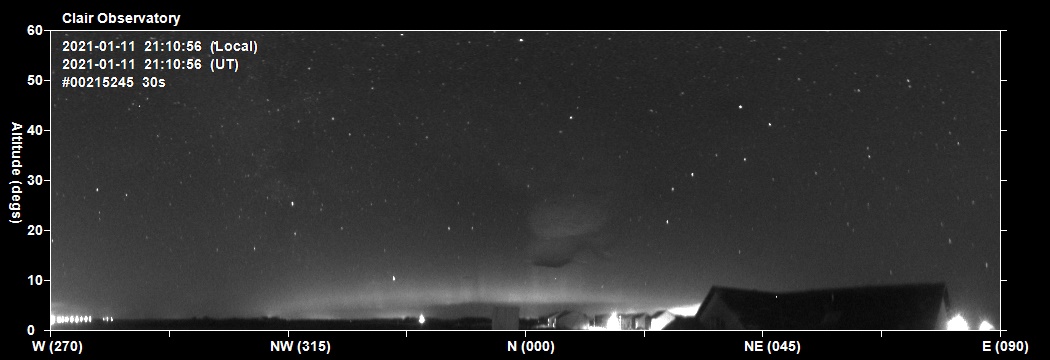

2021-01-11 21:10h UT (GMT)
Arc with auroral rays along northern horizon

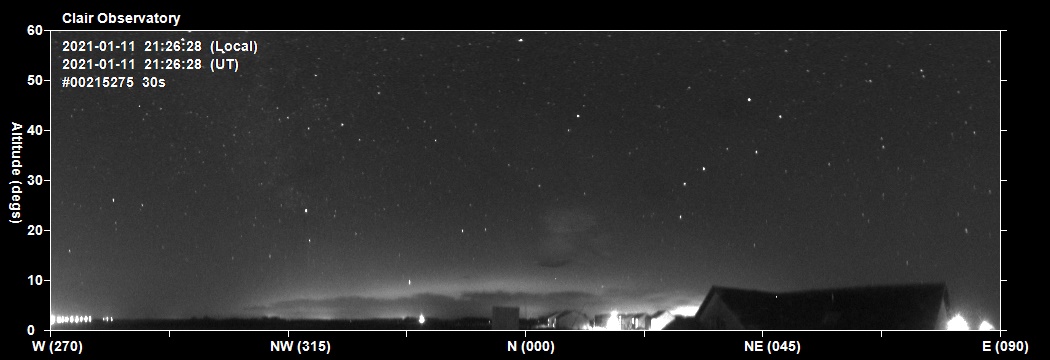

2021-01-11 21:26h UT (GMT)
Aurora partially hidden by foreground clouds.

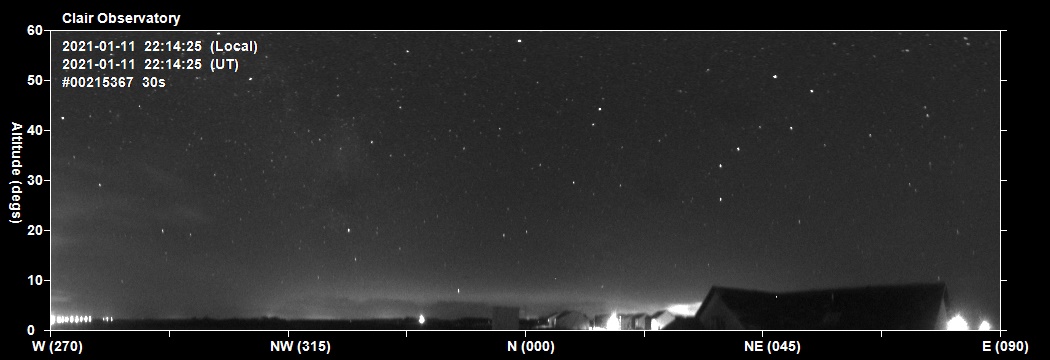

2021-01-11 22:14 UT (GMT)
Auroal arc receeding


30s exposure taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 3 hour period
2021-01-11 19:30 to 22:30 UT (GMT), Frames #215051-398
Link to .mp4 video file (3.7 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

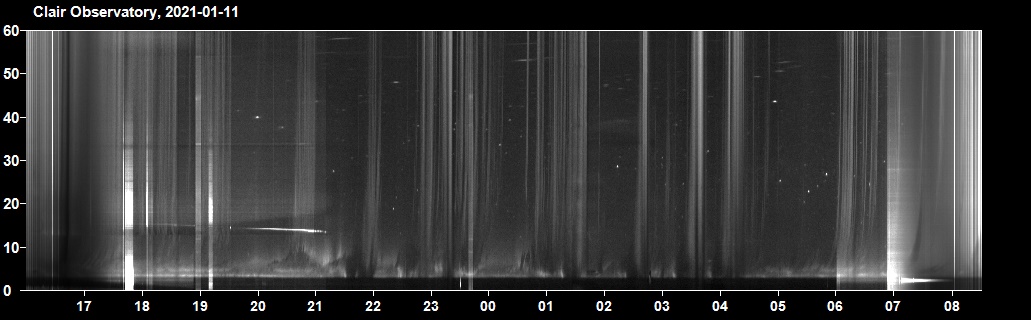

Night Summary Plot - North Sky (2021-01-11 / 2021-01-12)
Times on plot are local GMT times (= UT time)
Whiteouts in image are due a security light at a nearby building site

Back to Top


Magnetometer Stack Plots (for reference)

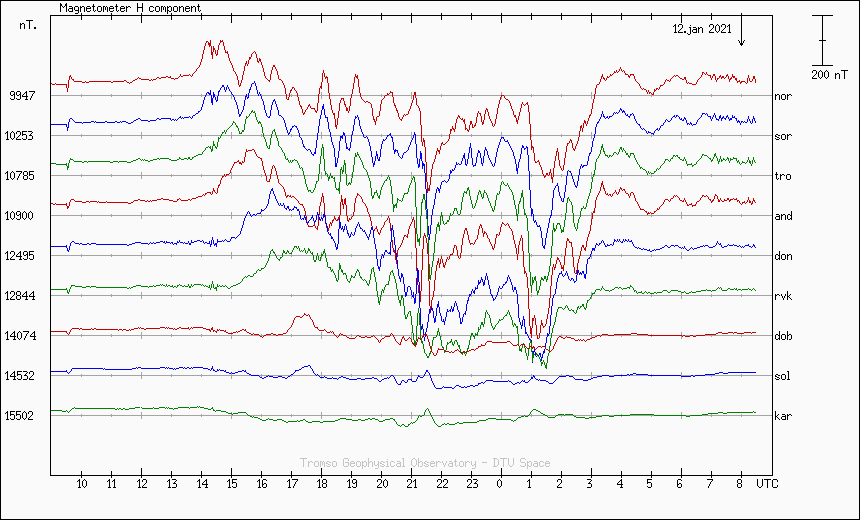

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2021-01-11 / 2021-01-12
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

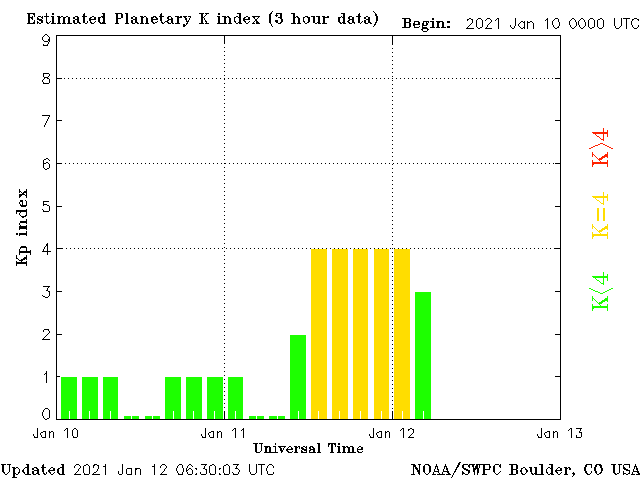

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

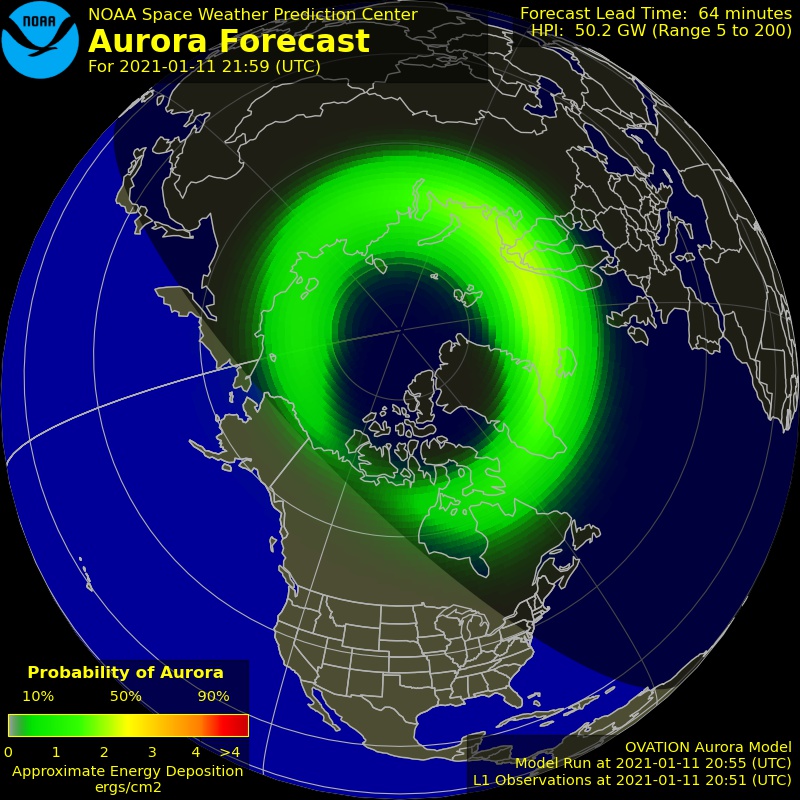

Aurora Forecast at 2021-01-11 21:00h UT for 22:00hUT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
