Aurora on night  2021-02-20 /  2021-02-21

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora display in Northern Scotland with activity observed from 23:13 to 02:10hUT before cloud occuled further views (Kp4). Peak of activity at 00:52-00:55

Activity at around 01:20 not visible due to cloud.
-
-

Pictures

Panoramic View - Northern Sky

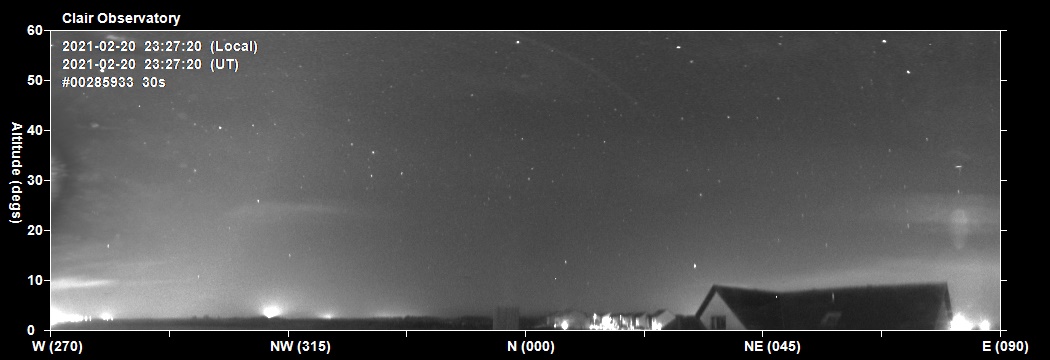

2021-02-20 23:27 UT (GMT)
Faint auroral rays at due north position, better seen in video where rays are moving along N. horizon.
Somewhat lost in the bright moonlit sky.

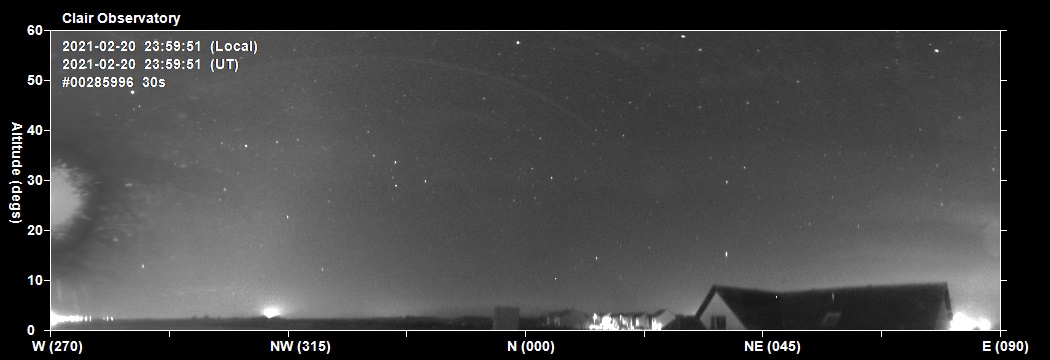

2021-02-20 23:59 UT (GMT)
Faint auroral arc low down on N. horizon.
Bright moon lit sky, masked Moon moving into view on left hand side of image

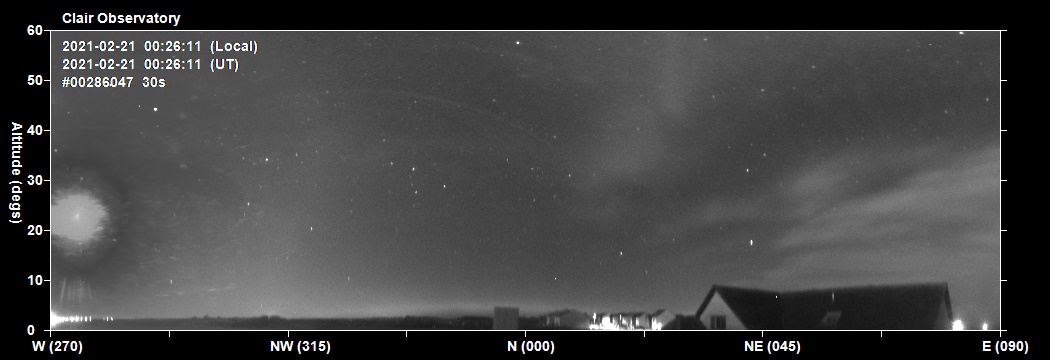

2021-02-21 00:26 UT (GMT)
Auroral arc brightening.   Bright moon lit sky.

2021-02-21 00:52 UT (GMT)
Auroral arc with brighter regions showing increased activity. Bright moon lit sky.

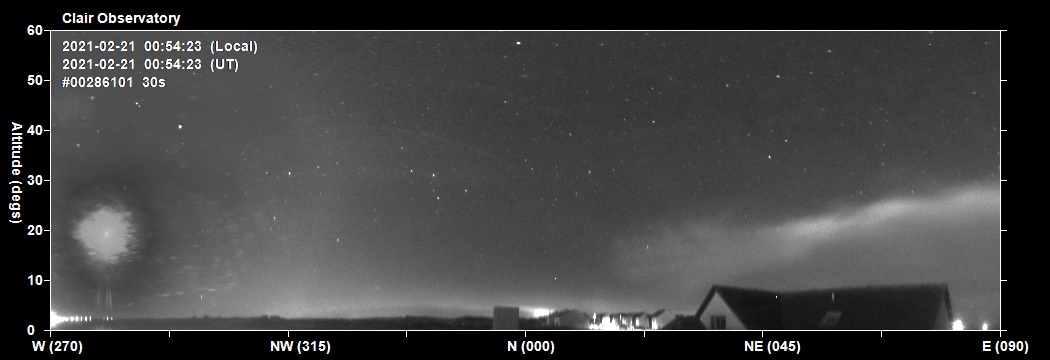

2021-02-21 00:54 UT (GMT)
Double Arc with bright area of activity just east of N.

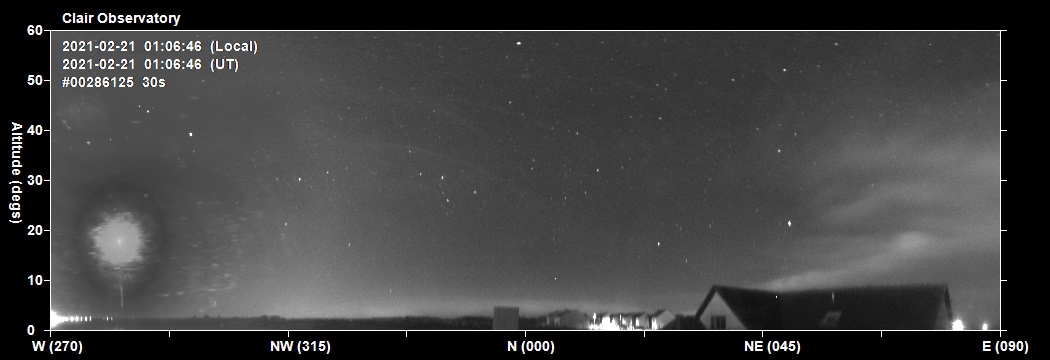

2021-02-21 01:06 UT (GMT)
Auroral arc with rays moving along northern horizon (best seen in video)

2021-01-11 21:26h UT (GMT)
Bright ray moving along N. horizon. Bright moon lit sky. Clouds developing


30s exposure taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 3 hour period
2021-02-20 23:10 to 2021-02-21 02:10 UT (GMT), Frames #285901-286248
Link to .mp4 video file (3.7 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

Night Summary Plot - North Sky (2021-02-20 / 2021-02-21)
Times on plot are local GMT times (= UT time)

Back to Top


Magnetometer Stack Plots (for reference)

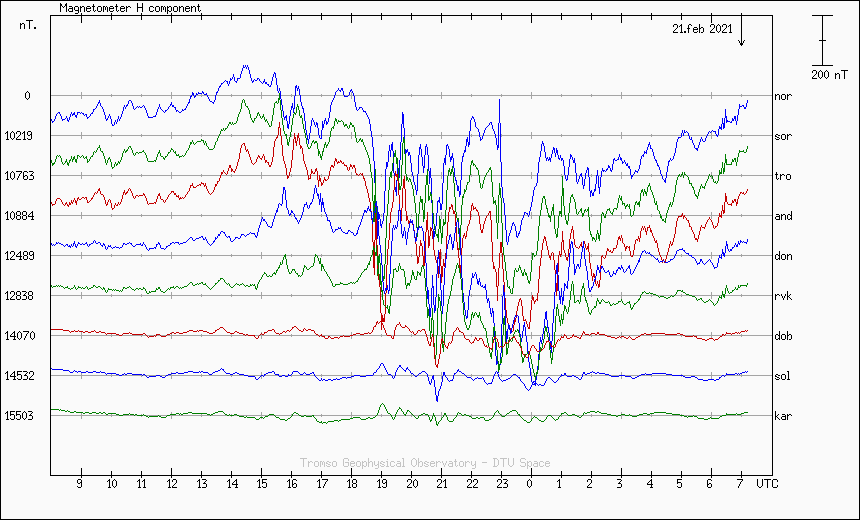

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2021-02-20 / 2021-02-21
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

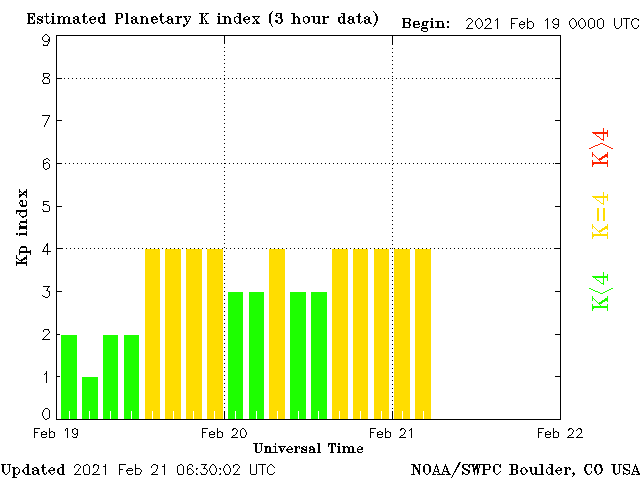

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

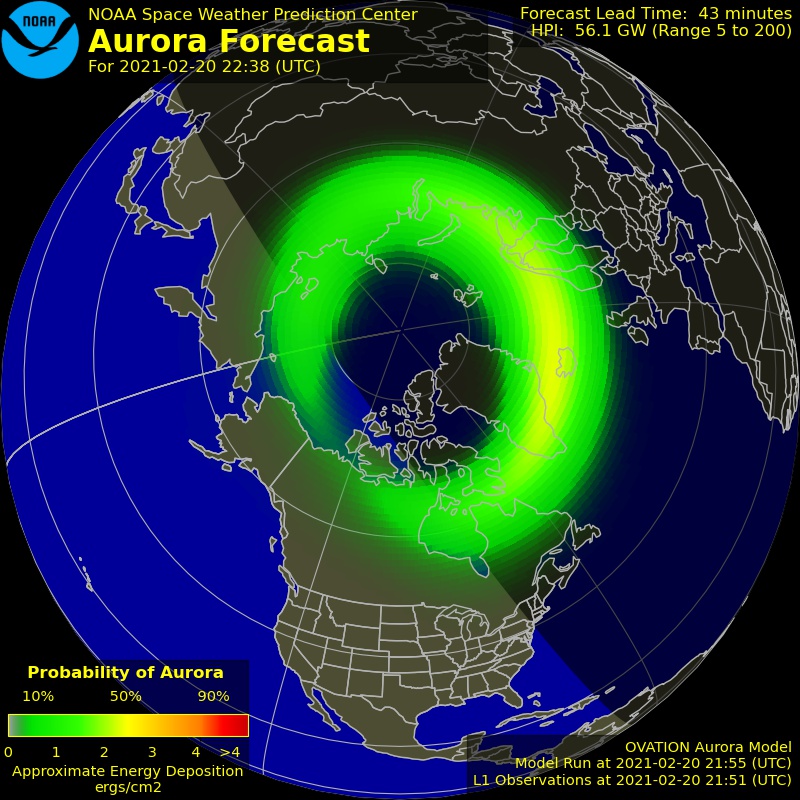

Aurora Forecast at 2021-02-20 22:00h UT for 22:38hUT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
