Aurora on night  2021-10-30 /  2021-10-31

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora display visible from NE Scotland
- Activity observed from 21:55 to 02:10 UT
- Peak activity (kp4) at 22:20 to 22:35 UT  (23:20 to 23:35  LT)
-
- Telescope Images from 2021-10-30 >>

Pictures

Panoramic View - Northern Sky
2021-10-30 21:56 UT
First faint indications of auroral activity. Faint arc developing in northern sky

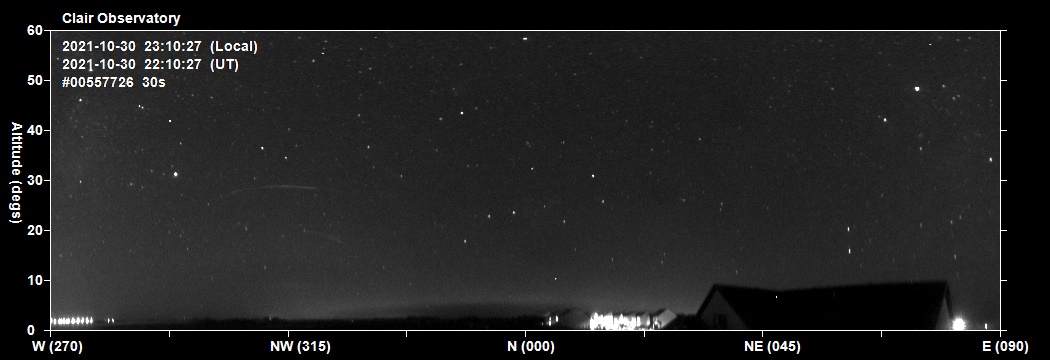

2021-10-30 22:10 UT
Faint auroral arc developing

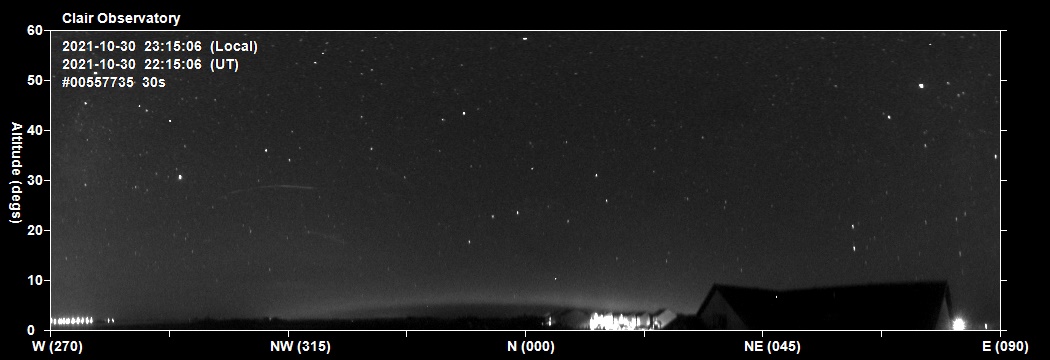

2021-10-30 22:15 UT
Auroral arc brightening.

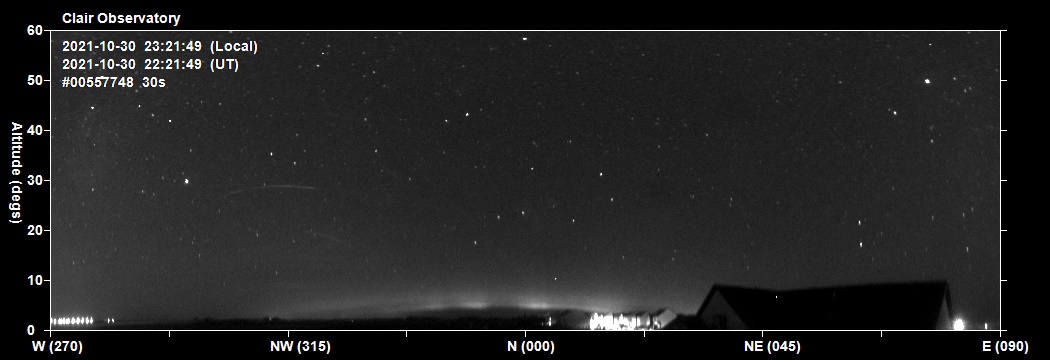

2021-10-30 22:21 UT
Activity increasing

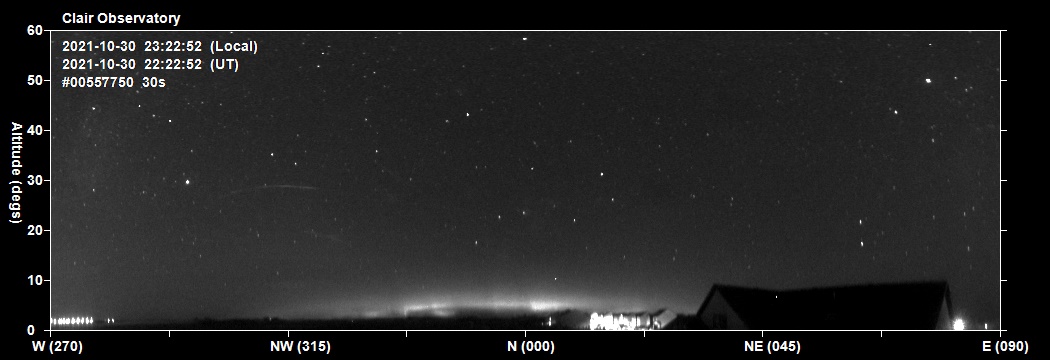

2021-10-30 22:22 UT
Activity building towards a peak

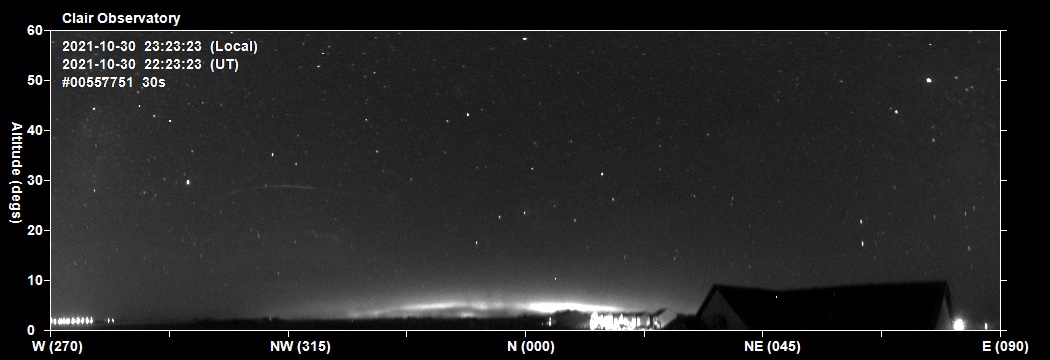

2021-10-30 22:23 UT
Bright aurora but still close to horizon, movements fast

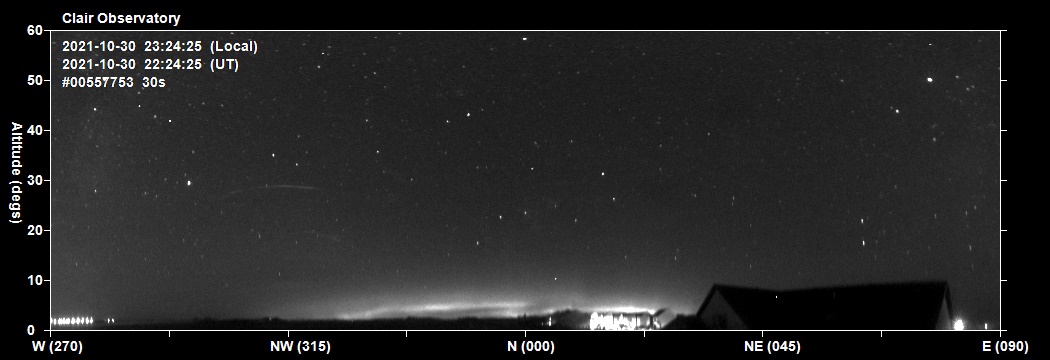

2021-10-30 22:24 UT
Fast changes in aurora (1 min different from image above)

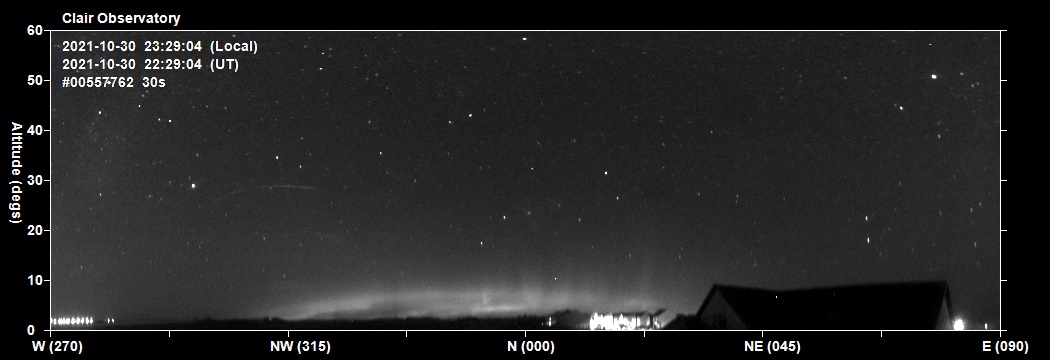

2021-10-30 22:29 UT
Aurora with auroral rays to 10-12° altitude

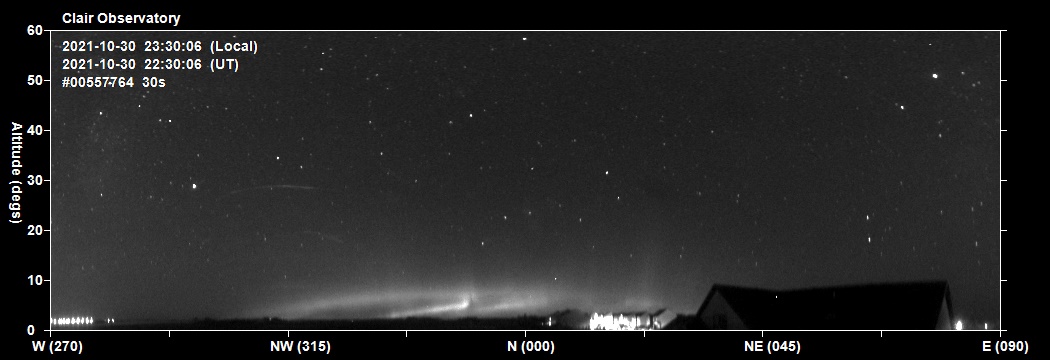

2021-10-30 22:30 UT
Aurora with auroral rays and fast moving curtain

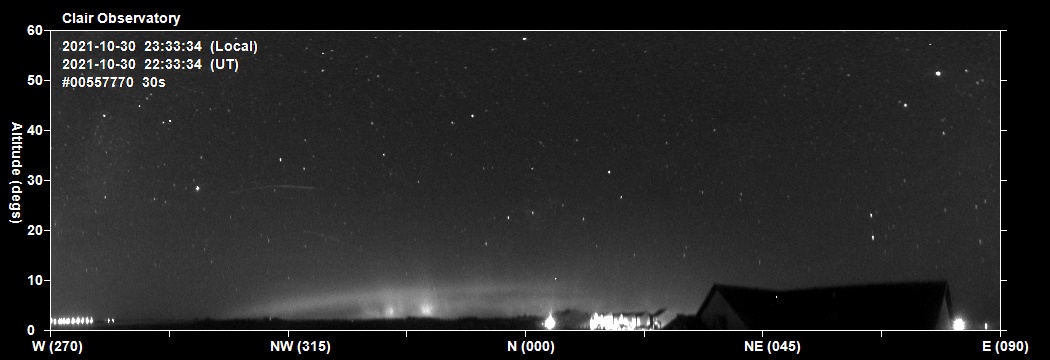

2021-10-30 22:33 UT
Aurora with fast moving curtains

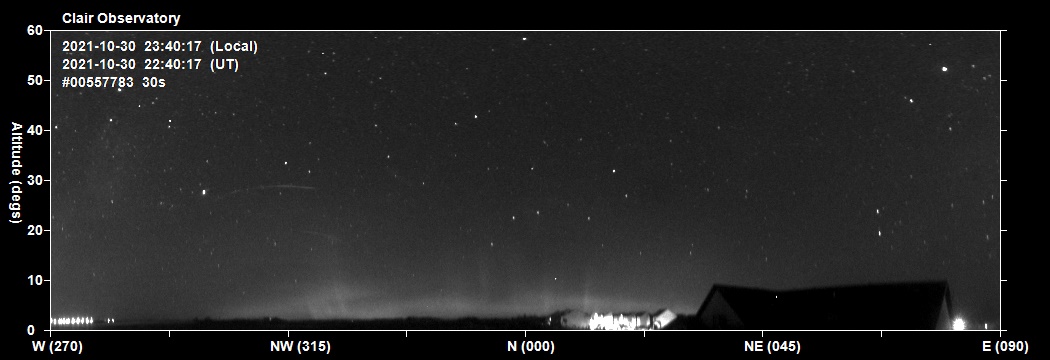

2021-10-30 22:40 UT
Aurora receding, but rays still evident to 10° altitude

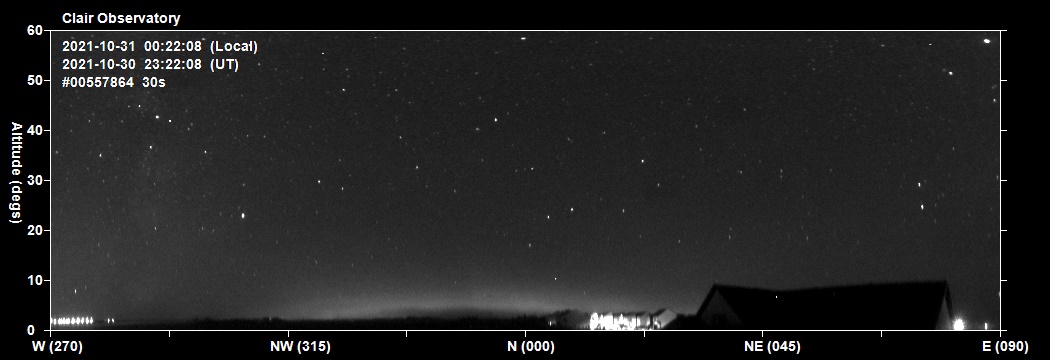

2021-10-30 23:22 UT
Aurora fading

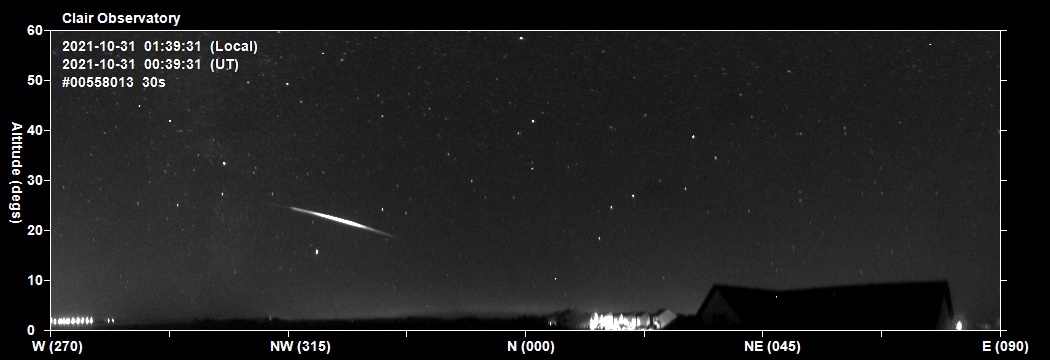

2021-10-31 00:39 UT
Aurora continuing to fade.
Bright flash in NW Sky ( ? Iridian Flare or ? other bright satellite reflection)

2021-10-31 00:39 UT
Aurora continuing to fade.
Faint trail in N Sky ( Meteor ?)

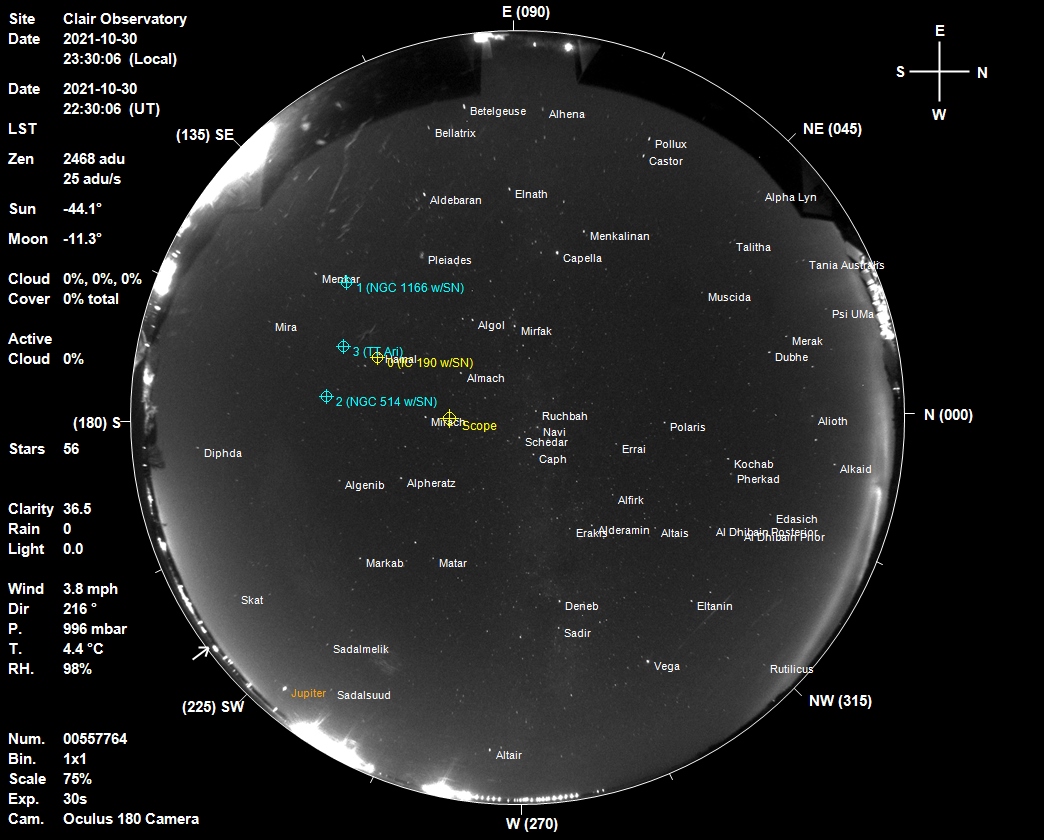

All Sky View
2021-10-30 22:30 UT
Completely clear sky. Aurora with auroral rays and fast moving curtains along northern horizon
Telescope active and about to slew to IC 190 w/SN2021abko

30s exposure taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 5 hour period
2021-10-30 20:30 to 2021-10-31 01:30 UT, Frames #557533-558111
Link to .mp4 video file (6.2 MB)
0.0s / 0.0s

Back to Top

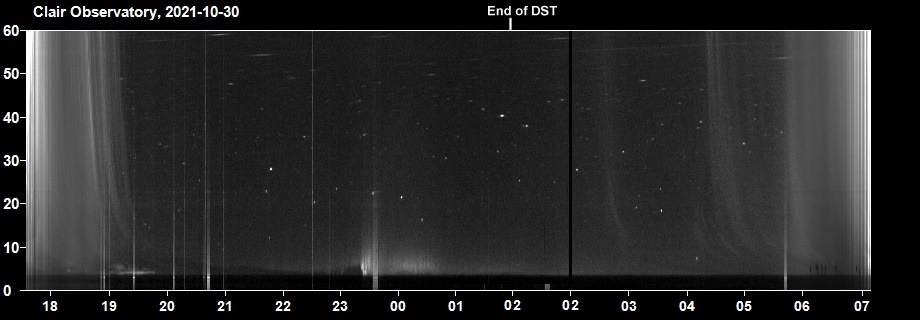

Night Summary Plot

Night Summary Plot - North Sky (2021-10-30 / 2021-10-31)
Times on plot are local times (BST before End of DST /  GMT after End of DST)
Peak activity at Peak activity (kp4) at 23:20 - 23:35  LT, but still strong until 00:45 LT

Back to Top

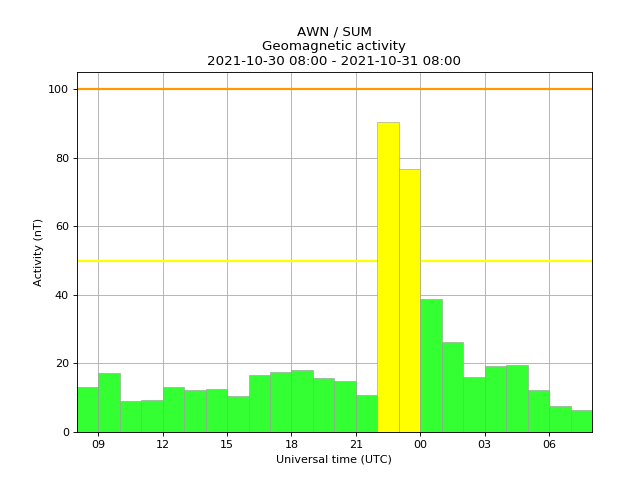

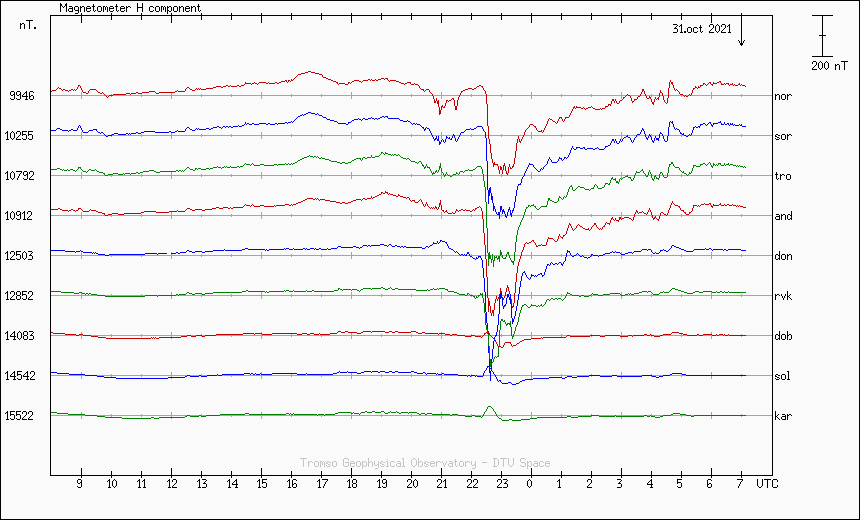

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2021-10-30 / 2021-10-31
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

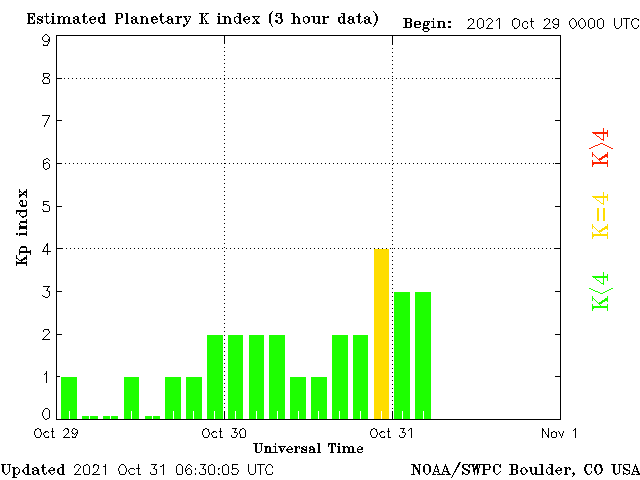

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top

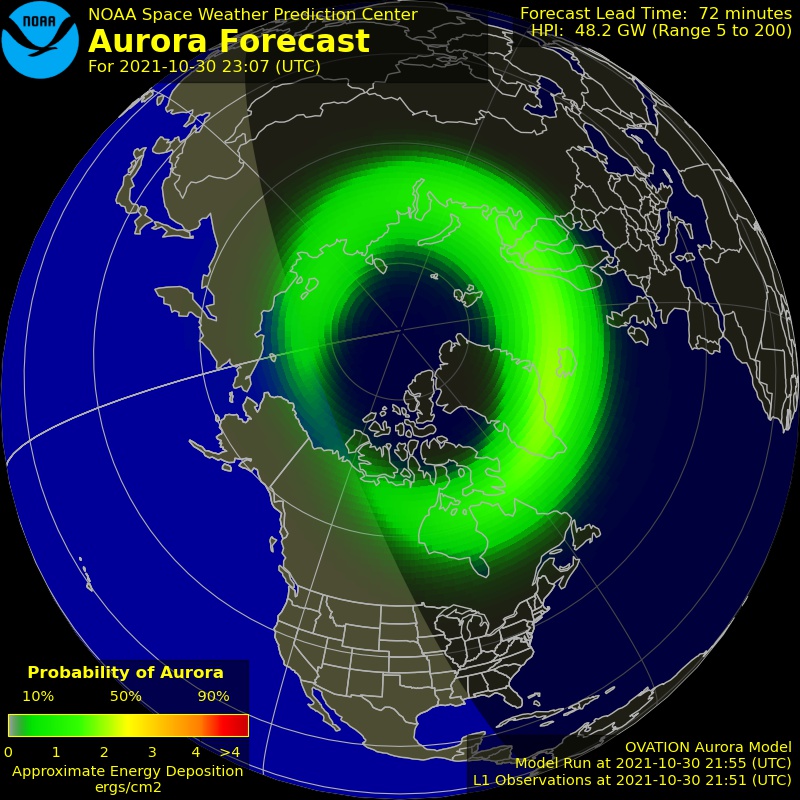

Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2021-10-30 23:00 UT for 23:07 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
