Aurora on night  2021-11-03 / 2021-11-04

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora display visible from NE Scotland  but spoilt by clouds/showers
- Activity observed from 21:10 to 22:00 UT
- Peak activity (kp4-kp5) at around 21:30 UT  (21:30  LT / GMT)
- A second peak at ~ 01:30 UT (evident in magnetometer plots from Scandinavia), was completed hidden behind cloud.
-
- Telescope Images from 2021-11-03 >>

Pictures

Panoramic View - Northern Sky
2021-11-03 21:12 UT
First indications of auroral activity. Probable arc but partially hidden by clouds on northern horizon

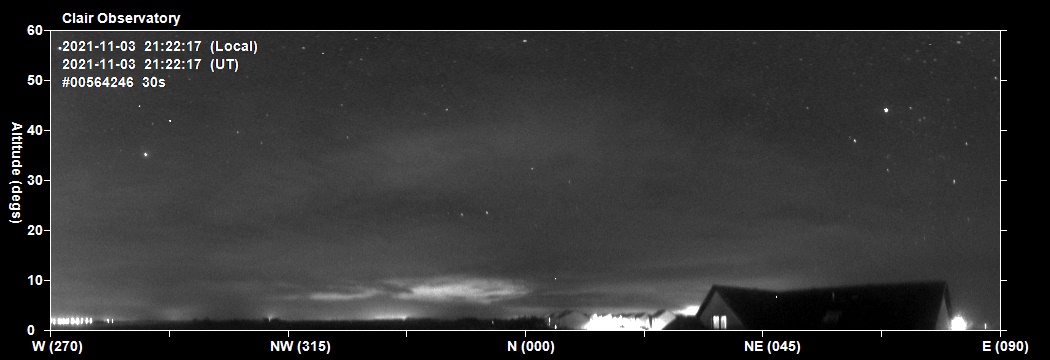

2021-11-03 21:22 UT
Brightening of aurora, part hidden by clouds

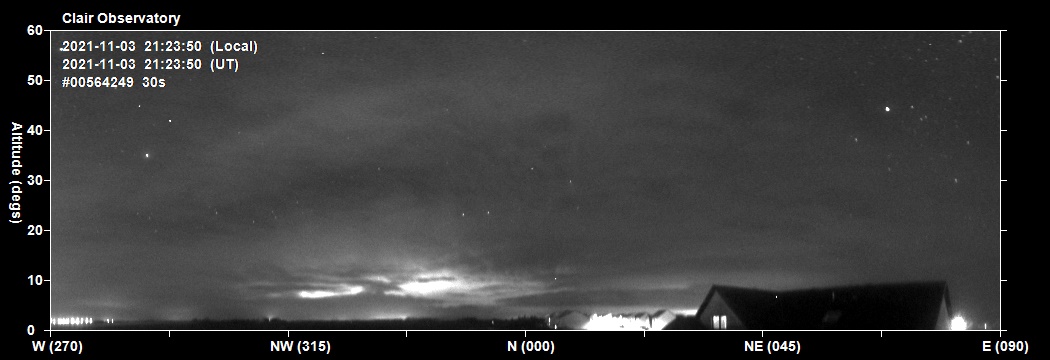

2021-11-03 21:23 UT
Auroral arc brightening.

2021-11-03 21:37 UT
Aurora across whole northern horizon . Display sploilt by foreground clouds.

2021-11-03 21:41 UT
Activity building towards a peak, with rays visible Again part hidden by clouds and showers

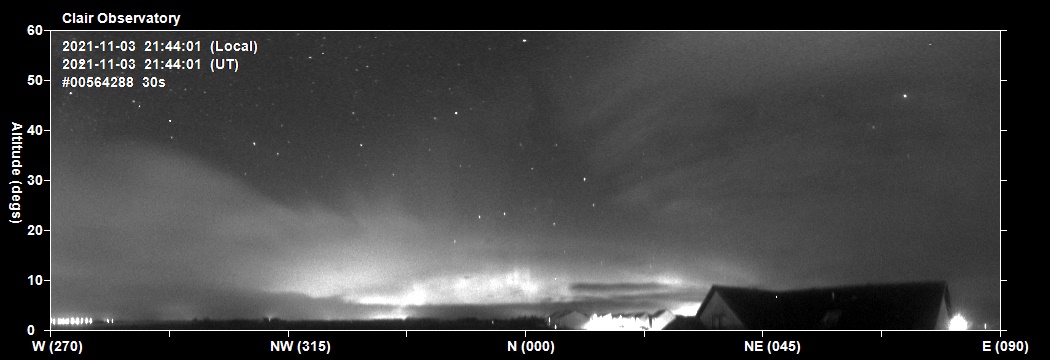

2021-11-03 21:44 UT
Bright aurora, but display again sploit by showers / cloud

2021-11-03 21:12 UT
Aurora with upper arc to 18-20° altitude. Shower clouds

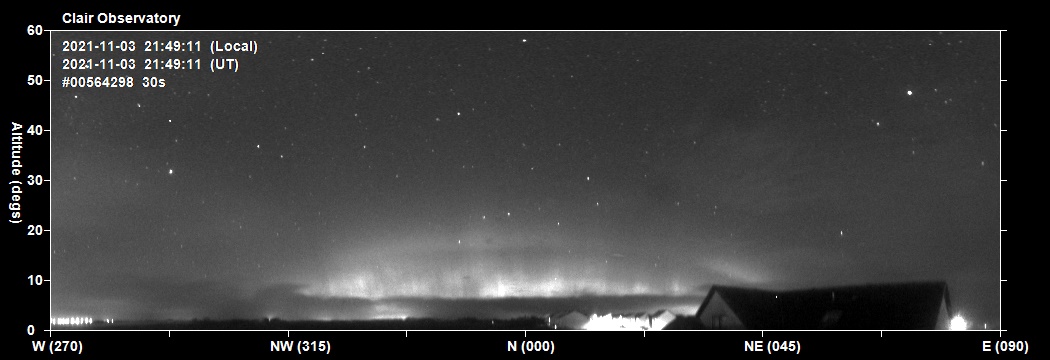

2021-11-03 21:49 UT
Aurora with auroral rays to 15-20° altitude and upper arc.. Lower part hidden by cloud

2021-11-03 21:55 UT
Aurora with auroral rays largely hidden by cloud.   Diffuse area of aurora in NW-WNW sky

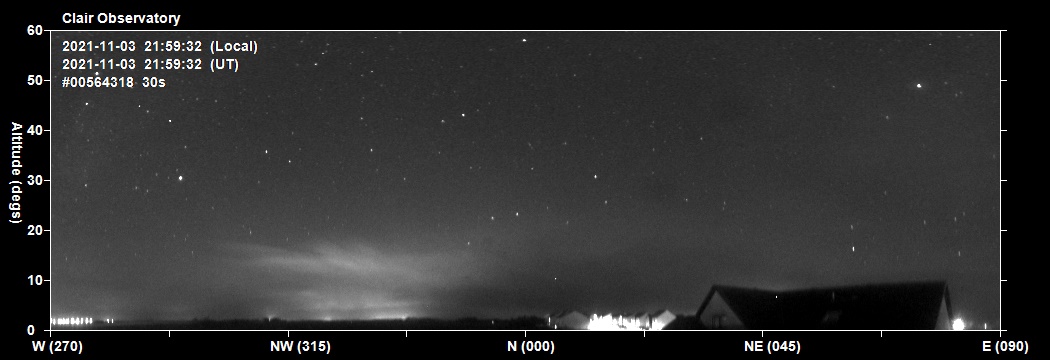

2021-11-03 21:59 UT
Aurora still active but gradually fading and increasingly covered by cloud & approaching shower/rain

2021-11-04 01:30 UT
Probable Aurora associated with second peak around 01:30 but completely hidden by cloud / shower.

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 1.25 hour period
2021-11-03 21:00 to 22:15 UT, Frames #564203-564348
Link to .mp4 video file (3.6 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

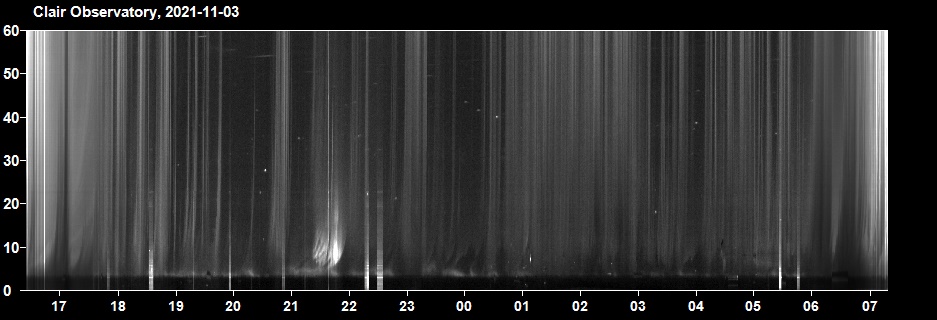

Night Summary Plot - North Sky (2021-11-03 / 2021-11-04)
Times on plot are local times (GMT = UTC +00h )
First Peak at around 21:30 UT, Second Peak at around 01:30 UT is hidden by cloud

Back to Top

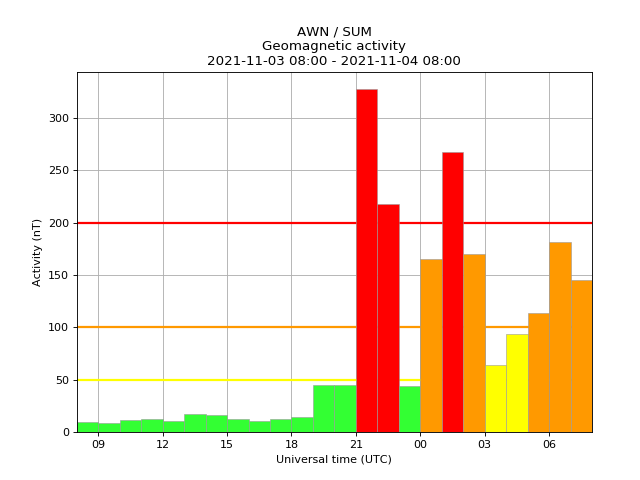

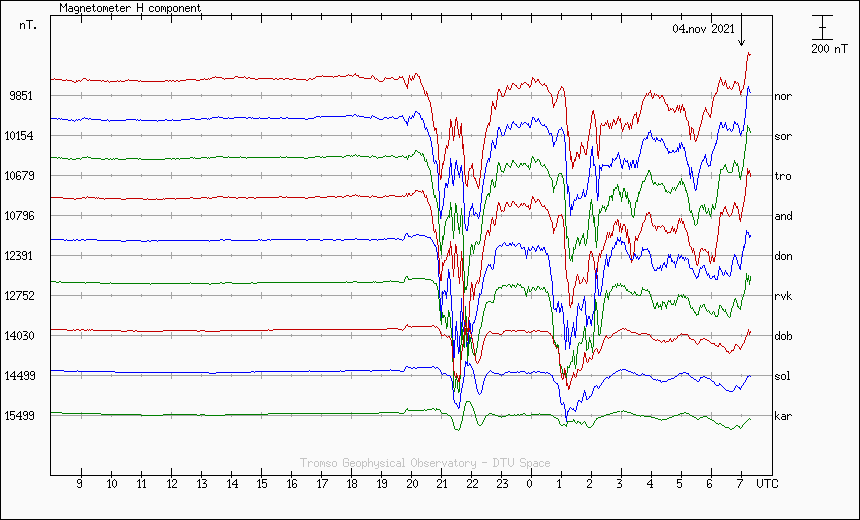

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2021-11-03 / 2021-11-04
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

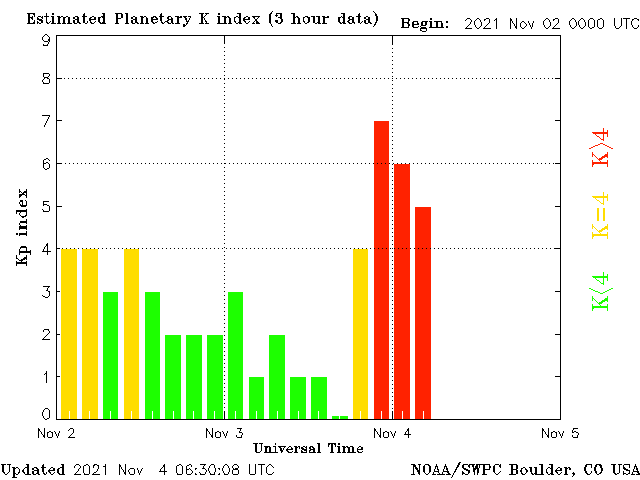

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

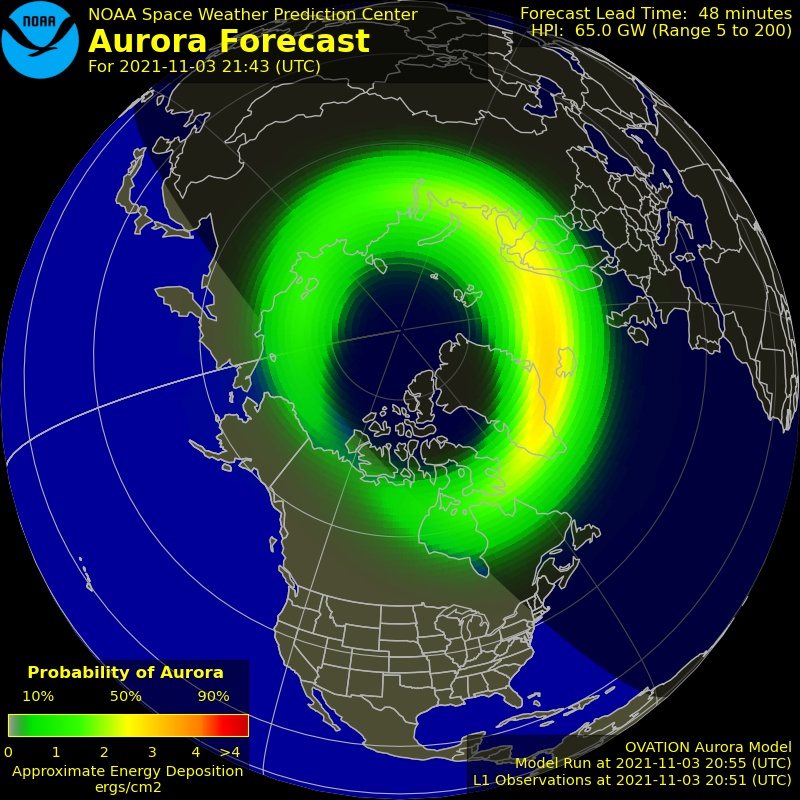

Aurora Forecast at 2021-11-03 21:00 UT for 21:43 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
