Aurora on night  2021-11-09 / 2021-11-10

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak Aurora display visible from NE Scotland
- Activity observed from 20:36 to 22:45 UT when cloud developed
- Peak activity (~ kp3) at around 00:30 according to Scandinavian magnetometers was hidden by cloud.
-
- Telescope Images from 2021-11-09 >>

Pictures

Panoramic View - Northern Sky

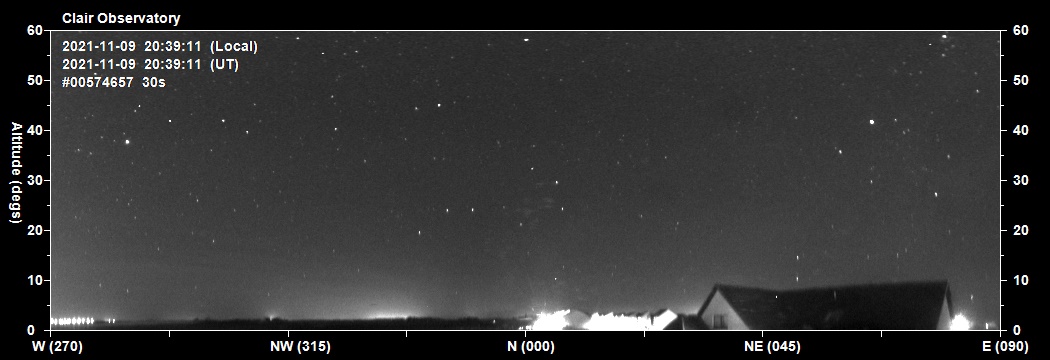

2021-11-09 20:39 UT
First indications of auroral activity. rays to 5-8° altitude,  moving left and right,  better seen in video.
Lighting from new housing estate (N-NNE) and town (NNW) interfers with the view

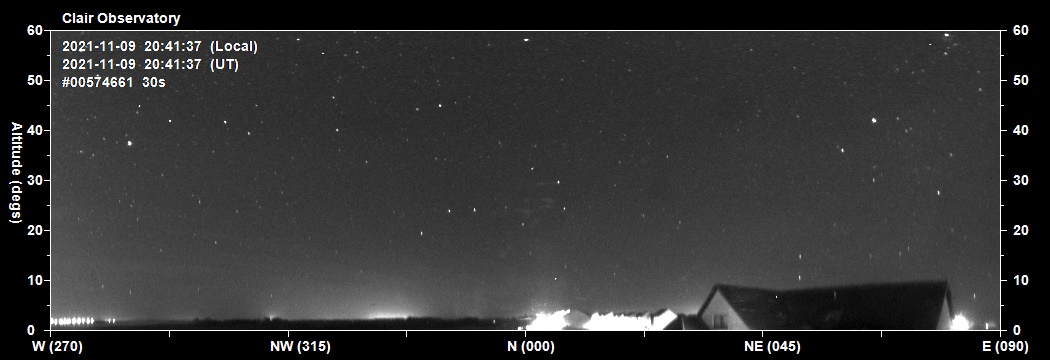

2021-11-09 20:41 UT
Auroral activity  rays to 5-8° altitude,  moving left and right. better seen in video.
Lighting from new housing estate  (N-NNE) and town (NNW) interfers with the view

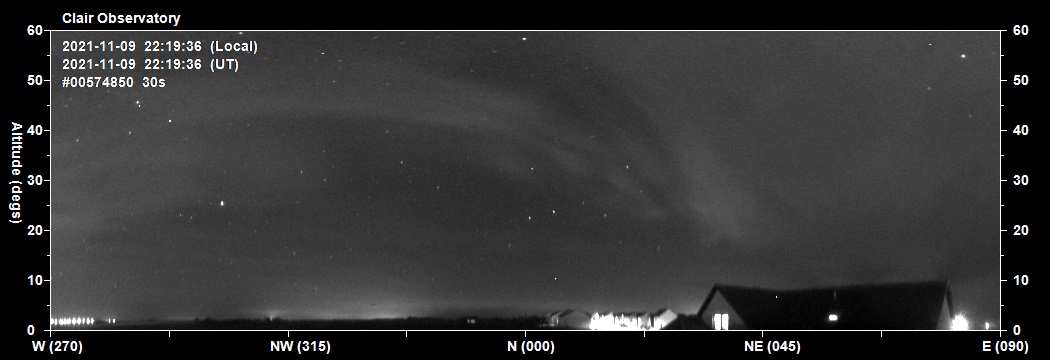

2021-11-09 22:19 UT
Auroral arc to 5-8° altitude, weak

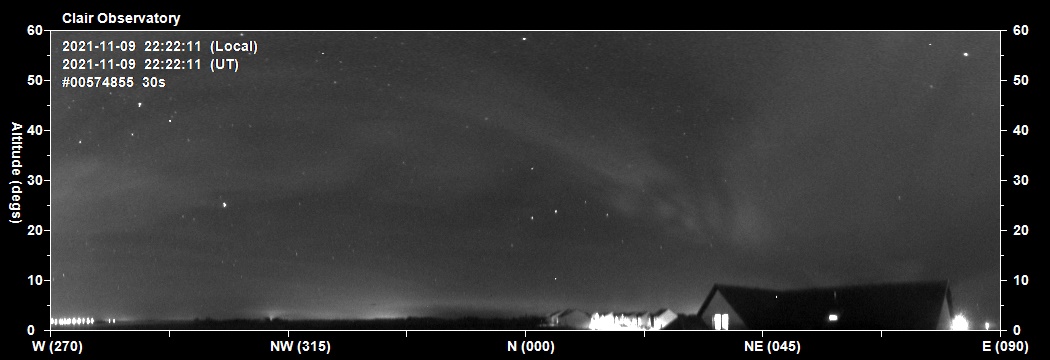

2021-11-09 22:22 UT
Auroral arc to 5-8° altitude, weak, some rays moving (NNW)

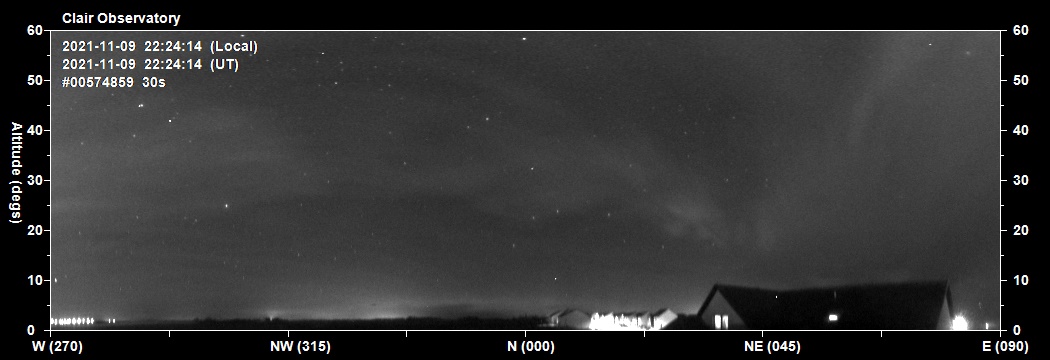

2021-11-09 22:24 UT
Auroral arc to 5-8° altitude, weak. Some rays moving (N - NNW), better seen in video

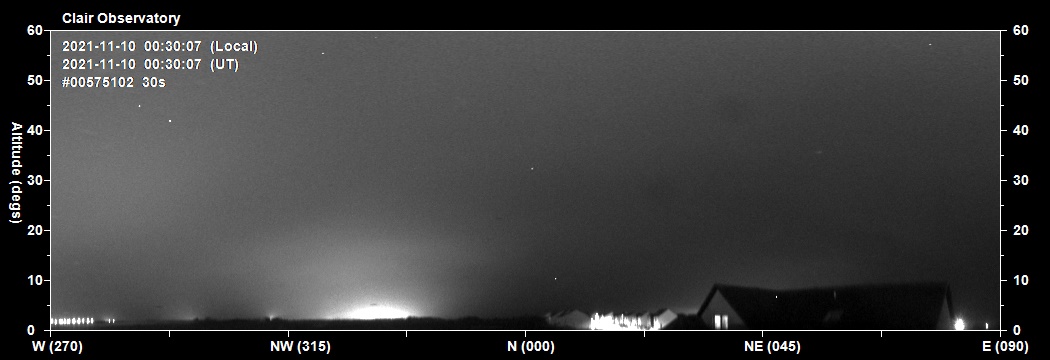

2021-11-10 00:30 UT
Time of peak activity according to scandinavian magnetometers.
Probable aurora but completely hidden by clouds

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 2.75 hour period
2021-11-09 20:15 to 23:00 UT, Frames #574611 to 574929
Link to .mp4 video file (5.1 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

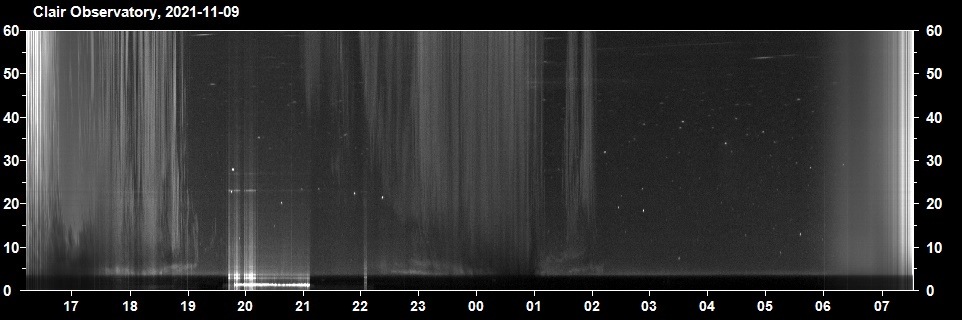

Night Summary Plot - North Sky (2021-11-09 / 2021-11-10)
Times on plot are local times (GMT = UTC +00h )
Weak activity at 20:36 to 22:43 UT, but not obvious on keogram. Probable Peak at around 00:30 UT is hidden by cloud
Stray lighting from new housing estate affects keogram between 19:45 to 21:05

Back to Top


Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2021-11-03 / 2021-11-04
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

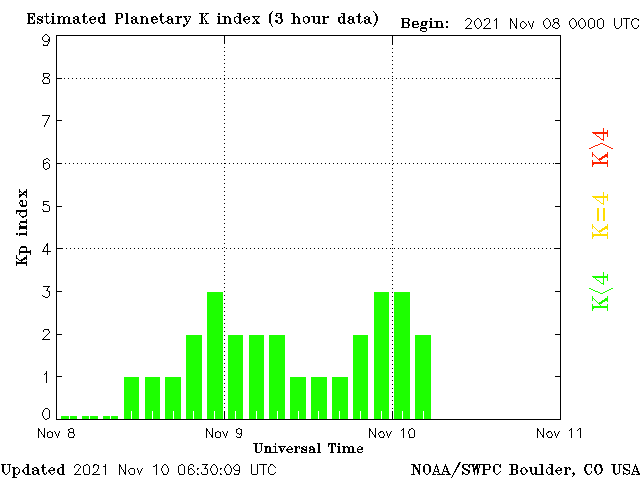

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

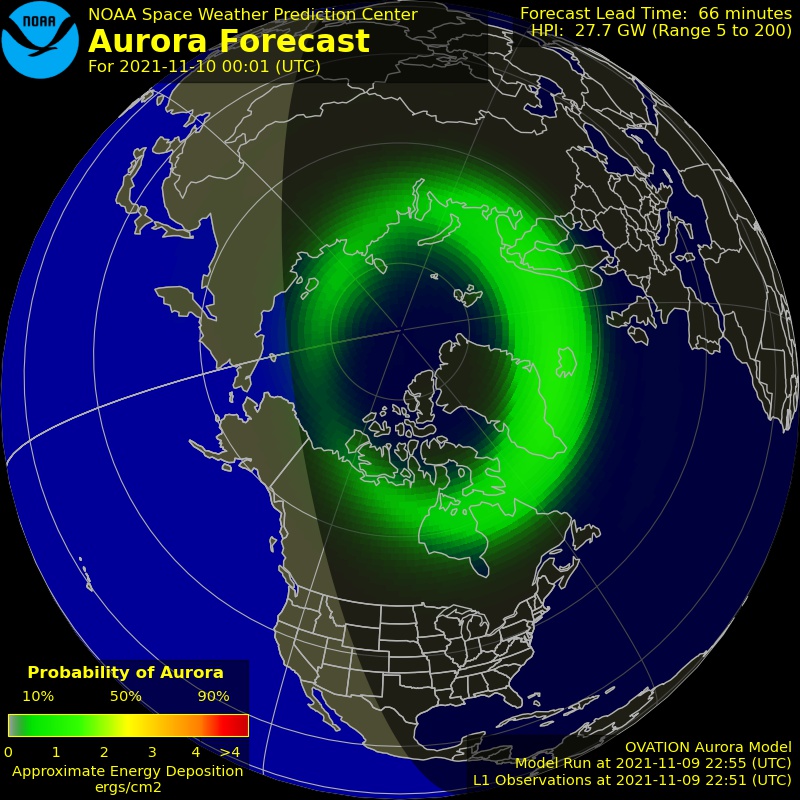

Aurora Forecast at 2021-11-09 23:00 UT for 2021-11-10 00:01 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
