Aurora on night  2022-01-08 / 2022-01-09

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Bright Aurora display visible from NE Scotland
- Activity observed from 20:00 to 23:45 UT.
- Peak activity at 20:20, 22:20 & 23:05
-
- Spectacular Northern Lights pictured over Scotland, BBC News
-
- Telescope Images from 2022-01-08 >>

Pictures

Panoramic View - Northern Sky

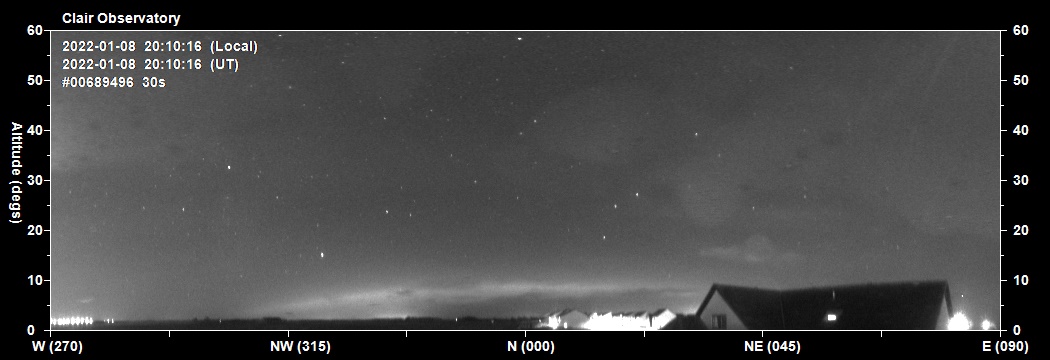

2022-01-08 20:10 UT
Auroral arc rapidly building along northern horizon

2022-01-08 27:10 UT
Auroral arc brightening and separating

2022-01-08 20:33 UT
Double auroral arcs to 15°

2022-01-08 21:17 UT
Auroral arc weakened

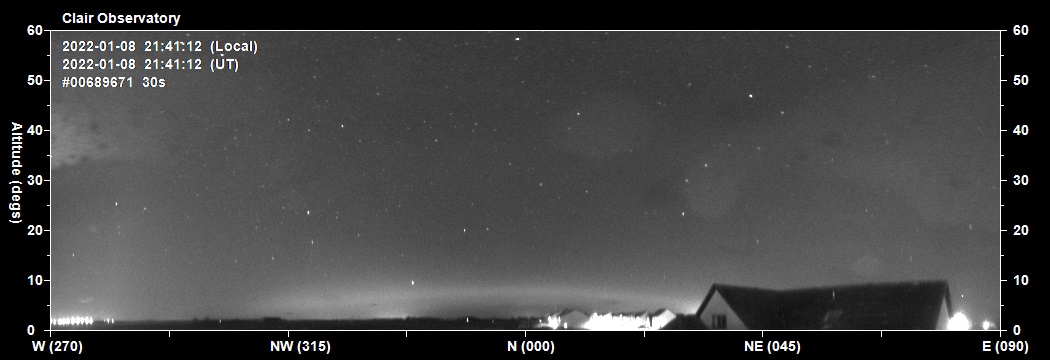

2022-01-08 21:41 UT
Auroral arc to 8° altitude

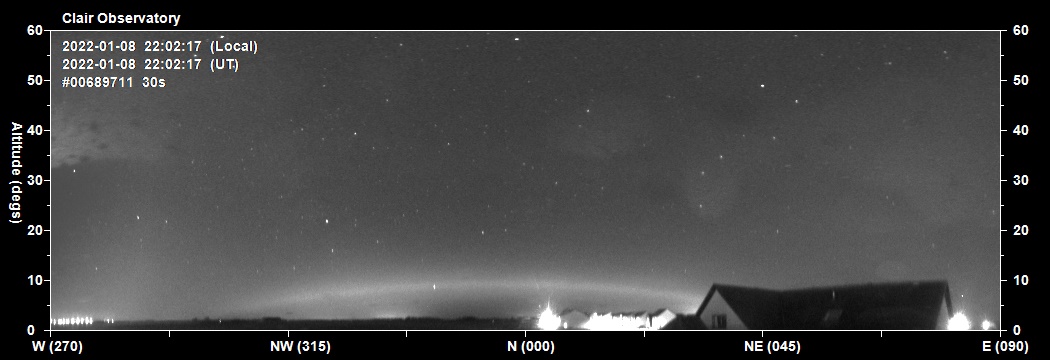

2022-01-08 22:02 UT
Aurora arc climbing to 10° altitude and brightening again

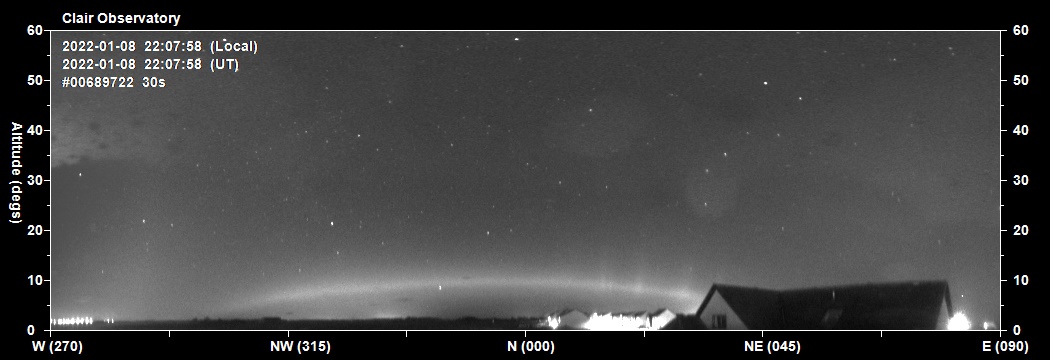

2022-01-08 22:07 UT
Rays on NNE part of auroral arc, moving westwards

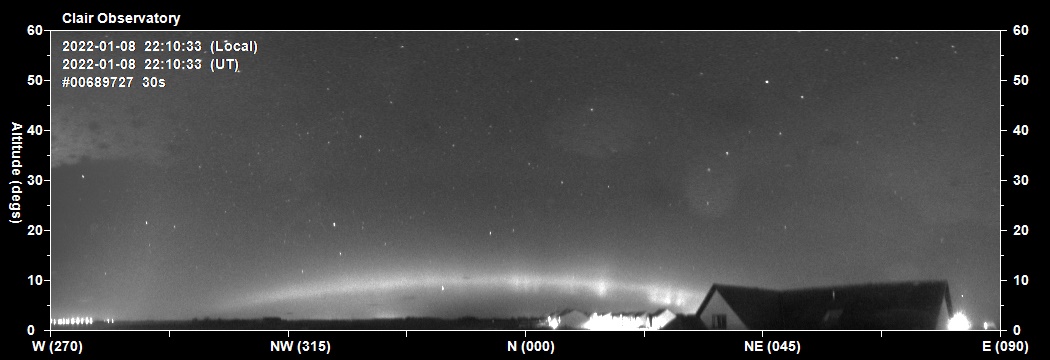

2022-01-08 22:10 UT
Aurora rays / weak curtains developing in N - NNE sky

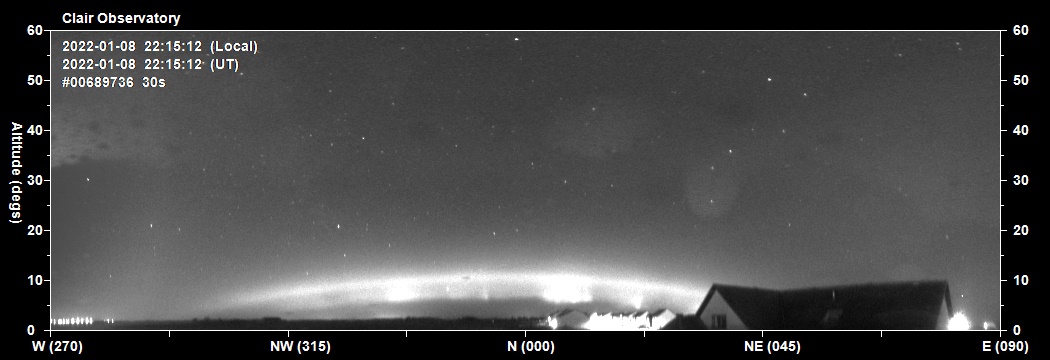

2022-01-08 22:15 UT
Aurora arc to 12° . Arc and curtains quickly brightening

2022-01-08 22:02 UT
Very bright curtain in northern sky moving westwards

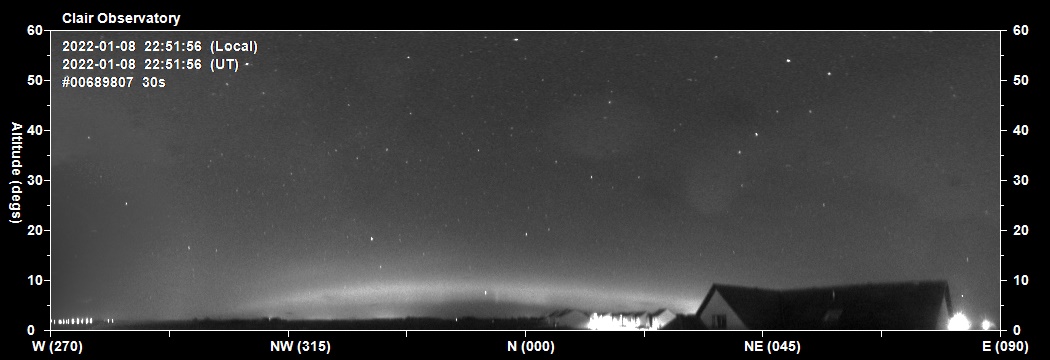

2022-01-08 22:51 UT
Aurora arc and curtains weakening again

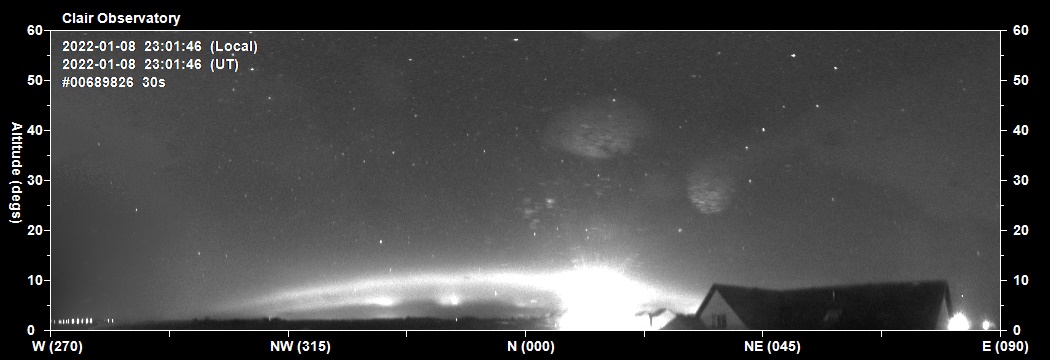

2022-01-08 23:01 UT
Aurora activity brightening again. Spoilt by a security light on new housing estate to NNE

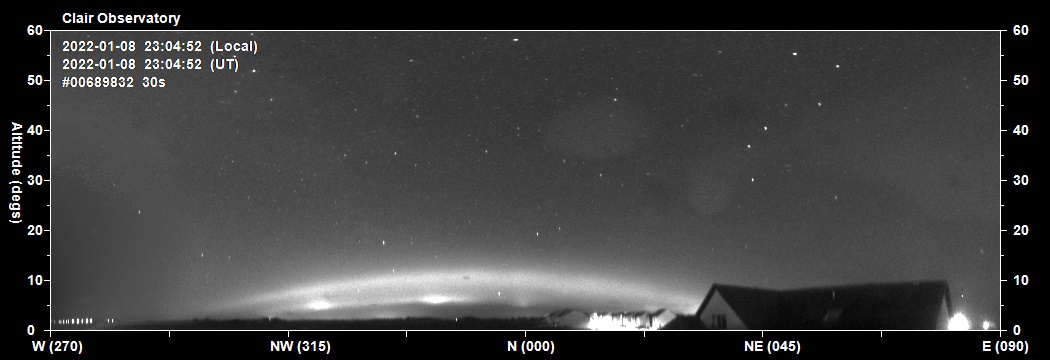

2022-01-08 23:04 UT
Bright aurora arc climbing to 12° altitude.

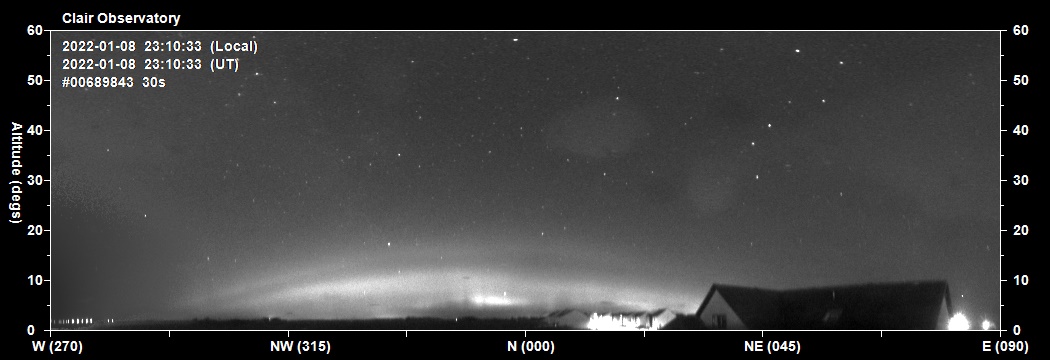

2022-01-08 2310 UT
Aurora activity with moving curtains

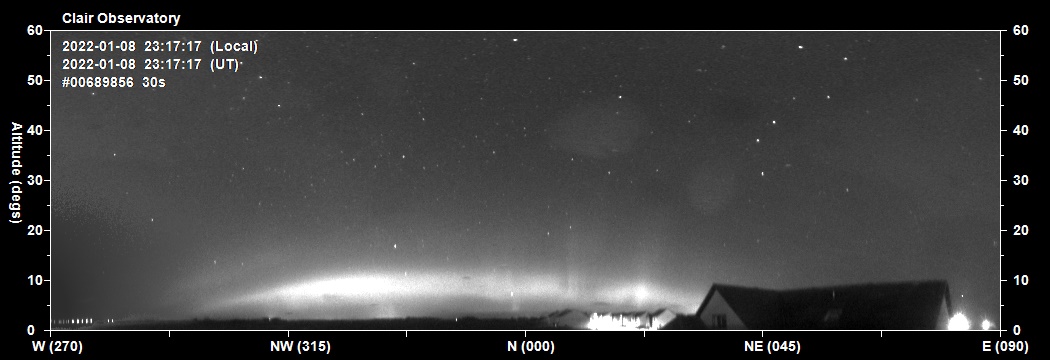

2022-01-08 23:17 UT
Bright aurora activity in NW-NNW sky, rays to 15-20° in N-NNE sky

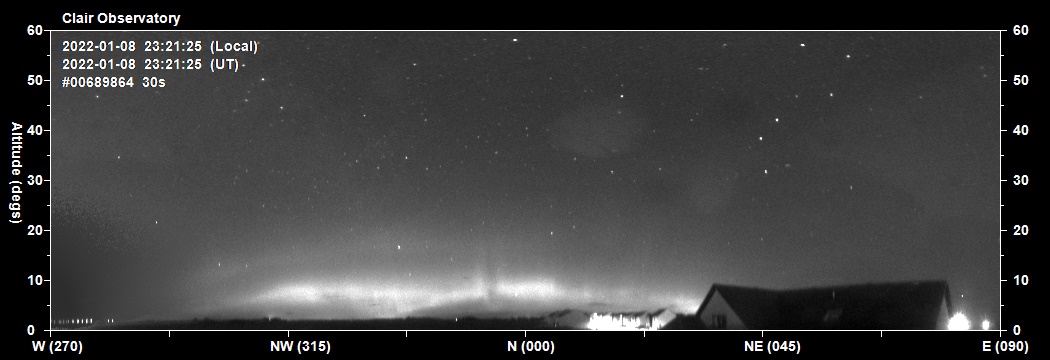

2022-01-08 23:21 UT
Aurora rays and curtains moving along northern horizon

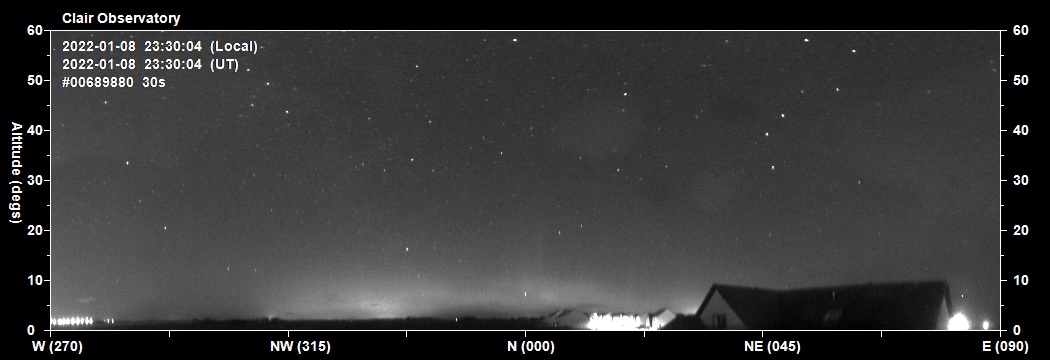

2022-01-08 23:30 UT
Aurora activity reducing

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 4.5 hour period
2022-01-08 19:55 to 2022-01-09 00:30 UT, Frames #689466 to
689996
Link to .mp4 video file (5.9 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

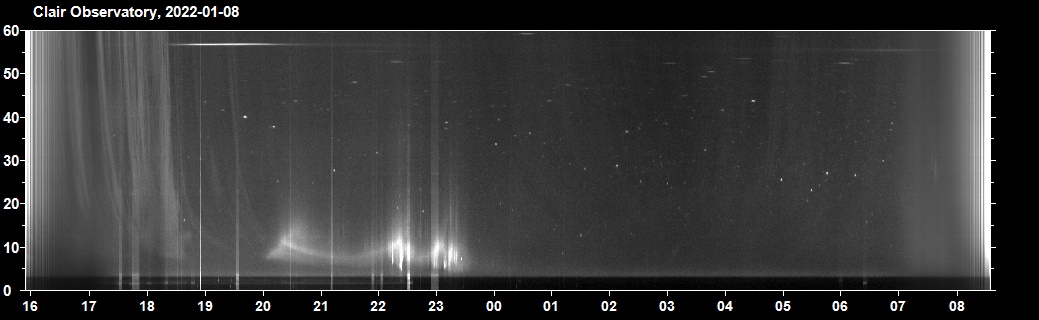

Night Summary Plot - North Sky (2022-01-08 / 2022-01-09)
Times on plot are local times (GMT = UTC +00h )
Strong activity between 20:00 and 23:45 UT. Peak activity at around 20:20,  23:20 and 23:05 UT
Stray security lighting / car headlamps from new housing estate affects keogram at several points

Back to Top

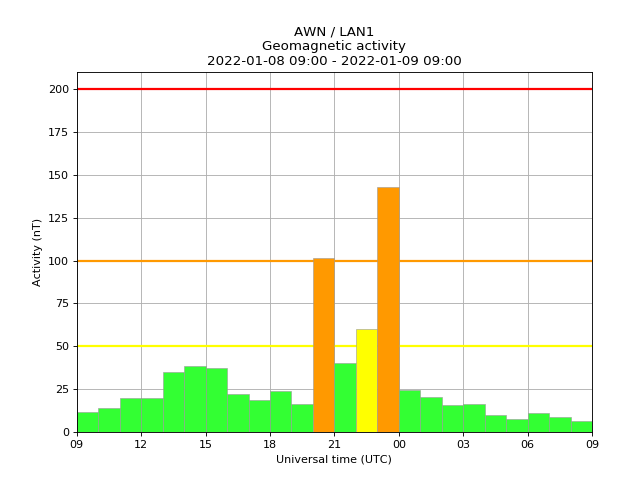

Magnetometer Stack Plots (for reference)

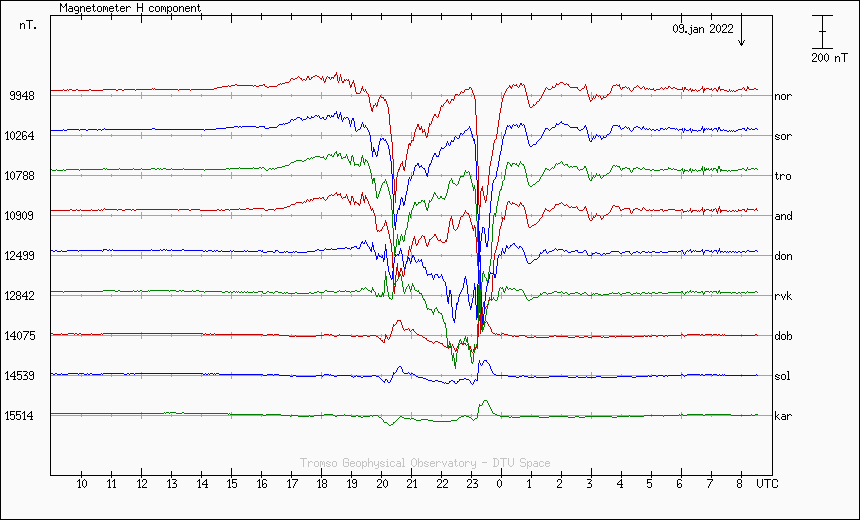

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-01-08 / 2022-01-09
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

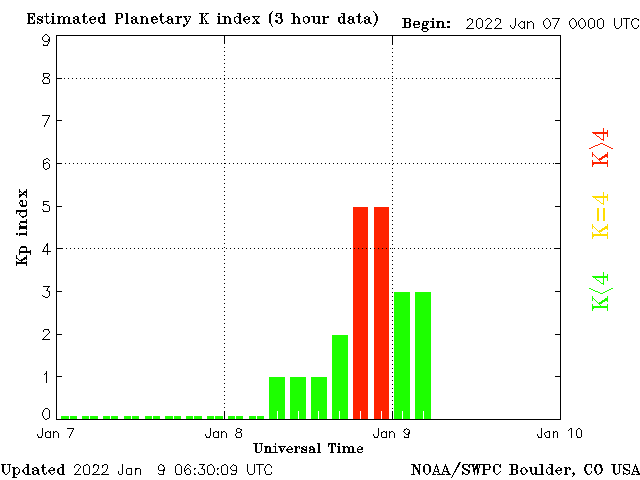

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

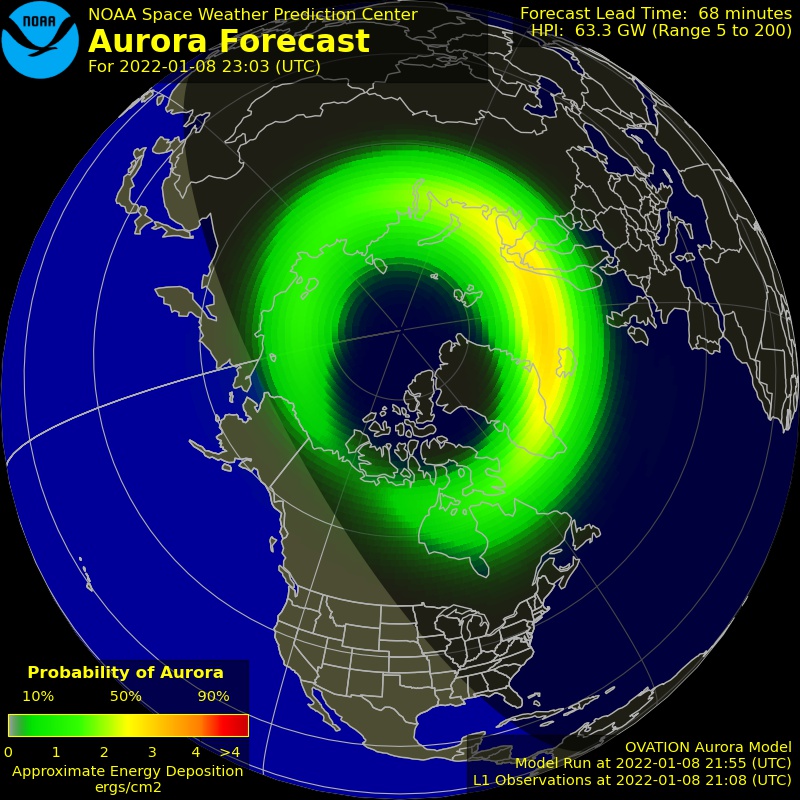

Aurora Forecast at 2022-01-08 22:00 UT for 23:00 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
