David's Astronomy Pages (All Sky Camera)
Aurora on night  2022-02-23

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak aurora activity visible from NE Scotland on 2022-02-23 / 2022-02-24 (am).

- Scandinavia magnetometers indicate activity from around 20:30 UT to 04:00 UT with peak activity at around 23:00 to 01:00 UT.

- Activity was visible from my observatory site between 2022-02-23 22:00 UT and 2022-02-24 01:30 UT, with peak activity seen at between 23:20 to 00:45 UT
- Aurora arc at around 4 to 5 deg altitude at peak with weak rays to 8 deg altitude

- Telescope Images from 2022-02-23 (S976) >>

Pictures

Panoramic View - Northern Sky

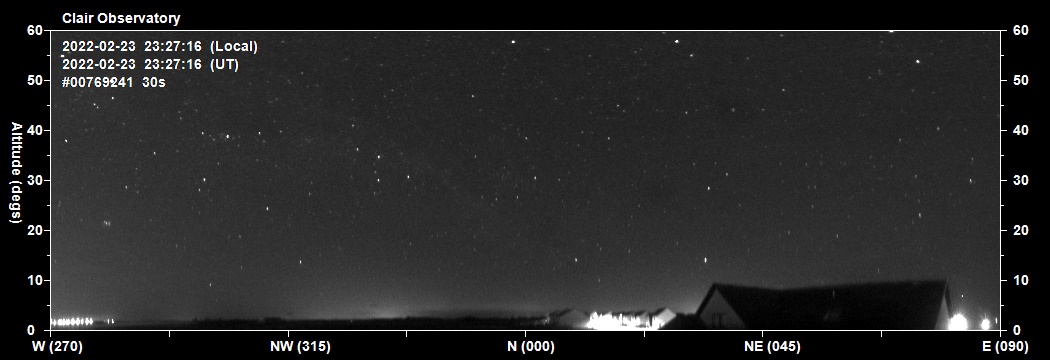

2022-02-23 23:27 UT
Faint auroral arc & weak rays

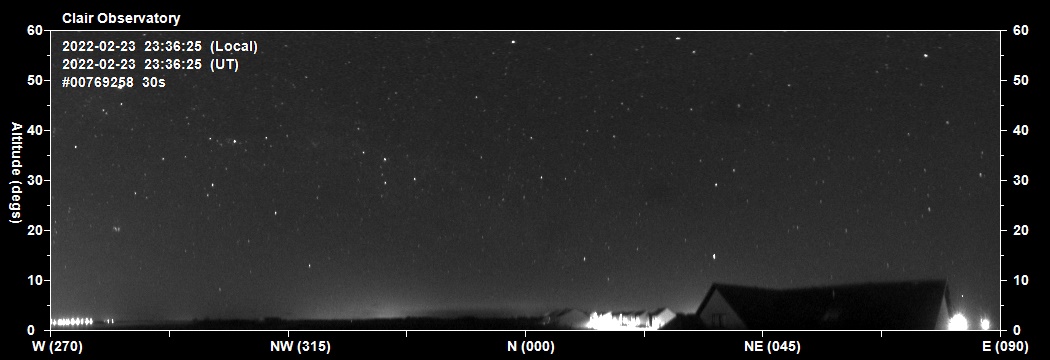

2022-02-23 23:36 UT
Faint auroral arc & weak rays

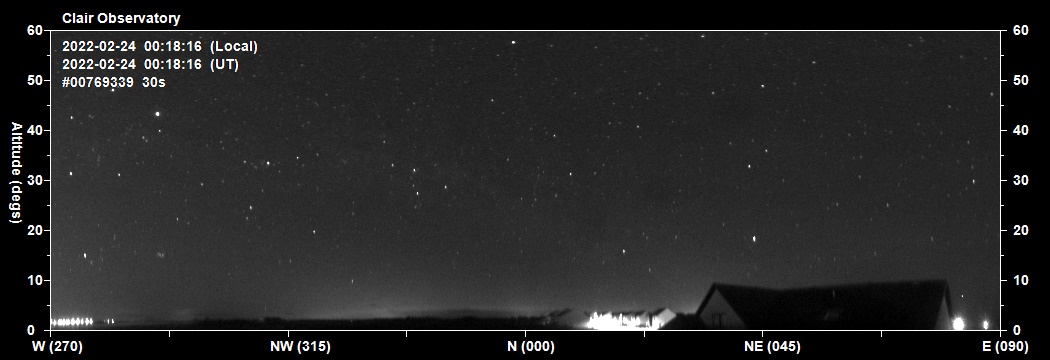

2022-02-24 00:18 UT
Faint auroral arc & weak rays

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 5.25 hour period
2022-02-23 21:45 UT to 2022-02-24 03:00 UT, Frames #768904 to 769651
Link to .mp4 video file (6.1 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

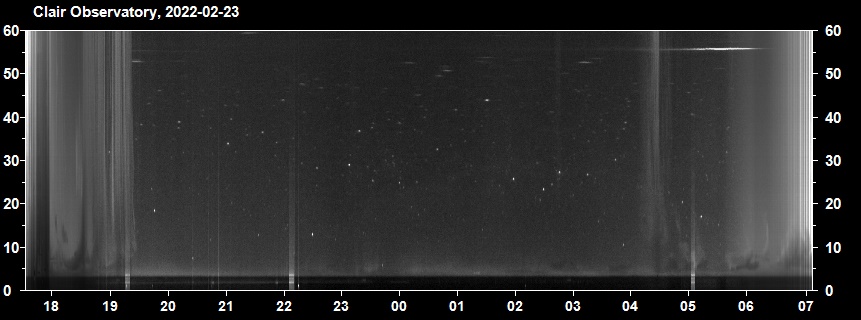

Night Summary Plot - North Sky (2022-02-23 / 2022-02-24)
Times on plot are local times (GMT = UTC +00h )
Bright moonlit sky. Cloud cover before 22:00 UT.  Snow cover on camera 22:00 to 23:10 UT
Weak auroral activity between 23:10 and 03:25 UT . Peak activity at 02:08-02:20 UT (2022-02-11)

Back to Top


Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-02-10 / 2022-02-11
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

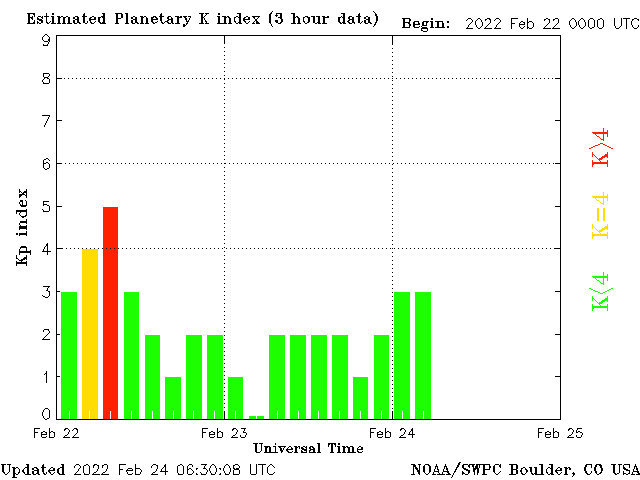

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

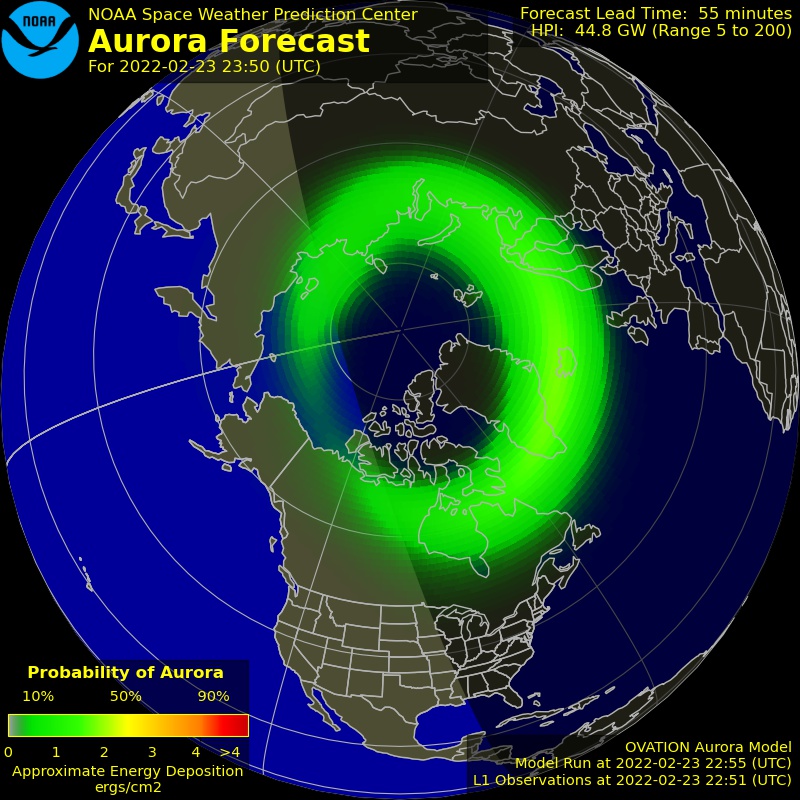

Aurora Forecast at 2022-02-10 20:00 UT for 20:54 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
