Aurora on night  2022-03-13

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Brief but intense aurora activity visible from NE Scotland on 2022-03-13 (late pm). View unfortunately spoilt by cloud and moonlight.

- Scandinavia magnetometers indicate activity building from 11:00 in morning with peak activity at around 23:00 to 00:30 UT.

- Activity was visible from my observatory site between 2022-03-13 23:00 UT and 2022-03-14 00:30 UT, with peak activity seen at between 23:25 to 23:40 UT.
- Aurora arc up to 25-30 deg altitude with rays to 40 deg altitude at peak.

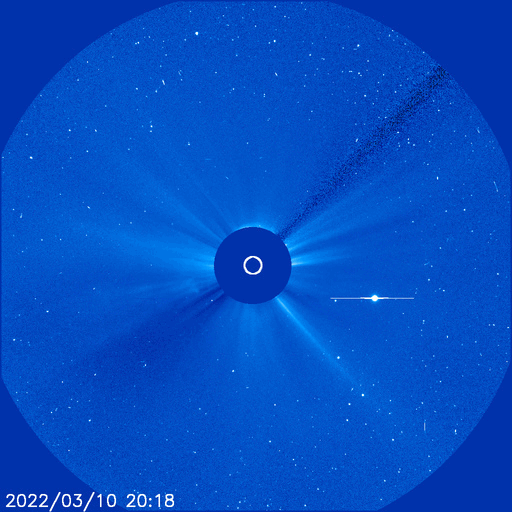

- Activity was part of a G2-class geomagnetic storm that was associated with an earth-directed coronal mass ejection (11 Mar 2022 CME, 22:32) hitting the earth's magnetic field on 13 Mar.


Pictures

Panoramic View - Northern Sky

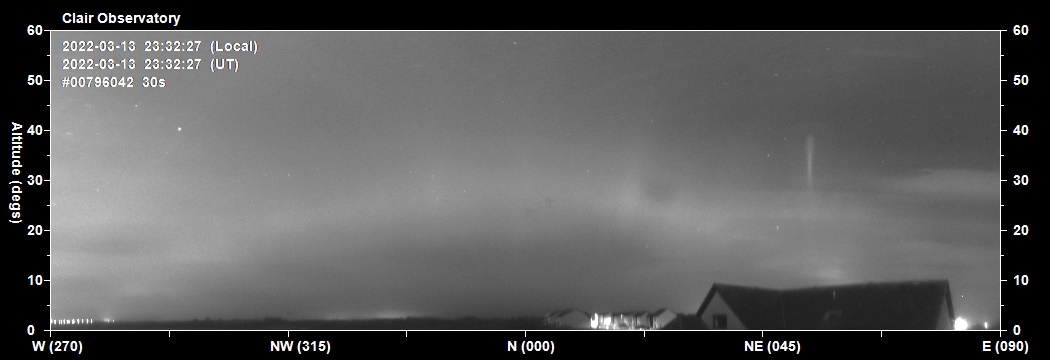

2022-03-13 23:32 UT
Auroral arc & rays, part hidden by moonlit clouds

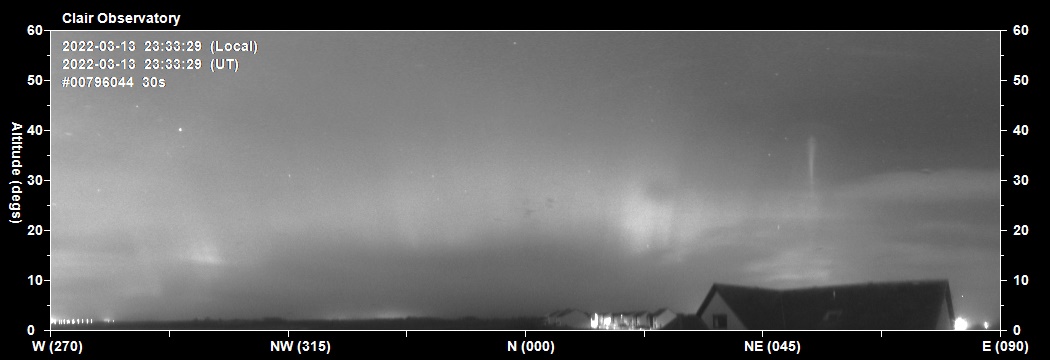

2022-03-13 23:33 UT
Strengthening auroral actvity, rays to 35 deg altitude.

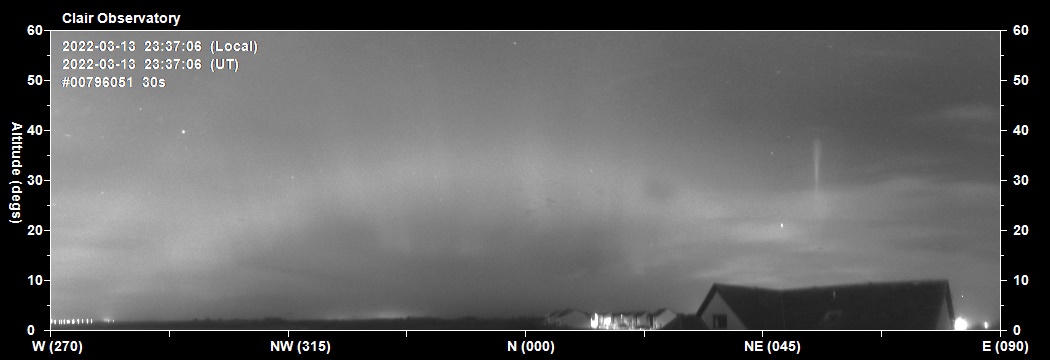

2022-03-13 23:37 UT
Auroral arc to 30 deg altitude and rays to 40 deg altitude

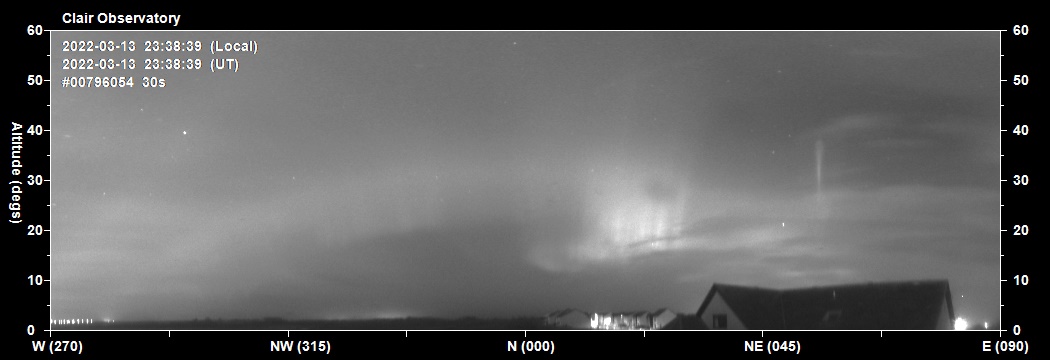

2022-03-13 23:38 UT
Bright auroral activity in NNE Sky, part hidden by cloud.

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 2h 10m period
2022-03-13 22:50 UT to 2022-03-14 01:00 UT, Frames #795960 to 796211
Link to .mp4 video file (0.9 MB)
0.0s / 0.0s

Back to Top

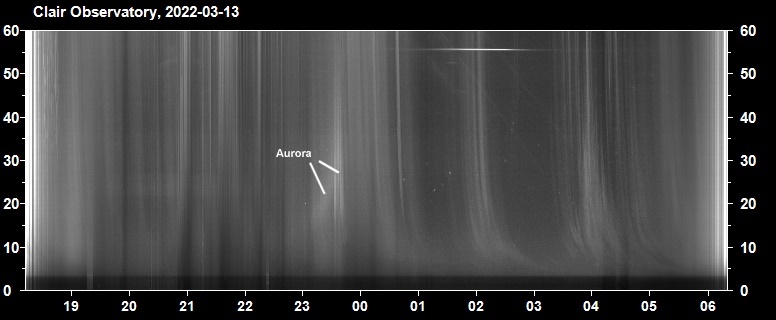

Night Summary Plot

Night Summary Plot - North Sky (2022-03-13 / 2022-03-14)
Times on plot are local times (GMT = UTC +00h )

Back to Top

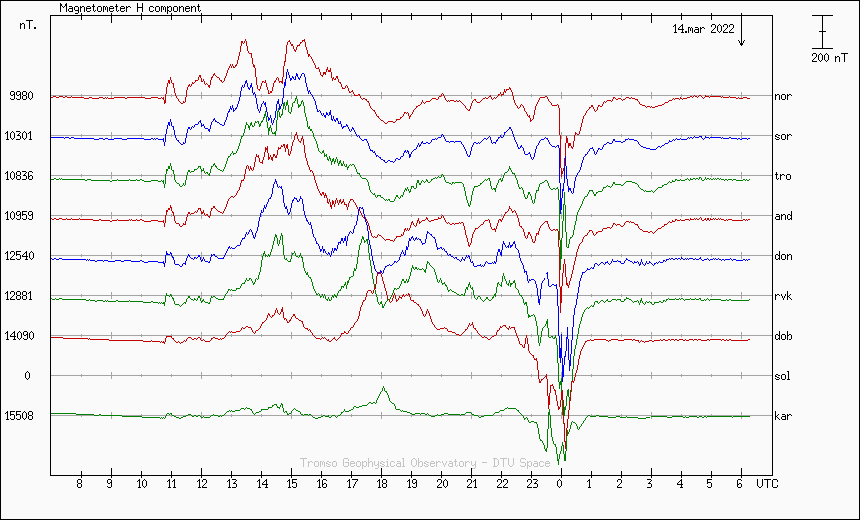

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-03-13 / 2022-03-14
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

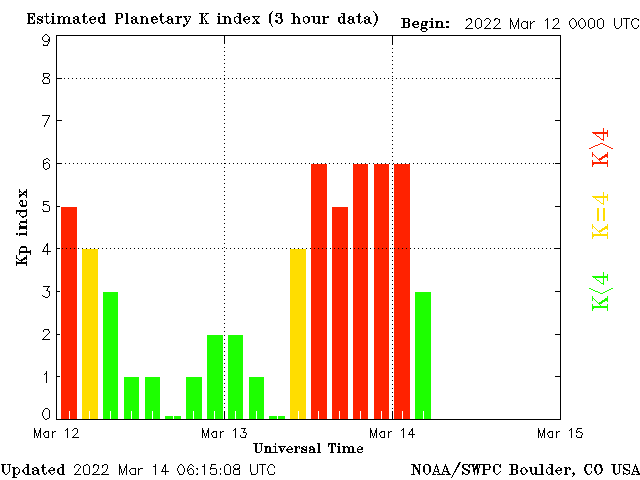

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top

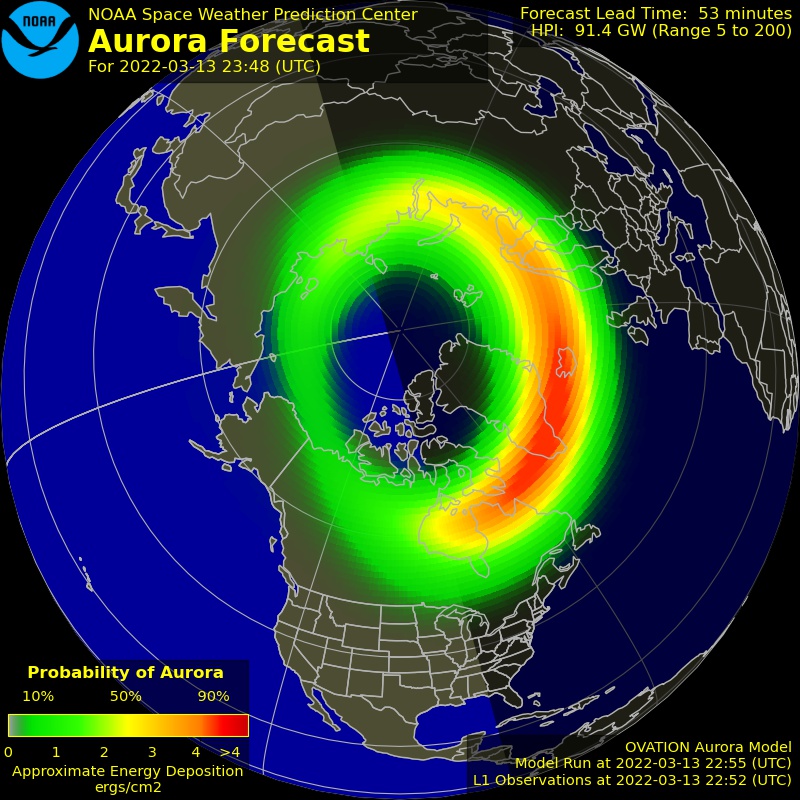

Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2022-03-13 23:00 UT for 23:48 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
