David's Astronomy Pages (All Sky Camera)
Aurora on night  2022-08-17/2022-08-18

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora activity on night of 2022-08-17 / 2022-08-18 but unfortunatelly almost entirely hidden by cloud.

- Scandinavia magnetometers indicate very strong (Kp6) activity from 20:10 to 21:30 UT with activity at 3 southern most stations (dob, sol and kar).

- Activity not visible through peak from NE Scotland due to heavy cloud.  A hint of possible activity was seen in NNE sky at 2022-08-18 00:54 UT (21:54 Local) but this is after the scandinavian magnetometer activty had reduced significantly and may have been simply the movement of clouds lit by lights from distant town (Peterhead).

- Telescope Images from following night  2022-08-18 >>

Pictures

Panoramic View - Northern Sky

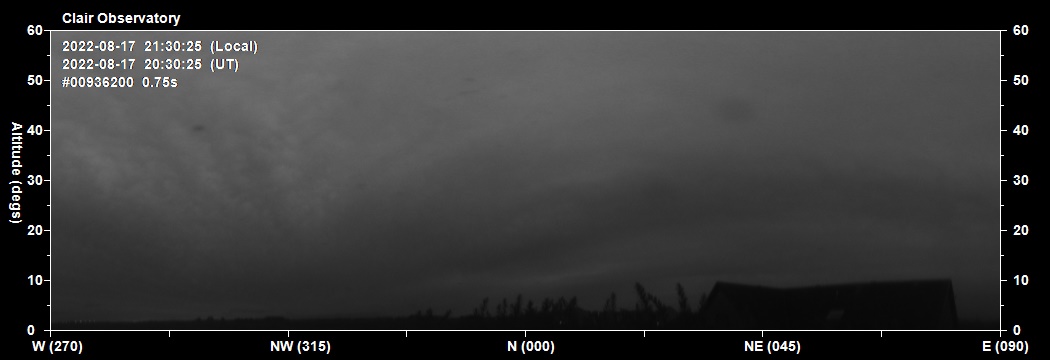

2022-08-17  20:30 UT (21:30 Local)
Aurora activity hidden by cloud

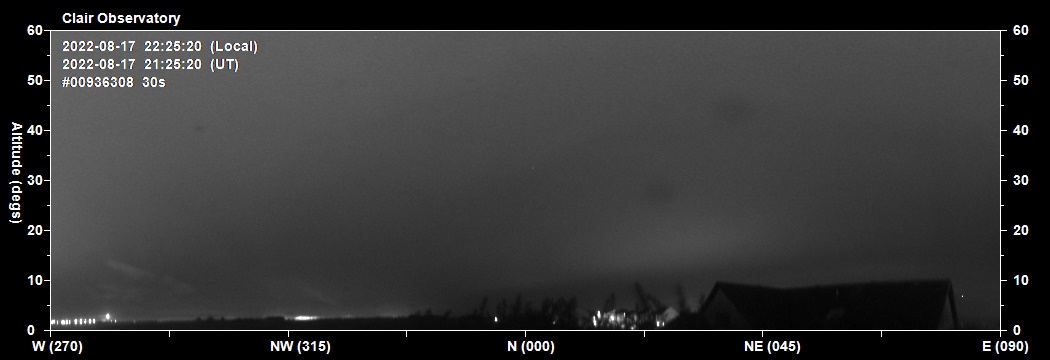

2022-08-17 21:25 UT (22:25 Local)
Aurora activity hidden by cloud

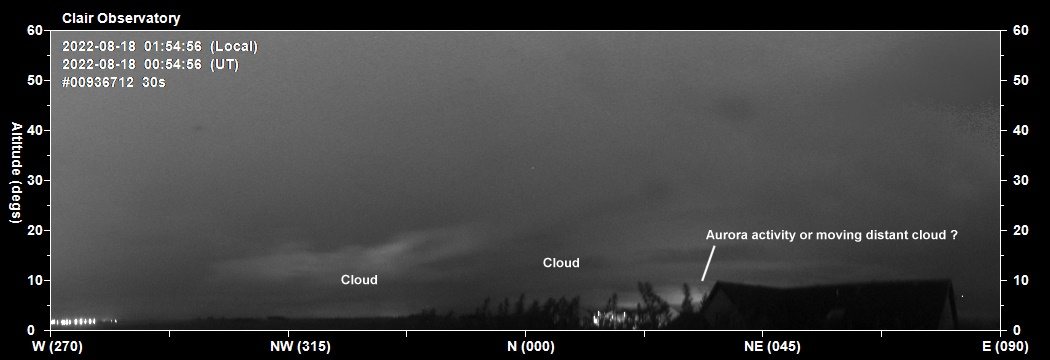

2022-08-18 00:54 UT (01:54 Local)
Possible aurora activity in NNE Sky or moving distant clouds (lit by town lighting). ?


30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view

Not shown
Link to .mp4 video file (2.4 MB)

Back to Top


Night Summary Plot

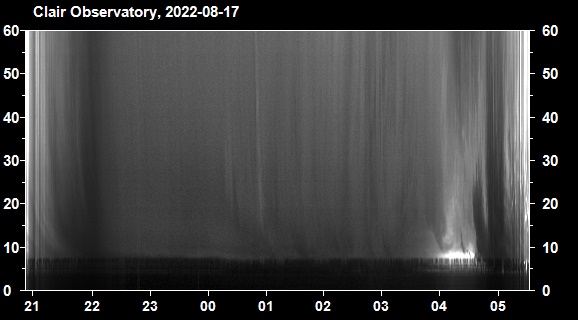

Night Summary Plot - North Sky (2022-08-17 / 2022-08-18)
Times on plot are local times (BST = UTC +01h )
Activity not visible on keogram due to cloud

Back to Top


Magnetometer Stack Plots (for reference)

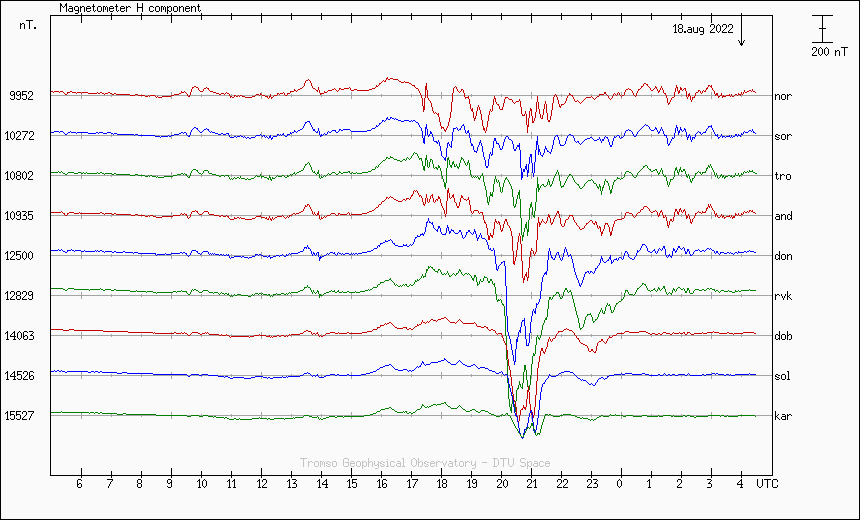

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-08-17 / 2022-08-18
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

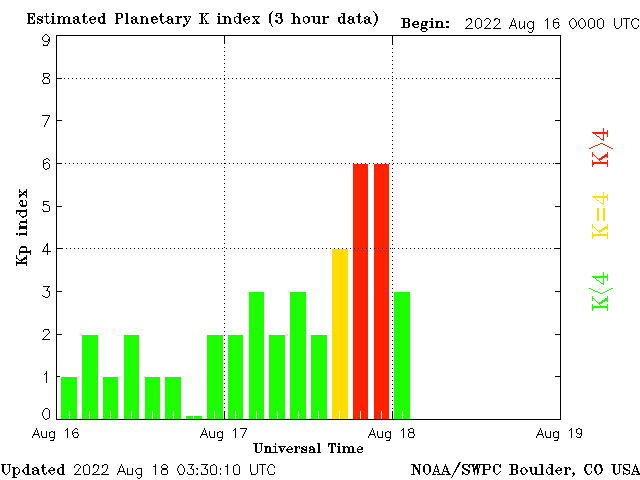

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

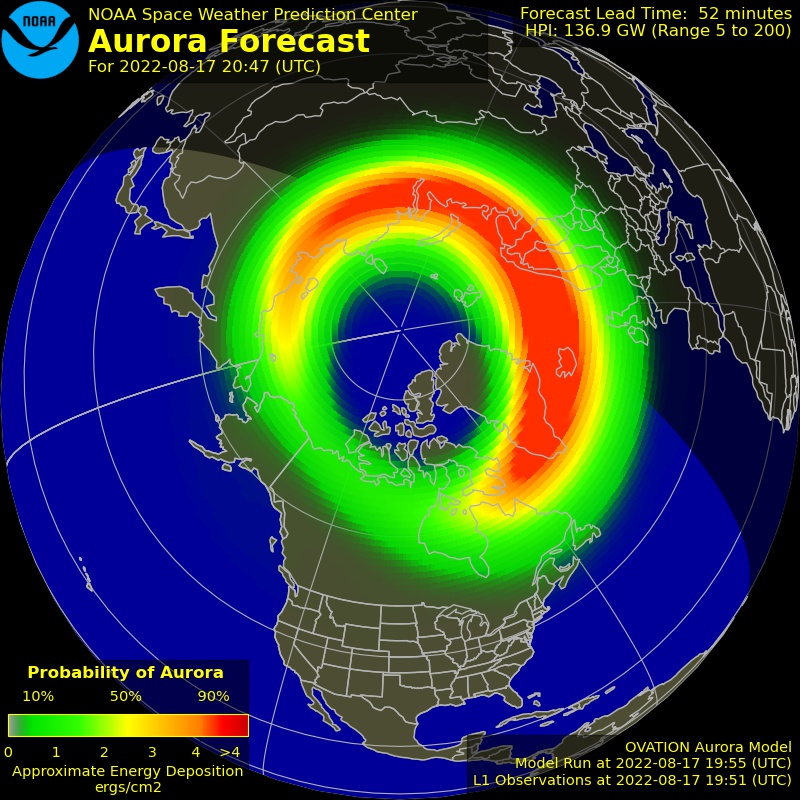

Aurora Forecast at 2022-08-17 20:00 UT for 20:47UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
