Aurora on night  2022-11-03 / 2022-11-04  (page in progress)

Aurora Notes
Bullet Summary Plot
Bullet Pictures
Bullet Videos
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora activity visible from NE Scotland on night of 2022-11-03 / 2022-11-04.

- Scandinavia magnetometers indicate some activity at 16:30 to 17:45 UT and peaking between 22:45 and 00:30 UT

- Activity visible 2022-09-14 21:40 to 02:25 UT (22:40 to 03:25 Local),  with peak activity between 23:10 and 23:20 UT (00:10 to 00:20 Local). Aurora arc to 10 deg altitude with rays to 20 deg altitude at peak.


- Telescope Images from 2022-11-03 >>


Night Summary Plot

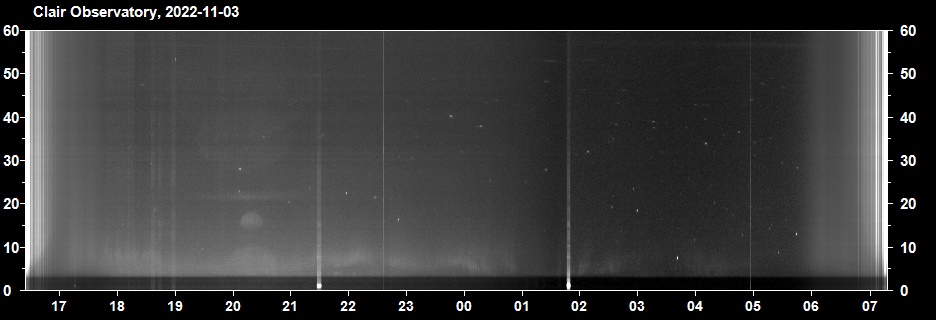

Night Summary Plot - North Sky (2022-11-03 / 2022-11-04 )
Times on plot are local times (BST = UTC +01h )
Activity visible on keogram from 2022-10-29 01:45 to 03:45 BST (00:45 to 02:45 UT)

Back to Top


Pictures

Panoramic View - Northern Sky

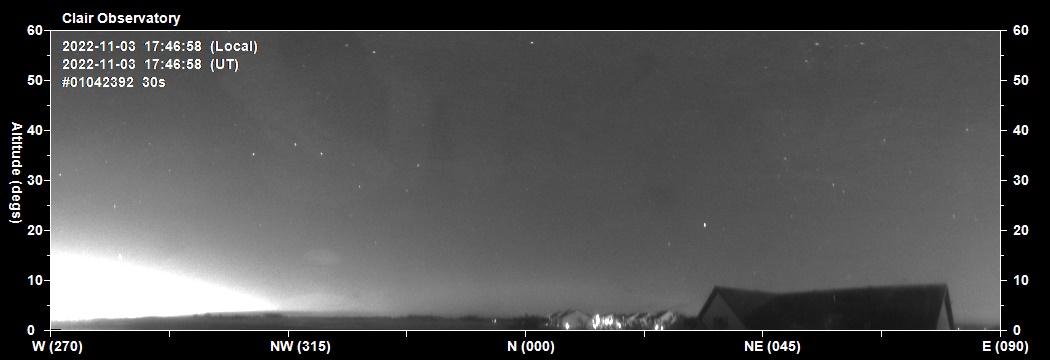

2022-11-03 17:46 UT
Very faint aurora arc in northern sky. Twilight Sky.

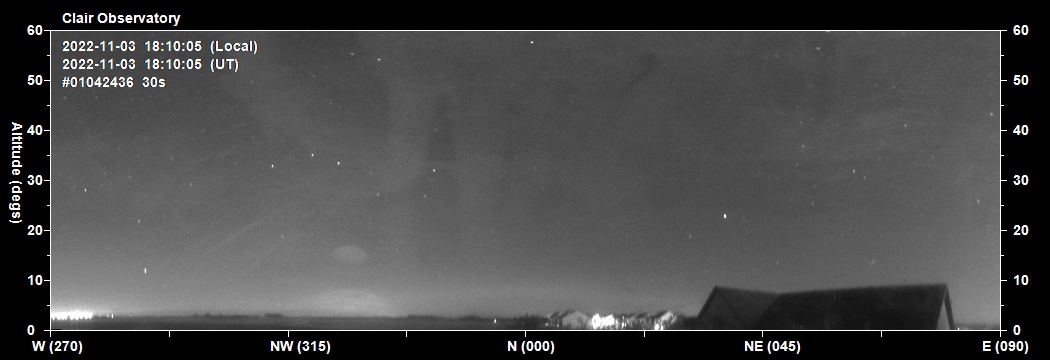

2022-11-03 18:10 UT
Faint aurora arc. Various artefacts from defects on Camera Hemisphere (since replaced) and moonlight.

2022-11-03 21:55 UT
Aurora arc, somewhat lost in bright moonlit sky.

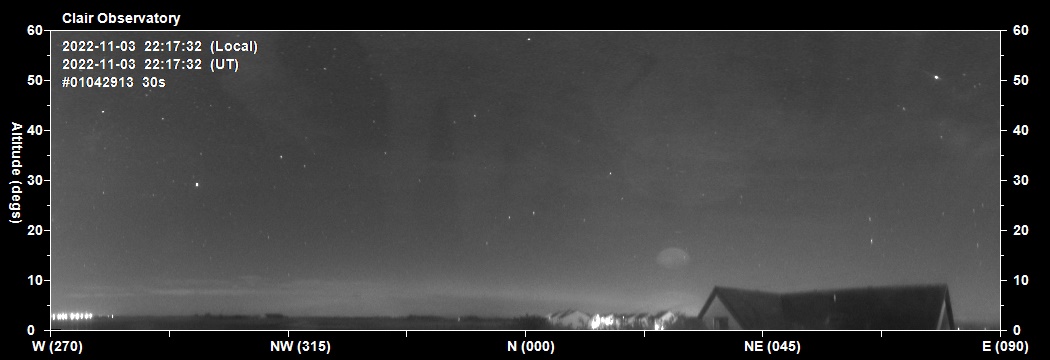

2022-11-03 22:17 UT
Auroral arc,  partly lost in bright moonlit sky.

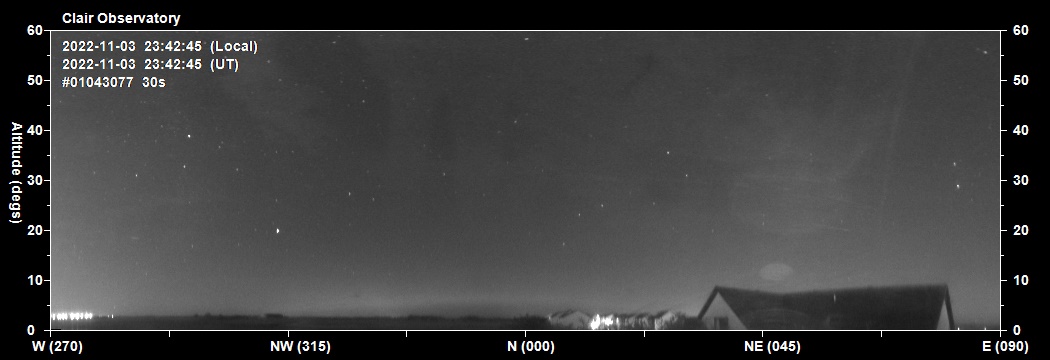

2022-11-03 23:42 UT
Auroral arc

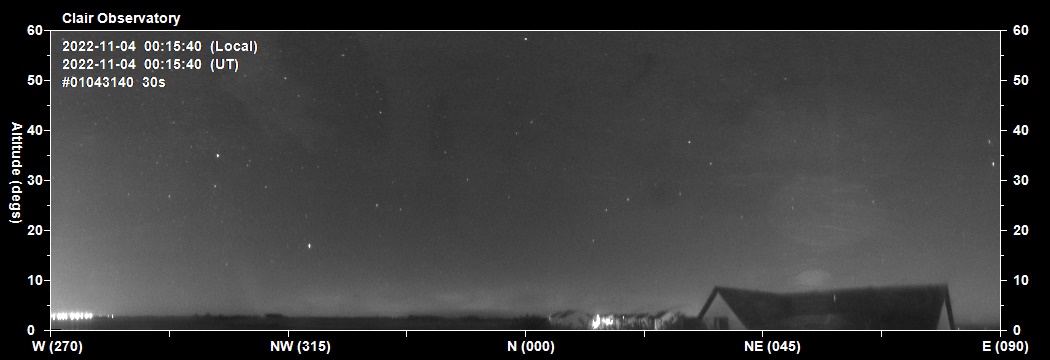

2022-11-04 00:15 UT
Auroral activity along northern horizon. Rapid changes. Ray in NW sky moving westwards.

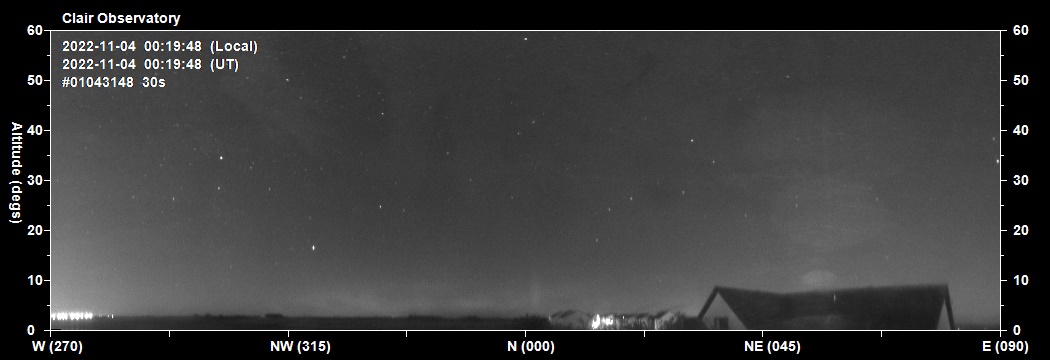

2022-11-04 00:19 UT
Auroral activity along northern horizon. Ray in N Sky to 12 deg altitude


30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 6h 30m period
2022-11-03 20:30 UT to 2022-11-04 03:00 UT,  Frames #1042707 to
1043457
Link to .mp4 video file (4.1 MB)
0.0s / 0.0s

Back to Top

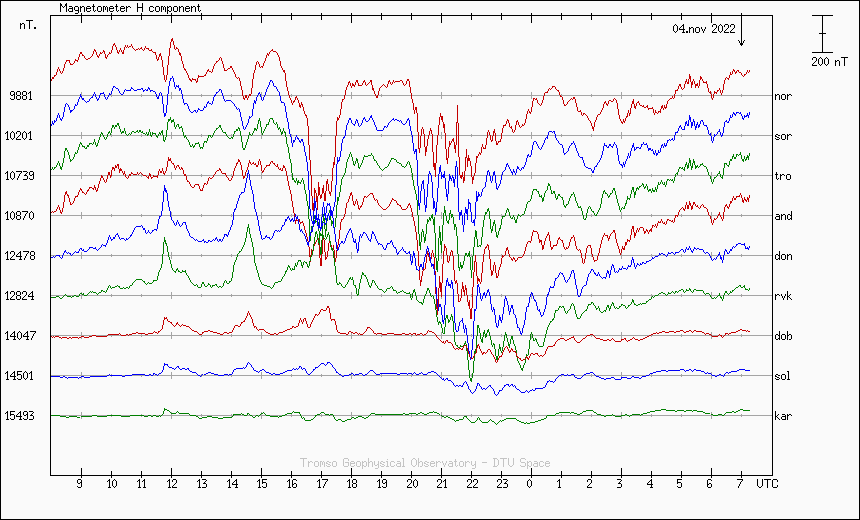

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-11-03 / 2022-11-04
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

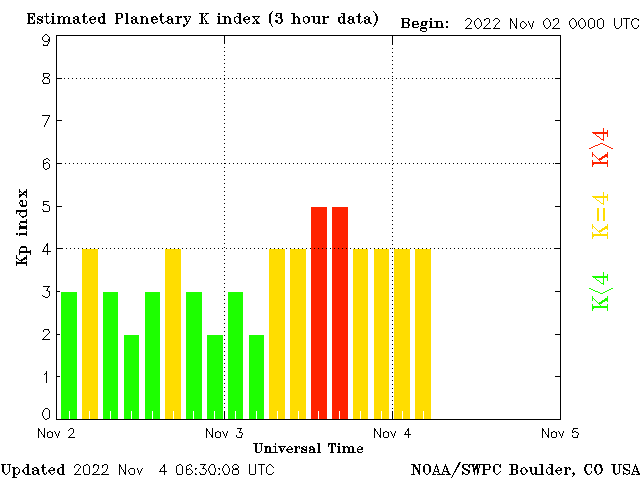

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

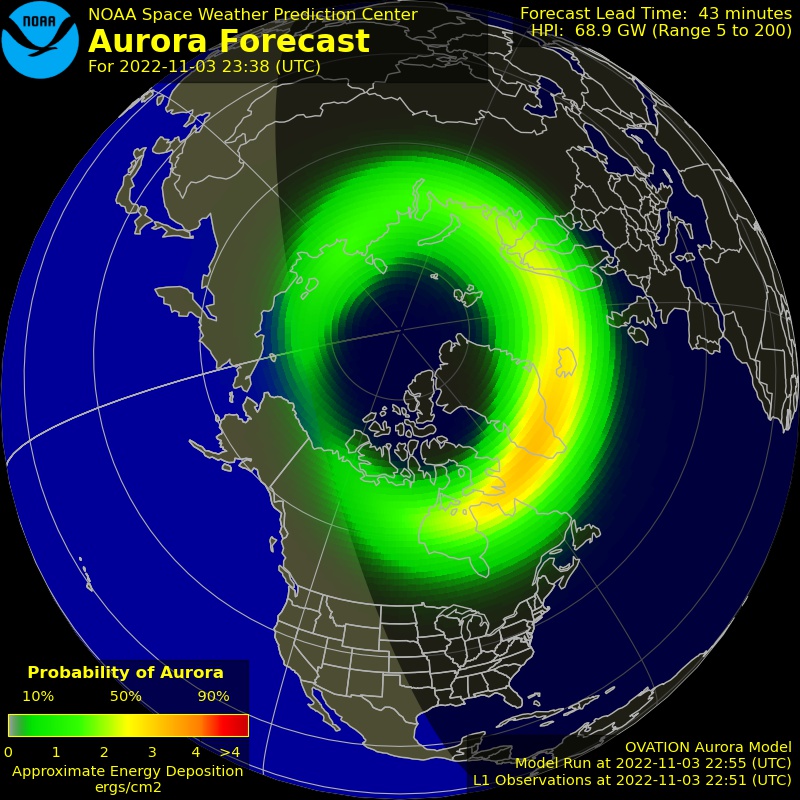

Aurora Forecast for 2022-11-03 23:38 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
