David's Astronomy Pages (All Sky Camera)
Aurora on night  2022-11-20 / 2022-11-21

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak Aurora activity visible from NE Scotland on night of 2022-11-20 / 21

- Scandinavia magnetometers indicate activity at 22:30 to 23:30 UT and again at 02:00 to 02:45 UT

- Activity visible from observatory at 22:23 to 23:30 UT and at 01:50 to 03:00 UT.

Bright flash in NE Sky at 16:37 UT (steep entry meteor ?)

- Telescope Images from 2022-11-20 >>


Pictures

Panoramic View - Northern Sky

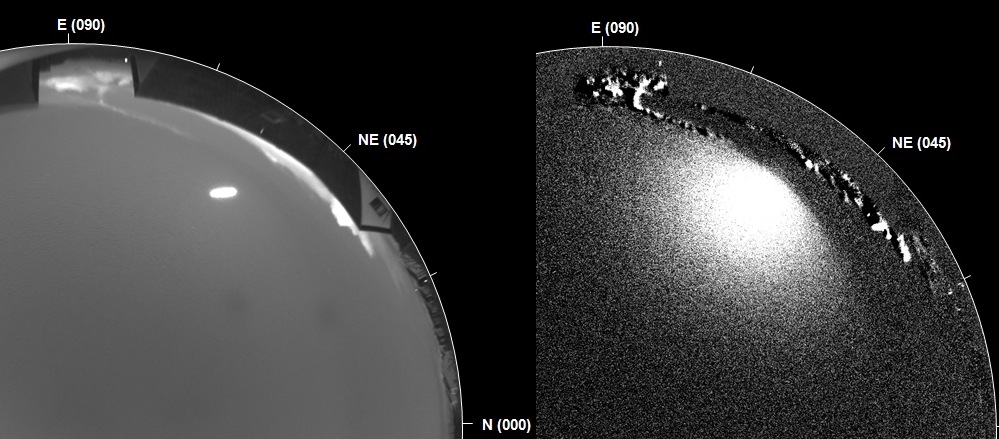

2022-09-20 16:37 UT
Very bright flash in NE Sky
Not a light artefact. Not a plane or a helicopter (no sign before/after flash).
No indication of rocket/satellite (again no sign before/after).
So presume it is a bright meteor entering at a fairly steep angle.

2022-09-20 16:37 UT
Following frame showing no indication of any object path, nor smoke trail.

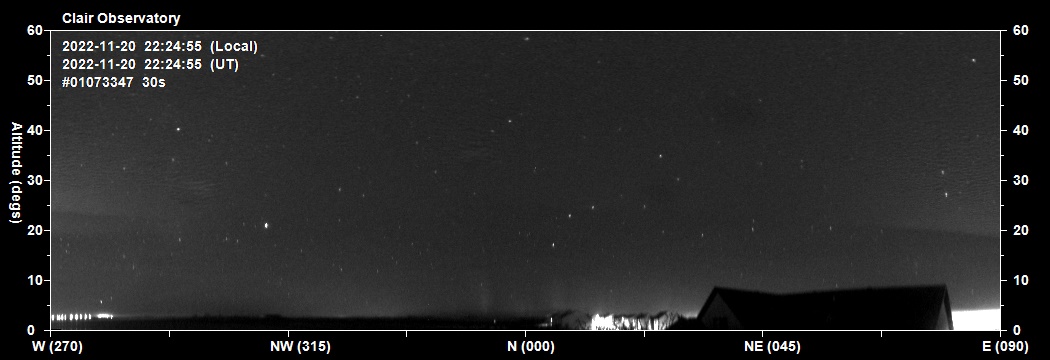

2022-11-20 22:24 UT
Aurora activity (rays) starting along northern horizon at around 22:23 or 22:24

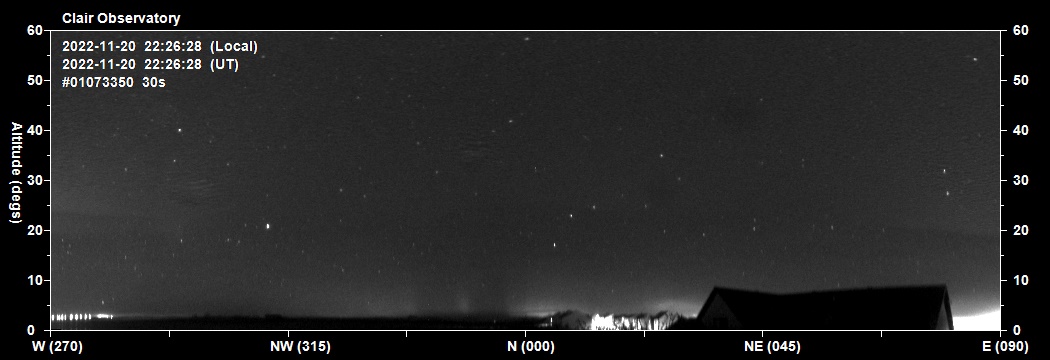

2022-11-20 22:26 UT
Aurora activity (rays) along northern horizon to 5-8 deg.

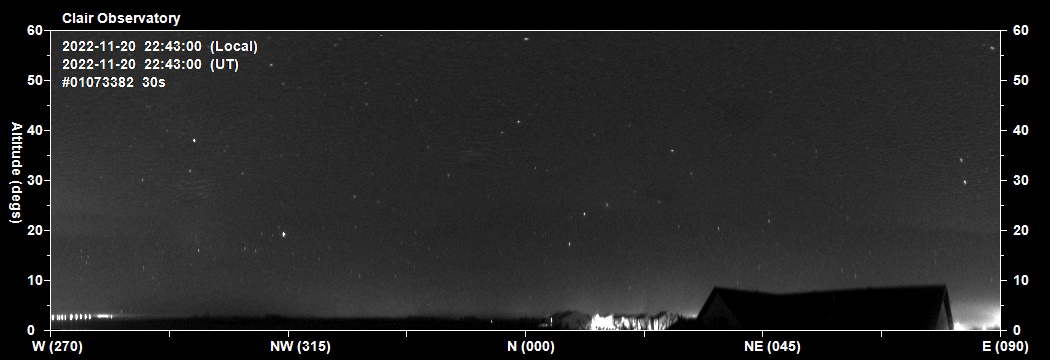

2022-11-20 22:43 UT
Aurora activity (rays) along northern horizon. Some indications of activity in NE and E sky ?

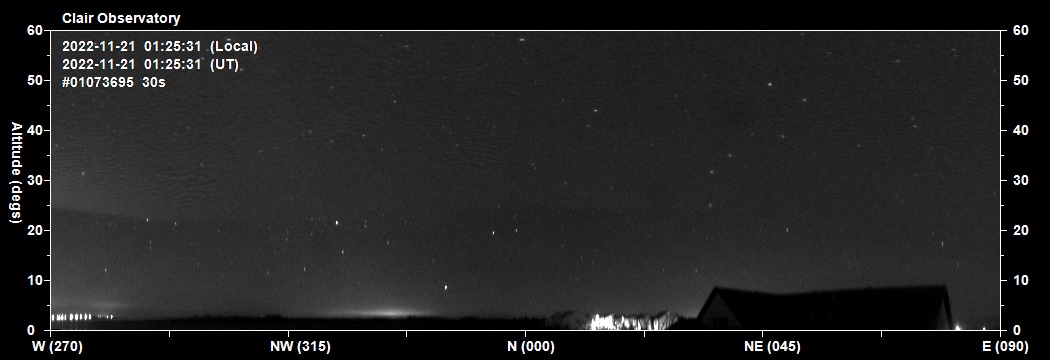

2022-11-21 01:25 UT
Unexplained light immediately above NNW horizon (could be cloud lit by town lights,
but seems more distant than the local town to NNW) , appeared at 01:00 and persisted until at least 06:00

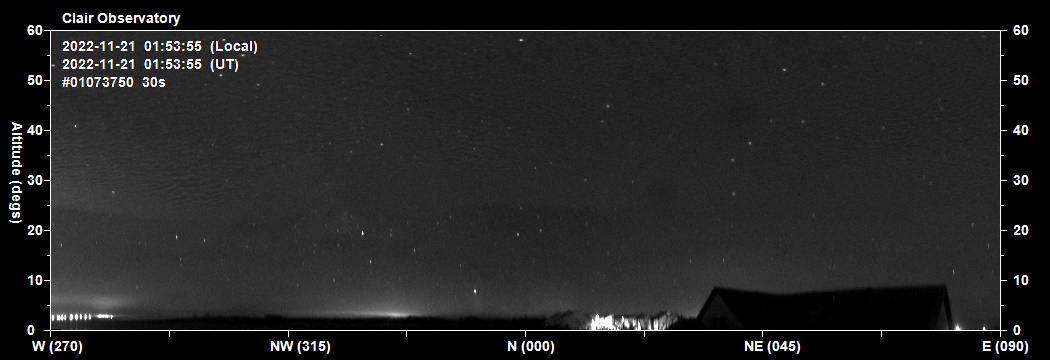

2022-11-21 01:53 UT
Aurora activity (rays) again along northern horizon to 5-8 deg.

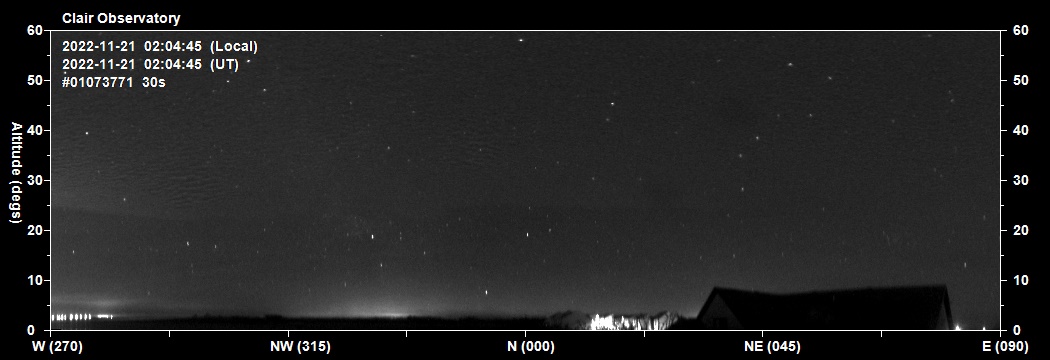

2022-11-21 02:04 UT
Faint auroral arc to 4-5 degs altitude

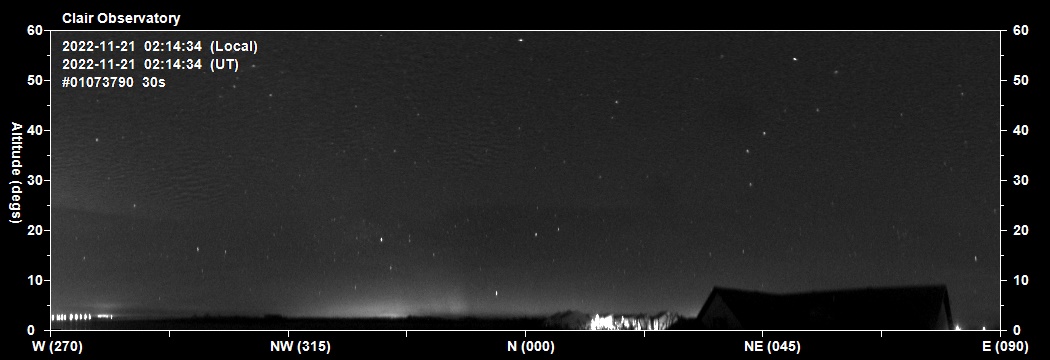

2022-11-21 02:14 UT
Auroral arc brightening with rays to 8-9 deg

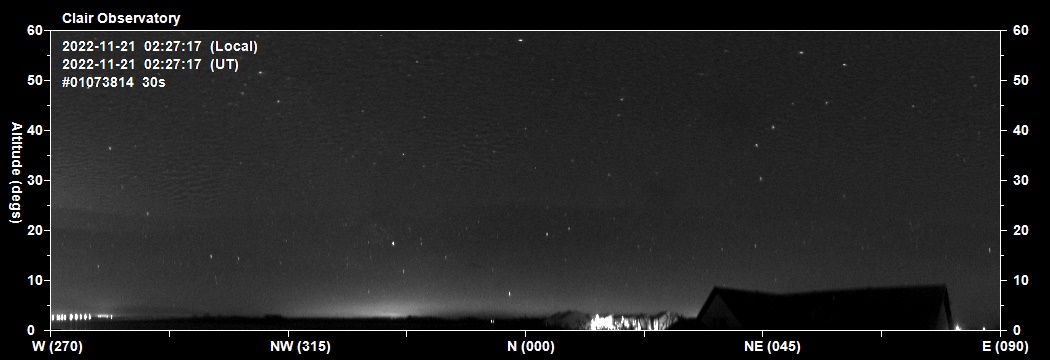

2022-11-21 02:27 UT
Auroral arc in northern sky to 5 deg
Light immediately above horizon in NNW persists

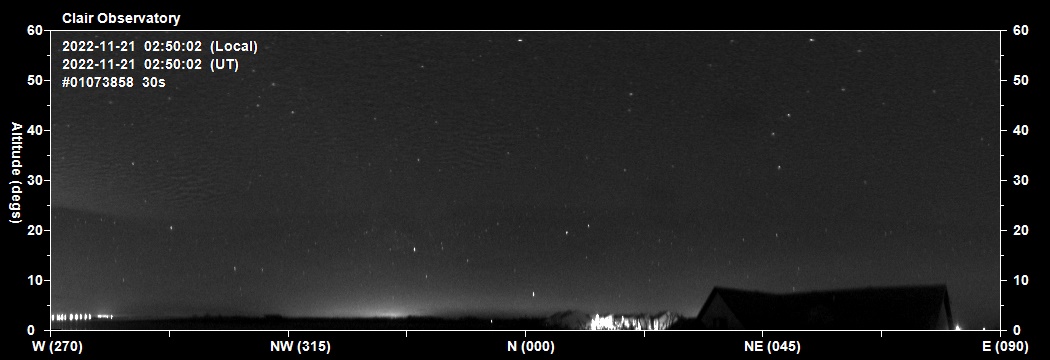

2022-11-21 02:50 UT
Auroral arc fading

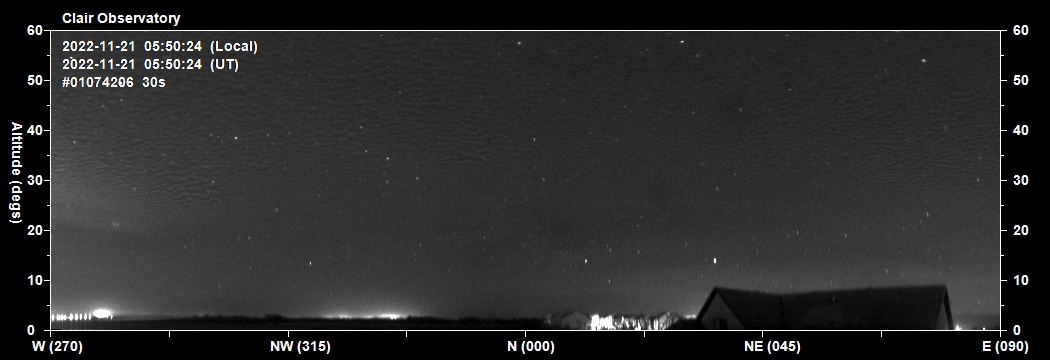

2022-11-21 05:50 UT
Later image showing light above NNW horizon still persisting and even brightening.

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 5h 15m period
2022-11-20 22:15 UT to 03:30 UT,  Frames #1073328 to
1073935
Link to .mp4 video file (6.5 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

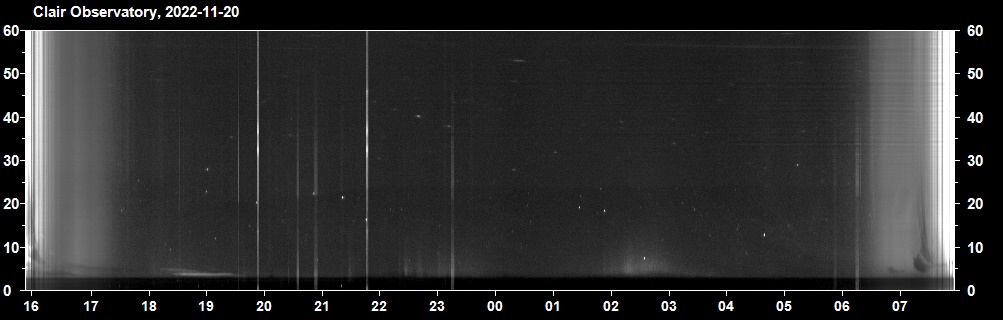

Night Summary Plot - North Sky (2022-11-20 / 2022-11-21 )
Times on plot are local times (BST = UTC +01h )
Activity visible on keogram from 2022-11-20 22:30 to 23:40 GMT/UT
and 2022-11-21 02:00 to 03:15 GMT/UT

Back to Top


Magnetometer Stack Plots (for reference)

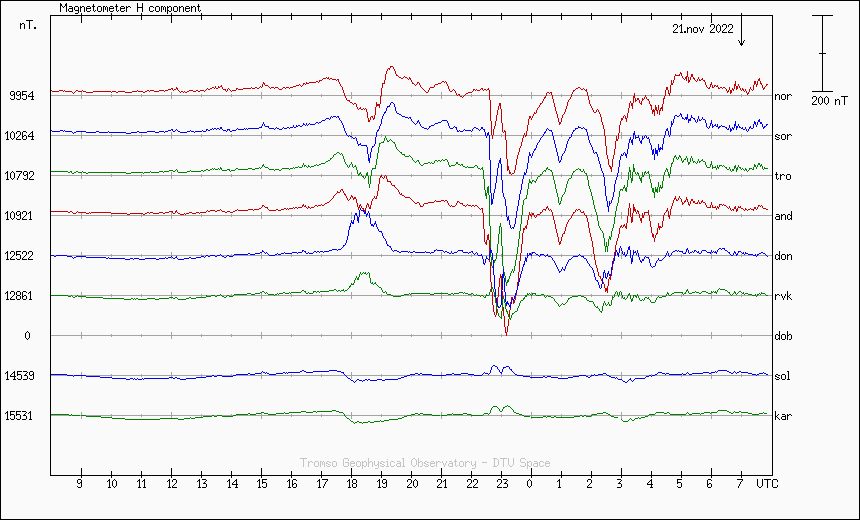

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-11-20 / 2022-11-21
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)

 Not Available



Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

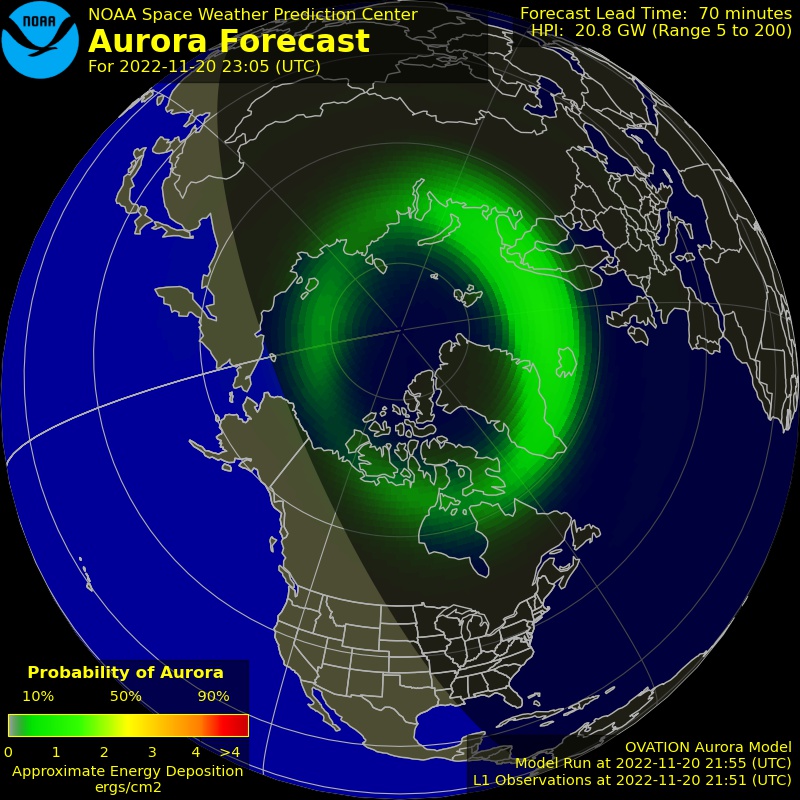

Aurora Forecast at 2022-11-20 22:00 UT for 23:05 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )

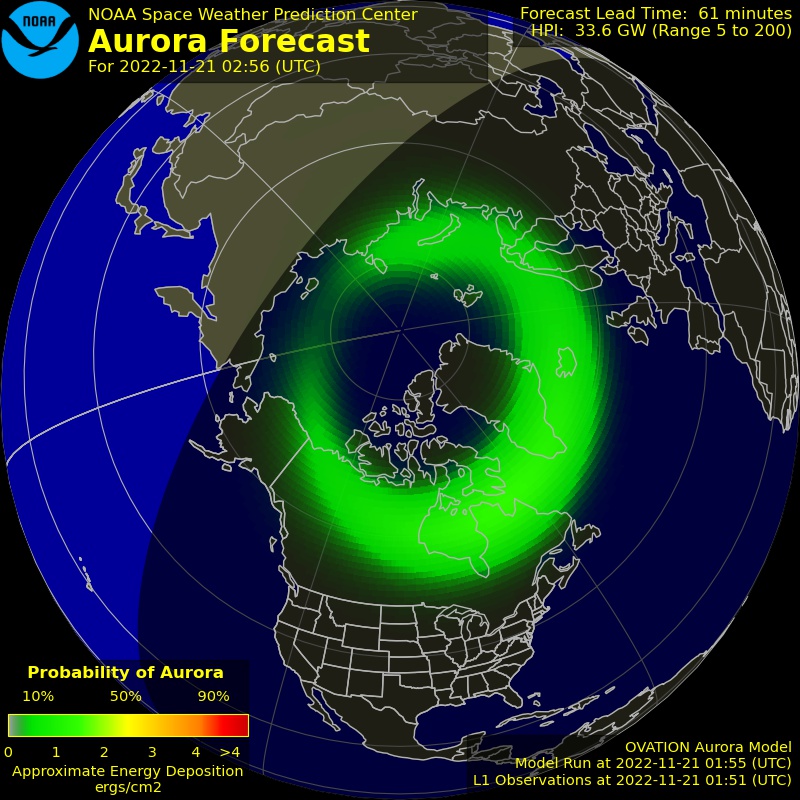

Aurora Forecast at 2022-11-21 02:00 UT for 02:56 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
Stronger event towards Greenland/North America
