Aurora on night  2022-11-28

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora activity visible from NE Scotland on the evening of 2022-11-28

- Scandinavia magnetometers indicate activity at 19:00 to 22:00 UT with a very stromg peak of activity at 20:55 to 21:15, followed by a later weaker peak at 01:00 to 01:30 UT

- Activity visible from observatory at 18:40 to 21:50 UT with a very faint spell of activity after mignight between 00:35 to 01:30 UT.

- Telescope Images from 2022-11-28 >>


Pictures

Panoramic View - Northern Sky

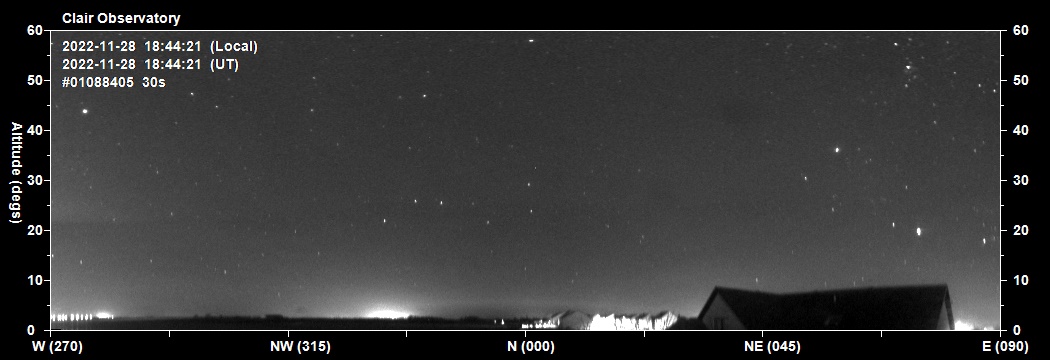

2022-11-28 18:44 UT
Aurora arc developing along northern horizon.

2022-11-28 19:21 UT
Auroral arc brightening & slowly climbing

2022-11-28 19:40 UT
Aurora  rays & curtains developing along auroral arc

2022-11-28 20:00 UT
Rays moving to west

2022-11-28 20:04 UT
Lower arc rapidly devloping

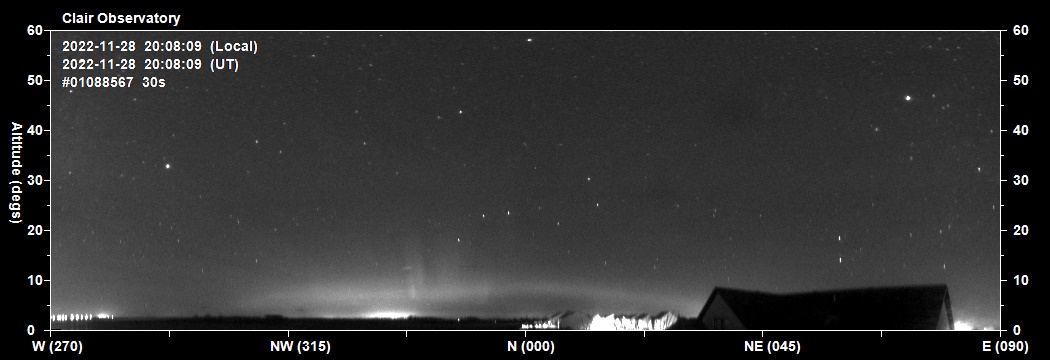

2022-11-28 20:08 UT
Rays to 18° altitude

2022-11-28 20:20 UT
Aurora activity temporarily reducing

2022-11-28 20:32 UT
Rays developing again

2022-11-28 20:36UT
Rays in NW-WNW sky moving westwards. Aurora arc weakening

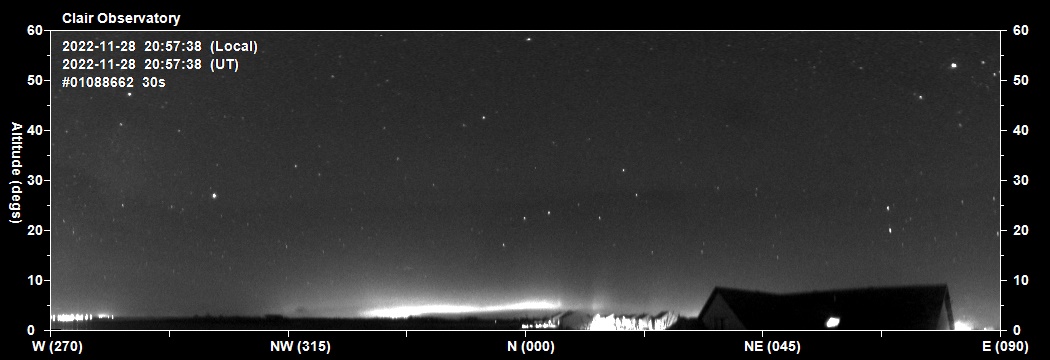

2022-11-28 20:57 UT
Very rapid brightening (reconnection event), rays in NNE skys to 10° altitude

2022-11-28 20:59:11 UT
Bright activity in NNW sky, Rays to 20° altitude.

2022-11-28 20:59:42 UT
Prominant rays, very rapid changes (this is just one frame on from the image above)

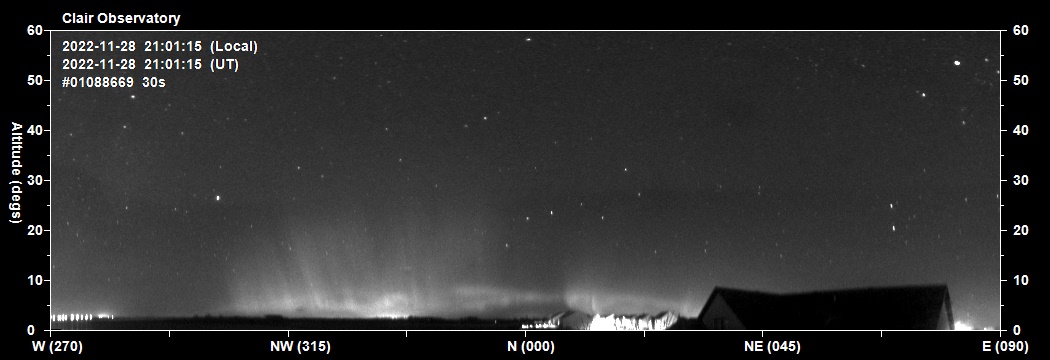

2022-11-28 21:01 UT
Aurora very active. Prominant rays and curtains moving.

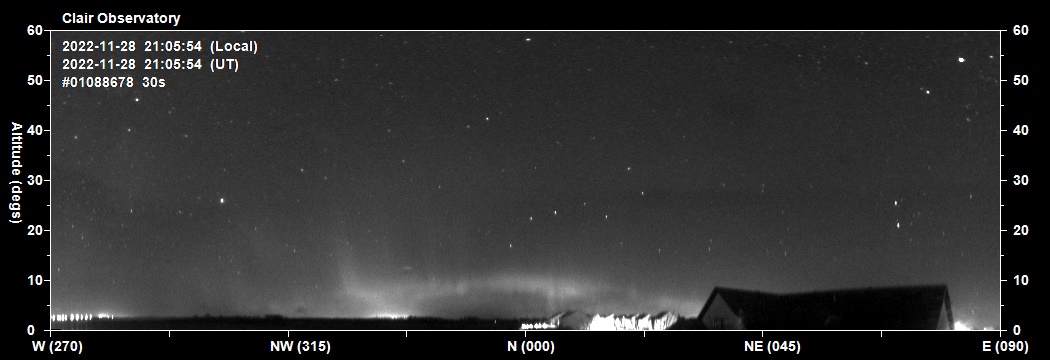

2022-11-28 21:05 UT
Aurora activity dimming and becoming somewhat chaotic

2022-11-28 21:12 UT
Aurora arc breaking up but some distinct rays in N sky to 15° altitude

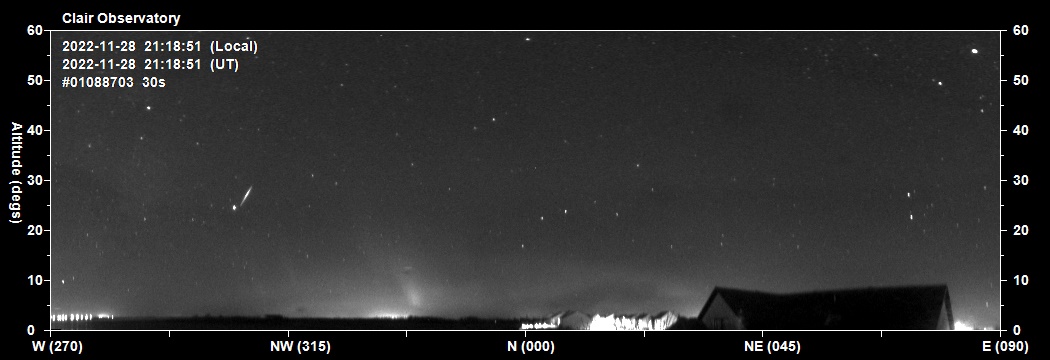

2022-11-28 21:18 UT
Activity fading but still with rays in NNW sky.

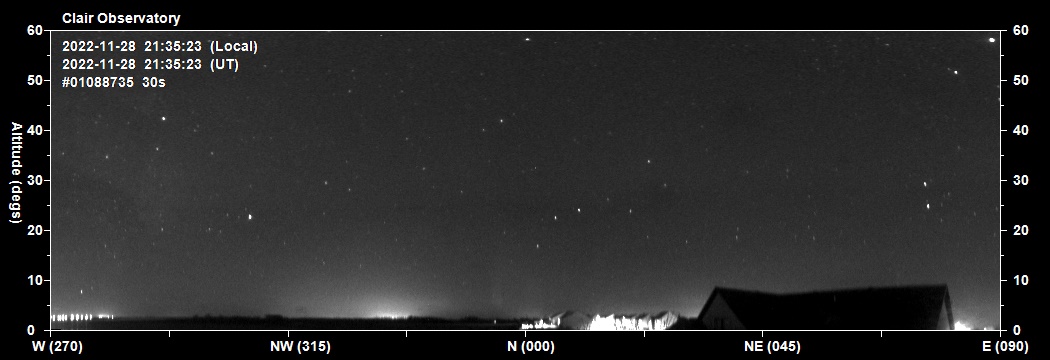

2022-11-28 21:35 UT
Activity fading, rays weakening but still present.  Activity faded away by 21:45

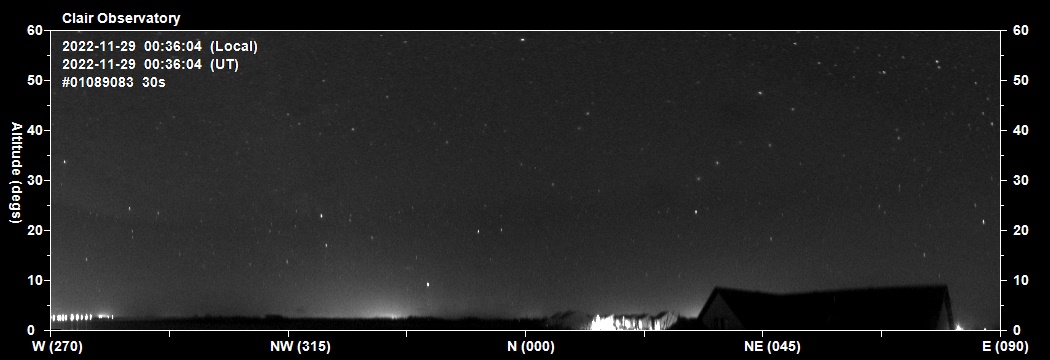

2022-11-28 00:36 UT
Very slight increase in activity at 00:36. faint rays along northern horizon.

2022-11-28 01:25 UT
Minor rays on NNW Sky, but quickly dying away

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 3h 30m period
2022-11-28 18:30 UT to 22:00 UT,  Frames #1088378 to
1083782
Link to .mp4 video file (6.5 MB)
0.0s / 0.0s

Back to Top

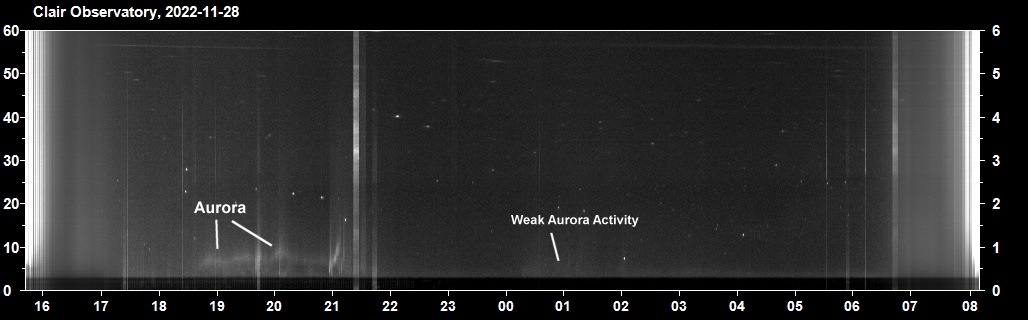

Night Summary Plot

Night Summary Plot - North Sky (2022-11-28 / 2022-11-29 )
Times on plot are local times (BST = UTC +01h )
Activity visible on keogram

Back to Top

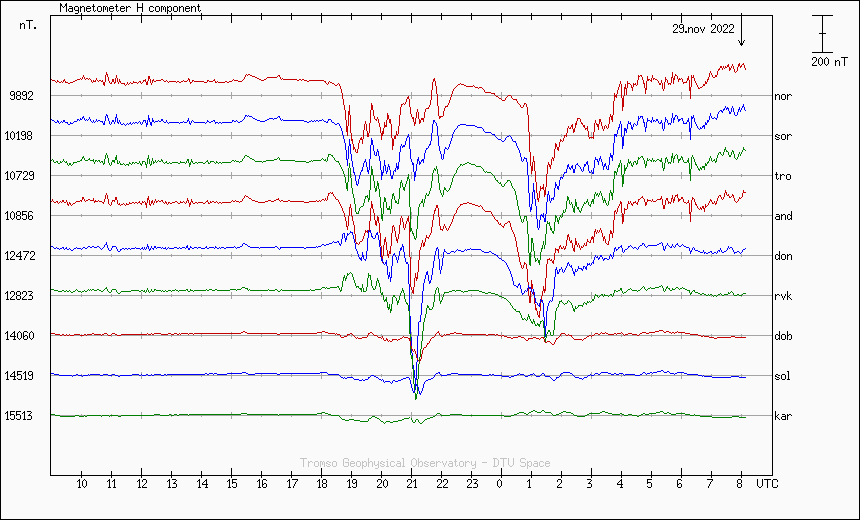

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2022-11-28 / 2022-11-29
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top

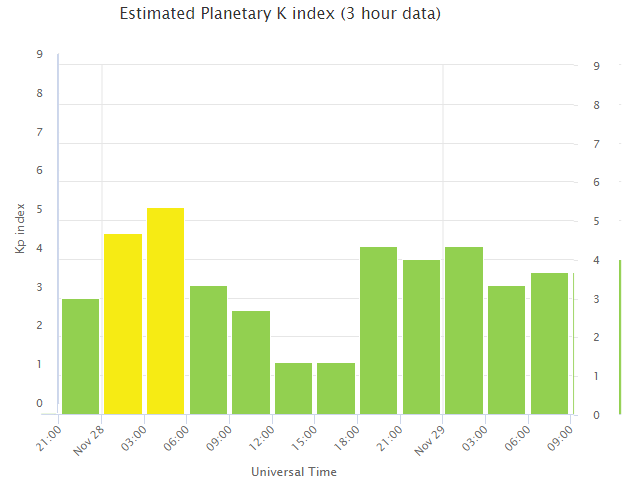

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)

planetary-k-index_2022-11-28 / 2022-11-29



Back to Top

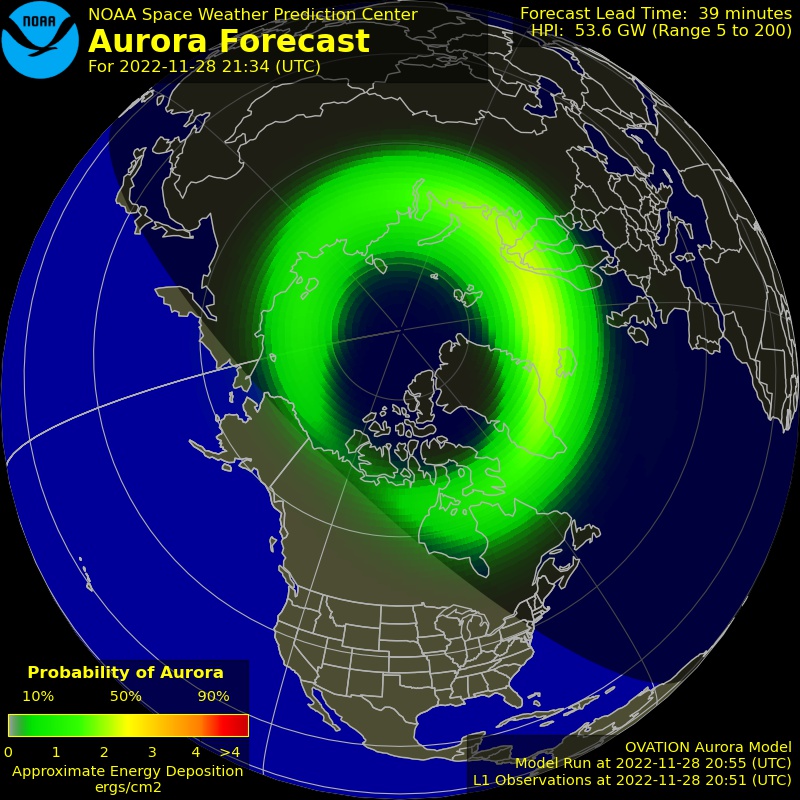

Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2022-11-28 21:00 UT for 21:34 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
