Aurora on night  2023-01-13

Aurora Notes
Bullet Pictures
Bullet Videos
Bullet Summary Plot
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Aurora activity visible from NE Scotland on the evening of 2023-01-13

- Scandinavia magnetometers indicate activity at 19:00 to 01:30 UT with a very strong peak of activity at 22:00 to 00:00 UT

- Activity visible was from observatory at 19:30 to 00:30 UT with a further spell of activity at around 01:15 UT. Main peaks of activity occurred at 21:48 to 22:14 UT, 22:20  to 22:48 UT, and 23:05 to 23:45 UT. The later peak was marked by tall rays up to 25° altitude. Cloud interferred with observations from 23:00 onwards.

- Telescope Images from 2023-01-13 >>


Pictures

Panoramic View - Northern Sky

Note on Dew
Dew in the interior of AllSky Camera Hemisphere is visible in images above 20-22° altitude
but doesn't affect observations of aurora below this altitude.

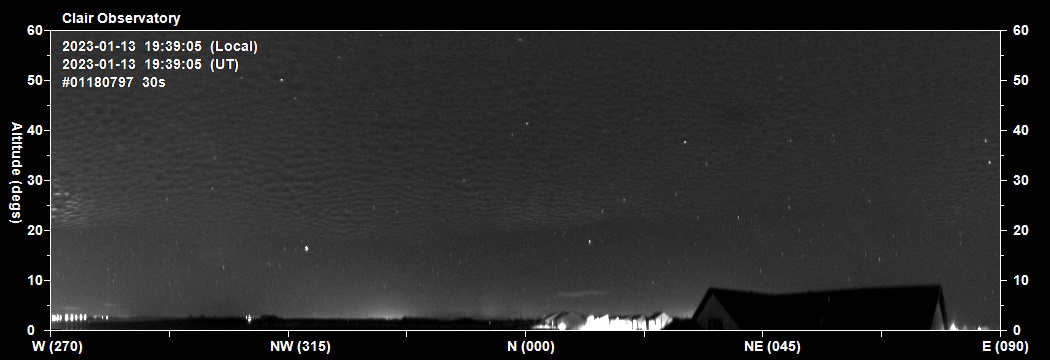

2023-01-13 19:39 UT
First signs of aurora activity low down on northern horizon and moving.

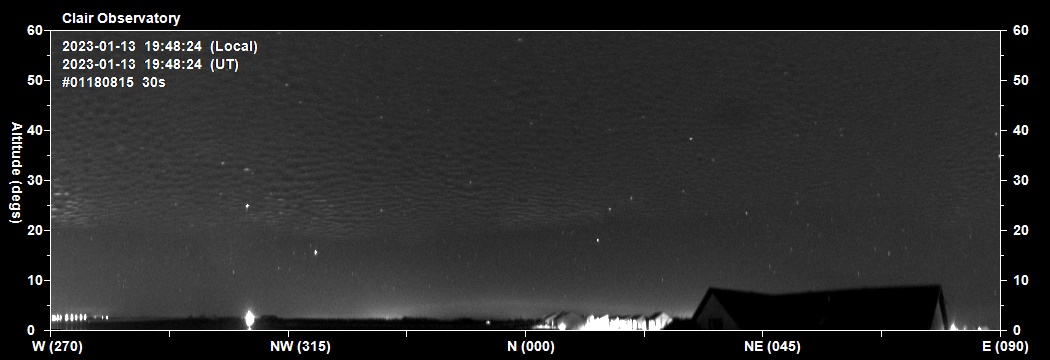

2023-01-13 19:48 UT
Auroral arc developing

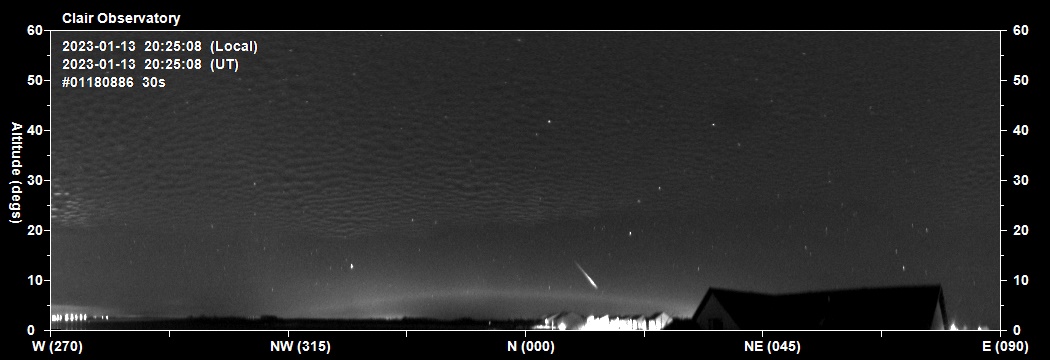

2023-01-13 20:25 UT
Aurora  rays brightening.   Meteor at around 10° altitude in N /NNE sky (Az 013°)

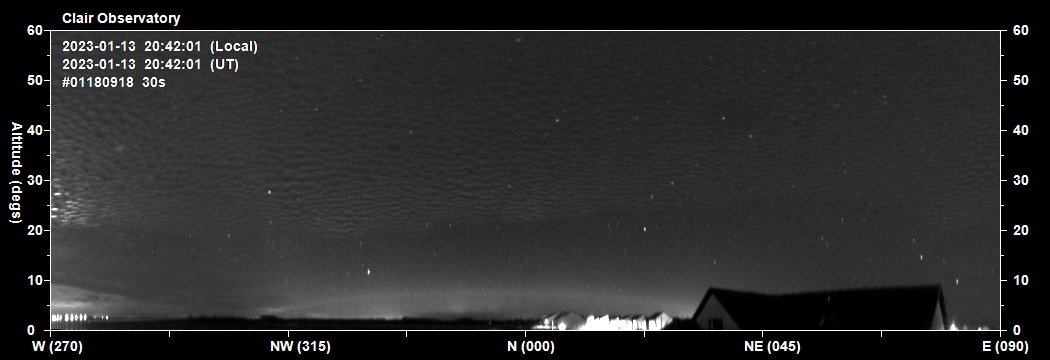

2023-01-13 20:42 UT
Aurora Arc and faint curtains

2023-01-13 21:47 UT
Series of rays in NNE Sky to 15-16° altitude

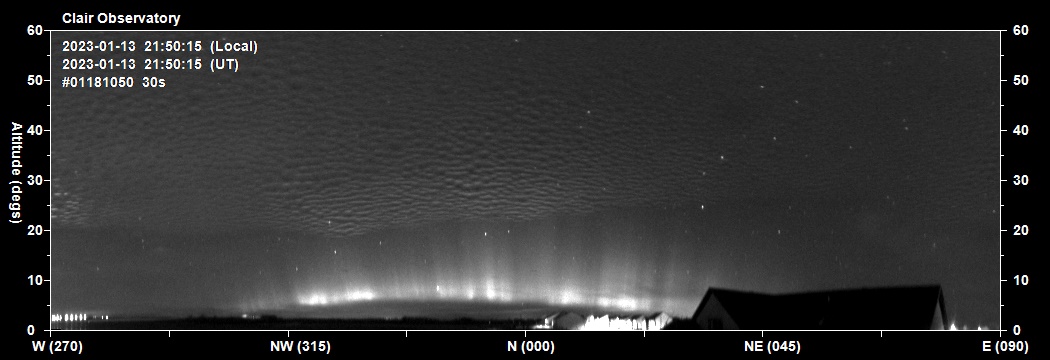

2023-01-13 21:50 UT
Increased activity. Bright rays to 20° altitude

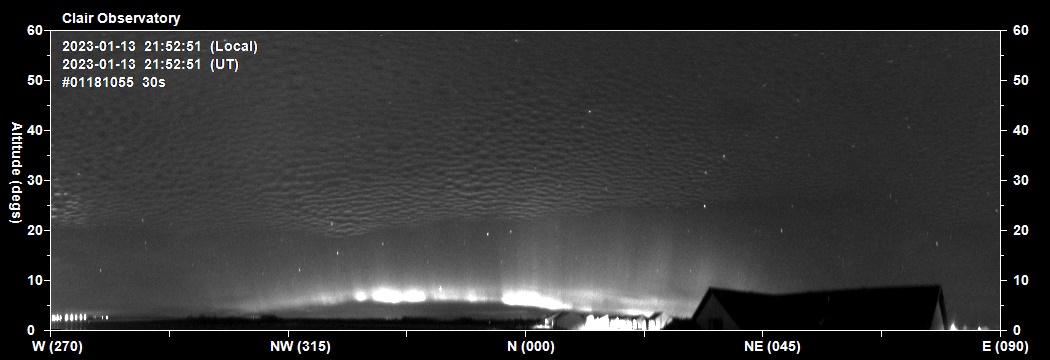

2023-01-13 21:52 UT
Bright and active aurora. Rays to 20-22° altitude

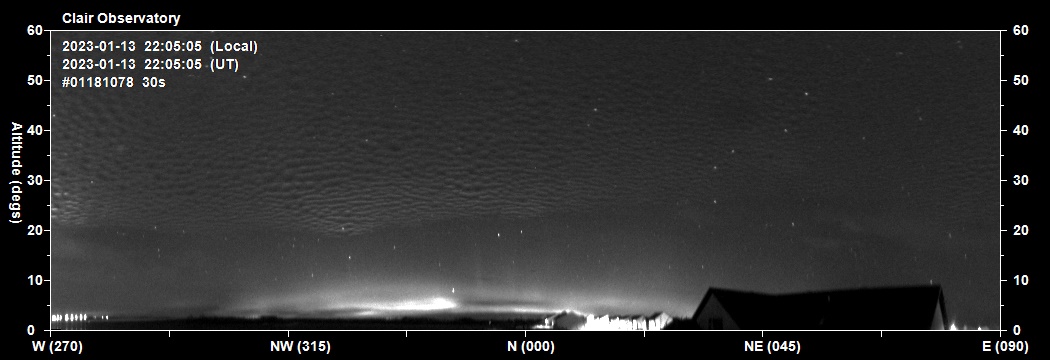

2023-01-13 22:05 UT
Bright activity moving in NNW sky. Upper arc and rays beginning to fade

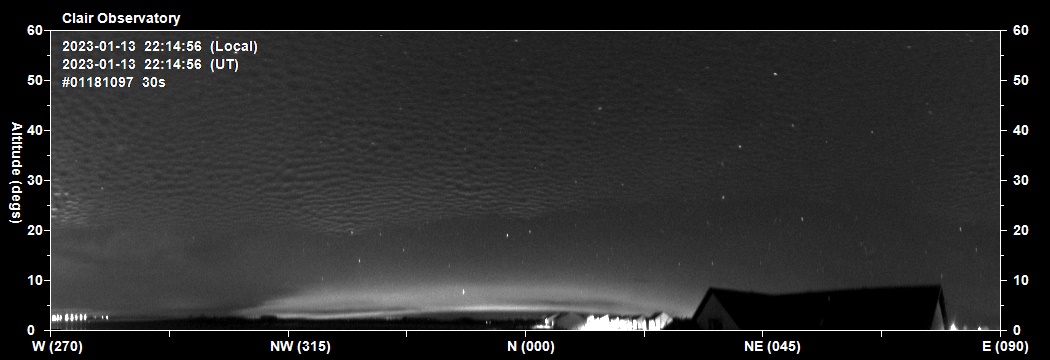

2023-01-13 22:14 UT
Aurora temporarily reducing. Wide aurora arc with uniform brightness

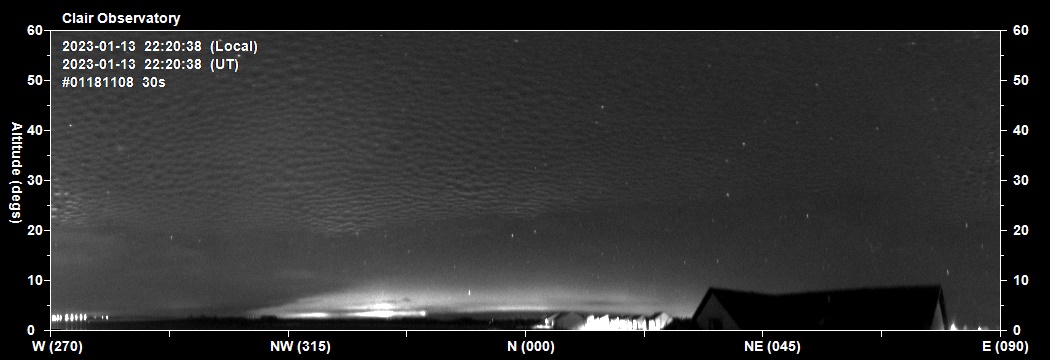

2023-01-13 22:20 UT
Increase in activity again. Bright arc/curtain in NNW - NW sky

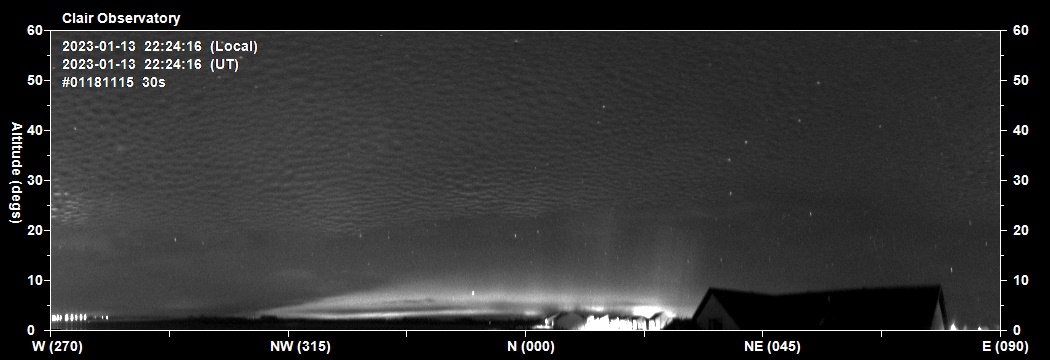

2023-01-13 22:24 UT
Rays in N -NNW sky to 20-25° altitude

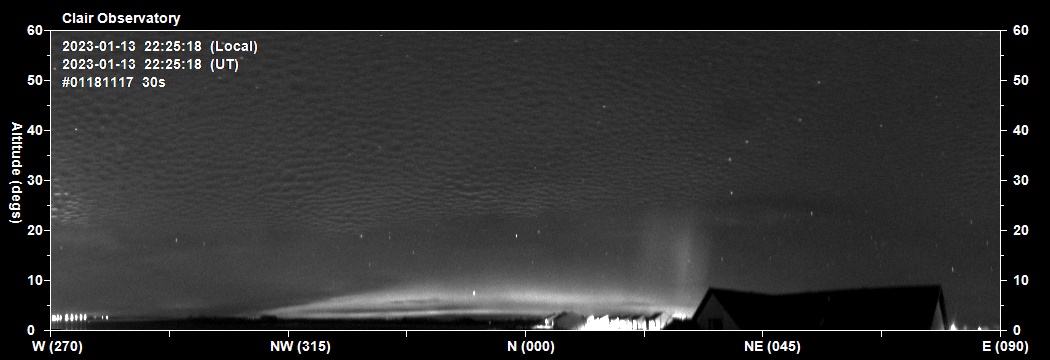

2023-01-13 22:25 UT
Bright rays moving eastwards in NNE sky to  20-22° altitude

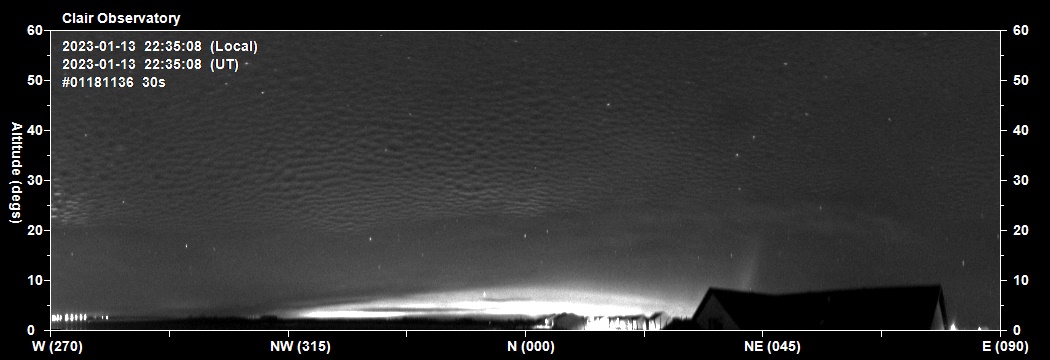

2023-01-13 22:35 UT
Very bright aurora arc along entire northern horizon. Ray in NE Sky

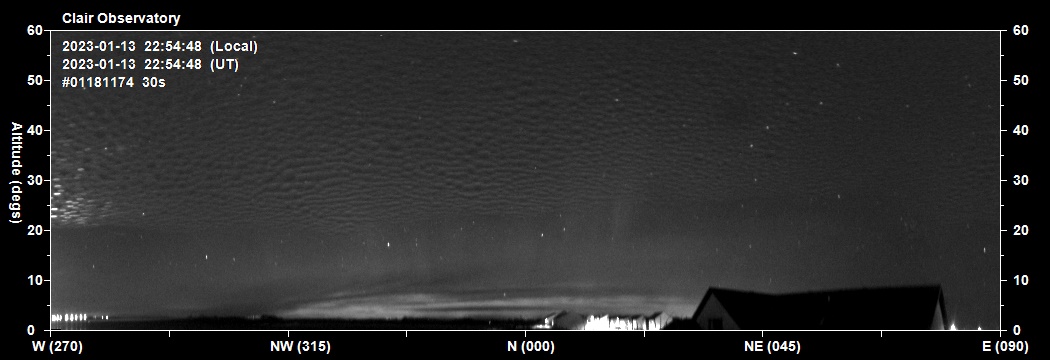

2023-01-13 22:54 UT
Activity beginning to partially hidden by cloud. Faint rays are evident to 25° altitude.

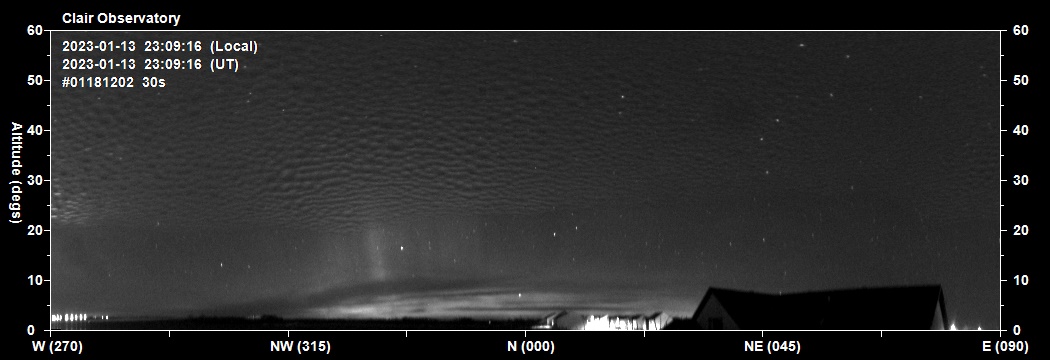

2023-01-13 23:09 UT
Cloud partially covering aurora activity , but bright rays in NNW sky to 20° altitude
(top of rays hidden by dew on interiror of camera's hemisphere)

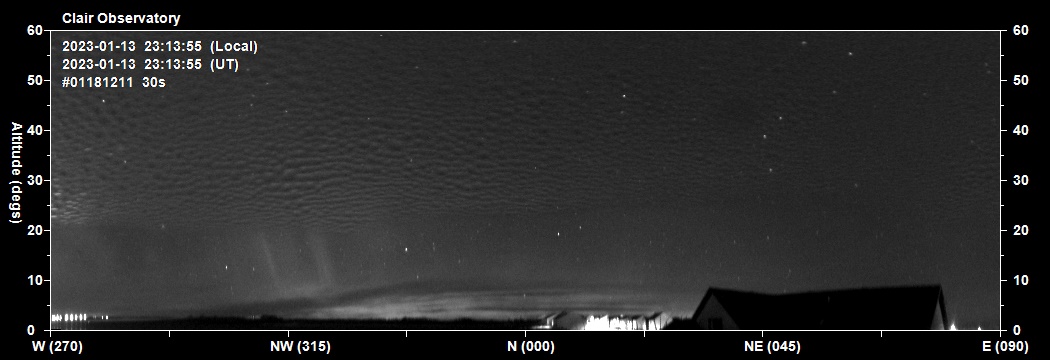

2023-01-13 23:13 UT
Aurora arc faded and partially hidden. Rays in NW Sky to at least 20° altitude.

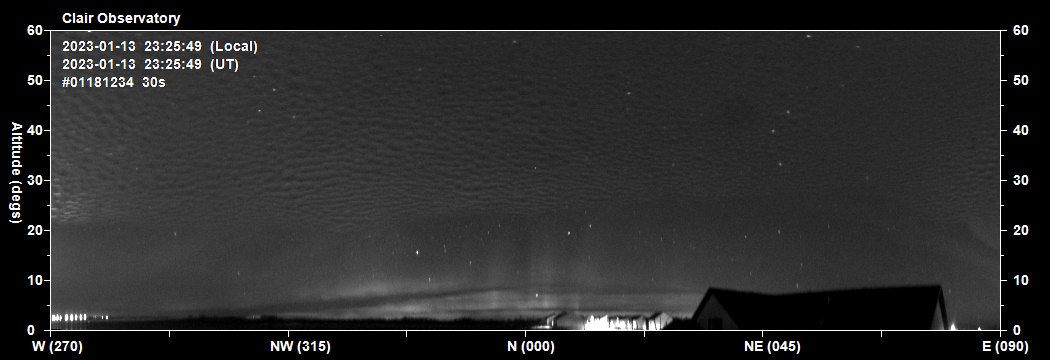

2023-01-13 23:25 UT
Aurora activity behind foreground clouds. Rays to around 15-18° altitude

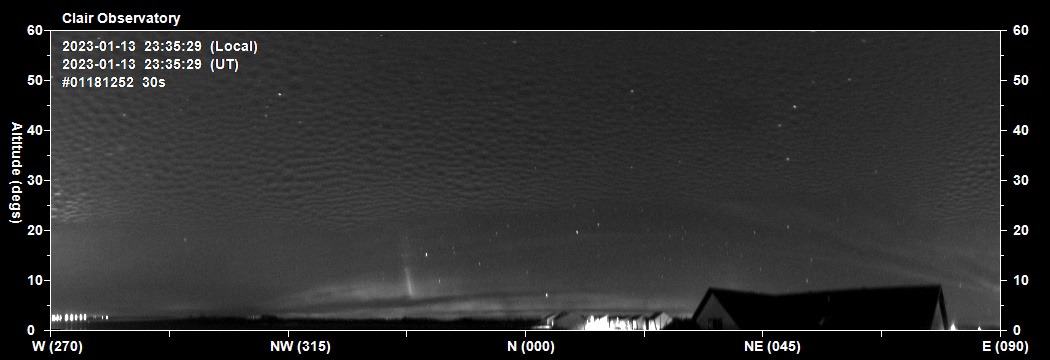

2023-01-13 23:35 UT
. Aurora activity still present (but partially hidden). Bright ray in NNW sky

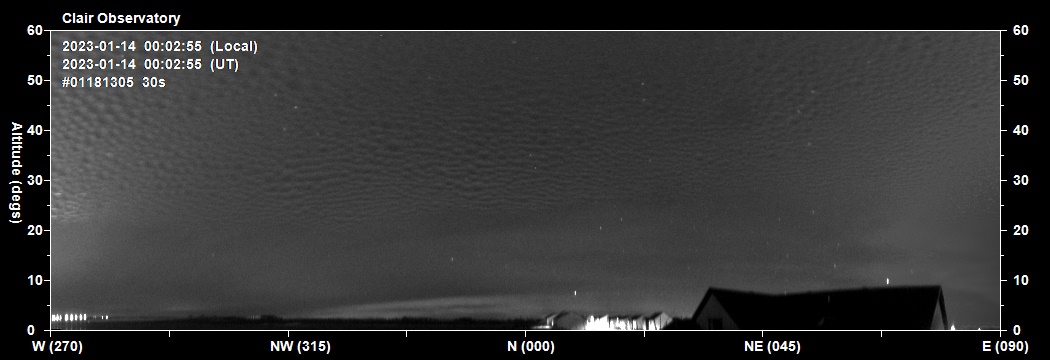

2023-01-14 00:02 UT
Aurora activity still present, but increasing hidden/dimmed by cloud.

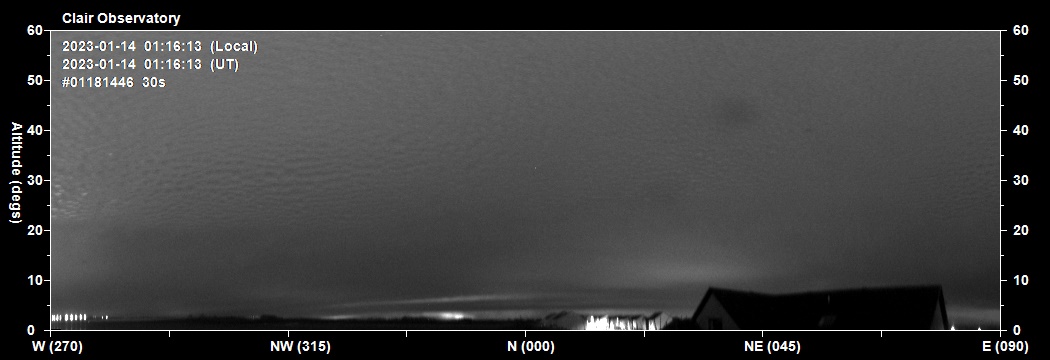

2023-01-14 01:16 UT
Activity visible in N - NNW Sky.  Activity dying off.


30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 5h 0m period
2023-01-13 19:30 UT to 2023-01-14 00:30 UT,  Frames #1180780 to
1181357
Link to .mp4 video file (5.2 MB)
0.0s / 0.0s

Back to Top


Night Summary Plot

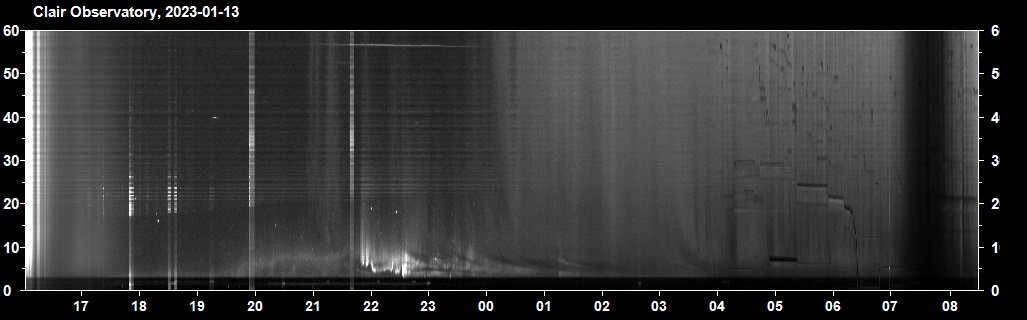

Night Summary Plot - North Sky (2023-01-13 / 2023-01-14 )
Times on plot are local times (GMT = UTC +00h )
Activity visible on keogram 19:30 to 01:00 UT, with peak (brightest) activity at 21:50 to 22:45 UT
(Cloud thicknening from 00:30 UT, rain from 04:00 UT onwards)

Back to Top

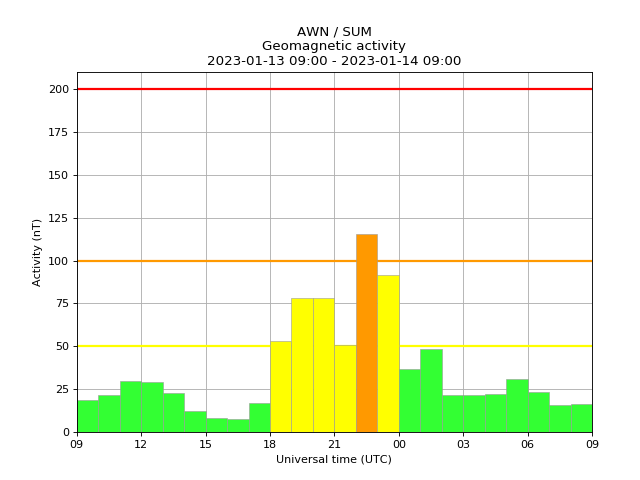

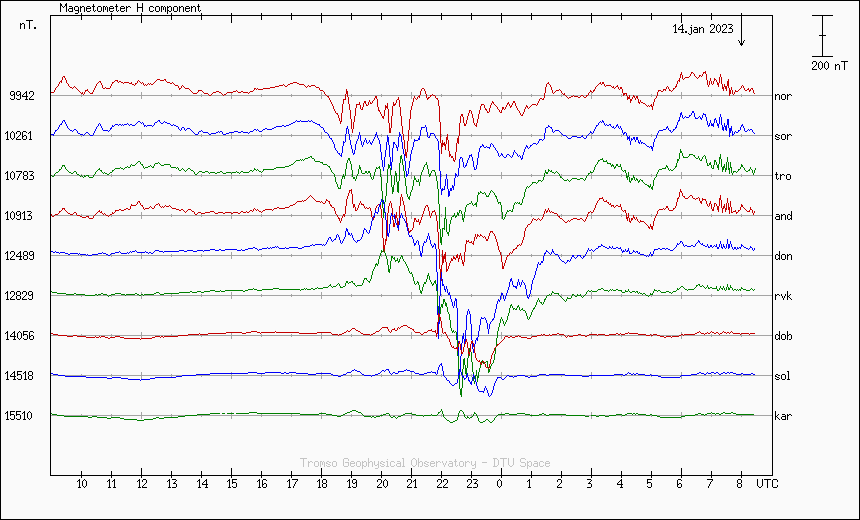

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2023-01-13 / 2023-01-14
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)

planetary-k-index_2023-01-13 / 2023-01-14



Back to Top

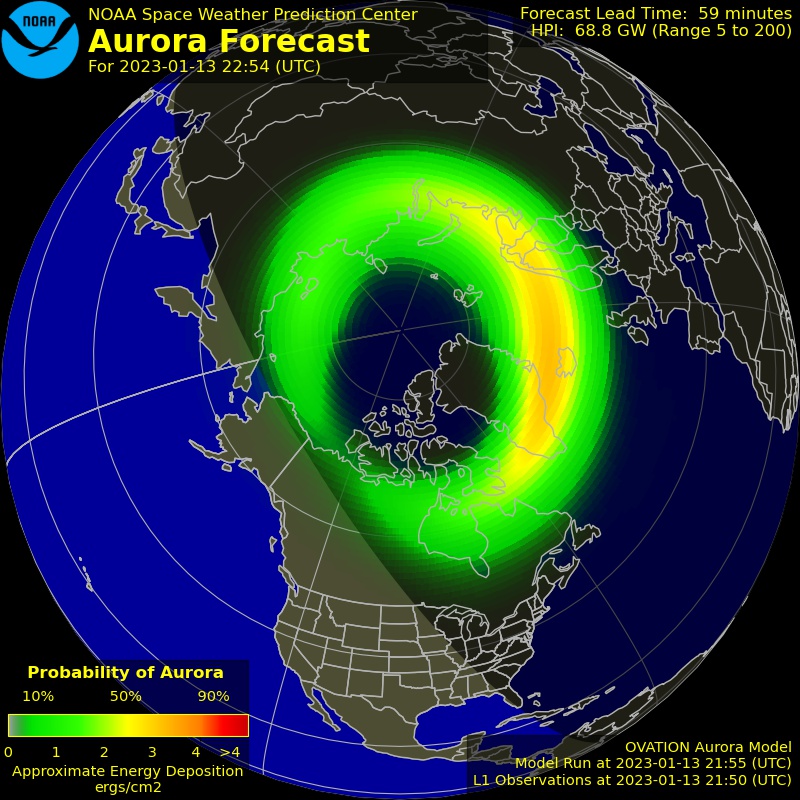

Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast at 2023-01-13 22:00 UT for 22:54 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
