Aurora on night 2023-04-21

Aurora Notes
Bullet Night Summary (Keogram) Plot
Bullet Pictures
Bullet Videos
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Weak aurora activity visible from NE Scotland on the night of 2023-04-21, beginning at 21:35 UT (shortly after dusk), with last activity at around 23:05 UT.  Cloud unfortunately hid the northern sky between 22:05 and 22:45 UT and again from 00:00 UT onwards.

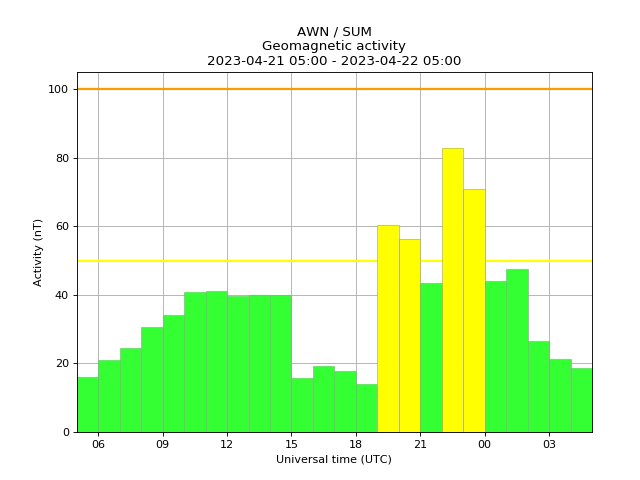

Scandinavia magnetometers indicate activity from 2023-04-21 19:00 UT to around 2023-04-22 01:00 UT, with peaks of activity at 19:30 UT &  22:00 - 23:00 UT

- KP Index 2 - 3

- Telescope Images from 2023-04-21 >>


Night Summary (Keogram) Plot

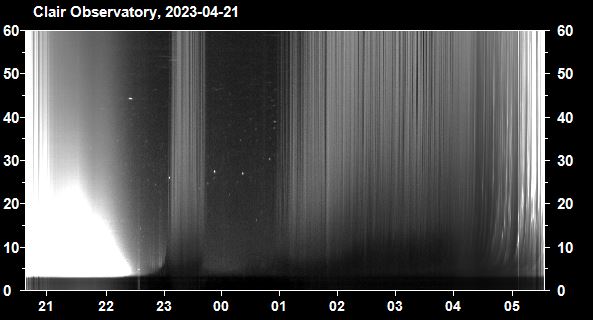

Night Summary Plot - North Sky (2023-04-21 / 2023-04-22 )
Times on plot are local times (BST  = UTC +01h )
Activity visible 22:45 - 23:00 LT (21:45 - 22:00 UT)

Back to Top


Pictures

Panoramic View - Northern Sky

2023-04-21 21:42 UT (22:42 LT)
Weak auroral arc in N sky to 6° altitude.  Some twilight sky in NW

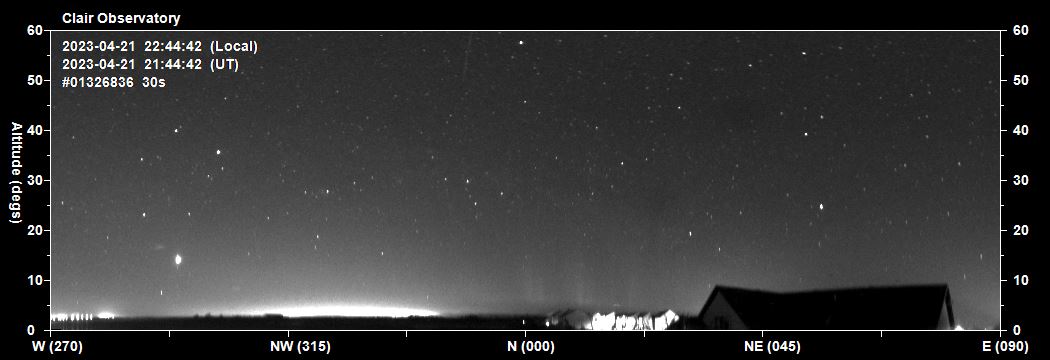

2023-04-21 21:44 UT (22:44 LT)
Auroral rays moving eastwards. Rays to 12° altitude

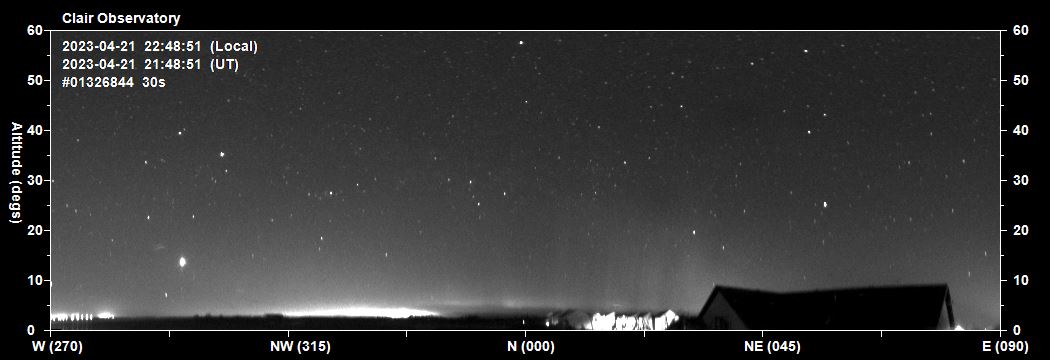

2023-04-21 21:48 UT (22:48 LT)
Curtains developing along auroral arc. Rays to 15-20° altitude (moving eastwards)

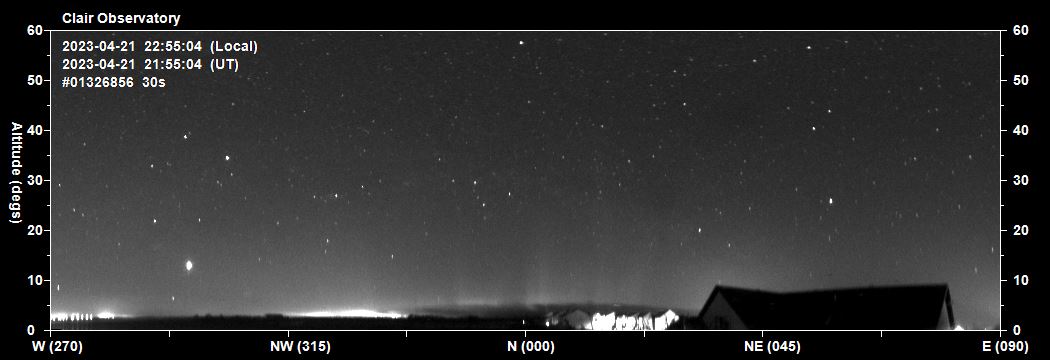

2023-04-21 21:55 UT (22:55 LT)
Curtains developing along auroral arc. Rays to 15° altitude.

2023-04-21 21:56 UT (22:56 LT)
Ray in N sky reaching to 25° altitude. Foreground cloud along northern horizon

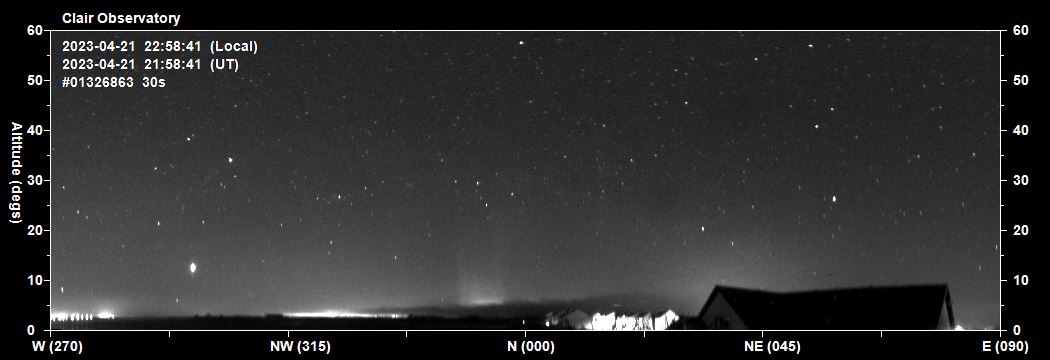

2023-04-21 21:58 UT (22:58 LT)
Brightening in aurora just west of N. Rays to 15-17° altitude. Clouds approaching from north.

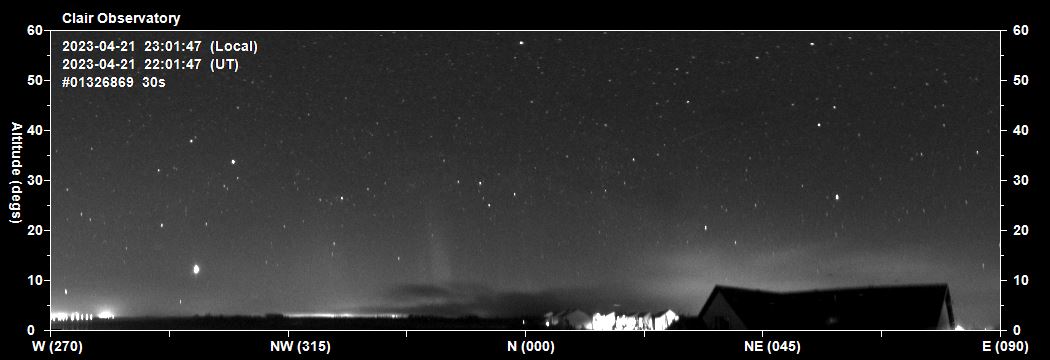

2023-04-21 22:01 UT (23:01 LT)
Aurora activity gradually being hidden by cloud along northen horizon, but rays in NNW sky to 20° altitude

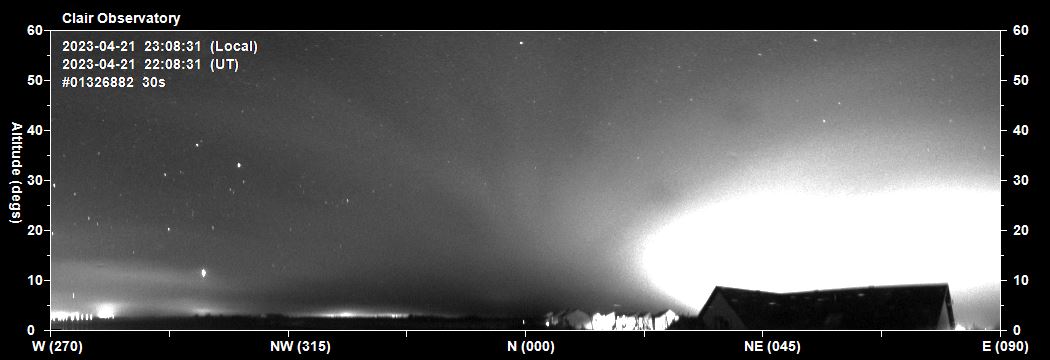

2023-04-21 22:08 UT (23:08)
Clouds hide northern sky between 22:05 and 22:45 UT (ie 23:05 - 23:45 LT)

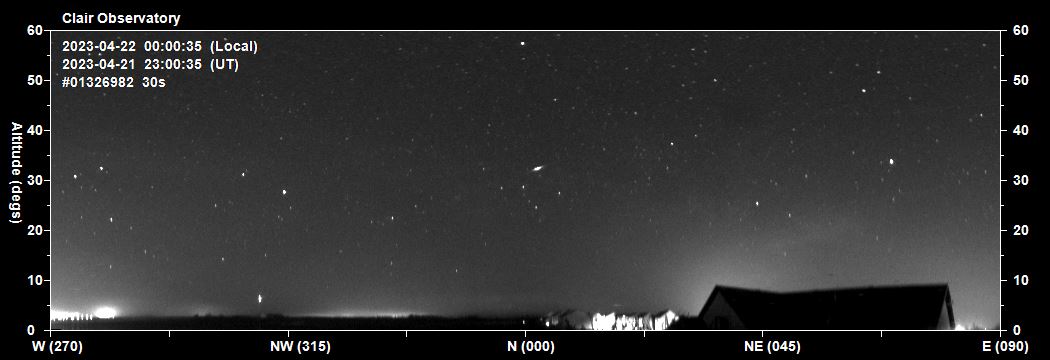

2023-04-21 23:00 UT (2023-04-22 00:00 LT)
Weak aurora arc to 5° altiude. Satellite flash (?) in N sky at 32° altiude

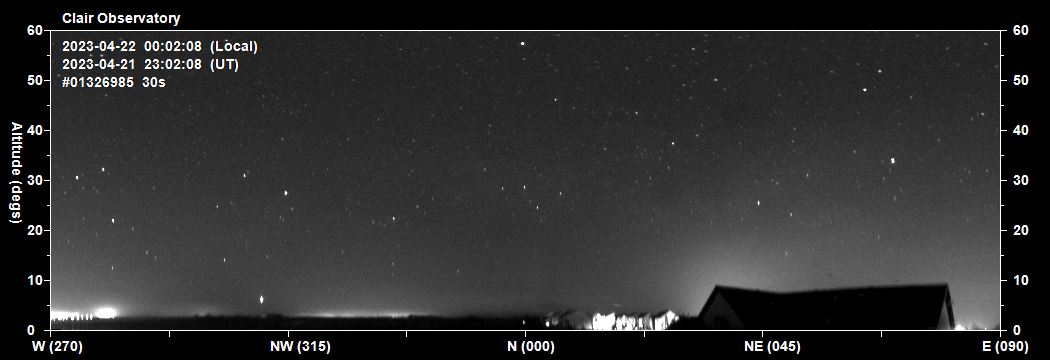

2023-04-21 23:00 UT (2023-04-22 23:02 LT)
Weak auroral arc and faint rays

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 1h 55m period
2023-04-21 21:35 to 23:30 UT  (22:35 to 00:30 LT)
 Frames #1326818 to 1327039
Link to .mp4 video file (2.6 MB)
0.0s / 0.0s

Back to Top


Magnetometer Stack Plots (for reference)

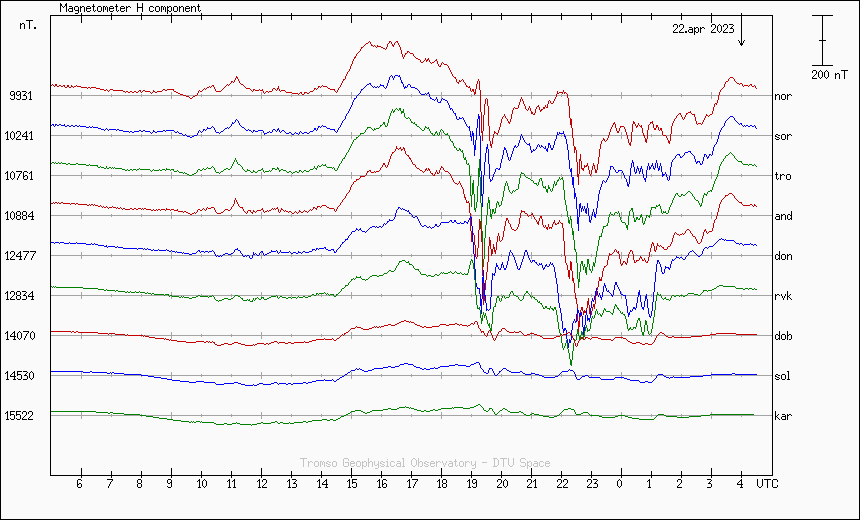

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2023-04-21 / 2023-04-22
Original data from Tromsų Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI, displayed on SpaceWeatherLive http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
(K indices of 5 or greater indicate storm-level geomagnetic activity around earth)
 (from http://services.swpc.noaa.gov)
planetary-k-index_2023-04-21 / 2023-04-22

TBA

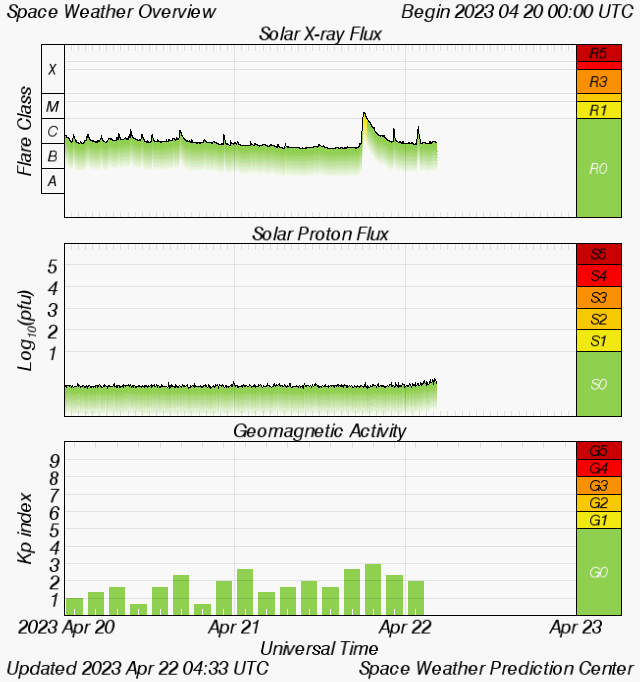

Planetary K-Index and other information (Space Weather Prediction Centre)
shows KP Index reaching KP3 on 2023-04-21


Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

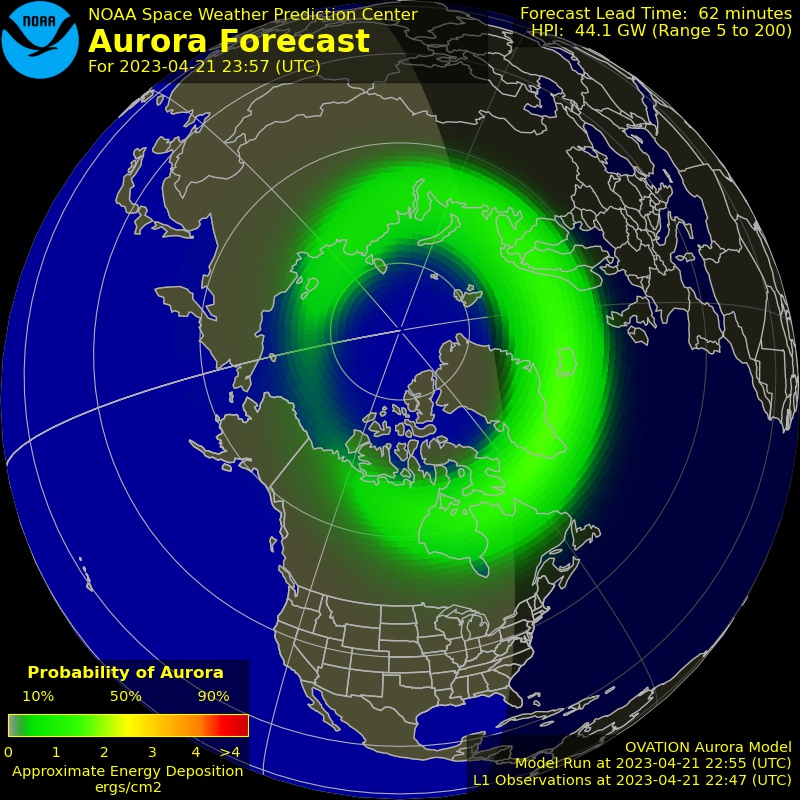

Aurora Forecast at 2023-04-23 for 23:57 UT
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
