Aurora on night 2024-10-10 / 2024-10-11

Aurora Notes
Bullet Night Summary (Keogram) Plot
Bullet Pictures (Colour Photos with Mobile Phone)
Bullet AllSky Pictures (AllSky, North, South)
Bullet Videos (AllSky, NorthSouth)
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)

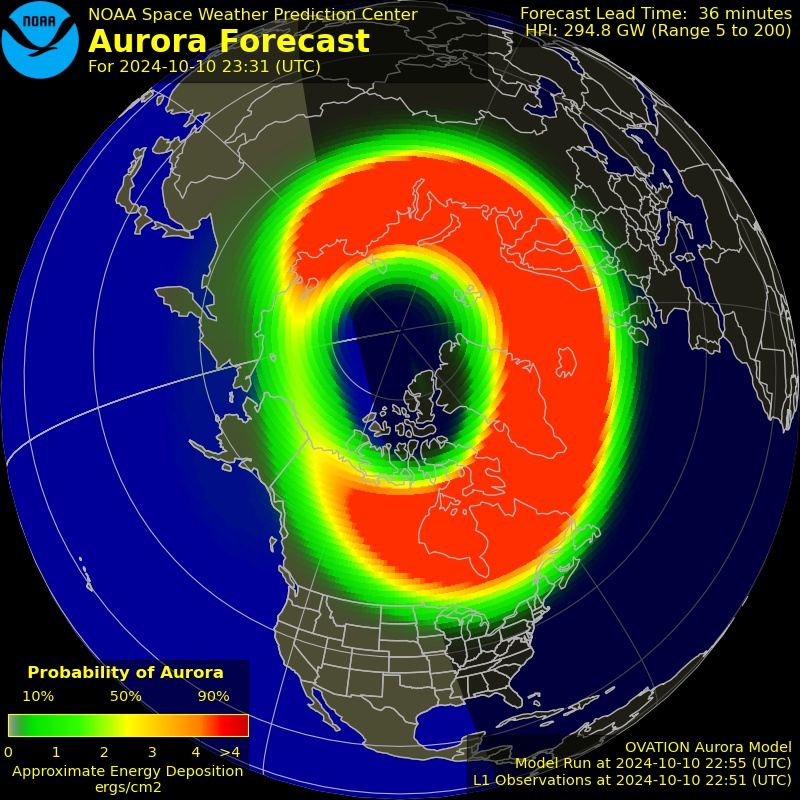

Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Significant auroral activity on the night 2024-10-10 / 2024-10-11 associated with geomagnetic activity up to KP8-KP9 (G4 Geomagnetic Storm).

Skies in NE Scotland were affected by some cloud but the aurora very some bright and coloured that most people will have caught some glimpses of the aurora if they were looking skyward.

Activity was visible from the Clair Observatory (+57N) on 2024-10-10 / 11 from 18:20 to 05:15 UT (19:20 to 06:15 BST), a period of nearly 11 hours, with peak activity at around 23:20 UT (00:320 BST).

The actual start of the activity was likely hidden by cloud / dusk twilight, whilst the end of activity was hidden by the cloud / dawn twilight

Observed activity comprised auroral activity over most of the sky with distinct corona just south of zenith, with a significant amount of red aurora besides the normal green aurora. There was no evidence of an auroral arc that one sees with weaker aurora that are typically seen at this latiude (+57N).

Inside of AllSky Camera's Perspex hemisphere had to wiped clear of dew early in evening (video), but despite this a a layer of fine condensation re-formed.  Fortunately this gradually lifted/disappateds as the night progressed

Scandinavia magnetometers showed activity on 2024-10-10 / 11  between 15:15 and 07:30 UT with peak activity at around 23:30 UT (00:30 BST equivalent)

SpaceWeather.com (2024-10-10) reported :

"The CME launched by Tuesday's X-flare hit Earth today, Oct. 10th (1515 UTC), and it appears to be as potent as advertised. Geomagnetic storms are underway with intensities fluctuating between G2 (Moderate) and G4-class (Severe)"

"Electrical currents are flowing through rocks and soil in the United States in response to today's geomagnetic storm ... Peak voltages in the US midwest are near 5 V/km, more than 100x normal values when the sun is quiet. Fortunately, today's peaks are only about 25% of what caused the Great Quebec Blackout in 1989. Power outages are therefore unlikely. "

SpaceWeather.com (2024-10-11) reported :

"Last night's severe (G4) geomagnetic storm is over. Earth is exiting the wake of the CME that caused it. ..  Minor (G1) to Moderate (G2) storms remain possible on Oct. 11th as Earth's magnetic field slowly relaxes from one of the biggest geomagnetic disturbances of the past 20 years.... On the night of Oct. 10-11, auroras descended to .. low latitudes (including Key West (+24.7 N), Mexico (+23 N) ) .. all the way to the tropics... the Sociedad de Astronomķa del Caribe is reporting auroras photographed from Toa Baja, Puerto Rico (+18.4 N), and from a cruiseship just south of Cuba (~ +21 N). "
".
See space telescope image animation of the CME (09oct24/halocme_anim.gif) that caused the geomagnetic storm

- Telescope Images from night 2024-10-10 >>



Night Summary (Keogram) Plot

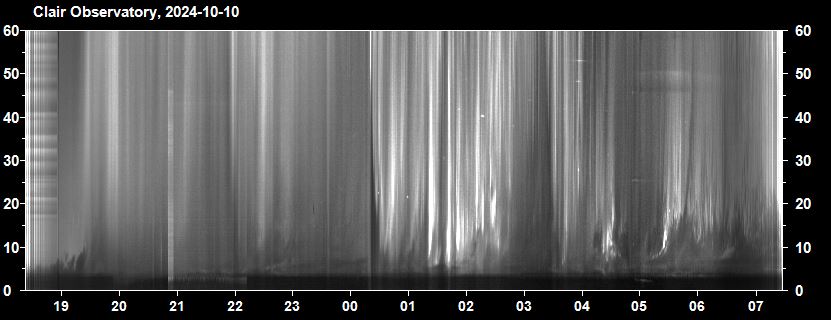

Night Summary Plot - North Sky (2024-10-10 / 11)
Times on plot are local times (BST  = UTC +01h )
Any aurora in partially hidden by cloud / murky sky
Bright aurora noticeable at 00:20 to 02:40 and at around 04:30 and 05:20 BST

Back to Top


Pictures (Mobile Phone)

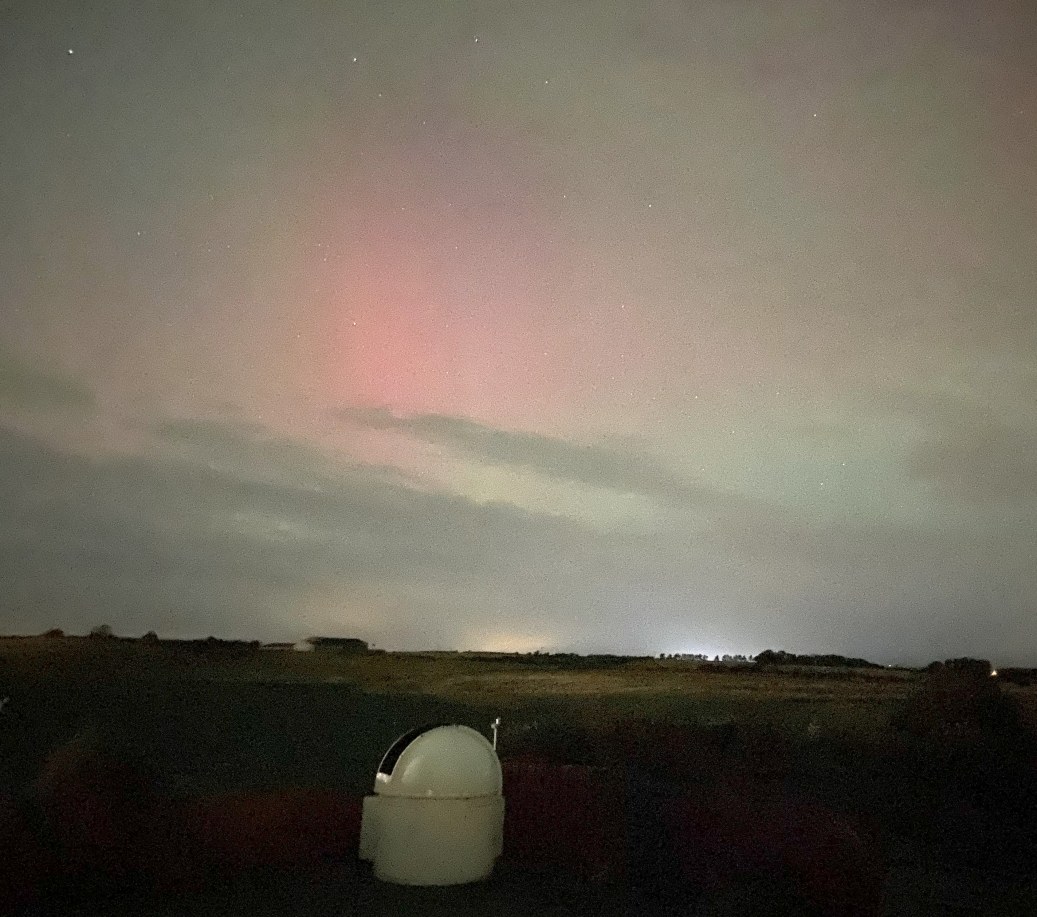

View to NW, 20:30 BST (19:30 UT)   View to North, 20:30 BST (19:30 UT)
Image   Image

View to NNW, 22:27 BST (21:27 UT)   View to North, 22:29 BST (21:29 UT)
Image   Image

View to North, 22:30 BST (21:30 UT)    View to Zenith, 22:30 BST (21:30 UT)
Image   Image

View to SW, 00:18 BST (23:18 UT)   View to WSW, 00:19 BST (23:19 UT)
Image   Image

View to West, 00:21 BST (23:21 UT)   View to West, 00:22 BST (23:22 UT)
Image   Image

View to East, 00:25 BST (23:25 UT)   View to East, 00:25 BST (23:25 UT)
Image   Image

View to Zenith, 00:23 BST (23:23 UT)   View to Zenith, 00:23 BST (23:23 UT)
Image   Image

View to NW, 00:24 BST (23:24 UT)
Observatory was open during the display and was
actively imaging various telescope targets
but images were were significantly degraded by the bright
and uneven sky background
  View to NE, 00:27 BST (23:27 UT)
 Image   Image

View to NE, 00:27 BST (23:27 UT)   View to NE, 00:27 BST (23:27 UT)
Image   Image

View to WNW, 00:29 BST (23:29 UT)   View to NE, 00:29 BST (23:29 UT)
Image   Image

View to NW, 00:30 BST (23:30 UT)   View to WNW, 00:31 BST (23:31 UT)
Image   Image

Observatory was open during the display and was
actively imaging various telescope targets
but images were were significantly degraded by the bright
and uneven sky background

View to Zenith, 00:31 BST (23:31 UT)   View to SW, 01:11 BST (00:11 UT)
Image   Image

View to NW, 01:13 BST (00:13 UT)   View to NE, 01:15 BST (00:15 UT)
Image   Image

View to NE, 01:15 BST (00:15 UT)   View to NE, 01:15 BST (00:15 UT)
Image   Image



Back to Top


Pictures (AllSky Camera)

AllSky View

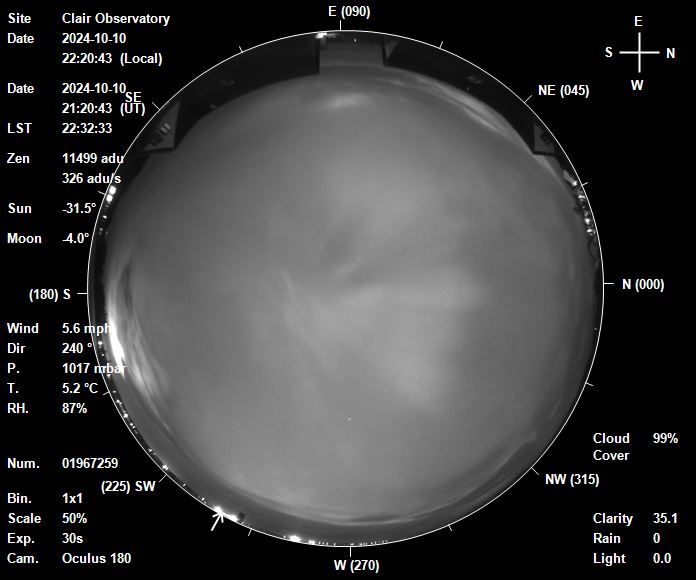

2024-10-10 21:20 UT (22:20 BST)
AllSky Camera View is affected by condensation inside perspex hemisphere
which gradually lifts/disappates as the night progresses

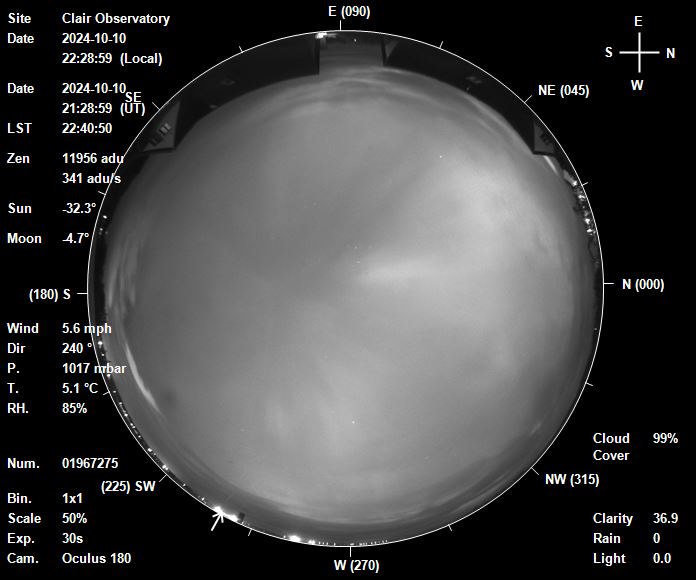

2024-10-10 21:28 UT (22:28 BST)

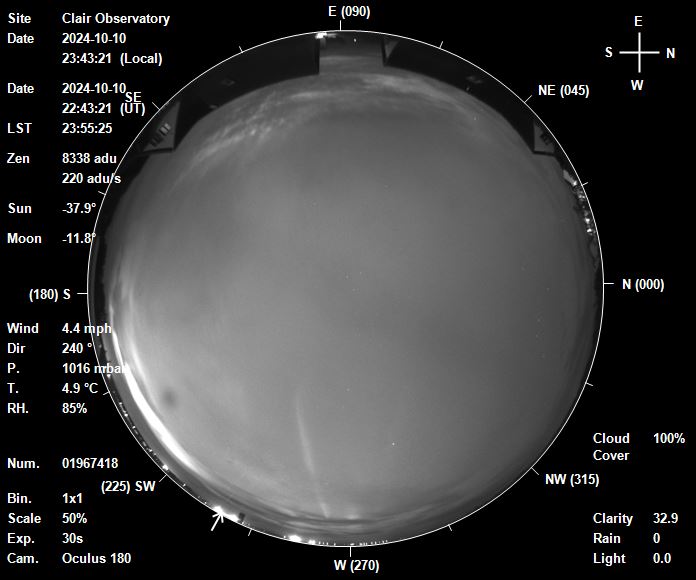

2024-10-10 22:43 UT (23:43 BST)

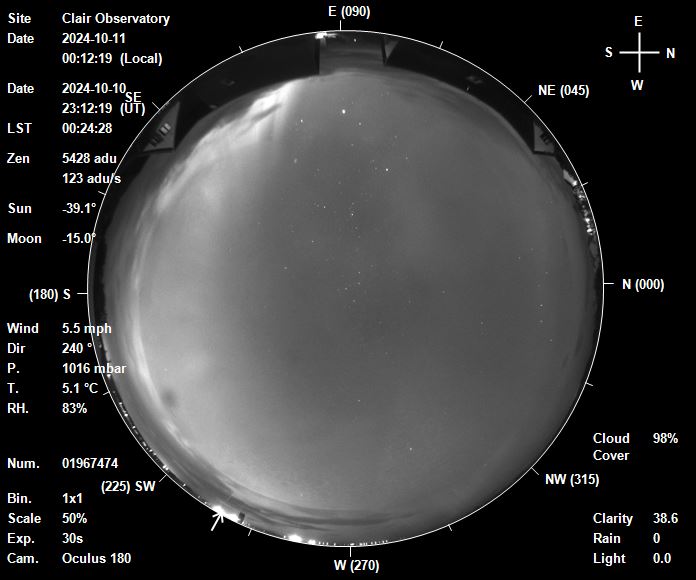

2024-10-10 23:12 UT (00:12 BST)

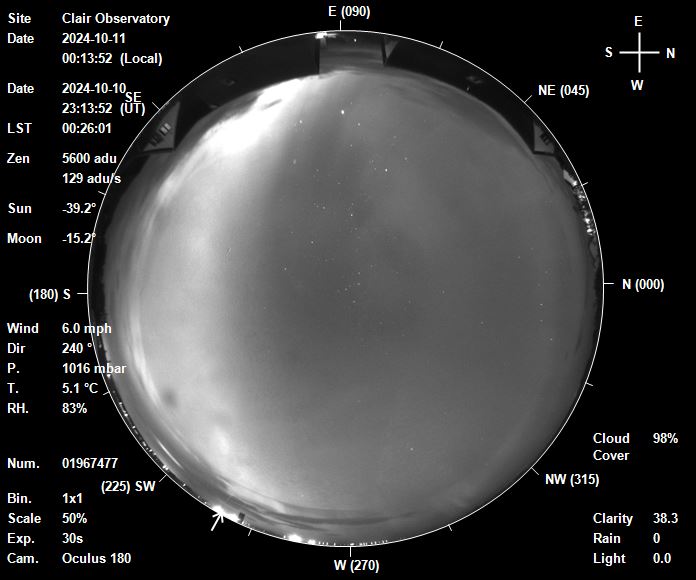

2024-10-10 23:13 UT (00:13 BST)

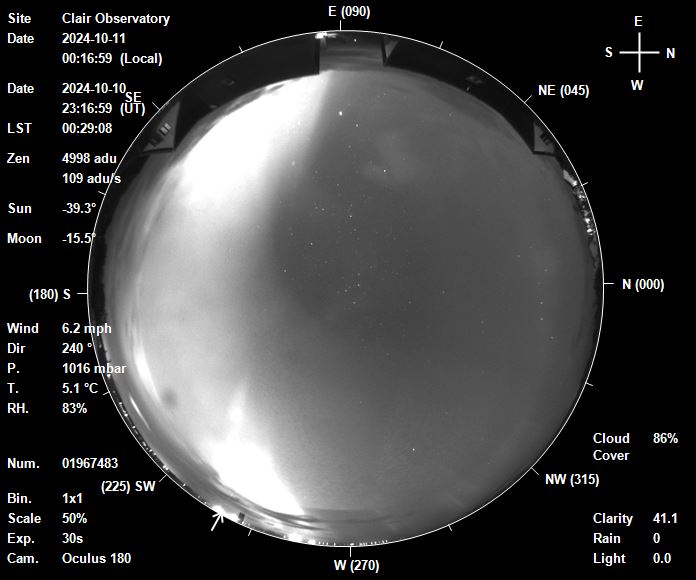

2024-10-10 23:16 UT (00:16 BST)

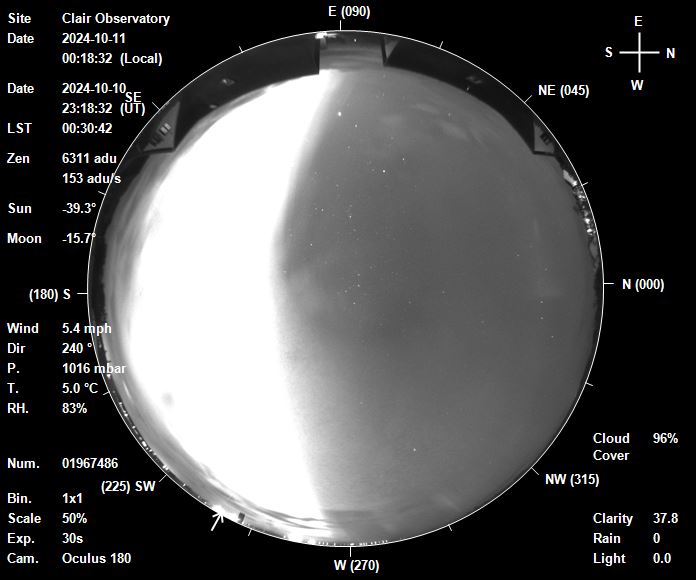

2024-10-10 23:18 UT (00:18 BST)

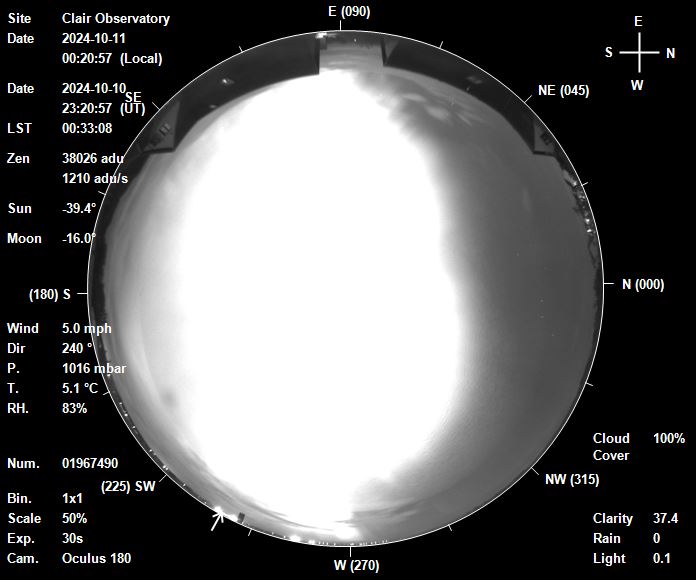

2024-10-10 23:20 UT (00:20 BST)

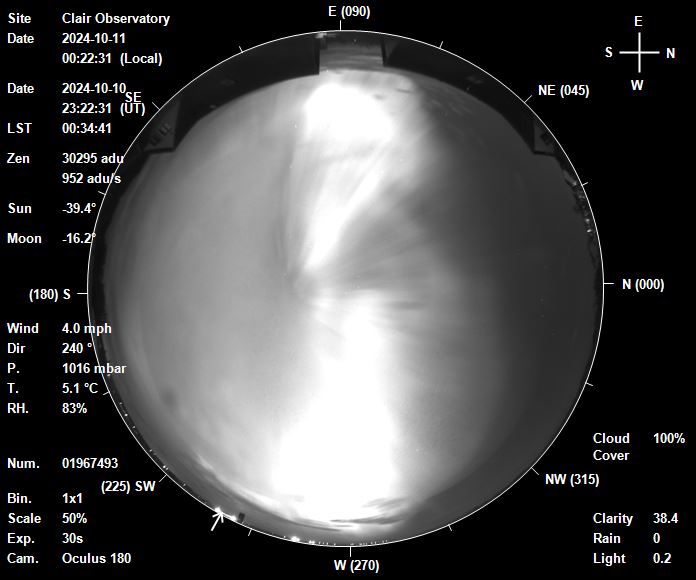

2024-10-10 23:22 UT (00:22 BST)

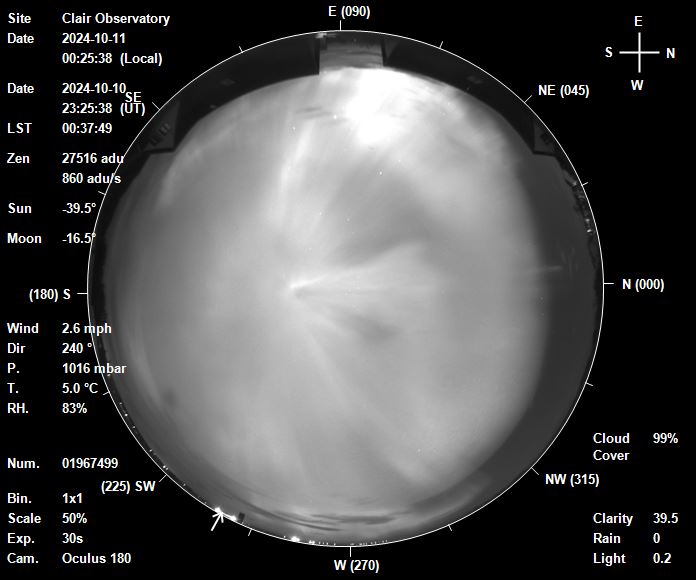

2024-10-10 23:25 UT (00:25 BST)

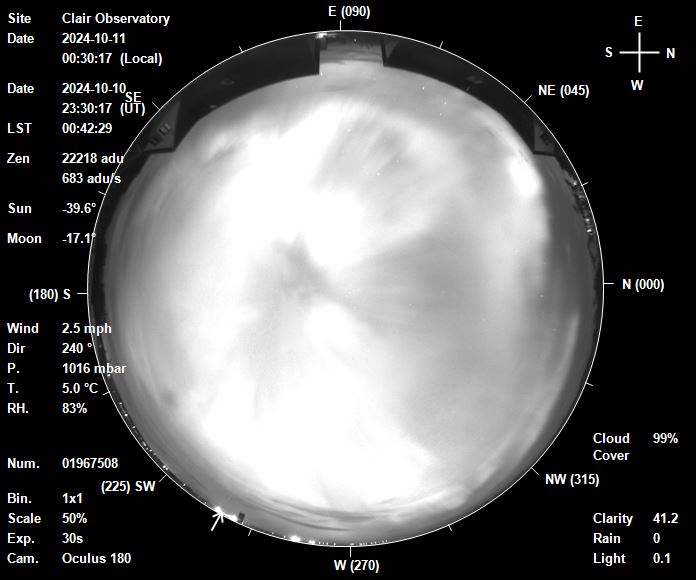

2024-10-10 23:30 UT (00:30 BST)

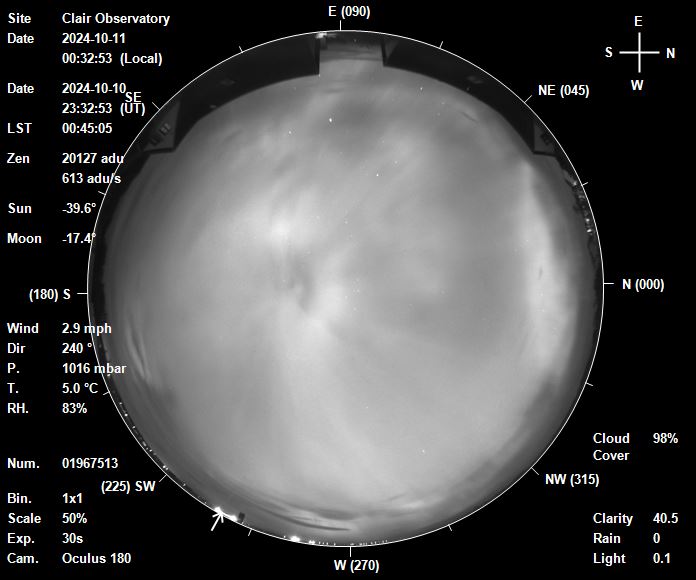

2024-10-10 23:32 UT (00:32 BST)

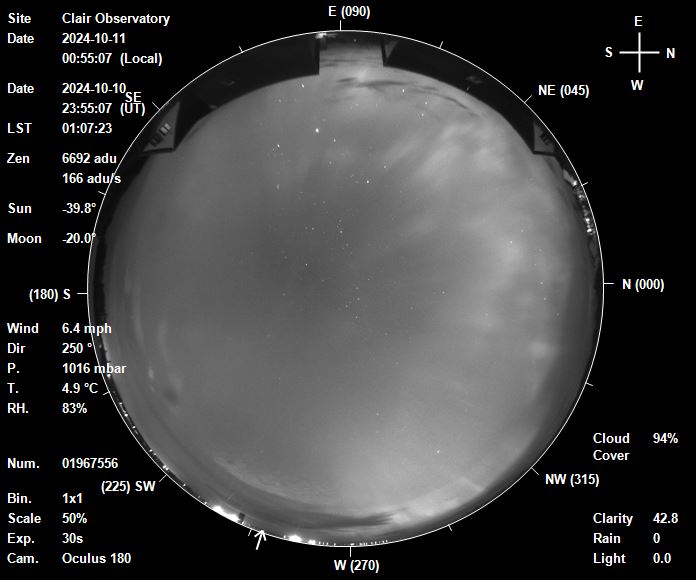

2024-10-10 23:55 UT (00:55 BST)

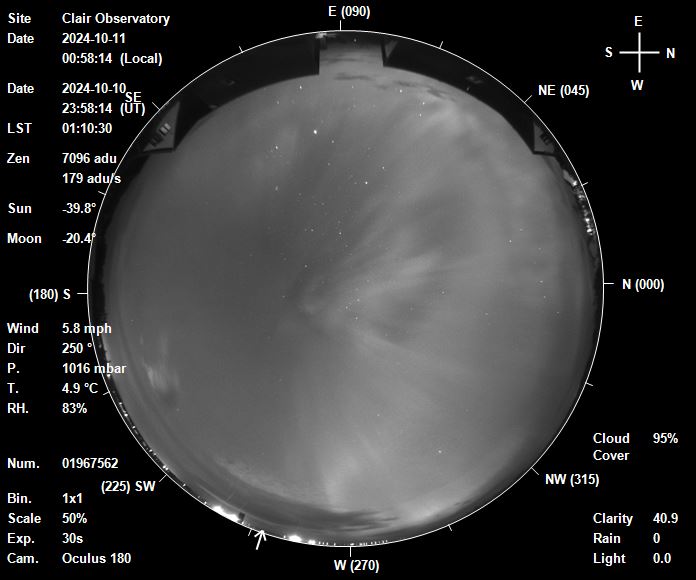

2024-10-10 23:58 UT (00:58 BST)

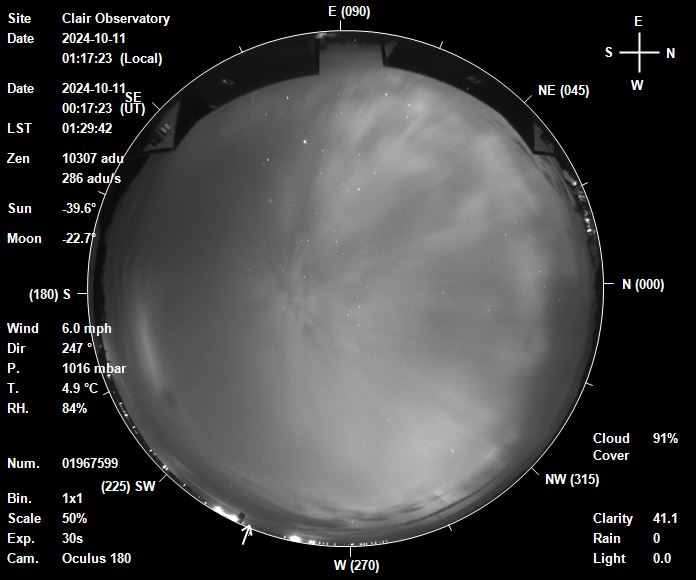

2024-10-11 00:17 UT (01:17 BST)

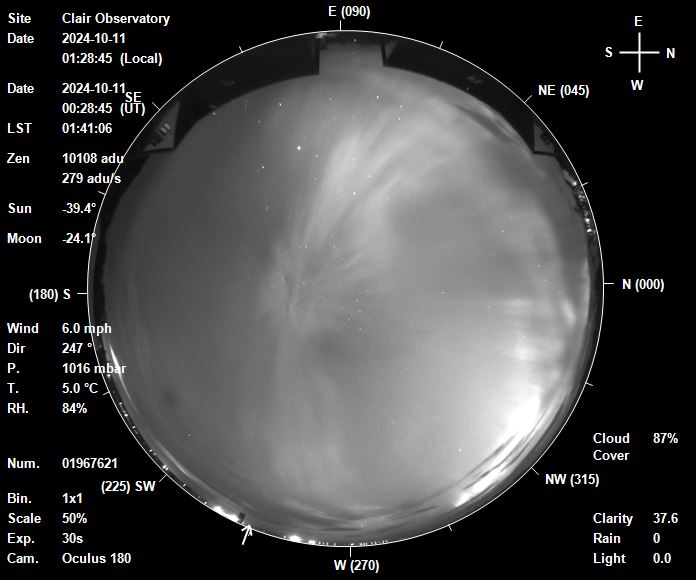

2024-10-11 00:28 UT (01:28 BST)

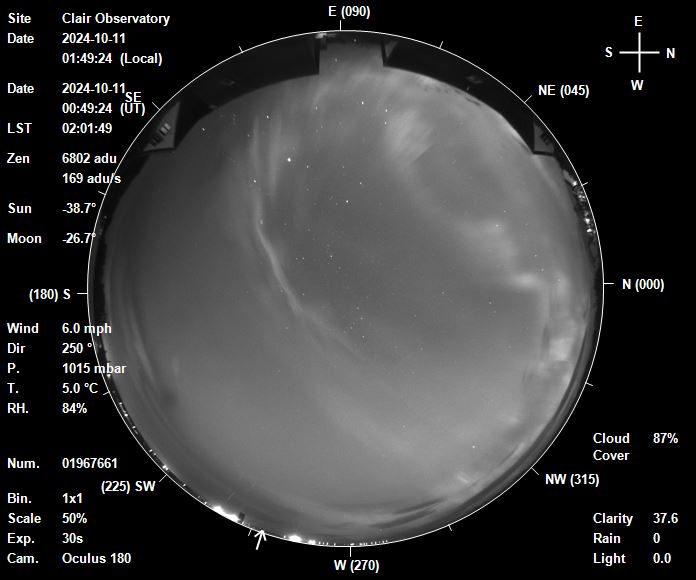

2024-10-11 00:49 UT (01:49 BST)

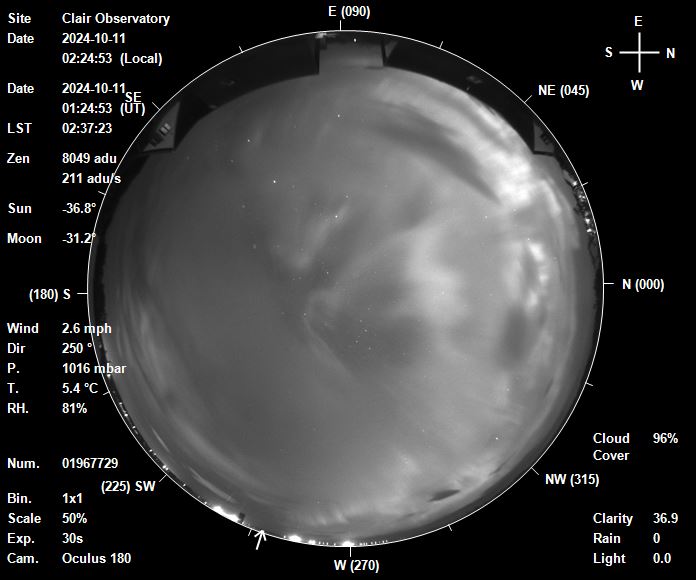

2024-10-11 01:24 UT (02:24 BST)

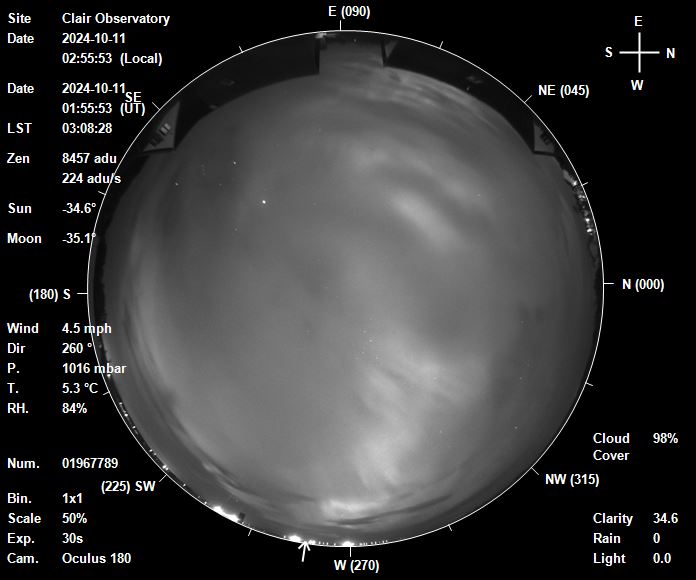

2024-10-11 01:55 UT (02:55 BST)

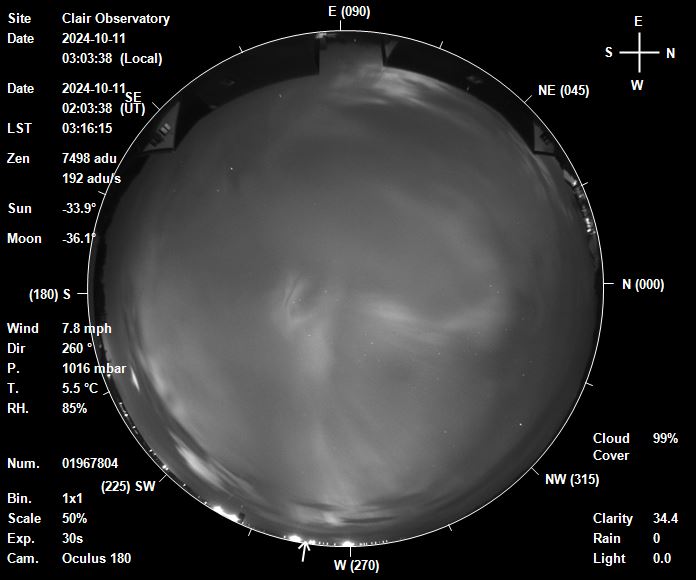

2024-10-11 02:03 UT (03:03 BST)

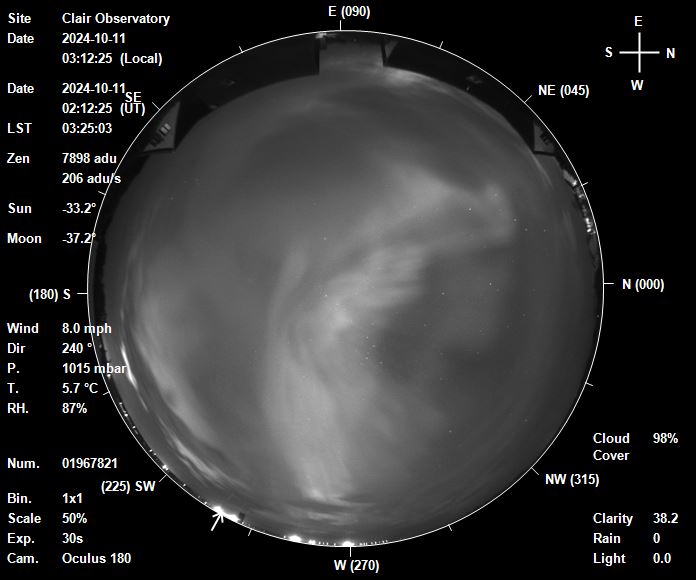

2024-10-11 02:12 UT (03:12 BST)

2024-10-11 02:12 UT (03:12 BST)

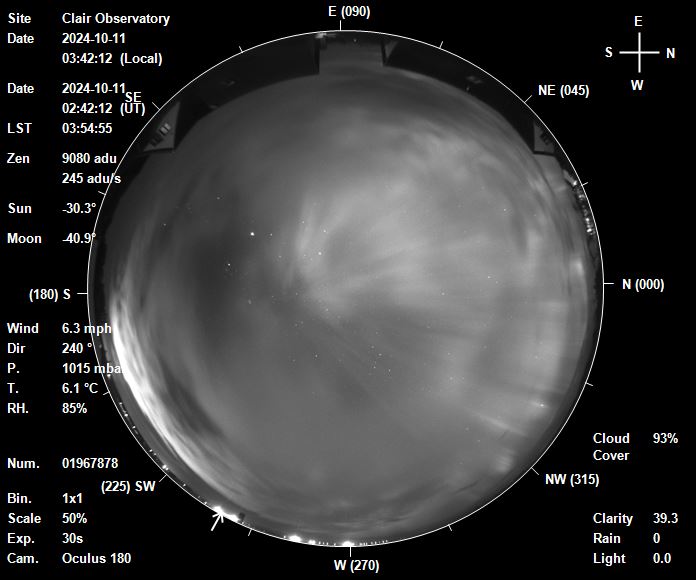

2024-10-11 02:42 UT (03:42 BST)

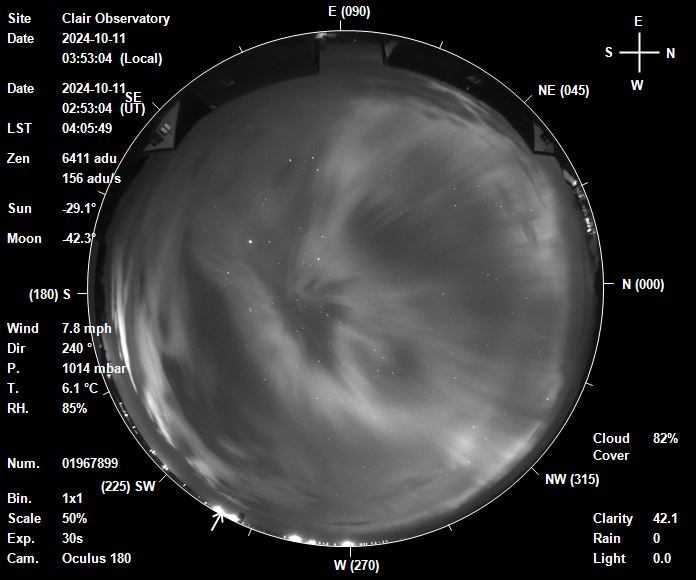

2024-10-11 02:53 UT (03:53 BST)

30s exposures taken with Oculus All Sky Camera

Panoramic View - Northern Sky

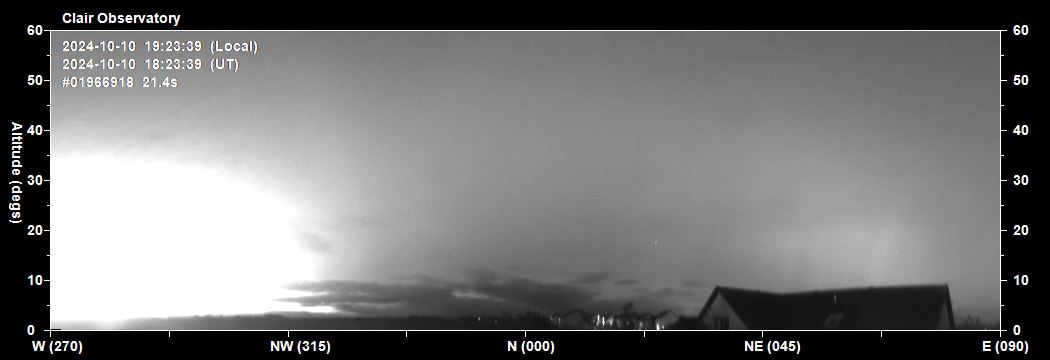

2024-10-10 18:23 UT (19:23 BST)
First sign of aurora with rays in NE-ENE Sky
and general brightening in north sky - murky sky / cloud with auroral behind

AllSky Camera is affected by condensation inside perspex hemisphere
which gradually lifts/disappates as the night progresses

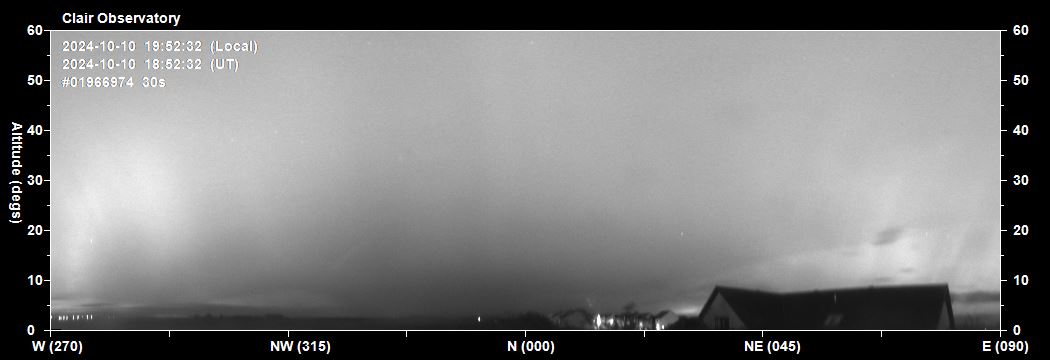

2024-10-10 18:52 UT (19:52 BST)
Aurora across entire northern, but detail hidden by murky sky and condensation inside camera.

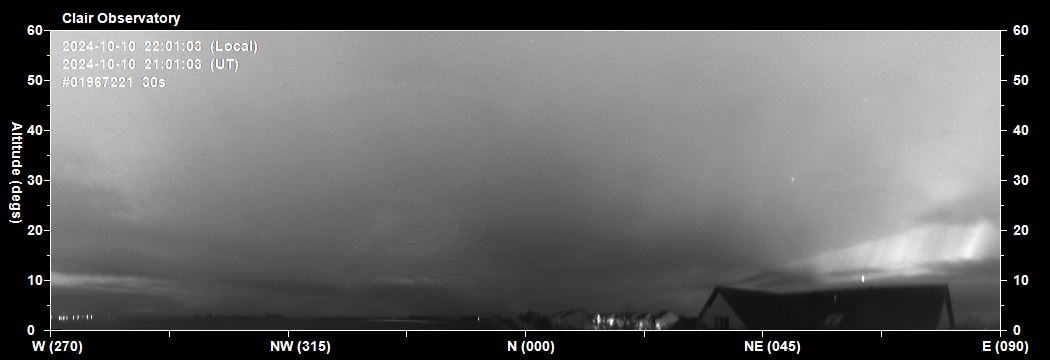

2024-10-10 21:01 UT (22:01 BST)
Continuation of aurora activity, largely hidden by murky sky and condensation inside camera.
except in ENE Sky where distinct aurora rays are visible

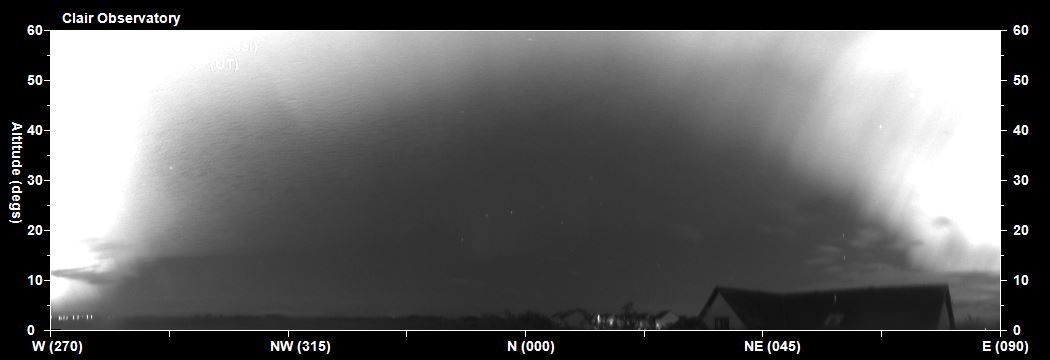

2024-10-10 23:22 UT (00:22 BST)
Bright aurora coming from the south and moving northward

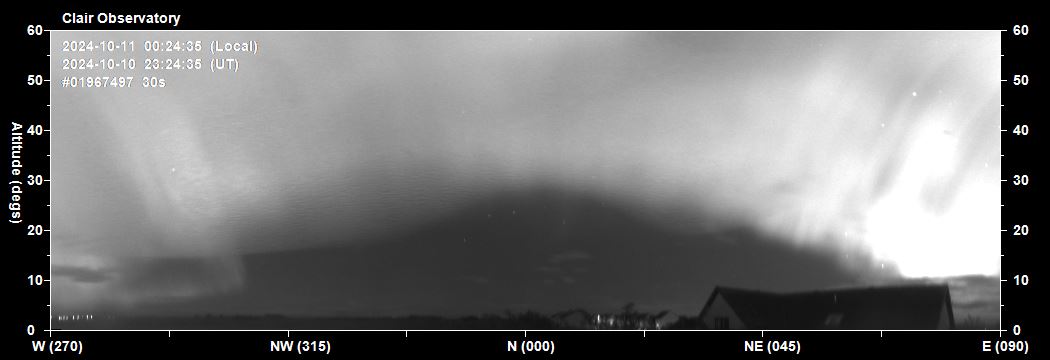

2024-10-10 23:24 UT (00:24 BST)
Bright aurora contininuing to move (descend) northwards

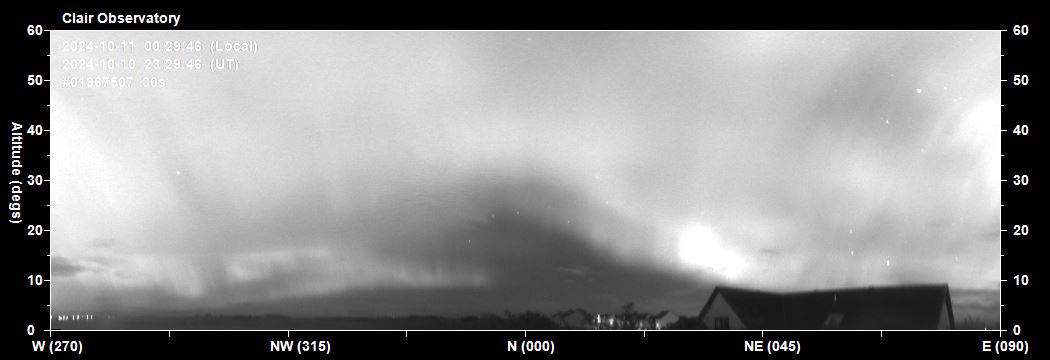

2024-10-10 23:29 UT (00:29 BST)
Bright aurora contininuing to move (descend) northwards

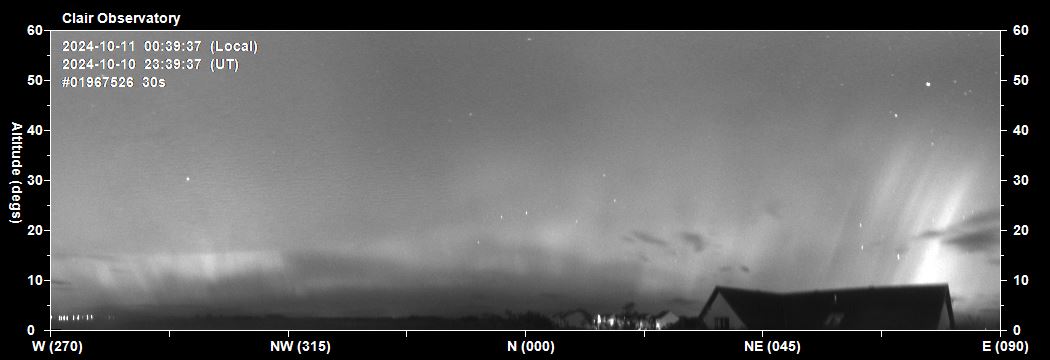

2024-10-10 23:39 UT (00:39 BST)
Prominant aurora rays in ENE sky to least 35-40° altitude in ENE,
Rays W - NNE sky partly hidden by condensation in AllSky Camera

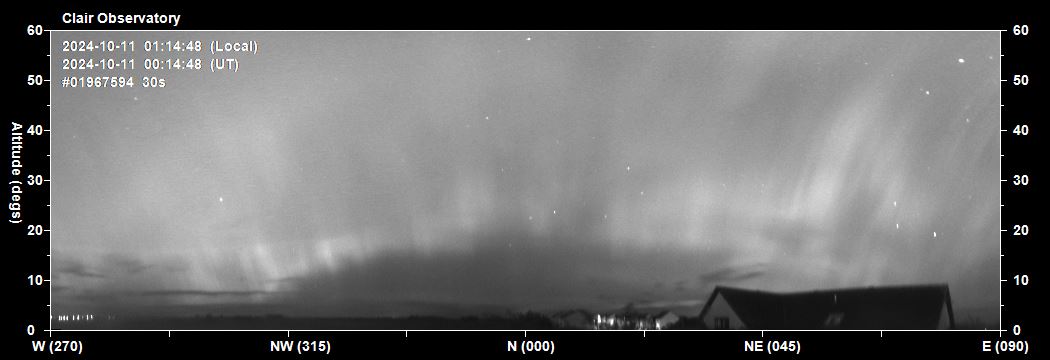

2024-10-11 00:14 UT (01:14 BST)
Aurora rays across entire northern sky to at least 60° altitude
View again affected by condensation inside AllSky Camera

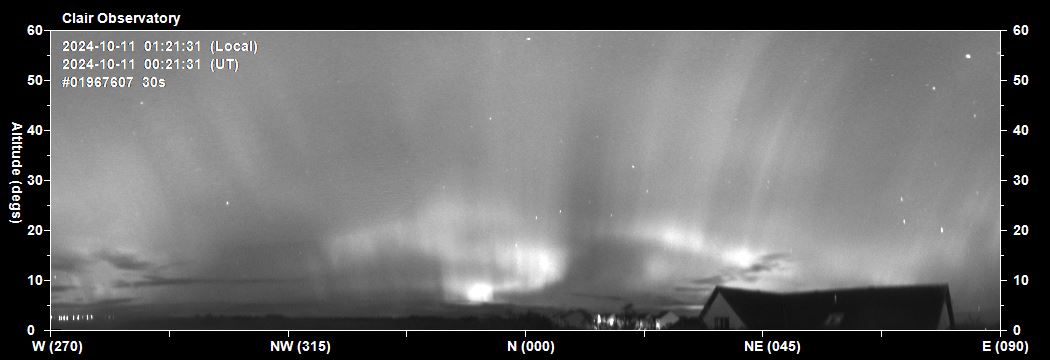

2024-10-11 00:21 UT (01:21 BST)
Bright curtains developing in northern direction . Aurora rays across entire northern sky to over 60° altitude

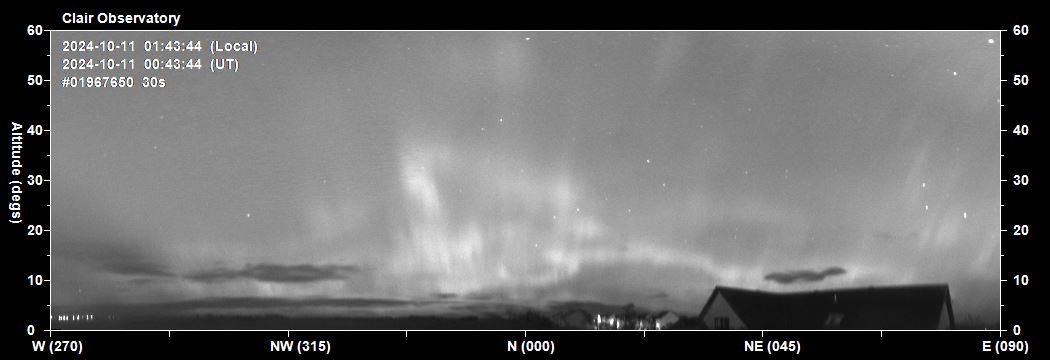

2024-10-11 00:43 UT (01:43 BST)
Aurora curtains and chaotic character in nothern sky. Rays significantly weakened

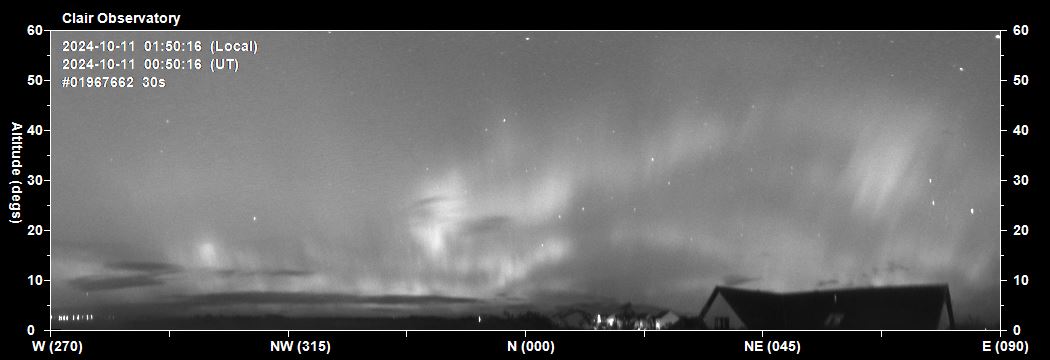

2024-10-11 00:50 UT (01:50 BST)
Rapidly moving aurora curtains and semi-chaotic character

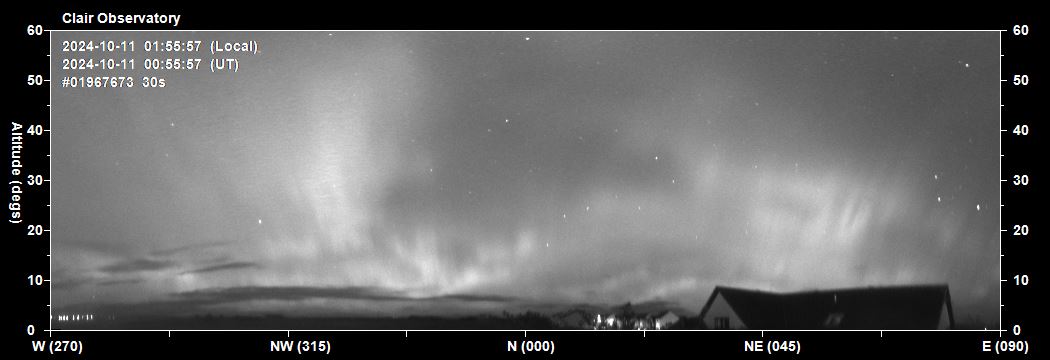

2024-10-11 00:55 UT (01:55 BST)
Continuation of high auroral activity.
Condensation in camera gradually dissipating

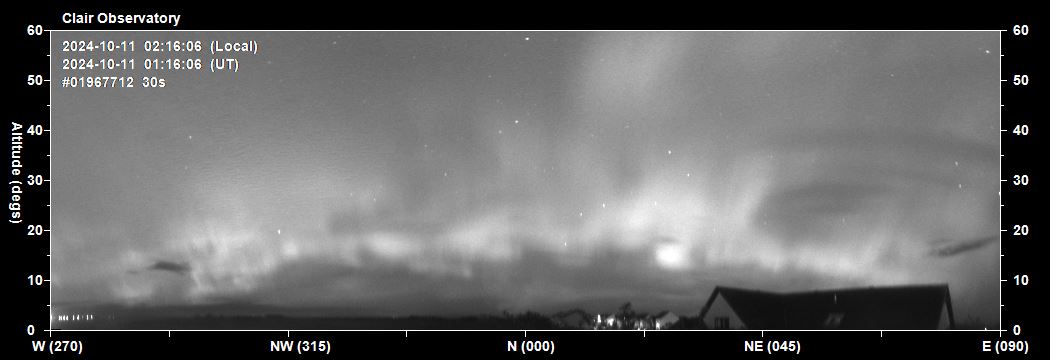

2024-10-11 01:16 UT (02:16 BST)
Continuation of high auroral activity.

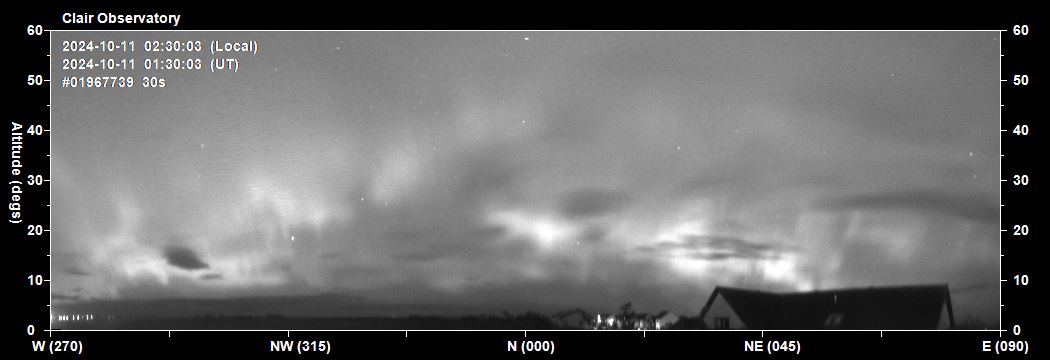

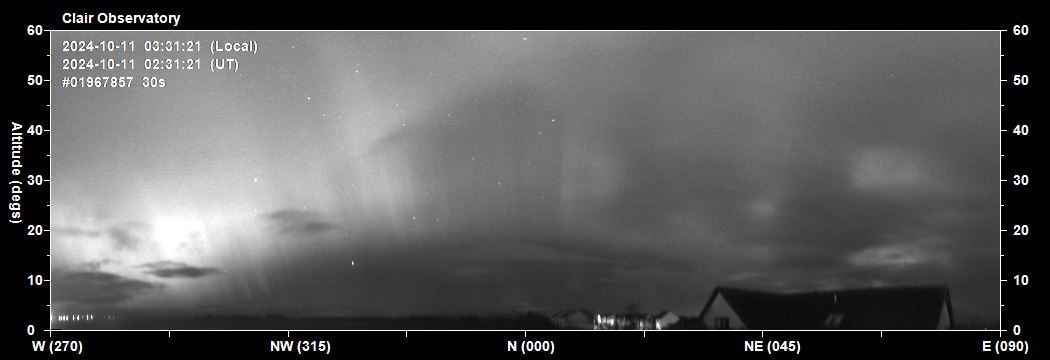

2024-10-11 01:30 UT (02:30 BST)
Continuation of auroral activity. Sky becoming murky again with foreground clouds. The 'Plough' is not visible

2024-10-11 02:21 UT (03:21 BST)
Continuation of auroral activity. Sky still murky / cloudy in NE Sky.

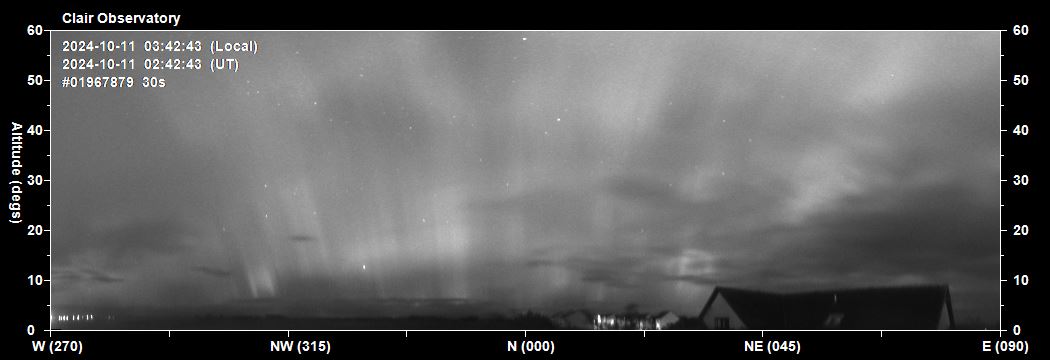

2024-10-11 02:42 UT (03:42 BST)
Auroral Rays to over 60° altitude, foreground clouds

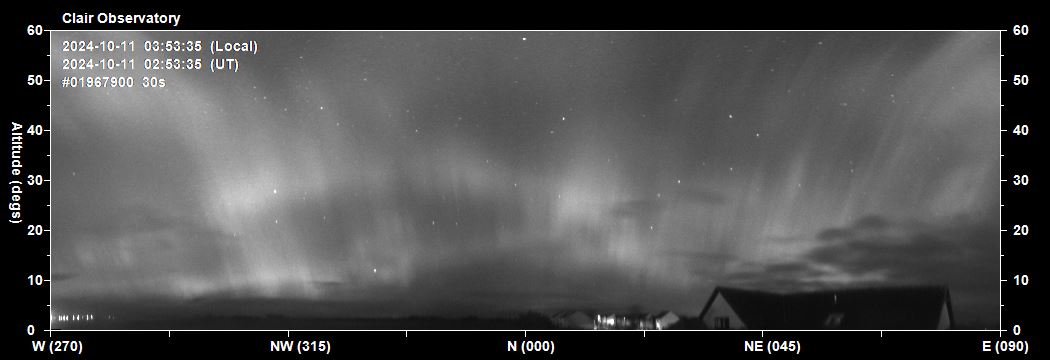

2024-10-11 02:53 UT (03:53 BST)
Continuing display of auroral rays to over 60° altitude, foreground clouds
Curtains again developing in NNW - NNE sky

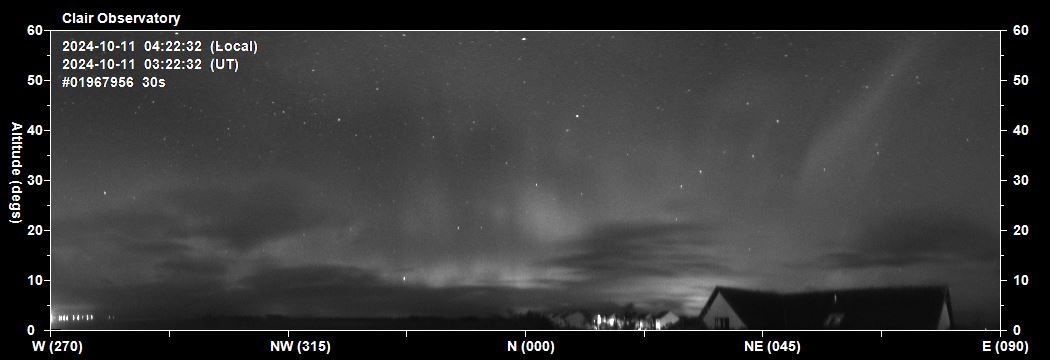

2024-10-11 03:22 UT (04:22 BST)
Display generally weakening and becoming hidden by foreground clouds along northern horizon.
Ray at 30-60° altitude in ENE sky

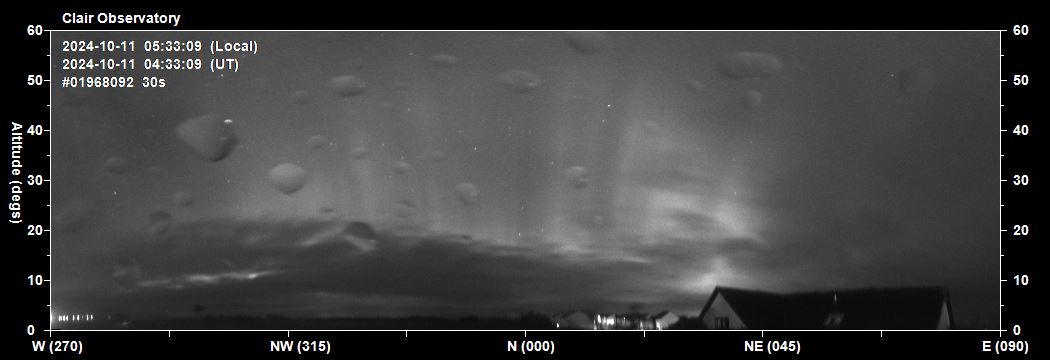

2024-10-11 04:33 UT (05:33 BST)
Display strengthening again with auroral rays to 50° altitude.
Auroral arc likely present to 15-17° altitude but hidden by foreground cloud
Rain drops present on camera following a short intervening shower

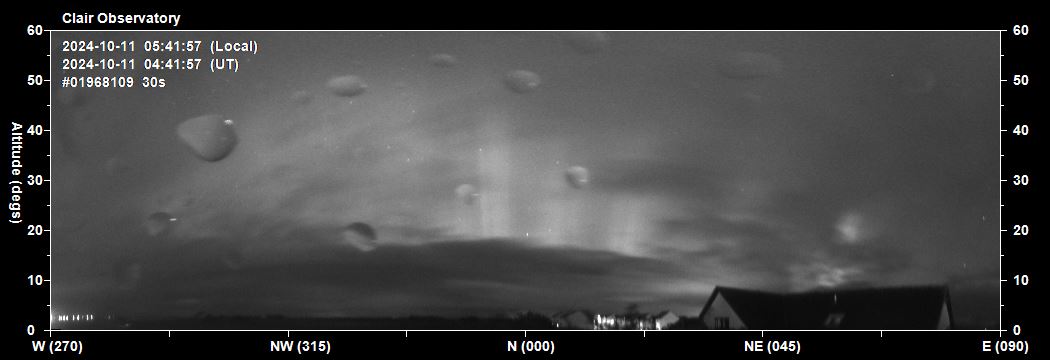

2024-10-11 04:41 UT (05:41 BST)
Auroral rays continuing to be visible in N - NNE & ENE directions.

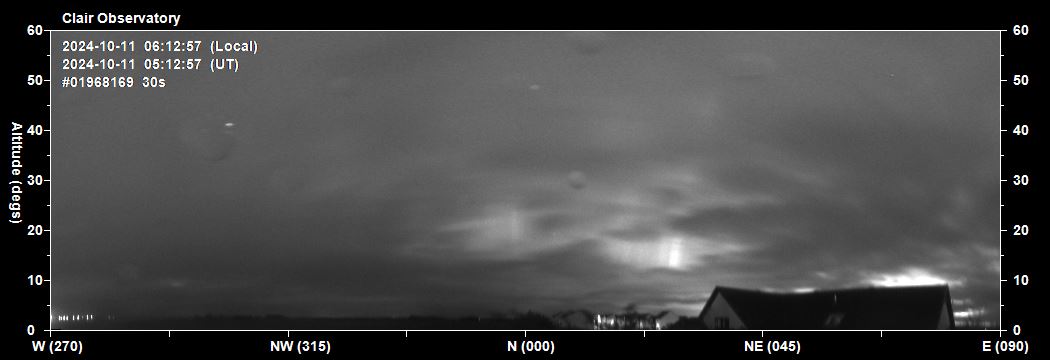

2024-10-11 05:12 UT (06:12 BST)
Cloud thickening, but auroral rays still visible through gap in cloud in N and NNE direction
Dawn twilight developing on ENE-E sky.

30s exposures taken with Oculus All Sky Camera

Panoramic View - Southern Sky

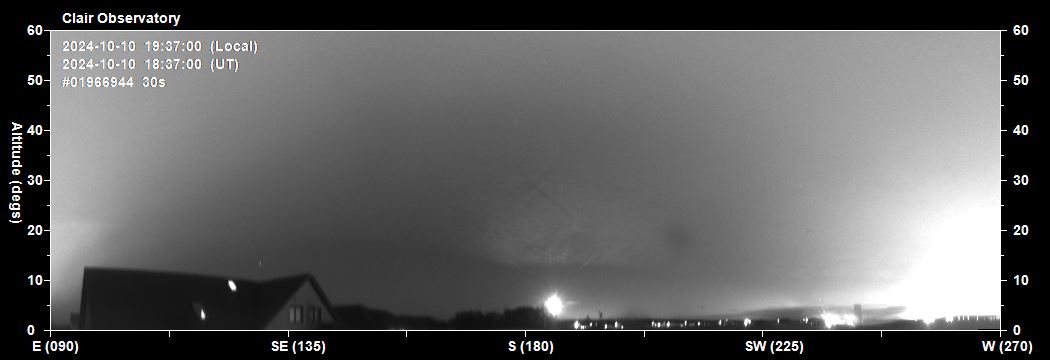

2024-10-10 18:37 UT (19:37 BST)
First sign of aurora with brightening of sky towards zenith and in East Sky
(brightening in West sky hidden in dusk twilight)
Moon (50% phase) at low altitude in S-SSW sky
AllSky Camera is affected by condensation inside perspex hemisphere
which gradually lifts/disappates as the night progresses

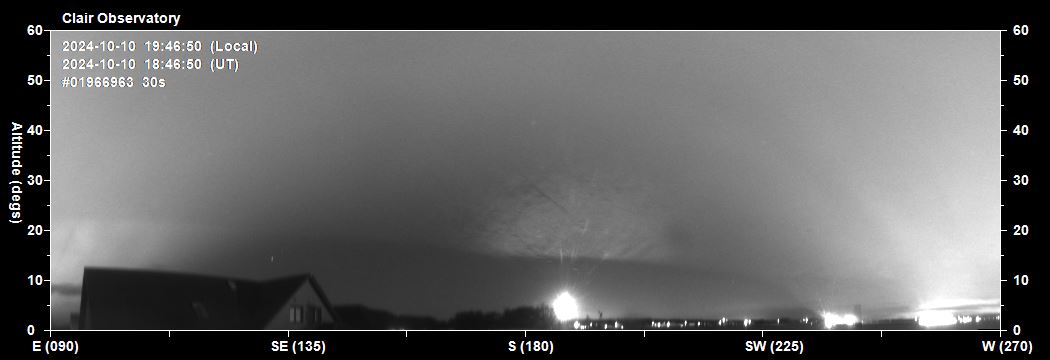

2024-10-10 18:46 UT (19:46 BST)
Auroral rays in East and Western Sky and likely stretching to zenith
View above 15-20° altitude is affected by condensation inside AllSky Camera

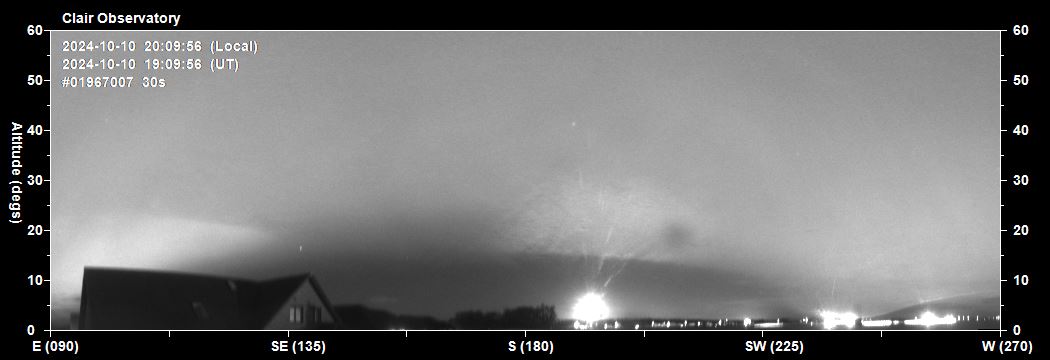

2024-10-10 19:09 UT (20:09 BST)
Brightening of sky across entire southern sky
View above 15-20° altitude continues to be affected by condensation inside AllSky Camera

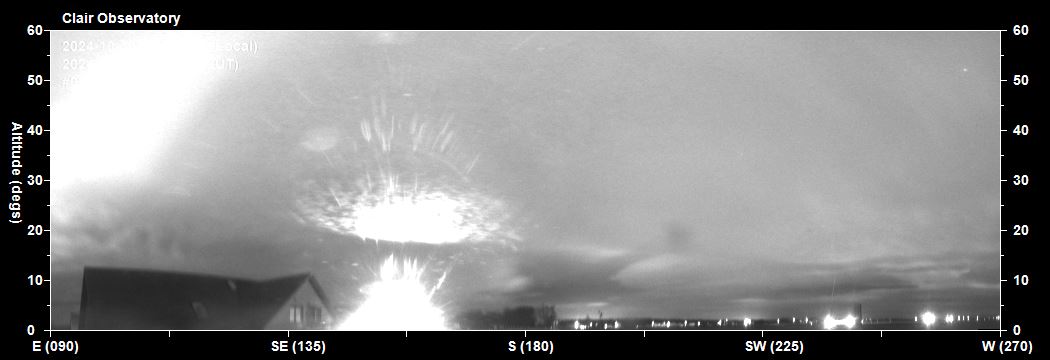

2024-10-10 20:53 UT (21:53 BST)
Major brightening of sky in eastern direction
View impacted by neighbour's outdoor light

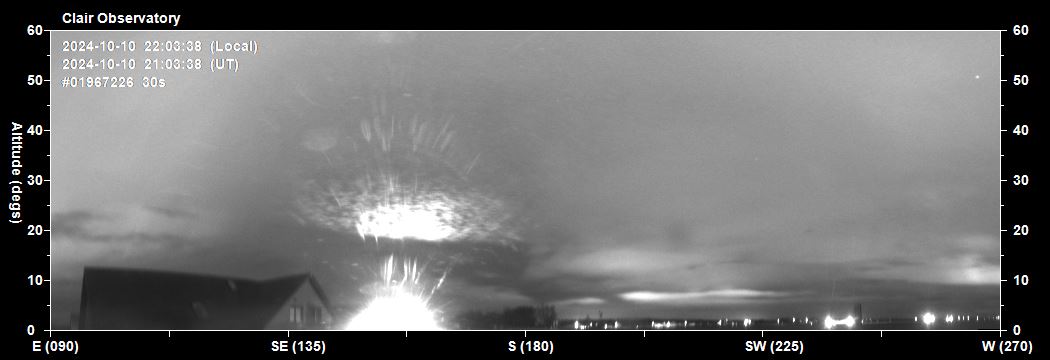

2024-10-10 21:03 UT (22:03 BST)
Major brightening of sky in eastern direction
View continues to be impacted by neighbour's outdoor light & condensation inside AllSky Camera

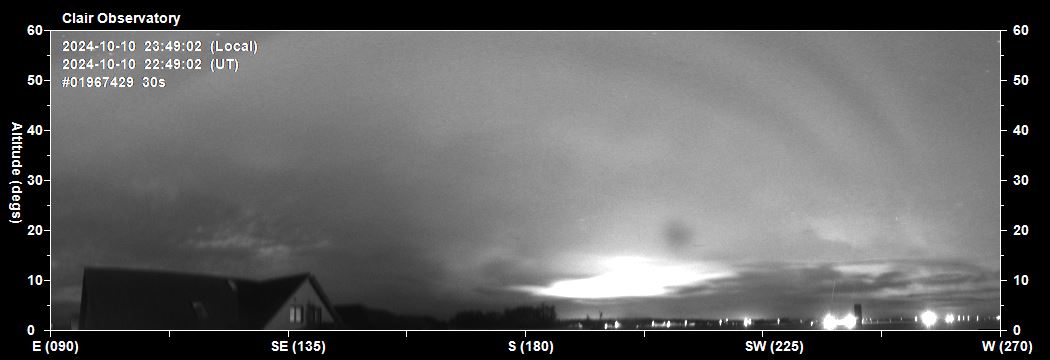

2024-10-10 22:49 UT (23:49 BST)
Aurora rays in SW-W sky,  best seen in Southern Sky Video .
Light from Aberdeen City reflecting off clouds in SSW direction.

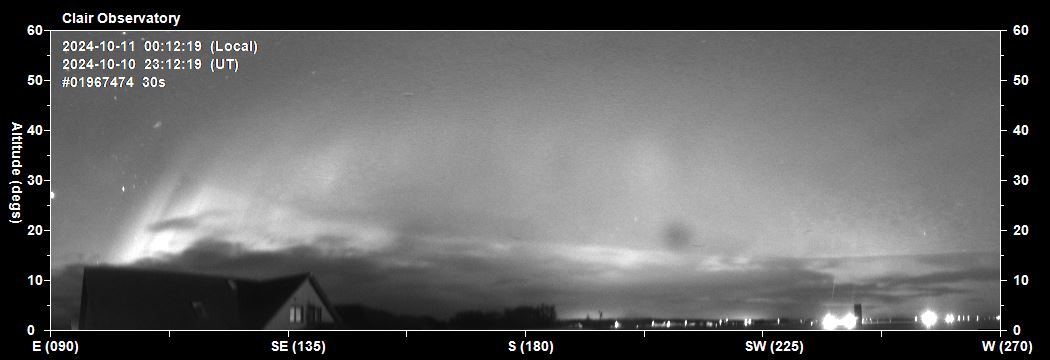

2024-10-10 23:12 UT (00:12 BST)
Distinct aurora rays in ESE-SW sky, Rays likely present across entire southern sky but hidden by condensation.
AllSKy Camera's Condensation lifting to around 20-35°  altitude

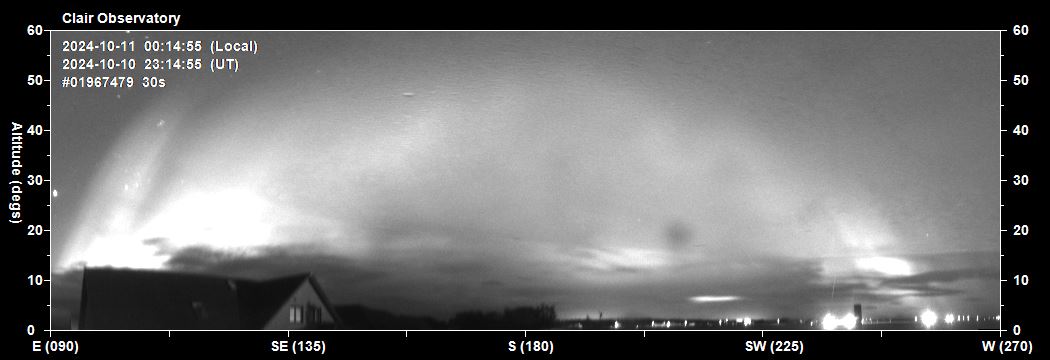

2024-10-10 23:14 UT (00:14 BST)
Aurora brightening

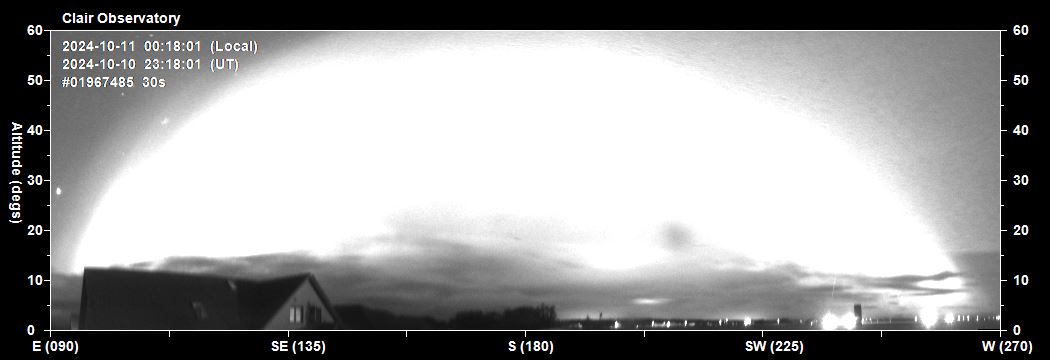

2024-10-10 23:18 UT (00:18 BST)
Major brightening event across entire southern sky reaching to 60-65° altitude

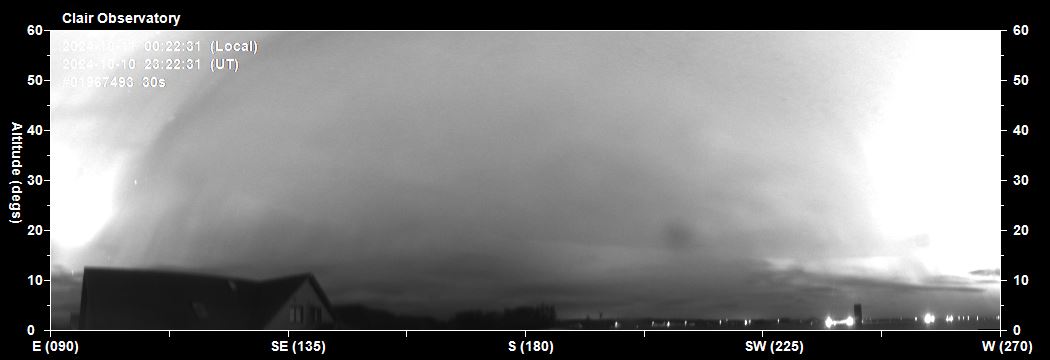

2024-10-10 23:22 UT (00:22 BST)
Major brightening event heading to zenith and northwards

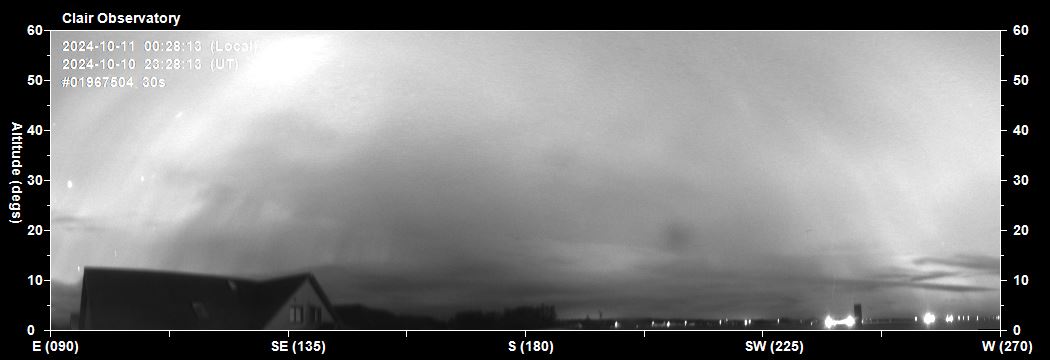

2024-10-10 23:28 UT (00:28 BST)
Continuation of major auroral activity, auroral rays stretching to zenith

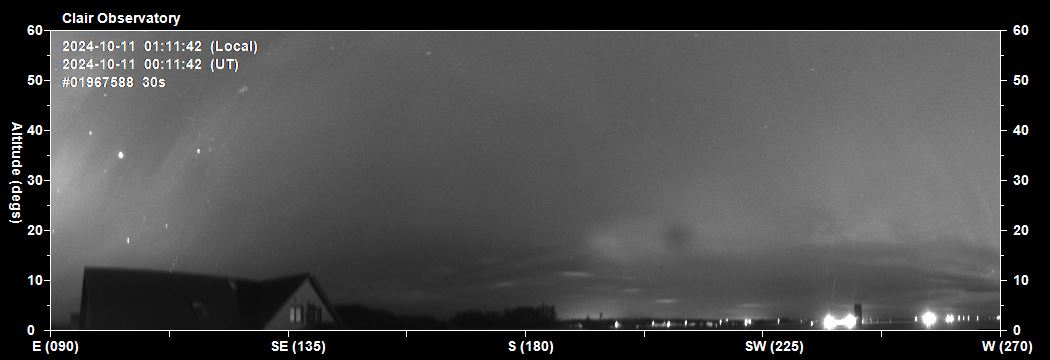

2024-10-11 00:11 UT (01:11 BST)
Aurora dimming, but rays still evident in eastern and western directions

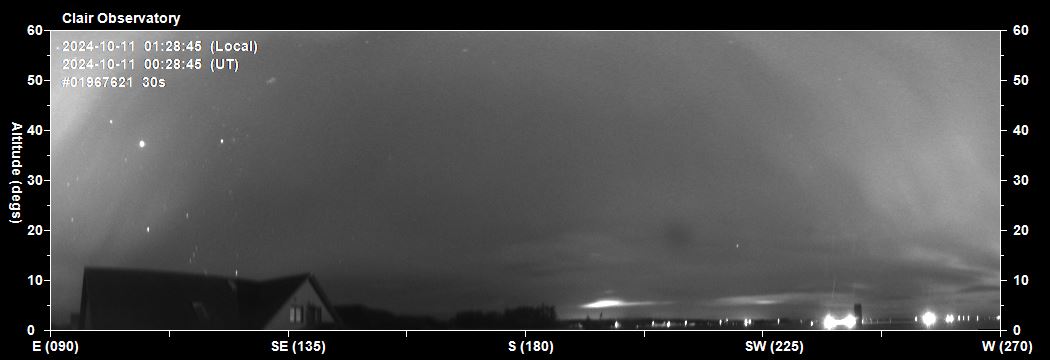

2024-10-11 00:28 UT (01:28 BST)
Aurora display in eastern & western sky

2024-10-11 00:43 UT (01:43 BST)
Aurora display in eastern sky / close to constellation of Orion
Light from Aberdeen City reflecting off clouds in S-SSW direction.

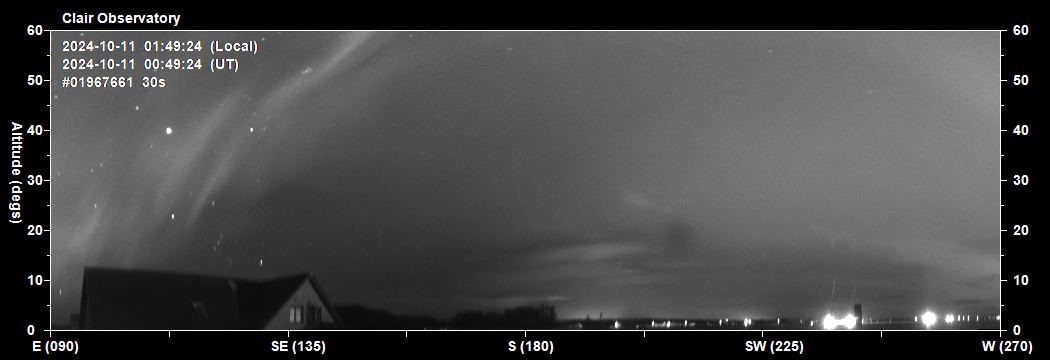

2024-10-11 00:49 UT (01:49 BST)
Moving auroral bands in ESE-SE sky , best seen in Southern Sky Video

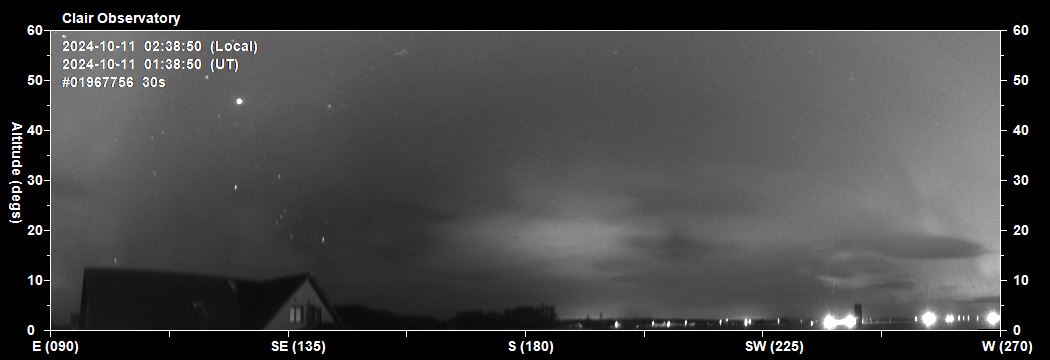

2024-10-11 01:38 UT (02:38 BST)
Aurora glow in eastern and western sky
Glow in southern sky is likely just light reflecting off clouds from Aberdeen City

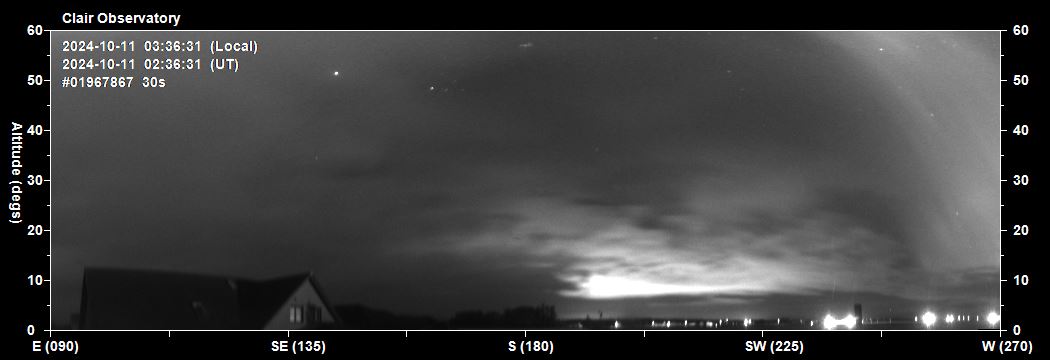

2024-10-11 02:36 UT (03:36 BST)
Auroral rays / activity in western sky. Cloud covering the eastern sky.
Light from Aberdeen City reflecting off clouds in S-SW direction.

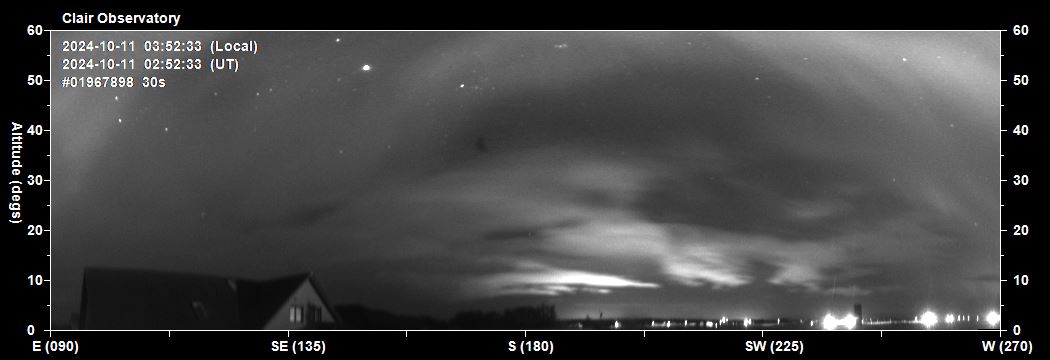

2024-10-11 02:52 UT (03:52 BST)
Auroral activity continuing in eastern, western and south/zenith directions.
Light from Aberdeen City reflecting off clouds in S-SSW direction.

30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: AllSky View, 9.5 hr period
2024-10-10 18:15 to 03:45 UT (19:15 to 04:45 BST)
 Frames #1966901 to 1968000
Link to .mp4 video file (5.4 MB)
0.0s / 0.0s


Video: North panoramic view, 11.25 hr period
2024-10-10 18:15 to 05:30 UT (19:15 to 06:30 BST)
 Frames #1966901 to 1968202
Link to .mp4 video file (11.0 MB)
0.0s / 0.0s


Video: South panoramic view, 9.5 hr period
2024-10-10 18:15 to 03:45 UT (19:15 to 04:45 BST)
 Frames #1966901 to 1968000
Link to .mp4 video file (9.1 MB)
0.0s / 0.0s



Back to Top

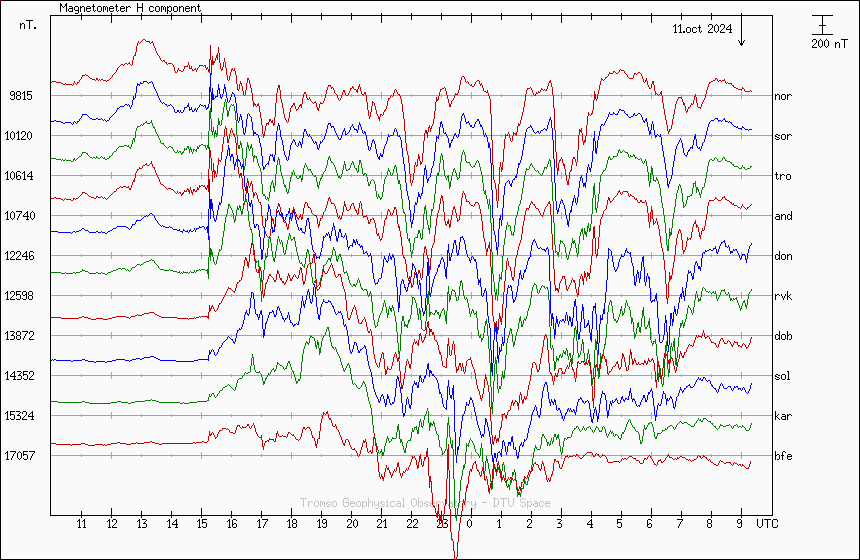

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2024-10-10 / 2024-10-11

Activity on 2024-10-10 / 11  between 15:15 and 07:30 UT with
peak activity at around 23:30 UT

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsų Geophysical Observatory  )

Original data from Tromsų Geophysical Observatory (TGO),
DTU Space (Technical University of Denmark)
and Finnish Meteorological Institute (FMI)
Data also displayed on SpaceWeatherLive's Europe Stackplot at
 http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Back to Top


Planetary K-Index Plot (for reference)

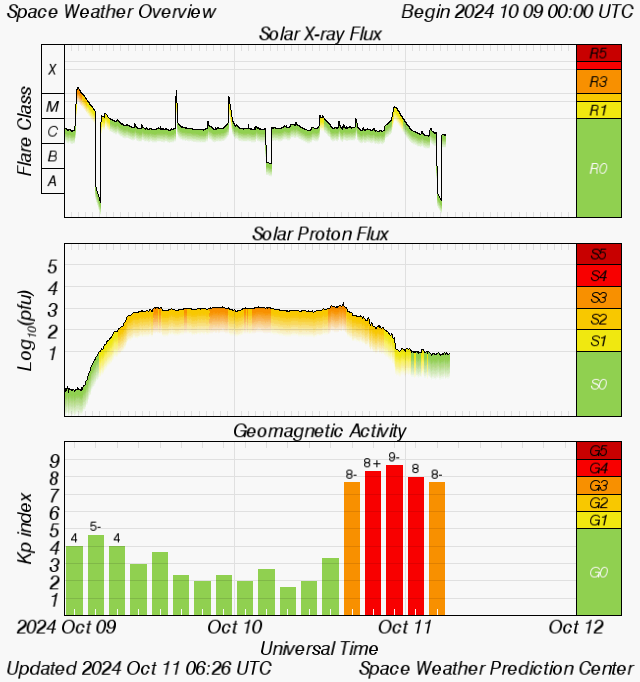

Estimated 3 hour Planetary K-Index (NOAA)
 (from http://services.swpc.noaa.gov)
Planetary-k-index_2024-10-10 / 2024-10-11

Not captured

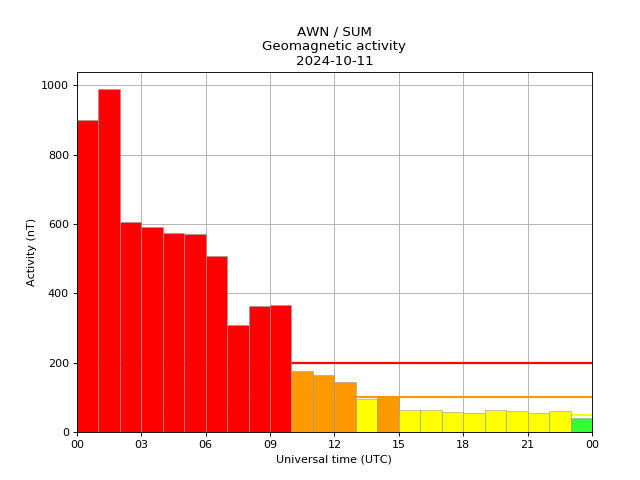

SAMNET's magnetometer at Crooktree, Near Torphins  (Chart Explanation)

-
Magnetometer activity on the night 2024-10-10 / 2024-10-11.
  showing very high activity all night with peak activity at 00:00 & 02:00 UT.

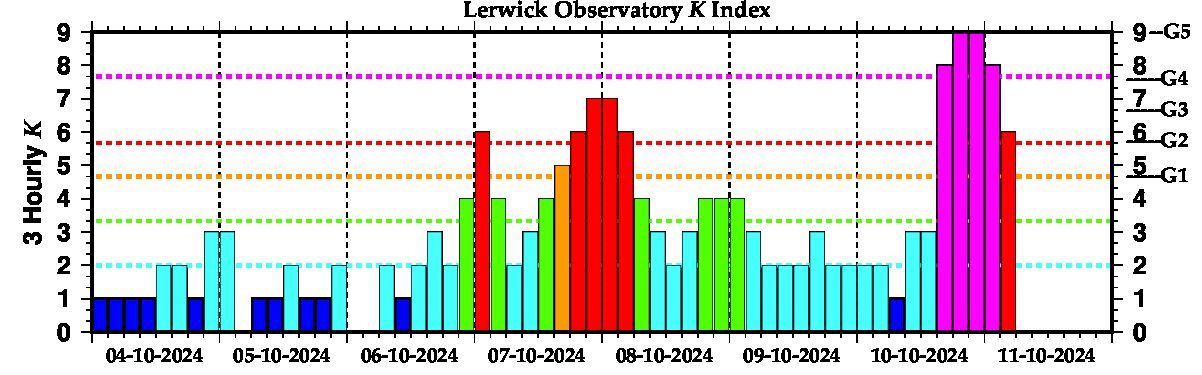

8-day Lerwick Observatory K Index
Showing max KP8- KP9 on the night of 2024-10-10 / 2024-10-11.



Planetary K-Index and other information (Space Weather Prediction Centre)
shows KP Index reaching max KP8-KP9 on night of 2024-10-10 / 2024-10-11



Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast for 2024-10-10 23:31 UT (00:31 BST)
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )


Back to Top
