Objects Session Notes
AT 2024vlc - Type CV? Transient AT 2024wqf - Type AGN Transient (4C 27.50) AT 2024xpy - Type BL Transient NGC 908 - Spiral Galaxy (Hidden Treasures 9, H I-153) PGC 3792 - Local Group Galaxy (Pisces Dwarf), 3.0 mly Variable Stars (photometric monitoring) - BL Lac - T CrB attempt failed (due to cloud/poor centering) Nearby Stars (astrometric monitoring) - None

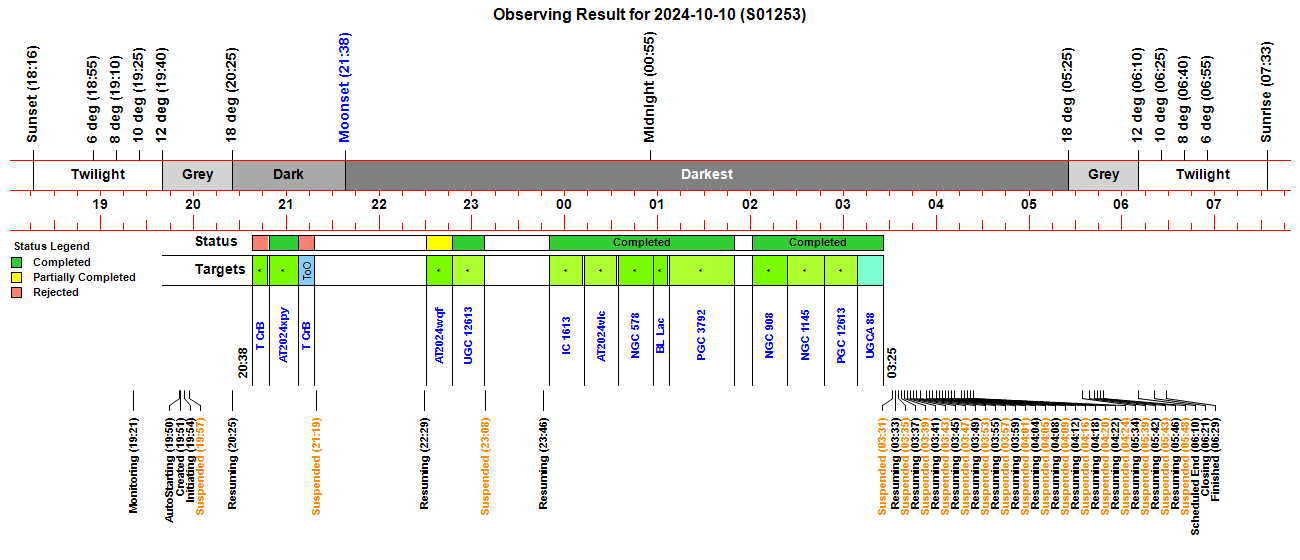

- Night Session (6.7 hrs), badly compromised by cloud and bright aurora-lit sky. Telescope connectivity lost at 03:14. - 12" LX200 + ST-10XME for imaging - TS 80mm APO + ZWO ASI178MC for guiding & imaging - Ambient Temperature: 5°C (min) - CCD Temperature: -20°C - Notes from 2024-10-10 >> - Aurora Images/Video from night, 2024-10-10/11 >>
 |
Back to Top
|
AT 2024vlc (Perseus) |
|
AT 2024vlc - 2024-10-10 (T+25.1d) Image below (2024-10-10.971) was taken 25.1 days after discovery of 2024vlc Position of reported transient (not visible) is shown by white cross-hairs Non-Detection Limiting Magnitude +17.5 (Clear Filter) Poor quaity image (bright aurora-lit sky, single frame) |
|
|
|
Annotated CCD Image (100% size, linear scale, cropped) 180s exposure (single frame), 3x3 binning, Clear Filter 2024-10-10 23:18 UT (#1253054) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
|
AT 2024vlc - Earlier Image 2024-09-19 (T+3.3d) Image below (2024-09-19.103) was taken 3.3 days after discovery of 2024vlc Position of reported transient (faint) is shown by white cross-hairs Measured Magnitude +16.30 (Clear Filter) |
|
|
|
Annotated CCD Image (100% size, linear scale, cropped) 5 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-09-19 02:37 UT (#1247074-78) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024vlc on Transients 2024 Page >> |
Back to Top
|
AT 2024wqf (Pegasus) |
|
AT 2024wqf - 2024-10-10 (T+16.7d) Image below (2024-10-10.899) was taken 16.7 days after discovery of 2024wqf Position of reported transient (fading) is shown by white cross-hairs Measured Magnitude +15.26 (Clear Filter) |
|
|
|
Annotated CCD Image (100% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-10 21:39 UT (#1253030-32) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024wqf on Transients 2024 Page >> |
Back to Top
|
AT 2024xpy (Hercules) |
|
AT 2024xpy - 2024-10-10 (T+6.0d) Image below (2024-10-10.828) was taken 6.0 days after discovery of 2024xpy Position of reported transient (fading) is shown by white cross-hairs Measured Magnitude +13.52 (Clear Filter) Object looks fainter that this ? and just 3 days later (T+10.0d) it is at mag +16.2 Relatively poor image (bright uneven sky background) |
|
|
|
Annotated CCD Image (100% size, square root scale, cropped) 3 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-10 19:57 UT (#1253013-15) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| Images of AT 2024xpy on Transients 2024 Page >> |
Back to Top
| NGC 908 (Cetus) Alias: H I-153, Hidden Treasures 9 [ Herschel 400 Objects ] [ Hidden Treasures ] |
| NGC 908 - Detail Poor quality image (bright aurora-lit sky background) Target to be re-scheduled for a later session |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 2 x 180s exposure (average combine), 3x3 binning, Clear Filter 2024-10-11 01:12 UT (#1253086-88) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
| NGC 908 - Earlier Image (2024-10-10) Poor quality image (single frame) Target to be re-scheduled for a later session |
 |
| Annotated CCD Image (125% size, square root scale, cropped) 60s exposure (single frame), 3x3 binning, Clear Filter 2024-10-10 00:04 UT (#1252062) 12" LX200R (at f/10.4) + ST-10XME (Autoguided using TS 80mm APO + ZWO ASI178MC) |
Back to Top
| PGC 3792 / Pisces Dwarf (Pisces) Expected location of PGC 3792 is shown by white circle Trace of some objects are just visible within circle and these might be part of the LG galaxy [ Local Group Galaxies ] Poor quality image (due to bright uneven sky background) Attempt to removal gradient producing various artefacts Total exposure : 35 mins |
|
| CCD Image (70% size, square root scale) 7 x 300s exposure (average combine), 3x3 binning, C Filter 2022-01-07 21:38 UT (#950087-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| PGC 3792 / Pisces Dwarf - Earlier Image (2022-01-07) Image contrast pushed to limit in order to see PGC 3792 / Pisces Dwarf (centre) but it exposes uneven sky background & smears on front of CCD sensor (particularly in lower left) Total exposure : 35 mins Bright star in lower right is HIP 4947 (mag 9.08) |
|
| CCD Image (70% size, square root scale) 7 x 300s exposure (average combine), 3x3 binning, C Filter 2022-01-07 21:38 UT (#950087-93) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
| PGC 3792 / Pisces Dwarf - Reference Image |
|
| Credit : Deidre A. Hunter, CC BY-SA 2.5 <https://creativecommons.org/licenses/by-sa/2.5> via Wikimedia Commons |
| PGC 3792 / Pisces Dwarf - Earlier Image (2020) Expected location of PGC 3792 shown by white circle |
|
| CCD Image (70% size, square root scale) 3 x 180s exposure (summed), 3x3 binning, C Filter 2020-12-20 22:06 UT (#840107-11) 12" LX200R (at f/10.4) + ST-10XME Auto-guided using TS 80mm APO, ZWO ASI178MC & PHD2 |
