David's Astronomy Pages (All Sky Camera)
Aurora on night 2024-11-05 / 2024-11-06 - Under Construction

Aurora Notes
Bullet Night Summary (Keogram) Plot
Bullet AllSky Pictures
Bullet Videos
Bullet Magnetometer Stack Plots (for reference)
Bullet Planetary K-Index Plot (for reference)
Bullet Aurora Forecast, NOAA/Ovation (for reference)
- Auroral activity on the night 2024-10-26 / 2024-10-27 associated with geomagnetic activity up to KP4.

Skies in NE Scotland were affected by some cloud / rain in the first part of the evening but then cleared to reveal the aurora display.

Activity was visible from the Clair Observatory (+57N) on 2024-10-26 / 27 from 20:25 to 01:15 UT (21:25 BST to 01:15 GMT), a period of nearly 4.4 hours. The start of the aurora activity was almost certainly hidden by cloud.

Observed activity comprised an auroral arc to 11-12°, moving curtains at times and rays to around  20-25° altitude.

Scandinavia magnetometers showed activity between 19:00 and 01:30 UT with peak activity at 19:30-21:20 UT and at 00:30 -01:00 UT.

SpaceWeather.com (2024-10-26) reported :

"A MINOR CME IMPACT JUST HAPPENED: As expected, a CME grazed Earth on Oct. 26th (1600 UT). The impact was weak, barely increasing solar wind speeds near Earth. Nevertheless, geomagnetic storms are still possible in the hours ahead. Often, the tails of CMEs are more effective than the CMEs themselves. High-latitude auroras are possible tonight as Earth passes through the CME's magnetized wake "

SpaceWeather.com (2024-10-27) reported :

"A CME gently grazed Earth's magnetic field on Oct. 26th. At first it seemed like nothing would happen. Then, "the sky exploded," says Terence Murtagh, who took this picture using his iPhone 16 outside Tromso in Norway: "

- Telescope Images from night 2024-11-05 >>

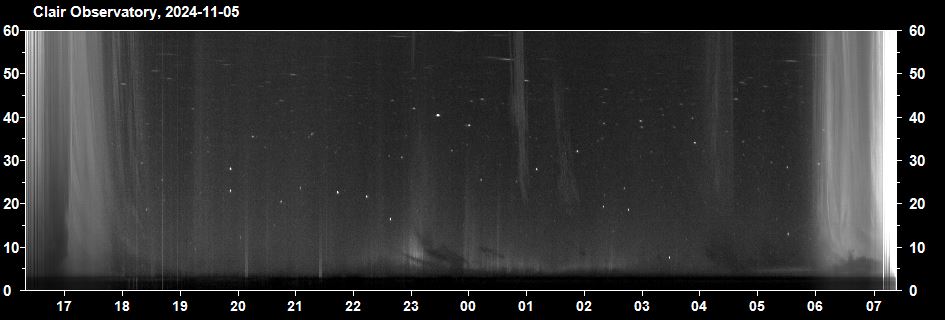

Night Summary (Keogram) Plot

Night Summary Plot - North Sky (2024-11-05 / 06)
Times on plot are local times (GMT  = UTC +00h )
Aurora noticeable on keogram from x BST to x BST
( Note: A dark band at around 19-23°  altitude on previous Aurora night is now fixed )

Back to Top


Pictures (AllSky Camera)



Panoramic View - Northern Sky

2024-10-26 20:33 UT (21:33 BST)
First sign of aurora with rays and curtains in WNW-NW Sky
from 20:25 onwards, best seen in video.

AllSky Camera is affected by light artefact / internal reflection associated from neighbours light
condensation inside perspex hemisphere in NW direction, rain drops / arfefacts left from rain spell in beginning of evening


2024-10-27 00:43 UT (01:43 BST)
Activity weakening



30s exposures taken with Oculus All Sky Camera

Back to Top


 Videos

Video: North panoramic view, 5.5 hr period
2024-10-26 20:15 to 01:45 UT (21:15 BST to 01:45 GMT)
 Frames #1991566 to 1992201
Link to .mp4 video file (8.0 MB)
0.0s / 0.0s




Back to Top

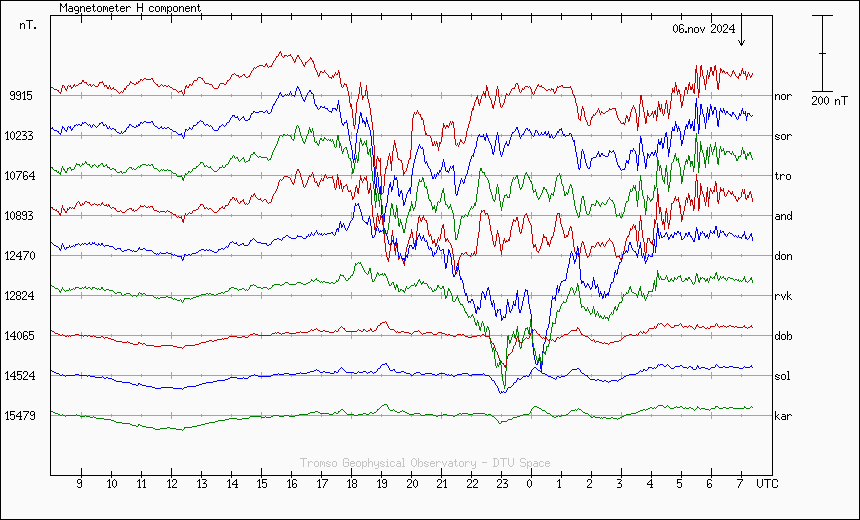

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude)
H Component - 2024-11-05 / 2024-11-06

Activity on between 19:00 and 01:30 UT with
peak activity at 19:30-21:20 and at 00:30 -01:00 UT

Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)
Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsų Geophysical Observatory  )

Original data from Tromsų Geophysical Observatory (TGO),
DTU Space (Technical University of Denmark)
and Finnish Meteorological Institute (FMI)
Data also displayed on SpaceWeatherLive's Europe Stackplot at
 http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Back to Top


Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)
 (from http://services.swpc.noaa.gov)
Planetary-k-index_2024-11-05 / 2024-11-06

Not captured

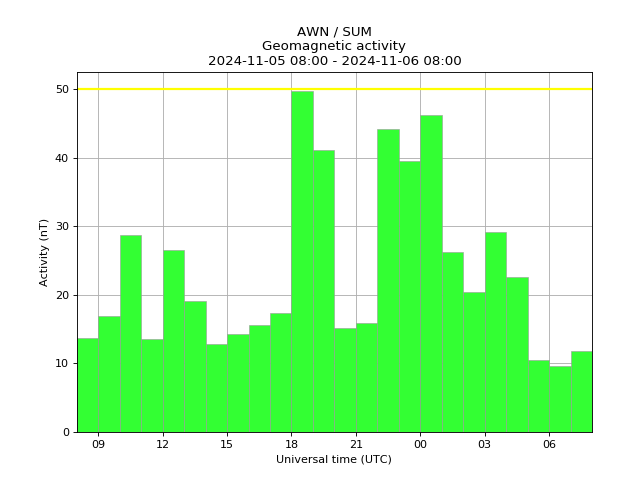

SAMNET's magnetometer at Crooktree, Near Torphins  (Chart Explanation)

-
Magnetometer activity on the night 2024-11-05 / 2024-11-06
  showing moderate activity with peak activity atx UT, with a later peak atx UT

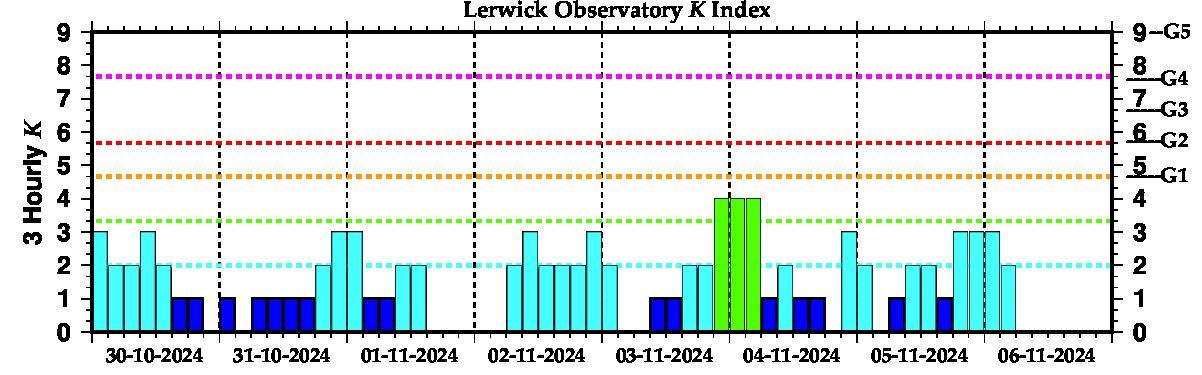

8-day Lerwick Observatory K Index
Showing max K3 on the night of 2024-11-05 / 2024-11-06

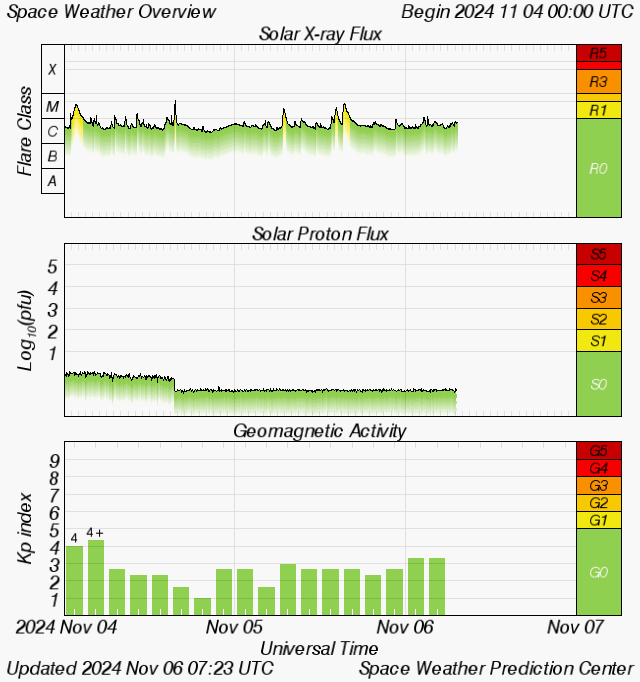

Planetary K-Index and other information (Space Weather Prediction Centre)
shows KP Index reaching max KP4 on night of 2024-11-05 / 2024-11-06



Back to Top


Aurora Forecast, NOAA/Ovation (for reference)

Aurora Forecast for 2024-11-26 20:48 UT (21:48 BST)
(From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )


Back to Top
